Metallicity effects on classical Cepheids: Velocity curve morphology of outer disc Cepheids[*]

F. Pont1 - F. Kienzle2 - W. Gieren3 - P. Fouqué4,5


1 - Departamento de Astronomia, Universidad de Chile, Casilla 36-D, Santiago, Chile
2 - Observatoire de Geneve, 51 Ch. des Maillettes, 1290 Sauverny, Switzerland
3 - Departamento de Física, Universidad de Concepción, Casilla 160-C, Concepción, Chile
4 - Observatoire de Paris, Section de Meudon, Place Jules Janssen, 92195 Meudon Cedex, France
5 - European Southern Observatory, Casilla 19001, Santiago 19, Chile

Received 26 January 2001 / Accepted 12 March 2001

Abstract
We present new radial velocity data for eleven classical Cepheids situated in the outer parts of the Galactic disc. The resultant velocity curves for these metal-deficient Cepheids are decomposed in Fourier parameters, and compared to solar-metallicity Cepheid data, in order to study the effect of metallicity on the pulsation properties. Up to $P\simeq$ 8 days, the $\phi _{21}$ phase shift is found to follow very closely the corresponding sequence for solar-metallicity Cepheids, indicating the absence of metallicity effects on $\phi _{21}$ for low periods. However, metal-deficient Cepheids show a slightly larger A1 amplitude and R21 amplitude ratio for P<5 days. At P>12 days, there is some evidence that the $\phi _{21}$ phase shift is significantly larger for metal-deficient Cepheids than at solar metallicity. A posteriori, this effect is also detected in photometric data for outer disc and LMC Cepheids in the 12-20 day period range. In good qualitative agreement with the predictions of theoretical pulsation models, we therefore see some indication of a metallicity dependence of the P2/P0 resonance properties. The largest effects on velocity curve shape are expected in the crucial 8-12 day period range - around the P2/P0resonance for fundamental-mode Cepheids - that is not covered by our data. Possible targets for future measurements are suggested to fill this gap, and to improve the quantitative determination of metallicity effects on the structural properties of Cepheid velocity curves.

Key words: stars: variable: Cepheid


1 Introduction

Pulsating stars are among the principal tools to explore the adequacy of stellar structure and stellar evolution models. Classical Cepheids are the best studied of all pulsating stars, due to their key role as extragalactic distance estimators. The shape of their light or velocity curves in particular, can constrain structure and pulsation models. Hertzsprung (1926) noticed that the shape of Cepheid light curves varies along with the pulsation period: the curves exhibit a secondary "bump" that crosses the main sinusoidal signal at a period of about 10 days. This so-called "Hertzsprung progression" is related to the 2:1 resonance between the fundamental eigenmode P0 and the second overtone P2 (Buchler et al. 1990)[*]. It can therefore be used to derive information on the pulsation mechanism, the structure and the mass of a Cepheid, leading for instance to pulsational mass estimations ("bump mass"), that can be compared to the masses derived from evolution models (Cox 1980; Moskalik et al. 1992).

However, the light curve is less suitable than the radial velocity curve for precise constraints on resonances and on the pulsation mechanism. Since resonance is a dynamical phenomenon, it is better traced by a dynamical quantity such as the radial velocity than by photometry which, especially in the visual, is more affected by temperature changes than by actual pulsating motions. A dramatic illustration of this fact is given by Kienzle et al. (1999) and Feuchtinger et al. (2000) in their study of overtone Cepheids. In that case, while the light curve parameters were suggestive of a resonance near P=3 days, the velocity curves unambiguously indicated that the resonance is at P=4.2 days. For this reason, the analysis of radial velocity data is essential to refine the indications derived from the more abundant photometric data.

Light or velocity curve morphologies can be quantified by Fourier series fitting, the resulting amplitudes and phase being combined into Fourier parameters (Simon & Lee 1981). The most important parameter describing the Hertzsprung progression is $\phi _{21}$, the phase shift between the first and second order (see Sect. 3 for a precise definition). It constrains the position of the P2/P0 resonance, the feature that dominates the variation of Cepheid pulsation curve shape with period. Two other parameters are also very informative: A1, the semi-amplitude of the first order, and R21, the amplitude ratio of the second and first orders.

The P2/P0 resonance for Galactic Cepheids of solar metallicity is well studied and its position has been accurately measured by Moskalik et al. (1999) from the $\phi _{21}$ progression using radial velocity data for 82 Cepheids. However, the effect of metallicity on the location of this resonance is an open question. The precise position of the resonance, and its evolution with the metallicity, is important to constrain the new generation of pulsation models taking into account evolution (Alibert et al. 1999) and convection (Bono et al. 2000b; Feuchtinger et al. 2000). An accurate determination of the effect of metal-deficiency on Fourier parameters can lead to improvements in the models themselves, to a better understanding of the effect of metallicity, and ultimately to more confident predictions about the metallicity effects on the Cepheid distance scale - presently a very debated question (Tanvir 1999; Caputo et al. 2000). The radiative pulsation models (with frozen convection approximation) of Buchler (1997) predict a significant metallicity dependence on the shape of the $\phi _{21}$ progression, mainly in the form of a reduced variation of $\phi _{21}$ around the resonance period, while observational results from the extensive photometric data of the LMC and SMC microlensing experiments indicate roughly unchanged Fourier parameters around the resonance - although Antonello et al. (2000) recently suggested that the $\phi _{21}$ feature may be very weak in the metal-poor irregular galaxy IC 1613. As for radial velocity data, there is at present no quantitative estimate of curve morphology evolution for metal-deficient Cepheids.

Cepheids in the Galaxy follow a radial metallicity gradient of the order of -0.07 dex/kpc (Harris 1981). Consequently, Cepheids located near the edge of the Galactic disc, at galactocentric distances in the range 12-14 kpc, have an abundance similar to LMC Cepheids, [Fe/H $]\sim -0.3$ dex.

As a first step towards the determination of the properties of the P2/P0 resonance at low metallicities, we present new radial velocity data for outer disc metal-poor Cepheids, and analyse their Fourier decomposition parameters. These objects are studied in the context of a programme of distance determination by the surface brightness technique, in order to determine the effect of metallicity on Cepheid absolute magnitudes (Gieren et al. 1997; Fouqué & Gieren 1997). The present study is an initial by-product of that programme.

2 Observations

The 11 programme targets were chosen from the list of 50 outer disc Cepheids in Pont et al. (1997). These are classical Cepheids in the outer disc of the Galaxy with galactocentric distances between 11 and 14 kpc (assuming R0=8 kpc), and are moderately metal-deficient ([Fe/H $]\simeq-0.2$ to -0.4 dex).

A total of 202 spectra were obtained on the Coralie spectrometer installed on the Euler telescope at La Silla, Chile, between 25 December 1999 and 11 March 2000. Coralie is an improved copy of the Elodie instrument (Baranne et al. 1996), a high-resolution ( $R \sim 45\,000$) echelle spectrometer optimized for radial velocity determinations. Radial velocities for the Cepheid spectra were determined on-line by cross-correlation with a numerical template based on an F0 spectrum. The timing of the observations was carefully chosen in order to obtain regular phase coverage along the pulsation cycle. The exposure times were between 6 and 30 min depending on target magnitude. The uncertainties are typically in the 0.3-0.6 km$\,$s-1 range. Simultaneous visual and infrared photometry was also obtained for the target stars on the YALO telescope at Cerro Tololo, Chile, in view of a radius and distance determination using the surface brightness technique. The radial velocity data is available on request to the first author and will be published in extenso later, along with the photometric data (to be reduced). The individual radial velocity curves are displayed in Fig. 1.

  \begin{figure}

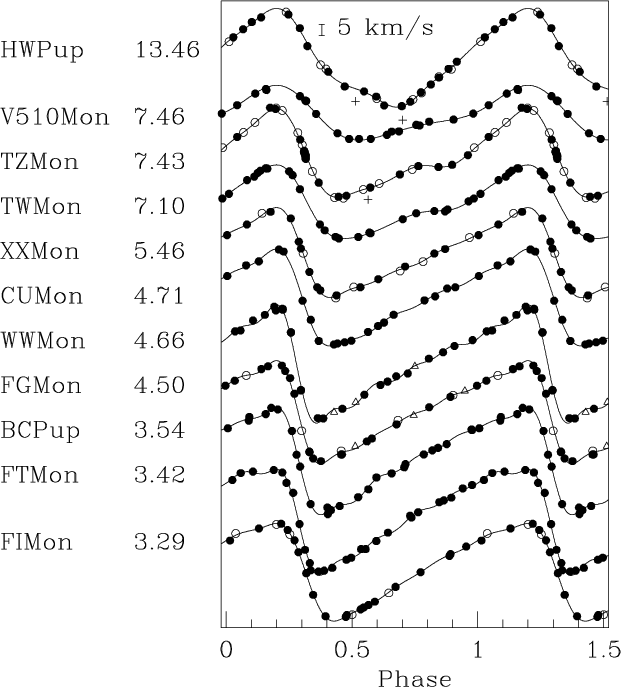

\par\includegraphics[width=8.8cm,clip]{aa1057_fig1.eps} \end{figure} Figure 1: Radial velocity curves for our program Cepheids. Object names and periods (in days) are indicated on the left side of the plot. The period values are given in Table 1 and discussed in Sect. 3. Dots - CORALIE and ELODIE data, Circles - CORAVEL data, Triangles - Interpolated points, Crosses - Rejected points. Error bars are smaller than the symbol size.
Open with DEXTER

The uncertainties computed by the Coralie on-line reduction procedure have been checked by acquiring ten spectra of TZ Mon in rapid succession on the night of 1st January 2000. The observed dispersion in the computed radial velocities was found to confirm the validity of the stated uncertainties.

The radial velocity measurements obtained with Coralie were pooled with previous measurements for the same objects published in Pont et al. (1994) and Pont et al. (1997), measurements realized with the Elodie and Coravel spectrometer on the 1.93-m telescope and Swiss telescope respectively, at Observatoire de Haute-Provence (France) between 1984 and 1997. The Elodie and Coralie radial velocity zero-points are very nearly identical, having been cross-calibrated to the level of a few meters per second in the context of planet searches (the Coralie team, priv. comm.). Coravel measurements have also been put on the Elodie/Coralie scale, as explained by Udry et al. (1999), using a transformation depending on colour and velocity. The uncertainties on this transformation are of the order of 0.1 km$\,$s-1. Measurements uncertainties for faint Cepheids are typically 0.3-0.6 km$\,$s-1 with the Coralie and Elodie spectrometers and 0.5-1.0 km$\,$s-1 with Coravel.

In total, 20 to 37 radial velocity measurements are available for each of the programme stars, defining their velocity variations very accurately (see Fig. 1).


3 Fourier parameters

The velocity curves were decomposed in Fourier sine series of 3rd to 6th order by unweighted[*] least-square fitting, as described in Kienzle et al. (1999). The amplitudes Ak and the phases $\phi_{k}$ of the harmonics were combined according to the usual definition of the Fourier parameters to form the amplitude ratios Rk1=Ak/A1 and the phase shifts $\phi_{k1}=\phi_{k}-k\phi_{1}$. In all cases, the number of points and careful phase coverage allowed a very accurate determination of the first Fourier parameters, $\phi _{21}$, A1 and R21.

The points with residuals higher than 2.5 $\sigma $ from the fitted curve were removed (crosses in Fig. 1). All these points are Coravel measurements, with higher observational uncertainties. As Fourier decomposition may perform poorly in pulsation curves with a linear ascent followed by a steep descent (periods near 4.5 days), we added interpolated points in the ascending part of the velocity curve in two cases - FG Mon and WW Mon - in order to avoid unrealistic excursions of the fitted curve. The period was either fixed to the value quoted in the General Catalogue of Variable Stars (Kholopov et al. 1998) or left as a free parameter, depending on the quality of the phasing of the radial velocity data. The period of WW Mon was fixed at 4.66221 days (while $P_{{\rm GCVS}}=4.66231$ days) in order to phase Elodie and Coralie data. HW Pup data were supplemented with the points of Metzger et al. (1992) to fit the period. Only our measurements were then used to derive the Fourier parameters. Two stars (namely FG Mon and FI Mon) show a significant velocity shift between Coravel and Coralie data sets, probably due to binarity. This is not unexpected in a sample of eleven Cepheids, given the frequency of Cepheids in binary systems (e.g. Gieren 1982; Szabados 1996). In both cases Coravel data have been shifted, by 3.15 km$\,$s-1 (FG Mon) and 1.3 km$\,$s-1 (FI Mon), with respect to Coralie velocities in order to match the latter points.

The resulting Fourier parameters are given in Table 1,




Table 1: Fourier parameters for outer disc Cepheids, with associated uncertainties. M, N and $\sigma $ are, respectively, the number of datapoints, the order of the fit and the standard deviation of residuals. The uncertainty on the period is indicated only when it was a free parameter. A0 corresponds to the center-of-mass radial velocity, A1 is the semi-amplitude of the first order, R21 the amplitude ratio of the two first orders, and $\phi _{21}$ their phase shift. $R_{\rm GC}$ is the galactocentric distance, and [Fe/H] the metallicity calculated from $R_{\rm GC}$ using a radial metallicity gradient of -0.07 dex/kpc.
Star Period [d] M N $\sigma $ [kms-1] A0 [kms-1] A1 [kms-1] R21 $\phi _{21}$ $R_{\rm GC}$ [kpc] [Fe/H]


HW Pup 13.457423 30 5 0.728 117.456 19.877 0.124 4.246 13.8 -0.40
  -       0.152 0.232 0.012 0.081
V510 Mon 7.457428 20 3 0.481 63.424 9.879 0.421 3.594 12.5 -0.30
  0.000111       0.112 0.151 0.018 0.053
TZ Mon 7.428134 37 5 0.554 53.933 14.921 0.552 3.619 11.4 -0.25
  0.000019       0.112 0.163 0.014 0.033
TW Mon 7.097064 24 5 0.388 82.938 12.887 0.508 3.510 13.6 -0.40
  0.000089       0.087 0.129 0.014 0.027
XX Mon 5.456543 22 5 0.899 66.383 15.555 0.432 3.253 12.1 -0.30
  0.000016       0.207 0.310 0.023 0.060
CU Mon 4.707547 20 5 0.962 61.542 17.007 0.442 3.078 13.5 -0.40
  0.000083       0.256 0.335 0.025 0.064
WW Mon 4.662210 24 6 1.790 52.566 18.327 0.492 3.046 12.2 -0.30
  -       0.370 0.543 0.034 0.084
FG Mon 4.496590 24 6 1.178 91.501 17.214 0.460 3.019 13.6 -0.40
  -       0.245 0.340 0.023 0.066
BC Pup 3.544217 26 6 1.109 90.787 18.725 0.441 2.916 12.9 -0.35
  0.000051       0.277 0.356 0.022 0.062
FT Mon 3.421740 28 6 1.421 55.147 19.351 0.403 2.946 13.0 -0.35
  -       0.302 0.424 0.026 0.072
FI Mon 3.287822 25 5 0.580 86.105 18.656 0.370 2.950 12.2 -0.30
  -       0.136 0.183 0.011 0.041


and the progression with period of the $\phi _{21}$, A1 and R21 parameters is illustrated in Fig. 2.
  \begin{figure}

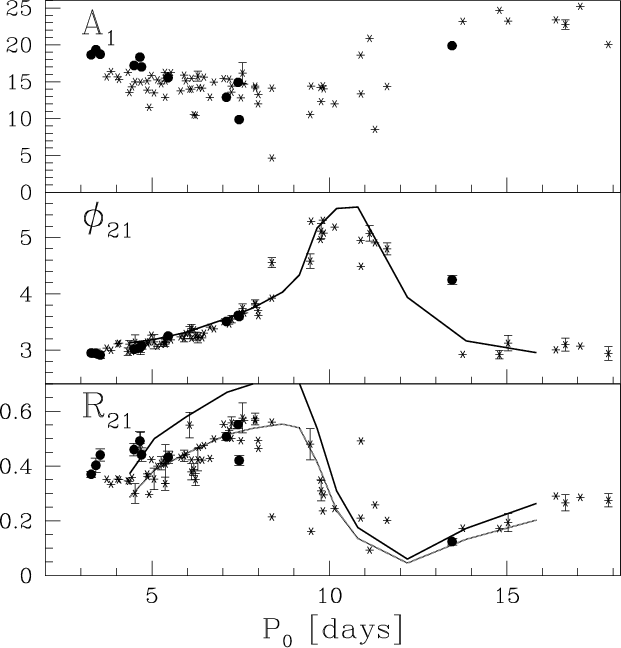

\par\includegraphics[width=8.8cm,clip]{aa1057_fig2.eps} \end{figure} Figure 2: Radial velocity semi-amplitude A1 (km$\;$s-1), phase shift $\phi _{21}$ (rad) and amplitude ratio R21 ( top, middle and bottom plot respectively) versus pulsation period. Asterisks - Solar neighbourhood sample from Moskalik et al. (1999). Dots - Our outer disc sample. Error bars are plotted only when larger than symbol size. The theoretical progression according to the 2:1 resonance scenario is shown as a solid line. The resonance period ($P_{\rm r}$) has been fixed to 10.003 days (P. Moskalik, priv. comm.). As the theoretical amplitude ratio depends on the artificial viscosity parameter, it can be scaled by an arbitrary factor. In the R21 plot a scaling factor of 0.77 has been applied (dotted line) to the original curve (solid line). The isolated point at P=13.46 days is HW Pup.
Open with DEXTER

The outer disc Cepheid data are plotted as dots along with solar-neighbourhood data (asterisks) from Moskalik et al. (1999).

4 Discussion

The progression in $\phi _{21}$ outlined in Fig. 2 by the outer disc Cepheids is very sharply defined for 3<P<8 days, showing both that the Fourier parameter determination is very accurate, and that the phase shift depends essentially only on the pulsation period. The sequence defined by our metal-deficient targets is indistinguishable from the solar-neighbourhood sequence for low periods, indicating a negligible metal dependence in this regime. This tends to confirm the indication from photometric sequences, which do not show a metallicity dependence either (Udalski et al. 1999a), and is in marginal conflict with the models of Buchler (1997) which predict a dependence of about 0.2 rad in this period range.

The fact that the period-$\phi _{21}$ relation is so tight also indicates that the instability strip is very narrow in this period range (Buchler et al. 1990), possibly narrower than for solar metallicity.

The semi-amplitude A1 and amplitude ratio R21 are significantly higher for metal-deficient Cepheids at the shortest periods, P<5 days, than for solar-metallicity Cepheids. The excess of R21 is in qualitative agreement with the predictions from the Buchler (1997) models. Our Cepheids are also seen to reach a lower minimum period than in the solar neighbourhood, a decrease related to metallicity effects on stellar evolution, abundantly documented in the LMC and the SMC microlensing data (Baraffe et al. 1998; Bauer et al. 1999).

The higher scatter in the A1 and R21 amplitudes - compared to the $\phi _{21}$ sequence - is real given the very small uncertainties on these numbers for our programme stars. This scatter is also observed in the solar neighbourhood sample, and is thought to reflect a dependence of pulsation amplitude at a given period on the exact location of a Cepheid in the instability strip (Bono et al. 2000).

Our sample unfortunately contains no object in the period range 8-12 days, near the P2/P0 resonance, where metallicity effects would be easiest to detect. The reason for this absence is simply that all objects in this period range in Pont et al. (1997) are situated in the northern hemisphere, out of reach of the Euler telescope at La Silla. These objects - AD Cam, AA Gem, HZ Per, SV Per - should be considered for future radial velocity observations from the north.

The only long-period object in our sample, HW Pup at P=13.45 days, is situated on the other side of the resonance. Its $\phi _{21}$ parameter is markedly higher than the solar-neighbourhood value, which could indicate a metallicity effect.

However, the possibility of HW Pup being a type II Cepheid should first be considered. Type II Cepheids are stars both older and less massive than classical Cepheids, that are about 1.5 mag fainter and have slightly different pulsation curve shapes. Their kinematical properties are typical of the thick disc, and they are usually detected by their high galactic latitude. Fernie & Ehlers (1999) have shown that, for periods between 10 and 20 days, type II Cepheids have a larger $\phi _{21}$ phase shifts, at a given period, than classical Cepheids (see Fig. 1 of Fernie & Ehlers 1999). Although their study was based solely on light curves, a similar effect can be expected on the velocity curve, and HW Pup possesses a $\phi _{21}$ parameter compatible to the type II locus.

In order to check whether the parameters of HW Pup are typical or standing out among other outer disc Cepheids, we examined the photometric data. The V-band light curve of 8 outer disc Cepheids from Pont et al. (1997) with periods between 12 and 26 days were decomposed in Fourier coefficients (the eight objects are CY Aur, YZ Aur, BM Per, HZ Per, OT Per, HW Pup, VZ Pup and AD Cam). The results, displayed in Fig. 3,

  \begin{figure}

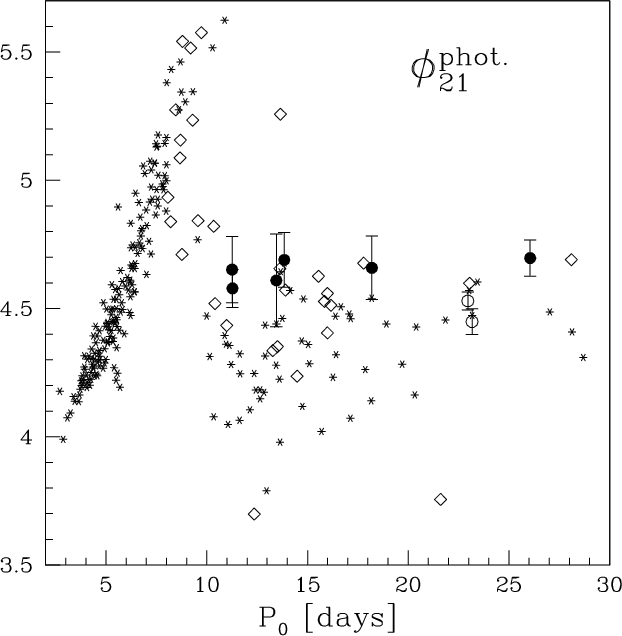

\par\includegraphics[width=8.8cm,clip]{aa1057_fig3.eps} \end{figure} Figure 3: Photometric phase shift $\phi _{21}^{\rm phot}$ for: filled circles - Outer disc Cepheids. Open circles - Outer disc Cepheids with mean Vr more than 25 kms-1 from a flat Galactic rotation curve at $v_{\rm circ.}=220$ kms-1, namely BM Per (P=22.96 day) and VZ Pup (P=23.17 day). The photometric data were taken from Moffett & Barnes (1984) and Berdnikov (1986, 1992). Asterisks - Solar neighbourhood Cepheids according to Antonello & Morelli (1996) and Moskalik (priv. comm.). Diamonds - LMC Cepheids from the OGLE survey (Udalski et al. 1999a).
Open with DEXTER

show that the photometric $\phi _{21}$ of HW Pup is perfectly normal for an outer disc Cepheid, and that indeed outer disc Cepheids as a whole have systematically larger $\phi _{21}$ than solar-neighbourhood Cepheids in the period interval between 12 and 20 days, higher by about half a radian. For these 8 objects, the residuals of the center-of-mass radial velocities around a constant rotation curve at $v_{\rm circ}=200$ kms-1 have a dispersion of 12.1 km$\,$s-1. Such a small velocity dispersion, characteristic of the young thin disk, excludes an important contamination by type II Cepheids. It is therefore concluded that HW Pup is very probably a genuine classical Cepheid, not a type II Cepheid, and that its higher $\phi _{21}$ in radial velocity is typical of outer disc Cepheids in that range of period, indicating a metallicity effect.

A posteriori, a hint of the same effect can be seen in the LMC photometry from the OGLE survey (Udalski et al. 1999a). We have Fourier decomposed the V lightcurves of OGLE LMC Cepheids and their $\phi _{21}$ parameters are shown in Fig. 3. The $\phi _{21}$ excess between 12 and 20 days visible in LMC data is compatible with the position of our outer disc objects, $\sim$0.5 radian above the solar metallicity sequence. SMC Cepheids (Udalski et al. 1999b) and IC 1613 objects (Antonello et al. 2000) do not show a further increase of $\phi _{21}$. If due to metallicity, the increase appears to occur mostly in the metallicity range between solar and around half-solar with little or no further change below half-solar.

Interestingly, such a metallicity effect is reminiscent both in direction and amplitude of the model predictions of Buchler (1997). The models predict a rapid increase of $\phi _{21}$ for half-solar metallicity and periods above 10 days.

To confirm this conjecture, velocity curves for outer disc and LMC Cepheids should be gathered in the 8-20 days period range. Our measurements provide a precise definition of the Fourier parameter progression in the 3-8 day period range, and a solid suggestion of a $\phi _{21}$ excess around P=13 days. The next step is to extend this work near and above the resonance period. If our tentative scenario is correct, we would expect a significantly smaller resonance peak in the $\phi _{21}$ - period relation than for solar-metallicity Cepheids. Apart from the four northern outer disc Cepheids mentioned above, the natural candidates are LMC and SMC Cepheids. Up to now, there is little velocity data for Magellanic Clouds Cepheids, but several studies are in progress (Gieren et al. 2000; Storm et al. 2000) that may soon yield well-covered velocity curves in this period range.

Finally, we point out the interesting possibility that the common $\phi _{21}$excess of local type II Cepheids (Fernie & Ehlers 1999) and outer disc Cepheids for P=10-20 days may not be a coincidence: the increased phase shift for type II Cepheids could also be caused by metal deficiency, type II Cepheids belonging to a thick disc population markedly more metal-poor than local classical Cepheids. The metallicity effect on pulsation curve morphology may thus be similar regardless of Cepheid type.

5 Conclusions

We have analysed the velocity curve morphology of a set of 11 metal-deficient Cepheids situated in the outer disc of the Galaxy. The data were acquired in the context of a programme to derive surface-brightness distances to metal-poor Cepheids. The radial velocity curves were decomposed in Fourier components, and the progression of the coefficients with period compared to the solar-neighbourhood data.

We show that in the period interval 3-8 days covered by our sample, there is no significant dependence of the $\phi _{21}$ parameter on metallicity. On the contrary, our sample very precisely follows the period-$\phi _{21}$ relation defined for solar metallicity. There are however some effects of metallicity on velocity curve morphology. For P<5 days, the A1 amplitude and R21 amplitude ratio are slightly higher and the minimum period decreases markedly, for lower metallicity Cepheids.

However, photometric data and model predictions indicate that most of the effect of metallicity deficiency is likely to occur for P>8 days. Our only object in that range is HW Pup, which shows a $\phi _{21}$ phase shift as much as 1 radian above the solar metallicity counterpart. A similar difference is observed for the photometric $\phi _{21}$ for outer disc Cepheids with P>12 days, as well as for LMC Cepheids. This indicates that even for a moderate metallicity deficiency (as compared to solar), the $\phi _{21}$ progression may be rather metallicity sensitive. This effect seems to saturate for metallicities lower than LMC. However complementary data for P=8-15 days are needed before any definitive conclusion can be reached.

Acknowledgements

F. P. gratefully acknowledges support from Fondecyt postdoctoral grant 3000056 and from the Astronomy Department of Universidad de Chile, F. K. and F. P. from the Swiss National Fund for Scientific Research. W. G. is very grateful to Michel Mayor for the allocation of observing time for this program at the La Silla Swiss telescope. He also acknowledges financial support received by Fondecyt project No. 8000002. We warmly thank P. Moskalik for sending us his Fourier parameters prior to publication. We made use of the McMaster Cepheid Photometry and Radial Velocity Data Archive (dogwood.physics.mcmaster.ca/Cepheid/HomePage.html).
