A&A 376, 820-824 (2001)
DOI: 10.1051/0004-6361:20011036

Planetary nebula candidates in a southern region of M33[*]

L. J. Corral 1 - A. Herrero 1,2


1 - Instituto de Astrofísica de Canarias, c/Vía Lactea s/n, 38205 La Laguna, Spain
2 - Departamento de Astrofísica, Universidad de La Laguna, Avda. Astrofísico Francisco Sánchez, s/n,
38071 La Laguna, Spain

Received 24 August 2000 / Accepted 11 July 2001

Abstract
In a search for emission line objects made in a southern region of M33 using narrow band filters centered on [O III], H$\alpha $ and adjacent continua, we detect some known and new objects that can be classified as planetary nebulae candidates (PNc). This search, the deepest one made up to now in M33, has allowed us to detect 48 PNc, from which 14 have a ratio of [O III]-to-H$\alpha $ fluxes greater than 1. We compare our findings with a previous search and present the list and finding charts of these interesting objects.

Key words: planetary nebulae: general - galaxies: individual: M33


1 Introduction

Planetary nebulae (PNe) represent one of the final stages in the evolution of low and intermediate mass stars. They have been used to trace the chemical evolution of galaxies, not only in the Milky Way (see Esteban & Peimbert 1995 and references therein) but also in close neighbours such as the LMC (Dopita et al. 1997), M 31 (Richer et al. 1999; Jacoby & Ciardullo 1999) and M 32 (Richer et al. 1999). Extragalactic PNe have also been used as secondary distance indicators by means of the so-called planetary nebulae luminosity function (PNLF, see Jacoby 1997, and references therein). For this technique, complete samples of PNe up to a given magnitude are an important requirement, not the least of these being for defining the actual form of the PNLF (see Méndez 2000). Recently Magrini et al. (2000) announced the detection of 134 candidate planetary nebulae (PNc) in M33. This galaxy has received recent attention because, as stated by Magrini et al. (2000), it is one of the important members of the Local Group for which the PN population was poorly known. In that paper the objects were detected in H$\alpha $, [O III] and continuum images. Since we have acquired similar images in a deeper search made by us for LBV candidates in a restricted region of M33, we report on the PNc we have found and compare the PNc reported by Magrini et al. (2000) with the sources detected by us. While our search is limited to a smaller spatial area, we should detect fainter PNc.

We find that we recover all of the PNc reported by Magrini et al. (2000) in the region observed by us, but also find new objects with similar characteristics, i.e. strong emission in H$\alpha $ or [O III] and lack of emission in the continuum filter images. In order to contribute to the study of these objects in M33 we present here the results of the search.

2 Observations

We observed 3 overlapping $\sim $ $6.5' \times 6.5'$ areas (see Fig. 1) in the southern arm of M33 with the 2.5 m Nordic Optical Telescope (NOT) on La Palma. We used ALFOSC in direct image operating mode and with filters that isolate the H$\alpha $ and [OIII] 5007 Å lines, as well as the adjacent continuum regions. The characteristics of the filters used are presented in Table 1.

We usually take three images of the same field in order to eliminate cosmic rays and obtain deeper images after addition. In Table 2 we present the observations log, integration times and filters used.

The sky conditions were good and the seeing was better than 1 $.\!\!^{\prime\prime}$2 during the whole run. As its detector, ALFOSC has a $2k \times 2k$ CCD with 15 $\mu$m-wide pixels, so that the spatial scale of the images is $\sim $0 $.\!\!^{\prime\prime}$2/pixel.

At the beginning and end of each night we took images of the spectrophotometric standard stars BD +28 4211, Feige 110 and G191-B2B with the same filters. The standards belong to the catalogue by Oke (1990), with magnitudes corrected by Colina & Bohlin (1994) and the transformation from magnitudes to fluxes by Hamuy et al. (1992). All the data can be found in Walsh (1998). We used these images to calibrate the observations of M33.


  \begin{figure}
\par\resizebox{\hsize}{!}{\includegraphics{MS10218f1.eps}} \end{figure} Figure 1: The observed area of the southern arm of M33 is outlined over a NGS-POSS image of the galaxy. The orientation of the image is N up and E to the left.
Open with DEXTER





Table 1: Filters used in the observations. Given are central wavelengths and half widths at half maximum in nanometers, the peak transmission and the identification used by the NOT.
Name $\lambda _{\rm c}$ FWHM T max. NOT
  nm nm % ident.
[O III] 501.0 4.3 60 NOT 40
Blue cont. 521.4 10.5 77 NOT 67
H$\alpha $ 656.4 3.3 66 NOT 21
Red cont. 678.8 4.5 73 NOT 54






Table 2: Observations. The M33 fields are identified as M33 I, II and III. The field centres are given for epoch J2000.0.
Object Filter Int. time Date Object Filter Int. time Date
    (s)       (s)
BD +28 4211 H$\alpha $ 60($\times$4) 21/X/1998 BD+ 28 4211 H$\alpha $ 60($\times$4) 22/X/1998
  Red cont 45($\times$4)     Red cont. 60($\times$4)
  [O III] 45($\times$4)     [O III] 45($\times$4)
  Blue cont. 20($\times$4)     Blue cont. 20($\times$3)

M33 I Blue cont. 600($\times$3)   Feige 110 Red cont. 60($\times$3)
1:33:50 30:35:30 [O III] 600($\times$3)     [O III] 60($\times$3)
  Red cont. 600($\times$3)     Blue cont. 60($\times$3)
  H$\alpha $ 600($\times$2)     H$\alpha $ 60($\times$3)

M33 II H$\alpha $ 600($\times$3)   M33 III H$\alpha $ 600($\times$3)
1:33:38 30:35:28 Red cont. 600($\times$3)   1:33:38 30:32:26 Red cont. 600($\times$3)
  [O III] 600($\times$3)     [O III] 600($\times$3)
  Blue cont. 600($\times$3)
        G191-2B2 H$\alpha $ 25($\times$4)
M33 III Blue cont. 600($\times$3)     Blue cont 25($\times$3)
1:33:38 30:32:26         [O III] 25($\times$3)
G191-2B2 Blue cont. 25($\times$4)     Red cont. 25($\times$3)
  [O III] 25($\times$4)
  Red cont. 25($\times$4)
  H$\alpha $ 25($\times$4)


3 Image reduction

The images were reduced with IRAF in the standard way (bias subtraction, flat-field correction and cosmic ray removal). We usually took three consecutive images of the same field in each filter (see Table 2). About 20 stars in the field were used as control points to calculate and correct the geometric distortion between images of the same field. We found that there were small shifts in the consecutive images, even though we did not move the telescope between them and used the same guide star in both images. This can be explained by mechanical flexures and torsions in the instrument, by atmospheric refraction, or by a combination of both. The images of the same field and filter were added together after correction of these shifts to obtain deeper images.

We subtract the continuum images from the on-line images in order to isolate the emission objects and areas. For this operation we scale the on-line images to account for the differently filter bandwidth, system throughput and stellar fluxes as function of wavelength. We used the observations of the standard stars to find the scale factor between the continuum and on-line images. The scale factors obtained are 0.72 for the H$\alpha $ observations and 0.38 for the [O III] images. However, the standard stars that we observed are high temperature objects (BD+28 4211, Op; Feige 110, DOp; G191 B2B, DA0). In a galaxy like M33 we will find very different stars, and in principle each has a different scale factor. If we then assume a single scale factor to equalize on- and off-line images we perhaps include some false emission objects that were not properly subtracted.

As an example, consider the use of black bodies from 5000 to 50000 K and the tabulated response of the filters we use. The [O III/blue continuum] ratio would vary from 0.34 to 0.40 [*] and the [H$\alpha $/red continuum] ratio would go from 0.74 to 0.82, a $\sim $12 and $\sim $15%, respectively. Using the Strömgren y filter as continuum would result in ratios of 0.19-0.29 for [O III/y] and 0.16-0.08 for [H$\alpha $/y]. These are variations of $\sim $35% and 100%. These numbers illustrate nicely the importance of choosing a continuum filter close to the line wavelength and give us an idea about the possible range of variations of the scale factors.

Therefore we used $\sim $10 stars in each observed field to check that the scale factors found with the standard stars are not biased. We first matched the PSF of the stellar images with the IRAF task PSFMATCH and check that these test stars were not in evident emission regions. The average [H$\alpha $/red continuum] ratio found was $0.72~ \pm~
0.02$ for regions II and III (note that black bodies do not account for the stellar absorption lines). For region I the ratio was $0.47 \pm 0.1$, because in this case we added together only two images instead of three (see Table 2). The [O III/blue continuum] ratio found was $0.38~ \pm ~ 0.06$ for all images. The small variation in the average of the scale factors reflects the fact that the chosen continuum regions are close to the observed emission lines and that the difference in emission in the spectral regions observed are not too high. The possibility that by chance all our test objects have similar spectral characteristics is rulled out, because the color of these objects in our continumm images (i.e. the difference in magnitude between our blue and red continua), span almost 2 mag. We conclude that for the combination of continuum and on-line filters that we used the application of a single scale factor was safe (within the quoted errors).

We also used the images of the spectrophotometric standard stars acquired during the run to calibrate the M33 images in flux. The standard star images were reduced with IRAF in the standard way and the integrated fluxes (in counts) were found with APPHOT. The published spectrophotometric measurements were convolved with the transmission function of the filters. We scaled the counts s-1 with the integrated flux and found the conversion factors. These conversion factors were applied to the aperture photometry of the detected emission objects (also obtained with APPHOT) giving the fluxes reported in Table 3. We did not apply any extinction correction to the fluxes that we obtain, neither by atmospheric nor galactic nature. The atmospheric extinction differs in each individual image. Taking a "average'' extinction curve and the "average'' air mass of the images used, we can estimate that the H$\alpha $ images have an atmospheric extinction of $\sim $0.06 mag and the extinction of the [O III] images is $\sim $0.14 mag. This fact should be taken into account when comparing our results with other fluxes reported.

The positions of the sources were computed using selected isolated stars measured with APM. We obtain a solution with typical errors in the position of the order of 0 $.\!\!^{\prime\prime}$3. To check the astrometric solution that we obtained we found in our images the position of OB (Massey et al. 1995) and WR stars (Massey & Johnson 1998) reported in the literature. We found a good correlation when we compared these with the finding charts of the objects.




Table 3: Candidate planetary nebulae in the southern arm of M33. Coordinates are for epoch J2000.0, and fluxes are in units of 10-15 erg cm-2 s-1.
M 33 RA Dec H$\alpha $ [O III] m[O III] Name m[O III]
PNc     Flux Flux   Magrini Magrini

1

1:33:27.8 30:34:28.7 1.23 1.41 23.4 40 22.2
2 1:33:28.5 30:37:45.4 0.55 1.66 23.2 39 22.2
3 1:33:30.1 30:32:36.4 1.10
4 1:33:30.7 30:31:39.2 2.72
5 1:33:31.4 30:37:20.5 3.14
6 1:33:31.9 30:30:32.4 1.10 1.60 23.3 45 22.5
7 1:33:32.2 30:31:46.0 2.47 0.95 23.8
8 1:33:32.7 30:32:08.3 3.47
9 1:33:33.2 30:37:34.3 2.35 2.21 22.9
10 1:33:33.8 30:32:15.2 4.72
11 1:33:33.8 30:32:58.8 0.78
12 1:33:34.2 30:32:45.2 1.72
13 1:33:34.6 30:37:00.6 3.19
14 1:33:34.9 30:32:24.3 0.43
15 1:33:35.3 30:32:53.6 7.24 0.63 24.3
16 1:33:36.2 30:35:19.9 0.79
17 1:33:36.8 30:31:40.4 0.26 1.41 23.4 48 23.18
18 1:33:37.8 30:33:52.1 0.89 0.49 24.5
19 1:33:37.9 30:32:05.5 1.47
20 1:33:38.6 30:33:01.9 0.76 1.94 23.0 51 22.4
21 1:33:40.2 30:37:48.8 1.12 2.53 22.8
22 1:33:42.3 30:37:17.1 1.49
23 1:33:42.3 30:37:38.6 1.40 2.73 22.7 54 21.65
24 1:33:43.4 30:35:24.7 1.86 0.42 24.7
25 1:33:43.8 30:33:26.0 0.44 1.46 23.4
26 1:33:44.3 30:36:22.2 10.24 0.47 24.6
27 1:33:47.3 30:37:10.7 6.42
28 1:33:48.3 30:33:15.1 2.23 2.30 22.9
29 1:33:48.6 30:35:47.6 1.38 4.08 22.2 62 21.73
30 1:33:49.4 30:32:05.6 0.91 3.30 22.5 65 21.87
31 1:33:49.4 30:32:27.5 1.54 0.59 24.3
32 1:33:50.9 30:33:43.2 1.18
33 1:33:50.9 30:37:10.5 3.74     66 23.56
34 1:33:51.4 30:35:50.7 11.03 1.12 23.6
35 1:33:51.8 30:32:59.7 1.85
36 1:33:52.2 30:36:03.6 1.63
37 1:33:52.5 30:33:59.1 1.02
38 1:33:52.7 30:37:37.7 2.37 7.74 21.5 68 20.99
39 1:33:53.1 30:34:00.5 4.23
40 1:33:53.6 30:33:23.5 2.77 0.93 23.8
41 1:33:54.7 30:36:05.1 2.14 4.33 22.2 69 21.78
42 1:33:54.9 30:37:44.0 6.80 0.94 23.8 70 24.00
43 1:33:55.7 30:34:53.6 0.85
44 1:33:57.1 30:36:46.9 0.79 2.97 22.6 73 22.13
45 1:33:57.6 30:32:23.1 1.01 0.46 24.6
46 1:33:58.4 30:36:23.7 2.70 1.07 23.7
47 1:33:58.7 30:34:59.6 5.39 2.21 22.8
48 1:33:59.4 30:34:51.2 3.20 0.64 24.2


4 Results

At the distance of M33 (840 kpc, Freedman et al. 1991) and with a typical seeing of 1 $.\!\!^{\prime\prime}$0, we expect our observed PN candidates to appear as point sources, with strong emission in H$\alpha $ and [O III]$\lambda$5007 and no counterpart in the continuum regions (unless the central star is very luminous or is a binary, or unless the position of the M33 PNe coincide with foreground stars).

We found 48 objects with these characteristics (presented in Table 3). In the first column we give the identification and the J2000.0 coordinates are presented in Cols. 2 and 3. The H$\alpha $ and [O III] integrated fluxes (in units of 10-15 erg cm-2 s-1) are presented in Cols. 4 and 5. In Col. 6 we give the m(5007) magnitudes, derived from the expression by Jacoby (1989), $m(5007)= -2.5 \log F(5007) - 13.74$, where F(5007) is the flux given in Col. 5. Finally, in Cols. 7 and 8 we give the identification of the sources in the list of PNc and the m(5007)reported by Magrini et al. (2000) with the corrected coordinates reported in Magrini et al. (2001).

Using the relationship between S/N ratio and completeness given by Ciardullo et al. (1987) we obtain a limit of m(5007)= 23.7 for the sample. However, we have made no attempt to study the PNLF because it is clear that our sample is contaminated with compact H II regions. Twenty objects only show emission in H$\alpha $, and 14 more have R =[OIII]/(H$_\alpha$) < 1 (this can be also appreciated in the way that our PNc follow the spiral arms). The other 14 objects have R>1 and are then bona fide PNc. The comparatively large contamination can be understood because we are in a region of strong H$\alpha $ emission (remember that our original purpose was to look for young objects, such as LBVs). Note however that we identify all objects detected by Magrini et al. (2000) in this region. As can be seen in Table 3 and Fig. 2 our derived [OIII] magnitudes for these objects differ from those reported by Magrini et al. (2000), and also their H$\alpha $ fluxes tend to be larger than ours for objects in common. This discrepancy can be partly attributed to the fact that we do not correct for extinction, and to the slightly poorer seeing conditions, the larger spatial scale of the images and the use of the Strömgren y filter as continuum in the Magrini et al. (2000) observations.

Taking all these problems into account we think we have to wait for follow-up spectroscopy and confirmation of the PN nature of the candidates before going on to work with the PNLF.


  \begin{figure}

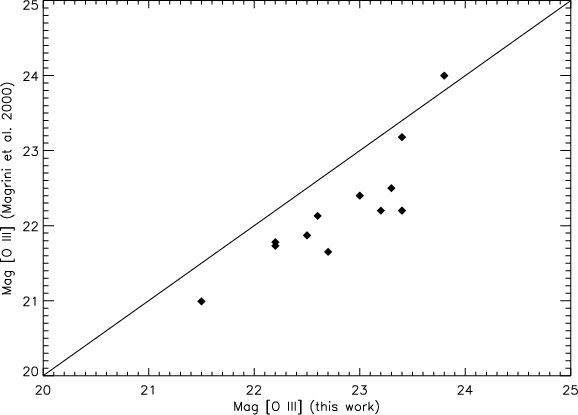

\par\resizebox{8.2cm}{!}{\includegraphics{MS10218f2.eps}} \end{figure} Figure 2: Comparision of [O III] magnitudes for objects in common with Magrini et al. (2000). Our measurements tend to be fainter than those of Magrini et al. ( 2000) by about 0.6 mag in average.
Open with DEXTER

Finding charts for the PNc found in this paper are shown in Figs. 3 to 11. We present the H$\alpha $- and [O III]-subtracted images in the upper part of the panel and the red and blue continuum images in the lower part of the panels. The PNc are marked with a circle and the horizontal bar is $\sim $10'' long. The orientation of the images is N up and E to the left.

5 Conclusions

We use the method of subtracted images to identify PNc candidates as those objects with emission in H$\alpha $ or [O III] lines, but with a lack of emission in the continuum filter images. We find that the uncritical use of a single scale factor may introduce errors comparable to those of other error sources even when using continuum filters close to the on-line filters and that these errors increase with the separation in wavelength between on-line and continuum filters.

We find 48 sources that fulfill the criteria given above and comparing our results with those of a previous search by Magrini et al. (2000, 2001) we found good agreement in the objects detected, but we derive smaller fluxes.

Following the criterion that those objects with an [OIII]/H$\alpha $ ratio greater that 1.0 are bona fide PNe, we find 14 such objects in the area searched, 4 of them had not been reported before. The rest are probably either low excitation PNe or small H II regions. A spectroscopic follow-up study is needed to find the true nature of the sources.

Acknowledgements

LC acknowledges a CONACyT (México) posdoctoral grant at the IAC. AH acknowledges support for this work from the Spanish DGES under project PB97-1438-C02-01 and from the Gobierno Autonómico de Canarias under project PI1999/008. The data presented here have been taken using ALFOSC, which is owned by the Instituto de Astrofísica de Andalucía (IAA) and operated at the Nordic Optical Telescope under agreement between IAA and the NBIfA of the Astronomical Observatory of Copenhagen.

References



Online Material


  \begin{figure}
\includegraphics[width=17cm]{MS10218f3.eps} \end{figure} Figure 3: Finding charts for PNc 1, 2, 3, 4 and 7. The orientation is N up and W right. The images are, in clockwise order begining from the upper left corner: subtracted H$\alpha $, substracted [O III], red continuum and blue continuum images. The bar is $\sim $10'' large and the candidate is marked with a circle.
Open with DEXTER


  \begin{figure}
\par\includegraphics[width=17cm]{MS10218f4.eps} \end{figure} Figure 4: Finding charts for PNc 5, 6, 8, 9,10, 11 and 14 (see Fig. 3).
Open with DEXTER


  \begin{figure}
\par\includegraphics[width=17cm]{MS10218f5.eps} \end{figure} Figure 5: Finding charts for PNc 12, 13, 15, 16, 17 and 19 (see Fig. 3).
Open with DEXTER


  \begin{figure}
\par\includegraphics[width=17cm]{MS10218f6.eps} \end{figure} Figure 6: Finding charts for PNc 18, 20, 21, 22 and 23 (see Fig. 3).
Open with DEXTER


  \begin{figure}
\par\includegraphics[width=17cm]{MS10218f7.eps} \end{figure} Figure 7: Finding charts for PNc 24, 25, 26 and 27 (see Fig. 3).
Open with DEXTER


  \begin{figure}
\par\includegraphics[width=17cm]{MS10218f8.eps} \end{figure} Figure 8: Finding charts for PNc 28, 29, 30 and 31 (see Fig. 3).
Open with DEXTER


  \begin{figure}
\par\includegraphics[width=17cm]{MS10218f9.eps} \end{figure} Figure 9: Finding charts for PNc 32, 33, 34, 35, 36, 37 and 40 (see Fig. 3).
Open with DEXTER


  \begin{figure}
\par\includegraphics[width=17cm]{MS10218f10.eps} \end{figure} Figure 10: Finding charts for PNc 38, 39, 41, 42 and 43 (see Fig. 3).
Open with DEXTER


  \begin{figure}
\par\includegraphics[width=17cm]{MS10218f11.eps} \end{figure} Figure 11: Finding charts for PNc 44, 45, 46, 47 and 48 (see Fig. 3).
Open with DEXTER
