A&A 375, 629-637 (2001)
DOI: 10.1051/0004-6361:20010807
E. P. Kontar
Institute of Theoretical Astrophysics, PB 1029 Blindern, 0315 Oslo, Norway
Received 8 February 2001 / Accepted 5 June 2001
Abstract
The problem of beam propagation in a plasma with small scale and
low intensity inhomogeneities is investigated. It is shown that the
electron beam propagates in a plasma as a beam-plasma structure
and is a source of Langmuir waves. The plasma inhomogeneity
changes the spatial distribution of the waves. The spatial
distribution of the waves is fully determined by the distribution of
plasma inhomogeneities. The possible applications to the theory of
radio emission associated with electron beams are
discussed.
Key words: Sun: general - Sun: corona - waves
There are a few alternative ways to explain the observational data. The existing theories can be roughly divided into three groups in accordance with the electron beam density or the energy of the Langmuir waves. The first group of theories is based on the assumption that nonlinear instabilities of strong turbulence theory can suppress quasilinear relaxation (Papadopoulos et al. 1974) and lead to extreme clumpiness of the spatial distribution of Langmuir waves (Thejappa & MacDowall 1998). However, some observations and theoretical studies (Cairns & Robinson 1995) raise doubts as to whether the Langmuir turbulence level is high enough for strong-turbulence processes. The second, recently developed group of theories is based on the prediction that an electron beam propagates in a state close to marginal stability, i.e. one where the fluctuation-dependent growth rate is compensated for by the damping rate (Robinson 1992; Robinson & Cairns 1993). In this view, the growth rate of beam-plasma instability is perturbed by the ambient density fluctuations (Robinson 1992). The third, more traditional group of theories considers the beam propagation in the limit of weak turbulence theory (Ryutov & Sagdeev 1970; Takakura & Shibahashi 1976; Magelssen & Smith 1977; Takakura 1982; Grognard 1985). The basic idea is that the electron beam generates Langmuir waves at the front of the electron stream and the waves are absorbed at the back of the stream, ensuring electron propagation over large distances. However, this idea was not proved for a long time (Melrose 1990). Recently Mel'nik has demonstrated analytically (Mel'nik 1995) that a mono-energetic beam can propagate as a beam-plasma structure (BPS). This result has been confirmed numerically (Kontar et al. 1998) and applied to the theory of type III bursts (Mel'nik et al. 1999). The solution obtained (Mel'nik & Kontar 2000) directly resolves Sturrock's dilemma (Sturrock 1964) and may explain the almost constant speed of type III sources. However, the influence of plasma inhomogeneity on the dynamics of a BPS has never been studied although the correlation between Langmuir wave clumps and density fluctuations demonstrates the importance of such considerations (Robinson et al. 1992).
The influence of plasma inhomogeneity on Langmuir waves and beam electrons has been studied from various points of view. An account of plasma inhomogeneities may explain why accelerated beam electrons appear in the experiments with quasilinear relaxation of an electron beam (Ryutov 1969). Relativistic dynamics of an electron beam with random inhomogeneities, as applied to laboratory plasmas, was considered in Hishikawa & Ryutov (1976). It has been shown (Muschietti et al. 1985) that the solar corona density fluctuations may be extremely effective in quenching the beam-plasma instability. Moreover, the isotropic plasma inhomogeneities may lead to efficient isotropisation of plasma waves (Goldman & DuBois 1982) whereas those alongated along the direction of ambient magnetic field have little influence on the beam stability. Therefore, the growth rate of beam-plasma instability was postulated to be very high in the regions of low amplitude density fluctuations (Melrose et al. 1986; Melrose & Goldman 1987). Isotropic density fluctuations of ambient plasma density were also employed to explain low level of Langmuir waves in microbursts (Gopalswamy 1993).
In this paper the dynamics of a spatially limited electron cloud is considered in a plasma with small scale density fluctuations. In the treatment presented here, quasilinear relaxation is a dominant process and density inhomogeneities are too weak to suppress the instability. Indeed, observations of interplanetary scintillations from extragalactic radio sources (Cronyn 1972) lead to an average value of of the order of 10^{-3}(Smith & Sime 1979). Nevertheless, the low intensity density fluctuations lead to significant spatial redistribution of wave energy. The numerical results obtained demonstrate that electrons propagate as a continuous stream while the Langmuir waves generated by the electrons are clumpy. Both electrons and Langmuir waves propagate in a plasma as a BPS with an almost constant velocity. However, density fluctuations lead to some energy losses.
There is still uncertainty in the literature as to whether
electron beams are strong enough to produce strong turbulence or
whether the beam is so rarified that quasilinear relaxation is
suppressed by damping or scattering. While some observations are
in favor of the strong turbulence regime (Thejappa & MacDowall 1998)
others are interpreted as implying marginal stability
(Cairns & Robinson 1995). Therefore, we consider the intermediate case of
a medium density beam, which is not strong enough to start strong
turbulence processes,
The initial value problem is solved with an initially-unstable
electron distribution function, which leads to the formation of a
BPS in the case of homogeneous plasma (Mel'nik & Kontar 2000)
Following common practice in the literature on plasma
inhomogeneity, Langmuir waves are treated in the approximation of
geometrical optics (the WKB approximation) when the length of a
Langmuir wave is much smaller than the size of the plasma
inhomogeneity (Vedenov et al. 1967; 1969) as
In the case of weak turbulence theory (1), and under the
conditions of the WKB approximation (5, 8), the
evolution of the electron distribution function f(v,x,t) and the
spectral energy density W(v,x,t) are described by the system of
kinetic equations (Ryutov 1969)
The presence of a local plasma frequency gradient leads to two physical effects on the kinetics of the Langmuir waves (10). Firstly, the characteristic time of the beam-plasma interaction depends on the local density and therefore the resonance condition for the plasmons may itself change during the course of beam propagation. Secondly, the Langmuir wave propagating in the inhomogeneous plasma experiences a shift of wavenumber , due to the variation of the local refractive index. The second effect has been shown to have the main impact on Langmuir wave kinetics whereas the first effect can be neglected Coste et al. (1975).
Thus, we are confronted with the initial value problem of electron cloud propagation in a plasma with density fluctuations. The problem is nonlinear and is characterized by three different time scales. The fastest process in the system is the quasilinear relaxation, on the quasilinear timescale . The second timescale is that of processes connected with plasma inhomogeneity. Thirdly, there is the timescale of an electron cloud propagation in a plasma that significantly exceeds all other timescales.
The main interaction in the system is beam - wave interaction
governed by the quasilinear terms on the right hand side of Eqs. (9, 10). It is well-known that the unstable
electron distribution function (3) leads to the generation
of plasma waves. The result of quasilinear relaxation for an
electron beam homogeneously distributed in space is a plateau of
the electron distribution function (Ryutov & Sagdeev 1970)
In the case of an inhomogeneous plasma we can also consider
relaxation of a homogeneously distributed beam. Thus, the kinetic
Eqs. (9, 10) will take the form
Equations (13, 14) describe two physical effects: quasilinear relaxation (with characteristic time ) and the drift of Langmuir waves in velocity space (the characteristic time . Since the influence of plasma inhomogeneity can be considered as the evolution of the final stage of quasilinear relaxation. Two possible cases of plasma density change are considered: plasma density decreasing (L_{0}<0) with distance and plasma density increasing (L_{0}>0) with distance.
In this case L_{0} is negative. After the time of
quasilinear relaxation, a plateau is established in the electron
distribution function and a high level of Langmuir waves is
generated. Since the quasilinear processes are fast we have a
plateau at every moment of time

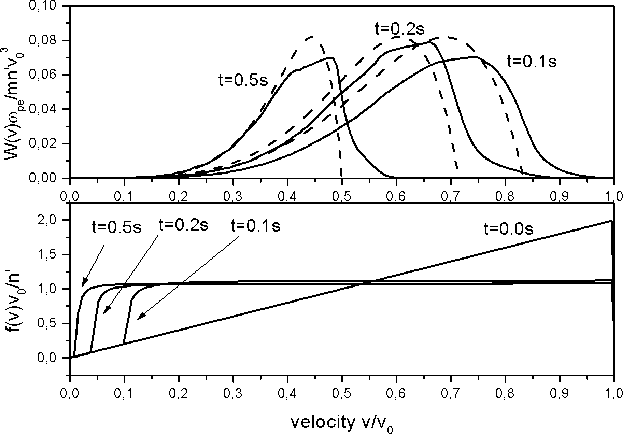

Figure 1: The electron distribution function f(v,t) and the spectral energy density of Langmuir waves W(v,t) at various times, for the case where the plasma density decreases with distance, cm. Numerical solution of kinetic Eqs. (13, 14) n'=100 cm^{-3}, cm s^{-1}. | |
Open with DEXTER |
The numerical solution of Eqs. (13, 14) with the initial electron distribution function (3) is presented in Fig. 1. Comparing the numerical results and the simplified solution (17) we see a good agreement (see Fig. 1). The plateau for a wide range of velocities is formed after a short time, t=0.1 s, and it remains almost unchanged up to the end of the calculation. For the time t>0.1 s, the drift of the Langmuir wave spectrum toward smaller phase velocities becomes observable. At t=0.5 s, the maximum phase velocity is half of the initial beam velocity.
An increasing plasma density leads to a shift toward larger phase velocities. For v>v_{0} we have a negative derivative at the edge of the electron distribution function, and electrons absorb waves with the corresponding phase velocities. Absorption of waves then leads to acceleration of particles. This process continues until all the waves generated during the beam relaxation are absorbed by the electrons.
In the case of increasing density we are unable to find an exact
solution, but we can find the solution for
.
Using
conservation of energy (1969)

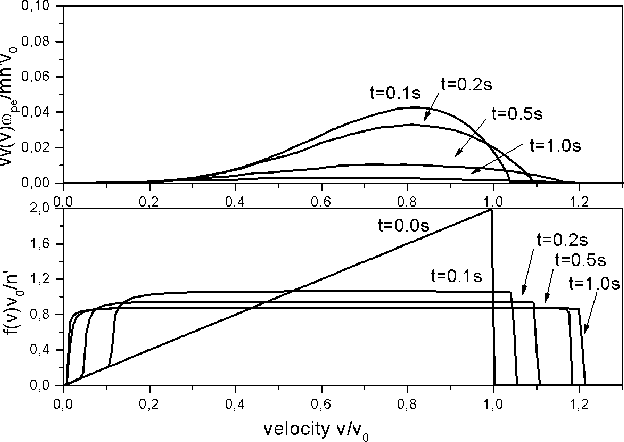

Figure 2: The electron distribution function f(v,t) and the spectral energy density of Langmuir waves W(v,t) at various times for the case where the plasma density increases with distance, cm. Numerical solution of kinetic Eqs. (13, 14) n'=100 cm^{-3}, cm s^{-1}. | |
Open with DEXTER |
In this section the numerical results of the evolution of the
electron beam in the plasma with density fluctuations are
presented. We begin with the case where the ambient density
fluctuations in the plasma are periodic and sine-like. The
dependency of plasma density on distance is
At the initial time t=0 we have an electron distribution
function which is unstable. Due to
fast quasilinear relaxation, electrons form a plateau in the
electron distribution function and generate a high level of plasma
waves. At time t=0.1 s, the typical result of
quasilinear relaxation is observed. The electron distribution
function and the spectral energy density evolve in accordance with
the gas-dynamic solution (Mel'nik 1995; Mel'nik & Kontar 2000)
The numerical solution of the kinetic equations and the gas-dynamic solution show that electrons propagate in a plasma accompanied by a high level of plasma waves. Since the plasma waves exist at a given point for some time, while the structure passes this point, the spectrum of the waves should change due to the wave movement. To understand the physics of the process we consider the evolution of the electron distribution function and the spectral energy density of Langmuir waves at a given point.
At every spatial point we observe two physical processes. The first process is connected with the spatial movement of a BPS, as would be the case for a homogeneous plasma (Mel'nik et al. 2000; Mel'nik & Kontar 2000). The second process is the influence of plasma inhomogeneity on the Langmuir waves. Depending on the sign of the density gradient, the Langmuir wave spectrum takes on a different form.
Consider the time evolution of the electron distribution function and the spectral energy density of Langmuir waves at two close points x=15.2d and x=15.47d (see Fig. 3). The first point is chosen in the region with increasing density and the second in the region where the density decreases with distance. The first particles arrive at these points at approximately s. The arriving electrons form a plateau in the electron distribution function and generate a high level of plasma waves for the time of quasilinear relaxation s.
The movement of the particles leads to the growth of the plateau height at the front of the structure for . Due to the fact that at the front of the structure electrons come with a positive derivative, , the level of plasma waves also increases. When the peak of the plateau height is reached at s the reverse process takes place. The plateau height decreases and the arriving electrons have a negative derivative that leads to absorption of waves. The growth and decrease of the plateau height and the level of plasma waves is typical for a homogeneous plasma (Mel'nik & Kontar 2000). However, while the structure passes a given point the spectrum of Langmuir waves experiences the change. This change depends on the sign of the plasma density gradient. In the region with decreasing density (x=15.47d) the Langmuir waves have a negative shift in velocity space while the growing plasma density (x=15.2d) supplies a positive shift in phase velocity of the plasma waves. At the point with the positive gradient, the Langmuir waves shifted in phase velocity space are effectively absorbed by the electrons while the negative plasma gradient does not lead to the absorption of waves. This behavior results in different levels of plasma waves at two very close points with the opposite density-gradient sign.
Figure 3 demonstrates the existence of accelerated
electrons with v>v_{0}. These electrons are accelerated by
Langmuir waves in the regions with positive plasma-density
gradient. Electrons with velocity larger than the initial
beam velocity have been observed in laboratory plasma
experiments. This effect was also considered from an analytical
standpoint by
Ryutov (1969) in application to laboratory plasmas.

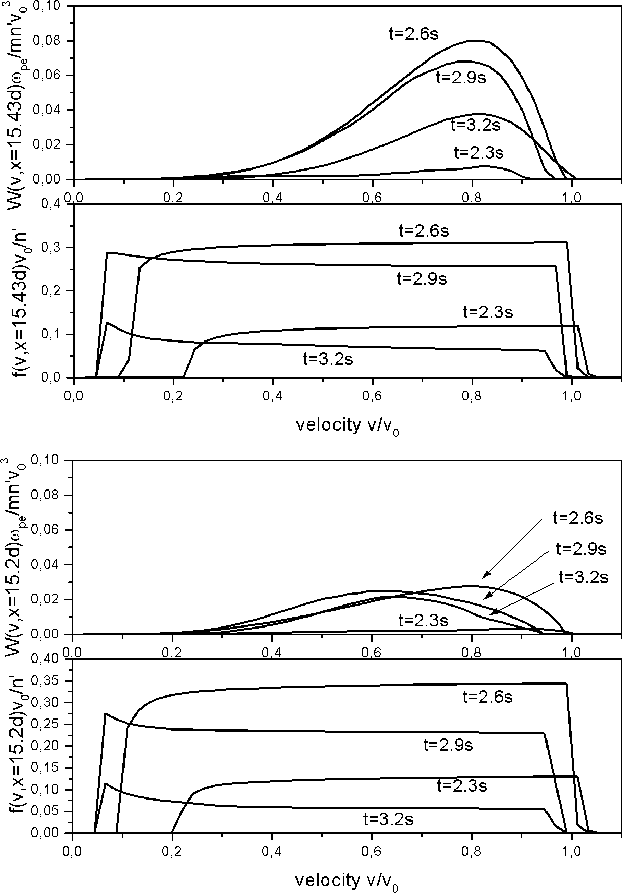

Figure 3: The electron distribution function f(v,x,t) and the spectral energy density of Langmuir waves W(v,x,t) at x=15.2d and at x=15.47d. Numerical solution of kinetic equations for a plasma with sine-like density fluctuations (21) n'=100 cm^{-3}, cm s^{-1}. | |
Open with DEXTER |
The processes of wave generation at the front and absorption at the back take place at every spatial point and therefore the structure can travel over large distances, being the source of plasma waves (Kontar et al. 1998; Mel'nik et al. 1999; Mel'nik & Kontar 2000).
At time t=5.0 s, electrons accompanied by Langmuir
waves have passed over a large distance but the general physical
picture remains the same (Fig. 4). Generally, electrons
and Langmuir waves propagate as a BPS. At every spatial point,
electrons form a plateau at the electron distribution function and
we have a high level of plasma waves. The electron cloud has a
maximum of the electron density at x=27d. Plasma waves are also
concentrated in this region and the maximum of Langmuir wave
density is located at the maximum of electron density x=27d. The
spectrum of Langmuir waves has a maximum close to
.
The spatial profile, averaged over the plasma inhomogeneity
period, is close to the result obtained for a homogeneous plasma.

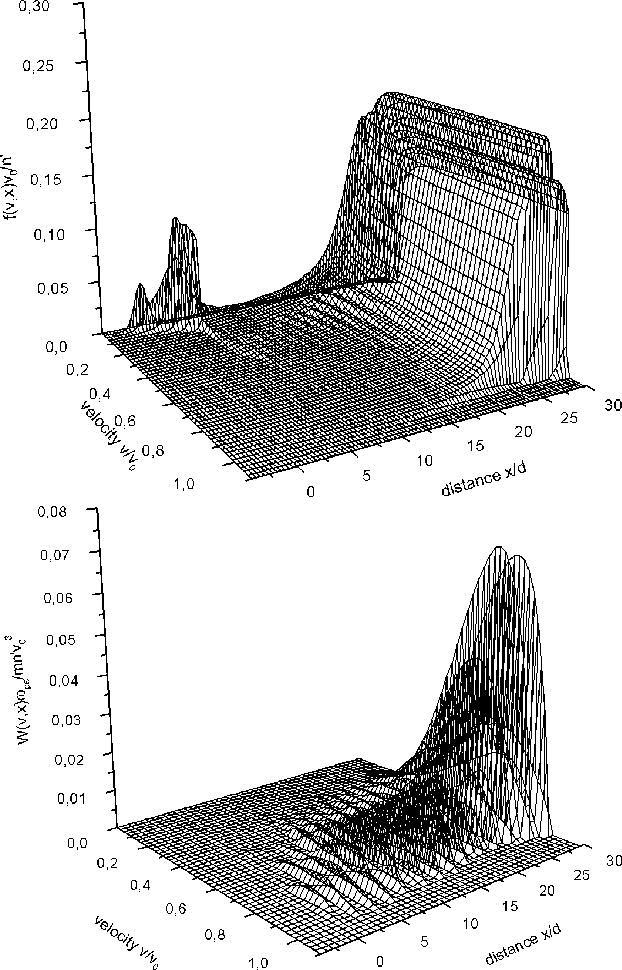

Figure 4: The electron distribution function f(v,x,t) and the spectral energy density of Langmuir waves W(v,x,t) at t=5.0 s. Numerical solution of the kinetic equations with sine-like density fluctuations (21) n'=100 cm^{-3}, cm s^{-1}. | |
Open with DEXTER |
However, the spatial profile of Langmuir waves has a fine
structure that can be seen in Fig. 5. The Langmuir waves
are grouped into clumps (the regions with high level of plasma
waves, following the terminology of Smith & Sime 1979). The size of
a clump is determined by the spatial size of the density
fluctuations and is equal to half of the density fluctuation
period
.
The maxima of the Langmuir wave
density are located in regions of negative plasma-density gradient
and the regions with low levels of Langmuir turbulence are where
the density gradient is positive.

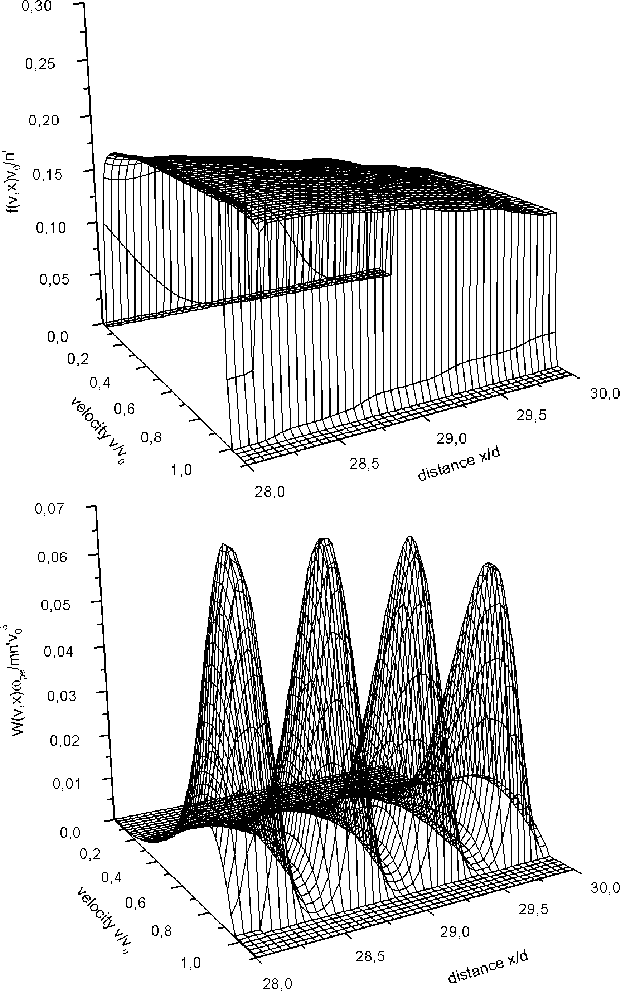

Figure 5: Detailed picture of the electron distribution function f(v,x,t) and the spectral energy density of Langmuir waves W(v,x,t) at t=5.0 s. Numerical solution of kinetic equations with sine-like density fluctuations (21) n'=100 cm^{-3}, cm s^{-1}. | |
Open with DEXTER |
The other interesting result is that while the Langmuir wave distribution is determined by the irregularities of ambient plasma, the electron distribution function is a smooth function of distance (see Fig. 5). The electrons in the structure propagate as a continuous stream, being slightly perturbed by the density fluctuations. The influence of plasma inhomogeneity on electron distribution is observed in the appearance of accelerated particles with v>v_{0} and the fact that the maximum plateau velocity is slightly decreasing with time during the course of beam-plasma passing a given point (Fig. 3). The accelerated electrons tend to accumulate at the front of the structure and the decelerated electrons concentrate at the back of the structure.
The energy distribution of waves

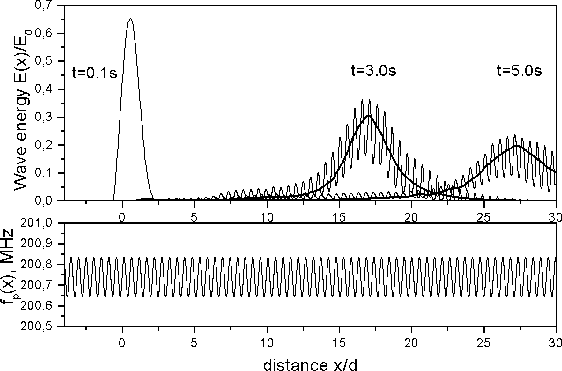

Figure 6: The energy density of plasma waves E(x) at various times and the local plasma frequency (21) as a function of distance at various times. The bold line shows the numerical solution for homogeneous plasma. Numerical solution of kinetic equations n'=100 cm^{-3}, cm s^{-1}. | |
Open with DEXTER |
The other physical effect that should be noted is the energy losses by the structure in the form of Langmuir waves. In Figs. 4, 6 we see that there is a small but non-zero level of plasma waves behind the beam-plasma structure. These waves are also concentrated into clumps in the regions where the plasma gradient is negative. To explain why the structure leaves the plasma waves we note the negative shift in phase velocity of Langmuir waves in the regions with a decreasing density. Due to this shift we have more waves with low phase velocity than the electrons are able to absorb at the back. As a result the low velocity waves form a "trace'' of the structure (Kontar 2001).
As was discussed previously, the quasilinear time is small but finite value. Therefore, the BPS experiences spatial expansion (Kontar et al. 1998). The initial width-at-half-height of the structure is less than 2d whereas the spatial width of the structure at t=5.0 s is about 5d. Most of the energy and the majority of particles are concentrated within the width of the structure. Since the quasilinear time depends on the beam density, the quasilinear time for the particles far from the center of the structure is much larger than for the structure electrons. In these regions we can observe the situation where the influence of the plasma inhomogeneity is comparable with the quasilinear time. Indeed, in the tail of the structure we have regions with zero level of waves (where the Langmuir waves are absorbed by electrons when the plasma density increases) and regions with Langmuir waves (where plasma density is decreasing).
There is special interest in the case where the density fluctuations are
random, which looks like the case for a solar coronal plasma. A
pseudo-random distribution of density fluctuations can be easily
built by summing N sine-like perturbations with random amplitude,
phase, and period
The spatial distribution of waves now has a more complex structure
(Fig. 7). However, all the main results obtained for
sine-like density fluctuations are also observed for
pseudo-random density fluctuations (25). Firstly, the
electron stream propagates in a plasma as a BPS. Secondly,
observing the energy density profile of Langmuir waves one can see
the clumps of Langmuir waves. The size of the clumps is determined
by the size of the regions with negative density gradient. The
electron distribution function of beam electrons remains smooth as
in the previous case with sine-like density oscillations.

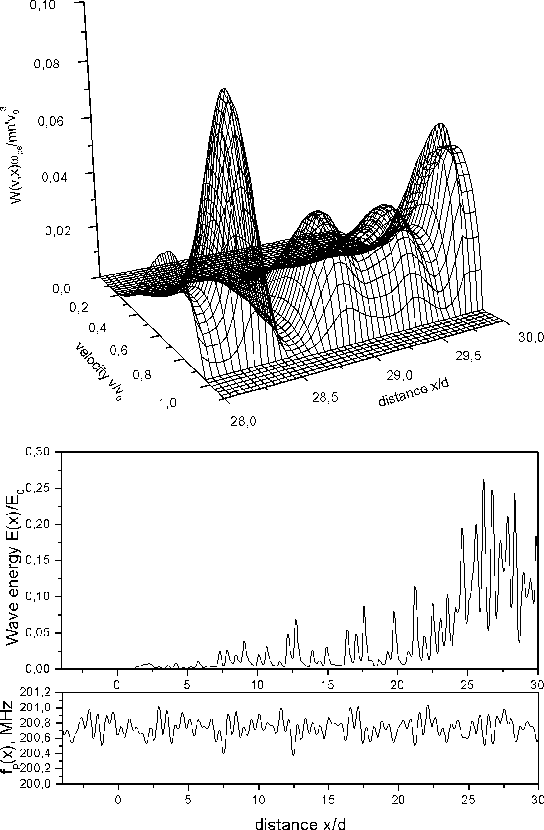

Figure 7: The spectral energy density of Langmuir waves W(v,x,t), the energy density of plasma waves E(x) at t=5.0 s, and the local plasma frequency (25) as functions of distance. Numerical solution of kinetic equations with random density fluctuations (25) n'=100 cm^{-3}, cm s^{-1}. | |
Open with DEXTER |
The dependence of wave energy
density on the amplitude of the density fluctuations is of special
interest. From Eq. (10) it follows that a Langmuir wave propagating with the
group velocity
over the distance experiences a shift of phase velocity
From a physical point of view it is interesting to consider the
physical processes which lead to the reported results. As we see,
the main physical effect, which leads to a complex spatial
distribution of waves, is the shift of the phase velocity
due to the wave movement. The growth rate of beam-plasma
instability
For application to the theory of type III bursts, special interest is presented by a combination of the two main properties of the solutions.
On one hand, the electron beam can propagate in a plasma over large distances, and is a source of a high level of Langmuir waves. A portion of these Langmuir waves can easily be transformed into observable radio emission via nonlinear plasma processes (Ginzburg & Zheleznyakov 1958). At a scale much greater than the size of the beam, electrons and Langmuir waves propagate as a BPS that may be the source of type III bursts. The BPS propagates in inhomogeneous plasma with velocity v_{0}/2 that can explain the almost-constant speed of the type III source. The finite size of the structure, the spatial expansion of the structure, and conservation of the particle number, are promising results for the theory of type III bursts.
On the other hand, plasma inhomogeneity brings additional results. The spatial distribution of Langmuir wave energy is extremely spikey and the distribution of waves is fully determined by the fluctuations of the ambient plasma density. This fact is in good agreement with satellite observations (Robinson et al. 1992). Moreover, following the plasma emission model, one obtains the fine structure of the radio emission.
At distances of about 1 AU the quasilinear time might have a large value and the characteristic time of a wave velocity shift could be comparable to the quasilinear time. Therefore, the region of growing plasma density may lead to the suppression of quasilinear relaxation, whereas, in regions with a decreasing density, relaxation is found. Thus the Langmuir waves might be generated in only those spatial regions where the plasma gradient is less than or equal to zero. Indeed, in the tails of a beam-plasma structure, the electron beam density is low and Langmuir waves are only observed in certain regions with non-positive density gradient.
In this paper, the dynamics of a spatially bounded electron beam has been considered. Generally, the solution of the kinetic equations present a BPS. The structure moves with approximately constant velocity v_{0}/2 and tends to conserve the number of particles. As in the case of uniform plasma, electrons form a plateau and generate a high level of plasma waves at every spatial point.
However, small-scale inhomogeneity in the ambient plasma leads to significant changes in the spatial distribution of Langmuir waves. It is found that low intensity oscillations perturb the spatial distribution of Langmuir waves whereas the electron distribution function remains a smooth function of distance. The other interesting fact is that the distribution of waves is determined by the distribution of plasma inhomogeneities. The energy density of Langmuir waves has maxima and minima in the regions with a positive and negative density gradient respectively.
Nevertheless, more detailed analysis is needed. One needs to include radio emission processes in order to calculate the observational consequences of the model in greater detail. Another challenge is the detailed comparison of such numerical results with satellite observations near the Earth's orbit.
Acknowledgements
Author is extremely thankful to C. Rosenthal for his kind help in the manuscript preparation.
