A&A 374, 675-681 (2001)
M. Endl 1 - M. Kürster 2 - S. Els 34 - A. P. Hatzes 3 - W. D. Cochran 5
1 - Universität Wien, Institut für Astronomie, Türkenschanzstr. 17, 1180 Wien, Austria
2 - European Southern Observatory, Casilla 19001, Vitacura, Santiago 19, Chile
3 - Thüringer Landessternwarte Tautenburg, Sternwarte 5, 07778 Tautenburg, Germany
4 - Universität Heidelberg, Institut für Theoretische Astrophysik, Tiergartenstr. 15, 69121 Heidelberg, Germany
5 - McDonald Observatory, The University of Texas at Austin, Austin, TX 78712-1083, USA
Received 11 April 2001 / Accepted 19 May 2001
In this article we present the results of the planet search program carried out at the ESO Coudé Echelle Spectrometer (CES) for components A and B of the Centauri system. Since November 1992 we have obtained high precision differential radial velocities (RVs) for both stars. We demonstrate that, after subtraction of the binary orbital motion, no additional residual RV signal is present within our detection limits, which could have been attributed to giant planets orbiting either of the two stars. We performed numerical simulations to determine the detection threshold of the CES survey for planets around both stars. In combination with known dynamical limitations for stable planetary orbits (Wiegert & Holman 1997) we can now set strong constraints on the existence of Jupiter-mass-type planets in the Centauri system.
Key words: stars: planetary systems - stars: individual: Centauri - stars: binaries: close - techniques: radial velocities
The Centauri system is our closest neighbour in space and constitutes an interesting target for the search for extrasolar giant planets for several reasons: a discovered planet would be a prime target for a follow-up imaging/spectroscopy program due to the proximity of Centauri (1.347 pc), its binary nature could lead to new insights into planetary formation processes in binary systems and the dynamical stability of planetary orbits in such an environment could be examined empirically. Although planetary orbits at separations similar to our Jupiter ( ) are dynamically unstable in the Centauri AB binary system (e.g. Wiegert & Holman 1997), the discoveries of giant planets orbiting at very small separations (e.g. Mayor & Queloz 1995) leaves the possibility open that Jupiter-mass companions exist at smaller orbital radii around either Centauri A or B. The planet search program at the Coudé Echelle Spectrometer (CES) at ESO La Silla is a precise Doppler search for variations in the differential radial velocities of 40 stars in the southern hemisphere (Kürster et al. 1994; Hatzes et al. 1996; Endl et al. 2000). In this sample we have discovered one extrasolar giant planet orbiting the young (ZAMS) and active G0V star Horologii in an Earth-like orbit (Kürster et al. 2000) and the RV results we obtained for Eridani contributed to the evidence for a long period ( ) planet in an eccentric (e = 0.6) orbit around this star (Hatzes et al. 2000). The Centauri system has been monitored since the beginning of the program in November 1992. Observations were performed by using the 1.4 m Coudé Auxiliary Telescope (CAT) and the CES equipped with the Long Camera yielding a resolving power of . The CES instrument was upgraded in April 1998 by installing the new Very Long Camera yielding a higher resolving power ( ). Our results presented in this article all refer to the CES configuration (with the Long Camera, ) prior to this modification. In Kürster et al. (1999) we have already presented the results for Proxima Centauri, the possible third member in this system. A full analysis of the complete CES planet search data will be presented in a forthcoming paper (Endl et al., in prep.).
The plan for this article is the following: first we present the radial velocity results for Centauri A & B and discuss the existence of residual RV signals which would indicate Jupitermass-type planets. We continue with numerical simulations to determine the detectability of such planets in the Centauri system by the CES program. Finally we combine our results with the study of Wiegert & Holman (1997) who presented dynamical limitations for stable planetary orbits around both components. This combination of observational data and dynamical simulations results in strong constraints for the presence of giant planets in the Centauri binary system.
The Coudé Echelle Spectrometer (CES) at the ESO La Silla observatory is a conventional non-stabilized spectrograph and in order to achieve the necessary RV precision we use a temperature controlled and pressure stabilized iodine (I2) vapor absorption cell to self-calibrate the instrument. A detailed description of the instrument setup, observational process, and the analysis technique we use to extract the RV information from CES planet search data can be found in Paper I of this series (Endl et al. 2000).
The inner binary (semimajor axis = 23 AU) of the Centauri system consists of a G2V primary (HR 5459, HD 128620, V=-0.01) and a K1V secondary (HR 5460, HD 128621, V=1.33) moving in an eccentric (e = 0.518) orbit with a period of almost 80 years (Heintz 1982; Pourbaix et al. 1999). Their masses have been determined by Pourbaix et al. (1999) to be (A) and (B). These values probably represent upper limits as stated by Guenther & Demarque (2000). However, we adopt these higher mass values for this work because slightly lower stellar masses would only reduce the planetary mass limits we derive in Sect. 3 to a minor extent and the aim is to set quantitative upper limits for companion masses. The third possible member of the system, Proxima Centauri (M5V, V=11.05), is located at a much larger distance of AU. It has been proposed that Proxima Centauri forms a stellar moving group with the inner binary (Anosova et al. 1994), rather than being gravitationally bound in a triple system. CES RV results for Proxima Centauri and companion limits based upon this data were already presented in Kürster et al. (1999), hence we will not consider this star in this work.
Over the time of 5 1/2 years (Nov. 1992-April 1998) we obtained a total of 205 individual RV measurements for
Centauri A and 291 for
Centauri B taken during 48 and 43 nights respectively. Due to their brightness
and hence short exposure times, we took several spectra each night. For the following analysis we average the
results of one night by taking the mean RV value of that night while the error is computed by propagating the errors of each
individual measurement, leaving us with 48 RV measurements for component A and 43 for component B. Table 1 lists the times of observations and the averaged RV results with their measurement errors.
Note that these are differential measurements and that an arbitrary velocity zero-point was subtracted from the
RV results for each star. So the differences between the velocity values for component A and B are also
arbritary, only the differential RV data for each star possess meaningful information for the
search for planetary companions. Preliminary CES RV results for
Centauri, based on a different analysis
technique yielding a slightly lower RV precision, were already shown in Cochran & Hatzes (1999).
|BJD||CEN A:||CEN B:|
|2 449 054.8|
|2 449 055.7|
|2 449 109.8|
|2 449 179.7|
|2 449 246.5|
|2 449 358.9|
|2 449 412.8|
|2 449 492.6|
|2 449 493.5|
|2 449 548.6|
|2 449 602.5|
|2 449 794.9|
|2 449 795.8|
|2 449 855.6|
|2 449 906.5|
|2 449 972.5|
|2 450 085.9|
|2 450 145.9|
|2 450 146.8|
|2 450 229.7|
|2 450 230.8|
|2 450 313.6|
|2 450 314.6|
|2 450 319.6|
|2 450 323.6|
|2 450 325.6|
|2 450 330.5|
|2 450 348.5|
|2 450 349.5|
|2 450 357.5|
|2 450 358.5|
|2 450 359.5|
|2 450 477.9|
|2 450 478.9|
|2 450 523.9|
|2 450 524.9|
|2 450 550.8|
|2 450 551.7|
|2 450 570.8|
|2 450 595.9|
|2 450 596.7|
|2 450 647.7|
|2 450 648.5|
|2 450 690.5|
|2 450 703.5|
|2 450 704.5|
|2 450 709.5|
|2 450 733.5|
|2 450 854.8|
|2 450 856.8|
|2 450 897.9|
|2 450 899.8|
|2 450 907.7|
Pourbaix et al. (1999) presented the most recent orbital parameters for the binary, based on
the combination of several different RV sets, starting as early as 1904. We adopted their orbital values
to compute the binary motion and to compare it with our RV data. For this comparison we adjusted the
velocity zero-point to fit our RV values, by minimisation of the -function. The
results and the RV residuals after subtraction of the binary orbit are shown in Fig. 1 (for
Centauri A) and
Fig. 2 (for
Centauri B). For component A the residual RV scatter is
The residuals are in both cases comparable to the mean measurement errors of

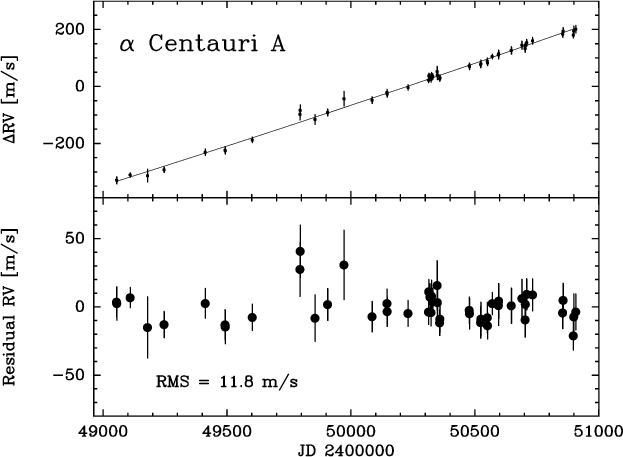

|Figure 1: Differential radial velocities of Centauri A (upper panel). The solid line represents the binary orbit based on Pourbaix et al. (1999). The lower panel shows the RV residuals after subtraction of this orbit. The residual scatter of agrees well with the mean measurement error of .|
|Open with DEXTER|

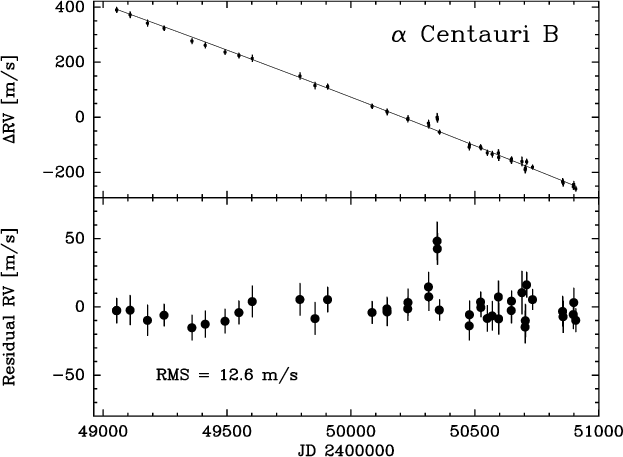

|Figure 2: Equivalent plot as Fig. 1 for Centauri B. This time the residual RV scatter of is slightly larger than the mean measurement error of .|
|Open with DEXTER|

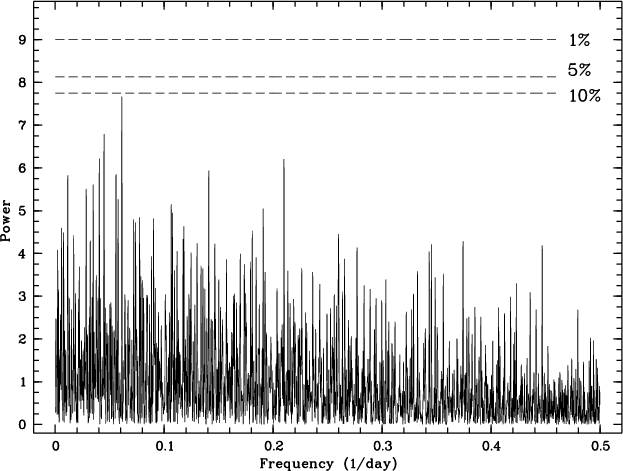

|Figure 3: Periodogram results for the RV residuals of Centauri A. The highest peak in the power spectrum is located at a frequency of ( ). The false alarm probability (FAP) of this peak is , rendering it statistically insignificant. The different FAP niveaus are displayed as horizontal dashed lines.|
|Open with DEXTER|
The similarity of the remaining RV scatter around the known binary orbit with the
measurement errors already indicates the absence of a strong RV signal caused by an orbiting giant planet
around either of both stars. We performed a period search in the range of 2-5000 days in the
RV residuals by using the Lomb-Scargle periodogram (Lomb 1976; Scargle 1982).
Centauri A we found the highest peak in the power spectrum to be at a period of
Centauri B at
Now we clarify whether these signals
represent "noise'' peaks in the periodogram or not. We do this by estimating the "false alarm probability''
(FAP) of the chance occurence of peaks with the same power as the two maximum peaks we have found.
In order to establish the FAP levels of peaks in the two power spectra we employ a
bootstrap randomization method. In this randomization scheme the RV values are
randomly redistributed while keeping the times of observations fixed (Kürster et al.
1997; Murdoch et al. 1993).
For both RV data sets we performed 10000 runs of this bootstrap technique and compared
the power maxima of the randomized RV sets with the original periodogram, thus obtaining
the FAP levels.
The FAP of the
Centauri A was determined to be
and for the
Centauri B it is .
Centauri A data along with different FAP levels is shown in Fig. 3 and for
Centauri B in Fig. 4. Both signals fail to reach the
Thus we cannot
confirm a statistical significant residual signal in our data and we can rule out the presence of massive substellar
companions. But what kind of planets exactly can we rule out now? We will deal with this question in the following
Still, the compatibility of both periods found in the RV residuals is striking. Although their FAP-level
renders them as random noise peaks, is it possible that we found a real signal on a low significance level?
Maybe we have detected the rotational period of the two stars or one of its harmonics?
Hallam et al. (1991) obtained
Centauri A and Guinan & Messina (1995)
for component B based on IUE spectra.
So the two signals - if they do not represent noise - are near the 1/2-harmonics of the
stellar rotational period. However, at the
-values we only find peaks with FAPs of
(A) and (B).

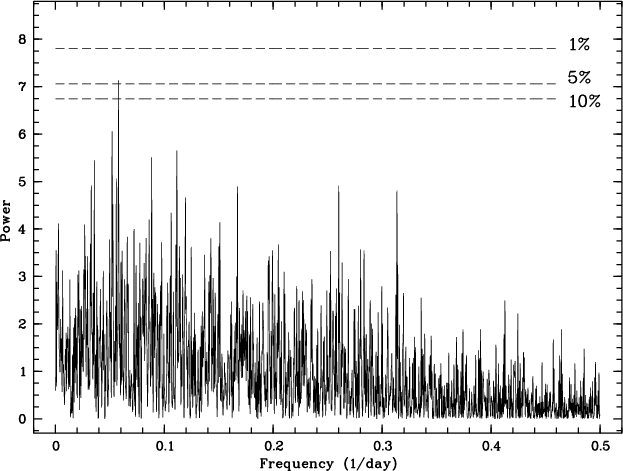

|Figure 4: Periodogram results for the RV residuals of Centauri B. Again the FAP values for different power levels are shown as horizontal dashed lines. The highest peak at a frequency of ( ) has a FAP of .|
|Open with DEXTER|
To establish the CES program detection threshold for planetary companions in the Centauri system we proceeded as follows (see also Endl et al. 2001): we start from the null-hypothesis that the remaining RV scatter after subtraction of the binary orbit represents our measurement uncertainty. We performed numerical simulations of planetary orbits with K (the RV semi-amplitude), the orbital phase and P (the orbital period) as model parameters (orbital eccentricity e is set to 0). These simulated signals were added to our actual RV measurements, thus using the RV residuals as the noise term. This has the advantage that we don't have to assume that the error distribution follows a certain pattern, like for instance a Gaussian distribution. In fact, as can be seen in the lower panels of Figs. 1 and 2 the errors don't seem to follow a Gaussian distribution. After the synthetic RV data set is created, we again subtract the binary motion and perform in the newly obtained RV residuals a period search in the range of 2-5000 days, equivalent to the procedure described in the last section for the original data set. We then check whether the input signal was detected by the periodogram analysis. For each set of K and P parameters we create 8 simulated signals at different orbital phases, each shifted by . We define a planet as detectable by the CES program if the FAP of the peak in the power spectrum representing our input signal is less than . For each simulated signal we perform 1000 bootstrap randomization runs to estimate the FAP levels. If the FAP exceeds at only one of the 8 trial phases we classify a planet as undetectable at these P and K values. By increasing the K parameter until the FAP is less than for all orbital phases at a given P value we obtain quantitative upper limits for giant planets orbiting Centauri A & B. We compare these results with a Monte Carlo type approach, where we used instead of our own RV distribution, a Gaussian noise term (with the according sigma of for component A and for component B). The resulting upper limits for planetary companions using both methods are displayed in Fig. 5 for Centauri A and in Fig. 6 for Centauri B. A well known constraint of the RV method is the unknown viewing angle i to the orbital plane of the planet, thus we derive minimum mass estimates (). The difference seen between the results of the two methods employed to determine upper limits (solid and dashed lines in Figs. 5 and 6) can be explained by the differences in the underlying noise distribution. The method using our own (non-Gaussian) RV data as noise term occasionally leads to the effect that outlying data points (e.g. the 2 RV results for Centauri B at BJD 2450348 and 2450349 as seen in Fig. 2) are counter-acting an RV minimum (or maximum) at a certain phase angle, rendering it undetectable for the periodogram. And this can play a major role in the limit determination, because one phase is enough to reject a planet as detectable. This effect is less prominent in normally distributed errors. Since the RV residuals don't follow a Gaussian distribution we conclude that the first method delivers more realistic limit results in the case of the CES program.
For Centauri A we can exclude planets in circular orbits with at separations less than 2 AU and within 4 AU we rule out the presence of planets having an . For component B the corresponding limits are: no planets with within 2 AU and no planets with inside 4 AU. We stopped the limit analysis at P values representing orbital radii of 4.5 and 4.0 AU for components A and B, respectively, due to known dynamical limitations for stable orbits around the two components (we will discuss this in more detail in the next section).
Results coming from the Mount John University Observatory (Murdoch et al. 1993) have earlier set
strong constraints on the existence of brown dwarfs in the
Now the CES results also reach down into the sub-Jupitermass regime and
especially we find no evidence for short period "51 Peg-type''
at orbital separations less than 0.4 AU.

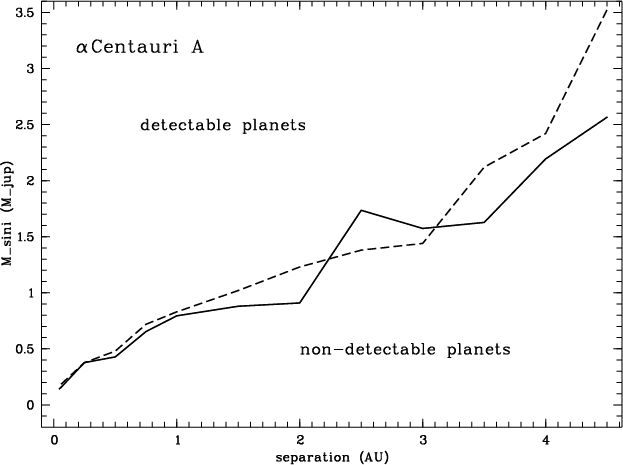

|Figure 5: Upper limits for giant planets orbiting Centauri A. All synthetic planetary signals above the solid line have been detected with a significance higher than . The dashed curve represents the limits we derive by using a Gaussian noise term with a sigma of (see text for details). Note that the y-axis shows only the projected minimum mass of the planet () in units of Jupiter masses. Planets orbiting in the binary plane ( ) would have masses only slightly larger than their minimum mass indicated by the solid line.|
|Open with DEXTER|
The long-term stability of planetary orbits within (and around) close binary systems has always
been of special interest for numerical dynamical studies (e.g. Dvorak 1986; Holman & Wiegert
1999). In particular, the
Centauri system was subject of such investigations in Benest
(1988) and Wiegert & Holman (1997). A precision Doppler search like the CES program
is targeting the individual stellar companions and is - of course - restricted to the detection of
planets in S-type orbits (i.e. around one of the stars; after Dvorak 1986). The most recent
stability study was performed by Wiegert & Holman (1997). They conducted numerical
integrations over a time span of 32000 binary periods (
determined the regions where test particles were ejected or suffered close encounters with one of the
stars during the integration. Stable regions were found close to each of the stars and test particles
moving in retrograde orbits survived at larger separations due to the shorter encounter times
with the perturbing companion star. For planets orbiting in the binary plane (which corresponds to a viewing
they found the stable regions to have a maximum separation of roughly 3 AU for
prograde orbits and 4 AU for retrograde orbits. Close to each star orbits with higher inclinations
(with respect to the binary plane) are stable over the entire integration time.
Centauri A the maximum stable orbital radii were determined for prograde orbits
with inclinations of
a = 2.9,2.5,2.1 and 1.25 AU. For retrograde orbits
the according maximum separations are:
a = 4.2,3.8,2.3 and 1.1 AU. Around component B prograde
orbits were found stable with inclinations of
2.8,2.8,2.6,2.0 and 1.2 AU.
Again for retrograde orbits the allowed maximum separations for inclinations of
a = 4.0,4.0,3.5,3.0 AU, while higher inclined retrograde orbits with
are unstable (see
Figs. 1 and 3 in Wiegert & Holman 1997 for details).

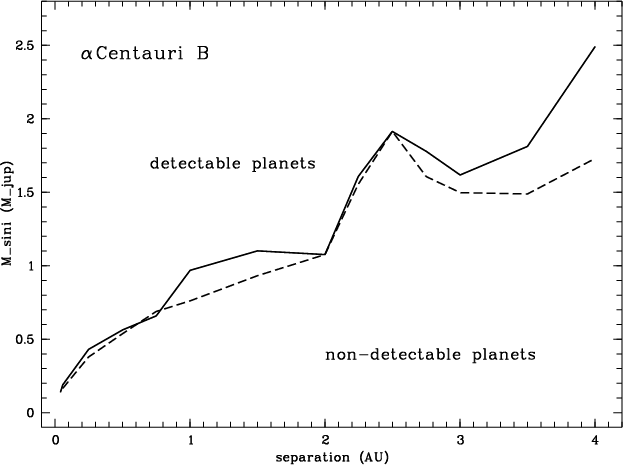

|Figure 6: Companion limits for Centauri B. All planets above the solid line would have been detected by the CES program. The dashed line again shows the results taking a Gaussian noise term of for the simulations.|
|Open with DEXTER|
From this information about the dependence of stable regions on the orbital inclination we can now combine these limits with our RV results and transform the -a plane of Figs. 5 and 6 into a mass-separation (m-a) plane for possible planets within the Centauri system. This is simply done by dividing the -masses by the -values with and j the maximum allowed orbital inclination at that separation. For this purpose we use the limit values based on the bootstrap method (solid lines in Figs. 5 and 6). Figures 7 and 8 display the two zones of still possible planets. This means for Centauri A that no planets having masses exist at anyorbital radius and inclination, and for component B all planets with masses can be excluded.
So what kind of planets can still exist in the
Although we cannot rule out giant planets with masses smaller than
respectively, it is possible
that the real limits are much lower than that. At least in one case, in the case
of the transiting planet around HD 209458 (Charbonneau et al. 2000) it was
determined that the planet orbits almost coplanar with the stellar equator and that it is moving
in the same direction as the star rotates (Queloz et al. 2000; Marcy et al. 2001).
Of course the same is true for our own Solar System, and if we adopt this paradigm also
Centauri system, the planetary mass limits decrease dramatically, especially
at smaller orbital radii. There is evidence
that the equatorial and the orbital planes are coplanar in solar-type binary systems
with separations less than
AU (Hale 1994).
The viewing angle to the binary
Centauri is well determined with
If we assume now that possible
planets would orbit in the same plane, then the
values of Figs. 5 and 6
divided by sin(
(=0.982) would yield the slightly larger "real'' mass value. This roughly
the limits displayed in Figs. 5 and 6 into real mass limits without the uncertainty
of the -effect.
This would consequently even exclude all "51 Peg-type'' planets with masses larger than
at separations less than 0.06 AU.

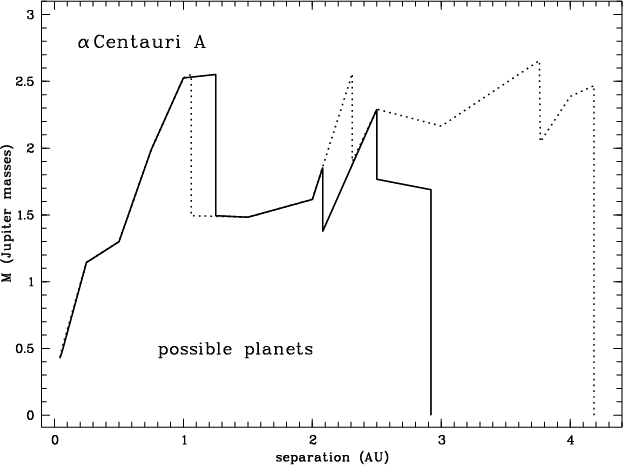

|Figure 7: Mass-separation plane of the remaining possible planets around Centauri A. This plane is the result of the combination of the -curve (solid line) of Fig. 5 with the stability zones of Wiegert & Holman (1997). We can exclude the existence of all planets above and to the right of the solid line (dotted line) for prograde (retrograde) orbits.|
|Open with DEXTER|
Marzari & Scholl (2000) have demonstrated that planetesimal accretion is still possible within the stable regions of the Centauri binary. They showed that gas drag inside the protoplanetary disk counteracts the strong perturbations caused by the secondary. Hence, despite the fact that we did not detect any giant planets residing inside the binary, the Centauri system can still be hosting lower mass giants and of course terrestrial planets.
Finally, planets orbiting the center of mass of the binary (P-type orbits after Dvorak 1986) at much larger separations (a > 70 AU) cannot be detected by a Doppler search like the CES program and thus remain another possibility.
The planetary limits presented in this work are based on more than 5 years of data collected with the 1.4 m CAT telescope and the CES in Long Camera configuration. The CES (with the new Very Long Camera) is now connected to the 3.6 m telescope on La Silla via a fibre link and we continue to monitor Centauri using this instrumental setup. By obtaining more RV measurements over time it will permit us to push these mass limits further down or to detect even a smaller residual RV signal of an orbiting planet.

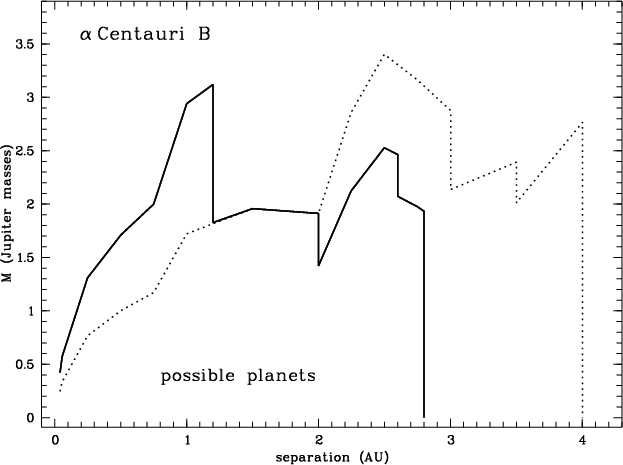

|Figure 8: Zone for possible giant planets orbiting Centauri B. Again the region defined by the solid line is valid for prograde and the dotted line for retrograde orbits. The presence of planets inside these regions is still possible.|
|Open with DEXTER|
We thank the ESO OPC for generous allocation of observing time to the CES planet search program. We are very grateful to K. Dennerl and S. Döbereiner, who performed part of the observations of the CES program. M. Endl acknowledges support by the Austrian Fond zur Förderung der wissenschaftlichen Forschung N. S7302. Artie P. Hatzes and William D. Cochran acknowledge support from NSF Grant AST-9808980 and NASA Grant NAGW-9227.
