A&A 374, 421-434 (2001)
DOI: 10.1051/0004-6361:20010717

The gas content of peculiar galaxies: Counterrotators and polar rings[*],[*]

D. Bettoni1 - G. Galletta2 - S. García-Burillo3 - A. Rodríguez-Franco4,5

1 - Osservatorio Astronomico di Padova, Vicolo Osservatorio 5, 35122 Padova, Italy
2 - Dipartimento di Astronomia, Università di Padova, Vicolo Osservatorio 2, 35122 Padova, Italy
3 - Observatorio Astronómico Nacional-OAN, Apartado 1143, 28800 Alcalá de Henares-Madrid, Spain
4 - Departamento de Matemática Aplicada (Biomatemática) Sección Departamental de Optica,
      Universidad Complutense de Madrid, Av. Arcos de Jalón s/n, 28037 Madrid, Spain
5 - Nobeyama Radio Observatory, Nobeyama, Minamimaki, Minamisaku, Nagano 384-1305, Japan

Received 23 February 2001 / Accepted 7 May 2001

This paper studies the global ISM content in a sample of 104 accreting galaxies, including counterrotators and polar rings, which spans the entire Hubble sequence. The molecular, atomic and hot gas content of accretors is compared to a newly compiled sample of normal galaxies. We present results of a small survey of the J=1-0line of 12CO with the 15 m SEST telescope on a sample of 11 accretors (10 counterrotators and 1 polar ring). The SEST sample is enlarged with published data from 48 galaxies, for which observational evidence of counterrotation in the gas and/or the stars has been found. Furthermore, the available data on a sample of 46 polar ring galaxies has been compiled. In order to explore the existence of an evolutionary path linking the two families of accretors, the gas content of counterrotators and polar rings is compared. It was found that the normalized content of cold gas ( $M_{\rm gas}/L_B$) in polar rings is $\sim$1 order of magnitude higher than the reference value derived for normal galaxies. The inferred gas masses are sufficient to stabilize polar rings through self-gravity. In contrast, it was found that the cold gas content of counterrotators is close to normal for all galaxy types. Although counterrotators and polar rings probably share a common origin, the gas masses estimated here confirm that light gas rings accreted by future counterrotators may have evolved faster than the self-gravitating structures of polar rings. In this scenario, the transformation of atomic into molecular gas could be enhanced near the transition region between the prograde and the retrograde disks, especially in late-type accretors characterized by a high content of primordial gas. This is tentatively confirmed in this work: the measured H2/HI ratio seems larger in counterrotators than in normal or polar ring galaxies for types later than S0s.

Key words: galaxies: ISM - galaxies: interactions - galaxies: evolution - galaxies: peculiar - radio lines: galaxies - submillimeter

1 Introduction

The existence of kinematically decoupled disks of gas and/or stars with anti-parallel spins has been reported for a significant number of galaxies (see Galletta 1996, for a review). The phenomenon of counterrotation may be seen in the ionized gas (Bettoni 1984) but in almost half of the reported cases it is found in pure stellar disks (see Rubin 1994 for a review), being in some cases accompanied by gas counterrotation. Evidence of kinematical decoupling for the cold gas, either atomic or molecular, is also present in a high percentage of counterrotating galaxies (Bettoni et al. 1991; Braun et al. 1992; Casoli et al. 1998; van Driel & Buta 1993, Sage & Galletta 1994; García-Burillo et al. 1998, 2000).

Different scenarios have been proposed to explain the counterrotation present in elliptical and disk galaxies. Most of them invoke the capture of matter which comes from outside the acceptor galaxies. The various models examine different masses and time-scales involved in the accretion process. An external origin is also invoked to explain the existence of polar ring galaxies, where gaseous disks or rings are seen to rotate almost perpendicularly with respect to the main stellar body of the system (Whitmore et al. 1990). However, the link between polar rings and counterrotators remains unclear. Alternatively, it has been suggested that a primordial mechanism, invoking a dissipationless cosmological collapse perturbed by tidal fields, could explain the formation of counterrotating galaxies (Harsoula & Voglis 1998).

Within the accretion scenario, the morphology of the acceptor system and its dynamic evolution would depend on several factors: the nature of the accreted matter (gas and/or stars), the ratio between the accreted mass and that of the acceptor galaxy and, finally, the accretion speed. Whereas the collision between equally massive galaxies may lead to a merging like the "Antennae'', ending up as a giant elliptical galaxy with counterrotation (Hernquist & Barnes 1991), the disruption of the acceptor´s disk could be avoided by progressive infall of gas whose spin is anticorrelated with the main stellar body (Quinn & Binney 1992; Thakar & Ryden 1996; Voglis et al. 1991). However, the accretion of a gas-rich satellite may heat the stellar disk (Thakar & Ryden 1996). Observations show that lenticulars and spiral galaxies hosting counterrotation do not necessarily present disrupted stellar disks. Their stellar kinematics appear globally regular (Bettoni et al. 1991) and the stellar disks show hardly any sign of thickening (Rubin et al. 1992). The end product of the accretion process at the present epoch seems to have reached, in most of the known studied cases, an equilibrium configuration for the stellar component. Either the time-scales to reach equilibrium are short enough or, alternatively, accretion caused no traumatic changes in the kinematics of the stars.

The gas, however, is expected to reflect the consequences of the accretion process more violently than the stars. If gas was accreted by a disk galaxy with a non negligible amount of interstellar gas, a strong interaction between the accreted and the primary gas is likely. The existence of violent cloud-cloud collisions (the relative velocity between the interacting clouds would be: $v\sim 2\ v_{\rm rot}$) and the highly dissipative nature of the encounters might lead to the onset of large-scale shocks. These might convert the atomic gas into molecular gas (Braine & Combes 1992; Sage & Galletta 1993; Young & Knezek 1989) and eventually induce starbursts (Wang et al. 1992; Read & Ponman 1998; García-Burillo et al. 2000). If the described scenario holds, one would expect that the content of molecular gas would be higher in counterrotating galaxies than in a comparison sample of non-interacting galaxies of the same Hubble type. On the other hand, if the origin of counterrotation is primordial, or alternatively, if large-scale shocks are not efficient or short-lived, the H2 content should be similar for counterrotating and normal galaxies.

It is also unclear whether polar rings and counterrotators represent different steps in the process of mass accretion. A comparison of their H2 content could reveal if there is an evolutionary link between the two families of accretors.

This paper represents a first step in answering some of the above-mentioned questions by studying the global gas content in a sample of counterrotators. In this work we estimates the content of molecular, atomic and hot gas for a sample of 58 galaxies of different morphological Hubble types and of different types of counterrotation. Molecular gas masses are derived from 12CO(J=1-0) observations made with the 15 m SEST radiotelescope on 10 galaxies with counterrotation and 1 polar ring (Sect. 2). Results from these new observations are described in Sect. 4. The published data for 48 objects where there are indications of counterrotation in the gas and/or stars have been compiled and added to this sample (see Sect.  5). The H2 content of counterrotating galaxies will be studied relative to a comparison sample of normal galaxies that was built up from the literature, as described in Sect. 6. The gas content of counterrotators has also been compared with those of polar ring galaxies, using available data from the literature (see below for detailed references). A similar comparative study has been done with the HI content (from various sources), with the warm dust mass (derived from IRAS data) and with the amount of hot gas, the dominant gas component in early type objects (values derived from X-ray data taken by ROSAT and by EINSTEIN).

2 The SEST sample

The 11 galaxies in our sample observed using the SEST telescope were selected from the list of objects published by Galletta (1996). The galaxies are described individually in Sect. 4, together with the main results inferred from this CO study. The relevant parameters of the systems, such as the diameters (D25: the de-projected linear diameter corresponding to the blue isophote at 25 mag arcsec-2), absolute B magnitudes (MB), distances (d) and morphological types are shown in Cols. 3-6 of Table 1. These data have been extracted from the recently up-dated Lyon-Meudon database LEDA (Paturel et al. 1997).

The conversion factor between the integrated intensities of 12CO(J=1-0) and the H2 column densities was taken from Strong et al. (1988), i.e.:

\begin{eqnarray*}\chi=N({\rm H}_2)/I_{10}=2.3\times10^{20}~{\rm mol/K\ km\ s}^{-1}.

The total mass of molecular hydrogen (in $M_\odot$) under the 45 $^{\prime\prime}$ beam of SEST for the observed galaxies was obtained from N(H2) using:

\begin{eqnarray*}M({\rm H}_2)=7.8\times 10^{-16}\times N({\rm H}_2)\times d^{2} (\hbox{$M_\odot$ })

where d is the galaxy distance in Mpc and $N({\rm H}_2$) the measured column density in mol cm-2. The total molecular gas content under the beam ( $M_{\rm mol}$) is derived by multiplying $M({\rm H}_2$) by 1.36 in order to include the Helium mass fraction. Although a variation of the $\chi$ conversion factor cannot be excluded among the observed galaxies, we will take the above derived values as a good estimate of the molecular gas masses.

HI masses ( $M_{\rm HI}$) have been taken from various sources or calculated from the m21 parameter of LEDA (Paturel et al. 1997), assuming:

\begin{eqnarray*}M_{\rm HI} = 2.35\times 10{^5} \times 10^{-0.4(m_{21{\rm c}}-17.4)}\ d^2

with d being the distance in Mpc. Hereafter, $M_{\rm gas}$ is used for the total mass of cold gas, i.e., $M_{\rm gas}=M_{\rm mol}+M_{\rm HI}$.

The mass values of X-ray emitting gas ($M_{\rm X}$) have been derived from ROSAT data (Beuing et al. 1999) and from EINSTEIN data (Fabbiano et al. 1992; Burstein et al. 1997), assuming:

\begin{eqnarray*}M_{\rm X} = 10^{-24}\ L_x^{0.5}\ L_B^{1.2}.

Note that this formula (Roberts et al. 1991) is generally valid for early-type galaxies.

Finally, warm dust masses ( $M_{\rm dust}$) have been calculated from IR fluxes (S60 and S100) published by Knapp et al. (1989) and from LEDA raw data, kindly furnished by G. Paturel, assuming:

\begin{eqnarray*}M_{\rm d} = 4.78\times 10^{-3}\ S_{100}\ d^2\ ({\rm exp}(144.06/T_{\rm d})-1)

where dust temperature $T_{\rm d}=49\times(S_{60}/S_{100})^{0.4}$ and d is the distance in Mpc. A more accurate calculation giving the total dust mass, including the coldest component not detected by IRAS, is beyond the scope of this work. All distance-dependent values available from the literature have been re-scaled to the adopted distances from LEDA, explicitly listed in Table 1.

3 Observations

Emission in the J=1-0 and J=2-1 transitions of 12CO among the sample of 11 galaxies was searched for using the Swedish-ESO Submillimeter Telescope (SEST) at La Silla, equipped with the dual channel IRAM 115/230 GHz receivers which allow for simultaneous observations. There were three different observation runs: November 6th-11th 1998, May 28th-31st 1999 and May 7th-11th 2000. Beam sizes were 45 $^{\prime\prime}$ and 23 $^{\prime\prime}$ at 115 GHz and 230 GHz, respectively. Unless explicitly stated, the temperature scale used throughout the paper is antenna temperature, corrected from atmospheric losses and rear spillover ( $T_{\rm a}^*$). When deriving line ratios, it is assumed that main beam efficiencies $\eta_{\rm beam}$(115  GHz)=0.70 and $\eta_{\rm beam}(230~{\rm GHz})=0.50$, in order to refer temperatures to the main beam brightness scale. Spectrometers cover bandwidths of 995 MHz (1290 km s-1) and 543 MHz (1410 km s-1) for the J=2-1and J=1-0 lines respectively. Dual-beam switching was used, with a beam throw of 12$^\prime$ to produce a flat baseline. Typical system temperatures ranged from 190-430 K. Pointing and focus were checked every 2-3 hours, using several SiO maser sources located near the target galaxy. The rms accuracy of the pointing model was typically $\le$2 $^{\prime\prime}$, assuring an absolute positional accuracy better than 5 $^{\prime\prime}$.

Except for one case (NGC 3497), we made only single point maps centered on the nuclei of the galaxies. Individual scans at each position were coadded to get total integration times ranging from 1 h to 7 h. Spectra were Hanning-smoothed to a velocity resolution of 30 km s-1 (for both lines) with the exception of narrow lines for which a higher resolution was kept (see below). Linear baselines were fitted and subtracted from the smoothed spectra using the GILDAS software package.

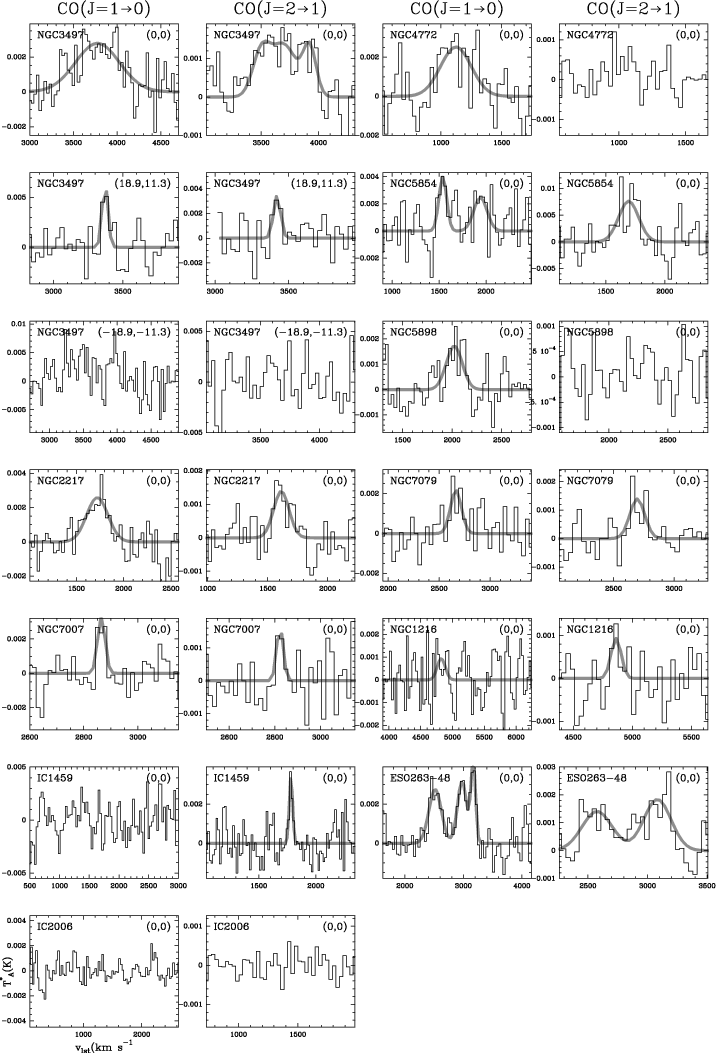

\par\includegraphics[width=11cm,clip]{MS1196f1.eps}\end{figure} Figure 1: The J=1-0 and J=2-1 CO spectra for the galaxies observed by the SEST telescope. Gaussian fits on the lines are shown when available.
Open with DEXTER

4 Results for the SEST sample

This section presents the main results of the CO observations for the 11 galaxies of the SEST sample, preceded by a short description of the systems.

4.1 ESO 263-48

This galaxy, also denoted Anon 1029-45, has been included in a list of dust-lane ellipticals by Hawarden et al. (1981). It has a prominent and strongly warped dust lane going across the major axis up to r=30 $^{\prime\prime}$ (5.2 kpc). Due to its prominent dust lane which gives the system the appearance of an edge-on disk, it has often been classified as S0, although it has all the properties (photometric profile, luminosity and size) of giant ellipticals. Furthermore, long exposure plates of the galaxy show no signature of a stellar disk. The stellar kinematics have been studied by Bertola et al. (1988a), who derived a maximum rotational velocity of 210 km s-1 reached at r=20 $^{\prime\prime}$ (3.4 kpc) and a velocity dispersion of 260 km s-1. Ionized gas in counterrotation, with spin velocities of $\sim$250 km s-1 at r=7 $^{\prime\prime}$ (1.2 kpc), has been detected along the major axis (Bertola et al. 1988b). There are no HI observations available for ESO263-48; the galaxy also remains undetected in the ROSAT survey. However, this elliptical is particularly rich in dust; from the IRAS fluxes we estimate $M_{\rm dust} \sim\ 3.8\times 10^{5}~\hbox{$M_\odot$ }$. A continuum radio emission has been detected at 1.4 and 4.9 GHz, which extends perpendicularly to the dust lane (Bertola et al. 1988a). The J=2-1 and J=1-0 CO spectra of Fig. 1 show $\sim$800 km s-1-wide emission profiles centered at v=2810 km s-1 (hereafter taken as the CO-based systemic velocity; $v _{\rm sys}$). The J=1-0 spectrum is asymmetrical with respect to $v _{\rm sys}$ as it can be fitted by three Gaussian-like components. Emission of the two extreme velocity components at v=2517 km s-1 and v=3170 km s-1 can be explained by the presence of an unresolved H2 disk with a rotation speed of $v_{\rm rot}=325$ km s-1, reached within r=2 kpc (the upper limit on r is set by the J=2-1 beam). The value of $v_{\rm rot}$ derived from CO is significantly larger than that which is inferred for the ionized gas at the same radius ($\sim$250 km s-1). This discrepancy may indicate that the H2 disk seen in projection extends farther out. The asymmetry in the 12CO(J=1-0) spectrum is caused by the existence of a strong component at V=2980 km s-1, redshifted by 170 km s-1 with respect to $v _{\rm sys}$, and having no blue-shifted counterpart. The latter can come from an asymmetrical distribution in the H2 disk or, alternatively, be the signature of a warp in the molecular gas disk (as suggested by the distorted dust lane).

The molecular gas content under the J=1-0 beam can be derived within a radius $r=22\hbox{$^{\prime\prime}$ }$ (4 kpc) (close to the maximum extent of the dust lane feature). It was calculated to be $M_{\rm mol}=8\times 10^{8}$ $M_\odot$, a high value for an elliptical galaxy.

4.2 IC1459

The absolute magnitude and the intrinsic diameter of this galaxy (see Table 1) are both characteristic of a giant elliptical. IC1459 has a massive counterrotating stellar core ( $M\sim 10^{10}$ $M_\odot$, according to Franx & Illingworth 1988) and its outer stellar isophotes are twisted, an indication that the stellar body is triaxial. This galaxy shows dust absorption in the central 10 $^{\prime\prime}$ (Sparks et al. 1985) and faint pseudo-arms in the outer part ( $r\sim3.5\hbox{$^\prime$ }$ Malin 1985). The counterrotating core, which hosts a compact radio source (Franx & Illingworth 1988), has a radius of $\sim$2 $^{\prime\prime}$ (200 pc) and a projected spin velocity of $170 \pm 20$ km s-1. On dynamical grounds, the core can be described as a disk, rather than as an ellipsoid. In contrast, the outer directly-rotating stellar body has a slower rotation figure; it reaches $\sim$$45 \pm 8$ km s-1at r=40 $^{\prime\prime}$ (4 kpc). The galaxy is crossed by a disk of ionized gas, whose emission is evenly detected up to r=35 $^{\prime\prime}$ (3.5 kpc); the ionized gas rotates in the same direction than the outer stellar body, but at a higher speed (350 km s-1) (Franx & Illingworth 1988). Therefore counterrotation in this galaxy seems confined to the inner core and affects only the stars. X-ray emission peaks in the galaxy nucleus (Roberts et al. 1991), an indication of central activity.

Walsh et al. (1990) report a negative detection of HI emission, the upper limit on $M_{\rm HI}$ being $\sim$107 $M_\odot$. Our 12CO(J=1-0) spectrum also shows a negative detection for molecular gas emission. In contrast, the integrated 12CO(J=2-1) spectrum shows clearly a narrow emission line of ${\it FWHM}\sim35$ km s-1, centered at 1782 km s-1 (see Fig. 1). The velocity centroid of CO is redshifted by $\sim$100 km s-1 with respect to the galaxy systemic velocity ( $v_{\rm sys}=1691$ km s-1). This discrepancy of velocity centroids and the narrowness of the 12CO(J=2-1) line both indicate that emission cannot come from a rotating molecular gas disk in equilibrium that could be associated with the ionized disk or, alternatively, with the counterrotating core. In the discarded scenario of a molecular gas disk, the CO line should be 3-5 times wider than is actually observed, considering the size of our beam. Instead, the CO profile may come from a Giant Molecular Association (GMA). Furthermore, the derived upper limit on the mass of molecular gas, $M_{\rm mol}< 2\times10^7$ $M_\odot$, is noticeably low. Additional support for the interpretation outlined above comes from the high resolution deconvolved V-band images of the dust distribution, obtained with the HST. The morphology of the dust lane source in the inner 4 $^{\prime\prime}$ of the galaxy is very irregular and indicates non equilibrium motions (Forbes et al. 1994). Finally, the estimated 3$\sigma$ upper limit on the (J=2-1)/(J=1-0) ratio (>1.3) suggests that the CO emission might be partly optically thin.

Similar molecular gas components have been found in other early-type galaxies, such as NGC404 (Wiklind & Henkel 1990), classified as a gas accreting elliptical with a minor axis dust lane (Bertola & Galletta 1978). This GMA may be a residual of one of the galaxies involved in the passed merger that is supposed to be at the origin of IC1459 (Franx & Illingworth 1988).

4.3 IC2006

The size and the luminosity of IC 2006 put this galaxy among the dwarf ellipticals. Counterrotation is present in an outer ring of atomic gas, which is aligned with the apparent major axis of the galaxy. At the radius of the HI ring, the galaxy luminosity decreases to $B\sim 27$ mag arcsec-2 (Schweizer et al. 1989). Schweizer and collaborators describe the HI distribution as a 2 kpc wide circular ring of radius $\sim$11 kpc, inclined at 37$^\circ$. With the adopted parameters, the rotation speed of the HI gas would be 200 km s-1 at this distance. HI gas remains undetected inside the ring. In contrast, faint emission from ionized gas is detected within 2.5 kpc of the nucleus, characterized by a velocity gradient which is smaller and also inverted with respect to that of the stars (from -70 km s-1 (NE) to 50 km s-1 (SW), relative to $v_{\rm sys}=1385$ km s-1). The counterrotating ionized gas disk is highly turbulent, with a measured velocity dispersion of 190 km s-1 (Schweizer et al. 1989).

The upper limit set by ROSAT observations (Beuing et al. 1999) indicates that, contrary to IC1459, IC2006 has no relevant quantity of hot gas (see Table 1). Based on the optical photometry and the kinematics of the outer HI ring, Schweizer et al. (1989) derive the presence of a dark halo which contains about twice the mass of the luminous stellar body. Our single-point 12CO(J=1-0) map sampled the galaxy nucleus up to r=3.5 kpc. This region includes the ionized gas disk but excludes the outer HI ring. CO emission was not detected; the latter implies an upper limit for the central (r<3.5 kpc) molecular gas content of $M_{\rm mol}<1.4\times 10^7$ $M_\odot$.

4.4 NGC1216

This galaxy belongs to the Hickson compact group H23. It is an almost edge-on disk galaxy classified as S0-a in the LEDA database. Counterrotation in the ionized gas is detected from optical emission lines (Rubin et al. 1991). The gaseous disk extends up to a radius of 2 kpc, with an observed maximum rotational speed of 75 km s-1; this velocity is significantly lower than that of the stars at the same radius ($\sim$175 km s-1). The latter may be an indication that the gaseous disk is either warped or tilted with respect to the galaxy plane. The optical images of this galaxy show no signature of dust absorption. Williams & van Gorkom (1995) report a negative detection for this galaxy in the 21 cm line, which gives an upper limit of $M_{\rm HI}<5\times 10^{7}\,\hbox{$M_\odot$ }$. IRAS, ROSAT and, finally, our CO observations report negative detections for NGC1216. The latter give an upper limit of $M_{\rm mol}< 3\times 10^8~\hbox{$M_\odot$ }$ for the molecular gas content, within a region of radius r=7 kpc.

4.5 NGC2217

NGC2217 is a barred spiral (SBa) seen almost face-on. It has an outer stellar+gaseous ring of radius $\sim$8 kpc and an inner oval ring of radius $\sim$4 kpc, which encircles the bar.

Bettoni et al. (1990) have studied the distribution and kinematics of the ionized gas, confined to the innermost 20 $^{\prime\prime}$ ($\sim$2 kpc) of the galaxy. The gas distribution suggests the presence of a two-arm spiral structure, whereas the kinematics are characterised by counterrotation with respect to the stars, inside $r\sim10\hbox{$^{\prime\prime}$ }$ ($\sim$1 kpc). However, a detailed analysis of the data by the authors shows that the gas counterrotation is not real, and it may be better accounted for if one assumes the gas to be in a warped disk seen in projection. The ionized gas inside r=1 kpc would lie in a series of polar rings almost at 90$^\circ$ with respect to both the bar and the stellar disk. In the outer region (r=1-2 kpc) the plane of the gas rings would have settled towards the disk of the stars, and changed its inclination by nearly 90 degrees. The latter explains why the gas and the stars rotate in the same direction for r>1 kpc. We have classified the system as a polar ring galaxy.

The apparent counterrotation of ionized gas inside r=1 kpc produces the largest extention of radial velocities along the bar minor axis: from v=1450 km s-1 to 1800 km s-1. The $v _{\rm sys}$ derived from the gas and the star kinematics agree within the margin of errors, being close to 1640 km s-1. Bettoni et al. (1990) fit a rotation curve to their data, inferring de-projected rotational velocities of 125 km s-1 and 150 km s-1 for the stars and the gas, respectively, at a radius r=1 kpc.

HI observations reported by Huchtmeier (1982) show a double-horned emission profile centered at $v_{\rm sys}=1615$ km s-1, close to the value found by Bettoni et al. (1990) and with a total width at zero power of $\sim$300 km s-1. The re-scaled HI mass is $M_{\rm HI}=2.7\times10^{9}$ $M_\odot$. As there is no high-resolution HI map of NGC2217, the location of the HI gas is uncertain.

The spectra in Fig. 1 show the detection of molecular gas emission for the two lines of 12CO. The two profiles differ significantly, however. Whereas the J=1-0 line is centered at v=1720 km s-1 (i.e., redshifted 100 km s-1 with respect to $v _{\rm sys}$), the J=2-1 line peaks at $v\sim v_{\rm sys}$ (as defined above). Although the low spatial resolution of these observations tells us little on the precise location of molecular clouds, the reported asymmetry of the J=1-0profile (which samples the disk up to r=2 kpc) suggests that the distribution of H2 gas in NGC2217 is highly asymmetrical and/or that the kinematics of molecular clouds might depart from circular motions. Most noticeably, the integrated HI profile also shows a pronounced asymmetry. The FWHM of the two CO lines are close to the values found in HI and in optical emission lines ($\sim$250-300 km s-1).

We derived a molecular gas content of $M_{\rm mol}\sim 9 \times 10^{7}~\hbox{$M_\odot$ }$up to r=2 kpc.

4.6 NGC3497

NGC3497 is a major-axis dust lane elliptical known by different names ( ${\rm NGC}\,3525={\rm NGC}\, 3528 = {\rm IC}\, 2624$). The ringed dusty disk shown in the B-R color maps of Ebneter & Balick (1985) seems to have the same extent as the stellar disk ( ${\rm diameter}\sim70$ $^{\prime\prime}$). As with all major-axis dust-lane ellipticals, e.g. ESO 263-48 in this paper, the dust signature is interpreted to be the result of an accretion episode. The galaxy has a fainter galaxy at 2$^\prime$ (named NPM1G-19.0362) and a companion with similar redshift at 5$^\prime$ ( ${\rm NGC}\, 3529 = {\rm IC}\, 2625$).

Stellar and gas rotation curves have been derived by Bertola et al. (1988a), who measured a radial velocity difference of $\sim$ $240 \pm 30$ km s-1 between the western and eastern sides of the major axis (on the NE side stars are receding). The measured systemic velocity is $v_{\rm sys}=3672 \pm 25$ km s-1. No X-ray, IR or HI data are available in the literature.

The emission of both lines of 12CO were observed in three positions located along the major axis of the disk: the (0,0) offset centered on the galaxy nucleus and two off-centered positions at $r= \pm 22$ $^{\prime\prime}$. The J=2-1 and J=1-0 spectra shown in Fig. 1 reveal the presence of molecular gas in the central region (up to r=5 kpc) and also the detection of the J=1-0 line of 12CO in the NE offset. In the SW position, however, CO emission was not detected. The 12CO(J=1-0) central spectrum is fitted well by a single Gaussian profile, centered at 3774 km s-1 and with ${\it FWHM} = 600$ km s-1 ($\sim$1000 km s-1 at zero power); therefore, it is 100 km s-1redshifted with respect to $v _{\rm sys}$. In contrast, the J=2-1 profile shows three velocity components at v=3497 km s-1, v=3693 km s-1 (close to the optically determined $v _{\rm sys}$) and v=3497 km s-1. The velocity asymmetry in the central J=1-0 spectrum may indicate that H2 distribution is slightly asymmetrical in the disk within r=5 kpc.

A comparison between the radial velocity measured on the CO spectrum ($\sim$3570 km s-1) and the stellar velocities observed in the NE side of the major axis (redshifted with respect to $v _{\rm sys}$), indicates that molecular gas is counterrotating with respect to the stars.

The molecular gas mass within the central r=5 kpc, derived from the 12CO(J=1-0) integrated intensity, would be $M_{\rm mol}=1.4\times 10^{9}~\hbox{$M_\odot$ }$. The amount of molecular gas detected in the NE offset is $M_{\rm mol}=2.7\times 10^{8}~\hbox{$M_\odot$ }$.

4.7 NGC4772

Haynes et al. (2000) considers NGC4772 as a case of apparent counterrotation of the ionized gas versus the stars. The kinematical decoupling of the nuclear ionized gas ( $r<5\hbox{$^{\prime\prime}$ }=0.3$ kpc), observed along both the minor and the major axes, has been interpreted as the signature of a misaligned embedded gas bar, rather than as evidence of counterrotation. However, this Sa galaxy shares many features with other prototypical counterrotators. Mimicking NGC3626, the HI content of NGC4772 is distributed in two separate rings, probably non coplanar. As is the case for NGC 3626, the central region of NGC4772 is HI-poor. Furthermore, the deep optical photometry of the galaxy reveals the presence of a round, low surface brightness disk in the outer part, reminiscent of a similar feature reported by Buta et al. (1995) in the Sab counterrotator NGC 7217.

The J=1-0 spectrum of 12CO (Fig. 1) reveals the presence of molecular gas (inside r=1.5 kpc). The line profile, centered at $\sim$1120 km s-1 and with ${\it FWHM} \sim 300$ km s-1, is slightly redshifted with respect to the optically determined $v_{\rm sys}=1040$ km s-1 (the same as derived from HI).

Emission in the J=2-1 line is undetected, however. The molecular gas mass within the central r=1.5 kpc, derived from the 12CO(J=1-0) integrated intensity, would be $M_{\rm mol}=5.4\times 10^{7}~M_{\odot}$.

4.8 NGC5854

NGC5854 is an early spiral (Sa) characterized by a low gas content and the absence of current star formation. Haynes et al. (2000) have studied the stellar kinematics, using
H$\alpha$ and MgIb optical absorption lines, and the kinematics of ionized gas, using the N[II] and O[III] optical emission lines. These data reveal the existence of a counterrotating gas disk extending up to $r\sim7\hbox{$^{\prime\prime}$ }$ (0.8 kpc), with a total velocity range of 120 km s-1. The stellar velocities measured at $r\sim40\hbox{$^{\prime\prime}$ }$ (4.5 kpc) reach $\pm$160 km s-1. Although HI content is low, Magri (1994) detected a signal in the nucleus. The HI profile is centered at 166 km s-1, close to the optically determined value for $v_{\rm sys}=1669 \pm 30$ km s-1 (Fouque et al. 1992). The narrowness of the HI spectrum ( ${\it FWHM} \sim 100$ km s-1, namely, less than the measured stellar velocity spread) suggests a close association of the HI component with the counterrotating ionized gas (see discussion in Haynes et al. 2000).

Although weak, the 12CO(J=1-0) spectrum shows the existence of H2 gas within r=2.3 kpc. There is a hint of a double-horned profile, with two velocity components at v=1539 km s-1 (with ${\it FWHM} \sim 100$ km s-1) and v=1930 km s-1 (with ${\it FWHM} \sim 170$ km s-1), equidistant from v=1735 km s-1. The CO spectrum in the J=2-1 line confirms the detection of molecular gas. Not surprisingly, the J=2-1and J=1-0 profiles differ. The J=2-1 line shows hints of two velocity components, although with a smaller velocity spread (v=1630 km s-1 and 1740 km s-1) and is centered at $v\sim 1690$ km s-1, in reasonable agreement with HI. However the larger velocity spread of the J=1-0 spectrum would suggest that, compared to the counterrotating ionized gas core, the H2 disk may extend farther out. The molecular gas mass within the central r=2.3 kpc was derived from the 12CO(J=1-0) integrated intensity giving; $M_{\rm mol}=1.6\times 10^{8}~M_{\odot}$.

4.9 NGC5898

NGC5898 was studied by Bettoni (1984) and Bertola & Bettoni (1988), who discovered the first case of ionized gas counterrotation in a dust lane elliptical in this galaxy. Their data, which extended out to $\sim$10 $^{\prime\prime}$ (1.4 kpc), have recently been completed by Caon et al. (2000) who analysed the stellar and the gas kinematics farther out (up to $r\sim35$ $^{\prime\prime}$ (4.8 kpc)). The new data along the major axis show the existence of a stellar core of radius $r\sim 5\hbox{$^{\prime\prime}$ }$ (0.7 kpc) which counterrotates with respect to the outer stellar body. The ionized gas counterrotates with respect to the inner stellar core, and it therefore corotates with the outer stars. In contrast, gas is seen to counterrotate at all radii along the minor axis. This might indicate that angular momentum vectors of the ionized gas and the stars are certainly misaligned, but not antiparallel. The observations of this galaxy at X-ray and IR wavelengths show an upper limit for hot gas of $\sim$ $3\times 10^8~\hbox{$M_\odot$ }$ and a moderate quantity of dust, of a few 104 $M_\odot$.

The J=1-0 spectrum of 12CO (Fig. 1) shows a tentative detection of molecular gas inside r=3.1 kpc. The line profile, centered at $\sim$2020 km s-1and with ${\it FWHM} \sim 190$ km s-1, is slightly blueshifted with respect to the optically determined value of $v_{\rm sys}~(\sim$2100 km s-1, derived from Bertola & Bettoni 1988). The observed asymmetry might arise if the H2 gas was associated with the ionized disk, which shows a marked extension towards the SW (where ionized gas radial velocities are blueshifted). In this scenario molecular gas would also be counterrotating.

The 12CO emission is undetected in the J=2-1 line, however. We have calculated the molecular gas mass within the central r=3.1 kpc, using the 12CO(J=1-0) integrated intensity, giving $M_{\rm mol}=10^{8}~M_{\odot}$.

4.10 NGC7007

The optical images of NGC 7007 show an elliptical-like body encircled by an off-centered bow-shaped dust lane on the eastern side. Dettmar et al. (1990) discovered, in this galaxy, the signature of a counterrotating ionized gas disk by comparing the spectrograms of gas emission (NII $\lambda$6853) and stellar absorption lines (H$_{\alpha}$). Spectra taken later (Bettoni et al. 2001a) allowed a detailed analysis of the stellar and the gas kinematics, characterised by maximum rotational velocities of $\pm$150 km s-1 and $\pm$175 km s-1 respectively, reached at r=10 $^{\prime\prime}$. The central velocity dispersion for stars is 150 km s-1, whereas gas lines have instrumental width (<100 km s-1). The galaxy contains a source of infrared emission detected by IRAS, and at X-ray wavelengths the published work reports an upper limit (see Table 1).

Our J=2-1 and J=1-0 spectra both show a weak narrow line of $\sim$30 km s-1 FWHM, centered at $\sim$2850 km s-1, close to the optical redshift of $2924 \pm 66$ km s-1 reported in RC3 (de Vaucouleurs et al. 1991). These results are, however, at odds with that quoted by Da Costa et al. (1991) ( $3053 \pm 20$ km s-1), who estimated $v _{\rm sys}$ as a weighted average between gas emission and stellar absorption data. If the Da Costa et al. (1991) value is more accurate, as indicated by the additional spectra of Bettoni et al. (2001a), the reported difference between the CO peak and the optical systemic velocity could be explained with an asymmetry in the distribution of cold gas. The derived molecular gas mass, $\sim$ $6 \times 10^7
~\hbox{$M_\odot$ }$, could be well accounted for if the emission observed came from a few Giant Molecular Associations (GMAs) in the center of the galaxy, as observed in IC1459. The narrowness of lines in both transitions supports this scenario.

4.11 NGC 7079

NGC 7079 is a weakly barred SB0 galaxy, a member of an interacting pair. Bettoni & Galletta (1997) detected a counterrotating disk-like structure of ionized gas which extends up to a radius of r=2 kpc. The radial velocities for the gas span from 2600 km s-1 to 2800 km s-1. The stellar kinematics is typical of an undisturbed disk. The measured radial velocities (up to r=4.5 kpc) range from $v\sim 2500$ km s-1 to $v\sim 2900$ km s-1 and give a $v_{\rm sys}=2680$ km s-1 and a central velocity dispersion of 150 km s-1. No X-ray emission has been detected from this galaxy; the IRAS satellite detected infrared emission.

The J=2-1 and J=1-0 lines of CO are detected in this galaxy, showing the presence of molecular gas (see Fig. 1). The line profiles, $\sim$170 km s-1 wide at zero power, are centered on the galaxy systemic velocity, derived from optical data. The linewidths of both CO lines agree satisfactorily with the velocity range measured for the counterrotating ionized gas. In contrast, the CO widths are much smaller than the velocity interval measured in the stellar lines. This may indicate that H2 gas is confined to the inner portion of the galaxy and that it shares the same kinematics as the counterrotating ionized gas. The inferred molecular gas content is $M_{\rm mol}\sim 1.2\times10^{8}~\hbox{$M_\odot$ }$up to r=2 kpc.

5 The enlarged sample of accreting galaxies

The newly acquired data described above would nevertheless be insufficent to extrapolate estimates on the global gas content to all counterrotators. In order to improve the SEST sample on statistical grounds we added the published data from those counterrotators (Galletta 1996; Kannappan & Fabricant 2001) with an estimate from any of the different gas tracers: $M_{\rm mol}, M_{\rm HI}, M_{\rm dust}$ or M$_{\rm X}$. Masses are derived with the same assumptions used for the SEST sample. The properties of the enlarged sample are in first part of Table 1, together with the list of references relevant for this compilation. This new sample allows a complete study of the global gas content of counterrotators, using different gas tracers in a statistically significant sample of 58 objects.

In order to compare counterrotators and polar rings, the available data on a sample of 46 polar ring galaxies have also been compiled (see Ref. in Table 1). Data include 36 polar ring lenticulars and spirals (Schweizer et al. 1983; Whitmore et al. 1990 and this work), and 10 polar ring ellipticals, known in the literature as ellipticals with minor-axis dust-lanes, such as NGC 5128 (Bertola & Galletta 1978). Polar ring ellipticals have traditionally been classified as S0s due to the presence of a dark ring or disk in optical pictures. However, the luminosity profiles of these galaxies do not follow an exponential law, typical of stellar disks, but rather a r1/4 law, characteristic of spheroidal systems. We have therefore re-classified these galaxies as ellipticals, whenever they appear as S0s in catalogs. Not all polar ring lenticulars and spirals present in Whitmore et al. (1990)'s catalogue were finally included in our list. We only selected those systems where the perpendicularity between the ring and the stellar body is clearly visible in the images, discarding all systems appearing doubtful in our inspection of the catalogue. Altogether the sample of accreting systems includes 104 objects.

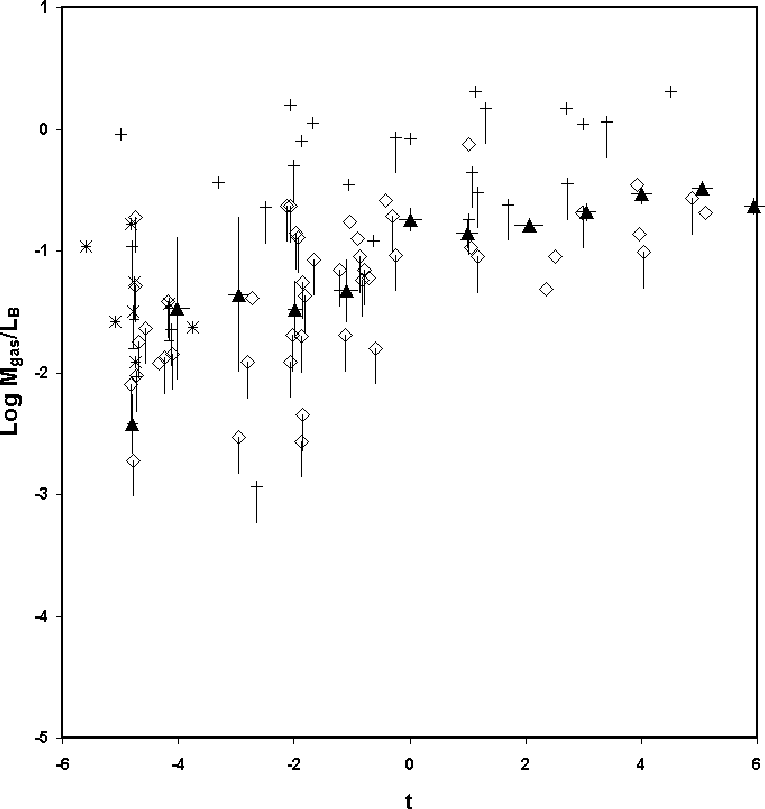

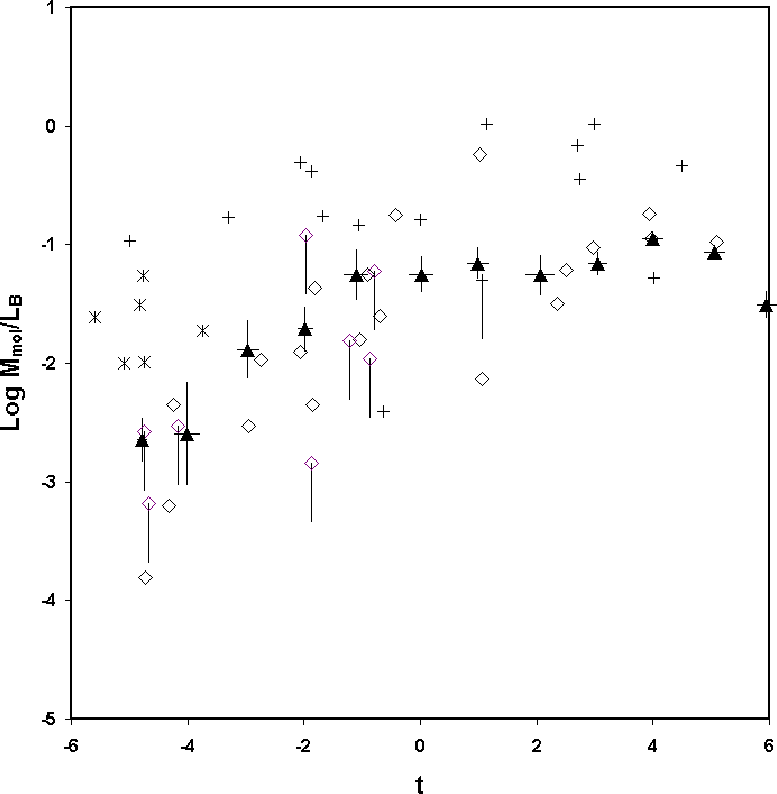

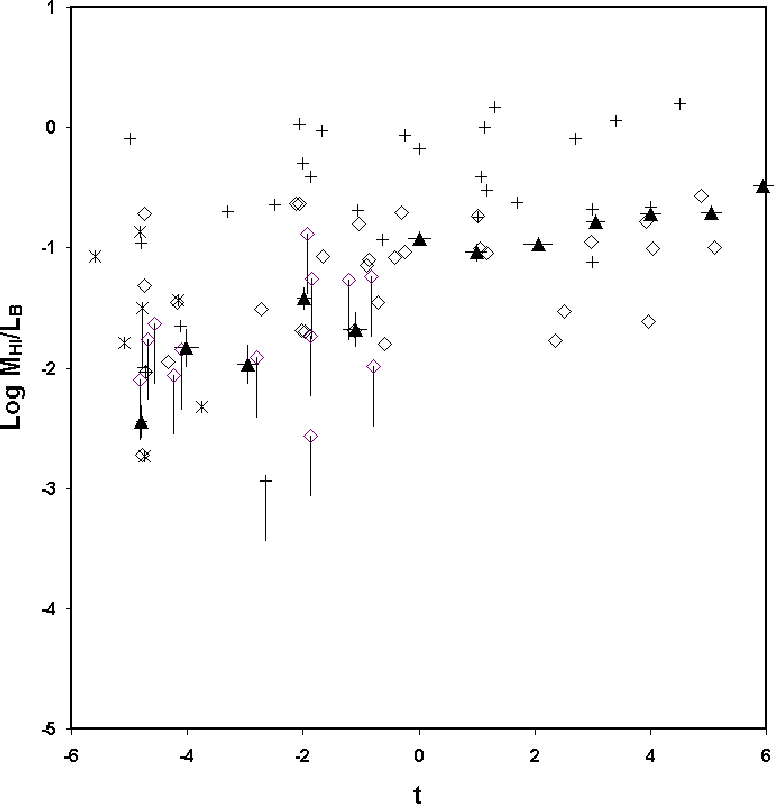

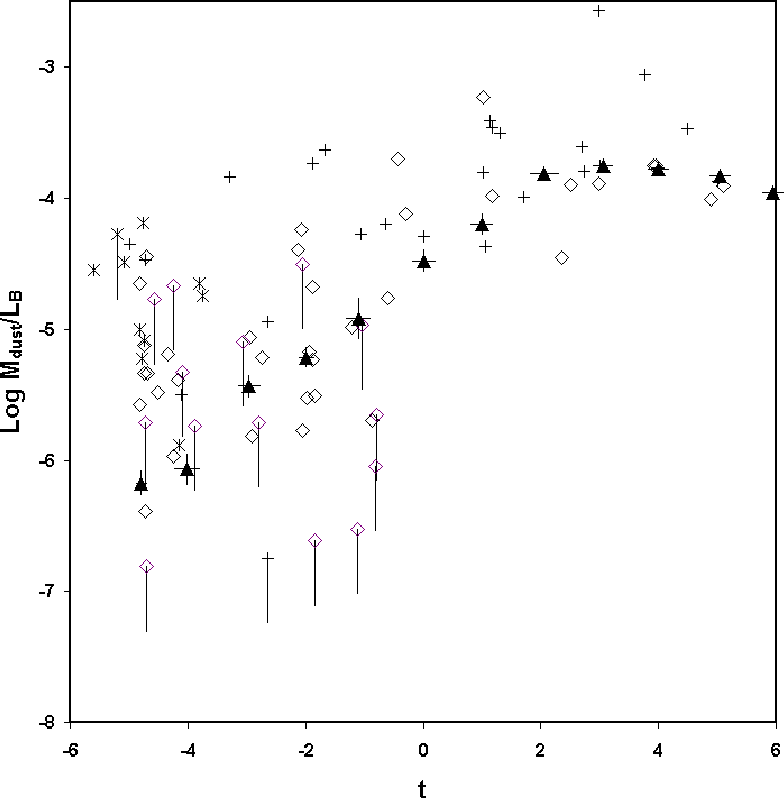

\includegraphics[width=6.9cm,clip]{MS1196f2.eps}\includegraphics[width=7cm,clip]{MS1196f3.eps}\end{figure} Figure 2: (Left): Log M/D2 ratios in normal galaxies derived for the atomic and molecular gas, from the samples of Casoli et al. (1998) (filled circles) and Bettoni et al. (2001b) (open symbols). (Right): Log M/L ratios in normal galaxies for the atomic and molecular gas, from Bregman et al. (1992) (filled triangles) and Bettoni et al. (2001b) (open symbols).
Open with DEXTER

6 Building up a comparison sample

The main aim of this paper is to study the molecular gas content of accreting galaxies (counterrotators and polar rings) and compare it with the average value for normal non-interacting galaxies as a function of the Hubble type. The first non-obvious task is the definition of a comparison sample of normal galaxies. The sample should contain a statistically significant number of objects. This requirement is critical for early-type galaxies, as the majority of accreting systems are of types earlier than Sa (morphological type code t=1). Moreover, the sample should avoid the inclusion of abnormal objects, suspected to be interacting and/or merging galaxies, e.g those reported in Arp's catalogs. In the past, two different research groups have built up comparison samples in order to study the variation of the gas content of galaxies along the Hubble sequence: Bregman et al. (1992) and Casoli et al. (1998). Bregman et al. (1992) derived the content of molecular gas, HI, X-ray emitting gas and dust, working on a sample of 467 early-type galaxies, ranging from pure ellipticals (E, t=-5) to early spirals (Sa, t=1). In their analysis they favoured the use of the total blue luminosity (LB) of galaxies as the necessary normalisation factor, i.e., the inferred numbers being $M_{\rm mol}/L_{\rm B}, M_{\rm HI}/L_{\rm B}, M_{\rm dust}/L_{\rm B}$ and $M_{\rm X}/L_{\rm B}$. They concluded, first, that the gas content of elliptical galaxies is dominated by the hot phase( $M_{\rm X}>M_{\rm mol}+M_{\rm HI}$) and secondly, that $M_{\rm mol}/L_{\rm B}$ and $M_{\rm HI}/L_{\rm B}$ both show a strong positive gradient from E to Sa-type systems. However, the number of early type galaxies detected either in H2 or in HI gas is scarce: for H2, 1 E-type detected with 11 upper limits (hereafter UL) and 6 SOs detected with 18 UL. Poor statistics cast some doubt on their conclusions.

Casoli et al. (1998) discussed the molecular and atomic gas content for a set of 582 objects, mainly disk galaxies, normalizing the gas masses by D252. For comparison, numbers for H2 are: 3 E detected and 7 SOs detected (with 2 UL). Results from Casoli et al. (1998) are noticeably at odds with that of Bregman et al. (1992): the sharp increase of gas content from t=-5 to t=1 reported by Bregman et al. (1992) (1-2 orders of magnitude) is not confirmed using Casoli et al. (1998) data. This discrepancy is illustrated in Fig. 2 where the mean values are represented as a function of t for the two samples. To reconcile these discrepant trends one must assume an unrealistic decrease by 2 orders of magnitude in $L_{\rm B}/D_{25}^2$, going from E to Sa systems. Results from both samples for types t<1 are however dubious, considering the poor statistics in this range. Moreover, the two samples include a non-negligible percentage of interacting galaxies (estimated to be close to $\sim$20$\%$ in both samples). Interacting galaxies should be discarded when putting together a comparison sample of normal non-interacting objects.

These limitations were the motivation to build up a new comparison sample of normal galaxies. Paper II by Bettoni et al. (2001b) will discuss extensively the details of this compilation. The over-all numbers give a grand total of 1773 normal galaxies selected from a processed sample of 3800 objects. Bettoni et al. (2001b) purposedly excluded from the selected sample those galaxies belonging to the interacting or disturbed categories (most of them appearing in Arp 1966; Vorontsov-Velyaminov 1959; Arp & Madore 1987 catalogues). Galaxies listed in the Veron-Cetty & Veron (2000) catalogue of AGN systems have also been excluded because in some cases their peculiar activity has been attributed to gas accretion. We have taken from Bettoni et al. (2001b) the normalized values M/LB for the molecular, atomic and X-ray emitting gas, as well as for the warm dust content inferred from IRAS. The global statistics for detections (and UL) are: 247 in H2 (113 UL), 774 in HI (149 UL), 196 in X-rays (661 UL) and 861 in IR (555 UL). This sample improves the statistics for early type galaxies compared to previous works, the numbers for H2 being: 10 E-type detected (plus 18 UL) and 10 lenticulars detected (plus 17 UL). Note that the galaxies used to build the mean values for the different ISM tracers are not always the same; however, the majority of galaxies in our sample (1135) have detections or upper limits in at least two wavebands.

We have applied a survival analysis method to the different ensembles of M/LB data. This analysis tool takes properly into account both detections and UL in order to derive representative averages. The mean values are derived and plotted under the label "normal galaxies'', and are binned according to the morphological type code (with $\Delta t=1$). Most noticeably, UL lower significantly the estimated mean M/LB values for normal galaxies of early types (see Bettoni et al. 2001b). The derivation of mean values of molecular gas content from Casoli et al. (1998) used survival analysis also. For HI data, all the galaxies of their sample were detected and so no survival analysis needs to be applied. Also, the analysis of Bregman et al. (1992) takes into account the different detection rates of the various morphological types, but using different non-parametric tests, based on rank.

At first sight, the comparison between the mean values derived from these three different studies (Bregman et al. 1992; Casoli et al. 1998; Bettoni et al. 2001b) shows that Log( $M_{\rm HI}/D_{25}^2$) and Log( $M_{\rm mol} /D_{25}^2$) of Bettoni et al. (2001b) are intermediate between Casoli et al. (1998) and Bregman et al. (1992) values. Although the cold gas content increases by a factor $\sim$10 from E to Sa-types, this gradient is less steep than that reported by Bregman et al. (1992) (see Fig. 2).

To identify any potential bias in the galaxy samples compared in this work (normal galaxies, counterrotators and polar rings), we have analysed the statistical distribution of the following intrinsic properties: MB, D25 and FIR flux (given by $m_{\rm FIR}$). Kolgomorov-Smirnov tests applied to these quantities indicate that the distributions of MB, D25 and $m_{\rm FIR}$ are not significantly different for the 3 samples, at a confidence level better than 95$\%$.

\par\includegraphics[width=8cm,clip]{MS1196f4.eps}\end{figure} Figure 3: Plot of Log $M_{\rm HI}/L_B$ versus the morphological type for the samples of counterrotating galaxies (open romboids), polar ring S0s and spirals (crosses) and polar ring ellipticals (asterisks). Filled triangles represent the reference values derived from the comparison sample of Bettoni et al. (2001b).
Open with DEXTER

7 The ISM of gas accretors

We discuss in this section the results obtained from the comparison of the gas/dust content of gas-accreting and normal galaxies. Mean values of log M/L were obtained for each morphological type, using a $\Delta t=1$ code binning. We studied the deviations from the reference values issued from the survival analysis method applied to normal galaxies (see above). The statistical significance of any difference found between the samples was evaluated by a Student t-test applied to the mean of the values of Log M/L, binned according to morphological type. Figures 3-8 illustrate this comparison, whose results can be summarised as follows:

8 Discussion and conclusions

Gas and stars along polar orbits can be explained as the result of the acquisition of cold infalling gas by an accreting galaxy. The accreted gas can smear out into a ring after a few orbital periods. The fate of this ring will depend on its orientation, relative to the mass distribution of the accretor, and most importantly, on the mass/self-gravity of the gas. A polar ring may form after a high angle impact with gas which has a spin perpendicular to the equatorial plane of the accretor, remaining in an equilibrium configuration for several Hubble times. In contrast, counterrotating galaxies may form after a low angle impact with a gas disk which has a spin antiparallel to that of the accreting system.

In the most general case, however, the impact angle is intermediate between polar and planar. In this case the orbits of gas clouds will experience differential precession in the non-spherical potential of the galaxy, characterized by a quadrupole component (Steiman-Cameron & Durisen 1982). The latter applies for disk galaxies (axisymmetric) and ellipticals (triaxials). Sparke (1986) and Arnaboldi & Sparke (1994) have studied in detail the dynamics of self-gravitating annuli of matter inclined to the principal axes of axisymmetric and triaxial potentials. If the strength of gas self-gravity is negligible, the inclined ring may rapidly settle towards the equatorial plane, appearing either as a co- or as a counter-rotating disk. In contrast, if the gas ring is heavy, the self-coupling can stabilise the ring for several Hubble times. In an intermediate case, several subrings (near polar or close to the equator), characterized by different precessing rates, can coexist in a single galaxy (e.g. NGC 660).

Studying the morphology of polar rings, van Gorkom et al. (1987) and Sage & Galletta (1993) have found that their ages may vary from 400 Myr to $\ge$4 Gyr, if the smooth rings are the oldest. Some polar rings or inclined rings could be the result of recent acquisitions, whereas others appear to be evolved systems. However, twisted polar rings are uncommon and some have had time to form stars. This requires the existence of a stabilising mechanism. The observations of atomic and molecular gas show that the quantity of gas mass present in polar rings is sufficient to stabilise them through self-gravity (van Gorkom et al. 1987; Sage & Galletta 1993; Galletta et al. 1997, and this work). We derived a global content of cold gas ( $M_{\rm gas}$) in polar rings which is 1-2 orders of magnitude higher than in normal galaxies.

In contrast to polar rings, the derived content of cold gas in counterrotators is close to normal. Although counterrotators and polar rings probably share a common origin, the estimated gas masses confirm that light gas rings may have evolved faster. If the mass of gas originally accreted is not sufficient to stabilise the ring through self-gravity, the ring settles toward the equatorial plane in less than a Hubble time. In this case, the merger relic could be a counterrotator. Once the gas disk has settled to the plane with an antiparallel spin it can interact with the gas of the primary disk. Since the two components have opposite rotating directions, there can be large-scale shocks and angular momentum annihilation when they come into contact. Near this transition region the transformation of atomic into molecular gas could be enhanced, especially if the primordial gas content is high, i.e., for late-type accretors. Confirming these expectations, the measured M(H2)/ $M_{\rm HI}$ ratio seems larger in counterrotators than in normal galaxies for types t>0.

In the course of this process, a starburst might be triggered in the circumnuclear molecular gas disk (García-Burillo et al. 2000). The time-scale for gas infall could be extremely short, being close to the free-fall time, i.e., $\sim$107-8 Myr. The mass of gas involved in the starburst episode however is kept low enough (10 $^{8-9}~M_{\odot}$) for a typical counterrotating galaxy. In polar rings, although the cold gas content is larger than the one in normal galaxies, star formation in the dynamically stable ring proceeds calmly. Confirming this scenario it was found that counterrotators, polar rings and normal galaxies have a similar content of hot gas, according to their normalized X-ray luminosities. Also, the normalized $L_{\rm FIR}$ lies within the typical boundaries of aged ($T\sim 1$ Gy) mild starbursts, far from the values characteristic of massive mergers (see Read & Ponman 1998).

We would like to thank Dr. G. Paturel for kindly making available to the authors the FIR raw data of LEDA database and to Dr. F. Ochsenbein for the changes made to the Vizier's query form after our request. Thanks to the referee's comments for useful suggestions on the statistical analysis. This research made use of Vizier service (Ochsenbein et al. 2000) and of NASA's Astrophysics Data System Abstract Service, mirrored in CDS of Strasbourg. SGB and ARF thank financial support from the Spanish CICYT under grant number PB96-0104 and CICYT-PNIE under grant number 1FD1997-1442. GG has made use of funds from University of Padova (Fondi 60%-2000).



Online Material


Table 1: Intrinsic properties of galaxies included in the enlarged sample. Linear diameters to the isophote of 25 mag arcsec-2(D25), absolute magnitudes MB and distances d are derived from the Lyon-Meudon database LEDA (Paturel et al. 1997). Gas mass values, taken from the references cited in last column, are re-scaled to the adopted distances given by LEDA.
PGC Name t D25 MB d $M_{\rm X}$ $M_{\rm HI}$ $M_{\rm mol}$ $M_{\rm dust}$ References
      Kpc   Mpc 108 M$_\odot$ 108 $M_\odot$ 108 $M_\odot$ 105 $M_\odot$
Galaxies with counterrotation
1791 NGC 128 -1.88 47 -21.39 56.68 23.9 <10.3 <0.8 11.8 1 2 17 18
2789 NGC 253 5.10 27 -20.92 3.48 4.7 36.7 38.2 45.2 3a 3b 8 18
4992 NGC 497 4.04 64 -22.30 108.34   126.3     3a 17
9359 NGC 936 -1.12 23 -20.35 17.36 2.7 4.4   <0.1 1 2 3a 17 18
10175 NGC 1052 -4.75 16 -20.07 18.82 <2.0 8.1 <0.4 0.8 1 2 3a 3b 16 17 18
11693 NGC 1216 -0.79 10 -18.76 65.55   <0.5 <3.0 <0.1 6 7 13
13738 NGC 1439 -4.71 15 -19.43 20.56 <0.7     3.3 1 2 16
14077 IC 2006 -4.17 8 -18.70 15.36 <0.9 1.7\dag <0.1 0.2 1 2 13 16
14659 NGC 1543 -1.94 19 -19.41 13.18   <11.7   0.6 1 2 3b
14965 NGC 1574 -2.90 12 -19.06 10.35 <0.6     0.1 1 2 17 18
16386 NGC 1700 -4.57 45 -21.95 50.86   <21.7   <15.8 1 2
25915 NGC 2768 -4.33 44 -21.04 21.51 <4.9 4.6 0.3 2.6 1 2 3a 16
26512 NGC 2841 2.98 24 -20.87 10.82 3.6 39.0 32.8 45.2 3a 3b 8 17 18
27840 NGC 2983 -0.82 18 -19.56 24.92   <6.0   <0.1 1 2
28259 NGC 3011 -1.67 5 -16.84 21.63   0.7     3a
31035 ESO 263-48 -2.07 28 -21.55 35.43     8.0 37.5 1 3b 13
33667 NGC 3497 -1.80 36 -20.80 47.58     14.0   13
34257 NGC 3593 -0.43 13 -18.16 8.75 0.1 2.3 5.1 5.6 1 2 3a 3b 4 8 15 17 18
34433 NGC 3608 -4.78 14 -19.54 15.62 0.8 0.2     2 3a 18
34684 NGC 3626 -0.70 19 -20.06 20.61   5.7 4.1   2 3a 14
35859 UGC 6570 -0.24 8 -17.79 23.23   1.9     3a
36914 NGC 3900 -0.30 23 -19.91 25.39   27.9   10.8 1 2 3a 3b
37235 NGC 3941 -2.02 15 -19.80 14.27   2.6     2 3a
38201 NGC 4073 -4.09 58 -22.22 79.21 516.0 <17.1   <5.7 1 2 16 17
38643 NGC 4138 -0.91 12 -18.89 14.48   4.0 3.1   2 3a 8
40484 NGC 4379 -2.80 8 -18.48 14.84   <0.5   <0.1 1 2
41220 NGC 4472 -4.72 34 -21.38 12.02 33.1 5.2 0.1 0.2 1 2 3a 3b 16 18
41260 NGC 4477 -1.88 20 -20.20 18.62 3.7 <0.5   1.1 1 2 3b 17 18
41939 NGC 4546 -2.73 13 -19.60 13.68   3.3 1.2 0.7 1 2 3a
41943 NGC 4550 -2.06 21 -19.48 21.90 <1.0 22.4   0.2 1 2 3a 17 18
42401 NGC 4596 -0.86 30 -20.91 25.54   28.2 <3.9 0.7 1 2 3a 8
42797 NGC 4643 -0.60 16 -19.88 17.75 1.40 2.2   2.4 1 2 3a 3b 17 18
43149 NGC 4684 -1.21 70 -22.77 87.42   <107.8 <30.6 20.7 1 2 3b
43798 NGC 4772 1.07 14 -19.19 14.02   7.3 0.5   2 3a 13
44114 NGC 4816 -3.06 38 -21.32 94.06       <4.2 1 17
44182 NGC 4826 2.36 21 -20.66 6.80   4.9 9.1 10.1 3a 3b 4 8 18
45749 NGC 5005 3.97 25 -20.94 14.91   9.1 41.9 65.8 3a 3b 8
47257 NGC 5173 -4.74 11 -19.45 35.04 <1.1 17.8   0.7 1 3a 16
48815 NGC 5297 4.88 52 -21.55 34.77   175.3   63.9 3a 3b
49044 NGC 5322 -4.81 47 -21.42 26.89 <7.5 <4.6   1.5 1 2 16 17 18
49354 NGC 5354 -2.13 20 -20.40 33.33 <6.4 52.5   9.1 1 3a 18
52521 NGC 5728 1.17 34 -20.96 36.58 14.5 33.7   39.0 3a 3b 17 18
54013 NGC 5854 -1.05 18 -19.54 23.26   16.2 1.6 <1.1 1 2 3a 13
54625 NGC 5898 -4.24 20 -20.40 28.03 <3.6 <2.0 1.0 0.2 1 2 13 16 17
55555 UGC 9922A   9 -17.53 77.30       51.5 3b
62314 NGC 6701 1.03 24 -20.66 56.62   51.9 163.1 166.7 3a 3b 8
62453 NGC 6684 -1.85 10 -18.99 8.49   <3.4   <0.01 1 2
63620 IC 4889 -4.52 26 -21.01 31.25 <11.4     1.3 1 2 16
66069 NGC 7007 -2.96 24 -20.24 37.38 <4.1   0.6 1.7 1 2 13 16
66934 NGC 7079 -1.84 21 -20.60 34.48     1.2 0.9 1 2 13
67146 NGC 7097 -4.81 16 -19.95 31.68 <2.5     3.3 1 2 16
68096 NGC 7217 2.50 16 -20.51 15.14   7.4 15.1 31.9 3a 3b 8

69327 NGC 7331 3.93 42 -21.50 13.52 12.5 102.5 113.8 110.6 3a 3b 8 17 18
69342 NGC 7332 -1.97 19 -19.27 19.27 <0.9 1.6 <9.5 0.2 1 2 3a 17 18
69591 NGC 7360   15 -19.09 63.33   36.9     3a
70090 IC 1459 -4.68 30 -20.73 20.63 8.1 <0.1 <0.2 1.4 1 2 3b 13 16 17 18 19
72977 UGC 12856 9.61 13 -18.78 24.99   24.2     3a
73126 NGC 7796 -3.87 29 -21.05 41.92       <0.8 1 2
Polar ring S0s and spirals
2710 IC 51 -1.88 10 -18.31 22.10   12.8 13.6 6.1 3a 3b 5
2757 ESO 474-26 2.73 51 -22.13 216.47     392.2 177.1 3b 5
6101 A 0136-08   18 -17.94 72.91   46.6 31.2   3a 5
6318 NGC 660 1.13 26 -18.95 11.98   59.3 61.0 23.3 3a 3b 8 5
6676 UGC 1198 -3.30 5 -16.91 18.99   1.8 1.5 1.3 3a 3b 5
9408 ESO 415-26 -2.06 21 -19.35 58.80   91.3 42.0   3a 5
11505 ESO 199-12 7.77 35 -21.14 86.50       64.8 3b
14740 ESO 201-26 5.00 8 -18.59 47.32       5.8 3b
18883 NGC 2217 -0.64 26 -20.42 18.94   26.8 0.9 14.7 1 2 3a 3b 13
22945 UGC 4261 10.00 21 -20.87 86.90   68.6   14.0 3a 3b
23355 UGC 4332 3.00 27 -20.21 73.35   39.7   33.8 3a 3b
23393 UGC 4323 -4.79 26 -20.12 56.81   18.9     3a
25065 NGC 2685 -1.05 21 -19.05 14.36 <0.6 13.4 9.4 3.5 1 2 3a 3b 8 17 18
26018 NGC 2748 4.01 20 -20.48 23.03   53.0 12.7 41.3 3a 3b 8 5
26601 NGC 2865 -4.12 24 -20.71 33.27 <4.9 6.7   1.0 1 2 3a 16
27383 UGC 5119 -2.00 15 -20.35 79.87   107.7     3a
30491 UGC 5600 -1.68 13 -18.74 40.40   45.9 8.4 11.4 3a 3b 5 12
30708 ESO 500-41 1.70 13 -19.55 45.75   24.6   10.4 3b 20
32292 NGC 3384 -2.64 15 -19.41 9.96 <0.4 <0.1   1.0 1 2 16 17 18
35616 NGC 3718 1.07 35 -19.98 16.02 <2.7 59.8 <7.7 6.5 1 3a 3b 8 17 18
37170 NGC 3934 2.70 14 -18.97 50.75   48.5 41.2 14.9 3a 3b 5 10
38906 NGC 4174 -0.23 11 -19.46 52.48   80.6     3a
40887 IC 3370 -4.72 36 -21.47 40.12   5.6   20.2 1 2 3a 3b
40900 UGC 7576   27 -19.22 95.50   36.4     3a
42951 NGC 4650A 0.00 16 -19.49 36.34   65.4 16.0 5.0 3a 9
43073 NGC 4672 1.18 26 -19.85 41.25   41.2   46.8 3a 3b
46552 NGC 5103   8 -18.26 19.93 <0.2 9.7     17 20
46848 NGC 5122 -2.48 12 -18.93 37.57   13.3     3a
47430 ESO 576-69 1.30 19 -19.87 70.70   205.5   43.1 3b 20
53039 UGC 9562 8.43 6 -17.30 19.24   10.5     3a
54461 UGC 9796 3.40 20 -19.15 75.96   80.8     3a
57173 UGC 10205 1.01 38 -21.05 90.24   74.6   64.4 3b 20
59352 NGC 6286 3.00 30 -20.59 78.38   20.2 275.7 723.3 3b 8 20
69867 ESO 603-21 4.50 11 -18.70 45.08   74.4 21.6 16.1 3a 3b 5
70332 NGC 7468 -4.99 7 -18.38 29.36   28.1 3.8 1.6 1 3a 3b
72294 ESO 240-16 3.77 30 -21.06 179.64       360.9 3b
Polar ring ellipticals
4126 NGC 404 -4.83 5 -16.78 3.33 <0.01 1.1 0.3 0.1 1 2 3a 3b 8 16
12651 NGC 1316 -4.74 70 -22.11 20.97 43.0 2.0 11.1 8.9 1 2 3b 11 16 17 18
17296 NGC 1947 -4.76 9 -19.15 12.02 <0.6   3.9 4.6 1 2 3b 11 17 18
40455 NGC 4374 -4.16 23 -20.71 12.88 5.1 11.0   0.4 1 2 3a 3b 16 17 18
42139 NGC 4589 -4.79 27 -20.88 29.47 <4.3 <11.1   2.1 1 2 16 17 18
46957 NGC 5128 -5.09 16 -19.26 1.94 0.4 1.3 0.8 2.5 1 2 3a 3b 11 17 18
48593 NGC 5266 -5.60 38 -21.76 37.33   66.4 19.3 22.5 1 2 3b 11
48655 IC 4320 -5.20 30 -21.23 89.04       <25.6 1
49547 NGC 5363 -3.75 23 -20.37 15.78 2.8 1.0 4.1 3.9 1 2 3a 3b 8 11 17 18
66909 NGC 7070A -3.80 17 -19.36 29.92       2.0 1 3

\dag: In a ring outside the galaxy.

References: 1: Knapp et al. (1989), 2: Roberts et al. (1991), 3: a) 21 cm, b) FIR from Paturel et al. (1997), 4: Sage (1993), 5: Galletta et al. (1997), 6: Williams & van Gorkom (1995), 7: Allam et al. (1996), 8: Young et al (1995), 9: Watson et al. (1994), 10: Casoli et al. (1996), 11: Sage & Galletta (1993), 12: Zhu et al. (1999), 13: this paper, 14: García-Burillo et al. (1998), 15: García-Burillo et al. (2000), 16: Beuing et al. (1999), 17: Burstein et al. (1997), 18: Fabbiano et al. (1992), 19: Walsh et al. (1990), 20: van Driel et al. (2000).

Copyright ESO 2001
