A&A 373, 181-189 (2001)
DOI: 10.1051/0004-6361:20010566
C. Trigilio1 - C. S. Buemi1 - G. Umana1 - M. Rodonò2,3 - P. Leto1 - A. J. Beasley4 - I. Pagano2
1 -
Istituto di Radioastronomia del C.N.R., Stazione VLBI di Noto,
CP 141 Noto, Italy
2 -
Osservatorio Astrofisico di Catania, Via S. Sofia 78,
95123 Catania, Italy
3 -
Dipartimento di Fisica e Astronomia, Università di Catania,
Via S. Sofia 78, 95123 Catania, Italy
4 -
Owens Valley Radio Observatory, California Institute of
Technology, Big Pine,
CA 93513, USA
Received 12 December 2000 / Accepted 12 April 2001
Abstract
We present multifrequency VLA and VLBA observations at 8.4 GHz of the RS CVn
system AR Lac, that were performed in autumn 1997 simultaneously
with X-ray observations obtained from Rodonò et al. (1999).
Our VLBA data indicate a resolved source with dimension close to the system
separation, while the study of the flux density curve reveals a small
amplitude outside of the eclipse variability.
The derived five-frequencies spectra, combined with the size information
from VLBA data, are compared with gyrosynchrotron emission
from a two component structured source.
A comparison with the results of the X-ray observations allow us to exclude
the possibility that a thermal gyrosynchrotron is responsible for the radio
emission, but it is compatible with the hypothesis of co-spatial X-ray and
radio emitting sources.
Key words: stars: coronae - radio continuum: stars - stars: binaries: close - stars: individual: AR Lac - stars: binaries: general - techniques: interferometric
AR Lacertae (G2IV+K0IV) is a totally eclipsing RS CVn binary with a short,
almost 2 day, orbital period (see Table 1 for the parameters of
the system).
Its orbital characteristics and strong coronal emission
(
)
make this source an ideal
target for the studies of coronal structure and the geometry of RS CVn close
binaries.
VLA | VLBA+VLA | ||||
C Band | K Band | Q Band | X Band | U Band | |
Nov. 2-3 (UT) | 21:00-08:25 | 20:30-09:25 | 20:05-09:00 | 20:05-09:25 | 21:30-08:37 |
Nov. 3-4 (UT) | 21:00-08:25 | 20:30-09:25 | 20:05-09:00 | 20:05-09:25 | 21:30-08:37 |
Number of scans | 10 | 11 | 11 | 7 | 6 |
Duration of a scan [m] | 19 | 25 | 27 | 44 | 44 |
Interval between scans [m] | 80 | 80 | 80 | 60 | 60 |
Duty cycle (cal-sour-cal) [m] | 2-15-2 | 3-8-3 | 3-5-3 | 1.5-3-1.5 | 1.5-3-1.5 |
Total Time on source [h] | 2.42 | 2.54 | 2.4 | 2.75 | 2.5 |
EXOSAT observations by White et al. (1990) confirmed the existence of two different coronal regions associated with different temperature distributions. The observations showed evidence of modulations at low energy (<1 keV), which are not present at high energy (>1 keV). On the other hand, Ottmann et al. (1993) observed evidence of the primary minimum in all energy bandpasses of the ROSAT PSPC.
Despite the numerous X-ray observations, only a few have been carried out at radio wavelengths. Owen & Spangler (1977) first studied the spatial structure of the radio corona of AR Lac, on the basis of flux curve considerations, through observations performed at 4885 MHz with 5 VLA antennas. They did not find evidence of eclipses of either component. The same results were found by Doiron & Mutel (1984) on the basis of VLA observations carried out at 1.48 and 4.9 GHz, using all the 27 antennas of the array in B configuration. These results suggest that the size of the emitting region is larger than the whole system.
During a VLA 3-frequency monitoring of AR Lac, extended over an
orbital period, Walter et al. (1987) detected the decay of a
relatively, large flare. The event was not observed at 20 cm and the radio
spectra seem to turn over between 2 and 6 cm.
In the present paper we present the results of a multifrequency observing
campaign on the binary system AR Lacertae (HD 210334),
simultaneously
performed with the Very Large Array (VLA) and the Very Long Baseline Array
(VLBA)
radio interferometers in the autumn of 1997. The observations cover
two orbital periods and
took place contemporaneously with X-ray observations
of the same system carried out with the SAX satellite by Rodonò
et al. (1999).
The observations were performed in 1997 in four sessions, starting each day at 20:00 UT and ending at 9:40 UT of the following day, from Oct. 31 to Nov. 4.
The aim of these observations was to obtain simultaneously radio spectra at five frequencies and high resolution maps of AR Lac at 4 cm and 2 cm. The spectra were obtained with the VLA in D configuration at 5 GHz (6 cm, C band), 8.4 GHz (4 cm, X band), 15 GHz (2 cm, U band), 22 GHz (1.3 cm, K band) and 43 GHz (0.7 cm, Q band), while the high resolution VLBA observations were performed at 8.4 and 15 GHz. In order to reach the best compromise between high sensitivity for the VLBA array and the best temporal coverage for the radio spectrum, we split the VLA into two subarrays, one observing in standard interferometric mode and alternating 3 frequencies, the other in phased array mode as elements of the VLBA.
As a phase calibrator we used BL Lac, while as a primary flux calibrator we used 3C 286, which was observed at the beginning of each session at all the 3 frequencies.
To minimize the effects of the atmosphere on the phase stability at higher frequencies we observed the phase calibrator more frequently at Q and K bands than at the other frequencies. Other details of the observational strategy are given in Table 2.
Calibration and data editing were performed using the standard procedures of the AIPS package.
Since we intend to study only our radio observations taken simultaneously with the X-ray observations, which started on 1997 Nov. 2, we restrict our analysis to the last two sessions, i.e. Nov. 2-3 and Nov. 3-4. On the first two days the source was found in an active period, with flux densities reaching about 40 mJy at 6 cm. This indicates an intrinsic high variability of the radio emission, which will be analyzed in a following paper.
The second subarray, consisting of all the remaining 14 antennas, was used to observe in phased-array mode at X and U bands as an element of the VLBA array. The presence of half the phased VLA, corresponding to a 90 m telescope, increased the sensitivity of the VLBA.
The data from the VLA phased-array can be also analyzed as a standard interferometer, therefore total fluxes were computed for all the observed sources. The VLBA observations were performed alternating between X and U bands, with a typical scan lasting 45 min. For each observing frequency, we observed in dual polarization mode, with a total bandwidth of 64 MHz. Since AR Lac has generally a low flux density (from few to some tens of mJy), we used the phase-reference technique (Beasley & Conway 1995), consisting of the rapid switching between a strong calibrator, close to the target source, and the source itself. In this way, in the successive analysis, phase calibration of the calibrator can be applied to the target source. We used BL Lac (3.6 degrees apart from AR Lac) as the reference source. The data tapes were correlated at the VLBA correlator at the Array Operation Center in Socorro (New Mexico).
For VLA data, calibration and data editing were performed using the standard
procedures of the AIPS package.
The flux calibration was performed by using the measured system temperature and
gain curves for VLBA telescopes and from the measurements of the ratio
made on the calibrator BL Lac for the
phased-array, once the flux density of this source was determined from the VLA data.
Delay and delay rate were determined for BL Lac, which was
then self-calibrated. The final map of the self-calibration was used as
a model for the final global fringe fitting, whose solutions were applied
to our target. A preliminary map of AR Lac at 8.4 GHz was made to
check its position, and it was found about 14 milliarcsec (mas) away from the
phase tracking center.
This was due to the fact that the coordinates used at the correlator were the
heliocentric ones, and the displacement of the source was due to the annual parallax.
The visibilities of AR Lac were then phase-rotated in order to bring
it to the phase center. The operation makes it possible
to time average the data over a relatively long time (tens of minutes) without
loss of signal in the longest baselines, allowing us to analyze the amplitude
of the visibility as a function of the baseline length.
If the source is not at the phase center, a rapid
change of phase would occur
at the longest baseline.
![]() |

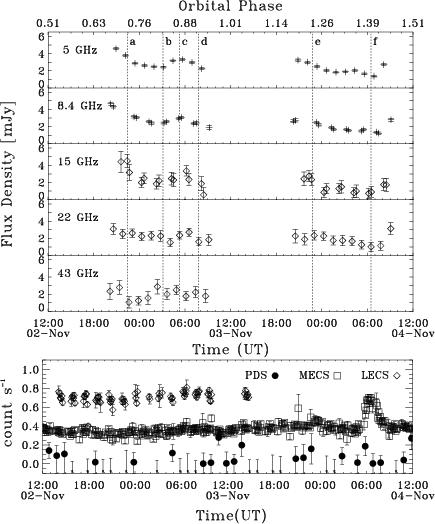

Figure 1: Top panel: VLA flux curves of AR Lac binned over 20 min. Dot-dashed vertical lines indicate the times of the spectra labelled by the letters on the top and shown in Fig. 2. Lower panel: the contemporaneous SAX light curves (from Rodonò et al. 1999). |
Open with DEXTER |
The source was successfully detected at 8.4 GHz, but not at 15 GHz,
probably
because of a poor phase stability
at this frequency, which we could not correct with
the phase referencing technique.
![]() |

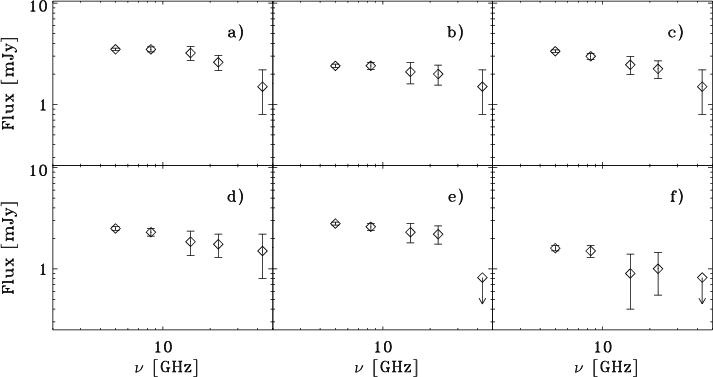

Figure 2: AR Lac VLA spectra obtained at times indicated by dashed vertical lines in Fig. 1. |
Open with DEXTER |
In Fig. 1 the flux curves, obtained by averaged flux in 20 min bins and using the new ephemeris by Marino et al. (1998), are shown.
The source was detected at all frequencies during both sessions,
except during the last session in the Q-band, where only an upper limit of
0.6 mJy for the flux density can be given. This value corresponds
to the rms of the cleaned map integrated over the entire 14 hours.
A clear flux variation, more evident at the lowest
frequencies (up to a factor of 2 in C-band), seems
to indicate the presence of inhomogeneous features on one or
both of the system's components.
Unfortunately, AR Lac was not visible from the VLA during eclipses.
We observed a clear flux maximum at phase 0.88, and a clear decay at
the beginning of each of the two sessions, suggesting a flux modulation versus
phase.
No significant circular polarization at any observed frequency was detected.
Since each band was not observed continuously, it is not possible
to build radio spectra with simultaneous flux measurements at all the
frequencies. However, the variations of the flux are slow, and it was possible
to make reasonable interpolations in order to obtain the radio spectra.
Six spectra corresponding to
different times are shown in Fig. 2. They all show negative
spectral indexes
(
),
implying that the source is optically thin in the available
range of frequencies
(
varies from -0.16 to -0.45).
There is no evidence of a turn-over frequency,
which is presumable lower than 5 GHz.
The spectra show approximately the same shape, and the main difference
is variation in flux density.
![]() |

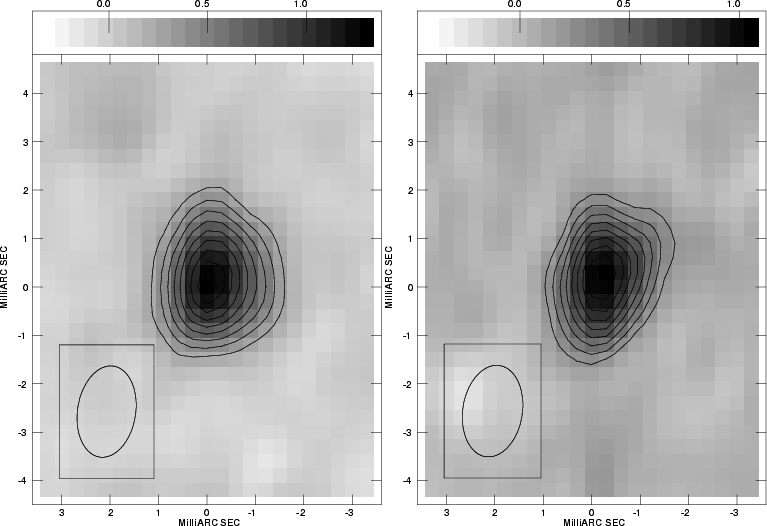

Figure 3: VLBA maps of AR Lac at 8.4 GHz for Nov. 2-3 (left) and Nov. 3-4 (right). The rms of both maps is 0.06 mJy/beam and the peak intensity are 1.26 and 1.07 mJy, respectively. For the first map the contours correspond to 0.25, 0.38, 0.50, 0.63, 0.76, 0.88, 1. 01, 1.13, 1.21 mJy, for the second map correspond to 0, 0.21, 0.32, 0.43, 0.54, 0.64, 0.75, 0.86, 0.96, 1.03 mJy. On the lower left corner the restoring beam is shown. |
Open with DEXTER |
![]() |
Figure 4: Correlated flux at 3.6 cm on the VLA-VLBA baselines as function of u-v distance, for Nov. 2-3 and Nov. 3-4. The lines represent the visibility of the core-halo model (continuous lines), of the single core (dot lines) and halo (dashed lines) as discussed in Sect. 4. |
Open with DEXTER |
CORE | HALO | |
B [Gauss] | 200 | 30 |
![]() |
![]() |
![]() |
Spectrum | d | d |
[mas] | [mas] | |
a | 0.16 | 1.4 |
b | 0.14 | 1.1 |
c | 0.15 | 1.3 |
d | 0.14 | 1.2 |
e | 0.16 | 1.3 |
f | 0.13 | 1.1 |
![]() |
0.7 | 5.4 |
EM [cm-3]![]() |
![]() |
![]() |
T [K]![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
The availability of both microwave spectra and spatial information at the same time gives us the opportunity to model the coronae of AR Lac. As shown in previous papers (Umana et al. 1993; Umana et al. 1999), the observed flat radio spectra of Algols and RS CVn type binary systems cannot be reproduced by an homogeneous source model. VLBI observations of the close binary systems Algol and UX Arietis pointed out the existence of a two component structure in the coronal layers (Mutel et al. 1985; Lestrade et al. 1998): a compact core, coinciding with the active star, and a larger halo, having approximatively the size of the entire system.
We used the core-halo model developed by Umana et al. (1993) to fit
the observed spectra of AR Lac, in order to check if the flux
variability can be attributed to the variation of one of the
parameters.
Although it is not possible to derive a unique solution, we have limited the
sizes of core and halo on the basis of the VLBA observation results.
In particular, for the halo we assumed the size measured from the VLBA data,
and for the core a size smaller than the resolution limit of the
interferometer.
![]() |

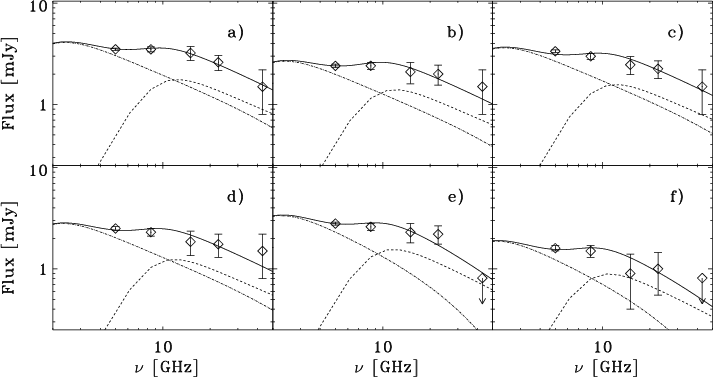

Figure 5: Comparison between the observed radio spectra of AR Lac shown in Fig. 2 and the computed spectra obtained by assuming a core-halo structure for the radio source (thick line). The contribution of the halo (dot-dashed line) and core (dashed line) to the composite spectrum are also shown. |
Open with DEXTER |
For the magnetic field strength we assumed
,
where
Gauss, as derived
for other RS CVn systems (Gondoin et al. 1985; Donati et al.
1992).
According to these constraints, we derived the best core-halo model fit
labeled a in Fig. 2. We then
used the derived values of the average magnetic field strength Band energetic electron number density (
),
in fitting the other 5 spectra,
under the hypothesis that these physical properties of
the coronal emitting regions are stationary.
Then we tried to fit the other spectra by varying only the structure size.
The results of our analysis are summarised in Table 3 and are shown in
Fig. 5. For the spectra from a to d, we can get a good
agreement between the observed data
and a core-halo structure by assuming that the flux variations are due to
structure size changes in the range of 1.1 and 1.4 times the stellar
radius, corresponding a variation of 0.3 mas, which is below
the errors of our measurements.
The low s/n ratio of the VLBA data does not permit us
to investigate the behaviour of the emitting region size for each single scan,
and so as a function of the orbital phase.
The source size is very close to the beam width, so it was not
possible to obtain an estimate of the source size for the time ranges
during which the flux density was lower then 2 mJy.
Nevertheless, the results obtained
for the scans with sufficient s/n ratio, that are shown in Fig. 6
by diamond symbols,
suggest that the source size remains almost constant, as the measured
changes fall within errors.
![]() |

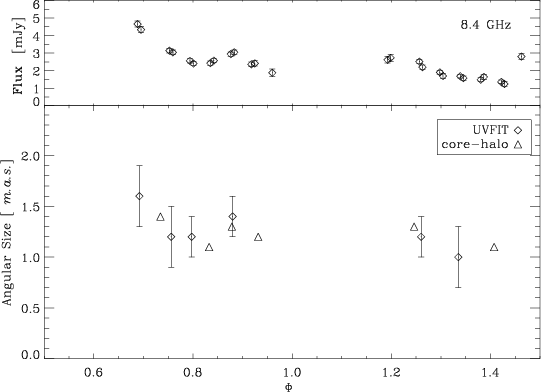

Figure 6: Lower panel: source size estimates as a function of orbital phase. The diamonds represent the value obtained from UVFIT, the triangles represent the value of source size we used to fit the observed spectra with the core-halo model. Upper panel: the corresponding total flux density at 8.4 GHz. |
Open with DEXTER |
On the other hand, it should be noted that the
slow modulation of the modelled halo size is in good agreement with
the results obtained from an independent analysis of
the VLBA data and plotted in Fig. 6.
To fit the spectra e and h, we had to assume an "ageing''
of the relativistic electron population and a variation of its number
density from
to
cm-3, that is
needed to explain the faster decay at the higher frequency.
If the core-halo model is able to account for the radio corona of AR Lac, the visibilities of the VLBA data should fit by a two Gaussian model corresponding to the core and halo. For the Nov. 2-3 data, the average size of the core from the analysis of the spectra a, b, c, d is 0.15 mas, and the average flux density at 8.4 GHz is 1.21 mJy; for the halo, 1.25 mas and 1.74 mJy. For the Nov. 3-4 data, the same parameters from the analysis of the spectra e and f are 0.145 mas, 1.05 mJy for the core and 1.20 mas, 1.17 mJy for the halo. We then model the normalized visibility function at 8.4 GHz with that corresponding to the core-halo model (Fig. 4). It is evident that the VLBA data are consistent with the core-halo scenario derived from the analysis of the radio spectra.
VLBA data indicate a source size close to the separation of the binary components, suggesting the possibility of an emitting region located between the system components. UV emission from plasma close to the Lagrangian point in between the system components has been suggested for AR Lac (Pagano et al. 2001) and other RS CVn-type systems (Busà et al. 1999).
In partial overlap to our observations, X-ray observations of AR Lac were performed with the Beppo SAX satellite (Rodonò et al. 1999). This gave us the opportunity to determine whether the physical parameters of the radio emitting regions, derived from the comparisons between the observations and the core-halo models, are consistent with a co-spatial model for both the X-ray and radio emitting source.
Spectral analyses performed by several authors (Swank et al. 1981;
Singh et al. 1995)
showed that the X-ray emission from close binary systems requires
at least two plasma components characterised by different temperature and
volumetric emission measures (EM) to be modelled.
On the basis of the first observation run, that started on Nov. 2 at 06:07 and ended
on Nov. 4 at 17:50, Rodonò et al. (1999) derived for the first
component
K and
cm-3
and for the second
K and
cm-3.
Assuming that the higher temperature component is associated with the halo and
the the lower temperature component with the core, we can check if the magnetic
field, as derived from the radio data, is strong enough to contain the
X-ray source. This means that ,
i.e. the ratio between the density
of kinetic energy (
)
and the density of
magnetic energy (
)
has to be less then
unity.
If the plasma density
is constant over the emitting volume
V,
,
and assuming the size (radius) from the
analysis of the radio data of
and
cm
for the core and the halo respectively, we get
and
(see Table 3).
We obtain
for the core and
for the halo. The
physical parameters obtained from our analysis are therefore consistent with
the hypothesis of a co-spatial X-ray and radio source.
We will furthermore test the possibility that the radio emission can be
attributed to the same thermal electron population responsible for the observed
X-ray emission.
The brightness temperature of the resolved radio source at 3.6 cm, obtained
from the relation
![]() |

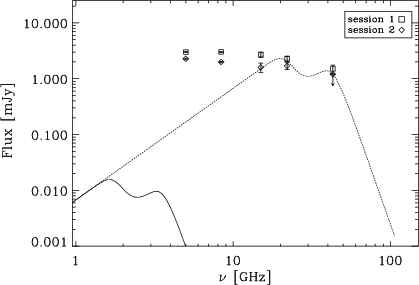

Figure 7:
Simulated spectra from a core-halo structure for thermal
gyrosynchrotron obtained with a magnetic field of 600 Gauss in the core and
200 Gauss in the halo (thick line) and ![]() |
Open with DEXTER |
It is evident that gyrosynchrotron emission from the same thermal population responsible for the X-ray emission is not able to account for the observed spectra, unless magnetic field strengths higher then 1000 Gauss are considered. Moreover, even assuming such an intense magnetic field, it is not possible to reproduce the quite flat observed spectra. Beasley & Guedel (2000) reached a similar result from simultaneous radio and X-ray observations of the RS CVn-type binary system UX Ari during quiescence.
In this paper we presented the results of VLA multiwavelength observations and
the first 8.4 GHz VLBA images of AR Lac we obtained in November 1997.
These
images show a spatially resolved structure with a diameter of
mas,
as derived from model fits. Since the source was very compact,
with dimension close to the beam size, and the flux density level was very low,
it was not viable
to derive the source diameter for each phase. Still, whenever possible,
the source size was derived (within 1-2
).
No significant variations of the source size are apparent.
The flux density curves show a slight flux modulation, more evident at lower frequencies, which suggests the presence of inhomogeneous structures. The five-frequency spectra show a slightly negative spectral index, which is characteristic of an optically thin source.
By combining the spectral information, the estimate of the source size and the results obtained from simultaneous X-ray observations (Rodonò et al. 1999), we conclude that:
In addition, multiwavelength VLA observations to be carried out during eclipses would be a crucial test of the hypothesis of an active region located in between the system components.
