A&A 369, 215-221 (2001)
DOI: 10.1051/0004-6361:20010111
Ch. Leinert
1 -
T. L. Beck2,3 -
S. Ligori1 -
M. Simon2,3 -
J. Woitas1 -
R. R. Howell4
1 - Max-Planck-Institut für Astronomie, Königstuhl 17,
69117 Heidelberg, Germany
2 -
State University of New York at Stony Brook,
Stony Brook, NY 11974-3800, USA
3 -
Visiting Astronomer at the Infrared Telescope Facility, which is operated by the University of Hawaii under contract to the National Aeronautics and Space Administration
-
University of Wyoming, Laramie, WY 82071, USA
Received 1 December 2000 / Accepted 19 January 2001
Abstract
We have monitored the angularly resolved near infrared and 3.1 m
ice-band flux of the components of the young binary Haro 6-10 on 23 occasions
during the years 1988 to 2000. Our observations reveal that both
the visible star Haro 6-10
(Haro 6-10S) and its infrared companion (Haro 6-10N) show significant
variation in flux on time scales as short as a month.
The substantial
flux decrease of Haro 6-10S over the last four years carries the
reddening signature of increased extinction. However, a comparable K-band flux increase observed in the IRC is associated with a dimming in the H-band and cannot be explained by lower extinction. Absorption in the
3.1
m water-ice feature was always
greater towards the IRC during our observations, indicating a larger amount of obscuring material along its line of sight. We detect variability in the ice-band absorption towards Haro 6-10S and Haro 6-10N, significant at the 3.5
and 2.0
levels, respectively.
Key words: stars: binaries: close - infrared: stars - stars: individual: Haro-10 - stars: pre-main sequence - stars: variables: general
Haro 6-10 is a prominent member of the small class of young binaries with
infrared companions (Koresko et al. 1997, hereafter K97). Infrared
companions (IRCs) to
T Tauri stars are characterized by faintness or non-detection in the visible,
very red spectral energy distributions (SEDs), and strong variability in the
infrared. The binary system
Haro 6-10 consists of Haro 6-10S, a K3-5 star (Goodrich
1986) seen in visible light through
mag extinction, and
Haro 6-10N, the IRC, 1
2 to the north (Leinert & Haas 1989a).
Observations of the unresolved system show that its near infrared flux can
vary significantly on timescales of months (Elias 1978; Leinert et al. 1996).
The infrared excess of Haro 6-10 is very pronounced compared to other T Tauri
stars. Its unresolved SED is flat or rising between 1 and
100 m, making Haro 6-10 a class I or "protostellar'' T Tauri star
in the system of Lada (1987). Haro 6-10 is unique among the infrared
companion systems because angularly resolved observations indicate that
both components have this classification (K97). The IRC, however, dominates
the flux of the system at wavelengths longward of 3.5
m and has an
integrated luminosity twice that of Haro 6-10S (K97).
Angularly resolved observations of the 10 m silicate absorption feature
indicate stronger extinction along the line of sight to the IRC (van Cleve et al. 1994).
Whittet et al. (1985) list the unresolved Haro 6-10
system among the young stellar sources showing
a deep 3.1
m water-ice absorption feature. Angularly
resolved observations revealed that the ice-band absorption was stronger
towards the IRC (Leinert et al. 1996). Apparently the lines of sight to
Haro 6-10S and its IRC contain very different amounts of absorbing material
even though their projected separation on the sky is only
170 AU.
Observations made to date have not successfully explained the cause of the photometric variability and extinction observed in the Haro 6-10 system. K97 proposed that IRCs are otherwise normal young stars experiencing strong, episodic extinction and variable accretion perhaps stimulated by the orbital motion of the binary. We have monitored the near infrared flux and ice-band absorption of both components of Haro 6-10 at every opportunity. Our observations provide new insights to the variability of Haro 6-10 and its IRC.
Date | Type | Result | Telescope | Instrument | Reference |
22 Sep. 1986 | 1D speckle |
![]() ![]() |
Calar Alto | own, InSb | 1 |
11 Sep. 1987 | 1D speckle |
![]() |
Calar Alto | own, InSb | 1 |
25-27 Sep. 1988 | 1D speckle | H, K, L', ![]() |
Calar Alto | own, InSb | 1 |
11/16 Oct. 1989 | 1D speckle | K, ice, dust, L' | Calar Alto | own, InSb | 2 |
19-27 Sep. 1991 | 1D speckle | H, K, ice, dust, ![]() |
Calar Alto | own, InSb | 2 |
28 Sep. 1991 | lunar occultation | K | La Palma | special, InSb | 3 |
29 Oct. 1991 | 2D speckle | H, K, ice, dust, L' | Calar Alto | 1-5 ![]() |
2 |
06-10 Jan. 1993 | 1D speckle | H, K, ice, dust, ![]() ![]() |
Calar Alto | own, InSb | 2 |
28 Jan. 1994 | 2D speckle | K | Calar Alto | Black MAGIC | |
15 Dec. 1994 | 2D speckle | K | Calar Alto | Blue MAGIC | |
08 Oct. 1995 | 2D speckle | K | Calar Alto | Blue MAGIC | |
26 Mar. 1996 | 1D speckle | K | Calar Alto | own, InSb | |
27 Sep. 1996 | 2D speckle | K | Calar Alto | Blue MAGIC | |
30 Sep. 1996 | 1D speckle | K, ice, dust, ![]() |
Calar Alto | own, InSb | |
14/15 Nov. 1997 | 1D speckle | H, K, ice, dust, ![]() ![]() |
Calar Alto | own, InSb | |
06 Mar. 1998 | 2D Speckle | K, L' | IRTF | NSFCam | |
14 Sep. 1998 | Imaging |
![]() |
IRTF | NSFCam | |
10 Dec. 1998 | Imaging |
![]() |
IRTF | NSFCam | |
02 Sep. 1999 | 2D speckle |
![]() ![]() ![]() |
Calar Alto |
![]() |
|
18 Sep. 1999 | Imaging |
![]() |
WIRO | IoCam 1 | |
08 Oct. 1999 | Imaging |
![]() |
WIRO | IoCam 1 | |
03 Nov. 1999 | Imaging | K, CVF filters*, L' | IRTF | NSFCam | |
06 Dec. 1999 | Imaging |
![]() ![]() |
UKIRT | TUFTI | |
26 Jan. 2000 | Imaging | K, L' | IRTF | NSFCam | |
07 Mar. 2000 | Imaging | K, CVF filters*, L' | IRTF | NSFCam |
Our data (Table 1), consisting of a heterogenous set of observations obtained
at different telescopes with different techniques, required standardisation
in calibration. We based the calibration on the flux values for Vega given by
Tokunaga (1999), and interpolated smoothly to the wavelengths of those
filters not covered by his Table 7.5. The IRTF data were referenced to a
magnitude scale in which Vega has zero magnitude at all wavelengths shortward
of 20 m, as given by Tokunaga. In this framework, the original flux
calibration of the Calar Alto data was on a scale in which a star of
magnitude of 0.06
0.01 would have the Vega flux listed by Tokunaga.
Magnitudes were determined using standards from the list of Elias et al.
(1978). To have the same scale for both data sets, we adjusted the Calar
Alto fluxes downwards by 6%. The magnitudes are not affected by this
recalibration. The overall consistency of the calibration of our data
and the precision of our photometry should be better than
5%.
For the speckle observations (Sects. 3.1 and 3.2), the calibration was applied to
the total system flux. The fluxes of the components were obtained
subsequently using their flux ratio derived from analysis of the speckle
observations. For flux ratios smaller than 0.10, an additional
uncertainty up to 10% enters the flux determination of the faint component,
because the average
error for the determination of the flux ratio in H or K is 0.007.
Calibration of the imaging observations (in particular Sect. 3.3) was applied
directly to the components of Haro 6-10.
No. | Date | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
1 | 25-27 Sep. 1988 | 11.88 | 8.99 | 9.92 | 7.70 | 1.96 | 1.29 | 6.49 | 6.18 | 3.43 | 1.52 | 5.02 | 5.26 |
2 | 11/16 Oct. 1989 | - | - | 9.76 | 7.30 | - | - | 6.64 | 5.73 | 3.12 | 1.63 | - | - |
3 | 19-27 Sep. 1991 | 11.73 | 8.54 | 10.42 | 7.42 | 1.31 | 1.12 | 6.87 | 5.98 | 3.55 | 1.46 | - | - |
4 | 28 Sep. 1991 | - | - | 9.60 | 7.10 | - | - | - | - | - | - | - | - |
5 | 29 Oct. 1991 | 11.82 | 8.50 | 10.34 | 7.39 | 1.48 | 1.11 | 7.13 | 5.67 | 3.20 | 1.72 | - | - |
6 | 06-10 Jan. 1993 | 12.55 | 8.63 | 9.84 | 7.34 | 2.71 | 1.29 | 6.35 | 5.85 | 3.49 | 1.49 | 4.82 | 4.95 |
7 | 28 Jan. 1994 | - | - | 11.00 | 7.30 | - | - | - | - | - | - | - | - |
8 | 15 Dec. 1994 | - | - | 9.54 | 7.21 | - | - | - | - | - | - | - | - |
9 | 08 Oct. 1995 | - | - | 10.24 | 7.09 | - | - | - | - | - | - | - | - |
10 | 26 Mar. 1996 | - | - | 9.82 | 7.18 | - | - | - | - | - | - | - | - |
11 | 27 Sep. 1996 | - | - | 10.32 | 7.54 | - | - | - | - | - | - | - | - |
12 | 30 Sep. 1996 | - | - | 9.91 | 7.39 | - | - | - | - | - | - | - | - |
13 | 14/15 Nov. 1997 | 12.62 | 9.82 | 10.19 | 8.05 | 2.43 | 1.75 | 6.40 | 6.07 | 3.79 | 1.98 | 4.62 | 5.24 |
14 | 06 Mar. 1998 | - | - | 9.97 | 8.89 | - | - | 6.01 | 6.26 | 3.96 | 2.63 | - | - |
15 | 14 Sep. 1998 | 12.81 | 10.69 | 10.14 | 9.08 | 2.67 | 1.61 | 5.79 | 6.32 | 4.35 | 2.76 | - | - |
16 | 10 Dec. 1998 | 12.39 | 10.70 | 9.99 | 9.12 | 2.40 | 1.58 | 5.99 | 6.39 | 4.00 | 2.73 | - | - |
17 | 02 Sep. 1999 | 12.37 | 10.24 | 9.24 | 9.52 | 3.13 | 1.22 | - | - | - | - | - | - |
18 | 18 Sep. 1999 | - | - | 9.59 | 9.43 | - | - | 5.46 | 6.36 | 4.13 | 3.07 | - | - |
19 | 08 Oct. 1999 | - | - | 9.31 | 9.31 | - | - | 5.41 | 6.16 | 3.90 | 3.15 | - | - |
20 | 03 Nov. 1999 | - | - | 8.80 | 9.25 | - | - | 4.78 | 6.17 | 4.02 | 3.74 | - | - |
21 | 06 Dec. 1999 | 13.52 | 10.63 | 8.99 | 8.88 | 4.61 | 1.75 | 5.23 | 6.40 | 3.58 | 2.48 | 4.07 | 5.49 |
22 | 26 Jan. 2000 | - | - | 8.89 | 8.79 | - | - | 5.15 | 6.19 | 3.74 | 2.60 | - | - |
23 | 07 Mar. 2000 | - | - | 8.66 | 8.61 | - | - | 4.91 | 6.13 | 3.75 | 2.48 | - | - |
![]() |

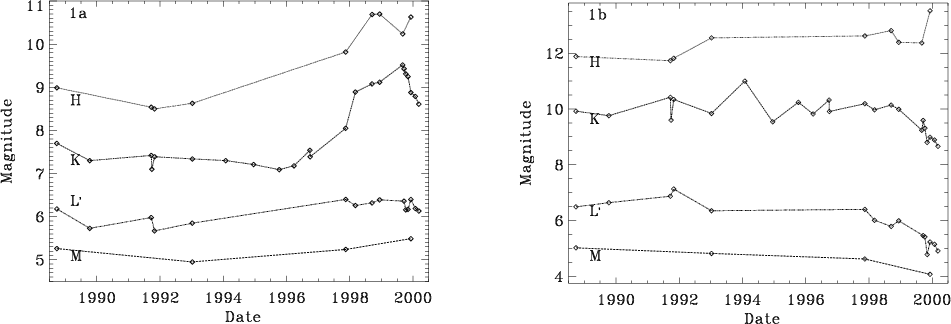

Figure 1: Variation of the near-infrared magnitude of Haro 6-10S a) and Haro 6-10 IRC b) from 1988 to 2000 |
Open with DEXTER |
Table 2 lists the near IR magnitudes and colors of Haro 6-10N and S. The IRC has been brighter than Haro 6-10S at L' and Mthroughout our observations of the system. At shorter wavelengths, the IRC was significantly fainter than Haro 6-10S at the start of our observations and slowly became fainter with time (Figs. 1a and b). In 1999, however, the IRC brightened, while Haro 6-10S was in a phase of decreasing brightness, so that in November the IRC was about 50% brighter than Haro 6-10S at K. This is the first time in our experience that an IRC has been brighter at K than the component seen in visible light.
Figure 2 plots the 15 available measurements of the K-L' color vs. K band magnitude of Haro 6-10S. The figure shows that when Haro 6-10S is fainter at K, it is also redder. The dependence of its H-K color on K magnitude shows a similar correlation. This has a natural explanation if changes in absorbing material along the line of sight are primarily responsible for the variation in its near infrared flux. The temporal evolution of K-L' vs. K was such that the observed values lay in the lower right part of the diagram before 1997, moved upwards to the left until November 1999, and again moved downwards toward the right starting in December, 1999. This coordinated behavior reinforces the suggestion that a one-parameter effect, probably variable extinction, is responsible for the observed changes in flux.
Figure 2 shows the best linear fit, in the least squares sense, to the
observed correlation; its slope is
.
The slope for
extinction following the wavelength dependence measured in the interstellar
medium,
AK/AV=0.112 and
AL/AV=0.058 (Rieke &
Lebofsky 1985), is 0.51. Overplotted in Fig. 2 is a line of this slope. The difference in slopes could be
attributable to a different extinction law for material around Haro 6-10S, but
further multi-wavelength observations are necessary to determine if this
difference is statistically significant.
Figure 3a shows K-L' vs. K mag for the IRC with the data identified as in
Fig. 2. The figure is divided into quadrants by lines at
K-L'=3.55
and K=9.7 mag. All of the measurements before 1993 lie in the lower left
quadrant, all of the 1997/1998 measurements in the upper left quadrant,
and the 1999/2000 measurements in the upper right corner, with the points
moving right. The IRC became redder while staying faint between 1993 and
1997, and grew brighter at approximately the same colour from 1998 on. The
net effect is that the IRC becam redder and brighter, which is the
opposite what would be expected to result from variable extinction.
This behavior is
even more pronounced in a plot of the H-K color vs. K (Fig. 3b).
Plotting H-K vs. H (Fig. 3c) shows a more normal behaviour in that the
reddening was accompanied by
an overall dimming at H. But here the slope of the observed H-K vs. H
relation,
1.2, is much too steep to be explained by extinction alone.
![]() |

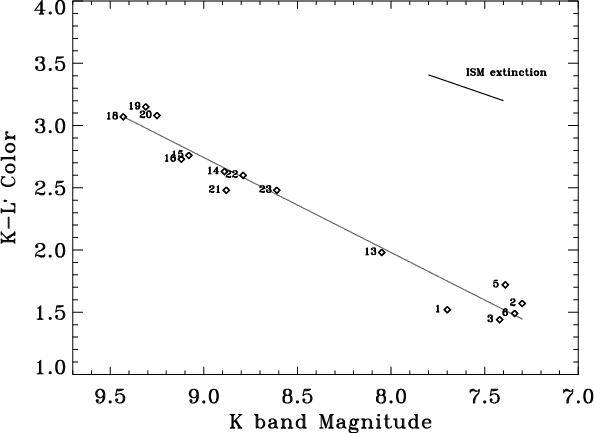

Figure 2: K-L' color vs. K-band magnitude for Haro 6-10S. Overplotted on the figure is a linear fit to the data (dotted line) and the expected slope if changes in near-infrared flux are caused by variable extinction (solid line). To help identify the observation times, we identified the data points by the numbering introduced in the first column of Table 2 |
Open with DEXTER |
The Haro 6-10 binary has now been observed in the IR for more than a quarter

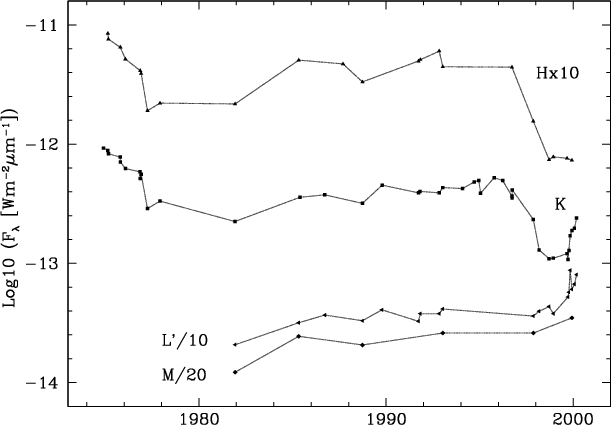

century. Figure 4 shows the light curve of the total system in the H, K, L',
and
M photometric bands. The measurements before 1988 are of the total,
unresolved system; those before 1978 are from Elias (1978), those for
1981 from Cohen & Schwartz (1983), and for 1984 from Myers et al. (1987).
For the later data, the values are the sums of the component entries
in Table 2. C. Koresko and A. Richichi (priv. comm.) provided the values
for 1992 and additional data for September 1996.
The decrease of total K-band flux reported by Elias (1978) was
accompanied by reddening of the (H-K) color. This suggests that Haro 6-10S
dominated the NIR flux of the system then, as it did during most of our
observations, and that increased obscuration was responsible for its
dimming. If we assume that indeed Haro 6-10S dominated the
light of the system
at H and K during the entire time before 1988 when
only integrated measurements were available, then Haro 6-10S decreased in
K-band flux by about a factor of 10 over the past 25 years, with major events,
causing decreases by a factor of about three, during the first two and the
last two years of this period. In contrast, the L' and M bands dominated
by the IRC show a gradual increase over the period of observations and a
particularly strong increase during the past two years. This different
behaviour of the light curve at short and long wavelengths also suggests
that different physical phenomena are responsible for the variability of
Haro 6-10S and the IRC.
![]() |

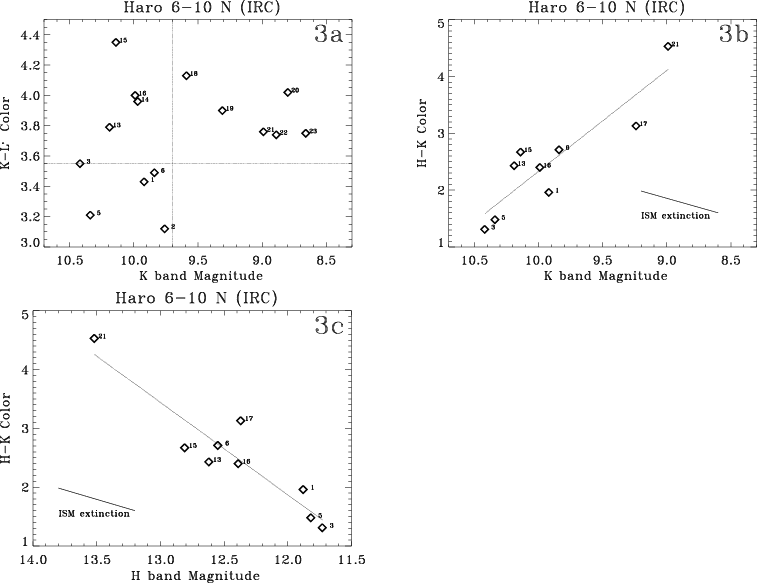

Figure 3: a) presents the K-L' color vs. K-band magnitude for the Haro 6-10 IRC. b) is the H-K color vs. K-band magnitude plot and c) is the H-K color vs. H-band magnitude. Overplotted on b) and c) is a linear fit to the data (dotted line) and the expected slope if near infrared flux variation is caused by variable extinction (solid line). In the three plots, the data points are numbered by observation date as they appear in Table 2. We note that in a) the lower left quadrant contains data from before 1993, the upper left quadrant data from 1997/98, and the upper right quadrant data from 1999/2000 |
Open with DEXTER |

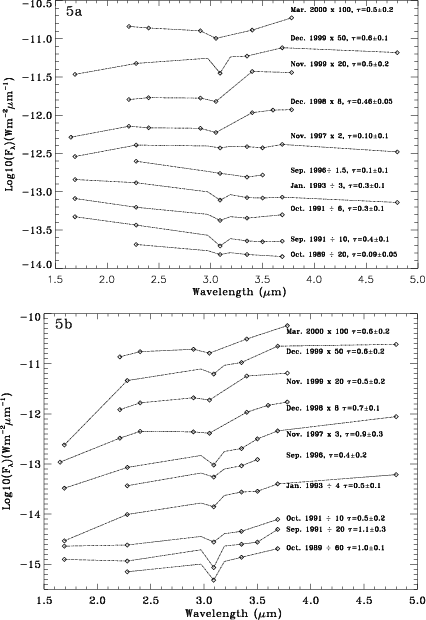

Figures 5a and 5b show measurements of spectral energy distributions
of Haro 6-10S and the IRC centered on the 3.1 m water-ice feature.
We estimated the ice-band optical depth,
,
by measuring the absorption with respect to a continuum that
was drawn as a straight-line fit between the fluxes at K and L' (or
3.5
m if no L' measurement was available). These values, and their
uncertainties, are indicated in Figs. 5a and 5b. The uncertainties
in these estimates are the result of the variable shape of the component
SEDs, incomplete spectral sampling of the SEDs, and imprecision of the
photometry. We find that the optical depths to Haro 6-10S and its IRC are
variable at the 3.5
and 2
levels, respectively.
The large uncertainties in the values of
make it difficult to
establish correlations. However, for Haro 6-10S the decrease in K brightness
after 1997 by about 1.5 magnitudes was accompanied by an increase of
by about 0.3. If the brightness decrease is due to
increased extinction as we have argued in Sect. 3.1, then this increase
in
is much less than the change in optical depth of the ice band by 1.2
expected from Whittet et al. (1988)
relation between AV and
for the interstellar medium (ISM).
This suggests again that the material around Haro 6-10 may have properties
different from the general ISM. For the IRC no clear conclusions can be drawn,
but high values of
did not occur in our measurements when
the IRC was brighter than K = 9 mag.
It is interesting to consider the average
toward
Haro 6-10S and the IRC, which have values of
and
,
respectively.
Using the
to AV relation from Whittet et al. (1988),
(0)) where
and
,
we derive average visual extinctions
mag for Haro 6-10S, and
for the IRC. Our result is consistent with previous angularly resolved
observations of the silicate and water-ice absorption features (van Cleve et al. 1994; Leinert et al. 1996).
In December 1999 we imaged Haro 6-10 at UKIRT using the near-IR camera
TUFTI. It is equipped with a
pixel2 InSb detector.
The optics provide a plate scale of 0.081 arcsec/pixel to take advantage
of the wavefront sensing and active optics capabilities of the UKIRT.
![]() |
Figure 4: Variation of near-infrared flux of Haro 6-10 from 1974 to 2000. Measurements before 1978 are from Elias (1978), for 1981 from Cohen & Schwartz (1983), for 1984 from Myers et al. (1987), for November 1992 and September 1996 from C. Koresko and A. Richichi (private communications) |
Open with DEXTER |
Figure 6 shows the images obtained in the J, H, K, "ice'' (m),
"dust'' (
m), L', and M filters. Haro 6-10S and the IRC are resolved
in all the images except J in which the IRC was not detected. At the time
of these observations the components were essentially equal in brightness
at K and the IRC was brighter at longer wavelengths (see also Table 2).
The sensitivity of the K frames is insufficient to show the faint north-south
extensions on the IRC found by Koresko et al. (1999).
![]() |
Figure 5: Variation in ice-band absorption of Haro 6-10S a) and its IRC b) |
Open with DEXTER |
Our results show convincingly,
by the near quantitative agreement with the reddening predictions
for such a model, that the NIR flux variability of the star seen
in visible light, Haro 6-10S, is caused in large
part by variations in extinction.
The average extinction measured towards Haro 6-10S using the ice-band is
in good agreement
with K97's estimate,
AV = 5.6 mag,
if we allow for the fact that our observations included a period of
higher extinction.
Our data do not
provide information directly about where the obscuring material lies and
why its column density varies. The variability
is probably attributable to inhomogeneities in the obscuring material and their
motion across our line of sight. Since this line of sight contains
sufficient material to produce AV = 5 to 10 mag, but yet is sufficiently
transparent to permit detection of the star, it may prove useful for
a comparison of the composition of material near a young star with that
in the interstellar medium. For example, it should be possible to compare
the ratios of the water ice and silicates in the two environments.
![]() |
Figure 6:
Images of Haro 6-10 and its
companion obtained in different near-infrared bands from
UKIRT in December 1999.
The images in J, H, K, "ice'',
and "dust'' filters are a mosaic of 5 dithered images. The
images in ![]() ![]() |
Open with DEXTER |
Changes in accretion rate do not appear to be a main cause for the
brightness variations of Haro 6-10S. From the example given by
Calvet et al. (1997) we find the near-infrared colours H-K and
K-L' almost independent of accretion rate over the range of
10
/yr to 10
/yr. Emission from an
infalling envelope, as probably present in highly veiled sources,
tends to redden the energy distribution with increasing accretion
luminosity, which is not what we observe. Quantitative predictions
of these intricate effects would need specific modelling of the source
and are beyond the scope of our paper.
The flux variability of the IRC is much more complex than that of Haro 6-10S.
The extinction implied by the ice-band absorption is much smaller than
K97's estimate of
mag derived based on the assumption that
the IRC is
a strongly obscured young star. A certain discrepancy in the
derived AV is not too surprising
because the relatively large value of
suggests that the line
of sight could be optically thick in the ice-band. Radiative transfer
effects and scattering
could then produce an underestimate of the actual extinction to a
star powering the IRC. But more significantly,
the color variations of the IRC (e.g. Fig. 3) indicate that processes other
than, or in addition to, extinction must be involved in its variability.
Interpretation of reddening by extinction therefore may not be
adequate for Haro 6-10N.
Herbst et al.'s (1995) detection of H2 toward the IRC but not
Haro 6-10S indicates the presence of shocked material, which points to
accretion as an additional process playing a role in the IRC variations.
Muzzerole et al. (1998) have demonstrated the usefulness of Br
emission to measure
the accretion luminosity. A time series of angularly resolved measurements
of H2, Br
and Br
emission of the IRC is likely to
provide a useful
diagnostic of its activity and provide further insights to its nature,
in particular when coupled to monitoring of extinction indicators such as
reddening and dust absorption features.
Our angularly resolved NIR observations of the Haro 6-10 binary show that:
1. Both components vary significantly in near infrared flux on timescales of a few months;
2. The near infrared variability of Haro 6-10S, the visible light star, is caused mostly by changes in extinction. On the other hand, the near infrared variability of the IRC cannot be explained solely by variable extinction;
3. Absorption by water-ice is present in both components and is consistently stronger toward the IRC. There is evidence that the ice-band absorption is variable in time toward both components.
Acknowledgements
We acknowledge with pleasure the hospitality provided by Hans Zinnecker and the organizers of IAU Symposium 2000 where this paper was conceived. We thank C. Koresko and A. Richichi for allowing us to use their 1992 and September 1996 data, and D. Griep and P. Fukumura-Sawada for obtaining the service observations at the IRTF in March 2000. The work of TB and MS was supported in part by NSF Grant AST98-19694.
