A&A 366, 965-971 (2001)
DOI: 10.1051/0004-6361:20000355
E. W. Guenther 1 - G. Torres2 - N. Batalha3,4 - V. Joergens 5 - R. Neuhäuser 5,6 - J. Vijapurkar7 - R. Mundt8
1 -
Thüringer Landessternwarte Tautenburg,
Karl-Schwarzschild-Observatorium,
Sternwarte 5,
07778 Tautenburg,
Germany
2 -
Harvard-Smithsonian Center for Astrophysics,
60 Garden Street,
Cambridge, MA 02138,
USA
- i
currently at the Planetary Systems Branch NASA Ames Research Center
Mailstop 245-3 Moffett Field,
CA 94035-1000,
USA
3 -
Departamento de Astrofísica,
Observatório Nacional,
Rua General José Cristino 77,
São Cristovão,
Rio de Janeiro, RJ 20921, Brazil
4 -
Max-Planck-Institut für
extraterrestrische Physik,
Giessenbachstr. 1,
85741 Garching,
Germany
5 -
University of Hawaii, Institute for Astronomy,
2680 Woodlawn Dr., Honolulu, HI 96822, USA
6 -
Homi Bhabha Centre for Science Education
(Tata Inst. of Fundamental Research),
V. N. Purav Marg
Mankhurd, Mumbai 400088,
India
7 -
Max-Planck-Institut für Astronomie,
Königstuhl 17,
69117 Heidelberg,
Germany
Received 21 August 2000 / Accepted 27 November 2000
Abstract
We have determined the orbit of the double-lined spectroscopic binary
RX J1603.8-3938. The binary consists of two weak-line TTauri stars,
both of which have a spectral type between K3 and K4. The period of the
circular orbit is
days and the mass ratio
.
To our knowledge RX J1603.8-3938 is thus
the pre-main sequence binary with the longest period that has a circular
orbit. Despite the fact that the masses and spectral types of the two
components are almost identical, the photospheric lines are much
stronger in one component than in the other. In the wavelength region
between 5500 and 7800 Å we find that the ratio of the equivalent
widths of the primary to the secondary is
.
This ratio is
constant in time, and is the same for all photospheric lines. Since the
components are weak-line TTauri stars, the effect cannot be explained
by any kind of veiling. We are led to the conclusion that the secondary
is
mag fainter than the primary. It thus turns out that
evolutionary tracks of pre-main sequence single stars are unable to
explain the position of this system in the HR diagram.
Key words: stars: binaries: spectroscopic - stars: formation -- stars: late-type - stars: pre-main sequence
The most fundamental parameter of a star is its mass, which determines almost everything about its birth, life, and death. For low mass pre-main sequence stars this parameter is practically always derived by comparing the location of the star in the Hertzsprung-Russell (HR) diagram with theoretically calculated evolutionary tracks, i.e. it has not been determined directly. Since the evolutionary tracks published by different groups differ a lot, it is necessary to test them thoroughly. A good way to do this is by comparing the masses derived from the evolutionary tracks with dynamically determined masses. Direct determinations of the mass are possible if the object is a double-lined spectroscopic binary, and if additionally the inclination is known.
The inclination can be determined either if the system is eclipsing, or if it is spatially resolved, or if the motion of the photo-centre is measured astrometrically. In some special cases the inclination might also be estimated indirectly. For example, in the case of a circumbinary disk, it is reasonable to assume that the inclination of the orbit is roughly the same as the disk. In the near future the determination of the masses of many pre-main sequence stars will be possible when the VLTI becomes available. Additionally, upcoming space astrometry missions (FAME, DIVA, SIM, GAIA) will allow us to measure the motion of the photo-centre for many spectroscopic binaries. In order to prepare for these projects, we have thus initiated a survey for pre-main sequence spectroscopic binaries located in nearby star-forming regions. Additionally, we also derive the orbits of recently discovered double-lined spectroscopic binaries.
However, even if the inclination of the system is not known, in double-lined spectroscopic binary systems the mass ratios of the components can still be used to constrain evolutionary tracks. Thus, these objects are also of interest. We present here the orbital solution of the double-lined spectroscopic binary RX J1603.8-3938. Although RX J1603.8-3938 is a short period binary, and it is neither eclipsing nor a suitable target for the VLTI, it turns out to be quite interesting for our understanding of early stellar evolution.
Apart from being useful for deriving the masses, the pre-main sequence
binaries are also interesting as such. First of all, the mass ratios
of binaries of different orbital periods may hold important clues for
the formation of these systems. Secondly, the evolution of the orbital
elements gives important clues on the tidal interaction of the binary.
Duquennoy & Mayor (1991) find for stars in the solar
neighbourhood that binaries with periods of 11d or less have circular
orbits, and binaries with longer periods have a mean eccentricity of
.
Zahn & Bouchet (1989) studied the tidal
interaction theoretically, and found that almost all of the orbital
circularisation of low-mass stars occurs during the pre-main sequence
phase of evolution. Mathieu (1992) in fact found that the
transition period between circular and eccentric orbits is apparently
between 4 and 5 d for pre-main sequence stars, and thus significantly
shorter than for main-sequence stars. However, the number of pre-main
sequence binary systems with solved orbits is still quite low, and
surprises can be expected when more orbits are solved. By studying
pre-main sequence binaries we can thus learn more about tidal
interaction, especially on the timescales on which this process works.
Since pre-main sequence stars are quite frequently covered with spots,
they are often suitable for investigating whether short-period systems
have their rotation synchronised with the orbital motion. The only
pre-main sequence spectroscopic binary where the
synchronization of the rotational periods of
the components have been studied up to now is V773Tau (Rydgren &
Vrba 1993; Welty 1995).
For this system it was found that the rotational period of the stars is about three days, whereas the orbital period of the system is about 51 days. Last but not least, short-period pre-main sequence stars often show significant amounts of stellar activity. They are often strong X-ray sources, and very large flares have been reported. Non-thermal radio emission has been detected in some cases. Thus, short period pre-main sequence binaries are very suitable, in order to learn more about the generation of magnetic fields, and the stellar activity in pre-main sequence stars. The best studied case in this respect is again V773 Tau (Guenther et al. 2000).
RX J1603.8-3938 was first detected as a strong X-ray source by
ROSAT (Krautter et al. 1997). Optical follow up
observations by Wichmann et al. (1997) then demonstrated
that the object is a pre-main sequence star. The binary nature was first
recognised on a single high resolution spectrum taken with CASPEC on the
ESO 3.6 m telescope (Wichmann et al. 1999). Based on U B V R I-photometry, and the fact that the equivalent width of H
is
less than 10 Å, RX J1603.8-3938 is classified as weak-line
TTauri star. This classification is in agreement with the equivalent
width of the LiI 6708-line of the two components of
Å, and
Å (see Sect. 4.2).
RX J1603.8-3938 was also observed by the HIPPARCOS satellite,
and is included in the TYCHO-2 catalogue (TYC 7855-01106-1). Using the
formula given in the TYCHO catalogue we converted the
and
magnitudes to the Johnson system. We find that the V-magnitude of
and the B-V colour index of
are fully consistent with the V-magnitude of 11.02 and B-V colour index
1.05 obtained by Wichmann et al. (1997). The object is
located in the Lupus 3 star forming region.
The proper motion of
in RA, and
in DEC as listed in the TYCHO-2
Catalogue is also consistent with membership in the Lupus star-forming
region. The generally accepted distance to the Lupus 3 star-forming
region is about 140 pc (Hughes et al. 1997). However, this
value has recently been questioned, as Knude & Hog (1997)
derived a distance of only 100 pc.
Using the Echelle spectrograph FEROS (Fiber fed Extended Range
Spectrograph) on the 1.5 m telescope at La Silla, we have obtained 17
spectra of RX J1603.8-3938 over a time span of about one and a
half years. The spectra cover the wavelength region between about 3600 Å and 9200 Å, and have a resolution of
.
FEROS is optimised for high precision measurements of
the radial velocities. The standard MIDAS pipeline for FEROS was used
to subtract bias, flat-field, remove the scattered light, subtract the
sky background, and extract and wavelength calibrate the spectra.
Precise measurements of the radial-velocity have then been carried out
by cross-correlating the spectra with spectra of the radial-velocity
standard HR5777 which was observed with FEROS too. The radial velocity
of HR5777 is known to be stable, and has been determined with an
accuracy of
ms-1 (Murdoch 1993). We have
observed HR5777 in every observing run and find that the accuracy of
our measurements is better than 80 ms-1. However, because the
signal to noise ratio is less in RX J1603.8-3938, the errors are
of the order of 250 ms-1 for the primary component, and
somewhat larger for the secondary component.
![]() |

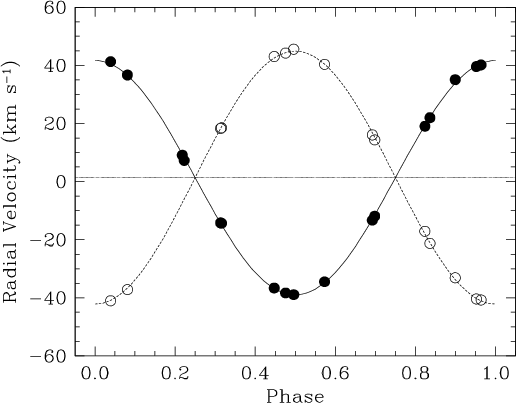

Figure 1: Orbital solution for RX J1603.8-3938 from the elements given in Table 2. The scatter around the fit is 0.54 and 0.57 km-1 for the primary (filled symbols) and secondary (open symbols) |
Open with DEXTER |
The radial velocity measurements (given in Table 1) of the
two components are well fitted by a circular orbit
(Table 2). The scatter of the data points around the
orbit is 0.54 and 0.57
for the primary and secondary,
respectively (Fig. 1). The fact that the scatter
of the data is slightly larger than the accuracy of our measurement is
possibly due to stellar activity. The upper limit of the eccentricity
is 0.005. We also find a heliocentric systemic velocity of
,
which is fully consistent with the
value
of the known members of the Lupus
star-forming region (Wichmann et al. 1999).
HJD | RV(A) | RV(B) |
[
![]() |
[
![]() |
|
2451263.7482 | -14.18 | 18.30 |
2451290.8430 | 35.10 | -33.10 |
2451331.7718 | -14.33 | 18.50 |
2451332.7660 | -36.63 | 43.06 |
2451333.7155 | -34.46 | 40.38 |
2451335.7024 | 21.99 | -21.24 |
2451355.8031 | -38.90 | 45.60 |
2451621.7546 | -13.26 | 16.09 |
2451621.7991 | -11.89 | 14.36 |
2451622.7472 | 19.05 | -17.07 |
2451623.7174 | 39.59 | -40.36 |
2451623.8056 | 40.16 | -40.72 |
2451624.6924 | 36.70 | -37.15 |
2451625.7288 | 9.11 | |
2451625.7636 | 7.28 | |
2451733.4630 | -38.33 | 44.26 |
2451737.7188 | 41.29 | -40.99 |
period |
![]() |
systemic velocity |
![]() ![]() |
![]() |
![]() ![]() |
![]() |
![]() ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() ![]() |
![]() |
![]() ![]() |
Mass-ratio q |
![]() |
eccentricity | 0.0 |
Figure 2 shows a small part of the spectra taken in five
consecutive nights. Very prominent is the LiI 6708-line which
is characteristic for pre-main sequence stars. We measured an apparent
equivalent width for the LiI 6708-line of
and
Å, for the primary and secondary component,
respectively.
![]() |

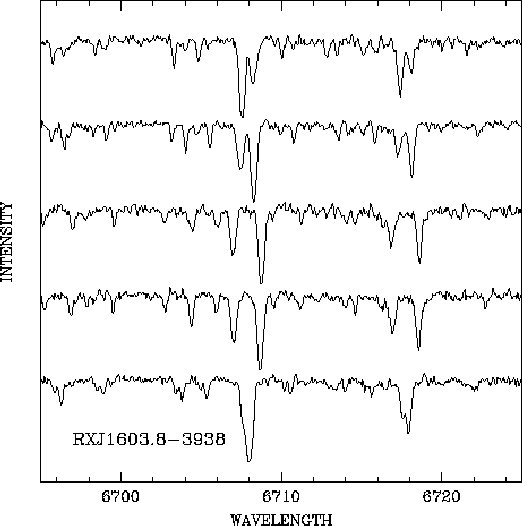

Figure 2: Small part of the spectra taken of RX J1603.8-3938 in five consecutive nights. Clearly visible are the two sets lines of the two companions. The equivalent widths of the photospheric lines are clearly smaller in one component compared to the other |
Open with DEXTER |
The most striking feature of this binary system is that although the
masses of the two stars differ by only 7%, the line strength of the two
components is clearly different (see Fig.2). We
determined an average ratio of the equivalent widths of
is
for unblended photospheric lines in the spectral
range between 5800 to 7800 Å. This value is the same for all spectra
taken where the two components are well separated. This number does not
directly reflect the brightness difference of the two stars at these
wavelength bands as the equivalent width of spectral lines depends on
temperature. Thus, the spectral types of the two components have to be
determined first. In order to do this we compared the spectrum of
RX J1603.8-3938 with template spectra of K2V, K3V, and K5V
stars.
From these spectra, we conclude that both stars have to have a spectral
type earlier than K5, and later than K2. In the next step we selected a
number of unblended spectral lines with different sensitivity to
temperature. That is, lines where the equivalent width increases when
going from a K3 to a K5-star, and lines where the equivalent width
remains almost constant in this regime. For lines where the equivalent
width remains constant within 20%, we find a ratio of
. For the lines that are relatively sensitive to the
temperature in this regime, we derive
.
Thus, within the errors, there is no difference between the two sets of
lines, despite the fact that the equivalent width of some features such
as FeI6750.164, and TiI6743.127 changes by a factor of three

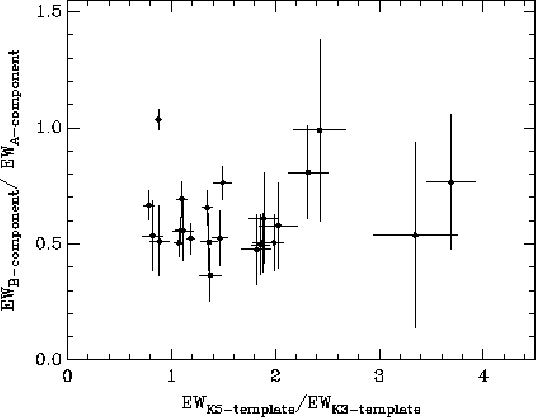

when going from a K3 to a K5 star. This is shown in
Fig. 3, where we display the equivalent width
ratios for our binary versus those between the K3 and K5 templates, for
a number of spectral lines. The relatively small change in the ratios
for the components of our binary stands in contrast to the broad range
seen between the K3 and K5 templates. This is effectively a very
sensitive test of the temperature difference between the stars in
RX J1603.8-3938, and it indicates that there cannot be a large
difference in their spectral types. Both must be between K3 and
K5. However, we can narrow this range down even further. Since the sum
of the equivalent width of the two components is slightly larger than
the equivalent width of the K3V-template (
), a K3V-template is actually not possible and
the spectral types of the stars have to be very slightly later than K3.
If the two stars had a spectral type of K5, a small amount of veiling
would in principle be possible since the sum of the equivalent width of
the two stars is smaller than that of the K5V-template (
). However, even in this case the veiling
would be too small to explain the large difference in the equivalent
width of the two components. A substantial amount of veiling would also
be highly unusual for weak-line TTauri stars, and we thus conclude
that the veiling is unable to explain the difference in strength of the
lines.
![]() |
Figure 3: This figure shows the ratio of the equivalent width of the K3-template to the K5-template versus the ratio of the equivalent width of the two components of the object. Please note that the equivalent width of some lines changes by a factor of up to three when going from the K3-template to the K5-template. In contrast to this, there is no obvious difference of the ratio of the equivalent width between the two components for lines that are sensitive to the spectral type, and lines that are insensitive. Thus, the difference in spectral types between the two components has to be much smaller than the difference between the K3-template K5-template |
Open with DEXTER |
The fact that the photospheric lines of the secondary are considerably weaker than those of the primary can be explained by a difference in the brightness of the stars. The precise difference in brightness of course depends on the accuracy with which the spectral types where determined. The brightness difference obviously becomes larger when the primary has an earlier spectral type than the secondary, and smaller, when the secondary has an earlier spectral type than the primary. In order to estimate the maximum amplitude of this effect let us take the K5 template as the secondary, and the K3 template as the primary. If the secondary were a K5 star, the brightness difference would be as large as 1.1 mag. In the hypothetical case that the secondary where a K2 star, the difference would be 0.4 mag. However, it is quite unreasonable to assume that the fainter component has the earlier spectral type. That the primary is a K2 star also is not possible, since the observed equivalent width of some lines in RX J1603.8-3938 are already larger than those of a K2 star, leaving no room for a secondary. We thus conclude that both stars have about the same spectral type (K3 to K4), and that the secondary is about 0.6 mag fainter than the primary.
If the difference between the equivalent width of the two
components is interpreted as a difference in brightness than the values
of the equivalent width for the LiI 6708-line has to be
corrected correspondingly. Instead of
and
Å, the true equivalent width of the LiI
6708-line are
Å, and
Å, respectively.
Since the upper limit of the equivalent width of the LiI
6708-line for stars in IC2602, IC2391, and
IC4665 which have an age of 36 Myrs is 0.35 Å at the
spectral type K3, RX J1603.8-3938 is correspondingly younger the
stars in these clusters (Martín 1997).
As mentioned before, both stars are weak-line TTauri stars. In all
spectra, H
is seen in emission, all higher Balmer lines are in
absorption. The average equivalent width (sum of both components) of
H
is
Å. The first interesting thing to find
out about the components is, whether their axial rotation is
synchronised with the orbital motion (synchronised
rotation). Answering this question is in principle easy. One simply
has to compare the rotational period of the stars, which is determined
by monitoring some tracers on the stellar surface, with the orbital
period. For example, if the stellar surface is covered with large
spots, the photometric period can easily be compared with the orbital
period. In a similar way, this can also be done by monitoring the
variations of the equivalent width of photospheric lines.
Unfortunately, the variations of the equivalent width for the primary and secondary are too small to determine any period (0.006 to 0.008 Å for LiI 6708 line). The photometric variation of 0.167 magnitudes rms given in the TYCHO-2 catalog is too close to the photometric accuracy of this experiment. Thus, it would not be possible to derive any photometric period from these data either. Another possibility would be to use the emission components of the CaII lines. Since these features originate in plage regions, they can also be used as a tracer. However, although this feature is present, it is very small, and the equivalent width of the emission feature of the CaII IR triplet lines varies only by 12% and 21% in the primary and secondary. This feature also does not allow us to draw any conclusions on the rotational periods of the stars. Thus, the low level of stellar activity prevents us from determining the rotational periods of the stars.
We have determined the orbit of the pre-main sequence double-lined
spectroscopic binary RX J1603.8-3938. Although
RX J1603.8-3938 is a young binary system, the orbit is circular,
despite the fact that the period is 7.5d. This is quite surprising,
because pre-main sequence binaries with periods longer than 5d usually
have eccentric orbits (Mathieu 1992). Only for main-sequence
stars, this boundary shifts to about 11 days (Duquennoy & Mayor
1991). With values of 0.41 and 0.43 Å for the equivalent
width of the LiI 6708 line, the strength of this feature in both
components is substantially larger than is typical for stars of the same
spectral type in the Pleiades (Soderblom et al. 1993).
This and other evidence clearly establishes the system as a pre-main
sequence object. The results for RX J1603.8-3938 imply that
circularization certainly operates during the pre-main sequence phase of
evolution. To our knowledge RX J1603.8-3938 is the binary with
the longest period that has a circular orbit which is known for sure to
be pre-main sequence. During the refereeing process we learned that an
independent orbit for this system was derived by other authors (Melo et
al. 2000), giving very similar elements.
From the orbit, we also conclude that the masses of the two companions
are almost identical. In contrast to this, we find that the
equivalent width of the photospheric lines are a factor of 1.7 smaller
in the secondary than in the primary. As already outlined above, the
small equivalent width of the secondary cannot be explained by the
presence of a veiling continuum, as the two components are weak-line
TTauri stars. For a binary with orbital period of 7.5d,
extinction in front of one component is also not an option. Another
possibility would be the presence of very large spots. For example,
the long-term changes in the apparent magnitude of the young star
P1724 of 0.2 mag are presumably caused by large spots. The spots also
produce a short-term photometric modulation with an amplitude of 0.4
mag, and their shape and location were reconstructed by Doppler
tomography (Neuhäuser et al. 1998). If spots play
an important role in the case of RX J1603.8-3938, we would
also expect periodic variations in its photometry and radial velocity.
For example, Saar & Donahue (1997) find for late-type
dwarfs a RV variation (semi-amplitude) of
km s-1, where
is the
filling factor in percent. If the same holds for young stars, and
most of the 0.5
scatter in our RV curves were caused by
spots, we would estimate the filling factor to be of the order of 5 to
10%. As mentioned before, the brightness in the V-band given in the
TYCHO-2 catalogue of
is the same, within the errors, as
the value 11.02 given by Wichmann et al. (1997), making
large amplitude variations unlikely. While this does not rule out the
presence of spots completely, it seems somewhat unlikely that the
difference in the equivalent width between the A and the B component
is caused by spots. Since the spectral types are essentially
identical, we are led to the conclusion that the secondary is
intrinsically fainter than the primary by
mag. Using
the photometry by Wichmann et al. (1997) and the TYCHO-2
catalogue we can place the two stars into the HR diagram. From our
measurements we thus conclude that the A and B components have
bolometric luminosities of
,
and
mag
assuming a distance of 140 pc, or
and
assuming a distance of 100 pc.
Figure 4 shows the position of the two components in the HR
digram, together with the evolutionary tracks by D'Antona & Mazzitelli
(1994). From the position of the objects in the HR diagram,
one would conclude that the two stars have different ages, and different
masses. For example, if we assume a distance of 140 pc, we would
estimate the mass of the primary to be slightly larger than
,
and that of the secondary as
0.85
.
However, the true mass
ratio is
.
Even more worrying is that the ages of the
two components come out different. From the Fig. 4 we would
estimate the age of the primary as 1 to
yrs, and the age of
the secondary as
yrs. Such a large difference in age is
also in contradiction to the fact that the equivalent widths of
the LiI 6708 lines of the two stars are the same. Even if the
determination of the spectral-types were grossly wrong, we are unable to
shift the secondary far enough to be in agreement with the true
mass-ratio. In order to demonstrate this, we also marked the position of
the B component if the secondary were a K5 star (B3), and if the
secondary were a K2 star (B1). However, as pointed out before, the
B1-case is highly hypothetical. If the secondary were a K5 star, the
mass derived from the evolutionary tracks would be
0.75
.
Thus, the conflict with the true mass-ratio would be even
larger.
![]() |

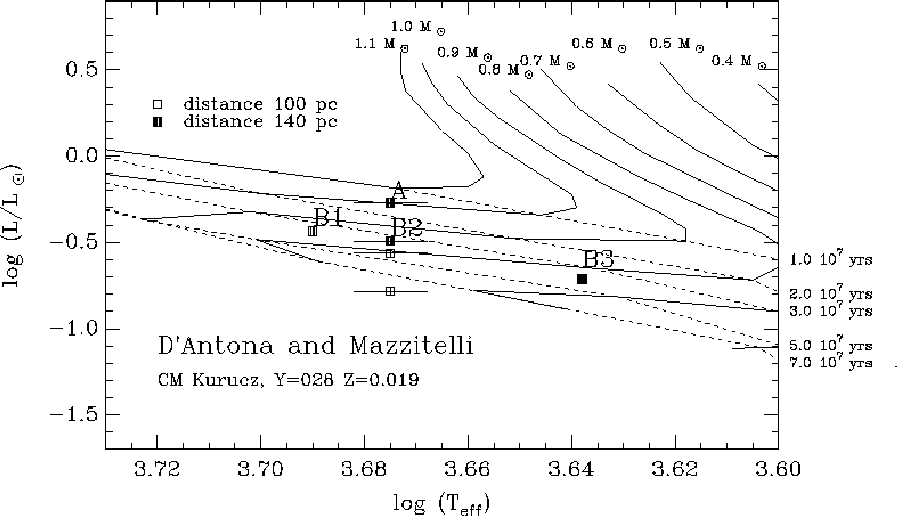

Figure 4: Shown is the position of the two companions of RX J1603.8-3938 in the HR diagram. The filled symbols are for distance of 140 pc. Marked with A is the position of primary component. With B1, B2, B3 we denote the positions of the secondary component, where B1 is the position if the spectral type of the secondary is K2. B2 is for a spectral-type of K3, and B3 for a spectral type K5. Since the total luminosity of the system has to be kept constant, the point A would also move. For example, if the secondary gets fainter, the primary would get brighter. However, we decided not to show the A1, A2, A3 because all these points would be close to A, and the figure would become confusing. The open symbols are for a distance of the system of 100 pc. In this case, we assume that both companions have a spectral type of K3. Also shown are the evolutionary tracks calculated by D'Antona & Mazzitelli (1994). According to these tracks the two components would have different ages, and different masses, in contradiction to the mass ratio derived from the orbit. As can clearly be seen, even if the determination of the spectral-types were grossly wrong, we are unable to shift the secondary far enough to be in agreement with the true mass-ratio |
Open with DEXTER |
We can also turn round this argument: let us assume that the primary
has a mass of one solar mass and a spectral type of K3. Then the
secondary would have a mass of
according to the
mass-ratio derived from the orbit. In this case we would derive from
the evolutionary tracks that its effective temperature would have to
be 4470 K, corresponding to a spectral type of about K4, and the
secondary would be about 0.2 mag fainter than the primary. However,
if the secondary had this effective temperature, the brightness
difference derived from the measurements of the equivalent width would
be almost one magnitude. So, there is again the same discrepancy
between the evolutionary tracks and the measured large difference in
equivalent width of the lines.
Figure 5 shows the position of the two
components of RX J1603.8-3938 in the colour-magnitude diagram
(using the brightness and
-colour published by Wichmann et
al. 1997). Also shown is the average position of the stars
in the clusters IC2391 and IC2602 taken from
Stauffer et al. (1997). These two clusters have an
estimated age of 25 Myr. For a distance of 100pc, the primary falls
slightly above and the secondary slightly below the average position of
stars in IC2391 and IC2602 in the colour-magnitude
diagram. For a distance of 140 pc, both components are above the
average position of stars in the two clusters.
![]() |

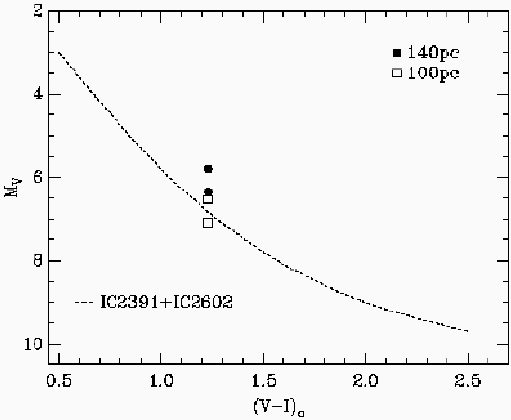

Figure 5: The position of RX J1603.8-3938 in the colour-magnitude diagram of IC 2391 and IC 2602. The two clusters have an age of 25 Myr. For a distance of 100pc, RX J1603.8-3938 fits in to the colour-magnitude diagram of these two clusters. For 140 pc, both stars are above the curve |
Open with DEXTER |
In fact, due to the limited photometric accuracy, intrinsic variability,
slight difference in distance, and possible differences in age and
chemical composition between the two clusters, the scatter of the
members of these two clusters is comparable to the distance of the two
components of RX J1603.8-3938. From an observational point of
view, the positions of the two components of RX J1603.8-3938 are
by no means special. The problem in placing RX J1603.8-3938
onto the HR diagram is not so much the specific evolutionary tracks
used but the fact that two pre-main sequence stars of almost identical
mass have such a differences in brightness. If a cluster of stars is
observed, this difference in brightness would not be recognised because
of the large scatter in the colour-magnitude diagram. One possible
explanation for the problem in comparing RX J1603.8-3938 with
the tracks is that the evolutionary tracks that are computed for
isolated stars, are not valid for very close binaries that may have
interacted during the formation. Another problem of course is that the
observed colour, and magnitudes have to be converted in to
and
before they can be compared with the evolutionary tracks.
Acknowledgements
We are grateful to the support group of the ESO 1.5 m telescope at La Silla, especially Fernando Selman, Emanuela Pompei, and Rolando Vega, for helping us with the observations. N.B. acknowledges the support of the Fundação de Amparo à Pesquisa do Estado do Rio de Janeiro (FAPERJ). RN wishes to acknowledge financial support from the Bundesministerium für Bildung und Forschung through the Deutsche Zentrum für Luft- und Raumfahrt e.V. (DLR) under grant number 50 OR 0003. VJ thanks the Deutsche Forschungsgemeinschaft for their financial support through the Schwerpunktprogramm Sternentstehung. We acknowledge the use of IRAF, MIDAS, IDL and STARLINK software for preparing the observations and for analysing the data.
