A&A 366, 466-480 (2001)
DOI: 10.1051/0004-6361:20000227

New results on the helium stars in the galactic center using BEAR spectro-imagery

T. Paumard1 - J. P. Maillard1[*] - M. Morris2 - F. Rigaut3 [*]


1 - Institut d'Astrophysique de Paris (CNRS), 98b Bd. Arago, 75014 Paris, France
2 - University of California, Los Angeles, Div. of Astronomy, Dept. of Physics and Astronomy, Los Angeles, CA 90095-1562, USA
3 - Gemini North Headquarter, Hilo, HI 96720, USA

Received 22 June 2000 / Accepted 17 October 2000

Abstract
Integral field spectroscopy of the central parsec of the Galactic Center was obtained at 2.06 $\mu $m using BEAR, an imaging Fourier Transform Spectrometer, at a spectral resolution of 74 kms-1. Sixteen stars were confirmed as helium stars by detecting the He I 2.058 $\mu $m line in emission, providing a homogeneous set of fully resolved line profiles. These observations allow us to discard some of the earlier detections of such stars in the central cluster and to add three new stars. The sources detected in the BEAR data were compared with adaptive optics images in the K band to determine whether the emission was due to single stars. Two sub-classes of almost equal number are clearly identified from the width of their line profiles, and from the brightness of their continuum. The first class is characterized by very broad line profiles (FWHM $\simeq$ 1000 kms-1) and by their relative faintness. The other, brighter in K by an average factor of $\sim$9, has a much narrower emission component of width $\simeq$ 200 kms-1. Most of the emission lines show a P Cygni profile. From these results, we propose that the latter group is formed of stars in or near the LBV phase, and the other one of stars at the WR stage. The division into two groups is also shown by their spatial distribution, with the narrow-line stars in a compact central cluster (IRS 16) and the other group distributed at the periphery of the central cluster of hot stars. In the same data cube, streamers of interstellar helium gas are also detected. The helium emission traces the densest parts of the SgrA West Mini-Spiral. Several helium stars have a radial velocity comparable to the velocity of the interstellar gas in which they are embedded. In the final discussion, all these findings are examined to present a possible scenario for the formation of very massive stars in the exceptional conditions of the vicinity of the central Black Hole.

Key words: instrumentation: spectrograph - techniques: radial velocities - infrared: stars - galaxy: center -
stars: early-type - stars: wolf-rayet


1 Introduction

The very inner region of the Galactic Center (GC) is the focus of many studies as it offers the unique opportunity to study star formation and the extreme gas kinematics peculiar to the vicinity of a 2.5 106 $M_{\odot}$ black hole (Genzel et al. 1997; Ghez et al. 1998). The presence of an unusually broad 2.058 $\mu $m neutral helium line in emission was among the early known peculiarities of the central infrared source, originally called IRS 16 (Hall et al. 1982). Continuously improved spatial resolution has made it possible to tie this emission to individual stars and to suggest that this emission is explained by the presence of massive, young, hot stars (Najarro et al. 1997a). However, even if the formation of high mass stars was favored in the GC (Morris 1993), the prediction of evolving starbursts cannot fully explain the large abundance of massive, emission-line stars which are normally very rare and short-lived (Lutz 1998). Therefore, more spectroscopic observations are warranted to better understand the unique conditions in the central parsec of the Milky Way which can lead to the formation of numerous helium emission-line stars. An exact census and a precise determination of the physical properties of these stars is also important since they should significantly contribute to the ionization of the central parsec.

In this paper, we present new data obtained with an original type of integral field spectrometer, an imaging Fourier Transform Spectrometer called BEAR, on the 3.6-m Canada-France-Hawaii Telescope. The use of this instrument represents an effort to make a significant step in associating the best possible spatial resolution and a high spectral resolution in the near infrared. The spatial resolution is not limited by a slit width, as with a standard grating spectrometer. It corresponds to the common seeing conditions at the CFH Telescope on Mauna Kea at 2 $\mu $m ($\simeq$ 0.6 $\hbox{$^{\prime\prime}$ }$). The spectral resolution is provided by the FTS. To complete the star detection, an adaptive optics (AO) image of the same field in the K band was utilized. The processing of the BEAR data cube is described in Sect. 3. All the new results obtained from this study are presented in Sect. 4, including the display of the He I 2.058 $\mu $m line profiles of all the detected stars and, for the first time, the mapping of flows of interstellar helium. A detailed review of the detected stars follows in Sect. 5. Finally, a discussion of the nature of the He I stars, of the link between these stars and the helium flows, and of a possible star formation scenario are presented in Sect. 6.

2 Observations

The 3-D data were obtained in July 25, 1997 during a run with the BEAR Imaging FTS at the f/35 infrared focus of the 3.6-m CFH Telescope. For a detailed description of the properties of this type of instrument, we refer the reader to Simons et al. (1994), Maillard (1995), and to an updated review in Maillard (2000). Briefly, the BEAR instrument results from the coupling of the CFHT step-scan high resolution facility FTS (Maillard & Michel 1982) with a $256\times256$ HgCdTe facility camera. The field of view is circular with a 24 $^{\prime\prime}$ diameter, which corresponds to 0.93 pc at an assumed distance of 8 kpc for the GC (Reid 1993). The plate scale on the detector is 0.35 $\hbox{$^{\prime\prime}$ }$/pixel. The raw data consist of a cube of 300 planes with an integration time of 10 s per image, an image being taken at each stepping of the interferometer. In the camera, a narrow-band filter (bandpass 4806-4906 cm-1) isolates the He I 2.058 $\mu $m line. Observation of the GC from Mauna Kea is not possible at low airmass (at 42$^{\circ}$ above horizon at its highest). Therefore, the scan was acquired with an airmass less than 1.8 to preserve the image quality. The maximum path difference which was reached corresponds to a limit of resolution (FWHM) of 1.2 cm-1, i.e., 74 kms-1. Much higher spectral resolution can be obtained in this mode with the instrument (Maillard 2000). This value represents a compromise between the resolution needed to resolve the narrowest features of the line profiles and the detection depth. In any case, this resolution is at least 4 times better than in most of the previous spectral observations (Allen et al. 1990; Geballe et al. 1991; Krabbe et al. 1991; Krabbe et al. 1995; Blum et al. 1995b; Libonate et al. 1995; Tamblyn et al. 1996; Genzel et al. 1996; Najarro et al. 1997a, to quote the most important contributions to this study). A data cube on an A0 calibration star (HD 18881, mK=7.14 from Elias et al. 1982) was obtained on the same night, at exactly the same spectral resolution. This procedure was important for the precise correction of telluric absorptions since the 2.058 $\mu $m line is in the middle of a strong CO2 band.

High spatial resolution images of the inner region of the GC in the K band were obtained with the CFHT Adaptive Optics Bonnette (Lai et al. 1997) equipped with the $1024 \times 1024$ HgCdTe KIR camera (Doyon et al. 1998) on 1998, 26 June. The total integration time is equal to 480 s from the acquisition of 4 times 10 exposures of 12 s each to cover a total field of $\simeq$ $40\hbox{$^{\prime\prime}$ }\times 40\hbox{$^{\prime\prime}$ }$, just a little bigger than the direct field of the camera ( $35\hbox{$^{\prime\prime}$ }\times 35\hbox{$^{\prime\prime}$ }$). The reference star for guiding was a mK=14.5 star located 24 $^{\prime\prime}$ from SgrA$^{\star }$. The data processing included the filtering of star halos and the assemblage of the individual images to build the total field, which contains the entire BEAR field. The FWHM of the point-spread function (psf) in the final image varies from 0.13 $^{\prime\prime}$ to 0.20 $^{\prime\prime}$, depending on the distance to the guiding star. A slight elongation can be seen on the most distant images. Nonetheless, the image quality is roughly 4 times better than the seeing-limited BEAR images.


3 Processing of BEAR data

The processing of the BEAR data included two major operations. The first part is the standard processing for any BEAR data cube, from the raw data which are interferograms to the spectral cube. A second part has had to be developed specifically to cancel the atmospheric OH emission, extract the stars from a very crowded field, and to separate, in the spectra, the stellar contribution from the background emission. All these steps are briefly described below.

3.1 Cube reduction

The cube reduction, made with a package called bearprocess (Maillard 2000), consists of the usual operations of flat-fielding of the images of the raw cube, sky subtraction, correction for bad pixels, and registration of each frame relative to the first one to correct for turbulent motions and flexure drifts. All the interferograms are extracted from this corrected cube, and the corresponding spectra are computed by FFT, leading in this case to a 384-plane cube, this number being determined as the sum of powers of two, just larger than the initial 300 planes. The same operations have been made on the reference star data cube to yield in the end a single spectrum. From the division of the GC spectral cube by this reference spectrum, a new cube was produced, corrected for the instrumental and atmospheric transmission. In order to fully reconstruct the line profiles, and to apply the instrumental phase correction through the field, an oversampled cube of 1153 frames was computed which contains only the useful part of the spectrum after division, between 4827.19 cm-1 (2.0716 $\mu $m) and 4889.74 cm-1 (2.0451 $\mu $m). In this cube, the separation between frames corresponds to a mean velocity resolution of 3.35 kms-1, i.e., an oversampling by a factor of 12 from the initial cube.

3.2 OH correction

The CFHT-FTS is based on a design with dual input, dual output (Maillard & Michel 1982). For observations of isolated objects the source is centered in one entrance aperture, while the other one is open on the sky 53 $^{\prime\prime}$ West. This makes an automatic correction of the sky emission possible, in particular for OH. In the case of an extended field such as the GC, a single aperture must be open. Therefore, the OH emission strongly contaminates the raw data cube. The problem is particularly serious since a strong OH line falls at 2.0563 $\mu $m, within a typical linewidth of the stellar He I line. This OH line is not resolved and thus appears as an extended sinc function, the natural instrumental lineshape of an FTS. In the useful part of the spectrum, a second OH line, four times fainter, at 2.0499 $\mu $m, falls in the continuum. In addition, the OH line intensities do not appear to be perfectly uniform over the entire field.

We applied a method intended to allow the best removal of these lines, secondary maxima included. First, the spectrum of the atmospheric emission ( $S_{\rm sky}$) to be used as template was extracted by averaging the emission over about 100 pixels from small areas of the field devoid of sources. Then, for each pixel spectrum S of the data cube, the following expression was generated, integrated in the wavenumber $\sigma $ over the full spectral range:

\begin{eqnarray*}E(\mu)=\int \left(\frac{{\rm d}^2\;(S-\mu\;S_{\rm sky})}{{\rm d}\sigma^2}\right)^2\;{\rm d}\sigma . \end{eqnarray*}


The final corrected spectrum is $S-\mu_{\rm m}S_{\rm sky}$ where $\mu_{\rm m}$ corresponds to the value of $\mu $ for which $E(\mu)$ is minimum. A new cube cleaned of OH emission was created according to this procedure, to which all the subsequent operations were applied.


3.3 Extraction of stellar spectra

An image of the field of view was generated by co-adding most of the frames of this cube, with the exception of about 100 frames at each extremity, where division by the reference spectrum creates excessive noise. An automatic 2-D local maximum search was run on this image in order to detect the stars. With this procedure a total of 90 individual stars was identified within the circular field of the instrument. By using the photometry of Ott et al. (1999) for the faintest stars which are in common we determined a limiting magnitude of $m_K \simeq$ 13 for the stellar flux integrated in a $3\times 3$ pixels aperture (or $\simeq$ $1\hbox{$^{\prime\prime}$ }\times 1\hbox{$^{\prime\prime}$ }$). For almost the same field as us (a square field of $20\hbox{$^{\prime\prime}$ }\times 20\hbox{$^{\prime\prime}$ }$ centered on SgrA$^{\star }$) 218 stars brighter than mK = 13 are reported by Ott et al. (1999) from deconvolved images integrated over a 0.25 $^{\prime\prime}$ diameter aperture. Obviously, the main limitation comes from the seeing-limited imagery with BEAR in a very crowded field.

A facility program called cubeview (Maillard 2000), specially developed to inspect any BEAR data cube, was used to extract the 90 stellar spectra from the cube, by integration over a $3\times 3$ pixels aperture, centered on the brightest pixel of each detected star image. The final spectra resulted from a smoothing operation (boxcar function) to improve the S/N ratio. This operation was justified since the spectral resolution was much narrower than the broad stellar line profiles (74 kms-1against $\sim$1000 kms-1). To search all spectra for the presence of the He I 2.058 $\mu $m line in emission, a 3$\sigma $-detection criterion was applied to each smoothed spectrum, with the noise estimated in the continuum. From the same cube a line cube was generated. This was done by estimating a linear continuum in each spectrum, extracted pixel-by-pixel over the entire field, and by subtracting it from the original spectrum. Thus, the helium emission was all that remained. Using cubeview to inspect the cube images within the helium emission range revealed the stars being source of a He I emission as bright spots. Note that with spectro-imaging data the equivalent of an ideal square filter can be applied, isolating only the emission component without continuum, thus giving the maximum contrast to these stars, more accurately than could be done by imaging through a narrow-band filter. A few other stars with helium emission, for which the automatic detection had failed, were found by this method. Finally, the spectra of all the stars with helium emission were extracted from both cubes, in order to obtain two spectra for each star: the total spectrum, and the spectrum of the emission line only.

3.4 Separation of stars and gas

A co-added image was created with cubeview from all the frames of the line cube containing some He I emission. The resulting image clearly shows that the emission is concentrated in bright points, likely stars, but also in diffuse zones, indicative of interstellar gas lanes. Therefore, a separation of stars and gas must be conducted to obtain pure stellar line profiles and a spectral cube of the interstellar medium (ISM) emission only.

The He I line profiles detected with cubeview from the line cube in the gas patches exhibit a width just equal to the spectral resolution, which contrasts with the much broader profiles on most stellar points. The increase in spectral resolution provided by the BEAR spectrometer appears essential for distinguishing the ISM emission from the stellar emission. In many of the stellar profiles a narrow component is seen to be superimposed on a broad component. In these cases an inspection of the data in the vicinity of the star confirms the presence of extended ISM emission along the line of sight. Hence, the stellar profile can be cleaned of the ISM emission contribution by a local interpolation on the profile. In other cases, a line with width equal to the spectral resolution appears on top of a stellar continuum. This typical linewidth avoids confusion with an emission of stellar origin. However, in a few cases the emission line on top of a stellar continuum appears relatively narrow, about twice as wide as a typical ISM line. Only the absence of ISM emission in the neighborhood of such a star gives confidence in the stellar nature of the emission. The ISM emission can also mimic a stellar profile. Indeed, inspection of the cube indicates that, in some locations, the ISM emission shows several velocity components, which can merge into a broader line. In these cases a global inspection of the images confirms that the profile is due to ISM emission only. Finally, after all this careful selection, a fit to the stellar emission at all the confirmed He I star positions in the line cube was subtracted from the spectra, generating a spectral cube of the ISM emission.


3.5 Fitting of the 2.058 $\mu $m emission line profiles

In the end, 16 stars from the 90 stars isolated in the $\sim$1-pc field centered on SgrA$^{\star }$ exhibit the 2.058 $\mu $m He I line in emission, which can be attributed only to the underlying star. A homogeneous set of fully resolved line profiles is obtained. This signature justifies them being called helium stars. Actually, this designation is not a true stellar classification. They are simply stars showing the 2.058 $\mu $m helium line in emission. In the following the term helium star or He I star will therefore be adopted in this context. From the stellar positions, the correlation with previously identified stars was made from photometric surveys, e.g., Blum et al. (1996a), Eckart & Genzel (1997), and Ott et al. (1999). Three new helium stars not present in prior lists were first noted: HeI N1, HeI N2 and HeI N3. One of them, HeI N1, coincides with ID 180, a source already identified in the photometric survey of Ott et al. (1999). This identification was adopted.

In order to derive the radial velocities of all these stars, simple analytical models were used which take into account the P Cygni profile evident in most profiles. The 2.058 $\mu $m He I line has the advantage of not being blended with the emission lines of other atomic species which are likely to be present in the spectrum of these stars (Najarro et al. 1997a). Depending on the profile shape, we used three types of fitting models (a, b, c). In each case, the model yields the FWHM of the emission component, and the velocity domain of the full profile, FWZI (full width at zero intensity). The center of FWZI defines the radial velocity ($V_{\rm R}$) of the star. FWZI is also indicative of the terminal outflow velocity of the expanding envelope.

a)
For the few profiles with no detectable absorption component, a fitting by a Gaussian profile was used. In this case the FWZI is in fact estimated at one hundredth of the maximum intensity above the baseline;
b)
For the P Cygni profiles for which the absorption component has a width comparable to that of the emission component, a two-Gaussian fitting was applied. FWZI is limited with the same criterion as above on the emission side, and at one hundredth of the central depth below the baseline on the absorption side;
c)
For the stars with a P Cygni profile but showing a very broad emission component, a two-component fitting was used with a profile described in Morris (1985) for the emission component, and a Gaussian profile for the absorption component. For the determination of FWZI, the boundary of the profile on the red side is given by the emission fit. The Gaussian profile is limited as above on the absorption side.


3.6 Calibration of line profiles

For flux calibration, the stellar spectra must be extracted from the cube which includes the continuum. However, the intensity in these spectra is contaminated by the nearby stars present in the $3\times 3$ pixel BEAR box centered on each helium star. Corrections of this contamination were applied with the help of the AO image. In order to do this, the star positions and the peak intensities in the AO image were all determined with an automatic procedure. Then, at each star position, the BEAR psf was placed, which is a Lorentzian profile obtained from the calibration star data cube with the corresponding intensity. The result is an image at the BEAR spatial resolution. This reconstructed image was superimposed upon the image obtained by co-adding the frames of the BEAR cube with only the stellar continuum, by looking for the best match of the star patterns between the two images. By this process we determined the appropriate offsets and rotation between the two images. With these registration parameters, the BEAR box for each He I star, centered on the bright pixel determined from the line cube was projected on the corresponding area of the original AO image. From this superposition, in the case of multiple images, the most likely identification of the helium star can be asserted, and then the contamination by the neighboring stars within the square aperture estimated. The absolute star positions could be measured at the precision of the pixel size in the AO image ( $0.035\hbox{$^{\prime\prime}$ }$ pixel). They were determined first as offsets with respect to IRS 16NE, because this star from the AO image is a relatively isolated, bright star. Its position was taken from Ott et al. (1999), but in that paper, all the positions are given as offsets relative to the brightest local source, IRS 7, which is unusable in the AO image because its image is saturated. In order to present the final offsets of all the sources with respect to SgrA$^{\star }$, the position of IRS 7 relative to SgrA$^{\star }$ was taken from Menten et al. (1997) and used to derive the IRS 16NE position relative to SgrA$^{\star }$.

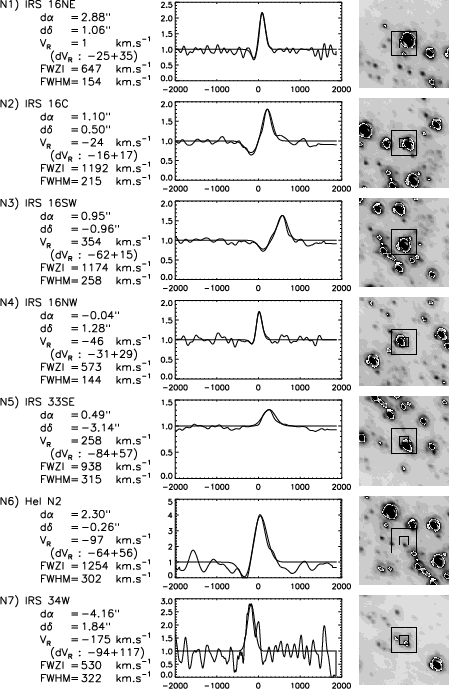

  \begin{figure} \par\includegraphics[width=8.8cm,clip]{MS10032f1.eps}\end{figure} Figure 1: Identification of He I stars with a narrow-line profile and adaptive optics image of the area. The star positions (d$\alpha $, d$\delta $) are offset with respect to SgrA$^{\star }$ estimated from their counterpart in the AO image (see Sect. 3.6). The small box in each image shows the size of one BEAR pixel, corresponding to the brightest pixel detected at the star position in the line cube (see Sect. 3.3). The $3\times 3$ pixel square represents the box in which the spectrum has been extracted. An analytical profile is fitted to each profile with parameters described in Sect. 3.5, given in the left column. $V_{\rm R}$ is the radial velocity with d$V_{\rm R}$ the 1-$\sigma $ error bar (see Sect. 4.3). The vertical scale in each spectrum is given in multiples of the intensity of the neighboring continuum, for which the calibrated value is given in Table 1
Open with DEXTER

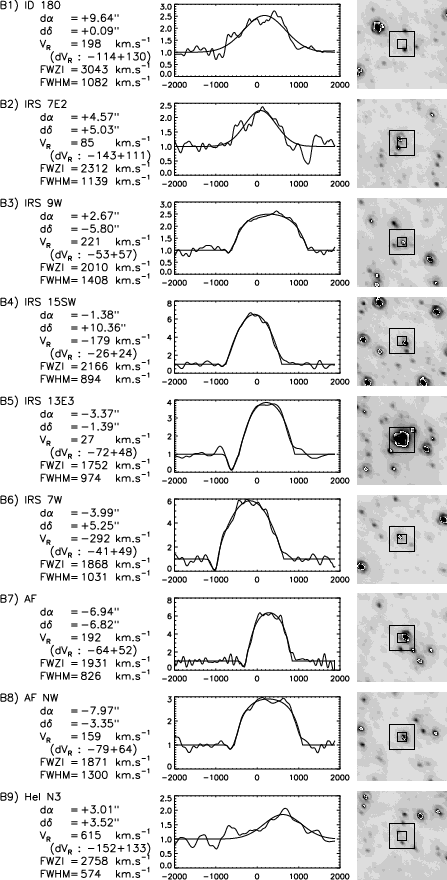

  \begin{figure} \par\includegraphics[width=8.8cm,clip]{MS10032f2.eps}\end{figure} Figure 2: Identification of He I stars with a broad-line profile and adaptive optics image of the area. The projected boxes have the same meaning as in Fig. 1
Open with DEXTER


4 Presentation of results


4.1 Two classes of He911I stars

By inspecting the shapes of the full set of He I line profiles, two classes of stars can be clearly distinguished. Indeed, 7 stars show a narrow emission line with a mean FWHM of 225 $\pm$ 75 kms-1, and 9 stars a very broad emission line with a mean FWHM of 1025 km s-1, all the values being within $\pm$ 400 kms-1 of this average. The FWZI associated with the latter group varies from $\sim$1700 kms-1to $\sim$3000 kms-1. The stars of each group are gathered in Figs. 1 and 2 respectively, with the parameters of the fitting of the line profiles, the star names, and the star positions as offsets from SgrA$^{\star }$. These positions are given in arcsecs at the precision of the position of their counterpart measured in the AO image (Sect. 3.6).

Note that most of these profiles are of the common P Cygni variety, with the standard absorption on the blue side. This absorption is generally shallow for the very broad emission lines, since the emission almost fills the absorption width, and is deeper for the narrow emission lines. For the broad-line profiles (Fig. 2) a flat top is seen for AF, which was already known (Najarro et al. 1994), but also for AF NW, IRS 7W, IRS 13E and presumably ID 180. All these various types of profile are encountered in models of P Cygni profiles (Castor & Lamers 1979).



Table 1: Continuum $\Phi $ of the He I stars at 2.06 $\mu $m
Narrow-line starsa Broad-line starsb
ID Name   $\Phi^c$ ID Name   $\Phi^c$
N1 IRS 16NE 25.93 B1 ID 180 0.59
N2 IRS 16C 13.23 B2 IRS 7E2 0.77
N3 IRS 16SW 10.87 B3 IRS 9W 1.55
N4 IRS 16NW 9.41 B4 IRS 15SW 1.02
N5 IRS 33SE 8.52 B5 IRS 13E3 2.26
      B6 IRS 7W 0.98
N6 HeI N2 (0.76) B7 AF 3.88
N7 IRS 34W (1.76) B8 AF NW 1.84
      B9 HeI N3 0.58
  mean$^{\ast}$ 13.59   mean 1.50
a See Fig. 1.
b See Fig. 2.
c 10-14 Wm-2$\mu $m-1.
$^{\ast}$ Mean intensity estimated without N6 and N7 (see text).

Table 1 presents the continuum flux level for each star measured at 2.06 $\mu $m, at wavelengths just outside of the emission profile, estimated by the procedure described in Sect. 3.6. No extinction correction has been applied. As these stars are located at the same distance, a comparison of flux is possible without correction. From an examination of Table 1, it appears that with this distinction of two families of line profile is associated another clear difference which had not been noticed before, namely the level of continuum. The continuum of the stars having a narrow profile is bright and with a comparable intensity, except for IRS 34W and HeI N2, which have a definitely weaker continuum. The continuum of the broad-line stars is fainter by a factor 9.0 on average ($\simeq$ 2.4 mag) than that of the narrow-profile stars. The AF star and IRS 13E3 appear to be the brightest objects of this group, though their continuum intensity is weaker by more than a factor 3 than the mean value of the narrow-line category. We return to these particular cases below.

The K-band AO image gives the opportunity of estimating the K magnitude, without extinction correction, of the He I stars. The photometric calibration was made by looking in the Ott et al. (1999) survey for a bright star common to our list, which is sufficiently isolated, and for which the photometry indicates a low index of variability. IRS 16NE was chosen as reference star, from which the K magnitude of all the other stars was deduced. With the same presentation as Table 1, the results are reported in Table 2. The mean difference of K magnitude between the two classes is equal to 2.18. That corresponds to a ratio of 7.45 against 9.0 measured near 2 $\mu $m. This difference is due to the fact that, in the flux reported in Table 1, the correction of the contribution of neighboring stars (Sect. 3.6) can be made only by assuming the same spectral distribution in the K band for these stars and the He I star, which is an approximation. For example, IRS 13E3, which was the second brightest star among its group from Table 1, is not so prominent in K. Only AF remains 1 mag above the average value. However, the general trend observed at 2 $\mu $m is largely confirmed. Note that IRS 16SW is found 0.2 magnitude brighter than the mean value reported by Ott et al. (1999), which is well within the range of periodic variation reported for this star. The source ID 180 is found to be $\sim$0.6 mag brighter than in Ott et al. (1999), while AF has exactly the same magnitude.



Table 2: K magnitude of the He I stars
Narrow-line stars Broad-line stars
ID    Name mK ID    Name mK
N1 IRS 16NE 8.76a B1 ID 180 12.12
N2 IRS 16C 9.41 B2 IRS 7E2 11.93
N3 IRS 16SW 9.38 B3 IRS 9W 11.62
N4 IRS 16NW 9.80 B4 IRS 15SW 11.21
N5 IRS 33SE 9.75 B5 IRS 13E3 11.73
      B6 IRS 7W 11.85
N6 HeI N2 (12.47) B7 AF 10.56
N7 IRS 34W (11.56) B8 AF NW 11.52
      B9 HeI N3 12.47
  mean$^{\ast}$ 9.35   mean 11.53
a From Ott et al. (1999).
$^{\ast}$ Mean magnitude estimated without N6 and N7 (see text).


4.2 Comparison with previous lists of He911I stars

The recent papers dedicated to surveying the helium stars in the central region of the GC are those of Krabbe et al. (1995), Tamblyn et al. (1996), Blum et al. (1996a) and Eckart & Genzel (1997). Blum et al. (1996a) present the most complete compilation of identified stars with their spectral type, reflecting both their own work and that of others. In this list, for the first time, the helium stars are identified under two denominations: He I and WC9. The latter is a sub-type of Wolf-Rayet stars (WR) which in addition to the He I 2.058 $\mu $m line in emission have the C III and the C IV lines in their K-band spectrum. A comparison of the list of stars that we identify as genuine He I stars with the list of Blum et al. (1996a) shows that several of their stars are missing. A few candidates were just at the edge of our field and cannot be confirmed. But it turns out that, in the other cases, the detected emission line can be interpreted as due to the ISM emission and not to the star, or to the background contamination from a nearby He I star. Following primarily the list of helium stars reported in Blum et al. (1996a), either as He I or as WC9 stars, then in Eckart & Genzel (1997), and at last in Tamblyn et al. (1996), all the stars absent from our list are worth a special comment:

Tamblyn et al. (1996) used an attractive method to find He I star candidates by associating an image taken through a narrow-band filter centered on the 2.058 $\mu $m line. However, their contrast was not sufficient to detect the ISM emission and they wrongly claimed that the majority of the He I emission is from point sources. In their list, they report 5 supposed new identifications they named GCHe1 to GCHe5. By inspecting the 5 positions we find that GCHe2 (or TAM HeI in Blum et al. 1996a) is in fact IRS 9W, which is confirmed as a He I star, GCHe3 is IRS 33SE and GCHe4 likely AF NW. Regarding GCHe1, Tamblyn et al. (1996) indicate a position not more precisely than 1.1 $^{\prime\prime}$ NE of AF. This region is at the very edge of our field. The current data do not allow us to confirm the presence of a helium star there. GCHe5 is identical in position to MPE-1.0-3.5, which has been rejected.

In conclusion, 6 out of 20 early-type stars listed in Blum et al. (1996a) as helium stars (noted He I or WC9) are not reported in our list. Three stars were excluded from our compilation, because they lie at the edge of the clear field: BSD WC9, BSD WC9B and IRS 15NE. Thus, 11 stars are in common. Of the 21 helium stars of Krabbe et al. (1995) we retain 13 sources. With 3 new stars which are added, the total number of helium stars in the central cluster remains roughly unchanged, but certainly not increased. However, this revision can modify some of the conclusions on this peculiar population.


4.3 Examination of the stellar radial velocities

With the radial velocities of all the helium stars reported by Eckart & Genzel (1997), considered as the most recent estimations, and in Krabbe et al. (1995) when the value was missing from Eckart & Genzel (1997), we have constructed a plot to compare to our estimations (Fig. 3). The error bars of each measurement are given, which put each star symbol at the center of an error box. In our work the error bars of $V_{\rm R}$ reported in Figs. 1 and 2 were estimated by shifting each best-fit profile in velocity, so that the maximum error in the obs.-calc. curve was within $\pm 1 \sigma$ of the noise. We can notice that our error bars are generally smaller than those reported earlier. However, the diagonal line does not cross the error box for 3 stars: N2, N5 and B2, i.e., IRS 16C, IRS 33SE and IRS 7E2. For either N2, which has a particularly narrow error bar because the emission is strong, or N5, the stellar profile has been corrected for the ISM emission. That may explain the observed discrepancy if in Eckart & Genzel's work this correction was not done. We return to the case of N5 in Sect. 5.1. No correction for ISM emission has had to be made for B2. The low contrast of the emission line explains a wider error bar. However, the difference of reported VR has no obvious explanation, unless IRS 7E2 is another spectroscopic binary, which gave two different radial velocities when observed at two different epochs (difference of $\simeq$200 kms-1). Further observations are needed to assess this plausible hypothesis.


4.4 Location and kinematics of the He911I stars

From the offsets given in Figs. 1 and 2, a map of the He I stars centered on SgrA$^{\star }$ is presented in Fig. 4. The two classes of stars are distinguished by different symbols. Another property becomes apparent on this map. The narrow-line stars are grouped into a central compact cluster, in the IRS 16 region. Actually, 4 of them are designated as being components of IRS 16. The new star HeI N2 is in the middle of them. The most external sources are IRS 33SE and IRS 34W, located just a few arcseconds South and West, respectively of the IRS 16 cluster. On the contrary, the broad-line stars are randomly distributed at the periphery of the field, beyond an inner radius of $\simeq$0.3 pc from SgrA$^{\star }$. Thus, the two or three emission-line stars missing because located at the edge of the observed field (Sect. 4.2) should also belong to the broad-line group.

In Fig. 5 are placed all the radial velocities ($V_{\rm R}$) reported in Figs. 1 and 2, with their error bars, as a function of the dec-offset of the sources from SgrA$^{\star }$. This plot is constructed with the same axes as a comparable diagram in Genzel et al. (1996) for the early-type stars. According to these authors all the stars with a positive velocity are concentrated in the upper left quadrant while the stars with a negative velocity are in the lower right quadrant. They conclude that this diagram shows the signature of a coherent retrograde motion of all early-type stars - a population of stars which contains mostly the He I stars - around an approximately East-West axis of rotation through SgrA$^{\star }$. From our equivalent diagram (Fig. 5) with the velocities of the 16 confirmed He I stars, we note that stars are present in all 4 quadrants, with, however, a trend to be mostly distributed along a diagonal through the opposite upper left and lower right quadrants, which is consistent with a revised version of the same diagram by Genzel et al. (2000).

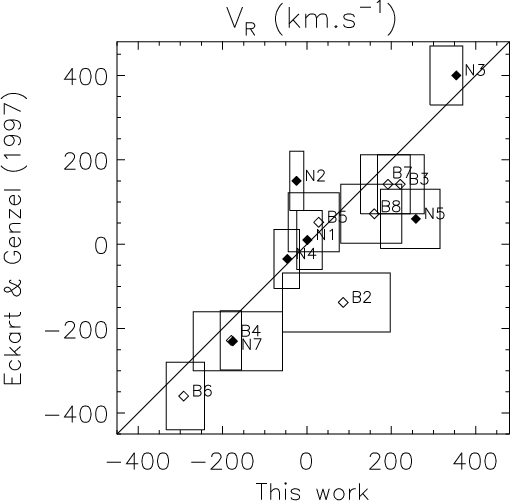

  \begin{figure} \par\includegraphics[width=7.3cm,clip]{MS10032f3.eps}\end{figure} Figure 3: Comparison of the estimated radial velocities $V_{\rm R}$with their error boxes for the stars in common between our work and Eckart & Genzel (1997). When not available in that paper, the values are from Krabbe et al. (1995). The narrow-line stars are represented by a filled diamond, the broad-line stars by an open diamond. See Figs. 1 and 2 for the star identifications
Open with DEXTER

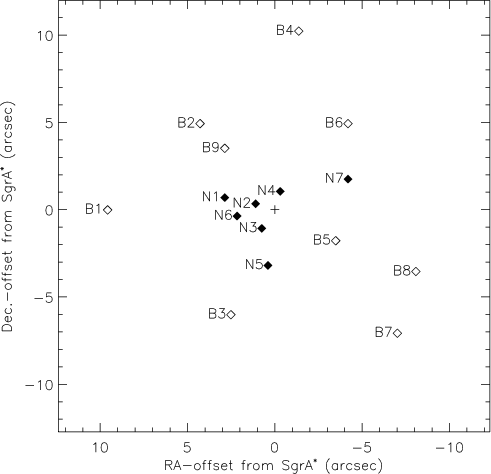

  \begin{figure} \par\includegraphics[width=8cm,clip]{MS10032f4.eps}\end{figure} Figure 4: Spatial distribution of helium stars from the offsets reported in Figs. 1 and 2, with respect to SgrA$^{\star }$ marked by a cross. The symbols have the same meaning as in Fig. 3
Open with DEXTER

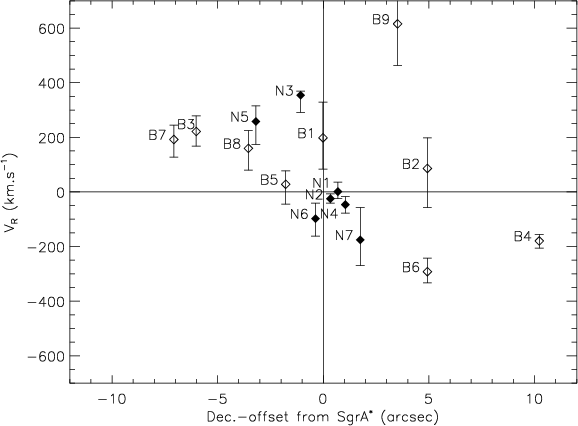

  \begin{figure} \par\includegraphics[width=8.2cm,clip]{MS10032f5.eps}\end{figure} Figure 5: Radial velocities with their error bar of the helium stars as a function of the dec.-offset from SgrA$^{\star }$(see Figs. 1 and 2). Filled and open diamonds have the same meaning as in Figs. 3 and 4
Open with DEXTER

4.5 Absorption line stars

From the systematic inspection of the 90 stellar spectra extracted from the data cube, it appears that some stars might present a broad absorption feature at the position of the He I 2.058 $\mu $m line. Tamblyn et al. (1996), and more completely Hanson et al. (1996) have observed all types of OB stars in the K band. They show that giant and supergiant O-type stars, roughly from O5 to O9 may have the He I 2.058 $\mu $m line in weak absorption. The search for such stars was conducted with the same method as the one applied to the emission line stars. Similarly, a smoothing of the raw spectra was made since the absorptions are broad (FWZI between $\sim$900 and 1500 kms-1) and shallow. The more noticeable detections correspond to the sources: IRS 7SE, IRS 14SW, MPE-1.1-2.2 and IRS 3. From the photometric survey of Ott et al. (1999), these stars are relatively bright (mK between 10 and 11.3) with a low index of variability. Note that IRS 14SW and IRS 3 are indicated as cool stars in Blum et al. (1996a), with the latter characterized as embedded by Eckart & Genzel (1997). Hence, this absorption can be of an origin other than photospheric helium. However, IRS 7SE and MPE-1.1-2.2 remain as potential OB star candidates. Observations over a wider spectral range are necessary to confirm the spectral nature of these two sources, which deserve further attention as possible indicators of the presence of O-type stars in the central cluster.


4.6 Helium streamers

An image of the interstellar helium emission is shown in Fig. 6. It was constructed by putting at each pixel the peak value of the corresponding spectrum in the ISM cube. The emission appears clearly distributed in coherent gas lanes. By comparing with the interstellar emission previously mapped in Ne+ at 12.8 $\mu $m by Lacy et al. (1991) and in Br$\gamma$ (Morris & Maillard 2000 and references therein) we see that this emission emanates from the Mini-Spiral, particularly prominent the Northern arm and the Bar. The mini-cavity can be also recognized. The Eastern arm is weak, except in an elongated feature at its western tip, at d$\alpha $ = - 1.5 $^{\prime\prime}$, d$\delta $ = - 2.5 $^{\prime\prime}$, showing a very distinct and extreme redshifted velocity. This component appears clearly in the integrated ISM velocity profile shown in Fig. 7, where it forms a separated maximum at +275 kms-1. The same peak of velocity is observed in the Br$\gamma$ data (Morris & Maillard 2000) at the same position on the hydrogen streamers. The full range of velocity covered by the He I mini-spiral is identical to the range measured in Br$\gamma$, i.e., -400, +400 kms-1(Morris & Maillard 2000). However, the helium ISM emission appears simpler than the Br$\gamma$ emission, as attested by the line profile extracted at each pixel which appears always as a single and narrow emission peak, except where the main streamers are crossing. For example, three components are exceptionally observed where the Northern arm, the Bar and the feature of the Eastern arm are superimposed, at d $\alpha = 3\hbox{$^{\prime\prime}$ }$, d $\delta = -6\hbox{$^{\prime\prime}$ }$. We already mentioned that the linewidth of a single component is exactly equal to the current limit of resolution. We can conclude that the velocity width of the helium streamers is certainly < 70 kms-1, however without being much narrower, since no sinc function profile is observed.

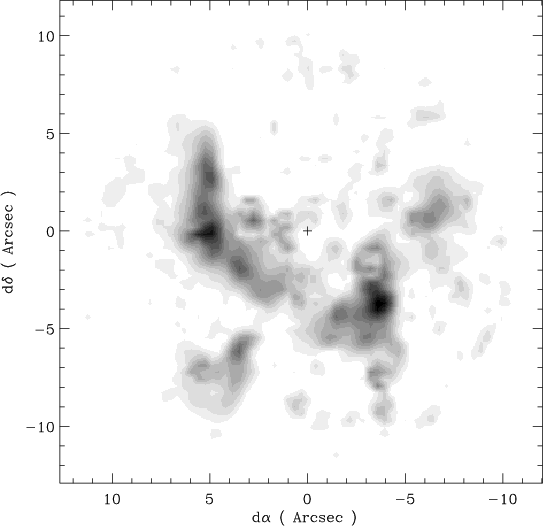

  \begin{figure} \par\includegraphics[width=8.8cm,clip]{MS10032f6.eps}\end{figure} Figure 6: Image of the helium streamers in the 2.058 $\mu $m line. The emissions of stellar origin have been subtracted as much as possible. Small residuals remain. The position of SgrA$^{\star }$ is marked by a cross at the center of the field
Open with DEXTER

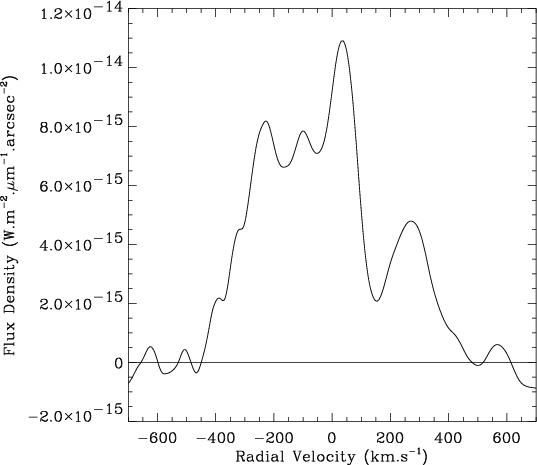

  \begin{figure} \par\includegraphics[width=8.3cm,clip]{MS10032f7.eps}\end{figure} Figure 7: Full velocity profile of the He I Mini-Spiral obtained by extracting the spectrum from the ISM cube over a mask covering most of the emission. The calibrated flux density is an average by arcsec2 over the area of this mask
Open with DEXTER

4.7 Comparison of the radial velocities of the He911I stars and the local ISM

As already mentioned, for several fully resolved He I line profiles, a narrower emission line from a helium streamer is seen superimposed on the stellar profile. By comparing the $V_{\rm R}$ of these stars derived from their P Cygni profile emission (Figs. 1 and 2) with the radial velocity of the HeI streamer along the same line of sight, we note that for many of them the two velocities are quite comparable in amplitude, and with the same sign. The comparison is presented in Table 3 with the narrow-line stars in the upper part, and the broad-line stars in the lower part.



Table 3: Comparison of the radial velocities of the He I stars and the local ISM
ID    Name $V_{\rm R}$ Star (km s-1) $V_{\rm R}$ ISM (km s-1)
N1 IRS 16NE + 1 $\pm$ 30 + 16
N2 IRS 16C - 24 $\pm$ 17 - 84
N6 HeI N2 - 97 $\pm$ 60 - 58
N7 IRS 34W - 175 $\pm$ 100 - 150
B2 IRS 7E2 + 85 $\pm$ 130 + 70
B3 IRS 9W + 221 $\pm$ 55 + 309
B6 IRS 7W - 292 $\pm$ 45 - 250


5 Notes on individual He911I stars

In the following we discuss the peculiarities of some of the emission line profiles separated into the two classes presented in Figs. 1 and 2, and in Tables 1 and 2.


5.1 Narrow-line stars


5.2 Broad-line stars


6 Discussion

The main results from this study of the helium emission-line stars in the central pc of the Galactic Center can be summarized as follows:

1)
Sixteen fully resolved P Cygni emission line profiles, purely of stellar origin, are extracted;

2)
They divide into two distinct classes, with narrow and broad-line profiles;

3)
The stars in each group have a comparable K magnitude but the two groups show a mean difference of $\sim$2 mag;

4)
The spatial distribution of the two groups is different. The narrow-line objects are all arranged in a central cluster, while the other class are dispersed in a ring beyond a radius of $\simeq$0.3 pc from SgrA$^{\star }$;

5)
ISM emission of helium streamers which follow the Mini-Spiral is discovered. The radial velocity of these flows seen along the line of sight to a large fraction of the helium stars is comparable to the radial velocity of the underlying star.

Hence, we must examine all the observed findings to determine what they tell us about the nature and the formation of these stars.

6.1 The stellar type of the He911I stars in the inner GC

The P Cygni lineshape for the helium emission of most of the stars we observed indicates that all of them are hot stars which possess an extended atmosphere in rapid expansion. However, the two different classes of line profile associated with the remarkable anti-correlation with the continuum brightness call for two different types of hot, helium-rich stars. IRS 16C and IRS 7W are typical examples of each class. The differences cannot be ascribed to orientation, such as an equatorial gaseous envelope seen edge-on or pole-on, as has been proposed to explain the two different types of emission line profiles in Be stars. Over the set of sources a continuity in the linewidths would be observed, with a double peak in some cases, while a single line is always observed, but with two radically different linewidths. These profiles are clearly suggestive in all cases of strong wind outflows. To which stellar types do these different profiles belong? Do they correspond to massive, hot stars but at two different stages of evolution?

6.1.1 The stellar types of massive, hot stars
The question of the stellar type of the He I stars has already been examined by all the authors who have previously studied this stellar population. Note that they all make the preliminary remark that the study of the early-type GC stars forces a revision of the usual stellar classification criteria, generally based on visible spectra, to find their translation in the near infrared. This has triggered various spectroscopic studies of hot stars conducted in the K band, by Hanson & Conti (1994), Blum et al. (1995b), Tamblyn et al. (1996), Morris et al. (1996), Hanson et al. (1996), and Figer et al. (1997). It turns out that the hot stars which exhibit the He I 2.058 $\mu $m line in emission belong to a large variety of spectral types, from normal Oe, Be stars and B supergiants (Hanson et al. 1996) to sub-types of peculiar, luminous stars which are the B[e], LBV (Luminous Blue Variables), WR stars, and intermediate types like ON, Ofpe, Ofpe/WN9, undergoing a strong mass loss. Discussion of these various stellar types are included in Libonate et al. (1995) and in Tamblyn et al. (1996) who discuss the helium stars in the GC. Tracks of evolution of massive stars, depending on the initial mass and the metallicity, have been proposed by Meynet et al. (1994). A typical sequence for massive stars, for example of 60 $M_{\odot}$, is: O, Blue Supergiant, LBV and WR, as they evolve to becoming SNs. The WR stars represent the final stage of evolution of massive O stars of initial mass $\ge 40~M_{\odot}$. Two main sub-classes, the WN and the WC stars, depend on their phase of nucleosynthesis, the WC stars being the most evolved of the WR stars (Abbott & Conti 1987).

The K-band atlas of Figer et al. (1997) is devoted to the WR stars. These authors conclude that from this spectral range it is not easy to distinguish between individual sub-types, in particular for WC stars since their K spectra tend to be quite similar. Regarding the 2.058 $\mu $m line, they show that this line is present in late WN-types and otherwise, is particularly prominent in WC9 types. That is partially confirmed by Tamblyn et al. (1996), who also mention a strong 2.058 $\mu $m line with a P Cygni profile for the WN8 and the LBV members of their star sample. They also note the line in simple emission, for the few late ON-type and early B-type supergiants they observe. Hanson et al. (1996) detect the line in emission for OeV et BeV stars but with a complex profile, and otherwise in supergiant B1 stars. Finally, it seems difficult to draw very clear conclusions since all these intermediate classes, such as LBV, ON or Ofpe, represent very rare groups of stars. For example, from a review of the statistics of LBVs and related stars by Parker (1997), there are only 5 confirmed LBV stars in the Milky Way disk, including the two famous examples P Cygni itself and $\eta $ Car, and only 26 more within 8 nearby galaxies, including the LMC and SMC. However, Parker notes that there are more candidates if more liberal definitions are applied, which means that it is not possible to generally assign a strict spectral type to these stars, in particular from a study carried out only within a limited spectral range.

The WR stars are known for extremely broad emission lines (Abbott & Conti 1987), for which the values of $\sim$1000 kms-1 and more are typical, comparable to the FWHM reported in Fig. 2. On the other hand, the line profile observed for He I in the LBV star P Cygni is quite comparable to the 2.058 $\mu $m line profiles we call narrow-line profiles (Fig. 1). High resolution observations of the infrared emission lines of P Cygni by Najarro et al. (1997b) give lines with profiles having widths fitted by a model with a terminal velocity of 185 kms-1 and a $T_{\rm eff}$ of 18100 K. The existence of an extended helium envelope for P Cygni is given by the interferometric observations of Vakili et al. (1997) in the He I 6678 Å line. They estimate a photospheric radius $R_{\star}$ = 76 $\pm$ 15 $R_{\odot}$ and an extent of the helium envelope of 12.5 $R_{\star}$.


6.1.2 The He911I stars as LBV and WR-type stars

Thus, from only the consideration of the two distinct types of He I line profiles, the helium stars with narrow-line profiles should be most closely related to LBV-type stars, while the other group to WR-type stars, without trying to be more specific. Tamblyn et al. (1996), who had already noticed few He I stars in the inner pc with narrower line profiles, have considered whether these sources might be LBVs. They contest this hypothesis on the basis that LBV stars are a too brief phase of stellar evolution, which explains their rarity, and that these stars are not hot enough to be efficiently detected in the 2.058 $\mu $m emission line. This conclusion is based on the observation of only two galactic LBV stars, of which effectively only one (P Cygni) shows clearly the 2.058 $\mu $m line in emission, whereas the other has a poor S/N ratio. Thus, these arguments are not very convincing.

One of the general parameters which distinguishes these two types of stars is their range of effective temperature ( $T_{\rm eff}$). Hence, a range of $T_{\rm eff}$ is reported from observations of LBVs (Crowther 1997), from 8000 K to $\sim$25000 K, while for WRs the range is definitely beyond, from 30000 to $\sim$90000 K (van der Hucht et al. 1991). For all these stars, the 2 $\mu $m region is far from the maximum of emission. However, although hotter, the WR stars are intrinsically dim among massive stars, because of their relatively small photosphere radii. WC stars are typically 105 $L_{\odot}$. These can be contrasted to LBV stars, which sit near the Humphreys-Davidson limit, typically above $10^6~L_{\odot}$. This fundamental difference is attributable to the copious mass loss experienced by the most massive O stars ( $M \simeq 120$ $M_{\odot}$) which will end their lives with a mass between 5 and 10 $M_{\odot}$, when they are WR stars. Thus, this distinction between LBV and WR fits also with the observed difference in K magnitude between the two groups of He I stars (point $\char93 $ 3 of the summary).

The particular cases of IRS 34W and HeI N2 must be discussed within the framework of this classification. These two stars belong to the LBV-type group from their line profile, but with an mK typical of the other group (Table 2). The few galactic LBVs studied in detail are known to be characterized by giant eruptions which are followed by dust obscuration. From the reconstructed light curve of $\eta $ Car (Humphreys et al. 1999), the maximum obscuration lasted about $\sim$40 years since the last eruption. From its pre-outburst level it had undergone a 4-mag visual extinction. These two LBV-type star candidates might be in such a phase.

In conclusion, we propose that the class of narrow-line stars consists of LBVs or related stars in the 10000 to 20000 K range of $T_{\rm eff}$, while the second class consists of much hotter stars ($\ge$ 30000 K), late-type WR stars, predominantly in the WC9 stage, according to the conclusions of Figer et al. (1997) from their K-band atlas of WR stars. The latter is also in agreement with the classification properly made for one helium star (BSD WC9) by Blum et al. (1995a). However, from these considerations only, the mere distinction between luminous blue stars and LBVs is not really possible. Strictly speaking, variability should be established to identify an LBV. That is only suggested by the status of IRS 34W and HeI N2 compared to the other sources of the group. While WR stars seem the most likely for one group, only the proximity in evolution pleads in favor of LBV-related status for the other group, which is discussed in the next section, in relation to their spatial distribution (point $\char93 $ 4 of the summary).

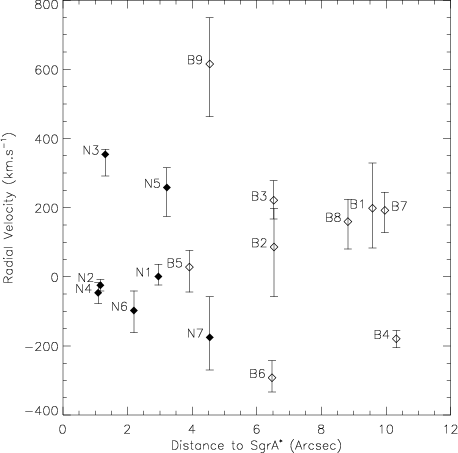

  \begin{figure} \par\includegraphics[width=8.1cm,clip]{MS10032f9.eps}\end{figure} Figure 9: Observed radial velocity of the He I stars as a function of projected distance from SgrA$^{\star }$. Symbols have the same meaning as in Fig. 3
Open with DEXTER

6.2 Spatial distribution of the He911I star and their formation

Is the above classification the result of a sequence of evolution, since LBVs are precursors of WR stars? A parameter to take into account is the initial mass of the progenitors. An important conclusion of the evolutionary tracks of Meynet et al. (1994) is that, for the most massive stars $-\ge 120$ $M_{\odot}$ - the LBV stage is avoided to go directly from O or Of to late WN, then WC and SN. Therefore, to be of the same age, the LBV-type stars must have originated from massive O stars in the range 40 to 120 $M_{\odot}$ while the WR group should be originating from stars of initial mass $\ge 120$ $M_{\odot}$, which thus reached directly the WR stage where they are currently observed.

The placing in Fig. 9 of the radial velocities as a function of the projected distance of the sources from SgrA$^{\star }$ is another way of showing the two groups clearly distributed in two concentric volumes around SgrA$^{\star }$, with approximately equal velocity distribution. If we adhere to the coeval formation scenario, then the difference of spatial distribution of the two types of He I stars, presented in Figs. 4 and 9, must be explained in this context, and we ask if that should be the signature of the star formation process.

6.2.1 The WR-type star ring
Figures 4 and 9 suggest that there are no orbits of WR stars in planes perpendicular to the plane of the sky, since we do not see any of them projected close to SgrA$^{\star }$. Also, we measure radial velocities for these stars between -300 kms-1 and +600 kms-1 (Fig. 9). So, the orbits cannot be in the plane of the sky either, or all the $V_{\rm R}$s would be close to 0. Thus, in agreement with Genzel et al. (2000), we can conclude that the orbits of these stars reside roughly in a disk inclined by 40$^{\circ}$ off the plane of the sky, with quasi-circular orbits, which fits with their distribution in a ring of $\sim$0.2 pc radial width, centered on SgrA$^{\star }$. The sign of the radial velocities (Fig. 5) is consistent with the orbits described in a general clockwise sense, as derived from proper motions studies (Genzel et al. 2000). However, these authors note that the fit of the best Keplerian disk model to the He I star velocities is poor.

6.2.2 The LBV-type star cluster

The stars with narrow-line profiles are grouped in a cluster close to SgrA$^{\star }$. If circular orbits are also assumed for these stars the orbital radii must be small in order for them to appear as a cluster in projection. For the closest He I stars to SgrA$^{\star }$ (N2, N3 and N4 in Fig. 9, within a radius of 0.06 pc) the orbital velocity should be of the order of 600 kms-1. The largest measured radial velocity is 354 kms-1 for N3, so pure Keplerian motions are possible for these stars. With such velocities on a small orbital radius, a proper motion becomes detectable within a few years, as reported by Ghez et al. (1998) and Genzel et al. (2000). Then, for star N2 (IRS 16C) for which a $V_{\rm R}$ of only -24 kms-1 is measured (Fig. 9) the modulus of the projected proper motion velocity is 480 kms-1 from the measurements of Genzel et al. (2000). With the correction for projection an orbital velocity consistent with circularity is possible. At least, from the observations, very elongated orbits are excluded.

6.2.3 Tentative conclusions

The massive, hot stars are concentrated in the central pc around SgrA$^{\star }$. To remain concentrated in that position requires that their orbits are dominated by the gravitational field of the central Black Hole. From the conclusions of Genzel et al. (2000), the overall rotation of the He I cluster is a remnant of the original angular momentum pattern in the interstellar cloud from which these stars formed. Indeed, they may have formed together in a gaseous disk orbiting the central black hole, less than $\sim$5 Myr ago from the life-time of WR stars. However, our observations imply that the stars differentiated according to their distance from the central Black Hole, into two star groups, distinguished by their initial mass, with more massive stars forming at a larger distance. This could be obtained, actually, if the initial disk was formed of two separate rings, one with a mean radius of $\sim$0.04 pc, the other one of $\sim$0.3 pc. If in addition, the SgrA$^{\star }$ cluster (Genzel et al. 1997; Ghez et al. 1998) is considered, it continues the trend toward smaller masses located inward. These stars form a separate third group of main sequence, early-type stars (Genzel et al. 2000). Then, all these early-type stars may have formed in the same star formation event from a gaseous disk around the central mass, but with annular structures, probably caused by tidal forces, which remain to be explained.

6.3 The link between He911I streamers and He911I stars

As very hot stars and with helium dominating their chemical composition, WR stars are sources of a strong ionizing flux (Schmutz et al. 1992), thus implying the presence of a hard UV field in the inner pc. This is consistent with the presence of the helium Mini-Spiral (Fig. 6) we detect in emission in the near infrared, since hard ionizing photons are required to excite this line in the ISM. However, this UV field cannot penetrate very deep into the flows, because it will be blocked by the dust. Therefore, the helium streamers should delineate the inner regions of the gaseous Mini-Spiral. That is likely the reason for which the helium emission map (Fig. 6) appears simpler than in Br$\gamma$ (Morris & Maillard 2000), and why the linewidth is relatively narrow (< 70 kms-1). However, as mentioned in Sect. 4.6, the same main emission structures are seen in He I and in Br$\gamma$, as well as in Ne+ (Lacy et al. 1991). The ISM helium data cube indicates that the gas is distributed in several flows. But these gaseous orbits do not follow the early-type star distribution which has been described above. This implies that the overall kinematics of the gas and these stars are different. However, we noticed a similarity of radial velocity (point $\char93 $ 5 of the summary) between the He I stars and the He I streamers, along the same line of sight (Table 3). This suggests that the kinematics of the streamers, within a radius of $\sim$0.5 pc from SgrA$^{\star }$, become mainly dominated by the gravitational field of the central Black Hole. At further distances reached by the Mini-Spiral, the field is more complex, with the contribution of all the other stars, which are essentially late-type stars. From the photometric survey of the central 5 parsecs of the Galaxy by Blum et al. (1996a) it can be estimated that $\sim$80% of the known stellar population is comprised of stars identified as late-type giants and supergiants (e.g. IRS 7) by their CO absorption (Blum et al. 1996b). These K, M and AGB stars which correspond to a mass range of 2-8 $M_{\odot}$ (except for the few supergiants) are likely much older ($\sim$108-3 109 yr) than the current helium stars. They must have been produced in a totally different star formation event. They are stars with important mass loss, but not of helium-enriched material. Hence, this suggests that the observed concentration of He I stars should be the major source of enhancement of the helium abundance in the inner GC. From the average mass loss rate reported for LBV and WR stars, and with the presence of around 20 of such stars, the total mass loss rate, only from all these stars in the central pc, could be estimated at $\sim$2 10-3 $M_{\odot}$/yr. The dynamical time for the gas in the streamers of SgrA West is about 104 yr, so on this time scale, $\sim$ $20~M_{\odot}$ of He-enriched stellar material might be mingling with the infalling matter in the streamers. The observed similarity of velocity, in amplitude and sign, of the He I stars and of the flows suggests a close link in the formation of both. The helium-rich Mini-Spiral might be the precursor of the disk in which will form the next, massive, hot star generation.

7 Conclusions and perspectives

New results on the population of He I stars in the inner region of the Galactic Center have been obtained with the firm indication of two classes of massive hot stars, which suggest a formation in a disk of gas around SgrA$^{\star }$. This analysis is based on a single line, the He I 2.058 $\mu $m line. Of course, while that is not sufficient to establish a complete spectral classification, one can nonetheless consider that this study represents a necessary initial selection test, since it has been shown that several stars in previous studies were wrongly considered as He I stars. By consequence, it illustrates also the risk of false detections in the search for emission-line stars toward the inner Galaxy simply by using narrow-band photometry centered on the He I 2.058 $\mu $m line, or other near-infrared emission lines. The importance of high spectral resolution combined with high spatial resolution is paramount for distinguishing stellar and interstellar emission. Similar data obtained with BEAR already exists on Br$\gamma$ (Morris & Maillard 2000). With the same effort for separating the stellar and the interstellar component, the Br$\gamma$ line profile for the 16 confirmed He I stars should be retrieved, making another test on this stellar population. The next goal is a larger spectral coverage to complete the spectral criteria. That has already been done by several previous works, but always at medium resolution and with slit spectrometers, for which the source confusion is not easily controlled. Only a slitless technique like that employed by BEAR makes this control possible. Also, similar studies on other critical lines must be conducted. However, the next major step, instead of spectro-imaging at seeing-limited resolution as we have presented, and tried to improve by combining with AO imaging, will be infrared spectro-imaging at the diffraction-limited spatial resolution of a large telescope. That is the only way to detect more sources in order to remove all the identification ambiguities. As illustrated here, this should be combined with a spectral resolution of at least 5000, which is not an easy goal.

Finally, it would be important to conduct similar studies in other stellar clusters like the Arches and Quintuplet clusters (Figer et al. 1999a, 1999b) where the identification of LBV stars has also been proposed, notably the Pistol star (Figer et al. 1999c), to determine comparatively the conditions of evolution of young compact clusters at Galactocentric distances well beyond the central pc of the Milky Way.

Acknowledgements

We would like to thank warmly Doug Simons (now at Gemini) who participated actively in the early development of BEAR and designed the camera Redeye, which is used on the instrument. He was part of the observing run when the data were acquired, and of a preliminary run the year before. We are also grateful to the CFHT staff for the technical support of BEAR and of the data acquisition program which is associated.
