A&A 365, 514-518 (2001)
DOI: 10.1051/0004-6361:20000051

Infrared spectrum and proper motion of the brown dwarf companion of HR 7329 in Tucanae

E. W. Guenther¹ - R. Neuhäuser² - N. Huélamo² - W. Brandner³ - J. Alves⁴

Send offprint request: E. Guenther,

1 - Thüringer Landessternwarte Tautenburg, Sternwarte 5, 07778 Tautenburg, Germany
2 - MPI für extraterrestrische Physik, 85740 Garching, Germany
3 - University of Hawaii, Institute for Astronomy, 2680 Woodlawn Dr., Honolulu, HI 96822, USA
4 - European Southern Observatory, Karl-Schwarzschild-Straße 2, 85748 Garching, Germany

Received 4 August 2000 / Accepted 24 October 2000

Abstract
Up to now only four brown dwarf companions to normal stars have been found and confirmed by both spectroscopy and proper motion (namely Gl229B, G196-3 B, Gl570D, and CoD $-33 ^{\circ} 7795$ B). On the basis of an optical spectrum taken with HST/STIS Lowrance et al. (2000) recently pointed out another possible candidate companion. The companion candidate is located at a distance of $4^{\prime \prime}$ from the A0-star HR7329, which is considered as a member of a moving group of young stars in Tucanae located at a distance of only $\sim$48 pc. In order to confirm or disregard the companion nature of the candidate, we have determined the proper motion of the brown dwarf candidate with an epoch difference of 1.8 years, and found that it is consistent with a co-moving companion of HR7329. Additional to the proper motion measurement, we have also taken an H-band spectrum using ISAAC on the ESO-VLT. From this spectrum, we conclude that the companion candidate has spectral type M 7 to M 8, which is in agreement with the optical spectrum. We thus conclude that HR7329B is most likely a brown dwarf companion. The mass ratio of this pair (A0 to M 7-8, i.e. $\sim$100:1) is the largest known among brown dwarf companions, which is relevant for studying the formation of brown dwarfs as companions.

Key words: stars: binaries: visual - individual: HR 7329 - late-type - pre-main sequence

Author for correspondance: guenther@tls-tautenburg.de

1 Introduction

Brown dwarfs are objects with masses below the stellar limit but with masses above planets. They thus form a natural bridge between low-mass stars and planets. Brown dwarfs are unable to sustain stable nuclear fusion of hydrogen, but can burn deuterium until they are $\sim$10⁷yrs old. The sub-stellar limit, i.e. the dividing line between stars and brown dwarfs is the hydrogen burning mass, namely $\sim$ $0.078~M_{\odot}$, depending on metallicity. Planets cannot even burn deuterium and have masses below $\sim$ $0.01~M_{\odot}$. However, the important physical difference between brown dwarfs and planets seems to be the way in which they form. One apparent difference between planets and brown dwarfs is that the brown dwarfs are unlikely to be found as close companions of stars (Latham et al. 1989; Mayor & Queloz 1995; Marcy & Butler 1998; Zucker & Mazeh 2000). This is often referred to as the brown-dwarf desert. In contrast to this, numerous free-floating brown dwarfs have been discovered by direct imaging searches. Interestingly, some of the free-floating objects seem to have masses below the deuterium burning limit (Zapatero Osorio et al. 2000a; Zapatero Osorio et al. 2000b). Since the masses of these objects seem to be of the order of $\sim$ $0.01~M_{\odot}$ or even lower, they are often referred to as free-floating planets. On the other hand, they could also be considered as extremely low-mass brown dwarfs. The dividing line between brown dwarfs and planets is currently controversial and poorly understood. The fact that planets in orbit around solar-mass stars exist, whereas brown dwarfs are at least extremely rare, must apparently be a consequence of the way in which these objects form. In order to shed more light on to this problem, it is necessary to find out how empty this brown-dwarf companion desert really is, and what the properties of the brown-dwarfs that are found in orbit around a star are. Can stars of all masses have brown dwarf companions? Do isolated and companion brown dwarfs have the same mass function, or does the mass function depend of the companion on the mass of the primary? Are the orbital-characteristics of the brown-dwarf companions different from those of planets?

Up to now, only very few brown dwarfs were found as companions to normal stars: Gl229B (Nakajima et al. 1995; Oppenheimer et al. 1995), G196-3B (Rebolo et al. 1998), Gl570D (Burgasser et al. 2000), and CoD $-33 ^{\circ} 7795$ B (suggested as sub-stellar companion candidate by Lowrance et al. 2000, and confirmed as such by Neuhäuser et al. 2000b), all of which are brown dwarfs confirmed as companions by both spectroscopy and proper motion. Two more candidates were suggested, namely GGTauBb (White et al. 1999) and HR7329B (Lowrance et al. 2000, henceforth L2K), the latter is investigated in this paper. In those two companion candidates, optical spectra are taken, but proper motion was not yet available. Brown dwarfs and L-dwarfs can have brown dwarf companions themselves (Basri & Martín 1999; Martín et al. 1999a). In view of the fact that brown dwarf companions are so rare, it is advisable to ensure that these companions are really brown dwarfs. Thus not only the spectral types have to be determined, but it also has to be shown that the object is orbiting the primary (or at least co-moving with it in case the orbital period is too long). There is no direct imaging detection of an extra-solar planet, yet. Previous candidates for ejected (Terebey et al. 1998), or orbiting (Neuhäuser et al. 2000a) planets could not be confirmed as cool planets by spectroscopy (Terebey et al. 2000; Neuhäuser et al. 2000c).

Like L2K, we also search for substellar companions to young nearby stars, where companions are still relatively bright and well-separated (see Neuhäuser et al. 2000a, 2000b). We use ground-based facilities, mainly the NTT on La Silla, the VLT on Cerro Paranal, and ALFA, the adaptive optics infrared imaging instrument on the Calar Alto 3.5 m.

By investigating archived HST NICMOS data, we also noticed the faint object near the presumably young star HR7329 (Sect. 2) and then performed follow-up infrared spectroscopy, which we present in Sect. 3. By comparing the relative positions of HR7329A and B in our new acquisition image with the two year old archived HST NICMOS image (published by L2K), we estimate the proper motion of HR7329B (Sect. 4). We discuss our findings in Sect. 5.

2 HR 7329 A and B in Tucanae

Simultaneously and independently, both Zuckerman & Webb (2000) and Torres et al. (2000) presented evidence for two nearby young moving groups called Tucanae cluster and Horologium association, respectively. The probable and likely members of the Tuc and HorA groups are both at $\sim$40 to 50 pc (mostly measured by the Hipparcos satellite) with signatures for youth in their spectra like H$\alpha$ emission and Lithium absorption lines. They show similar radial velocities and proper motions and are located close to each other. Hence, both groups may very well form one large moving group altogether. The young star $\iota$ Hor is probably also located in HorA (Torres et al. 2000). Recently, Kürster et al. (2000) found radial velocity variations of this star that are consistent with the presence of a planet, and it may also have a circumstellar disk.

By comparing the X-ray luminosity function of the Tuc members observed by ROSAT with those of the T Tauri stars in the Taurus and TWHya associations as well as with zero-age main-sequence stars of the Pleiades, Stelzer & Neuhäuser (2000) concluded that the Tuc stars have an age of 10 to 30 Myrs, i.e. young, but close to or already on the zero-age main-sequence.

The star HR7329 is listed as probable member of the Tucanae group (Zuckerman & Webb 2000). It has a spectral type A0 and its radial velocity and proper motion are consistent with kinematic membership. Most recently, L2K presented evidence for a brown dwarf companion (called HR7329B), located $4^{\prime \prime}$off the star HR7329A. The companion candidate HR7329B was found to have a spectral type M 7 to M 8 in their HST/STIS spectrum.

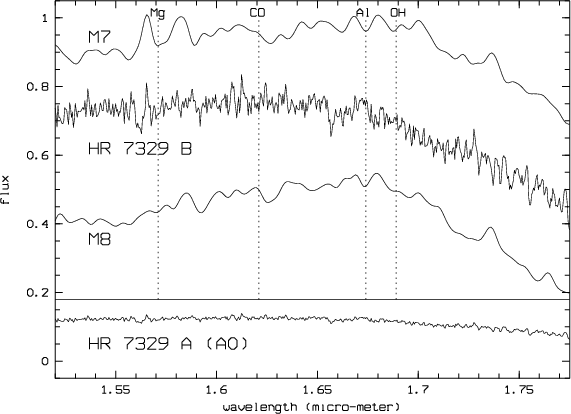

	Figure 1: Our H-band spectrum of HR 7329 B compared with the young M 7 (average of Cha H$\alpha$ 2, 3, 6, and 8) and M 8 dwarfs (average of Cha H$\alpha$ 1, 7, 10, and 11) showing that our object has spectral type M 7 to M 8. The comparison spectra are taken from Comerón, et al. (2000). Also plotted is our H-band spectrum of HR7329A.
Open with DEXTER

To confirm a companion candidate found by direct imaging as true companion, one needs to show not only that its spectral type is consistent with its colours and with the observed magnitude difference (assuming the same distance), but also that it is co-moving with its primary star. Orbital motion would be a final proof of companionship.

3 The ${\boldmath\mathsfsl H}$-band spectrum of HR 7329 B

We obtained an H-band spectrum ( $R\simeq 500$) on 16th of April 2000 with the Infrared Spectrograph and Array Camera (ISAAC) at the European Southern Observatory (ESO) 8.2 m telescope Antu, Unit Telescope No. 1 (UT1) of the Very Large Telescope (VLT). The spectrum consists of 20 co-added 60 s exposures through a $0.6 ^{\prime \prime}$ slit, aligned neither along the position angle of the pair nor perpendicular to it, but in between those two positions, so that the two objects are well separated and that the flux from the companion candidate is several times larger than the flux from the bright star. Darks, flats, and standards were taken in the same night.

After standard data reduction, we modeled and subtracted the flux of the bright star from the faint object's spectrum at each wavelength. The final spectra of both HR7329A and B are shown in Fig.1. The primary and HD188112 (van der Bliek et al. 1996) were used to obtain a relative flux-calibration. For very late-type objects, the shape of the continuum in the near-infrared is sensitive to the spectral type (Kirkpatrick 2000). Comparing our spectrum with spectra of young M 7 and M 8-type dwarfs from the Cha I dark cloud (Comerón et al. 2000), we find that HR7329B has spectral type M 7 to M 8. As pointed out by Martín et al. (1999a) the $\rm H_2O$ H-band index at $\rm 1.51{-}1.57\,\mu m$can also be used to determine the spectral types of very late M, and L-stars. Using this index, we also derive a spectral type of M 7 to M 8 for HR7329B. These results agree well with the optical spectrum taken with HST/STIS, presented by L2K.

4 Positional measurements of HR 7329 B

HR7329B was first detected by L99 using HST NICMOS on 29 June 1998 in the F160W filter. The object was then located $0.95 \pm 0.04 ^{\prime \prime}$ east and $4.06 \pm 0.04 ^{\prime \prime}$ south of HR7329A, corresponding to a separation of $\rho = 4.17 \pm 0.05 ^{\prime \prime}$ and a position angle of $\theta = 168.8 \pm 0.2 ^{\circ}$ measured from north over east to south.

	Figure 2: ISAAC acquisition image of HR7329A and B, the FWHM is $0.48 ^{\prime \prime }$
Open with DEXTER

We detected HR7329B in our 2 s exposure ISAAC ( $0.147 ^{\prime \prime}$/pixel) acquisition image taken on the 22nd of April 2000 using two narrow band filters centered on $2.17~\mu$m (Br$\gamma$) and $2.19~\mu$m (with $\Delta \lambda = 0.028$ and $0.03~\mu$m, respectively). The seeing was $\sim$ $0.5 ^{\prime \prime}$, and both objects are clearly detected and resolved. Star A is not saturated. The magnitude difference between star A and object B in the acquisition image (Fig.2) is 5.7 mag. The companion candidate was located $0.93 \pm 0.04 ^{\prime \prime}$ east and $3.99 \pm 0.04 ^{\prime \prime}$ south of the bright star, corresponding to $\rho = 4.097 \pm 0.048 ^{\prime \prime}$ and $\theta = 166.90 \pm 0.42 ^{\circ}$, consistent with the NICMOS image (L2K).

Using the infrared imager SofI (Son of Isaac) at the ESO 3.5 m New Technology Telescope (NTT) on La Silla we took an additional image on which both HR7329A and B are detected, and resolved, despite $\sim$ $1.2 ^{\prime \prime}$ seeing conditions. This image was taken on 17th of May 2000 with the H-band filter using the so-called "small SofI field'', to obtain the highest angular resolution possible ( $0.147 ^{\prime \prime}$/pixel). The image was exposed for 10 min total ( $460 \times 1.3$ s in auto-jitter mode). Darks, flats, and standard stars were taken in the same night, and we performed standard data reduction using eclipse and MIDAS.

In the SofI image, HR7329B is located $1.09 \pm 0.47 ^{\prime \prime}$ east and $4.31 \pm 0.27 ^{\prime \prime}$ south of the bright star, corresponding to $\rho = 4.45 \pm 0.54 ^{\prime \prime}$and $\theta = 165.8 \pm 6.7 ^{\circ}$. Although this is consistent with the NICMOS and ISAAC images, the precision is much lower, due to the very bad seeing. Hence, we disregard this image from further analysis. This is not a big loss of information, since the maximum epoch difference would not increase by much if we would include the SofI image.

5 Discussion

The offsets in right ascension and declination as well as the separations and position angles observed for the HR7329A and B pair with HST/NICMOS and VLT/ISAAC as given above are consistent with each other within $1 \sigma$. However, this does not prove object B to be a companion of star A. Whether we can already show that the motion of HR 7329 B relative to star A is inconsistent with B being an unrelated field star, depends on the proper motion of HR 7329 A.

L2K argued that HR7329B is possibly co-moving with A, as B was in the $0\hbox{$.\!\!^{\prime\prime}$ }2$ HST/STIS slit when they took the spectrum on 22nd of May 1999, using the offset determined from an image taken about one year earlier. Using all, except the SofI image, we can now investigate this point with much higher accuracy than before.

Table 1 gives proper motion of HR 7329 taken from four different catalogues. For the rest of the paper, we will use the Hipparcos data, because it has the highest accuracy.





Table 1: Proper motion of HR 7329

Catalogue	designation	$\mu _{\alpha}$	$\mu _{\delta}$
	in catalogue	[mas $\rm yr^{-1}$]	[mas $\rm yr^{-1}$]
Hipparcos	HIP 95261	$25.57 \pm 0.75$	$-83.03 \pm 0.49$
PPM	PPM 347630	$29.7 \pm 3.5$	$-82.0 \pm 3.8$
TRC	TRC 8765-2571	$25.7 \pm 3.5$	$-78.1 \pm 2.3$
ACT	ACT 8765-2571	$25.4 \pm 5.1$	$-79.3 \pm 12.4$

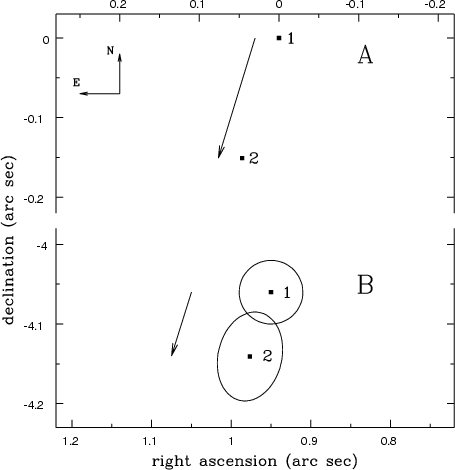

Figure 3: Motion of companion candidate B and star A: Plotted are $\alpha$ and $\delta$ offset as given in the text and taking into account the known proper motion of star A, starting at the first epoch at $(\alpha ,\delta )=(0,0)$, then moving to the south-west. Since the elipses slightly overlap the possibility of being an unrelated object cannot be completely excluded. However, since both objects seem to move in the same direction, it is far more likely that the objects are co-moving

Open with DEXTER

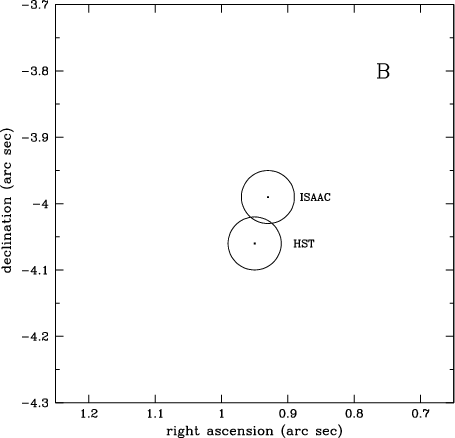

Figure 4: Another way to investigate whether B is a non moving background object, or not is shown here. Plotted are just the two measured offsets (HST and ISAAC) of object B relative to star A, without taking any proper motion into account. If A and B form a common proper motion pair, then the error ellipses should overlap, which they do. If B is a background source that does not move, the error ellipses would be well separated, given the relatively large proper motion of the A-component. Using the known proper motion, we can estimate that the probably for that is only $\sim$ $0.5~\sigma$, only

Open with DEXTER

Figure 3 shows the proper motion of the A and B component. The position of the A-component on the 29th of June 1998 is plotted at the origin ( $(\alpha ,\delta )=(0,0)$), and the position on the 22nd of April 2000 south-east of it is given by its proper motion. The errors in the position of star A at the 2nd epoch is given by the error of the Hipparcos proper motion. In addition, we plot the offsets of object B relative to star A with errors given by the errors of the measured offsets and the proper motion of star A. Clearly visible is that object B moves in to the same direction as A. The amount of the proper motion of B is within the errors, also consistent with the proper motion of A. However, the error-ellipses of the HST and the ISAAC observation do overlap. Thus formally, a non-moving background object would be possible. In order to test this hypothesis we plotted in Fig.4 the two measured offsets (HST and ISAAC) of object B relative to star A, without taking any proper motion into account. If A and B form a pair then the error ellipses should overlap (ignoring orbital motion), which they do. If the object were a non-moving background object, the position should within the errors remain the same in Fig.3. While the errors are large, this is clearly not the case. While we cannot completely rule out that the companion candidate is a non-moving background object, it is far more convincing that it is co-moving. From Fig.3 we conclude that the proper motions of A and B are similar, namely by 1$\sigma$ regarding their amount and by 2$\sigma$ regarding their direction. However, while this demonstrate that both A and B are members of a co-moving group of objects, it does not strictly demonstrate that B is orbiting around A. On the other hand, the probability for HR 7329 A and B to be two non-bound Tuc members being located that close together by chance, is very low.

As already discussed in L2K, the M 7 to M 8-type object HR7329B would be located at a distance of $\sim$19 pc, if it were a foreground main sequence dwarf. To find such a faint late-type object by chance $\sim$ $4^{\prime \prime}$ off HR7329 is very unlikely, the probability being $\sim$10^-7 (L2K).

If the A and B-components were at 48 pc and 19 pc respectively, the relative parallactic motion would be -32.11 mas in right ascension (towards the east) and -8.65 mas in declination (towards the south) for the HST and ISAAC observations. The corresponding error-circles would then have a slightly larger overlap than in Fig.3, and the corresponding figure would be almost identical to Fig.3. That object B is an unrelated, non-moving background object is extremely unlikely, because it would have to be very young given its magnitude and spectral type, if it would be located behind the Tucanae cluster. A non-moving foreground object is also very unlikely. While a background object is strictly possible, it is less convincing than a co-moving object.

L2K derive an effective temperature of $2600 \pm 200$ K and a bolometric luminosity of $0.0026 \pm 0.0003~L_{\odot}$ for HR7329B (at 48 pc) and compare its location in the HR diagram with th e evolutionary tracks and isochrones of Burrows et al. (1997) and Baraffe et al. (1998) to derive a mass range of $\sim$30 to 50  $M_{\rm jup}$ at an age of $\sim$20 to 30 Myrs. According to the new Chabrier et al. (2000) models, HR7329B has a mass of $\sim$20 to 40  $M_{\rm jup}$. Given that the primary star HR7329A is an A0V star (2.9 $M_{\odot}$), this is a binary with very high mass ratio ($\sim$0.01).

The angular separation of $4.15 \pm 0.05 ^{\prime \prime}$ corresponds to a projected physical separation of $200 \pm 10$ AU at $\sim$48 pc distance. This in turn corresponds to an orbital period of $1660 \pm 130$ years and orbital motion of $15.7 \pm 1.4$ mas per year (for a face-on circular orbit), only a factor of 2 smaller than the relative astrometric precision achieved in the HST NICMOS and VLT ISAAC images discussed here. We thus conclude that HR7329B is most likely a brown dwarf companion of an 2.9 $M_{\odot}$ star with a mass of only $\sim$ $20{-}50~M_{\rm jup}$. The mass-ratio thus is the largest known among brown dwarf companions. As noted by Martín et al. (1999a) systems with very high mass ratios have large ($\geq 100$ AU) separations and systems with low mass ratios involving brown dwarfs have typically smaller separations ($\leq 20$ AU). With a projected physical separation of $200 \pm 10$ AU HR7329 seems to be another example of this rule.

Acknowledgements

We thank the referee, Gibor Basri, for his insightful comments on the paper. We would also like to thank the ESO User Support group with F. Comerón for assistance, the ISAAC team with J.-G. Cuby and C. Lidman for their service mode observations, the NTT team with L. Vanci, E. Le Floc'h, G. Martin, and J. Miranda for support during the NTT observations, and F. Comerón for providing his H-band spectra of late-type dwarfs in electronic form, as well as G. Wuchterl and S. Frink for very useful discussion. RN wishes to acknowledge financial support from the the Deutsches Zentrum für Luft- und Raumfahrt e.V. (DLR) under grant number 50 OR 0003.

References


• Baraffe, I., Chabrier, G., Allard, F., & Hauschildt, P. 1998, A&A, 337, 403 In the text NASA ADS
• Basri, G., & Martín, E. L. 1999, AJ, 118, 2460 In the text NASA ADS
• Burgasser, A. J., Kirkpatrick, J. D., Cutri, R. M., et al. 2000, ApJ, 531, L57 In the text NASA ADS
• Burrows, A., Marley, M., Hubbard, W., et al. 1997, ApJ, 491, 856 In the text NASA ADS
• Chabrier, G., Baraffe, I., Allard, & F., Hauschildt, P. 2000, ApJ, in press [astro-ph/0005557] In the text
• Comerón, F., Neuhäuser, R., & Kaas, A. A. 2000, A&A, 359, 269 In the text NASA ADS
• Kirkpatrick, J. D. 1998, Spectroscopic Properties of Ultra-cool Dwarfs and Brown Dwarfs, in Brown Dwarfs and Extrasolar Planets, ed. R. Rebolo, E. L. Martín, & M. R. Zapatero Osorio, ASP Conf. Ser., 134, 405 In the text
• Kürster, M., Endl, M., Els, S., et al. 2000, A&A, 353, L33 In the text NASA ADS
• Latham, D. W., Stefanik, R. P., Mazeh, T., Mayor, M., & Burki, G. 1989, Nat, 339, 38 In the text NASA ADS
• Lowrance, P. J., McCarthy, C., Becklin, E. E., et al. 1999, ApJ, 512, L69 NASA ADS
• Lowrance, P. J., Schneider, G., Kirkpatrick, J. D., et al. 2000, ApJ, 541, 390 In the text NASA ADS
• Marcy, G. W., & Butler, R. P. 1998, ARA&A, 36, 57 In the text NASA ADS
• Martín, E. L., Brandner, W., & Basri, G. 1999, Sci, 283, 1718 In the text NASA ADS
• Martín, E. L., Delfosse, X., Basri, G., et al. 1999, AJ, 118, 2466 In the text NASA ADS
• Mayor, M., & Queloz, D. 1995, Nat, 378, 355 In the text NASA ADS
• Nakajima, T., Oppenheimer, B. R., Kulkarni, S. R., et al. 1995, Nat, 378, 463 In the text NASA ADS
• Neuhäuser, R., Brandner, W., Eckart, A., et al. 2000a, A&A, 354, L9 In the text NASA ADS
• Neuhäuser, R., Guenther, E. W., Brandner, W., et al. 2000b, A&A, 360, L39 In the text NASA ADS
• Neuhäuser, R., Guenther, E. W., Brandner, W., et al. 2000c, Direct imaging search for planetary companions next to young nearby stars, in From darkness to light, ed. T. Montmerle, & P. Andre, ASP Conf. Ser. [astro-ph/0007305] In the text
• Oppenheimer, B. R., Kulkarni, S. R., Matthews, K., & van Kerkwijk, M. H. 1995, Sci, 270, 1478 In the text NASA ADS
• Rebolo, R., Zapatero-Osorio, M. R., Madruga, S., et al. 1998, Sci, 282, 1309 In the text NASA ADS
• Stelzer, B., & Neuhäuser, R. 2000, A&A, in press [astro-ph/0007350] In the text
• Terebey, S., van Buren, D., Padgett, D. L., Hancock, T., & Brundage, M. 1998, ApJ, 507, L71 In the text NASA ADS
• Terebey, S., van Buren, D., Matthews, K., & Padgett, D. L. 2000, AJ, 119, 2341 In the text NASA ADS
• Torres, C. A. O., Da Silva, L., Quast, G. R., de la Reza, R., & Jilinski, E. 2000, AJ, 120, 1410 In the text NASA ADS
• van der Bliek, N. S., Manfroid, J., & Bouchet, P. 1996, A&AS, 119, 547 In the text NASA ADS
• White, R. J., Ghez, A. M., Reid, I. N., & Schulz, G. 1999, ApJ, 520, 811 In the text NASA ADS
• Zapatero Osorio, M. R., Béjar, V. J. S., Rebolo, R., Martín, E. L., & Basri, G. 2000, ApJ, 524, 115 In the text
• Zapatero Osorio, M. R., Béjar, V. J. S., Martín, E. L., et al. 2000, Sci, 290, 103 In the text NASA ADS
• Zucker, S., & Mazeh, T. 2000, ApJ, 531, L67 In the text NASA ADS
• Zuckerman, B., & Webb, R. A. 2000, ApJ, 535, 959 In the text NASA ADS
