A&A 365, 214-221 (2001)
DOI: 10.1051/0004-6361:20000183

Detection of arcs in Saturn's F ring during the 1995 Sun ring-plane crossing

S. Charnoz1 - A. Brahic1 - C. Ferrari1 - I. Grenier1 - F. Roddier2 - P. Thébault3

Send offprint request: S. Charnoz,

1 - Équipe Gamma-Gravitation, Service d'Astrophysique, CEA/Saclay, Orme des Merisiers,
91191 Gif-sur-Yvette Cedex, France
2 - Institute for Astronomy, University of Hawai, 2680 Woodlawn Drive, Honolulu, Hawai 96822, Hawai
3 - DESPA, Observatoire de Paris, 92195 Meudon Cedex Principal, France

Received 24 July 2000 / Accepted 19 October 2000

Observations of the November 1995 Sun crossing of the Saturn's ring-plane made with the 3.6 m CFH telescope, using the UHAO adaptive optics system, are presented here. We report the detection of four arcs located in the vicinity of the F ring. They can be seen one day later in HST images. The combination of both data sets gives accurate determinations of their orbits. Semi-major axes range from 140020 km to 140080 km, with a mean of $140\,060 \pm 60$ km. This is about 150 km smaller than previous estimates of the F ring radius from Voyager 1 and 2 data, but close to the orbit of another arc observed at the same epoch in HST images.

Key words: planets: individual: Saturn

Author for correspondance: charnoz@discovery.saclay.cea.fr

1 Introduction

The Sun's crossing of Saturn's ring-plane is a rare opportunity to observe the unlit face of the rings. Results of observations made at the 3.6 m CFH Telescope are reported here. Thanks to the use of the UHAO adaptive optics system (Roddier et al. 2000), high resolution ground-based images were obtained ($\sim$0.15 $^{\prime\prime}$in August 1995 and $\sim$0.25 $^{\prime\prime}$in November 1995). The Sun's crossing lasted from November 17th to 21st 1995. It was accompanied by three Earth ring plane crossings (1995 May 22nd, August 10th, and 1996 February 11th). Several teams observed these events (Nicholson et al. 1996, hereafter N96; Bosh & Rivkin 1996; Sicardy et al. 1996; Roddier et al. 1996a; Ferrari et al. 1997).

The unusual viewing of the rings during these events provides a rare opportunity to detect faint structures such as small satellites, clumps, or arcs, that are usually lost in the glare of the bright main rings. In this paper, we focus our attention on the azimuthal structure of the F ring. Located at the Roche limit of Saturn and bounded by two shepherding satellites Pandora and Prometheus, the F ring is very intriguing. The Voyager images revealed its complex radial and azimuthal structure including multiple strands, clumps and braids. Interactions with Saturn's satellites might explain some features, but they are not completely understood.

During the 1995 ring crossing observing campaign, the F ring appeared populated with numerous features, either point-like or longitudinally extended. The observation of two point-like objects (S/1995 S1 and S/1995 S3) was reported by Bosh & Rivkin (1996) during the May crossing. During the August crossing, our team discovered at least 6 new features with semi-major axes compatible with the F ring (Roddier et al. 1996a; Ferrari et al. 1997). At least one of them was identified as an arc-like object. During the same period three objects (S/1995 S5, S/19995 S6 and S/1995 S7) were detected by N96. Finally, during the November crossing, two wide arcs ( $7\hbox{$^\circ$ }$ and 10$^\circ $-long) were observed by N96. The brightest was also seen by Poulet et al. (2000, hereafter P2000). The most striking aspect of those discoveries is that no evident correlation can be found between features observed in May, August and November (N96, Bosh & Rivkin 1996, P2000).

In the present paper, we report the detection of 4 arcs in the region of the F ring on November 20th. The same features can be seen in some HST images taken 24 to 36 hours later. These images have been already presented in N96. By combining both sets of data, accurate orbital solutions are derived. The data processing of CFHT and HST images is presented in the first section. Results are presented in the second section and discussed in the final section.

2 Description of data set and processing

\par\resizebox{12cm}{!}{\includegraphics{MS10140f1.eps}} \hfill
\end{figure} Figure 1: Image of the West ansa in the K band on 1995 November 21 at 5h11 UTC, obtained at CFHT with the UHAO system. The F ring and the Cassini division appear brightly. Janus (upper right) and Tethys (bottom center) are visible in this image. The north pole of Saturn is oriented toward the top of the image. This image is slightly saturated as can be seen from the Cassini division and the F ring
Open with DEXTER

2.1 Description of data

Images were taken at the 3.6 m CFH Telescope during four nights from 1995 November 17th to 20th. Three near-infrared filters (J,H and K), which correspond to the absorption bands of methane were used to significantly reduce the strong scattered light of Saturn. A K band image is presented in Fig. 1. The best observing conditions were obtained during the last night, the main rings being darkest. During the nights of November 17th, 18th, 19th the stronger brightness of the main rings was not favorable for the detection of dim objects. Consequently only images of November 20th were considered.

At this time the Sun was about 0.01$^\circ $ below the rings, and the Earth was at 2.67$^\circ $above the ring plane, looking at the unlit face. 160 images of the west ansa were obtained from 5h to 8h45 UT. At this time, there was no satellite on the east ansa bright enough for the adaptive optics tracking system to work properly. In consequence, the CFHT data set contains only images of the west ansa. The resolution has been checked on every image by extracting the point spread function (PSF) of satellites Tethys, Enceladus, Dione and Mimas. The full width at half maximum of the PSF is on average 0.25 $^{\prime\prime}$ (1670 km at Saturn) on the whole data set, ranging from 0.19 $^{\prime\prime}$ to 0.33 $^{\prime\prime}$. The size of one pixel in arcsecond is determined by comparing the angular separation of all pair of major satellites (given by the ephemeris) with their separation in pixels as measured on the plates. The result is robust: one pixel subtends 0.035 $^{\prime\prime}$ ($\sim$233 km at Saturn). The exposure times ranged from 15 s to 30 s.

In order to make a comparative study of two complementary data sets, we have also used the HST images presented in N96, retrieved from the FTP site of the Space Telescope Science Institute. They consist of twenty Planetary Camera images of both ansae (10 images for each ansa), taken with filters centered at 890 nm, between 10h UT and 18h UT on November 21st, at the end of the Sun's crossing. The resolution is 0.1 $^{\prime\prime}$(668 km at Saturn). The scale of the plates is taken from Holtzman et al. (1995): one pixel subtends 0.045 $^{\prime\prime}$ ($\sim$304 km at Saturn). Exposure times range from 300 s to 500 s. As a consequence, satellites appear smeared due to their keplerian motion.

2.2 Data processing

Our data processing has been designed for the detection of faint objects in the F ring. As a consequence we have not made a photometric study; indeed many images with different exposure times and different filters are combined indiscriminately. A longitudinal profile of the F ring was built to reveal new objects. To this purpose the following data processing steps were applied to both CFHT and HST images: (i) astrometry, (ii) extraction of the F ring profiles, (iii) subtraction of the F ring background and the correction of geometry and illumination effects.

2.2.1 Astrometry
In CFHT images, the center of Saturn and orientation of the planet's North pole axis is determined by a least square fit to the positions of satellites Tethys, Enceladus, Mimas and Dione (using the ephemeris of the Bureau Des Longitudes in Paris). However Mimas and Tethys could not be used in one third of images in which they are observed too close to each other, not suitable for an accurate determination of their center. In these images the point of maximum elongation of the Cassini division and of the F ring were used to better constrain the orientation of Saturn's equatorial axis. The residual on satellites position measurements is 0.09 $^{\prime\prime}$ ($\sim$2.6 pixels or 600 km), and reflects a combination of pointing and ephemeris errors.

In HST images, the astrometry has not been done using satellites because of their elongated appearance. The sharp inner edge of the Cassini Division was used instead as a reference. Located at 117577 km from the center of Saturn, it is known to be slightly eccentric due to the close 2:1 resonance with Mimas. The resulting radial excursion (2ae) is only 150 km, representing 0.5 pixel, or 0.02 $^{\prime\prime}$ (Porco et al. 1984). The center of Saturn as well as the orientation of the axes are determined by fitting an ellipse with twenty points picked by eye on the reference edge. Corrections of the geometrical distortion for WF/PC2 camera (WF/PC2 instrument handbook version 5.0, provided by the STSCI) is included only when new objects are measured, for the need of their orbit determination. The astrometric error is determined from the residuals of the Cassini division fit. It is 0.035 $^{\prime\prime}$ ($\sim$0.8 pixel or 240 km at Saturn). The correction for geometrical distortion is about 1 pixel, representing less than $0.6\hbox{$^\circ$ }$ on the F ring longitudinal profile, not detectable in Figs. 2 and 3.

2.2.2 Extraction of the F ring profile

From -55$^\circ $ to +55$^\circ $ around maximum elongation, pixel counts are summed perpendicularly to the equator axis, in a box centered on the F ring (defined as a circle of radius 140200 km and projected onto the ring plane) with the same width as the PSF. For each image, an intensity profile of the F ring is obtained as a function of longitude, measured from the point of maximum elongation. The extremity of the ansa (within 5 pixels around maximum elongation) is not considered because the scans become parallel to the ring in this region. The scattered light of Saturn is estimated in the neighborhood of the integration box, outside the F ring, and systematically subtracted. Profiles are then corrected for effects of the different filters and for different exposure times: each profile is multiplied by a normalization factor in order to keep at the same median level of brightness a reference zone of the F ring, chosen to be between 0$^\circ $ and 45$^\circ $ before maximum elongation. Because of the low opening angle of the rings system, the reference zone is slightly contaminated by the A ring beyond 25$^\circ $ from maximum elongation. However we have checked that all profiles do not present systematic deviations in the reference zone after this operation.

2.2.3 Subtraction of the F ring background and correction of illumination effects
A synthetic median profile (SMP) of the F ring is built by taking the median value of all profiles at each longitude relative to elongation. The SMP is a template of the F ring. It is subtracted from all profiles in order to reveal local brightness variations.

The apparent brightness of the F ring changes along its path around the ansa due to geometrical effects (the length of a ring segment included in one pixel depends on longitude) and probably to shadowing by the A ring (N96). Indeed the F ring brightness decreases abruptly after maximum elongation on the west ansa, as noticed in N96. To correct for these effects and maintain embedded features at a constant level of brightness, all profiles are divided by the SMP. Taking into account the subtraction of the F ring background, all profiles are processed according to the formula: Final Profile = (profile-SMP)/SMP. Dividing by the SMP increases noise in dim regions. This method preserves the brightness of objects within 20% before and after their passage through the maximum elongation (as observed on arcs B, C and on the 10$^\circ $ arc of N96, see below) and allows tracking of objects.

2.2.4 Construction of the longitudinal F ring profile
Each (final) profile is precessed to the standard epoch of November 21.5 TDT (terrestrial dynamic time) at Saturn, with a mean orbital motion of $582.05\hbox{$^\circ$ }$/day (N96). This allows direct comparison with N96 results. Finally a mean longitudinal profile is computed by averaging all precessed profiles.

The resulting CFHT and HST profiles are presented in Fig. 2. The derived HST full azimuthal profile (see Fig. 2c) is in close agreement with the one published in N96, in terms of the positions of objects and relative brightnesses, although our profile may appear somewhat noisier than the one published in N96. In this profile, the correction for the distortion of the WF/PC2 camera has not been considered, resulting in an azimuthal error less than $\sim$0.6$^\circ $. The vertical axis is scaled such that the maximum intensity of Pandora, as observed in the processed profiles, equals 1.

3 Results

\par\resizebox{8.8cm}{!}{\includegraphics{MS10140f2.eps}} \hfill

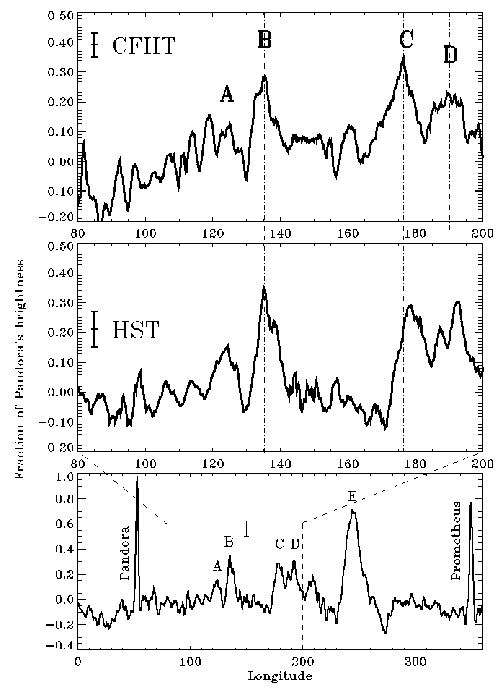

\end{figure} Figure 2: Longitudinal brightness profiles extracted from 160 CFHT images of the west ansa and 20 HST images of both ansae ( a) and b) respectively) in the common longitudinal range. Figure 1c is the full HST profile with complete azimuthal coverage, obtained with our data processing. Error bars are $\pm $1$\sigma $. Negative values mean that brightness is locally lower than the background of the ring. All profiles are precessed to the standard epoch 1995 November 21.5 TDT at Saturn. The B and E arc are refered by N96 as the "7$^\circ $ arc'' and the "10$^\circ $ arc'' respectively. The orbit of the E arc has been determined by P2000
Open with DEXTER

\par\resizebox{8.8cm}{!}{\includegraphics{MS10140f3.eps}} \hfill

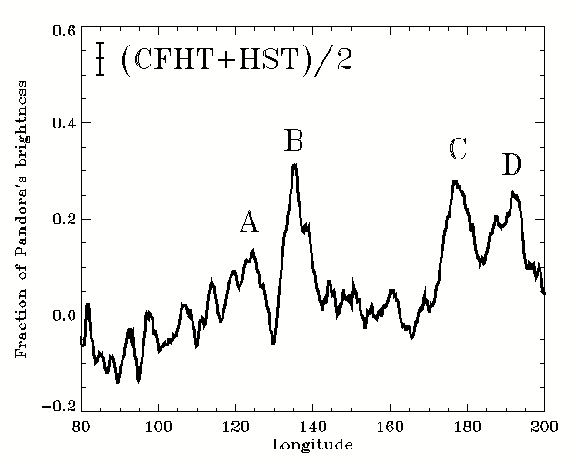

\end{figure} Figure 3: Mean of CFHT and HST profiles presented in Figs. 2a and 2b in the common azimuthal region at the standard epoch. Error bar is $\pm $1$\sigma $
Open with DEXTER

In this section the F ring azimuthal profile obtained from CFHT observations is described and compared with the HST profile. Orbital solutions for four detected structures are then calculated.

3.1 F ring longitudinal profile and new objects

3.1.1 CFHT images
The complete azimuthal coverage of the data set ranges between 50$^\circ $ to 230$^\circ $. But the region extending from 50$^\circ $ to 80$^\circ $ has been covered by only a few suitable images ($\sim$10) and is deeply embedded in the very strong scattered light of Saturn's globe. Apart from Pandora appearing at 62$^\circ $, nothing is detected below 80$^\circ $. Janus contaminates CFHT profiles around 210$^\circ $ longitude. The region of interest then extends between 80$^\circ $ and 200$^\circ $ (Fig. 2a). In this range, the average error bar ($1\sigma$) is about 4% of Pandora's brightness.

Two structures (B and C) are detected with more than $5\sigma$ confidence level, with mean central longitudes of 135$^\circ $ and 177$^\circ $ respectively. The B object is the "7$^\circ $ arc'' in N96. Their maximum brightness is 30% to 40% of Pandora's. Compared to the $3\hbox{$^\circ$ }$-azimuthal extension of a point-like source due to the PSF (as observed for Pandora), it is clear that B and C are azimuthally extended objects. The B object has a FWHM of $\sim$7$^\circ $. It is observed before (from 5h10 to 6h30 UT) and after its passage through maximum elongation (from 7h40 to 8h45 UT). Feature C has a FWHM of 10$^\circ $. It is detected during 20 min before maximum elongation (from 5h10 to 5h30) and during 80 mn after maximum elongation (from 5h50 to 7h10 UT). A few other bumps also seem to appear with lower confidence level ($\sim$2-3$\sigma $) below 120$^\circ $ and at 124$^\circ $, 163$^\circ $ and 190$^\circ $. Only two of them may be tracked on many images with a keplerian motion. The A object, located at 124$^\circ $, is nearly marginal here and seems to extend from 117$^\circ $to 129$^\circ $and has an intensity about 15% of Pandora's. It is detected from 5h50 to 6h40 UT ($\sim$30 images). The D object (located at 190$^\circ $) may be followed from 5h40 to 6h20 UT. Its azimuthal shape is uncertain because of numerous nearby artifacts on the images where it is detected.

3.1.2 Comparison with HST data

Comparison of CFHT and HST profiles indicates that at least structures B and C lasted over a 24 to 36 hours time interval. Indeed both profiles are in good agreement within $1\sigma$ (see Figs. 2a and 2b). Because of the small number of images, the noise varies significantly with longitude in the HST profile, depending on the number of images covering each region. It is on average $\sim$6% of Pandora's brightness. The azimuthal extension of a point-like object is also 3$^\circ $(measured on Pandora and Prometheus), but here it is mainly due to smearing. Objects B and C are present in both profiles. The shape and position of object B fits particularly well. C appears slightly narrower in the HST profile, but both are compatible within $1\sigma$ in intensity. Its FWHM is about 9$^\circ $ in the HST profile.

A better signal to noise ratio is simply obtained by averaging CFHT and HST profiles (see Fig. 3). The new error bar at $1\sigma$ is $3.3\%\,$of Pandora's brightness, which improves by factors 1.2 and 1.8 upon the signal to noise ratio of CFHT and HST profiles respectively. In the averaged profile the confidence level of objects B and C increases to $9\sigma$ and $8\sigma$ respectively. Objects A and D, that were marginal in the CFHT profile, appear now at $5.5\sigma$ and $5\sigma$ respectively, showing these are real structures. Whereas the shape of A is in good agreement between CFHT and HST profiles, the shape of D is more peaked in the HST profile, and is centered at 192$^\circ $. Features below 120$^\circ $ and at 164$^\circ $ are comparable to the error bar in the averaged profile. The simultaneous presence of structures A, B, C, D with same positions and similar shapes in both CFHT and HST data confirms that these are real and extended objects. They are designated as "arcs'' hereafter.

3.2 Orbital fit


Table 1: CFHT data points of arcs A, B, C, D upon which orbital solutions were determined. The distance (in km) is measured from Saturn's center, projected perpendicularly on the equatorial axis of the west ansa. The longitude is calculated on the basis of orbital solutions given in Table  2. It is measured from the ascending node of Saturn's equatorial plane on the Earth's equator at the standard epoch
Object Decimal day (UTC) Distance (km) on Longitude Filter
  of 1995 November equatorial axis (degrees)
A 20.283900 125847 103.7 K
A 20.289005 127699 105.5 K
A 20.293935 131403 109.5 K
A 20.295486 132560 110.9 K
A 20.300613 134875 114.1 K
A 20.301250 135570 115.2 K
A 20.351597 135583 144.3 K
B 20.241563 111493 92.5 H
B 20.243727 113345 93.8 H
B 20.263044 126541 104.3 J
B 20.266250 127930 105.7 J
B 20.266944 128856 106.7 J
B 20.270891 130940 108.9 J
B 20.277755 134412 113.4 J
B 20.337269 133949 146.8 K
B 20.338669 133023 148.0 K
B 20.343287 132097 149.2 K
C 20.214919 136959 117.7 K
C 20.269444 132560 148.6 J
C 20.270359 131403 150.0 J
C 20.272118 130245 151.3 J
C 20.273333 129319 152.3 J
C 20.277755 126541 155.1 J
C 20.288356 120753 160.2 K
C 20.296134 114503 164.9 K
C 20.315706 97139 175.8 K
D 20.248773 128625 153.1 J
D 20.265012 117744 162.5 J
D 20.266250 117281 162.9 J
D 20.267894 115429 164.2 J
D 20.270891 114503 164.9 J
D 20.278275 109409 168.4 J


Table 2: Orbital fit for A, B, C, D derived by combining HST and CFHT data. The orbital fit for Pandora is also reported as it is detected in both HST and CFHT data (below 80$^\circ $). The standard epoch is 1995 November 21.5 TDT at Saturn. Longitude is measured from the ascending node of Saturn's equatorial plane on the Earth's equator at the standard epoch. 0: Circular orbit. 1: Eccentricity and longitude of pericenter of the F ring at the standard epoch are assumed to be e=0.0029 and $\omega =292.5$$^\circ $ (Synnott et al. 1983). 2: Eccentricity and longitude of pericenter of Pandora are assumed to be e=0.0044 and $\omega =274.7$$^\circ $
Object Semi-major axis Longitude at epoch Residuals Mean Motion
  (km) (degrees) (km) (deg/day)
A0 $140\,070\pm166$ $122.85\hbox{$^\circ$ }\pm1.3$ 751 $582.92\pm0.96$
B0 $140\,083\pm108$ $135.81\hbox{$^\circ$ }\pm0.6$ 617 $582.80\pm0.60$
C0 $140\,050\pm119$ $177.32\hbox{$^\circ$ }\pm0.8$ 643 $583.05\pm0.68$
D0 $140\,046\pm141$ $192.47\hbox{$^\circ$ }\pm0.9$ 691 $583.07\pm0.91$
A1 $140\,075\pm158$ $122.66\hbox{$^\circ$ }\pm1.2$ 723 $582.89\pm1.02$
B1 $140\,081\pm100$ $135.43\hbox{$^\circ$ }\pm0.6$ 598 $582.85\pm0.61$
C1 $140\,017\pm109$ $177.66\hbox{$^\circ$ }\pm0.5$ 611 $583.23\pm0.68$
D1 $140\,021\pm139$ $192.69\hbox{$^\circ$ }\pm1.0$ 657 $583.23\pm0.87$
Pandora2 $141\,792\pm87$ $52.0\hbox{$^\circ$ }\pm0.3$ 512 $572.30\pm0.53$

The computation of orbital solutions has been performed using moments J2 to J4 of Saturn's potential (Campbell & Anderson 1989). The location of objects A, B, C and D are measured on the profiles where the Saturn's scattered light and the template of the F ring (the SMP) has been subtracted. The center is determined "by eye'' by comparing at least three successive profiles where a given object appears clearly. Positions are then converted into distance from the center of Saturn projected onto the planet's equatorial axis. For HST data, profiles in which objects are measured are corrected for the distortion of the PC camera. Only the best points were considered with the longest time baseline, as it is the most important factor for an accurate orbit determination. The CFHT data points are presented in Table 1, in which the filter as well as the current longitude of each object are also reported. Semi-major axis and longitude at epoch are determined by a least square fit of the position of objects projected onto the equatorial axis of Saturn. Error bars are obtained by introducing a random noise in the input positions, with dispersion equals to the spatial uncertainty (0.09 $^{\prime\prime}$for CFHT and 0.035 $^{\prime\prime}$for HST).

A circular fit was performed first. The results are presented in Table 2. They confirm that arcs A to D are located between Pandora and Prometheus ($\sim\,$$140\,050$ km). Since such elongated structures are expected to be embedded in the F ring, we also performed a non-circular fit assuming the eccentricity and longitude of pericenter of the F ring, but the residuals did not significantly decrease.

If it is assumed that objects A, B, C, D are embedded in the F ring, an estimate of its semi-major axis in 1995 is calculated by taking the mean semi-major axis. Based on the circular fit we obtain $<a>\,=140$060 $\pm\,$60 km ( $\Leftrightarrow n=582.9 \pm 0.4\hbox{$^\circ$ }$/day), with a physical width of $\pm 20$ km around the mean, calculated by taking the standard deviation of the four derived semi-major axes. For non-circular fit we obtain $<a_{\rm ex}>\,= 140\,050 \pm 60$ km ( $\Leftrightarrow n=583.0\,\pm\, 0.4 \hbox{$^\circ$ }$/day), with a physical width of $\pm 30$ km around the mean. Combining both data set allows to significantly improve the orbital solution of arc B ( $584\pm 4\hbox{$^\circ$ }$/day) as reported in N96. This gives also the first determination of the orbits of A, C and D arcs.

4 Discussion

4.1 Comparison with August and November 1995 observations

Another 10$^\circ $-long arc has been seen by N96 (it is designed here as the "E arc'', see Fig. 2c) on November 21st 1995. Its orbit has been determined by P2000 using November 17th, 18th and 21st HST images. Their value of $140\,074\pm30$ km is consistent ($1\sigma$) with the A, B, C and D arcs location.

Some other objects discovered in August 1995, during the Earth crossing seemed also to be close to and somewhat below 140000 km (Roddier et al. 1996a, N96; Ferrari et al. 1997, P2000). However most of them appeared to be point-like, and thus possibly of a different nature than features A to E. Based on N96 orbital solutions, S6 and S7 are located at 139900 km and 139100 km (with error bars of 70 km and 260 km respectively). The orbit of S5 is still a matter of debate (Nicholson, private communication). Its semi-major was initially estimated as $139\,860 \pm 130$ km by N96 and $140\,050 \pm 100$ km by Roddier et al. (1996a), but two recent studies, combining different data sets, gives uncompatible results: P2000 find 140208 $\pm $ 50 km and McGhee et al. (submitted to Icarus) report $a=139\,690 \pm 90$ km. A few other objects (S11 to S19) where also discovered by Roddier et al. (1996a, 1996b). Their estimated orbits are not accurate enough to give us more information on the F ring environment (error bars are $\pm 1000$ km and $\pm 2000$ km for S8 and S9, and $\pm $500 km for objects S11 to S15).

4.2 Comparison with 1980-81 Voyager observations

Values of <a> and $<a_{\rm ex}>$ are however quite far ($3 \sigma$) from all estimates of the F ring radius derived from Voyager images, by about -150 km. Indeed Synnott et al. (1983) gives $a=140\,185\pm 30$ km. A recent study of Voyager images (Ferrari et al. 1997, 1998) reveals that, at the Voyager epoch, some of the brightest structures of the F ring move on different orbits, with a measured dispersion of $95\pm15$ km ($1\sigma$). The measured semi-major axis is $140\,219 \pm 19$ km derived from Voyager 1 data and $140\,205 \pm 10$ km derived from Voyager 2 data. All those results are consistent with French and Nicholson who used a different approach based on Voyager and stellar occultation data (unpublished work of French & Nicholson, reported in N96) giving $a=140\,209 \pm 4$ km.

4.3 F ring radial structure

The width of the F ring in Voyager images is up to 300 km and the ring is formed of four eccentric strands (Murray et al. 1997), F$\alpha$, F$\beta$, F$\gamma$ and F$\delta$, which radial width is 50 km in average and with respective semi-major axes 140089 km, 140176 km, 140219 km and 140366 km. The F$\gamma$ strand is by far the brightest and may be the "core'' of the F ring with centimeter-sized bodies (Showalter et al. 1992; Murray et al. 1997), in which the brightest features (like clumps or arcs) were detected at the Voyager epoch (Ferrari et al. 1997; Showalter 1997). The five arcs seen in November 1995 (A, B, C, D and E) seem to be gathered around 140060 km, close to the the faint F$\alpha$ strand. Consequently, if the 1995 November arcs belong to a F ring core, this may imply a radial restructuring or a spreading of the ring in the meantime.

4.4 Possible implications

We suggest below, as a direction for future works, that some close encounter with one of the shepherding satellites may have reshaped the F ring in the last twenty years. Such an hypothesis may not be excluded since the dynamical evolution of this ring is still a puzzle for the scientific community. The evolution of the F ring may critically depend on its two shepherding satellites, Pandora and Prometheus (see for example: Dermott 1981; Showalter & Burns 1982; Lissauer & Peale 1986). During the 1995 crossings, Prometheus was lagging its expected position by $\sim$19$^\circ $ (N96). It has been suggested that an encounter of the F ring with Prometheus may have happened in between 1991 and 1994 (Murray & Giuliatti Winter 1996) due to the precessional variation of the orbits owing to Saturn's oblateness. The dynamical consequence of this encounter on the structure of the F ring is not currently known. It might result in breaking of the strands and in the creation of structures in the inner regions of the F ring. Indeed a massive body is able to scatter its environment inside three Hill's radii (Nishida 1983; Ida & Makino 1993) that is about 300 km for Prometheus (assuming a mass ratio of $\sim$10-9 between Prometheus and Saturn). Then in case of an instantaneous close approach to the F ring, estimated at $\sim$50 km (Murray & Giuliatti Winter 1996), Prometheus might be able to perturb the ring over a distance of 300 km, i.e. about the full width of the F ring. Such a model has been recently considered (abstract of Showalter et al. 1999; Nicholson, private communicaton), and first results show that Prometheus may perturb a portion of the F ring after each close encounter. However the resulting radial displacement seems to be about 1 kilometer only.

In addition, during the interaction, Prometheus at its apocenter is close to the F ring's pericenter, yielding strong relative velocities of $\sim$30 m/s. Such high-velocity encounters may result in catastrophic disruption of bodies initially in the F ring. The inner region of the F ring may be consequently populated with fragments especially if a belt of kilometer-sized moonlets exists between Prometheus and Pandora, as originally suggested by Cuzzi & Burns (1988).

5 Conclusion

We have reported observations of the crossing of Saturn's ring-plane by the Sun, on 1995 November 20th, made with the 3.6 m CFH Telescope, using the UHAO adaptive optics system. Four azimuthally extended structures (A, B, C, D) have been detected, with central longitude at epoch of 123$^\circ $, 136$^\circ $, 177$^\circ $ and 193$^\circ $ (see Table 2), on 1995 November 21.5 TDT at Saturn. These structures have been also seen one day later in HST images (N96). The combination of both CFHT and HST data sets provides an accurate estimate of their orbit. An orbital fit locates them between 140020 km and 140080 km, with error bars of 120 km on average. The mean circular orbit is 140060 $\pm $ 60 km, that is consistent with the orbit of another bright arc observed at the same epoch (P2000). However, this represents a significant discrepancy ($3 \sigma$) with previous estimates of the F ring's radius derived from Voyager images (located at $140\,200$km on average). If the five arcs observed in November 1995 belong to a F ring core, this would imply a radial restructuring or a spreading of the F ring between 1980 and 1995, whose explanation has still to be found. In order to understand the F ring's dynamics, better spatial resolution and longer time baselines observations are required. The Cassini encounter in 2004 will probably be a major step in the understanding of the F ring mysteries.

The authors thank P. D. Nicholson for his helpful comments, as a referee.
