Fig. 5


Download original image

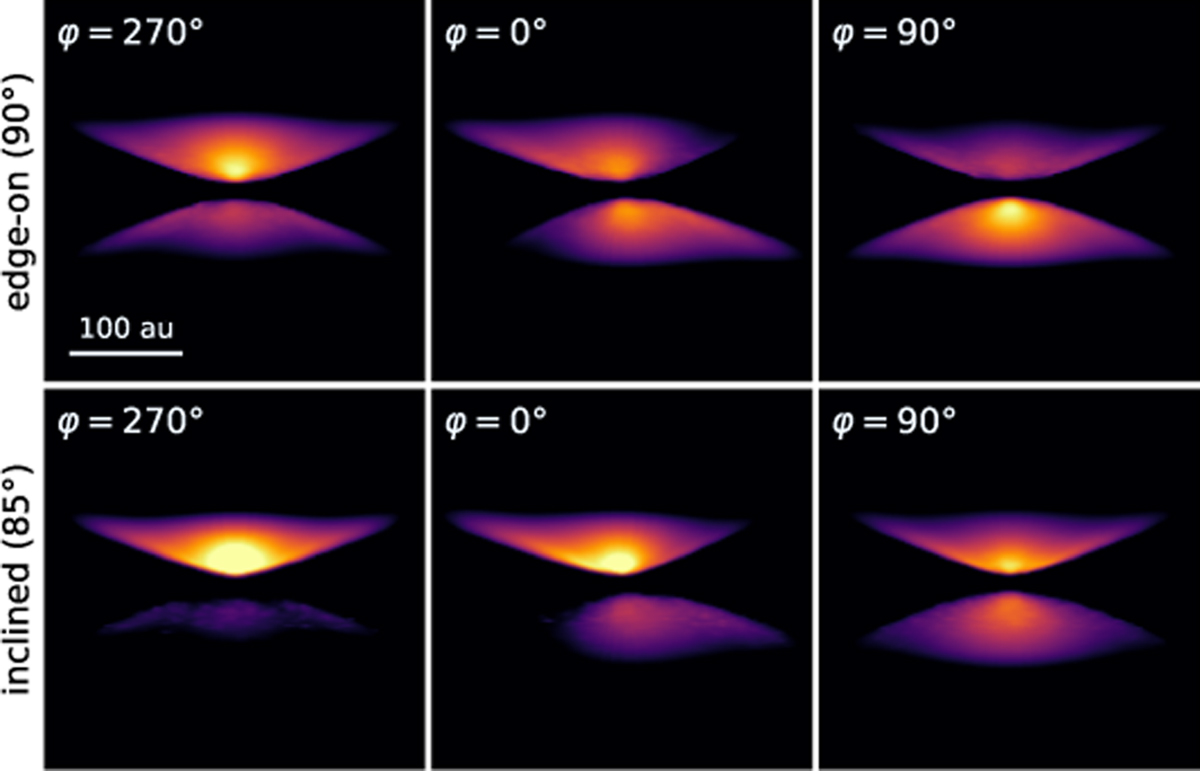

Near-infrared radiative transfer models (λ = 0.8 μm) of a disk with tilt imax = 3° observed from different azimuthal angles φ (color in log-scale). The top row shows a perfectly edge-on view, while the bottom row shows the disk observed at an inclination of 85°. We note that for symmetry reasons, we do not need to simulate φ = 90°. The image shown in this figure is the simulation of φ = 270° flipped upside down.
