Fig. 4.


Download original image

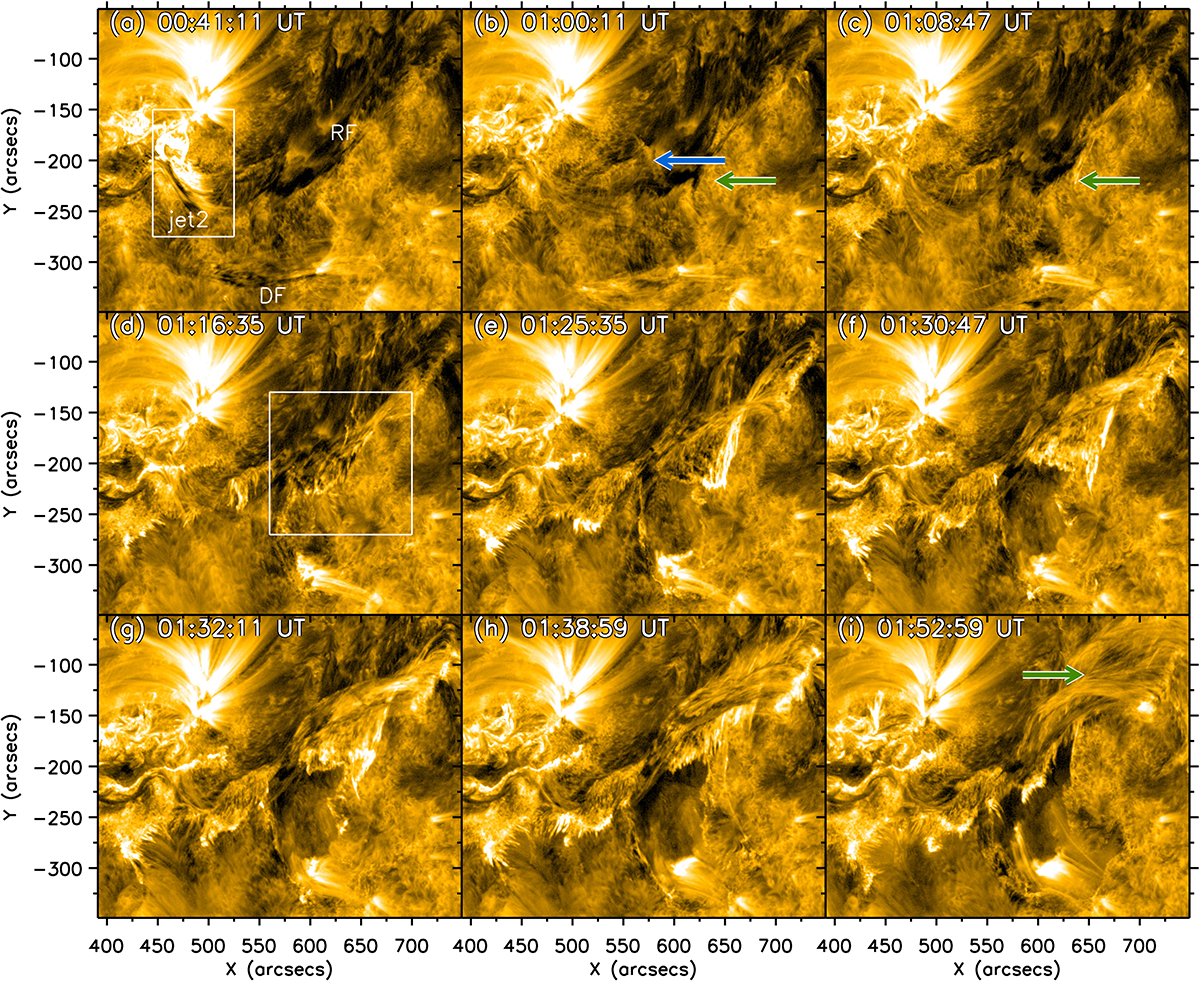

Temporal evolution of DF eruption and the triggering of the oscillations in the RF segment in 171 Å data. In panel (a), the absorbing plasma of the RF and DF segments shown in the figure is visible. In the same panel, the white box delimits the area where jet2 is located. In panel (b), DF jet2 has already impacted DF, and this segment is already erupting. Jet2 also impacts RF, producing a slight brightening in a small area on the RF spine (blue arrow). During the eruption of DF, it seems that changes also occur in RF, such as the appearance of a protrusion on its west side (green arrow). This same protrusion (green arrow) becomes bright shortly afterwards. In panel (d), within the white box, a lot of brightening can be seen on RF. In the next panels, from (e) to (h), the brightenings are massive over the whole structure, and in (i) loops can be seen in the NW area (green arrow) outlining a kind of flux rope structure. An animation of this figure is available online.
