Fig. 4.

Download original image

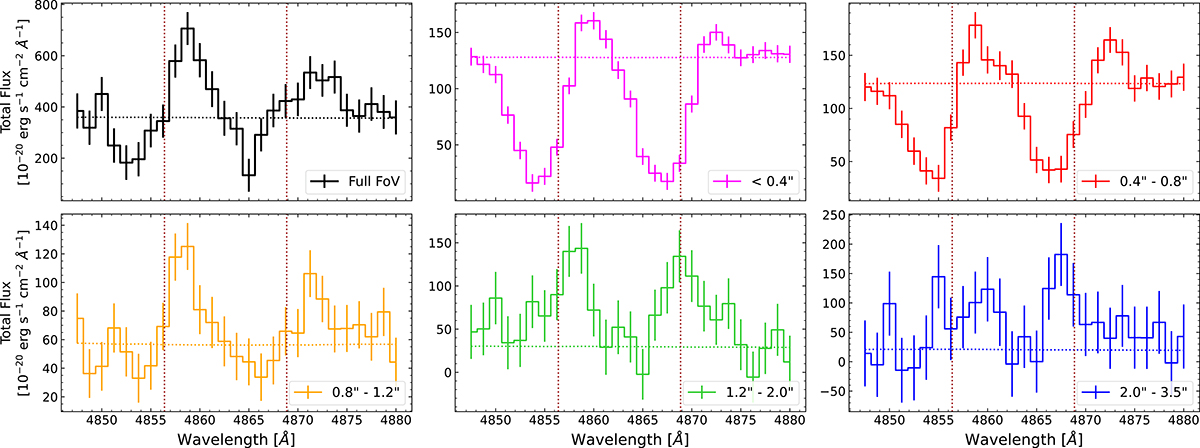

Spatially resolved Mg II spectra of galaxy #884, extracted as the sum of spaxels in circular concentric ring-like apertures (circular aperture in the case of the central region). Each panel corresponds to a different annulus, as indicated in the label, except for the top-left panel, which corresponds to the spectrum of the full modeled FoV. In the frame of reference of the central galaxy, the apertures represent physical sizes of < 3 kpc, 3 − 6 kpc, 6 − 9 kpc, 9 − 15 kpc, and 15 − 26 kpc. The error bars represent the ±1σ uncertainty of the spectra. The nearly horizontal dotted lines indicate the approximate continuum level. The vertical thin dashed lines mark the observed wavelengths of the Mg II doublet at the systemic redshift of the galaxy.
