Fig. 3.


Download original image

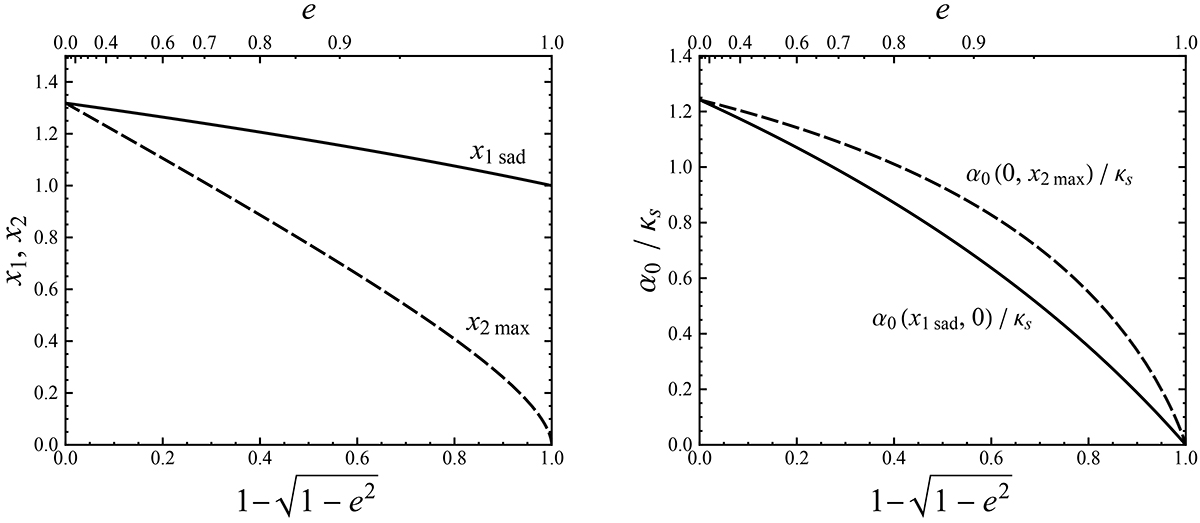

Scaling of the deflection-angle maps with eccentricity. Left panel: Position of deflection-angle maximum x2max (dashed line) and position of saddle point x1sad (solid line) as a function of eccentricity e (non-linear top axis) and ellipticity 1 1 e 2 $ 1-\sqrt{1-e^2} $ (linear bottom axis). Right panel: Deflection-angle amplitudes |α0| at these positions in units of convergence parameter κs as a function of eccentricity and ellipticity.
