Fig. A.1.
Download original image

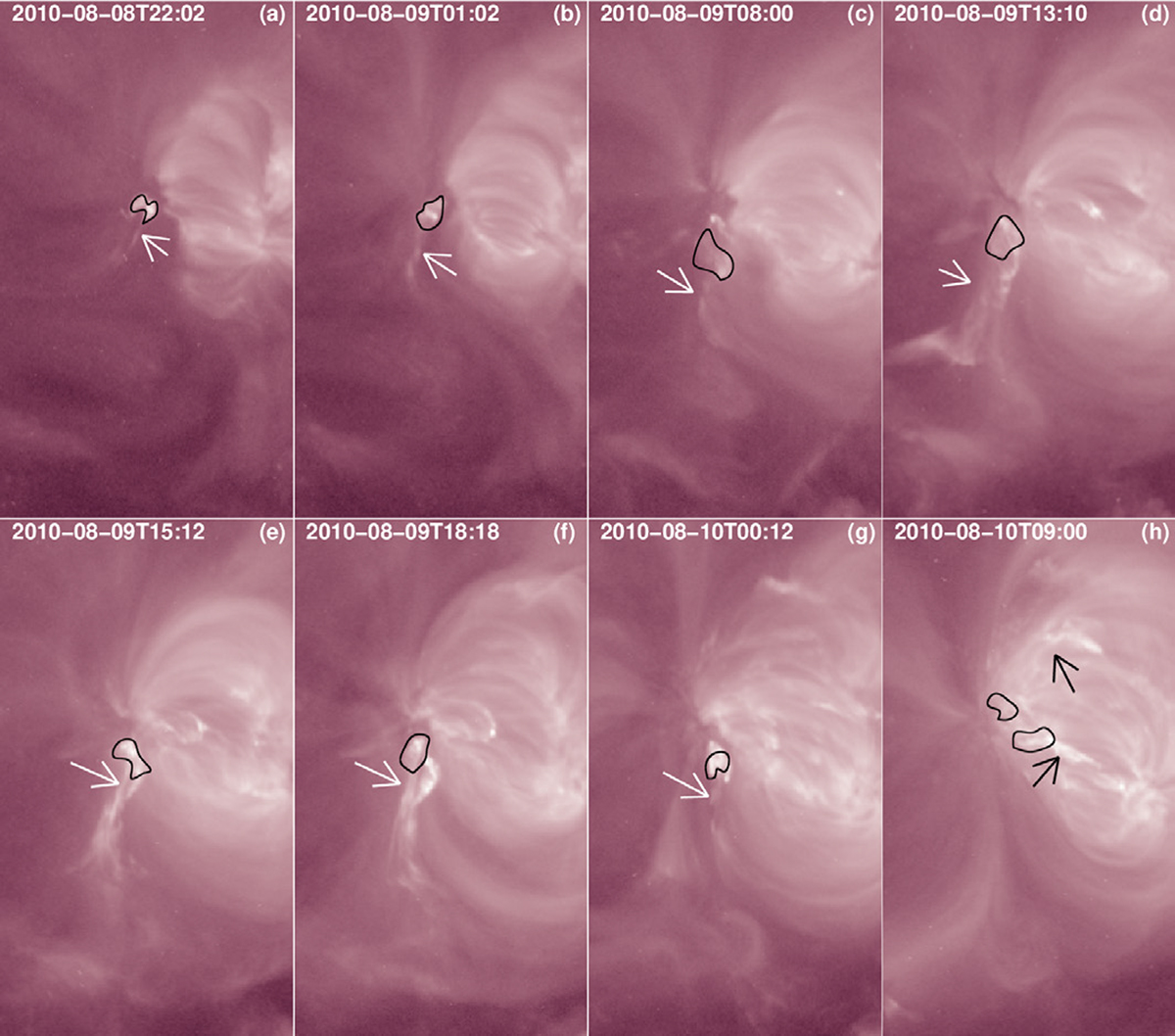

Selected 211-Å AIA images showing the jets (denoted by arrows) that were associated with localized peaks of the free magnetic energy and helicity budgets of AR11096. Contours outline the calculated apparent areas of the bases of the jets (see text for details). The field of view is 103″ × 181″ and corresponds to the black box of Fig. 1. The associated movie is available online.
