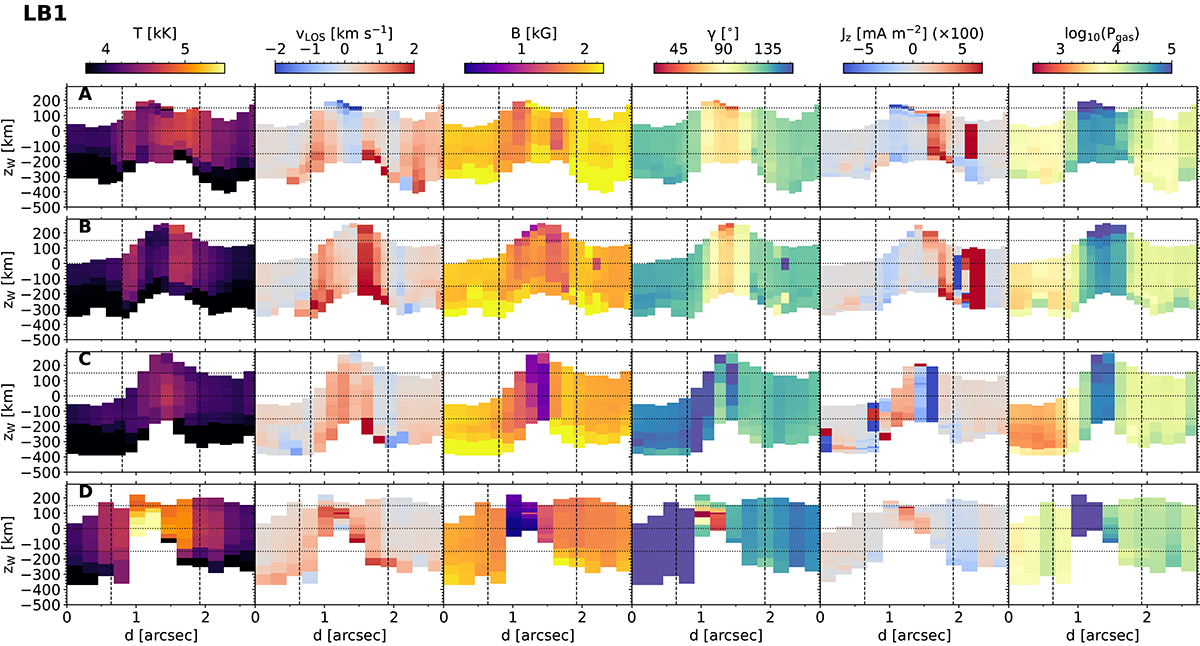

Fig. 8.
Download original image
Variation in physical quantities with geometric height along the cuts A–D in LB1. From left to right: temperature, LOS velocity, magnetic field strength, inclination, vertical current density, and logarithm of the gas pressure. The horizontal lines trace the heights shown in the upper panels of Fig. 5. The vertical dashed lines help distinguish pixels inside the LB.
