Fig. 17

Download original image

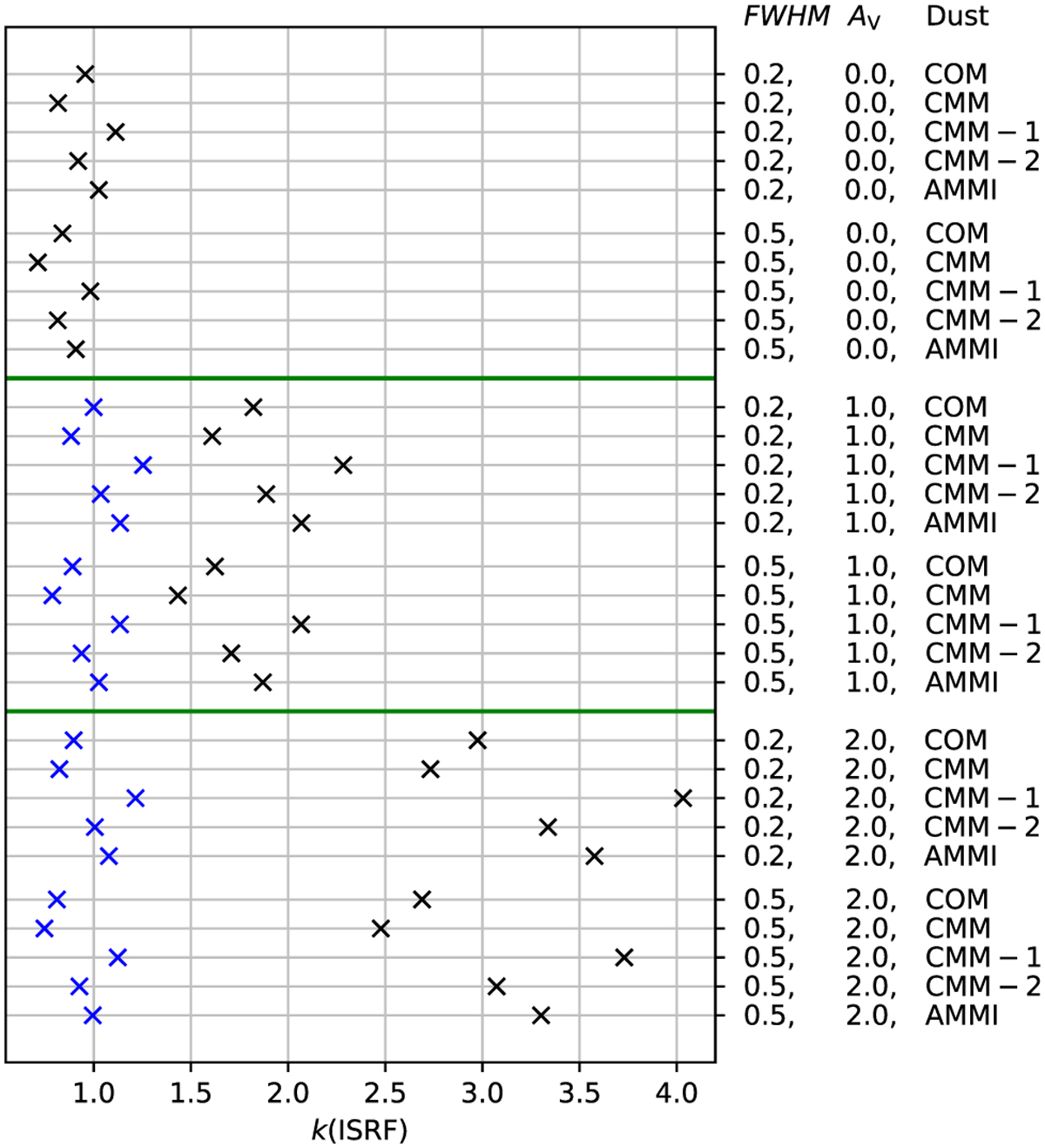

Radiation field scaling factors k(ISRF) in case of selected single-dust models. The black crosses show the values for each combination of cloud FWHM, AV, and dust model, as listed right of the frame. In cases with AV > 0, the blue crosses show approximate values at the model boundary, if the effective attenuation is e−τ(08 µm), using the 0.8 µm optical depth of the external layer.
