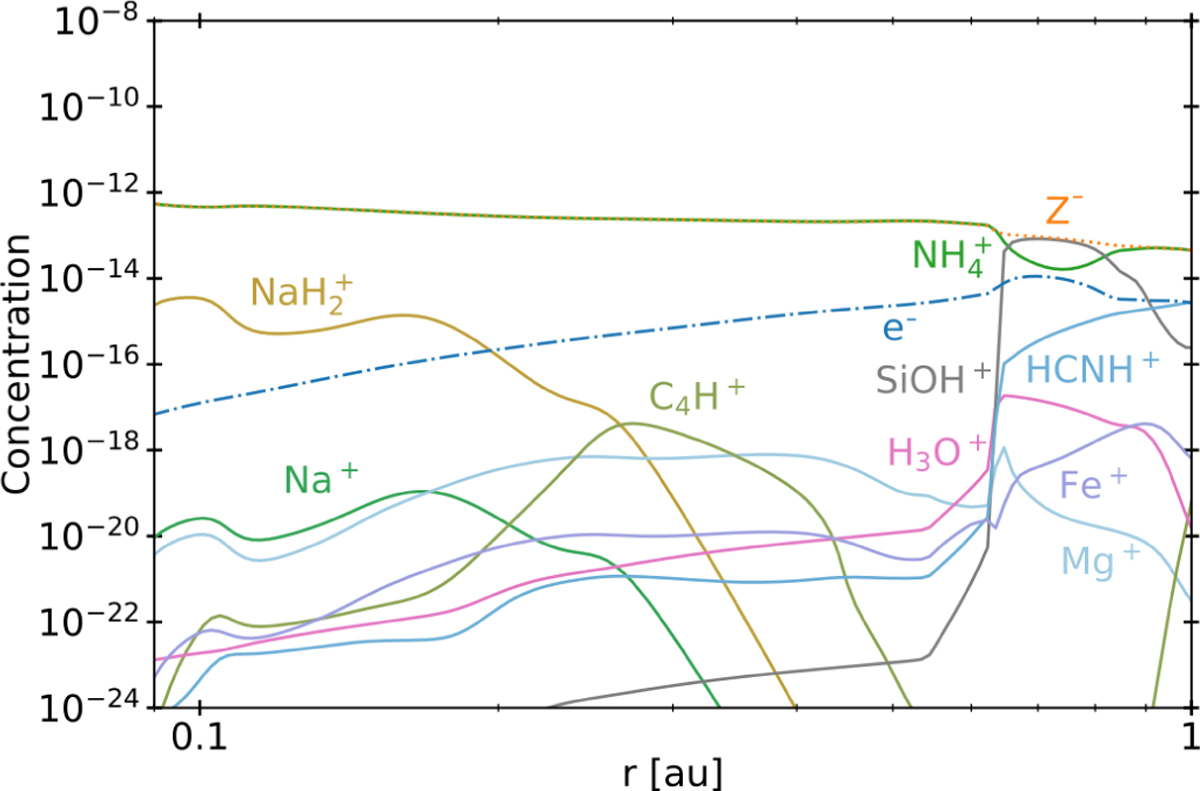

Fig. 7
Download original image
Concentrations ni/n〈H〉 of selected chemical species important for the charge balance in the midplane in region A. The dotted blue line represents the concentration of negative charges on all dust grains
. The negative charges have accumulated on grain surfaces, whereas free electrons e− are less important here.
