Fig. A.3
Download original image

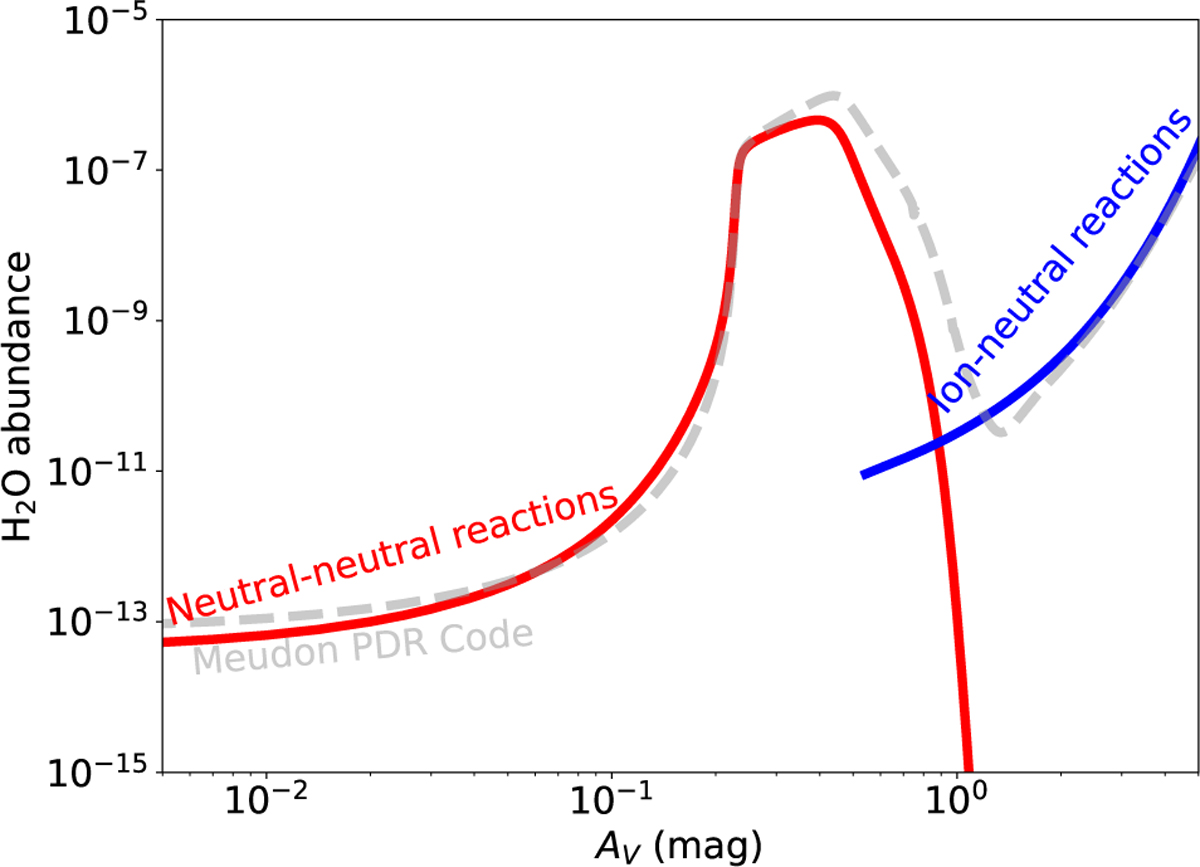

Comparison between the Meudon PDR code for a model at Pth/k= 108 K cm–3 and
and the analytic calculation of H2O abundance. The difference between the model and the analytic calculation is due to the fact we do not take into account other formation processes.
