Fig. 8

Download original image

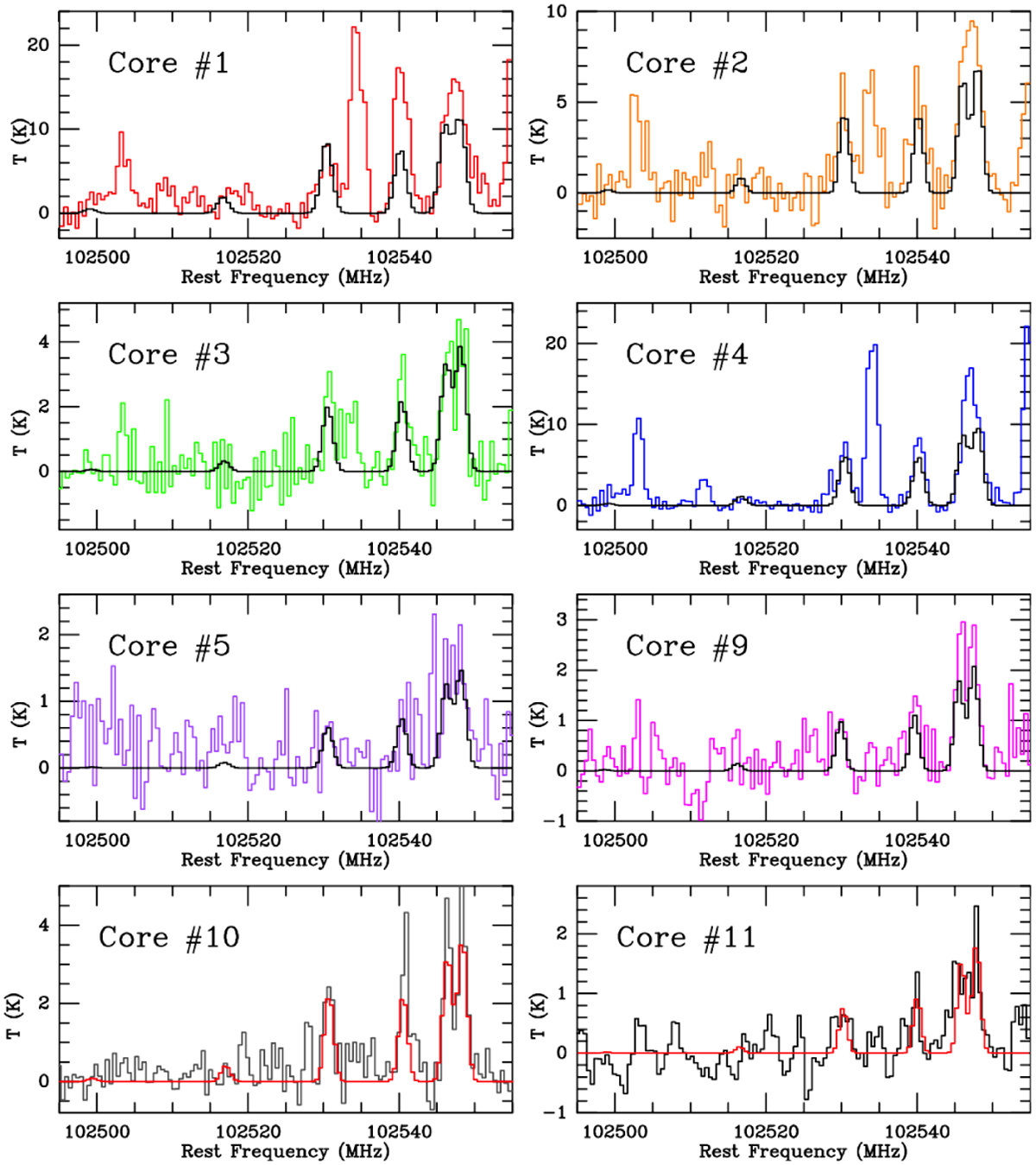

CH3CCH synthetic spectra (in red for cores #10 and #11, in black for the others) overlaid on the observed spectra. The parameters used for the synthetic spectra are listed in Table 2. The CH3CCH lines are contaminated by an ethanol line at 102.534 GHz in cores #1, #2, #3, and #4, an ethylene glycol line at 102.539 GHz mainly in core #1, and acetone lines at 102.547 GHz in cores #1, #2, and #4.
