Fig. 10
Download original image

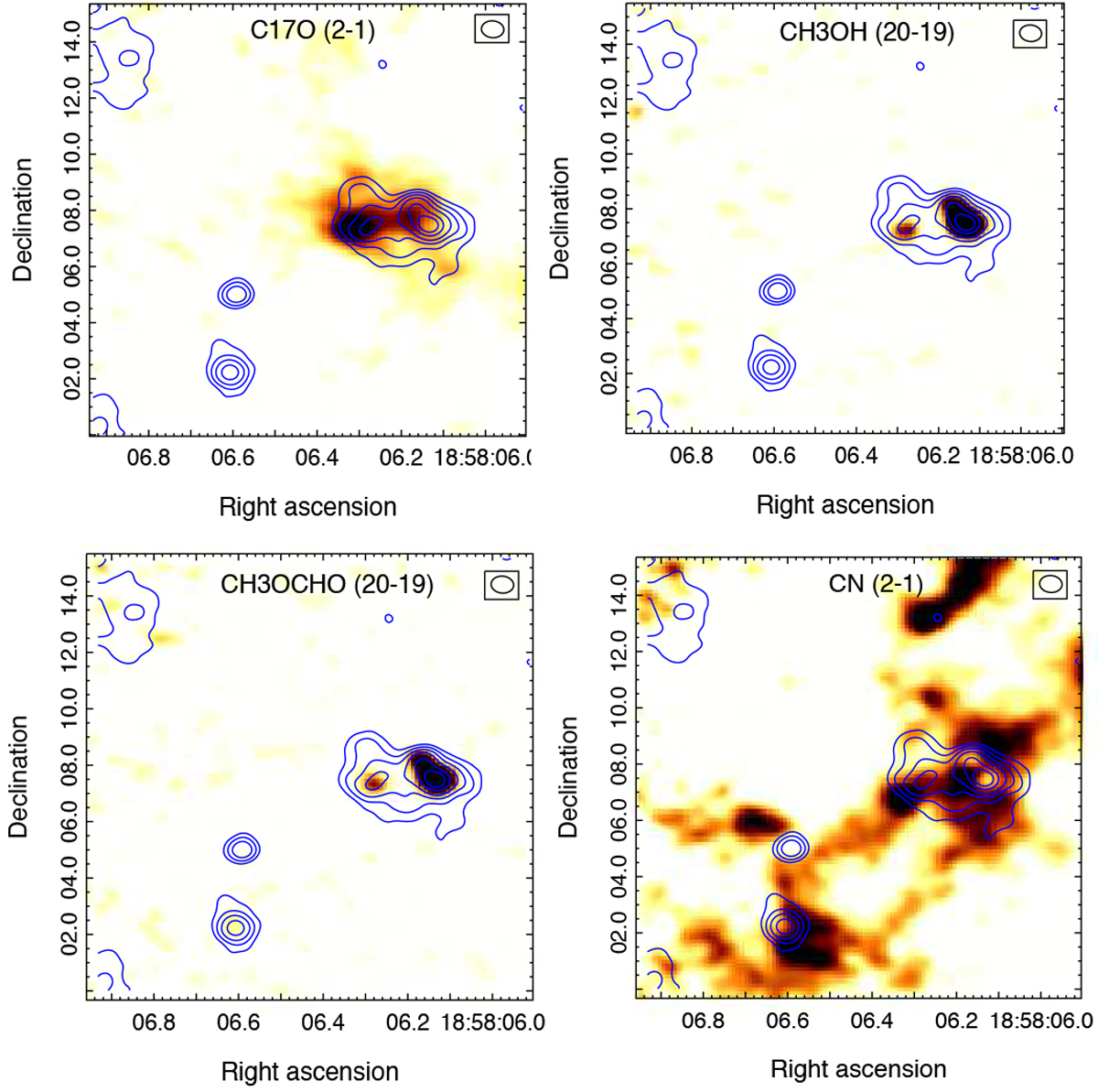

Integrated emission maps of C17O (2–1), CH3OH 20(-2,19)–19(−3,17)E, CH3OCHO 20(1,19)–19(1,18), and CN N = 2–1, J = 5/2–3/2, and F = 7/2–5/2 transitions. The color scale extends from 0.05 to 0.4 Jy beam−1 km s−1 in all panels. Blue contours represent the continuum emission at 334 GHz. Levels are at 15, 30, 50, 80, 140, and 200 mJy beam−1. The beam isindicated in the top right corner of each panel.
