Fig. 17


Download original image

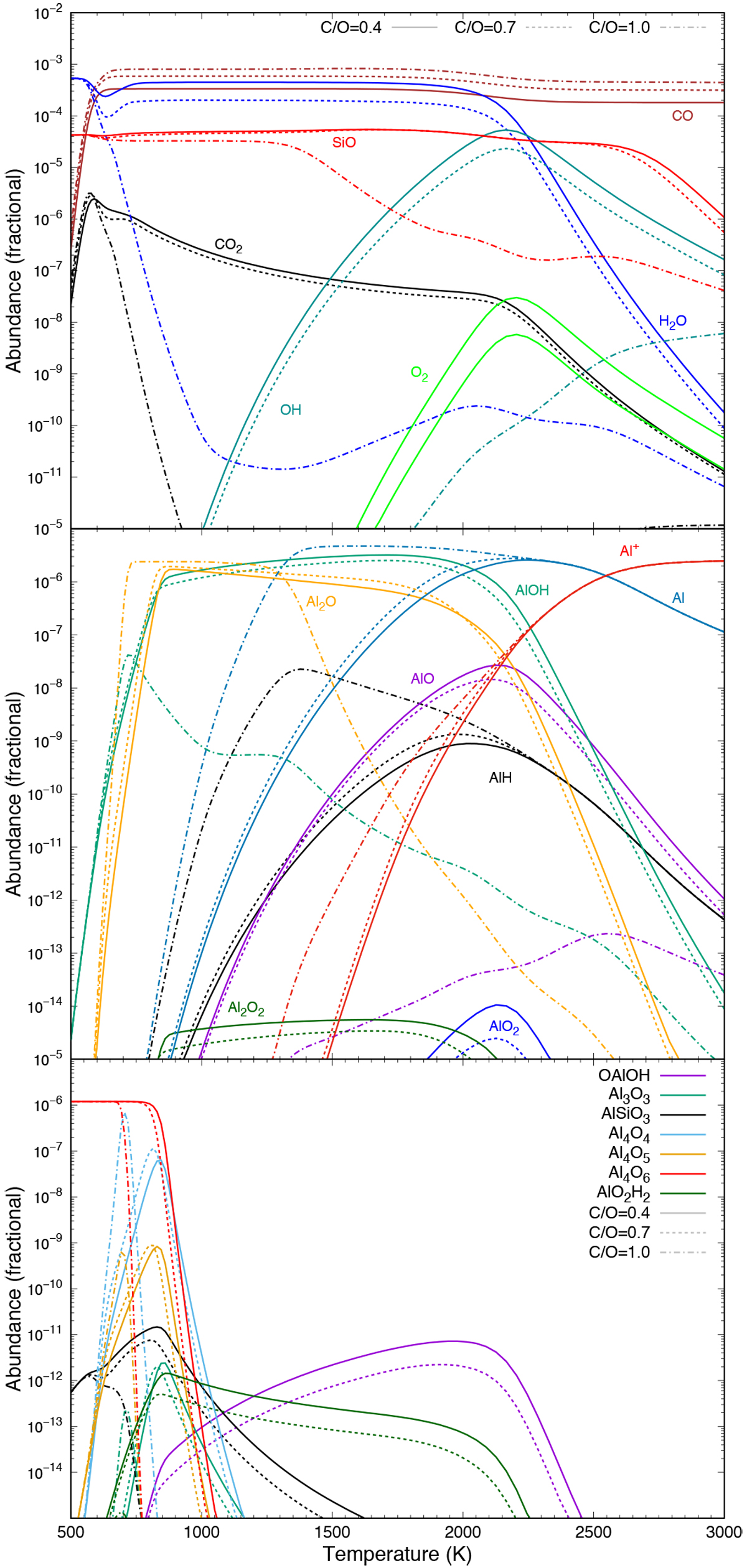

Upper panel: TE abundances of the abundant molecules CO, CO2, H2O (black), OH, and O2 as a function of temperature for different C/O ratios. Middle panel: TE abundances of the aluminium-bearing molecules AlO, AlOH, Al2O, and AlO2 as well as Al and Al+, as a function of temperature for different C/O ratios. Lower panel: TE abundances of the aluminium-bearing clusters OAlOH, Al(OH)2, Al3O3, Al4O4, Al4O5, Al4O6, and AlSiO3, which participate in the formation of the alumina dimer (Al4O6), as a function of temperature for different C/O ratios. Straight lines correspond to C/O = 0.4, dashed lines to C/O = 0.7, and dashed-dotted line to C/O = 1.0, respectively. The pressure is kept constant at 10−5 bar.
