1. Introduction

A considerable number of galaxies in the Universe possess bars (Buta et al. 2015). These elongated structures are formed in at least two ways: through the inherent instability of disks that are cold enough (Hohl 1971; Ostriker & Peebles 1973) or via interactions with other objects (Gerin et al. 1990; Noguchi 1987, 1996; Miwa & Noguchi 1998; Berentzen et al. 2004; Lang et al. 2014; Łokas et al. 2014; Łokas 2018). Such environmental effects may include fly-bys of smaller satellites or bigger galaxies as well as mergers. Another scenario shown to be very effective in inducing bars is the evolution of galaxies in clusters. Łokas et al. (2016) used controlled simulations of Milky Way-like galaxies orbiting a Virgo-like cluster to demonstrate that the bar can efficiently be produced during the first pericenter passage if the orbit is both tight enough and prograde, even if the galaxy is resilient to bar formation in isolation.

This scenario was recently tested in the cosmological context by Łokas (2020a) using IllustrisTNG simulations (Springel et al. 2018; Marinacci et al. 2018; Naiman et al. 2018; Nelson et al. 2018; Pillepich et al. 2018). In that work, we followed the evolution of well-resolved galaxies in the most massive cluster of IllustrisTNG-100 and found that the tidal forces from the cluster have a strong effect on the morphology and kinematics of the galaxies, transforming many of them from rotating disks to prolate spheroids dominated by random motions. Among the most strongly evolved sample of galaxies with more than one pericenter passage, we identified six tidally induced bars and six other barred galaxies that probably had their bars enhanced by the tidal interaction with the cluster. We note that these bars were not included in recent studies of barred galaxies with IllustrisTNG (Rosas-Guevara et al. 2020; Zhou et al. 2020; Zhao et al. 2020), which focused on late-type objects. Instead, the bars tidally induced by the cluster would be rather classified as early-type due to their predominantly prolate shape, limited rotation, and lack of gas and star formation.

Unexpectedly, very similar barred galaxies can also be identified at present among the unevolved sample of cluster galaxies that are infalling into the cluster for the first time and have not strongly interacted with it. In this Letter, we look at one such object in order to study its history and determine what other scenarios could lead to the formation of this interesting subclass of barred galaxies. The galaxy is referred to by its identification number in the subhalo catalog of the last output of the IllustrisTNG-100 simulation, ID44, in a way that resembles the naming of real galaxies in various catalogs. The names of other objects mentioned below will also contain their number in the last simulation snapshot, unless noted otherwise.

2. Evolution of the galaxy

Figure 1 presents different properties of galaxy ID44 as a function of time obtained using the main progenitor branch of the Sublink merger tree for this subhalo (Rodriguez-Gomez et al. 2015). The two upper panels show the behavior of the mass assigned to the galaxy divided into dark matter, stars, and gas, with two different ordinate scales. The evolution of the dark mass (upper panel) shows two distinct phases, each lasting for about half of the cosmic time. In the first phase (until about t = 7 Gyr), the galaxy increases its dark mass and then, later on, it mostly loses it. The gas content (second panel) also increases, albeit with some variation, until t = 7 Gyr, and then the gas is depleted until t = 10 Gyr, when the galaxy does not possess any more gas. The stellar mass increases until t = 7 Gyr as well; later, it remains approximately constant, declining only slightly. The growth of the stellar mass is not steady, rather, it accelerates in three epochs corresponding to three starbursts, as evidenced by the three peaks of star formation rate (third panel). Star formation stops around t = 8 Gyr. After that point, the galaxy becomes red with its (g − r) color increasing to 0.8 at the end of the evolution. The stellar metallicity remains roughly constant from about t = 6 Gyr. In this and the following panels, the measurements are carried out within two stellar half-mass radii.

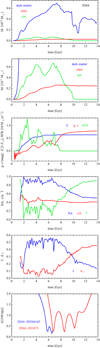

thumbnail Fig. 1.

Evolution of the galaxy ID44.

The next two panels of Fig. 1 describe the shape and kinematics of galaxy ID44 at different times using parameters calculated as described in Genel et al. (2015) and provided together with the Illustris data release. For the purpose of these measurements, the mass tensor of the stars was calculated and the galaxy was rotated to align it with its principal axes. The eigenvalues of the mass tensor can then be used to estimate the axis ratios c/a (shortest to longest) and b/a (intermediate to longest) and the triaxiality parameter, T = [1 − (b/a)2]/[1 − (c/a)2]. The evolution of these three measures of shape is shown in the fourth panel of Fig. 1. We can see that during the evolution, the shape of the galaxy changes from oblate (T <  1/3), to triaxial (1/3 <  T <  2/3), and, finally, prolate (T >  2/3).

The strongly prolate shape at the end of the evolution suggests that within two stellar half-mass radii, the galaxy is dominated by an elongated structure in the form of a bar. We confirm this finding by calculating the measure of the strength of the bar as the m = 2 mode of the Fourier decomposition of the surface density distribution of stellar particles projected along the short axis: A2(R) = |Σjmjexp(2iθj)|/Σjmj, where θj is the azimuthal angle of the jth star, mj is its mass, and the sum goes up to the number of particles in a given radial bin. The measurements within the cylindrical radius, R, of two stellar half-mass radii are shown in the fifth panel of Fig. 1. Indeed, they are high at later times.

Since the formation of the bar should be accompanied by an increasing amount of radial motion of the stars, in order to quantify the amount of rotation support in the galaxy, we used the rotation parameter, f, defined as the fractional mass of all stars with circularity parameter, ϵ >  0.7. The evolution of this parameter is shown together with A2 in the fifth panel and we see that it decreases from rather high values of f >  0.5 early on to f <  0.2 at the end of the evolution. We note that f >  0.2 is a reasonable threshold for defining late-type or disky galaxies in Illustris (Peschken & Łokas 2019; Peschken et al. 2020), so f <  0.2 means that our evolved galaxy can no longer be considered a disk.

3. Properties of the bar

In this section, we discuss the properties of the bar in greater detail. Figure 2 shows the image of the galaxy at the end of its evolution in terms of the surface density distribution of the stars in three projections, along the shortest, intermediate, and the longest axis (from left to right). The image confirms that the galaxy is indeed a bar, in the sense that most of its stars contribute to the elongated shape, rather than a disk with an embedded bar.

thumbnail Fig. 2.

Surface density distribution of the stellar component of ID44 viewed along the three principal axes at the present time. Surface density, Σ, is normalized to the central maximum value in the end-on view and the contours are equally spaced in log Σ.

The evolution of the bar can be described in detail by measuring the profiles of the bar mode, A2(R), as a function of the cylindrical radius, R, rather than a single value in a wide radial bin shown in the fifth panel of Fig. 1. Examples of such profiles for ID44 at three different times are presented in Fig. 3. This figure demonstrates that A2(R) has a shape that is typical of bars, growing from zero at small radii to a maximum and then decreasing again. As suggested by the results of the previous section, the strength of the bar indeed grows in time since the values of the maximum of A2(R) are higher, and the bar length is larger, at later times. The length of the bar can be estimated as the radius R where A2(R) drops to half the maximum value. For the three selected times shown in Fig. 3, the bar length increases from about 4.5 to 6 kpc and it is within the range of values measured for real galaxies (Aguerri et al. 2005; Diaz-Garcia et al. 2016; Font et al. 2017). We note that at the end of the evolution, the bar length is 2.7 times larger than the stellar half-mass radius at this time.

thumbnail Fig. 3.

Profiles of bar mode, A2(R), for galaxy ID44 at different times. Measurements were carried out in bins of ΔR = 0.5 kpc.

The dependence of bar strength and length on time can be fully appreciated by plotting the bar mode values as a function both of radius and time. Such measurements are shown in the color-coded form in Fig. 4 for the times between t = 4 Gyr and t = 13.8 Gyr. We can see that some elongation is already present around at t = 5 Gyr but it later disappears and the bar starts to continuously grow at about t = 6.8 Gyr.

thumbnail Fig. 4.

Evolution of the profiles of the bar mode, A2(R), of galaxy ID44 over time.

We also estimated the pattern speed Ωb of the bar. To this aim, for a first approximation, we used the kinematic method proposed by Tremaine & Weinberg (1984). Such measurements are rather uncertain due to the low resolution of the simulated galaxy and they depend on a number of parameters, such as the chosen binning and inclination. The method, however, gives quite low values of the order of 6 km s−1 kpc−1, which means that the pattern speed can be measured directly by the change of the position of the bar major axis between simulation outputs in spite of the fact that they are spaced quite widely in time. This more direct method gives Ωb = 9 km s−1 kpc−1 at the end of evolution, a value that is similar to what is estimated by Peschken & Łokas (2019) for the bars in Illustris galaxies, but rather low in comparison with values from real barred galaxies (Font et al. 2017). We note however, that around t = 9 Gyr, when the bar is much weaker, the pattern speed is much higher, namely, Ωb = 17 km s−1 kpc−1, and starts to steadily decrease around t = 10 Gyr as the bar becomes stronger, which is in agreement with other studies of simulated bars (Athanassoula 2003).

4. Interaction with environment

The properties of the barred galaxy ID44 are very similar to the tidally induced bars identified by Łokas (2020a) in the most massive cluster of the IllustrisTNG-100 simulation. These bars were induced by strong tidal interactions with the cluster over multiple pericenter passages. Six such objects were identified and a further six likely had their bars enhanced by such interactions. Contrary to these objects, ID44 has never strongly interacted with the cluster. At present, it is found at its outskirts, at a distance of 2.2 Mpc from the cluster center, comparable to the cluster virial radius. Still, the bar could be induced tidally by interactions with other objects. In order to determine if this is indeed the case, we studied the interactions of ID44 with other galaxies during its lifetime.s

The last significant merger the galaxy experienced took place at t = 6.8 Gyr. The satellite that merged with ID44 at that time was last identified at one output step earlier (0.1 Gyr before), as ID366165. The last panel of Fig. 1 displays its physical distance from ID44 as a function of time. Its total mass during infall, when it was at d = 200 kpc from ID44 (and therefore, when it was not yet heavily stripped by ID44) was 4.9 × 1010 M⊙, which is equal to 9% of the mass of ID44 at that time. As we can see from the last panel of Fig. 1, the satellite merged with ID44 after its second pericenter passage around it. At the same time, ID44 was approached by another satellite, ID1873, of a very similar mass at d = 200 kpc. This satellite does not merge with ID44, but as shown in Fig. 1, it completes three close pericenter passages around ID44, it is later ejected toward the outskirts of ID44, and survives until the present. Both these satellites have probably caused enough distortion in the disk of ID44 to seed the bar, as it started to grow around this time. The second surviving satellite may have additionally contributed to the growth of the bar during its second pericenter passage, although its mass was then much smaller. Both satellites deposited all their gas in ID44, which probably contributed to igniting the third (that is, the last) of its star-formation bursts. The distribution of the densest gas in ID44 at that time does not coincide with the center of the stellar distribution, so the new stars form off-center, which may have also contributed to the formation of the bar.

The second important period of interactions in the lifetime of ID44 took place between 8 and 11 Gyr. During this time, the galaxy passes close to a group of massive galaxies centered on a very massive elliptical (ID2). The interaction causes ID44 to lose all its gas and a significant fraction of dark matter, as illustrated in the first two panels of Fig. 1 depicting the mass evolution of the galaxy. The strongest interaction takes place at t = 10.8 Gyr, as indicated by the strongest dip in the dark matter mass assigned to ID44 at that time and even a small dent in the stellar mass. At this moment, ID44 comes as close as about 100 kpc to ID8, which then had the total mass of 3.6 × 1012 M⊙, that is, 22 times greater than ID44. We note that the interactions with these more massive galaxies appear to have little effect on the bar as it seems to grow steadily during this period. They may have, in fact, helped the bar grow by stripping the gas since galaxies with smaller gas fractions are known to form bars more easily (Shlosman & Noguchi 1993; Athanassoula et al. 2013; Łokas 2020b).

5. Conclusions

We analyzed the properties and evolution of galaxy ID44 in the IllustrisTNG-100 simulation. The galaxy was chosen as an interesting example with properties that are similar to bars tidally induced by the most massive cluster in this simulation and identified by Łokas (2020a). The stellar component of the galaxy is elongated and similar to a bar but with hardly any disk component left. The galaxy is not strongly supported by rotation and contains no gas. In spite of these similarities, the galaxy has never interacted with the cluster and is presently at its first infall, located at its outskirts, at the physical distance of the cluster virial radius. We found that the bar was also tidally induced, but by interactions with two satellites ten times smaller than ID44, one of which ended up merging with it. The gas was later stripped during an interaction with a group of galaxies much bigger than ID44. However, the galaxy cannot be considered as an example of group pre-processing, which is believed to be one of the mechanisms shaping the galaxies in clusters (Benavides et al. 2020), as it never became a member of the group and has not been accreted onto the cluster together with the other member galaxies; instead, it only passes within their vicinity.

ID44 is not the only case of galaxies that have not experienced even a single pericenter passage around the cluster but nonetheless exhibit prolate shapes and limited rotation. There are a few similar objects in Fig. 9 of Łokas (2020a), however, ID44 is the one with the highest triaxiality parameter T = 0.9. Two further examples with bar-like shapes and T >  0.8 are ID55 and ID91. The former ends up beyond the virial radius of the cluster and seems to have the bar induced by the first passage of a satellite at t = 5.5 Gyr, and then it becomes, itself, a satellite of a much bigger galaxy ID1 which enhances its bar and strips all of its gas and most of its dark matter. The latter finds itself closer to the center of the cluster at present. It has a weak bar induced by a passage of a small satellite around t = 4 Gyr, which is then enhanced by a merger with another satellite at t = 7.6 Gyr. Around t = 11.5 Gyr, it passes close to a group of galaxies with masses similar to itself, and loses all the gas as well as a significant fraction of dark matter.

Such objects with similar properties are present around other clusters or groups as well. There seems therefore to be a subclass of bars hosted by early-type galaxies forming in the IllustrisTNG simulation that were not included in previous studies of barred galaxies in Illustris and IllustrisTNG (Peschken & Łokas 2019; Rosas-Guevara et al. 2020; Zhou et al. 2020; Zhao et al. 2020) since these studies focused on late-type objects and considered only bars embedded in strongly rotating, disky galaxies. These early-type bars clearly demonstrate the importance of interactions in the processes of galaxy formation and evolution, and, therefore, certainly deserve further study.

Acknowledgments

I am grateful to the referee for useful comments and the IllustrisTNG team for making their simulations publicly available.

References

  1. Aguerri, J. A. L., Elias-Rosa, N., Corsini, E. M., & Munoz-Tunon, C. 2005, A&A, 434, 109 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  2. Athanassoula, E. 2003, MNRAS, 341, 1179 [NASA ADS] [CrossRef] [Google Scholar]
  3. Athanassoula, E., Machado, R. E. G., & Rodionov, S. A. 2013, MNRAS, 429, 1949 [NASA ADS] [CrossRef] [Google Scholar]
  4. Benavides, J. A., Sales, L. V., & Abadi, M. G. 2020, MNRAS, 498, 3852 [CrossRef] [Google Scholar]
  5. Berentzen, I., Athanassoula, E., Heller, C. H., & Fricke, K. J. 2004, MNRAS, 347, 220 [NASA ADS] [CrossRef] [Google Scholar]
  6. Buta, R. J., Sheth, K., Athanassoula, E., et al. 2015, ApJS, 217, 32 [NASA ADS] [CrossRef] [Google Scholar]
  7. Diaz-Garcia, S., Salo, H., Laurikainen, E., & Herrera-Endoqui, M. 2016, A&A, 587, A160 [NASA ADS] [CrossRef] [EDP Sciences] [Google Scholar]
  8. Font, J., Beckman, J. E., Martinez-Valpuesta, I., et al. 2017, ApJ, 835, 279 [NASA ADS] [CrossRef] [Google Scholar]
  9. Genel, S., Fall, S. M., Hernquist, L., et al. 2015, ApJ, 804, L40 [NASA ADS] [CrossRef] [Google Scholar]
  10. Gerin, M., Combes, F., & Athanassoula, E. 1990, A&A, 230, 37 [NASA ADS] [Google Scholar]
  11. Hohl, F. 1971, ApJ, 168, 343 [NASA ADS] [CrossRef] [Google Scholar]
  12. Lang, M., Holley-Bockelmann, K., & Sinha, M. 2014, ApJ, 790, L33 [NASA ADS] [CrossRef] [Google Scholar]
  13. Łokas, E. L. 2018, ApJ, 857, 6 [NASA ADS] [CrossRef] [Google Scholar]
  14. Łokas, E. L. 2020a, A&A, 638, A133 [CrossRef] [EDP Sciences] [Google Scholar]
  15. Łokas, E. L. 2020b, A&A, 634, A122 [CrossRef] [EDP Sciences] [Google Scholar]
  16. Łokas, E. L., Athanassoula, E., Debattista, V. P., et al. 2014, MNRAS, 445, 1339 [NASA ADS] [CrossRef] [Google Scholar]
  17. Łokas, E. L., Ebrová, I., del Pino, A., et al. 2016, ApJ, 826, 227 [NASA ADS] [CrossRef] [Google Scholar]
  18. Marinacci, F., Vogelsberger, M., Pakmor, R., et al. 2018, MNRAS, 480, 5113 [NASA ADS] [Google Scholar]
  19. Miwa, T., & Noguchi, M. 1998, ApJ, 499, 149 [NASA ADS] [CrossRef] [Google Scholar]
  20. Naiman, J. P., Pillepich, A., Springel, V., et al. 2018, MNRAS, 477, 1206 [CrossRef] [Google Scholar]
  21. Nelson, D., Pillepich, A., Springel, V., et al. 2018, MNRAS, 475, 624 [NASA ADS] [CrossRef] [Google Scholar]
  22. Noguchi, M. 1987, MNRAS, 228, 635 [NASA ADS] [Google Scholar]
  23. Noguchi, M. 1996, ApJ, 469, 605 [NASA ADS] [CrossRef] [Google Scholar]
  24. Ostriker, J. P., & Peebles, P. J. E. 1973, ApJ, 186, 467 [NASA ADS] [CrossRef] [Google Scholar]
  25. Peschken, N., & Łokas, E. L. 2019, MNRAS, 483, 2721 [NASA ADS] [CrossRef] [Google Scholar]
  26. Peschken, N., Łokas, E. L., & Athanassoula, E. 2020, MNRAS, 493, 1375 [CrossRef] [Google Scholar]
  27. Pillepich, A., Nelson, D., Hernquist, L., et al. 2018, MNRAS, 475, 648 [NASA ADS] [CrossRef] [Google Scholar]
  28. Rodriguez-Gomez, V., Genel, S., Vogelsberger, M., et al. 2015, MNRAS, 449, 49 [NASA ADS] [CrossRef] [Google Scholar]
  29. Rosas-Guevara, Y., Bonoli, S., Dotti, M., et al. 2020, MNRAS, 491, 2547 [NASA ADS] [Google Scholar]
  30. Shlosman, I., & Noguchi, M. 1993, ApJ, 414, 474 [NASA ADS] [CrossRef] [Google Scholar]
  31. Springel, V., Pakmor, R., Pillepich, A., et al. 2018, MNRAS, 475, 676 [NASA ADS] [CrossRef] [Google Scholar]
  32. Tremaine, S., & Weinberg, M. D. 1984, ApJ, 282, L5 [Google Scholar]
  33. Zhao, D., Du, M., Ho, L. C., Debattista, V. P., & Shi, J. 2020, ApJ, submitted [arXiv:2009.06895] [Google Scholar]
  34. Zhou, Z.-B., Zhu, W., Wang, Y., & Feng, L.-L. 2020, ApJ, 895, 92 [CrossRef] [Google Scholar]
