Fig. 2.

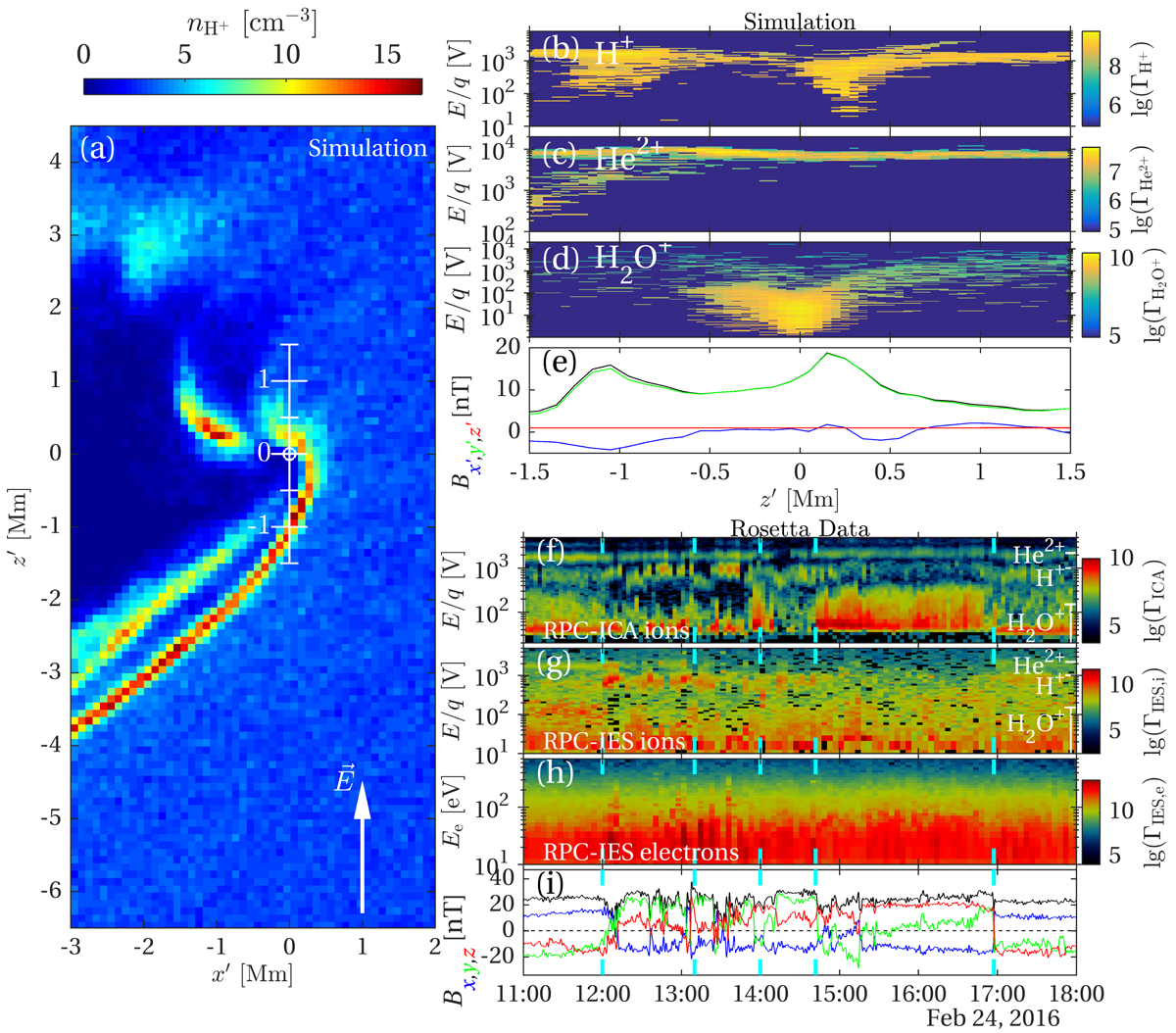

Simulation and observations on 24 February 2016. Panel a: simulated proton density in the x′ – y′ plane. Panel b: simulated proton spectrum along the z′ -axis. Panel c: simulated alpha particle spectrum along the z′ -axis. Panel d: Simulated water ion spectrum along the z′ -axis. Panel e: simulated magnetic field: Bx′ (blue), By′ (green), Bz′ (red), and the magnitude |B| (black). Panel f: RPC-ICA ion energy spectrum. Panel g: RPC-IES ion energy spectrum. Panel h: RPC-IES electron energy spectrum. Panel i: magnetic flux density in CSEQ coordinates measured by RPC-MAG: Bx (blue), By (green), and Bz (red), and the magnitude |B| (black); only the x-axis is the same as in the (primed) simulation coordinates. Coordinates (x, y, z) refer to the observations and (xy′, z′) to the simulations. The x′ -axis for panels be is indicated in white in panel (a), and the nucleus is located at (xy′, z′,) = (0, 0, 0) and indicated by a white circle in panel a. Approximate E/q values for H+, He2+, and H2O+ are indicated on the right-hand side of panels f and g. The cyan ticks in each panel indicate the times referred to in the text.
