Fig. 8

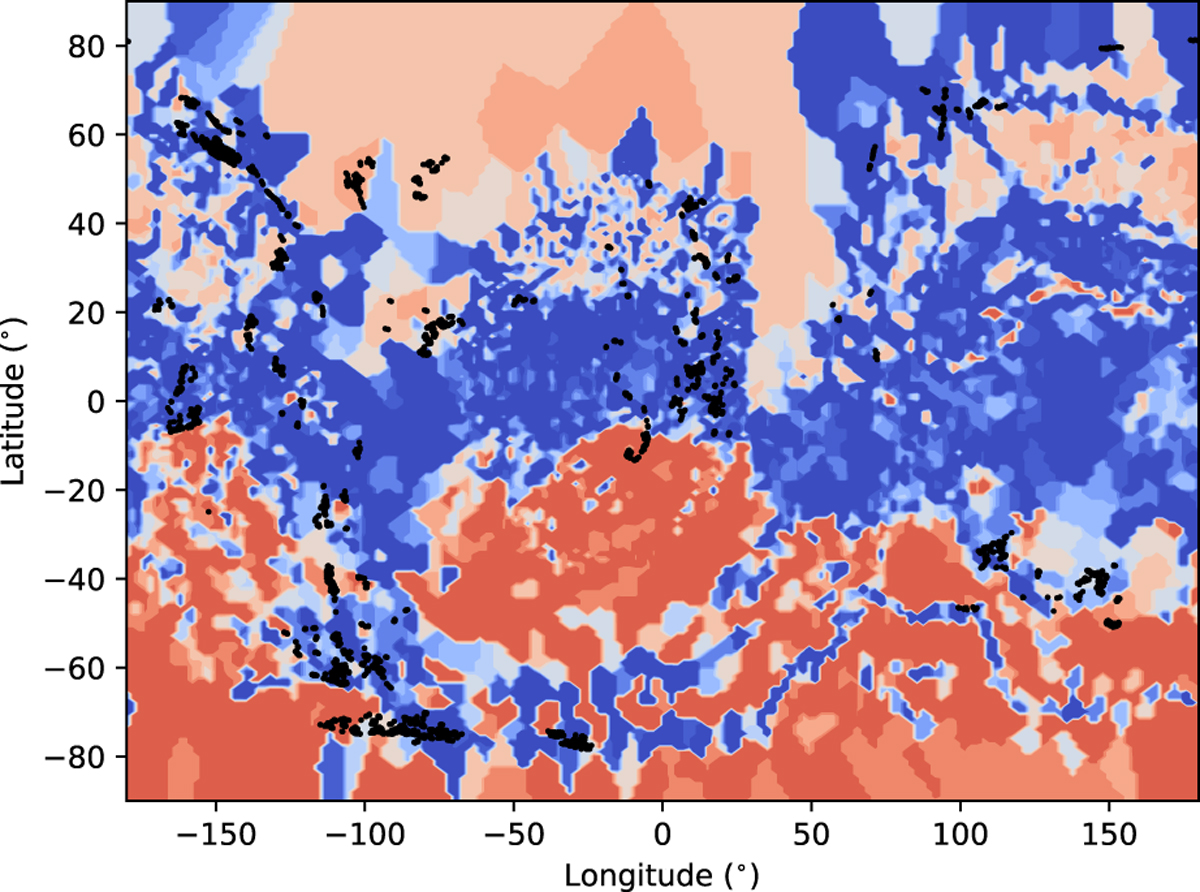

Maximum thermal stresses on the surface of the 67P shape model for the I = 0 J m−2 K−1 s−1∕2 model. Values are for qualitative comparison only. Black points are the locations of the thermal contraction crack polygons measured in Auger et al. (2018). No significant differences are noted between the distribution of stresses on all facets and those containing polygons.
