Fig. 1

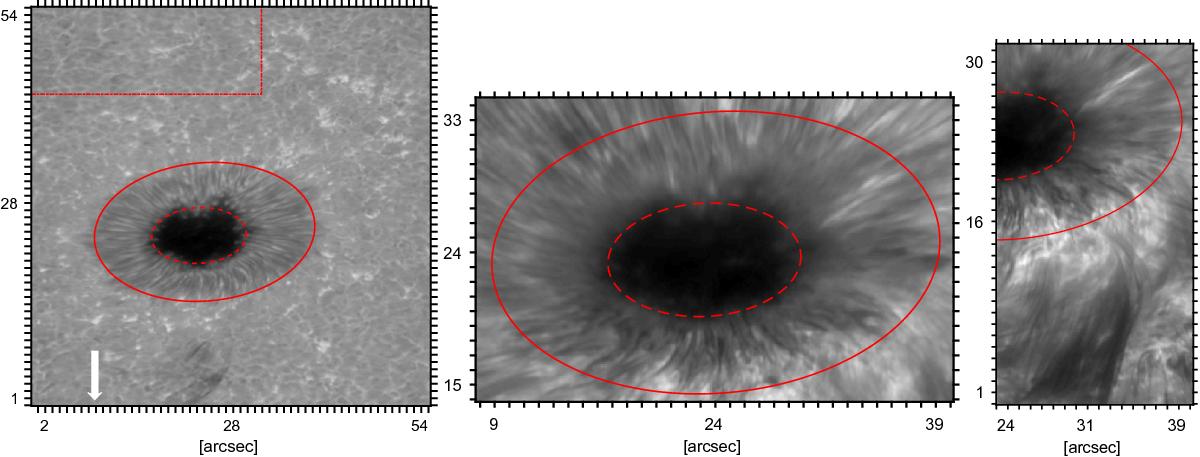

Sunspot imaged by the SST on 28 June 2010 in the Ca ii 8542 Å line at offsets − 1032 mÅ in the full field of view (left) and − 275 mÅ (middle and right) in the Ca ii 8542 Å line, zoomed in on the middle panel and a subfield that contains a strong inverse Evershed flow, which is the dark feature extending from the bottom of the frame to the edge of the penumbra (right). The borders of the umbra (dashed-red) and penumbra (solid-red) are indicated. Also indicated (left) is the area over which the reference quiet-Sun Ca ii 8542 Å average line profile was computed (dashed-dotted-red). The arrow (solid-white) indicates the direction towards disk-centre. Images on the left and at the middle are at time 23 min 27 s, image on the right is at 37 min 46 s.

This figure is made of several images, please see below:
