Fig. E.1

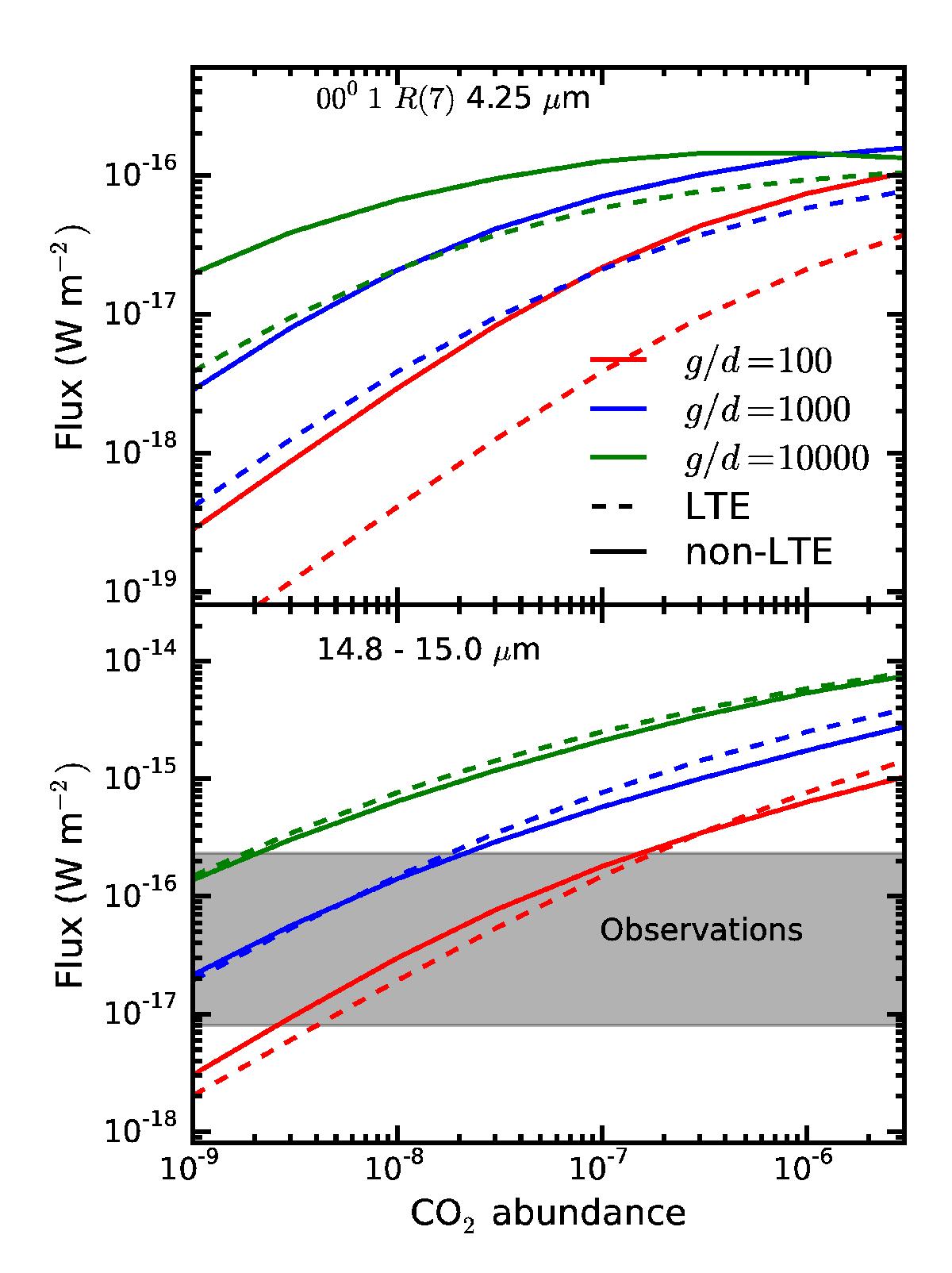

Flux comparison between LTE and non-LTE models. The upper panels show the flux of the R(7) line from the fundamental asymmetric stretch band. The lower panels show the flux contained in the 15 μm feature. The grey region shows the range of observed flux by Salyk et al. (2011b). The abundance in these models is constant over the whole disk. For the 15 μm feature the flux differences are small of the order of 30%. The differences are more pronounced in the 4.25 μm flux where the differences can get as large as a factor of 4.
