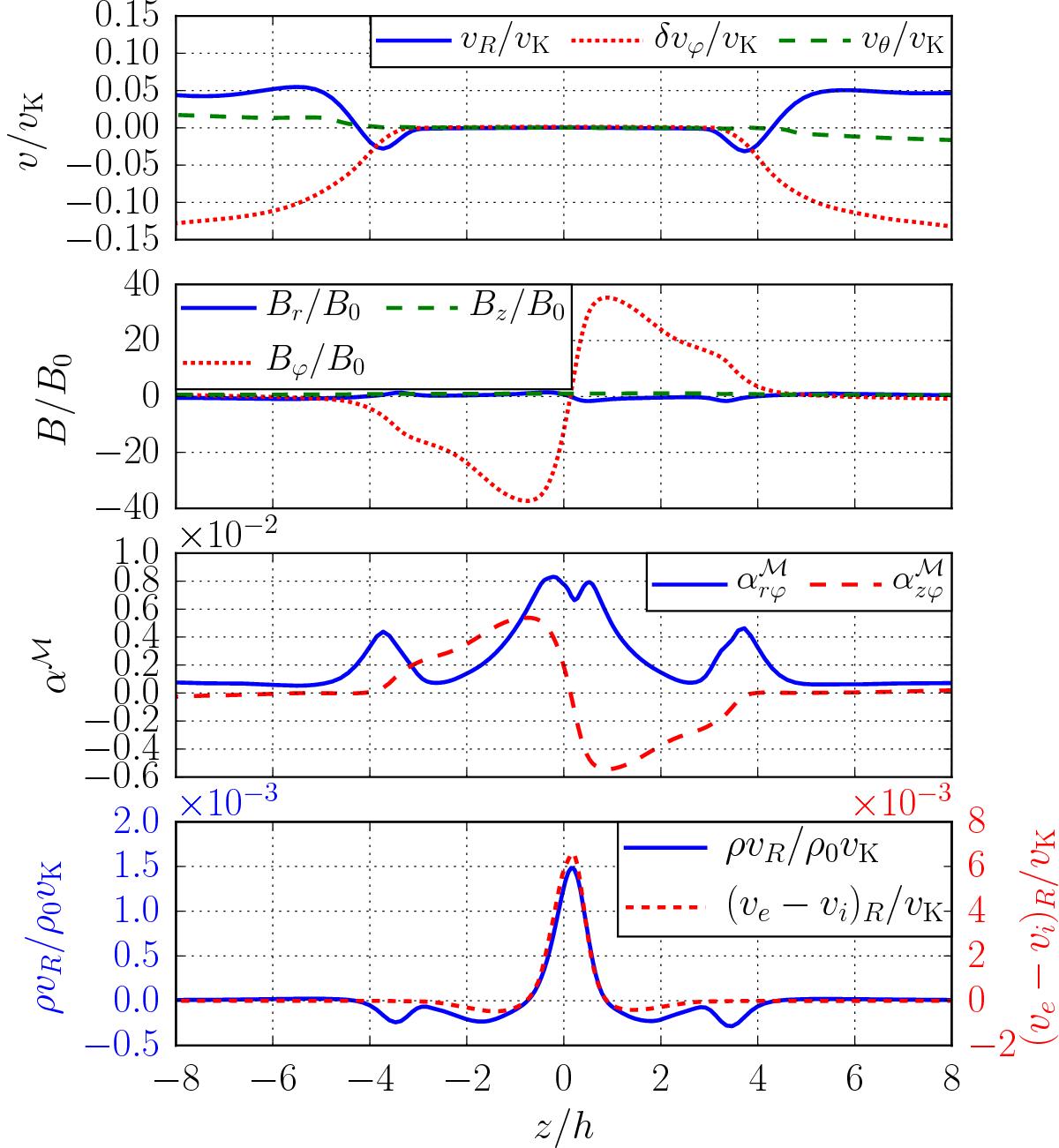

Fig. 17


Vertical profiles in run R1-P4-C4, averaged in time from 400T0 to 1000T0, and in spherical radius from 5r0 to 8r0. First panel: fluid velocity, normalized by the local Keplerian value vK; the disk mean value has been subtracted from the azimuthal component. Second panel: magnetic field, normalized by the vertically averaged value of the vertical field Bz. Third panel: horizontal (solid blue) and vertical (dashed red) magnetic stresses, normalized by the vertically averaged pressure (cf. Eq. (8)). Fourth panel: radial mass flux (solid blue), and electron minus ion radial velocity, normalized by the local Keplerian velocity and the vertically averaged density.
