Fig. 5

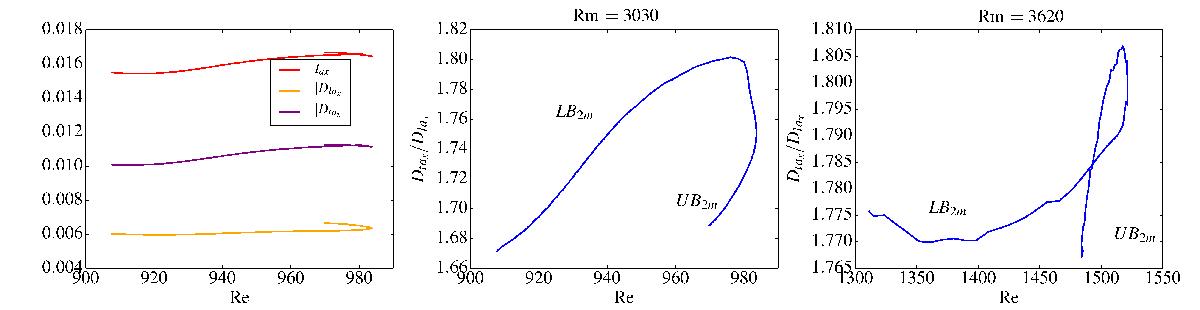

Left panel: different terms Iax, Dlax and Dtax in the net magnetic energy budget (20) for LB2m as a function of Re, at fixed Rm = 3030. Middle and right panels: ratio Dtax/Dlax for the lower and upper branches of SN2m as a function of Re, for Rm = 3030 and Rm = 3620 respectively (the roughness of the rightmost plot is due to the limited time-sampling of simulation outputs used in the postprocessing analysing stages, not to the numerical resolution of the simulations).
