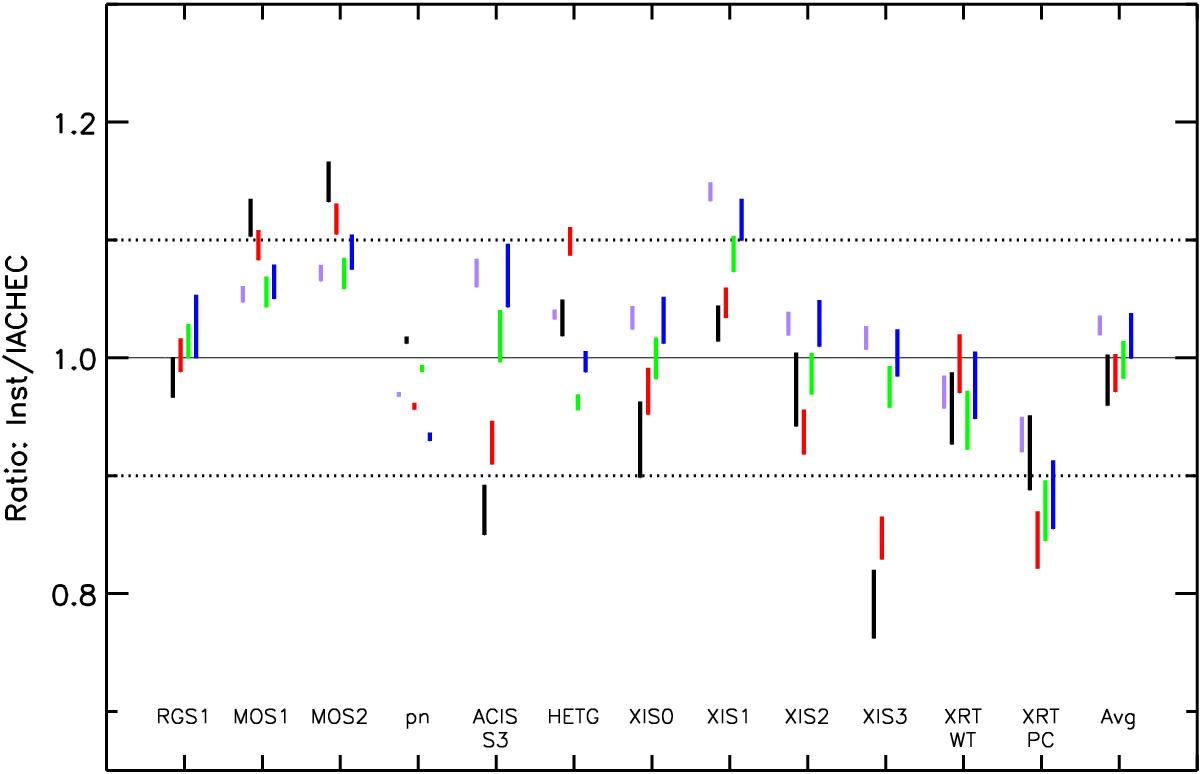

Fig. 14
Comparison of the scaled normalizations for each instrument to the IACHEC model values and the average. There are four or five points for each instrument which are from left to right, global normalization (purple), O vii Heαr (black), O viii Lyα (red), Ne ix Heαr (green), and Ne x Lyα (blue). The length of the line indicates the 1.0σ CL for the scaled normalization.
