Fig. 9

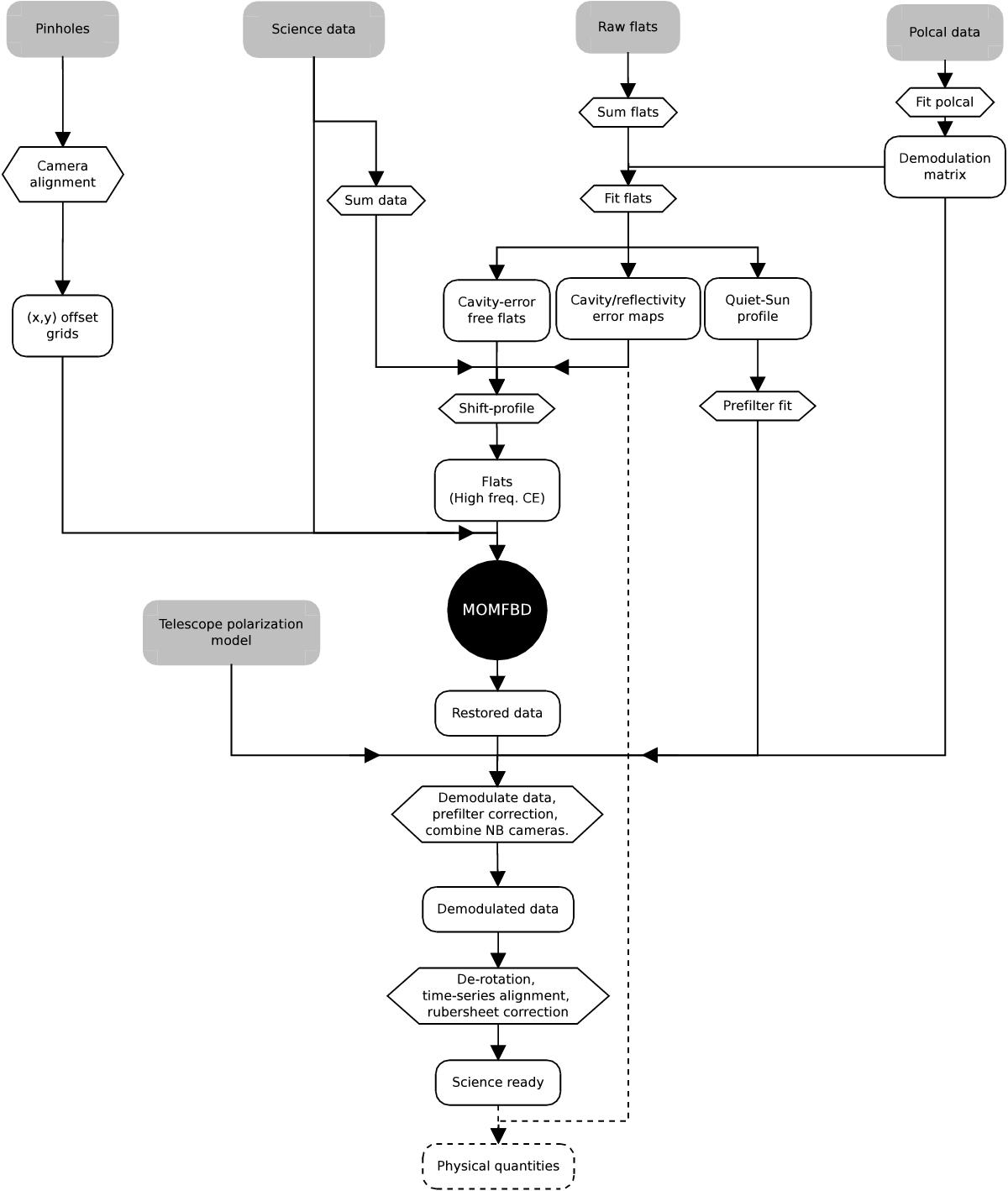

Data flow in the CRISPRED pipeline. Starting points are the rounded boxes with a gray background: the raw data and the telescope polarization model. The diamond boxes indicate fitting and other processing. Products from fitting routines or data processing are represented by rounded, white boxes. The distinct symbol for the MOMFBD processing indicates that it is not done in IDL. Reflectivity and cavity errors must be included in the interpretation of the science data (outside the CRISPRED pipeline, hence indicated with dashed lines). Omitted in the figure for brevity, all science and calibration images are corrected for dark current.
