Fig. 1

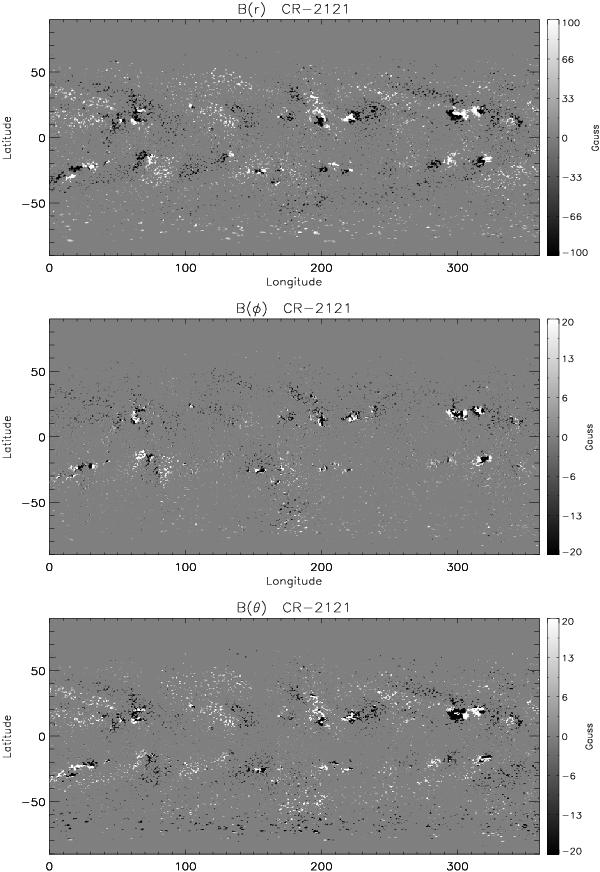

Synoptic Carrington maps of the vector magnetic field components are shown for CR-2121. The panels from top to bottom show the distribution of the Br, Bφ and Bθ components, respectively. The Br map is scaled between ±100 G, and the Bφ and Bθ maps are scaled to ±20 G. The positive values of Br, Bφ and Bθ point, respectively, upward, westward and southward.
