Seismic diagnostics for transport of angular momentum in stars^{⋆}
II. Interpreting observed rotational splittings of slowly rotating red giant stars
^{1}
LESIA, CNRS UMR 8109, Université Pierre et Marie Curie, Université Denis
Diderot, Observatoire de Paris,
92195
Meudon,
France
email: mariejo.goupil@obspm.fr
^{2}
GeorgAugustUniversität Göttingen, Institut für Astrophysik,
FriedrichHundPlatz
1, 37077
Göttingen,
Germany
^{3}
Institut d’Astrophysique, Géophysique et Océanographie de
l’Université de Liège, Allée du 6
Août 17, 4000
Liège,
Belgium
^{4}
Observatoire de Paris, GEPI, CNRS UMR 8111,
92195
Meudon,
France
Received:
20
August
2012
Accepted:
5
November
2012
Asteroseismology based on observations from the spaceborne missions CoRoT and Kepler provides a powerful means of testing the modeling of transport processes in stars. Rotational splittings are currently measured for a large number of red giant stars and can provide stringent constraints on the rotation profiles. The aim of this paper is to obtain a theoretical framework for understanding the properties of the observed rotational splittings of red giant stars with slowly rotating cores. This allows us to establish appropriate seismic diagnostics for the rotation of these evolved stars. Rotational splittings were computed for stochastically excited dipolar modes by adopting a firstorder perturbative approach for two 1.3 M_{⊙} benchmark models that assume slowly rotating cores. For red giant stars with slowly rotating cores, we show that the variation in the rotational splittings of ℓ = 1 modes with frequency depends only on the large frequency separation, the gmode period spacing, and the ratio of the average envelope to core rotation rates (ℛ). This led us to propose a way to infer directly ℛ from the observations. This method is validated using the Kepler red giant star KIC 5356201. Finally, we provide theoretical support for using a Lorentzian profile to measure the observed splittings for red giant stars.
Key words: stars: evolution / stars: oscillations / stars: rotation / stars: interiors
Appendix A is available in electronic form at http://www.aanda.org
© ESO, 2012
1. Introduction
Stellar rotation plays an important role in the structure and evolution of stars. The problem of the transport of angular momentum inside stars is not yet fully understood, however. Several mechanisms seem to be active, although they are either only approximately described or not modeled at all. To study the internal transport and evolution of angular momentum with time, one needs observational constraints on the physical quantities affected by such transport processes. In particular, the knowledge of the internal rotation profiles and their evolution with time is crucial. An efficient way is to obtain seismic information on the internal rotation profile of stars.
The ultrahigh precision photometry (UHP) asteroseismic space missions, such as CoRoT (Baglin et al. 2006) and Kepler (Borucki et al. 2010), offer such an opportunity. Because cool lowmass stars have a convective envelope, oscillations can be stochastically excited as in the solar case. Red giant stars are of particular interest here. Stochastically excited nonradial modes were detected with CoRoT (De Ridder et al. 2009). Analyses of these data revealed the oscillation properties of a large number of these stars (e.g., Hekker et al. 2009; Mosser et al. 2010, 2011a; Bedding et al. 2011). Their frequency spectra show similarities, as well as differences, with the solar case (Mosser et al. 2011b). Several works have investigated the properties of the nonradial oscillation modes of red giant stars (e.g., Osaki 1975; Dziembowski 1977; Dziembowski et al. 2001; Dupret et al. 2009; Montalbán et al. 2010). The internal properties of a red giant star, a dense core and a diffuse envelope, give rise to both gravitytype oscillations in the central region and acoustictype oscillations in the envelope. These oscillations were first called mixed modes by Dziembowski (1971) for a Cepheid model and Scuflaire (1974) for condensed models representative of a red giant structure. This has already been proven useful for probing the structure of these stars (e.g., Bedding et al. 2011; Mosser et al. 2011a).
More recently, measurements of rotational splittings of red giant stars have been obtained by using the Kepler observations (e.g., Deheuvels et al. 2012; Beck et al. 2012; Mosser et al. 2012b). These splittings provide the first direct insight into the rotation profiles of the innermost layers of stars (Deheuvels et al. 2012). Observations (Mosser et al. 2012a) reveal that a subsample of oscillating red giants have complex frequency spectra. Their central layers are likely to rotate quite fast. A correct rotation rate ought then to be deduced from direct calculations of frequencies in a nonpertubative approach (see the case for polytropes and acoustic modes in Reese et al. 2006; Lignières 2011; Ouazzani et al. 2012; and for g modes in Ballot et al. 2010, 2011). This will be necessary in order to decipher the complex spectra for fast rotation. On the other hand, the rest of the sample shows simple power spectra that can be easily identified without ambiguity. These identifications then lead to quite small rotational splittings (Beck et al. 2012; Mosser et al. 2012a), hence to slowly rotating cores.
On the theoretical side, the central rotations predicted theoretically by the standard models currently including rotationally induced mixing are far too fast (e.g., Eggenberger et al. 2012) and cannot account for the observed slow core rotation in red giants.
Motivated by these recent results, we have started a series of studies dedicated to understanding the rotational properties of oscillating evolved stars. Marques et al. (2013, hereafter Paper I) computed the rotation profiles and their evolution with time from the premain sequence (PMS) to the red giant branch (RGB) for 1.3 M_{⊙} stellar models with an evolutionary code where rotationally induced mixing had been implemented. The authors then followed the evolution of the rotational splittings calculated to firstorder approximation in the rotation rate using the rotation profiles predicted by their evolutionary computations. The authors found that for lowmass stars, the firstorder approximation is valid for most stochastically excited oscillation modes for all evolutionary stages except the RGB. For red giants, the authors showed that there is indeed room enough in the uncertainties of the description of transport of angular momentum to significantly decrease the core rotation of red giant models (see also Meynet et al. 2012). However, they still predict a core rotation that is still too large compared with the observed rotational splittings, meaning that some additional processes are operating in the star to slow down its core. To test such possible additional mechanisms, investigations of the specific properties of the rotational splittings of red giants with slow core rotation must be carried out, essentially because of the particular dual nature of the excited red giant modes.
We thus defer the study of red giants with fastrotating cores to the third paper of this series. We focus here on red giants with slowly rotating cores. We present a study of the properties of linear rotational splittings, computed for adiabatic oscillation modes, in the frequency range of observed modes in red giant stars. We assume arbitrarily slow rotation profiles and then study the impact of the properties of the modes on the rotational splittings. Our goal is to provide a theoretical framework for interpreting the observed rotational splittings of red giants in terms of core and envelope rotation.
The paper is organized as follows. In Sect. 2, we describe the properties of our models. In order to interpret the rotational splittings, we first need to identify the physical nature of the excited modes. This is done in Sect. 3 where we distinguish two classes of mixed modes. In Sect. 4, we compute theoretical rotational splittings using adiabatic eigenfrequencies and eigenfunctions obtained for ℓ = 1 modes. The studied frequency range corresponds to expected stochastically excited modes. We then show that the variation in the rotational splittings with frequency exhibit repetitive patterns that can be folded into a single pattern as they carry nearly the same information. We then consider in detail such a pattern for one of our models and investigate the information provided by the corresponding rotational splittings. In Sect. 5, we establish an approximate formulation for the linear rotational splittings in terms of the core contribution to mode inertia. The approximate expression fits the numerical ones well and allows us to interpret them. We also give a procedure that enables one to derive the mean rotation of the core and of the envelope. Proceeding further in the approximations in Sect. 6, we find an approximate formulation of the core contribution to mode inertia – thus to rotational splittings – that only depends on observable quantities aside rotation. We validate our theoretical results on the Kepler observations of the star KIC 5356201 (Beck et al. 2012). Finally, we end with some conclusions in Sect. 8.
Fig. 1 HertzsprungRüssell (HR) diagram showing a 1.3 M_{⊙} evolutionary track. The red crosses indicate the selected models as described in Sect. 2 and in Table 1.
Fundamental parameters of the 1.3 M_{⊙} stellar models.
2. Structures of stellar models and rotation profiles
We consider 1.3 M_{⊙} models of red giants since this mass is typical of observed red giant stars (Mosser et al. 2010). These models (structure and rotation profile) were evolved from the PMS as described in Paper I.
Fig. 2 Logarithm of normalized squared BruntVäisälä N^{2} (solid curve) and (ℓ = 1) Lamb frequencies ${\mathit{S}}_{\mathit{l}}^{\mathrm{2}}$ (dashdotted curve) as a function of the normalized mass m/M for model M1 (${\mathrm{log}}_{\mathrm{10}}{\mathit{\sigma}}_{\mathrm{max}}^{\mathrm{2}}\mathrm{=}\mathrm{2.60}$) (black curves) and M2 (${\mathrm{log}}_{\mathrm{10}}{\mathit{\sigma}}_{\mathrm{max}}^{\mathrm{2}}\mathrm{=}\mathrm{2.32}$) (blue curves). The thin horizontal solid lines indicate the frequency range for expected excited oscillation modes: black for model M1 and blue for M2.
2.1. Selected models
The first model (M1) lies at the base of the red giant branch (Fig. 1). Its outer convective zone occupies 67% in mass of the outer envelope and is located at Δm/M = 0.2 above the Hshell burning. The second model (M2) is farther up on the ascending branch (Fig. 1). Its outer convective zone occupies 80% of the outer envelope and is at Δm/M = 0.015 above the Hshell burning. Table 1 lists the stellar radius in solar units, the effective temperature, luminosity in solar units, the central density ρ_{c}, the ratio with , the radius at the base of the outer convective zone, the radius of maximum nuclear production rate (both normalized to the stellar radius), the seismic quantities: the large separation Δν, the gmode period spacing ΔΠ (in s), the frequency at maximum power spectrum intensity ν_{max}, the radial order n_{max} at ν_{max}.

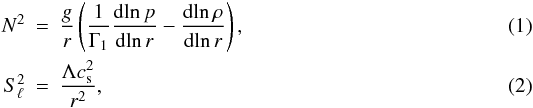

The propagation diagrams (Osaki 1975) for models M1 and M2 are displayed in Fig. 2. Only the central part is shown because it plays a major role in determining the properties of the oscillation modes of red giants (see Sect. 3). The BruntVäisälä (N) and Lamb (S_{ℓ}) frequencies take their usual definition, i.e., $\begin{array}{ccc}{\mathit{N}}^{\mathrm{2}}& \mathrm{=}& \frac{\mathit{g}}{\mathit{r}}\left(\frac{\mathrm{1}}{{\mathrm{\Gamma}}_{\mathrm{1}}}\frac{\mathrm{d}\mathrm{ln}\mathit{p}}{\mathrm{d}\mathrm{ln}\mathit{r}}\mathrm{}\frac{\mathrm{d}\mathrm{ln}\mathit{\rho}}{\mathrm{d}\mathrm{ln}\mathit{r}}\right)\mathit{,}\\ {\mathit{S}}_{\mathit{\ell}}^{\mathrm{2}}& \mathrm{=}& \frac{\mathrm{\Lambda}{\mathit{c}}_{\mathrm{s}}^{\mathrm{2}}}{{\mathit{r}}^{\mathrm{2}}}\mathit{,}\end{array}$where Λ = ℓ(ℓ + 1), ℓ is the angular degree of the mode, ${\mathit{c}}_{\mathrm{s}}^{\mathrm{2}}$ the squared sound speed, the gravity g = Gm/r^{2}, and p,ρ,Γ_{1} have their usual meaning. Unless otherwise stated, we consider all squared frequencies ${\mathit{N}}^{\mathrm{2}}\mathit{,}{\mathit{S}}_{\mathit{\ell}}^{\mathrm{2}}$ to be normalized to GM/R^{3} and σ^{2} = ω^{2}/(GM/R^{3}) (where ω is the mode pulsation in rad/s).
Model M2 is more evolved and more centrally condensed than M1. Accordingly, the inner maximum of the BruntVäisälä frequency is higher than for the younger model M1 (Montalbán et al. 2010), and N decreases more sharply. The range of frequency corresponding to the expected excited modes are indicated. They show that the evanescent region between the inner g resonant cavity and the upper p resonant cavity (i.e., between the BruntVäisälä and Lamb frequencies) is quite narrow for these modes.
2.2. Rotation profiles
The original rotation profiles obtained for models M1 and M2 from evolution are displayed in Fig. 3. The central regions of the more evolved model M2 rotate much faster than those of M1 (amounting to 181.5 and 260 μHz, respectively). With such high rotation rates, we checked first that the centrifugal acceleration is negligible compared to local gravity in our models (that is, with a relative magnitude of 10^{4} at most). We can therefore still safely assume a spherically symmetric equilibrium state. However, the linear approximation is no longer valid due to Coriolis effects when 2Ω/ω is close to unity. This happens in the central regions of the models for the modes we consider. Since we study slowly rotating red giants here, we assumed that some slowing down process has and/or is occurring in real stars that have not yet been included in our models. We therefore artificially decreased the rotation rates stemmed from our evolutionary models so that the firstorder approximation for the rotational splittings is valid. The shape of the rotation profile due to slowing down is unknown, we therefore kept it unchanged and investigated whether this can be confirmed or not by confrontation with observations.
Fig. 3 Rotation profiles as a function of the normalized mass. The surface values are Ω_{surf}/(2π) = 0.154, 0.042 μHz, respectively. Original Ω profiles stemmed from the evolution of the stellar models (red solid curve for model M1 and blue solid curve for model M2). The dotdashed lines represent the rotation profiles that have been arbitrarily decreased by assuming Ω_{surf}(Ω/Ω_{surf})^{1/f} with f = 3.85 for model M1 (red curve) and f = 2.8 for model M2 (blue curve).
We therefore decreased the central rotation rates by rescaling the rotation profile stemmed from our evolutionary models, i.e. decreased the central values but kept the same envelope rotation rate. The decrease is set so that the value of the computed rotational splittings agree with observed ones. For instance, for model M1, the initial central rotation, 181.5 μHz, is decreased down to 0.967 μHz. The rotation profiles we used to compute the linear rotational splittings in the following sections are then shown in Fig. 3.
3. Classification of mixed modes
The rotational splittings depend not only on the rotation profile but also on the eigenfunctions – that is, on the physical nature – of the excited modes. Stellar models of red giant stars exhibit an outer convective region that is able to efficiently drive modes stochastically (Samadi et al. 2012). Thus, we consider only those frequency ranges for our models that span an interval of a few radial orders below and above n_{max} (the radial order corresponding to the frequency at maximum power). We estimate n_{max} as n_{max} = ν_{max}/Δν, where the frequency at maximum power spectrum ν_{max} and the mean large separation Δν are given by the usual scaling relations (e.g., Kjeldsen & Bedding 1995) $\begin{array}{ccc}& & {\mathit{\nu}}_{\mathrm{max}}\mathrm{=}{\mathit{\nu}}_{\mathrm{max}\mathit{,}\mathrm{\odot}}\left(\frac{\mathit{M}}{{\mathit{M}}_{\mathrm{\odot}}}\right){\left(\frac{\mathit{R}}{{\mathit{R}}_{\mathrm{\odot}}}\right)}^{2}{\left(\frac{{\mathit{T}}_{\mathrm{eff}}}{{\mathit{T}}_{\mathrm{eff}\mathit{,}\mathrm{\odot}}}\right)}^{\mathrm{}\mathrm{1}\mathit{/}\mathrm{2}}\mathit{,}\\ & & \mathrm{\Delta}\mathit{\nu}\mathrm{=}\mathrm{\Delta}{\mathit{\nu}}_{\mathrm{\odot}}{\left(\frac{\mathit{M}}{{\mathit{M}}_{\mathrm{\odot}}}\right)}^{\mathrm{1}\mathit{/}\mathrm{2}}{\left(\frac{\mathit{R}}{{\mathit{R}}_{\mathrm{\odot}}}\right)}^{\mathrm{}\mathrm{3}\mathit{/}\mathrm{2}}\mathit{,}\end{array}$\arraycolsep1.75ptwith T_{eff, ⊙ } = 5777 K and the reference asymptotic values ν_{max, ⊙ } = 3106 μHz, and Δν_{⊙} = 138.8 μHz defined and calibrated by Mosser et al. (2013). Indeed, it has been conjectured by Brown et al. (1991), then shown observationally by Bedding & Kjeldsen (2003), that ν_{max} predicts the location of the excited frequency range of stochastically excited modes well. A physical justification has recently been proposed by Belkacem et al. (2011). The adiabatic oscillation frequencies and eigenfunctions for ℓ = 1 modes are computed with the ADIPLS code (ChristensenDalsgaard 2008).
Model M1 frequencies of the selected pattern.
Normalized radius of the turning points for selected modes for model M1 frequencies.
Fig. 4 Top: integrated kernel (β I) with β and I given by Eqs. (13) and (8) respectively, (blue dotted line, dots correspond to modes) and mode inertia I (red dotted line, dots correspond to modes) in decimal logarithm for model M1. Black crosses represent the inertia of radial modes. Bottom: rotational splittings (Eq. (11)), in μHz, for ℓ = 1 modes as a function of the normalized frequency ν/Δν for M1 (black dots connected by a dotted line). The magenta open dots connected with the magenta dotted line represents the core contribution to the rotational splittings ⟨ Ω ⟩ _{core}β_{core} (Eqs. (15) and (18)). The core contribution to the rotational splittings (Eq. (15)) with ⟨ Ω ⟩ _{core} computed with the horizontal eigenfunction z_{2} alone is displayed with the blue crosses dotted line. The blue dotted line represents the contribution from the envelope to the rotational splittings ⟨ Ω ⟩ _{env} (β − β_{core}). The value ⟨ Ω ⟩ _{core}/4π is drawn with the horizontal red dotted line.
As expected from previous works (e.g., Osaki 1975; Dziembowski 1977; Dziembowski et al. 2001; Dupret et al. 2009; Montalbán et al. 2010), our red giant models show many mixed ℓ = 1 modes. For model M1, for instance, the frequency range of excited modes is expected to be log _{10}(σ^{2}) ~ 2−2.8. For modes that are expected to be excited around ν_{max} (given in Table 2), the corresponding frequencies are much lower than both the BruntVäisälä frequency and the Lamb frequency in the central regions of the models (see Fig. 2). Therefore, modes with frequencies close to ν_{max} are trapped in the g resonant cavity, which is located in the radiative central region. Moreover, ${\mathit{\sigma}}_{\mathrm{max}}^{\mathrm{2}}\mathrm{\gg}{\mathit{N}}^{\mathrm{2}}\mathit{,}{\mathit{S}}_{\mathit{\ell}}^{\mathrm{2}}$ in most of the envelope so that the modes are also trapped in the p resonant cavity in the convective envelope (not shown). These cavities’ boundaries are delimited by turning points, i.e. the radii satisfying σ^{2} = N^{2}(r) (g cavity bounded by x_{1} and x_{2}) or ${\mathit{\sigma}}^{\mathrm{2}}\mathrm{=}{\mathit{S}}_{\mathit{\ell}}^{\mathrm{2}}\mathrm{\left(}\mathit{r}\mathrm{\right)}$ (p cavity bounded by x_{3} and x_{4}). The location of these turning points for a list of selected modes are given in Sect. 4.1, Table 3.
To interpret the observed rotational splittings correctly, we need to define a measure of the g nature of the modes with respect to their p part and classify them accordingly. Convenient quantities for that purpose are the kinetic energy (Unno et al. 1989) or the mode inertia (Dziembowski et al. 2001), defined as $\mathrm{\mathcal{I}}\mathrm{=}\mathrm{4}\mathit{\pi}{\mathit{R}}^{\mathrm{3}}{\mathrm{\int}}_{\mathrm{0}}^{\mathrm{1}}({\mathit{\xi}}_{\mathrm{r}}^{\mathrm{2}}\mathrm{+}\mathrm{\Lambda}{\mathit{\xi}}_{\mathrm{h}}^{\mathrm{2}})\mathit{\rho}{\mathit{x}}^{\mathrm{2}}\mathrm{d}\mathit{x}\mathit{,}$(5)with Λ = ℓ(ℓ + 1), and x = r/R is the normalized radius. The oscillation quantities entering the above definition are the fluid vertical and horizontal displacement eigenfunctions ξ_{r} and ξ_{h} respectively. For later convenience, we use the following variables $\begin{array}{ccc}{\mathit{z}}_{\mathrm{1}}& \mathrm{=}& {\left(\frac{\mathrm{3}\mathit{\rho}}{\mathit{\rho \u0305}}\right)}^{\mathrm{1}\mathit{/}\mathrm{2}}{\mathit{x}}^{\mathrm{3}\mathit{/}\mathrm{2}}\frac{{\mathit{\xi}}_{\mathrm{r}}}{\mathit{R}}\mathit{,}\\ {\mathit{z}}_{\mathrm{2}}& \mathrm{=}& \sqrt{\mathrm{\Lambda}}{\left(\frac{\mathrm{3}\mathit{\rho}}{\mathit{\rho \u0305}}\right)}^{\mathrm{1}\mathit{/}\mathrm{2}}{\mathit{x}}^{\mathrm{3}\mathit{/}\mathrm{2}}\frac{{\mathit{\xi}}_{\mathrm{h}}}{\mathit{R}}\mathrm{\xb7}\end{array}$Using Eqs. (6) and (7) in (5) leads to (dropping the subscripts n,ℓ) $\mathit{I}\mathrm{=}{\mathrm{\int}}_{\mathrm{0}}^{\mathrm{1}}({\mathit{z}}_{\mathrm{1}}^{\mathrm{2}}\mathrm{+}{\mathit{z}}_{\mathrm{2}}^{\mathrm{2}})\frac{\mathrm{d}\mathit{x}}{\mathit{x}}\mathit{,}$(8)where we have defined the dimensionless mode inertia I as I = ℐ/(MR^{2}).
The variation in ℓ = 1 mode inertia with frequency is shown in Figs. 4 and 5 for models M1 and M2. The number of nodes in the g cavity is given by ${\mathit{n}}_{\mathrm{g}}\mathrm{=}\frac{\sqrt{\mathrm{\Lambda}}}{\mathit{\pi \omega}}{\mathrm{\int}}_{\mathrm{core}}\frac{\mathit{N}}{\mathit{x}}\mathrm{d}\mathit{x,}$(9)(Unno et al. 1989, and references therein).
Because N^{2} increases with evolution (see Fig. 2 for M1 and M2), the number of nodes, hence of modes, in a given frequency range increases with the age of the star. This can be seen by comparing Fig. 4 for model M1 and Fig. 5 for model M2. Mixed modes with a gdominated character have their inertia larger than modes that have their inertia shared between the g and p cavities. These results are in agreement with previous works (e.g., Dupret et al. 2009).
We now define for convenience a measure of the g nature of the mode with the ratio of mode inertia in the g cavity over the total mode inertia (Deheuvels et al. 2012), i.e., $\mathit{\zeta}\mathrm{=}\frac{{\mathit{I}}_{\mathrm{core}}}{\mathit{I}}\mathrm{=}\frac{\mathrm{1}}{\mathit{I}}{\mathrm{\int}}_{\mathrm{0}}^{{\mathit{r}}_{\mathrm{core}}}\mathrm{(}{\mathit{z}}_{\mathrm{1}}^{\mathrm{2}}\mathrm{+}{\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}\mathrm{)}\frac{\mathrm{d}\mathit{x}}{\mathit{x}}\mathrm{~}\frac{\mathrm{1}}{\mathit{I}}{\mathrm{\int}}_{\mathrm{0}}^{{\mathit{r}}_{\mathrm{core}}}{\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}\frac{\mathrm{d}\mathit{x}}{\mathit{x}}\mathrm{\xb7}$(10)For a mode that is pdominated, the inertia is concentrated in the pcavity and is small due to the low density in the envelope (ζ ~ 0). Its frequency is mainly determined by the pcavity and is therefore half a large separation away from the frequencies of consecutive radial modes.
For a mixed mode where the g character dominates (ζ ~ 1), the mode inertia is strong due to the high density of the central regions where the mode has its maximum amplitude. The frequency of this ℓ = 1 mixed mode differs significantly from that of a ℓ = 1 mode that would be a pure p mode. Its frequency is then closer to that of the closest radial mode. We refer later to such a mode as a gm mode as in Mosser et al. (2012a).
When the contributions to mode inertia from the core and the envelope are nearly equal, the mode frequencies are less affected by the core and therefore remain closer to the frequencies of pure ℓ = 1 p modes. We refer to such mixed modes as pm modes (Mosser et al. 2012a). These modes take intermediate values of ζ.
4. Linear rotational splittings
For slow rotation, a firstorder perturbation theory provides the following expression for the rotational splittings (Ledoux 1951; ChristensenDalsgaard & Berthomieu 1991) $\mathit{\delta \nu}\mathrm{=}{\mathrm{\int}}_{\mathrm{0}}^{\mathrm{1}}\mathit{K}\mathrm{\left(}\mathit{x}\mathrm{\right)}\frac{\mathrm{\Omega}\mathrm{\left(}\mathit{x}\mathrm{\right)}}{\mathrm{2}\mathit{\pi}}\mathrm{d}\mathit{x,}$(11)where Ω is the angular rotation velocity and the rotational kernel K takes the form $\mathit{K}\mathrm{=}\frac{\mathrm{1}}{\mathit{I}}\left({\mathit{z}}_{\mathrm{1}}^{\mathrm{2}}\mathrm{+}{\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}\mathrm{}\frac{\mathrm{2}}{\sqrt{\mathrm{\Lambda}}}{\mathit{z}}_{\mathrm{1}}{\mathit{z}}_{\mathrm{2}}\mathrm{}\frac{\mathrm{1}}{\mathrm{\Lambda}}{\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}\right)\frac{\mathrm{1}}{\mathit{x}}$(12)normalized to the mode inertia I. For later purposes, we also define $\mathit{\beta}\mathrm{=}{\mathrm{\int}}_{\mathrm{0}}^{\mathrm{1}}\mathit{K}\mathrm{\left(}\mathit{x}\mathrm{\right)}\mathrm{d}\mathit{x}\mathit{.}$(13)We computed the rotational splittings according to Eq. (11) for ℓ = 1 modes and refer to them as numerical rotational splittings later on. The variations in the rotational splittings with the normalized frequency ν/Δν are shown for models M1 an M2 in Figs. 4 and 5. Also displayed are the variations in both the inertia I and the product β I (with β and I respectively given by Eqs. (13) and (8)). They show that the oscillatory variations of the splittings with frequency are dominated by the nature of the modes since they closely follow those of mode inertia and of the integrated kernel β I (see Sect. 4.2).
It may be useful to the reader to note that models that are located at the same location in the HR diagram (models with the same mass but one with an overshoot of 0.1 pressure scale height and no rotational induced mixing and one without overshoot but with rotational induced mixing) have similar structures. As a consequence, the rotational splitting of any given mode in the range of interest here is the same for both models when computed with the eigenfunctions of the respective models and the same rotation profile.
4.1. Periodic patterns for rotational splittings
It is clear from Figs. 4 and 5 that the variation in the mode inertia and rotational splitting with frequency shows a quasiperiodic pattern, with a period close to the large separation. Each pattern around a radial mode carries roughly the same information about the rotation, at least in the range of observed modes for red giants as found by Mosser et al. (2012a). We note, however, that at higher frequencies, the physical nature of the mixed modes is closer to that of pure p modes and probe the rotation of the surface layers. At lower frequency, the nature of gm modes is much closer to that of pure g modes and probe the inner rotation better.
The existence of repeated patterns leads us to gather information by folding the power spectrum according to the large separation Δν. The rotational splittings are plotted in Fig. 6 as a function of (ν − ν_{0})/Δν where ν_{0} is the closest radial mode to the ℓ = 1 mode of frequency ν. The folding (ν − ν_{0})/Δν corresponds to the asymptotic folding ν/Δν − (n_{p} + ε) as suggested by Mosser et al. (2012b), where n_{p} is the radial order of the mode and ε represents some departure from the asymptotic description (Tassoul 1980; Mosser et al. 2012a). This folding is shown for our two models in Fig. 6. We see that all patterns nearly do superpose for each model. Here, ε ~ 1.3−1.4 for model M1 and ε ~ 0 for model M2. A clear correlation exists between the magnitude of the splitting and the g nature of the mixed mode. The minimum, thatis the smallest rotation splittings, corresponds to the pm modes. The larger rotation splittings that lie on the left and righthand sides of this minimum correspond to gm modes. This agrees with recent observations (Mosser et al. 2012b). In the lowfrequency domain, the modes are, for most of them, gm modes. At higher frequency, they can be either g or pm modes (Fig. 6). This is clearly seen when one looks at restricted domains of frequency (corresponding to different color codes in Fig. 6).
We also note that the ratio of the minimum splittings δν_{min} to the maximum ones δν_{max} (~0.5 for for model M1 and M2) is only slightly sensitive to rotation. Actually, it only depends on the ratio of the envelope to core rotation, which is small. This is explained in Sect. 6.
Fig. 6 Folded rotational splittings according to (ν − ν_{0})/Δν for Top: model M1 (blue 9 < ν/Δν < 15; magenta ν/Δν > 15; green ν/Δν < 9) and Bottom: for model M2 (blue 8 < ν/Δν < 14; magenta ν/Δν > 14; green ν/Δν < 8). The splittings are normalized to their maximum values, which are written in the panels.
4.2. Properties of a periodic pattern
To interpret the behavior of the splittings, we consider a single pattern around a given ℓ = 0 mode with radialorder n_{p} = 10 (Table 2) for model M1. There are six modes in the pattern labeled ν_{1} to ν_{6} from the lowest to the highest frequency.
4.2.1. Mode inertia I and rotational splittings
The rotational splittings for ν_{1} to ν_{6} are displayed in Fig. 7. The relative contributions I_{1}/I related to ${\mathit{z}}_{\mathrm{1}}^{\mathrm{2}}$, and I_{2}/I related to ${\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}$, defined as $\frac{{\mathit{I}}_{\mathrm{1}}}{\mathit{I}}\mathrm{=}\frac{\mathrm{1}}{\mathit{I}}{\mathrm{\int}}_{\mathrm{0}}^{\mathrm{1}}{\mathit{z}}_{\mathrm{1}}^{\mathrm{2}}\frac{\mathrm{d}\mathit{x}}{\mathit{x}}\mathrm{;}\frac{{\mathit{I}}_{\mathrm{2}}}{\mathit{I}}\mathrm{=}\frac{\mathrm{1}}{\mathit{I}}{\mathrm{\int}}_{\mathrm{0}}^{\mathrm{1}}{\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}\frac{\mathrm{d}\mathit{x}}{\mathit{x}}$(14)are displayed in Fig. 7.
The contribution of the z_{1}z_{2} terms to the rotational splittings (Eq. (11)) is negligible in front of ${\mathit{z}}_{\mathrm{1}}^{\mathrm{2}}$ in the envelope and in front of ${\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}$ in the core. Thus, the following conclusions apply for both the mode inertia and the rotational splittings.
The I_{1} contribution coincides with the envelope contribution I_{env} to a good approximation, while the I_{2} contribution coincides with the core contribution to a good approximation. The core contribution to inertia, I_{core}, and the rotational kernel, K_{Ω, core} = ^{∫}_{core}Ω(x) K(x) dx, are computed between the lower and upper turning points of the g cavity for each mode. The dense core contributes heavily to the total mode inertia I and rotational splittings. The values of the ratio ζ = I_{core}/I are given in Table 2.

The modes with frequencies ν_{3} and ν_{4} are gm modes. For these modes, the contribution of the horizontal displacement z_{2} (essentially in the core) dominates their inertia (I_{2}/I ~ I_{core}/I ≈ 1), while the contribution due to the radial displacement z_{1} (largest in the envelope), I_{1}/I, is negligible. The envelope above the core where the mode is either evanescent or of acoustic type contributes almost nothing to the total mode inertia I_{env}/I = 1 − ζ ≪ ζ for such modes. The contribution of the envelope to δν is negligible because the rotation is quite small there.

The other modes are pm modes. The envelope above the core where the mode is either evanescent or acoustic contributes for half for these modes (I_{1} ~ I_{2} ~ I/2). They share their inertia almost equally in the core and in the envelope with an almost equal contribution of the horizontal and radial displacements.
Fig. 7 Top: relative inertia contributions I_{1}/I (green dots connected dashed line dots correspond to modes) and I_{2}/I (Eq. (14)) (black), relative contribution ζ = I_{core}/I (magenta dashed line, hexagons correspond to modes). Bottom: contribution to the rotational splittings for model M1 due to ${\mathit{z}}_{\mathrm{1}}^{\mathrm{2}}$ only (green dashed line dots correspond to modes), contribution due to ${\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}$ alone (black dashed lines and hexagons), contribution due to z_{1}z_{2} alone (reddashed line, dots correspond to modes); contribution to δν_{nl} due to the core alone (magentafilled hexagons).
4.2.2. Integrated kernels
The modes are trapped in the same g cavity, so they probe the same inner part of the rotational profile of the model. This can be seen with the behavior of the integrated rotational kernels that are shown in Fig. 8 (left panel). For all modes of the pattern, the integrated rotational kernels increase rapidly from the center.

For the gm modes, the integrated kernels saturate quite rapidly to the maximum value, indicating that the envelope does not significantly contribute. This is the case for ν_{4} in our studied pattern. The saturated value is obtained long before the upper turning point of the g cavity is reached. This is because the amplitudes of the displacement rapidly become small in the upper part of the gcavity.

The pm modes, such as ν_{1} and ν_{6}, have their integrated kernels that saturate less rapidly and to a much lower value than the gm modes. The corresponding integrated contributions to the splittings are shown in Figs. 7 and 8 (right panel). Since they include the rotation profile, they increase faster than the integrated rotational kernel.
Fig. 8 Integrated kernels ${{}^{\mathrm{\int}}}_{\mathrm{0}}^{\mathit{x}}\mathit{K}\mathrm{\left(}{\mathit{x}}^{\mathrm{\prime}}\mathrm{\right)}\mathrm{d}{\mathit{x}}^{\mathrm{\prime}}$ (left panel) and ${{}^{\mathrm{\int}}}_{\mathrm{0}}^{\mathit{x}}\mathrm{\Omega}\mathrm{\left(}\mathit{x}\mathrm{\right)}$K(x′) dx′ (right panel) (with K(x) given by Eq. (12)) as a function of x = r/R for some modes of the selected pattern for model M1. The lines correspond to modes #1 (blue), #2 (black), #4(red), #5 (green), and #6 (magenta) of Table 2 respectively.
5. Seismic constraint on rotation
For more physical insight into the information carried by rotational splittings, it is worthwhile emphasizing their dependences. To this end, we decompose the rotational splittings into two contributions. Given that the inner (radiative) and outer (convective) cavities have very distinct properties, we write $\mathit{\delta \nu}\mathrm{=}{\mathit{\beta}}_{\mathrm{core}}{\u27e8\frac{\mathrm{\Omega}}{\mathrm{2}\mathit{\pi}}\u27e9}_{\mathrm{core}}\mathrm{+}{\mathit{\beta}}_{\mathrm{env}}{\u27e8\frac{\mathrm{\Omega}}{\mathrm{2}\mathit{\pi}}\u27e9}_{\mathrm{env}}\mathit{,}$(15)where $\begin{array}{ccc}{\mathit{\beta}}_{\mathrm{core}}& \mathrm{\equiv}& \int \begin{array}{}{\mathit{x}}_{\mathrm{core}}\\ \mathrm{0}\end{array}\mathit{K}\mathrm{\left(}\mathit{x}\mathrm{\right)}\mathrm{d}\mathit{x,}\\ {\mathit{\beta}}_{\mathrm{env}}& \mathrm{\equiv}& {\mathrm{\int}}_{{\mathit{x}}_{\mathrm{core}}}^{\mathrm{1}}\mathit{K}\mathrm{\left(}\mathit{x}\mathrm{\right)}\mathrm{d}\mathit{x}\mathrm{=}\mathit{\beta}\mathrm{}{\mathit{\beta}}_{\mathrm{core}}\mathit{,}\end{array}$and $\begin{array}{ccc}\mathrm{\u27e8}\mathrm{\Omega}{\mathrm{\u27e9}}_{\mathrm{core}}& \mathrm{\equiv}& \\ \mathrm{\u27e8}\mathrm{\Omega}{\mathrm{\u27e9}}_{\mathrm{env}}& \mathrm{\equiv}& \end{array}$where K(x) is defined in Eq. (12) and ⟨ Ω ⟩ _{core} is the angular rotation velocity averaged over the central layers enclosed within a radius x_{core} = r_{core}/R corresponding to the g resonant cavity. The radius x_{core} is taken as the radius of the upper turning point of the g cavity x_{2} (see Table 3 for one pattern). Here, ⟨ Ω ⟩ _{env} is defined as the angular rotation velocity averaged over the layers above x_{core}.
For the modes we consider in this paper, the evanescent regions above the g resonant cavity and above the p cavity are narrow. Then, the envelope essentially corresponds to the p resonant cavity. The boundary radii are then taken as x_{3} and x_{4} (see Table 3). Strictly speaking, the above quantities depend on the frequency mode. However, because of the sharp decrease of the BruntVäisälä frequency at the edge of the H shell burning region, the upper turning point of the g cavity is roughly the same for all modes (see Table 3). The modes have a significant amplitude in the g cavity in a region that is quite narrower than the extent of the g cavity and that is independent of the mode (in the frequency regime we consider). This can be seen in Fig. A.1 where the horizontal and radial displacement eigenfunctions are shown for two typical modes of the studied pattern with frequencies listed in Table 2. We can then consider that x_{core} and the quantity ⟨ Ω ⟩ _{core} are nearly the same for all considered modes.
The radius of the lower turning point, x_{3}, for the pcavity of pm ℓ = 1 modes decreases slightly with increasing frequency of the mode, while the upper turning point remains approximately the same (see Table 3). In that case, mode inertia depend on the mode. On the other hand, the mean envelope rotation is nearly that given by the uniform rotation of the convective zones and remains the same for all modes. $\mathrm{\u27e8}\mathrm{\Omega}{\mathrm{\u27e9}}_{\mathrm{env}}\mathrm{\approx}{\mathrm{\Omega}}_{\mathrm{CZ}}\mathit{.}$(20)In Fig. 4, the rotational splittings obtained with two approximations for ⟨ Ω ⟩ _{core} are compared with the exact calculation Eq. (11). The core contribution to the rotational splittings ⟨ Ω ⟩ _{core}β_{core} (Eqs. (15) and (18)) cannot be distinguished from the core contribution to the rotational splittings (Eq. (15)) with ⟨ Ω ⟩ _{core} computed with the horizontal eigenfunction z_{2} alone. The contribution from the envelope to the rotational splittings ⟨ Ω ⟩ _{env} (β − β_{core}) is also represented and is found to be much less for model M2 than for model M1.
For the gm modes (i.e. for ζ ~ 1), β_{core} ≈ 1/2. The maximum rotational splitting is then given by $\mathit{\delta}{\mathit{\nu}}_{\mathrm{max}}\mathrm{=}\frac{\mathrm{1}}{\mathrm{2}}{\u27e8\frac{\mathrm{\Omega}}{\mathrm{2}\mathit{\pi}}\u27e9}_{\mathrm{core}}\mathrm{\xb7}$(21)The maximum values of the computed rotational splittings, δν_{max}, reach 0.44 and 0.430 μHz for M1 and M2 models, respectively. These values give rise to a mean core rotation ⟨Ω/2π⟩_{core} = 0.88 μHz and 0.86 μHz, which are close to, but smaller than the central rotation for models M1 and M2 respectively (resp. 0.97 and 0.95 μHz). This is explained by the fact that the rotation decreases sharply in the central regions of our models and that the major contribution to the rotational splitting is slightly shifted off the center as are the maximum amplitudes of the horizontal displacement eigenfunctions (Fig. A.1) and the rotational kernels.
Moreover, for ℓ = 1 modes, one obtains β_{core} ≃ ζ/2 , β = 1 − ζ/2, and β_{env} = 1 − ζ, to a very good approximation (Eq. (A.5) in Appendix A.2). Then the linear rotational splitting Eq. (15) is easily rewritten as $\frac{\mathit{\delta \nu}}{\mathit{\delta}{\mathit{\nu}}_{\mathrm{max}}}\mathrm{=}\mathit{\zeta}\left(\mathrm{1}\mathrm{}\mathrm{2}\mathrm{\mathcal{R}}\right)\mathrm{+}\mathrm{2}\mathrm{\mathcal{R}}\mathit{,}$(22)where we have defined the ratio $\mathrm{\mathcal{R}}\mathrm{\equiv}\frac{\mathrm{\u27e8}\mathrm{\Omega}{\mathrm{\u27e9}}_{\mathrm{env}}}{\mathrm{\u27e8}\mathrm{\Omega}{\mathrm{\u27e9}}_{\mathrm{core}}}\mathrm{\xb7}$(23)The splittings linearly increase with ζ. This linear dependence is verified using the numerical frequencies computed for model M1 and M2 and is shown in Fig. 9.
Fig. 9 The rotational splitting normalized to its maximum value as a function of ζ (black dots) for model M1 (top) and model M2 (bottom). The red crosses represent the approximation δν/δν_{max} = ζ as a function of ζ. The blue crosses represent the approximation δν/δν_{max} = ζ(1 − 2ℛ) + 2ℛ as a function of ζ with R = 0.1785 and using numerical values of ζ.
We stress that the ratio ℛ imposed by our choice of rotation profile is quite small for model M2 and the approximation $\mathit{\delta \nu}\mathrm{\approx}\frac{\mathrm{1}}{\mathrm{2}}{\u27e8\frac{\mathrm{\Omega}}{\mathrm{2}\mathit{\pi}}\u27e9}_{\mathrm{core}}\mathit{\zeta}$(24)agrees with the numerical splitting values.
We find that the rotational splittings of pm modes, as well as gm modes, are dominated by the central layers for model M2. For the most gdominated modes, ζ ~ 1, and the rotational splittings in that case directly give half the mean core rotation.
This is not true for lessevolved models such as model M1, for which the approximation Eq. (24) is not sufficient (Fig. 9). The contribution from the envelope layers is not negligible for the rotation profiles we have assumed and the surface rotation must be taken into account as in Eq. (22). This is explained by the p cavity extending quite deep down inside the model where the rotation already shows a sharp gradient toward the center.
Fig. 10 ζ = I_{core}/I as a function (ν − ν_{0})/Δν for all l = 1 modes for model M1 (top panel) and for model M2 (bottom panel). ν_{0} is the frequency of the closest radial mode for the l = 1 mode with frequency ν. For model M1, blue dots correspond to modes with 9 < ν/Δν < 15, magenta dots to modes with ν/Δν > 15, and green dots to modes with ν/Δν < 9). For model M2, blue dots correspond to modes with 8 < ν/Δν < 12, magenta dots to modes with ν/Δν > 12, and green dots to modes with ν/Δν < 8).

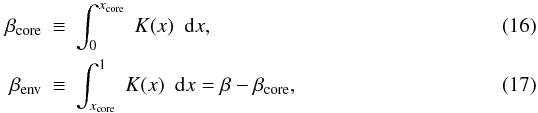

The interest of Eq. (22) is that ζ, as well as δν and δν_{max}, can be obtained from observations. Mosser et al. (2012b,a) have shown that it is possible to identify the m = 0 modes and their nature (p or gdominated mixed). We show here that it is also possible to attribute them a ζ value from the observations. We use as proxy for the measure of the g nature of the mixed mode the distance of the ℓ = 1 mode frequency from that of its companion radial mode: ν − ν_{0}.
Figure 10 shows the ζ values for ℓ = 1 modes as a function of ν − ν_{0} for models M1 and M2 where ν_{0} is the frequency of the radial mode closest to ν. The ζ values all follow the same curve. Due to this monotonic dependence, it is possible to estimate the value of ζ from observations (i.e., from the knowledge of ν − ν_{0}). The dispersion of the ζ values about the mean curve in Fig. 10 introduces uncertainties on the induced ζ value. This nevertheless offers a way to derive not only δν_{max} – hence the mean core rotation – but also the ratio ℛ, hence a measure of the mean rotation gradient from observations.
6. Physical interpretation of the observed splittings
In this section, we show that rotational splittings can be expressed as a function of observables. Indeed, this will further permit us to derive physical properties related to rotation by only using observations (see Sect. 7).

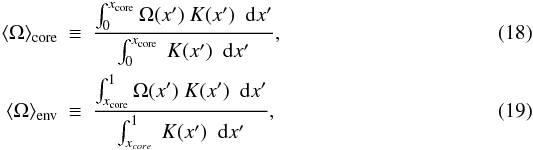

We interpret the two components of the rotational splitting ⟨ Ω ⟩ _{core} and ⟨ Ω ⟩ _{env} physically as the rotation angular velocities averaged over the time spent in the g and p cavities, respectively. We checked numerically with our stellar models and numerical frequencies and eigenfunctions that ⟨ Ω ⟩ _{core} and ⟨ Ω ⟩ _{env} are approximated well by mean rotations defined as $\mathrm{\Omega \u0305}\mathrm{=}\frac{\mathrm{1}}{\mathit{\tau}}\mathrm{\int}\mathrm{\Omega}\mathrm{\left(}\mathit{x}\mathrm{\right)}\mathrm{d}\mathit{\tau}\mathit{.}$(25)The time spent by the mode is approximately given by $\mathit{\tau}\mathrm{\approx}\frac{\mathrm{2}}{\mathit{\sigma}}\mathrm{\int}{\mathit{k}}_{\mathrm{r}}\mathrm{d}\mathit{x,}$(26)(Unno et al. 1989, and references therein) where σ is the normalized frequency of the mode. The radial wave number of the wave normalized to the stellar radius, k_{r}, is given, in a local asymptotic analysis, by ${\mathit{k}}_{\mathrm{r}}^{\mathrm{2}}\mathrm{=}\frac{\mathrm{1}}{{\mathit{\sigma}}^{\mathrm{2}}}\frac{\mathrm{1}}{{\mathit{c}}_{\mathrm{s}}^{\mathrm{2}}}\mathrm{(}{\mathit{N}}^{\mathrm{2}}\mathrm{}{\mathit{\sigma}}^{\mathrm{2}}\mathrm{)}\mathrm{(}{\mathit{S}}_{\mathit{\ell}}^{\mathrm{2}}\mathrm{}{\mathit{\sigma}}^{\mathrm{2}}\mathrm{)}\mathit{,}$(27)(Osaki 1975; Unno et al. 1989) where N^{2} and ${\mathit{S}}_{\mathit{l}}^{\mathrm{2}}$ are the normalized squared BruntVäisälä and Lamb frequencies, respectively. As seen below, the level of approximation is sufficient for our purpose.
In the g cavity, ${\mathit{\sigma}}^{\mathrm{2}}\mathrm{\ll}{\mathit{S}}_{\mathit{\ell}}^{\mathrm{2}}$, therefore ${\mathit{k}}_{\mathit{r}}\mathrm{\approx}\frac{\sqrt{\mathrm{\Lambda}}}{\mathit{\sigma x}}{\mathrm{(}{\mathit{N}}^{\mathrm{2}}\mathrm{}{\mathit{\sigma}}^{\mathrm{2}}\mathrm{)}}^{\mathrm{1}\mathit{/}\mathrm{2}}\mathit{,}$(28)then the time spent in the resonant g cavity becomes ${\mathit{\tau}}_{\mathit{g}}\mathrm{=}\mathrm{2}\frac{\sqrt{\mathrm{\Lambda}}}{{\mathit{\sigma}}^{\mathrm{2}}}{\mathrm{\int}}_{\mathrm{core}}{\mathrm{(}{\mathit{N}}^{\mathrm{2}}\mathrm{}{\mathit{\sigma}}^{\mathrm{2}}\mathrm{)}}^{\mathrm{1}\mathit{/}\mathrm{2}}\frac{\mathrm{d}\mathit{x}}{\mathit{x}}\mathrm{\xb7}$(29)This provides the number of nodes in the g cavity as n_{g}, which is defined as 2πn_{g}/σ = τ_{g}.
Fig. 11 Top: ζ as a function of ν/Δν. Black open symbols: numerical results (Eq. (10)). Red dots: ζ approximated by (Eq. (33)) with χ = 2.5 ycos(π/(ΔΠν)) and y = ν/Δν. Bottom: δν/δν_{max} as a function of ν/Δν. Black dots: numerical values (Eq. (11)). Red dots: approximate expression for δν/δν_{max} (Eq. (22)) with ℛ = 0.1785 and ζ given by its numerical values. Blue crosses: δν/δν_{max} given by Eq. (37) with ℛ = 0.1785 and χ given by Eq. (34).
Similarly, in the acoustic cavity in the envelope where ${\mathit{\sigma}}^{\mathrm{2}}\mathrm{\gg}{\mathit{N}}^{\mathrm{2}}\mathit{,}{\mathit{S}}_{\mathit{l}}^{\mathrm{2}}$, one can write ${\mathit{\tau}}_{\mathrm{p}}\mathrm{=}\mathrm{2}{\mathrm{\int}}_{\mathrm{env}}\frac{{\mathit{k}}_{\mathit{r}}}{\mathit{\sigma}}\mathrm{d}\mathit{x}\mathrm{\approx}\mathrm{2}{\mathrm{\int}}_{\mathrm{env}}\frac{\mathrm{d}\mathit{x}}{{\mathit{c}}_{\mathrm{s}}}\mathrm{\xb7}$(30)The time τ_{p} and τ_{g} are defined in units of the dynamical time t_{dyn} = (GM/R^{3})^{−1/2}.

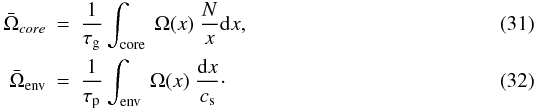

The expressions for the mean core (resp. envelope) rotation become $\begin{array}{ccc}\mathrm{\Omega \u0305}\mathit{core}& \mathrm{=}& \frac{\mathrm{1}}{{\mathit{\tau}}_{\mathrm{g}}}{\mathrm{\int}}_{\mathrm{core}}\mathrm{\Omega}\mathrm{\left(}\mathit{x}\mathrm{\right)}\frac{\mathit{N}}{\mathit{x}}\mathrm{d}\mathit{x,}\\ \mathrm{\Omega \u0305}\mathrm{env}& \mathrm{=}& \frac{\mathrm{1}}{{\mathit{\tau}}_{\mathrm{p}}}{\mathrm{\int}}_{\mathrm{env}}\mathrm{\Omega}\mathrm{\left(}\mathit{x}\mathrm{\right)}\frac{\mathrm{d}\mathit{x}}{{\mathit{c}}_{\mathrm{s}}}\mathrm{\xb7}\end{array}$The theoretical values of and , Eqs. (31) and (32), are computed for both equilibrium models M1 and M2. We find Hz, Hz, then δν_{max,th} = 0.44 μHz, ℛ = 0.178 for model M1 and Hz, Hz, δν_{max,th} = 0.428 μHz, ℛ = 0.05 for model M2 where the subscript th stands for theoretical.
We then computed the rotational splittings from the approximate expression Eq. (22) using these figures with ζ computed with the associated eigenfunctions (Eq. (10)). As a result, the theoretical dependence given by Eq. (22) perfectly matches the numerical curve δν/δν_{max} and , . This can be seen in Fig. 11 for model M1 where one compares the behavior of the numerical splittings δν/δν_{max} with ν/Δν to the splitting values obtained by using Eq. (22).
One can go to a further level of approximation by deriving an approximate expression for the mode inertia. Appendix A.3 shows that one can derive an approximate expression for ζ as $\mathit{\zeta}\mathrm{\approx}\frac{\mathrm{1}}{\mathrm{1}\mathrm{+}{\mathit{\alpha}}_{\mathrm{0}}{\mathit{\chi}}^{\mathrm{2}}}\mathit{,}$(33)where $\mathit{\chi}\mathrm{\approx}\mathrm{2}\frac{\mathit{\nu}}{\mathrm{\Delta}\mathit{\nu}}\mathrm{cos}\left(\frac{\mathit{\pi}}{\mathrm{\Delta \Pi}\mathit{\nu}}\right)\mathrm{=}\mathrm{2}\mathit{y}\mathrm{cos}\left(\frac{\mathit{\pi}}{{\mathit{\alpha}}_{\mathrm{0}}\mathit{y}}\right)\mathrm{\xb7}$(34)For convenience we have defined y = ν/Δν and a dimensionless constant α_{0} as ${\mathit{\alpha}}_{\mathrm{0}}\mathrm{=}\mathrm{\Delta}\mathit{\nu}\mathrm{\Delta \Pi}\mathit{,}$(35)with ΔΠ is the period spacing for gm modes $\mathrm{\Delta \Pi}\mathrm{=}\frac{\mathrm{2}{\mathit{\pi}}^{\mathrm{2}}}{\sqrt{\mathrm{\Lambda}}}{\left({\mathrm{\int}}_{\mathrm{core}}\frac{\mathrm{(}{\mathit{N}}^{\mathrm{2}}\mathrm{}{\mathit{\sigma}}^{\mathrm{2}}{\mathrm{)}}^{\mathrm{1}\mathit{/}\mathrm{2}}}{\mathit{x}}\mathrm{d}\mathit{x}\right)}^{1}\mathit{.}$(36)For models M1 and M2, we respectively have α_{0} = 2.2 × 10^{3} and α_{0} = 6.0 × 10^{4}.
The behavior of the ratio ζ as a function of ν/Δν is computed with Eqs. (33) and (34) and is compared to that of the numerical one in Fig. 11 (top). The cosine term gives rise to the oscillation of ζ, while the decrease in the minimum values of ζ with frequency is driven by the ratio τ_{p}/τ_{g}. The ratio ζ is computed using Eqs. (33) and (34) where the factor 2 is replaced by a factor 2.5, which fits the numerical results better. This difference is explained by the fact that we took the factor f (Appendix A.3) as equal to unity, while it is in reality smaller. For model M1, the difference between the large separation Δν and the equivalent quantity computed over the p resonant cavity is on the order of f = 0.8. This increases the constant in χ from 2 to 2.24, closer to the adopted 2.5 value. As also mentionned in Appendix A.3, the amplitude ratio Eq. (A.20) is further increased if one takes the effect of the evanescent zone into account between the outer p and inner g resonant cavities of modes. As a consequence, this leads to an increase in the χ term contribution. Actually, some departure from asymptotic is expected for the p part of red giants modes. It is then striking that the numerical results agree that well with Eq. (33).
An expression for the normalized rotational splitting as a function of the observable y ≡ ν/Δν is then obtained by combining Eqs. (22) and (33) so that $\frac{\mathit{\delta \nu}}{\mathit{\delta}{\mathit{\nu}}_{\mathrm{max}}}\mathrm{\approx}\frac{\mathrm{1}\mathrm{}\mathrm{2}\mathrm{\mathcal{R}}}{\mathrm{1}\mathrm{+}{\mathit{\alpha}}_{\mathrm{0}}{\mathit{\chi}}^{\mathrm{2}}}\mathrm{+}\mathrm{2}\mathrm{\mathcal{R}}\mathit{,}$(37)with χ given by Eq. (34).
The rotational splittings computed with Eqs. (34) and (37) are compared with the numerical values for model M1 in Fig. 11. The behavior of both theoretical and numerical quantities agree quite well. An illustration is provided in Sect. 7 with the red giant star KIC 5356201 (Beck et al. 2012) for which such a procedure has been used.
The ratio δν/δν_{max} as a function of (ν − ν_{0})/δν is nearly independent of rotation, in particular when ℛ ≪ 1. Maxima of the ζ oscillation, ζ_{max} = 1, are obtained for cos(π/(α_{0} y)) = 0. Minima are defined for cos(π/(α_{0}y_{n0})) = ± 1, i.e., α_{0}y_{n0} = 1/n_{0} (for any integer n_{0}): ${\mathit{\zeta}}_{\mathrm{min}}\mathrm{\approx}(\mathrm{1}\mathrm{+}\mathrm{4}{\mathit{\alpha}}_{\mathrm{0}}{\mathit{y}}_{{\mathrm{n}}_{\mathrm{0}}}^{\mathrm{2}}{)}^{1}\mathit{.}$(38)Accordingly, the contrast η defined as the ratio of minimum to maximum splittings is obtained from Eq. (37) using Eq. (38) and Eq. (A.23) as $\mathit{\eta}\mathrm{\equiv}\frac{\mathit{\delta}{\mathit{\nu}}_{\mathrm{min}}}{\mathit{\delta}{\mathit{\nu}}_{\mathrm{max}}}\mathrm{=}\frac{\mathrm{1}\mathrm{}\mathrm{2}\mathrm{\mathcal{R}}}{\mathrm{1}\mathrm{+}\mathrm{4}{\mathit{\alpha}}_{\mathrm{0}}{\mathit{y}}_{{\mathrm{n}}_{\mathrm{0}}}^{\mathrm{2}}}\mathrm{+}\mathrm{2}\mathrm{\mathcal{R}}\mathit{.}$(39)Because $\mathrm{4}{\mathit{\alpha}}_{\mathrm{0}}{\mathit{y}}_{{\mathit{n}}_{\mathrm{0}}}^{\mathrm{2}}$ decreases with increasing integer n_{0}, the contrast δν_{min}/δν_{max} increases with frequency for a given rotation profile. This can be seen quite clearly for model M2 in Fig. 5 for instance.
Typical values of the quantity $\mathrm{4}{\mathit{\alpha}}_{\mathrm{0}}{\mathit{y}}_{{\mathrm{n}}_{\mathrm{0}}}^{\mathrm{2}}$ for different types of observed red giants are listed in Table 4, according to the analysis done by Mosser et al. (2012b). For simplicity, y_{n0} is evaluated at ν = ν_{max}. The first two lines are given for red giants corresponding to models M1 and M2, respectively, as discussed in the previous sections. More generally, this quantity decreases from about four at the bottom of the RGB down to 0.06 for red giants stars located on the highest part of the RGB for which stochastically oscillations are detected. It amounts to roughly 0.4 for the clump stars. Note that for the most evolved red giant stars, $\mathrm{4}{\mathit{\alpha}}_{\mathrm{0}}{\mathit{y}}_{{\mathit{n}}_{\mathrm{0}}}^{\mathrm{2}}$ is quite small. In that case, the contrast η varies as $\mathit{\eta}\mathrm{\equiv}\frac{\mathit{\delta}{\mathit{\nu}}_{\mathrm{min}}}{\mathit{\delta}{\mathit{\nu}}_{\mathrm{max}}}\mathrm{~}\mathrm{1}\mathrm{}\mathrm{4}{\mathit{\alpha}}_{\mathrm{0}}{\mathit{y}}_{{\mathit{n}}_{\mathrm{0}}}^{\mathrm{2}}\mathrm{(}\mathrm{1}\mathrm{}\mathrm{2}\mathrm{\mathcal{R}}\mathrm{)}\mathit{,}$(40)and the influence of the rotation on this contrast throughout ℛ can become negligible.
Fig. 12 Top: observed rotational splittings as a function of ν/Δν for the Kepler star KIC 5356201 (Beck et al. 2012). For this star, the mean large separation is Δν = 15.92 μHz while the mean gmode spaging is ΔΠ = 86.11 s and the maximum rotational splittings is δν_{max} = 0.405 nHz. Bottom: rotational splittings normalized to δν_{max} are folded with (ν − ν_{0})/Δν.
7. The illustrative case of the red giant KIC 5356201
Differential rotation of the red giant KIC 5356201 observed by Kepler has been analyzed by Beck et al. (2012). Since the inclination of the star has an intermediate value, the three components of the dipole mixedmode multiplets are clearly visible, which allows precise determination of the rotational splittings. With ν_{max} = 209.7 ± 0.7μHz, Δν = 15.92 ± 0.02 μHz, and a period spacing ΔΠ = 86.2 ± 0.03 s, determined according to the method presented in Mosser et al. (2012b), the star lies at the bottom of the RGB, with a seismically inferred radius of about 4.5 R_{⊙}. The minimum rotational splitting given by Beck et al. (2012) is 0.154 ± 0.003 μHz. The authors also mention that the average contrast between the maximum and minimum value of the splittings is 1.7; the maximum value inferred by Mosser et al. (2012b) is 0.405 ± 0.010 μHz. With such global seismic parameters, one infers that this star is slightly more evolved than model M1 but can be approximately represented by this model.
The observational rotational splittings are displayed as a function of ν/Δν (ν is the frequency of the centroid mode of each identified multiplet) in Fig. 12 (top). The folded splittings are shown in Fig. 12 (bottom). The global behavior of the curve shows the same characteristics as the theoretical equivalent in Fig. 6 for model M1. Only the value of the minimum at (ν − ν_{0})/Δν is lower than 0.4 (Fig. 12) for the observations compared with 0.59 for model M1 (Fig. 6). The difference is due to different values of the parameters α_{0} (α_{0} = 1.37 × 10^{3} for the Kepler star).
Using the observed values for ν_{max},Δν and ΔΠ for the star KIC 5356201, we find η = 0.49 (Eq. (39)) when evaluated for the mode with frequency ν/Δν = 13.7(~ν_{max}/Δν). This is close to the observed contrast δν/δν_{max} = 0.43 evaluated for the same mode. If one corrects η with the factor f mentioned above, taking a typical f = 0.8 as for model M1, one obtains η = 0.45 even closer to the observed value.
In Fig. 13 (top), the observed rotational splittings normalized to their maximum value δν_{max} are plotted as a function of ζ obtained using Eqs. (33) and (34). The linear dependence of the observed rotational splittings with ζ is clear. One single parameter, 2ℛ, enters the expression for δν/δν_{max} (Eq. (22)) and can then be estimated to range between 0. and 0.1 from Fig. 13 (top). This indicates that for this star the ratio between the average core rotation and that of the convective envelope is higher than 20. We next compare the theoretical rotational splittings computed using Eqs. (34) and (37) with the observed rotational splittings in Fig. 13 (bottom). The agreement is quite acceptable and validates our theoretical derivations of Sect. 6.
Fig. 13 Top: observed rotational splittings as a function of ζ computed with Eqs. (33) and (34) for the Kepler star KIC 5358201 (blue dots). The solid curves are ζ(1 − 2ℛ) + 2ℛ with ℛ = 0 (black) and 2ℛ = 0.1 (red). Bottom: observed rotational splittings (blue filled dots) as a function of ν/Δν. Theoretical rotational splittings computed according to Eqs. (37) and (34) (black open dots connected with a dashed line) with ℛ = 0.
8. Conclusion
We have investigated the properties of the rotational splittings of the dipole (ℓ = 1) modes of red giant models. The rotational splittings are computed with a firstorder perturbation method because we focused on slowly rotating red giant stars. We considered two models in two different H shellburning evolutionary stages. We find that such modes are either gm modes (inertia and rotational splittings are fully dominated by the core properties) or pm modes (inertia is almost equally shared between the core and the envelope). For gm modes, the rotational splittings are fully dominated by the average core rotation. As the time spent by all considered gm modes in the core is roughly the same, the resulting mean core rotation corresponds to the rotation in the central layers weighted by the time spent by the modes in the core. For a radiative core, if the rotation decreases sharply from the center, the mean core rotation is a lower limit of the central rotation. For pm modes, the rotational splittings remain dominated by the core rotation, but the contribution of the envelope is no longer negligible.
We find that the rotational splittings normalized to their maximum value linearly depend on the core contribution of mode inertia. The slope provides the ratio of the average envelope rotation to the core one (ℛ). A onetoone relation is observed between the mode inertia and the frequency difference between any observed ℓ = 1 mode and the closest radial mode. Because this last quantity is measurable, one can use the simple relation between the core inertia and this frequency difference to determine the core inertia. This knowledge, together with a measure of the rotational splitting, then provides a measure of ℛ.
As a step further in the modeling, we used asymptotic properties to show that the core contribution to mode inertia relative to the total mode inertia depends on the frequency normalized to the large separation through a Lorentzian. This provides a theoretical support for using of a Lorentzian profile for measuring the observed splittings for red giant stars (Mosser et al. 2012a). This also led us to find that the behavior of the rotational splittings of ℓ = 1 modes with the frequency for slowly rotating core red giant stars depends on only three parameters. One is the large separation Δν, the second is the gmode period spacing ΔΠ, and both can be determined observationally and can therefore again provide a measure of the third one, ℛ.
The contrast between the minimum (δν_{min}) and maximum (δν_{max}) values of the splittings can be evaluated at the frequency of maximum power. It only depends on the above three parameters. For a core rotating much faster than the envelope (negligible ℛ), we obtain a relation between (δν_{min}), (δν_{max}), Δν and, ΔΠ. This can provide (δν_{max}) (hence the average core rotation) in cases where the gm modes have amplitudes that are too small to be detected and only (δν_{min}) is available.
Based on the theoretical developments above, we find that the Kepler red giant star KIC 53656201 observed by Kepler (Beck et al. 2012) rotates with a rotation in the convective envelope Ω_{CZ} < 0.05 ⟨ Ω ⟩ _{core} ≤ Ω(r = 0) so that the core is rotating more than 20 times faster than the envelope.
The present understanding of the properties of rotational splittings is a contribution to the effort to decipher the effect of slow rotation on red giant star frequency spectra and establish seismic diagnostics on the rotation and transport of angular momentum. For more rapidly rotating red giant stars, nonperturbative methods must be used. This will be the subject of the third paper in this series.
Online material
Appendix A: Properties of eigenfunctions and mode inertia
A.1. Displacement eigenfunctions
Fig. A.1 Displacement eigenfunctions as a function of the normalized radius r/R. In blue the horizontal component to the displacement eigenfunction z_{2} (Eq. (7)) and in red the radial component to the displacement eigenfunction z_{1} (Eq. (6)). From top to bottom ℓ = 1 modes 1 and 3 of Table 2.
The displacement eigenfunctions computed for two modes of the selected pattern (see Table 2) for model M1 are shown as a function of the normalized radius r/R in Fig. A.1. They correspond to the modes with the largest and smallest maximum amplitudes in the pattern. The inner part is dominated by the horizontal displacement z_{2} and oscillates with a large number of nodes, as is typical of a highorder gravity mode. The largest maximum amplitude corresponds to the most gdominated mode whereas the smallest maximum amplitudes arise for the pm modes ν_{1} and ν_{6}.
The maximum amplitude of z_{2} occurs deep in the gcavity, at the same radius for all modes of the pattern. The region of nonnegligible amplitude defines the radius of a seismic rotating core which is here found to be independent of the mode (r/R ~ 0.02) and far smaller than the upper turning radius of the inner gravity resonant cavity (x_{2} ~ 0.08, Table 3)
A.2. Behavior of β and β_{core} with ζ

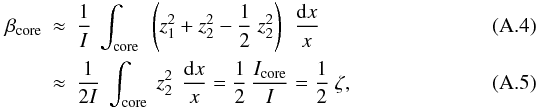

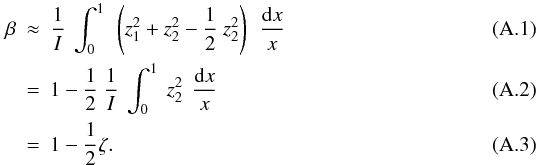

For ℓ = 1 modes of red giants, the term z_{2}z_{1} in β (Eq. (13)) plays almost no role because ${\mathit{z}}_{\mathrm{2}}{\mathit{z}}_{\mathrm{1}}\mathrm{\ll}{\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}$ in the core and ${\mathit{z}}_{\mathrm{2}}{\mathit{z}}_{\mathrm{1}}\mathrm{\ll}{\mathit{z}}_{\mathrm{1}}^{\mathrm{2}}$ in the envelope (see Fig. A.1). As a result, we have $\begin{array}{ccc}\mathit{\beta}& \mathrm{\approx}& \frac{\mathrm{1}}{\mathit{I}}{\mathrm{\int}}_{\mathrm{0}}^{\mathrm{1}}\left({\mathit{z}}_{\mathrm{1}}^{\mathrm{2}}\mathrm{+}{\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}\mathrm{}\frac{\mathrm{1}}{\mathrm{2}}{\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}\right)\hspace{0.17em}\frac{\mathrm{d}\mathit{x}}{\mathit{x}}\hspace{0.17em}\\ & \mathrm{=}& \mathrm{1}\mathrm{}\frac{\mathrm{1}}{\mathrm{2}}\frac{\mathrm{1}}{\mathit{I}}{\mathrm{\int}}_{\mathrm{0}}^{\mathrm{1}}{\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}\hspace{0.17em}\frac{\mathrm{d}\mathit{x}}{\mathit{x}}\hspace{0.17em}\\ & \mathrm{=}& \mathrm{1}\mathrm{}\frac{\mathrm{1}}{\mathrm{2}}\mathit{\zeta}\mathit{.}\end{array}$where ζ is defined in Eq. (10). The linear dependence of β with ζ is verified in Fig. A.2. Furthermore, for all modes, ${\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}\mathrm{\gg}{\mathit{z}}_{\mathrm{1}}^{\mathrm{2}}$, 2z_{1}z_{2} in the gcavity (see Fig. A.1), then β_{core,nl} ≈ β_{core} where for l = 1 modes, we derive $\begin{array}{ccc}{\mathit{\beta}}_{\mathrm{core}}& \mathrm{\approx}& \frac{\mathrm{1}}{\mathit{I}}{\mathrm{\int}}_{\mathrm{core}}\left({\mathit{z}}_{\mathrm{1}}^{\mathrm{2}}\mathrm{+}{\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}\mathrm{}\frac{\mathrm{1}}{\mathrm{2}}{\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}\right)\hspace{0.17em}\frac{\mathrm{d}\mathit{x}}{\mathit{x}}\\ & \mathrm{\approx}& \frac{\mathrm{1}}{\mathrm{2}\mathit{I}}{\mathrm{\int}}_{\mathrm{core}}{\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}\hspace{0.17em}\frac{\mathrm{d}\mathit{x}}{\mathit{x}}\mathrm{=}\frac{\mathrm{1}}{\mathrm{2}}\hspace{0.17em}\frac{{\mathit{I}}_{\mathrm{core}}}{\mathit{I}}\mathrm{=}\frac{\mathrm{1}}{\mathrm{2}}\mathit{\zeta ,}\end{array}$hence $\begin{array}{ccc}{\mathit{\beta}}_{\mathrm{env}}& \mathrm{=}& \mathit{\beta}\mathrm{}{\mathit{\beta}}_{\mathrm{core}}\mathrm{\approx}\mathrm{1}\mathrm{}\mathit{\zeta}\mathit{.}\end{array}$(A.6)Numerical values for model M1 confirm that β_{core} increases linearly with ζ with a slope 1/2 (Fig. A.2). For gm modes (ζ ~ 1), β_{core} dominates with a nearly constant value of 0.5. Pm modes correspond to the teeth of the sawtype variation in β_{env} and the ratio β_{env}/β_{core} ~ 0.25 (Fig. A.2).
Fig. A.2 Top: β_{env} and β_{core} as a function of ν/Δν for model M1. Bottom: same as top for the ratio β_{core} as a function of ζ (black open dots). The approximation β = 1 − (1/2) ζ using the numerical values of ζ is represented with red crosses.
A.3. An approximate expression for ζ
This section determines an approximate expression of ζ = I_{core}/I as a function of ν/Δν. The derivation is based on results of an asymptotic method developed by Shibahashi (1979) to which we refer for details (see also Unno et al. 1989).

The envelope (~ppropagative cavity) is characterized by ${\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}\mathrm{\ll}{\mathit{z}}_{\mathrm{1}}^{\mathrm{2}}$. Using Eq. (16.47) from Unno et al., it is straightforward to derive the following approximate expression $\begin{array}{ccc}{\mathit{z}}_{\mathrm{1}}^{\mathrm{2}}\frac{\mathrm{d}\mathit{x}}{\mathit{x}}& \mathrm{~}& \frac{{\mathit{c}}^{\mathrm{2}}}{\mathit{\sigma}}(\mathrm{1}\mathrm{}\mathrm{sin}\mathit{\sigma \tau})\mathrm{d}\mathit{\tau}\mathit{.}\end{array}$(A.7)The constant c can be determined by the condition ξ_{r} = 1 at the surface. $\begin{array}{ccc}\mathit{\tau}\mathrm{\left(}{\mathit{x}}_{\mathrm{3}}\mathit{,x}\mathrm{\right)}& \mathrm{=}& \frac{\mathrm{2}}{\mathit{\sigma}}{\mathrm{\int}}_{{\mathit{x}}_{\mathrm{3}}}^{\mathit{x}}{\mathit{k}}_{\mathrm{r}}\mathrm{d}{\mathit{x}}^{\mathrm{\prime}}\mathit{,}\end{array}$(A.8)with $\begin{array}{ccc}{\mathit{k}}_{\mathrm{r}}& \mathrm{~}& \frac{\mathrm{1}}{{\mathit{c}}_{\mathrm{s}}}{\mathrm{(}{\mathit{\sigma}}^{\mathrm{2}}\mathrm{}{{\mathit{S}}_{\mathit{l}}^{\mathrm{2}}}^{\mathrm{)}}}^{\mathrm{1}\mathit{/}\mathrm{2}}\mathit{.}\end{array}$(A.9)where we have assumed σ^{2} ≫ N^{2} in Eq. (27). In the process of deriving the amplitude of ${\mathit{z}}_{\mathrm{1}}^{\mathrm{2}}$ arising in front of the sinusoidal term in Eq. (A.7), one can neglect ${\mathit{S}}_{\mathit{l}}^{\mathrm{2}}$ in front of σ^{2} in the expression for k_{r} (i.e. k_{r} ~ σ/c_{s}). However this is not the case when k_{r} is in the phase of the sinusoidal term where we keep the expression Eq. (A.9). The inertia in the envelope can then be approximated as $\begin{array}{ccc}{\mathit{I}}_{\mathrm{env}}& \mathrm{~}& \\ & \mathrm{~}& \frac{{\mathit{c}}^{\mathrm{2}}}{\mathit{\sigma}}{\mathit{\tau}}_{\mathrm{p}}\left(\mathrm{1}\mathrm{}\frac{\mathrm{cos}\mathrm{\left(}\mathit{\sigma}{\mathit{\tau}}_{\mathrm{p}}\mathrm{\right)}\mathrm{}\mathrm{1}}{\mathit{\sigma}{\mathit{\tau}}_{\mathrm{p}}}\right)\mathrm{~}\frac{{\mathit{c}}^{\mathrm{2}}}{\mathit{\sigma}}{\mathit{\tau}}_{\mathrm{p}}\mathit{,}\end{array}$where we have defined $\begin{array}{ccc}{\mathit{\tau}}_{\mathrm{p}}& \mathrm{=}& \frac{\mathrm{2}}{\mathit{\sigma}}{\mathrm{\int}}_{{\mathit{x}}_{\mathrm{3}}}^{\mathrm{1}}{\mathrm{(}{\mathit{\sigma}}^{\mathrm{2}}\mathrm{}{{\mathit{S}}_{\mathit{l}}^{\mathrm{2}}}^{\mathrm{)}}}^{\mathrm{1}\mathit{/}\mathrm{2}}\frac{\mathrm{d}\mathit{x}}{{\mathit{c}}_{\mathrm{s}}}\mathrm{=}\frac{\mathrm{2}\mathit{\pi}}{\mathit{\sigma}}\frac{\mathrm{1}}{\mathit{f}}\frac{\mathit{\nu}}{\mathrm{\Delta}\mathit{\nu}}\mathit{,}\end{array}$(A.12)and the mean large separation is $\begin{array}{ccc}\mathrm{\Delta}\mathit{\nu}\mathrm{\equiv}{\left(\mathrm{2}{\mathrm{\int}}_{\mathrm{0}}^{\mathrm{1}}\frac{\mathrm{d}\mathit{x}}{{\mathit{c}}_{\mathrm{s}}}\right)}^{1}\mathrm{\xb7}& & \end{array}$(A.13)The factor f is of order unity and represents the difference between the integration from x_{3} and from the center. We take f = 1 unless specified otherwise. The last equality in Eq. (A.10) is obtained assuming στ_{p} ≫ 1.

The core (~gpropagative cavity) is characterized by ${\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}\mathrm{\gg}{\mathit{z}}_{\mathrm{1}}^{\mathrm{2}}$. Again, the asymptotic results lead to the following expression $\begin{array}{ccc}{\mathit{z}}_{\mathrm{2}}^{\mathrm{2}}\frac{\mathrm{d}\mathit{x}}{\mathit{x}}& \mathrm{~}& \frac{{\mathit{a}}^{\mathrm{2}}}{\mathit{\sigma}}(\mathrm{1}\mathrm{}\mathrm{sin}\mathit{\sigma \tau})\mathrm{d}\mathit{\tau ,}\end{array}$(A.14)where a is a constant that is determined by the resonant frequency condition between the p and g cavities, and $\begin{array}{ccc}\mathit{\tau}\mathrm{\left(}{\mathit{x}}_{\mathrm{1}}\mathit{,x}\mathrm{\right)}& \mathrm{=}& \frac{\mathrm{2}}{\mathit{\sigma}}{\mathrm{\int}}_{{\mathit{x}}_{\mathrm{1}}}^{\mathit{x}}{\mathit{k}}_{\mathrm{r}}\mathrm{d}{\mathit{x}}^{\mathrm{\prime}}\mathit{,}\end{array}$(A.15)and we have used $\begin{array}{ccc}{\mathit{k}}_{\mathrm{r}}& \mathrm{~}& \frac{\sqrt{\mathrm{\Lambda}}}{\mathit{\sigma x}}\mathrm{(}{\mathit{N}}^{\mathrm{2}}\mathrm{}{\mathit{\sigma}}^{\mathrm{2}}{\mathrm{)}}^{\mathrm{1}\mathit{/}\mathrm{2}}\mathit{.}\end{array}$(A.16)Recalling that στ_{g} ≫ 1, therefore the inertia in the core can be approximated as $\begin{array}{ccc}{\mathit{I}}_{\mathrm{core}}& \mathrm{~}& \frac{{\mathit{a}}^{\mathrm{2}}}{\mathit{\sigma}}{\mathit{\tau}}_{\mathrm{g}}\left(\mathrm{1}\mathrm{+}\frac{\mathrm{cos}\mathrm{\left(}\mathit{\sigma}{\mathit{\tau}}_{\mathrm{g}}\mathrm{\right)}\mathrm{}\mathrm{1}}{\mathit{\sigma}{\mathit{\tau}}_{\mathrm{g}}}\right)\mathrm{~}\frac{{\mathit{a}}^{\mathrm{2}}}{\mathit{\sigma}}{\mathit{\tau}}_{\mathrm{g}}\mathit{,}\end{array}$(A.17)where we have defined $\begin{array}{ccc}{\mathit{\tau}}_{\mathrm{g}}& \mathrm{=}& \mathit{\tau}\mathrm{\left(}\mathit{x}\mathrm{1}\mathit{,x}\mathrm{2}\mathrm{\right)}\mathrm{=}\frac{\sqrt{\mathrm{\Lambda}}}{{\mathit{\sigma}}^{\mathrm{2}}}{\mathrm{\int}}_{\mathrm{core}}{\mathrm{(}{\mathit{N}}^{\mathrm{2}}\mathrm{}{\mathit{\sigma}}^{\mathrm{2}}\mathrm{)}}^{\mathrm{1}\mathit{/}\mathrm{2}}\frac{\mathrm{d}\mathit{x}}{\mathit{x}}\mathrm{\xb7}\end{array}$(A.18)

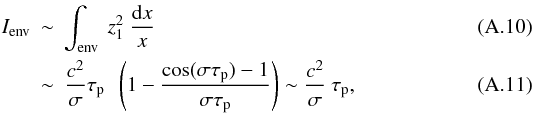

The ratio q ≡ I_{env}/I_{core} is then approximated by $\begin{array}{ccc}\mathit{q}& \mathrm{\approx}& {\left(\frac{\mathit{c}}{\mathit{a}}\right)}^{\mathrm{2}}\frac{{\mathit{\tau}}_{\mathrm{p}}}{{\mathit{\tau}}_{\mathrm{g}}}\mathrm{\xb7}\end{array}$(A.19)

We obtain the ratio c/a (from Eqs. (16.49) and (16.50) of Unno et al.) as $\begin{array}{ccc}\frac{\mathit{c}}{\mathit{a}}& \mathrm{=}& \mathrm{2}\frac{\mathrm{cos}\mathrm{(}\mathit{\sigma}{\mathit{\tau}}_{\mathrm{g}}\mathit{/}\mathrm{2}\mathrm{)}}{\mathrm{cos}\mathrm{(}\mathit{\sigma}{\mathit{\tau}}_{\mathrm{p}}\mathit{/}\mathrm{2}\mathrm{)}}\mathrm{~}\mathrm{\pm}\mathrm{2}\mathrm{cos}\left(\frac{\mathit{\sigma}{\mathit{\tau}}_{\mathrm{g}}}{\mathrm{2}}\right)\mathit{,}\end{array}$(A.20)where we have used στ_{p} ~ 2n_{p}π. A exponential term is present in the Unno et al expression with the argument being an integral over the evanescent region between the p and gcavities. As this region is quite narrow in our models for the considered modes, the exponential is taken to be 1. Nevertheless the width of the evanescent region depends on the considered mode, and in some cases, for accurate quantitative results, it might be necessary to include effects of the evanescent zone with a finite width.

The ratio q is then eventually approximated by $\begin{array}{ccc}\mathit{q}& \mathrm{=}& \mathrm{4}{\mathrm{cos}}^{\mathrm{2}}\left(\frac{\mathit{\sigma}{\mathit{\tau}}_{\mathrm{g}}}{\mathrm{2}}\right)\frac{{\mathit{\tau}}_{\mathrm{p}}}{{\mathit{\tau}}_{\mathrm{g}}}\mathrm{\xb7}\end{array}$(A.21)

For the relative core inertia ζ = I_{core}/I, $\mathit{\zeta}\mathrm{=}\frac{\mathrm{1}}{\mathrm{1}\mathrm{+}\mathit{q}}\mathrm{\approx}{\left(\mathrm{1}\mathrm{+}\mathrm{4}{\mathrm{cos}}^{\mathrm{2}}\left(\frac{\mathit{\sigma}{\mathit{\tau}}_{\mathrm{g}}}{\mathrm{2}}\right)\frac{{\mathit{\tau}}_{\mathrm{p}}}{{\mathit{\tau}}_{\mathrm{g}}}\right)}^{1}\mathrm{\xb7}$(A.22)

We now use the approximate expressions Eqs. (A.12) and (A.18) in order to derive for the ratio τ_{p}/τ_{g} in terms of observable quantities $\begin{array}{ccc}\frac{{\mathit{\tau}}_{\mathrm{p}}}{{\mathit{\tau}}_{\mathrm{g}}}\mathrm{\approx}\frac{\mathrm{1}}{\mathit{f}}{\mathit{\alpha}}_{\mathrm{0}}{\mathit{y}}^{\mathrm{2}}\mathit{,}& & \end{array}$(A.23)where for convenience we have defined y = ν/Δν, and $\begin{array}{ccc}{\mathit{\alpha}}_{\mathrm{0}}& \mathrm{=}& \mathrm{\Delta}\mathit{\nu}\mathrm{\Delta \Pi}\mathit{,}\end{array}$(A.24)with the period spacing for g modes $\begin{array}{ccc}\mathrm{\Delta \Pi}& \mathrm{=}& \frac{\mathrm{2}{\mathit{\pi}}^{\mathrm{2}}}{\sqrt{\mathrm{\Lambda}}}{\left({\mathrm{\int}}_{\mathrm{core}}\mathrm{(}{\mathit{N}}^{\mathrm{2}}\mathrm{}{\mathit{\sigma}}^{\mathrm{2}}{\mathrm{)}}^{\mathrm{1}\mathit{/}\mathrm{2}}\hspace{0.17em}\frac{\mathrm{d}\mathit{x}}{\mathit{x}}\right)}^{1}\mathrm{\xb7}\end{array}$(A.25)We also write $\mathit{\sigma}{\mathit{\tau}}_{\mathrm{g}}\mathrm{=}\frac{\mathrm{2}\mathit{\pi}}{\mathrm{\Delta \Pi}\mathit{\nu}}\mathit{,}$(A.26)so that we obtain $\begin{array}{ccc}\mathit{\zeta}& \mathrm{\approx}& \frac{\mathrm{1}}{\mathrm{1}\mathrm{+}{\mathit{\alpha}}_{\mathrm{0}}{\mathit{\chi}}^{\mathrm{2}}\mathit{/}\mathit{f}}\mathrm{\approx}\frac{\mathrm{1}}{\mathrm{1}\mathrm{+}{\mathit{\alpha}}_{\mathrm{0}}{\mathit{\chi}}^{\mathrm{2}}}\\ \mathit{\chi}& \mathrm{=}& \mathrm{2}\frac{\mathit{\nu}}{\mathrm{\Delta}\mathit{\nu}}\mathrm{cos}\left(\frac{\mathit{\pi}}{\mathrm{\Delta \Pi}\mathit{\nu}}\right)\mathrm{\xb7}\end{array}$
Acknowledgments
JPM acknowledges financial support through a 3year CDD contract with CNES. RM.O. is indebted to the “Fédération Wallonie Bruxelles – Fonds Spéciaux pour la Recherche / Crédit de démarrage – Université de Liège” for financial support. The authors also acknowledge financial support from the French National Research Agency (ANR) for the project ANR07BLAN0226 SIROCO (SeIsmology, ROtation and COnvection with the CoRoT satellite). We also thank the anonymous referee for a careful reading of the manuscript and useful suggestions.
