Fig.12

thumbnail

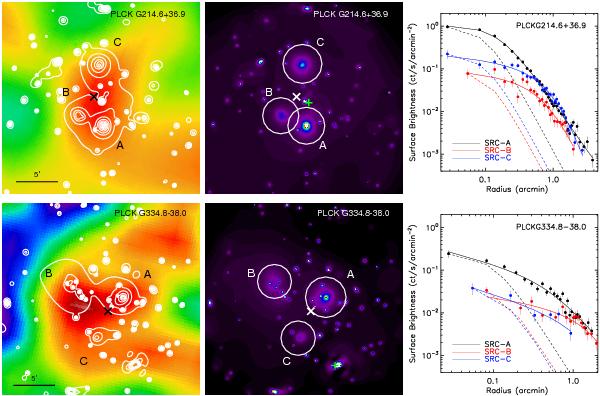

The triple systems PLCK G214.6+37.0 (top) and PLCK G334.8−38.0 (bottom). The left panels show the PlanckYSZ map (derived from an Internal Linear Combination method) with contours from the XMM-Newton wavelet filtered  [0.3–2] keV image (middle panels) overlaid in white. The cross marks the position of the re-extraction centre for flux re-analysis. Extended components found in the XMM-Newton image are marked with letters (see text and Table 2). The circles in each XMM-Newton image denote the estimated R500 radius for each component. The right panels show the X-ray surface brightness profiles of the three components for each super cluster (points with uncertainties), and the best-fitting β-model (solid lines) compared to the profile of the PSF normalised at the central level (dashed lines).
