Azimuthal variations of magnetic field strength and inclination on penumbral boundaries

Free Access

Fig. 8

Open with DEXTER Download original image

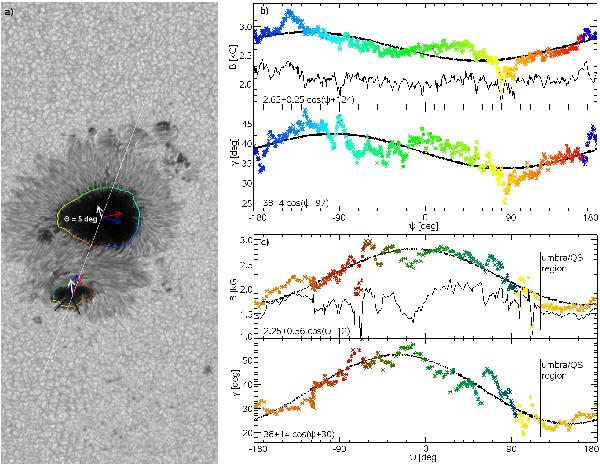

Analogous to Fig. 4, but for a 4U boundary and a boundary along umbra with only partially developed penumbra (not listed in Table 1). The red and blue arrows points in the direction of maximal γ and B, respectively. The solid black lines mark the umbra/QS region at the lower boundary.
