A&A 508, 161-171 (2009)

Very Long Baseline Array observations of the intraday variable source J1128+592

K. É. Gabányi1,2 - N. Marchili3 - T. P. Krichbaum3 - L. Fuhrmann3 - P. Müller3 - J. A. Zensus3 - X. Liu4 - H. G. Song4

1 - Hungarian Academy of Sciences, Research Group for Physical Geodesy and Geodynamics, Budapest, Hungary
2 - FÖMI Satellite Geodetic Observatory, Budapest, Hungary
3 - Max-Planck-Institut für Radioastronomie, Auf dem Hügel 69, Bonn, Germany
4 - Urumqi Observatory, National Astronomical Observatories, Chinese Academy of Sciences, Urumqi 830011, PR China

Received 24 June 2009 / Accepted 9 September 2009

Abstract
Context. Short timescale flux density variations in flat spectrum radio sources are often explained by the scattering of radio waves in the turbulent ionized interstellar medium of the Milky Way. One of the most convincing observational arguments in favor of this is the annual modulation of the variability timescale caused by the orbital motion of Earth around the Sun. J1128+5925 is a recently discovered IDV source with a possible annual modulation in its variability timescale. New observations suggest a change in its variability characteristics.
Aims. We search for changes either in source structure or in the interstellar medium that can explain the variations in the IDV pattern of J1128+5925. Using Very Long Baseline Interferometry (VLBI), we study a possible relation between source orientation on the sky and anisotropy angle seen in the annual modulation. Additionally, obtaining a source size estimate from VLBI data enables us to calculate the distance to the screen causing the variations in J1128+5925.
Methods. We observed the source in six consecutive epochs with the Very Long Baseline Array (VLBA) at three frequencies, 5 GHz, 8 GHz, and 15 GHz in total intensity and polarization. This data are combined with our densely time-sampled flux-density monitoring performed with the radio telescopes at Effelsberg (Germany) and at Urumqi (China).
Results. The VLBA observations detected an east-west oriented core-jet structure with no significant motion in its jet. The expansion of the VLBI core leads to an estimate of mild relativistic speed ( $2.5{~c} \pm 1.4~c$). The position angle of the VLBI jet agrees with the angle of anisotropy derived from the annual modulation model. No significant long-term structural changes were observed with VLBI on mas-scales, although, the VLBI core-size expansion offers a possible explanation of the observed decrease in the strength of IDV. VLBI polarimetry measured significant changes in the electric vector position angle (EVPA) and rotation measure (RM) of the core and jet. Part of the observed RM variability could be attributed to a scattering screen (37 pc distance) that covers the source (core and jet) and may be responsible for the IDV. Superposition of polarized subcomponents below the angular resolution limit may also affect the observed RM.

Key words: quasars: individual: J1128+5925 - scattering - radio continuum: galaxies - ISM: structure

1 Introduction

Intraday variability (IDV, Witzel et al. 1986; Heeschen et al. 1987) is the rapid variation observed usually at cm wavelengths in flat spectrum quasars and blazars. The typical timescales of the variation range from less than an hour to a few days. Using causality and the common light-travel time argument, the variability timescales translate into source sizes on the $\mu$as scale and consequently into brightness temperatures in the range of 1015-1021 K. These values are far in excess of the inverse Compton-limit brightness temperature (Kellermann & Pauliny-Toth 1969). In this source-intrinsic interpretation, relativistic boosting with large Doppler factors of $\gg$50 would be required to reduce these brightness temperatures to the inverse Compton limit of 1012 K. However, such high values of Doppler factors were not observed in kinematic studies of quasars and blazars.

One solution to this controversy is the source-extrinsic theory of IDV. This explains that the rapid variations are caused during the propagation of radio waves. The variations are caused by interstellar scintillation (ISS) in the intervening turbulent, ionized interstellar medium of the Milky Way (e.g., Rickett et al. 2006, and references therein). In this scenario, the characteristic variability time-scale is inversely proportional to the relative velocity between the observer and the scattering medium. The so-called ``annual modulation'' of the variability timescale reflects the systematic variation in the relative velocity vector between orbiting Earth and moving screen. The observation of systematic annual changes in the variability timescale of an IDV source is regarded as strong evidence of scintillation induced variability and a source extrinsic interpretation (Dennett-Thorpe & de Bruyn 2003). These seasonal cycles have been reported for several IDV sources: J1819+3845 (Dennett-Thorpe & de Bruyn 2003), 0917+624 (Rickett et al. 2001; Jauncey & Macquart 2001), PKS1519-273 (Jauncey et al. 2003; Carter et al. 2009), PKS1257-326 (Bignall et al. 2006), and PKS1622-253 (Carter et al. 2009).

Unfortunately, the detection of an annual cycle in IDV sources is not always straightforward: in some IDV sources, a previous claim of an annual variability cycle could not be confirmed in subsequent year (Kedziora-Chudczer 2006, PKS0405-385), and in one source at least ceased completely (Fuhrmann et al. 2002, B0917+624). Since the ISS phenomena requires a source size of the order or smaller than the scattering size of the screen, possible source intrinsic size variations (e.g., expansion or blending effects of the scintillating component(s)) could explain these variations in the IDV pattern or even its disappearance (e.g., Bernhart et al. 2006; Kraus et al. 1999; Krichbaum et al. 2002). Alternatively, changes in the IDV characteristics may also be caused by changes in the scattering plasma (e.g., Kedziora-Chudczer 2006). One way of distinguishing between these different possibilities, is to perform a polarimetric VLBI monitoring at different frequencies.

J1128+5925 (hereafter J1128+592) is an intraday variable source. Densely time-sampled flux density monitoring observations of the source have been carried out with the Effelsberg 100-m (MPIfR, Germany) and the Urumqi 25-m (China) radio telescopes at 5 GHz over the past four years. In most of these observations, J1128+592 showed pronounced variability with peak-to-trough amplitudes exceeding 20%. The measured characteristic variability timescales were differ significantly from epoch to epoch, ranging from 0.2 to 1.6 days. The changes in the variability timescales are indicative of an annual cycle.

After the discovery of IDV in J1128+592, Wu et al. (2008) performed optical observation of the source. J1128+592 did not show rapid variability in the optical bands. Additional observations (Wu et al. 2009) confirmed the optical quietness of the source. The different variability behavior in optical and radio regimes is expected if the IDV in radio wavelengths caused by interstellar scintillation.

In the case of J1128+592, we observed in late 2007 and early 2008 a strong decrease in the IDV amplitudes. To find out whether source-intrinsic changes lead to a change in the variability behavior, we performed 6 epochs of Very Long Baseline Array (VLBA) observations between 2007 July and 2008 February. In this paper, we report on an analysis of these VLBA observations.

The paper is organized as follows. In Sect. 2, we provide a brief summary of the single dish observations and the annual modulation model. In Sect. 3, we describe the VLBA observations and the data reduction procedure. In Sect. 4, we present the total intensity results of the VLBA observations, and in Sect. 4.1, we discuss the IDV properties of J1128+592 in the light of the VLBA observations, and in Sect. 5 we present the polarized intensity results of the observations, which we discuss in Sect. 5.1. Finally, in Sect. 6 we summarize our findings.

The following cosmological parameters were used throughout this paper: $H_{0}=71~{\rm km~s}^{-1}~{\rm Mpc}^{-1}$, $\Omega_{{\rm matter}}=0.27$, and $\Omega_{{\rm vac}}=0.73$. At the the redshift (z=1.795) of the source, 1 mas corresponds to a spatial scale of 8.5 pc. An apparent angular separation rate of 0.1 mas/yr corresponds to an apparent velocity of 7.8 c.

2 Summary of the single-dish observations and the annual modulation model

Since 2004 December, J1128+592 has been observed 28 times at 5 GHz with either the Effelsberg 100-m radio telescope (in 10 epochs) or the Urumqi 25-m radio telescope (in 18 epochs). In previous papers (Gabányi et al. 2007b,2008,2007a), parts of these observations were analyzed and discussed. Regarding the observational techniques, data reduction, and timescale determination, we refer to those papers and references therein.

\begin{figure}
\par\includegraphics[width=9cm]{12756f1a.eps}\par\includegraphics[width=9cm]{12756f1b.eps}
\end{figure} Figure 1:

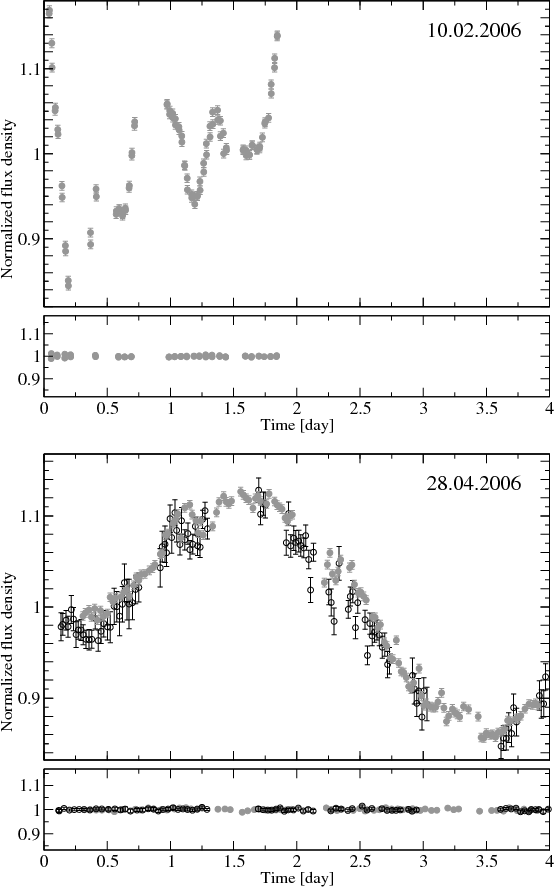

5 GHz light curves of J1128+592, observed in February 2006 ( top panel) and April 2006 ( bottom panel) (Gabányi et al. 2007b). Observations are performed with the Effelsberg antenna (gray symbols) and the Urumqi antenna (black symbols). In the lower parts of both panels, the light curve of a secondary calibrator source (B0836+710) is displayed for comparison.

Open with DEXTER

Two 5 GHz light curves of J1128+592 are shown in Fig. 1. The variability is pronounced, the peak-to-trough variability amplitude reaching 25%. The two light curves exhibit different variability timescales of $\sim$0.2 day in February 2006 and more than 1.5 day in April 2006. We proposed that the changes in the characteristic variability timescale are caused by annual modulation. In this case, the variability timescale is proportional to the scattering length-scale, and inversely proportional to the relative velocity between the scattering screen and the observer.

However, the simple isotropic annual modulation model could not reproduce all observed changes in the variability timescale (Gabányi et al. 2007b). In a more detailed scenario, the scintillation pattern could be more accurately described by an anisotropic model (Bignall et al. 2006). Here, the variability timescale also depends on both the ellipticity of the scintillation pattern and the direction in which the relative velocity vector ``cuts through'' the elliptical scintillation pattern (and not just the absolute value of the velocity vector). We note that this model does not infer the origin of the anisotropy, be it source intrinsic or induced by the scattering medium. A similar anisotropic model was used to explain the seasonal cycles in J1819+3845 (Dennett-Thorpe & de Bruyn 2003), PKS1257-326 (Bignall et al. 2006), and in both PKSB1519-273 and PKSB1622-253 (Carter et al. 2009). We therefore fitted the anisotropic annual modulation model of Bignall et al. (2006) to our measurements with the following model parameters: the components of the screen velocity vector (in right ascension $\varv_\alpha$, and declination direction $\varv_\delta$), the scattering length scale (s, which depends on the screen distance and the scattering size), the position angle of anisotropy ($\beta$), and the axial ratio of the anisotropy (r).

As the monitoring observations continued and we gathered more data, we were able to refine the annual modulation model. For all available data acquired until 2008 April, we obtain the following parameters from the fits: $\varv_\alpha = (3 \pm 4)$ km s-1, $\varv_\delta = (-11 \pm 2)$ km s-1, $s = (1.3 \pm 0.3) \times 10^6$ km, $r=3.4 \pm 0.8$, and $\beta = -98^\circ \pm 5^\circ$. The angle is measured north through east. The measured timescales and the fitted annual modulation model are displayed in Fig. 2.

\begin{figure}
\par\includegraphics[width=8cm,clip]{12756f2.eps}
\end{figure} Figure 2:

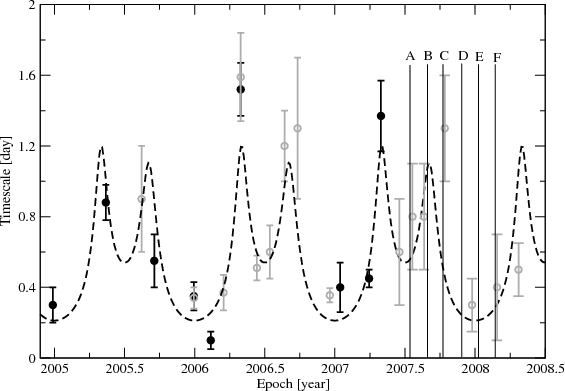

The variability timescales of the IDV of J1128+592, measured at different epochs. The dashed black line shows the fitted annual modulation model. Circles represent the data points used in the fitting. Open circles represent data from the Urumqi telescope, filled circles stand for Effelsberg measurements. Vertical lines mark the epochs of the VLBA observations.

Open with DEXTER

During the 4 years of monitoring, the variability amplitude decreased. In Fig. 3, we plot the total flux density at 5 GHz versus time. We also plot the standard deviation of the individual flux density measurements in a single observing campaign, which is a measure of the ``strength of the IDV''. A value corresponding to ten times the standard deviation is displayed as filled circles in Fig. 3. We performed 6 epochs of VLBA observations during 2007 and 2008, to investigate the physical reasons behind the decreasing variability strength and search for related structural variations in the source.

\begin{figure}
\par\includegraphics[width=8cm,clip]{12756f3.eps}
\end{figure} Figure 3:

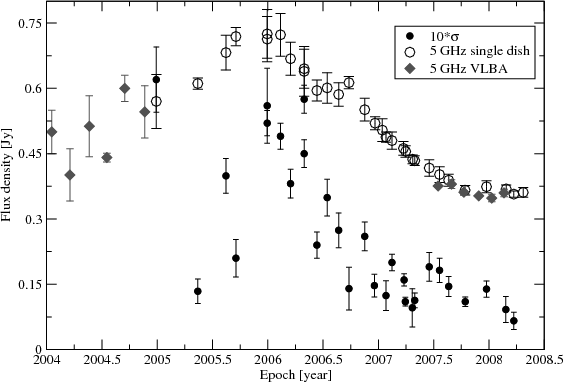

Flux density of J1128+592 as measured with single dish telescopes (open circles) and by the VLBA (filled gray diamonds) at 5 GHz. Black dots represent the standard deviation of the flux density variations of J1128+592. The standard deviation values are multiplied by a factor of 10 for a clearer display.

Open with DEXTER

Comparing the average flux densities of these observations, we found that the source experienced significant long-term flux density change (see Fig. 3). The flux density of J1128+592 increased by $\sim$27% until the end of 2006, afterward the flux density continuously decreased until October 2007 by $\sim$63%. In parallel to the decreasing total flux density, the strength of the variability (standard deviation given by filled circles in Fig. 3) decreased in a similar way. We note that during the phase of brightening (before 2006), J1128+592 was not monitored in a systematic way. Therefore, owing to differences in the time sampling and duration of the individual measurements, the error bars and the scatter in the measured standard deviation are larger for the first couple of measurements (for a discussion of the long-term flux density variability, see Sect. 4).

3 VLBA observations and data reduction

Our first VLBA observation took place in July 2007, and 5 subsequent epochs were followed by a 4 to 6 week separation. The last VLBA observation was performed in February 2008. Each observation had a duration of 6 h and was performed at 5 GHz, 8 GHz, and 15 GHz with dual polarization. The VLBI data were recorded with a data-rate of 256 Mbit/s. The sources 4C39.25 and J1038+0512 were included as calibrators. In addition to the data from our 6 VLBA experiments, we also searched the VLBA archive for previous observations of J1128+592. We (re)-analyzed six epochs of 5 GHz observations closest int time to our monitoring program. J1128+592 was used as a calibrator in these archival observations. We unfortunately did not find 5 GHz data overlapping with our single-dish campaign. The details of all these observations are summarized in Table 1. In the table, the first 6 epochs are 5 GHz observations from the VLBA archive. The last 6 epochs are our multi-frequency observations.

Table 1:   Details of the VLBA observations of J1128+592.

After correlation at the VLBA correlator in Socorro (NRAO), the data were calibrated and fringe-fitted using the standard procedures within the AIPS (Astronomical Image Processing System) software package. The post-processing of the data included the usual steps of editing, phase- and amplitude self-calibration, and imaging. These tasks were performed with the Caltech DIFMAP program package. The Caltech DIFMAP package was also used to fit the uv-data. We fitted the source structure in every epoch with circular Gaussian components. We tested fitting with elliptical Gaussians, however we did not obtain stable and physically meaningful results for every epoch (e.g., elliptical Gaussian components became degenerate). For consistency and to follow the same reduction and analyzing steps in every epoch, we parametrized the brightness distribution of J1128+592 by fitting only circular Gaussian components to the visibilities.

Calibration of the polarized data involved the correction for parallactic angle, determination of both right-left multiband and single-band delay corrections, feed D-term calibration, and the absolute calibration of the electric vector position angle (EVPA). For D-term calibration, J1038+0512 was used. Its total intensity and polarization structure is simple and point-like, compared to our other calibrator, 4C39.25. The EVPA calibration was completed by comparing the averaged EVPA of 4C39.25 measured in the VLBA images and those values given by the Very Long Array (VLA) polarization monitoring program[*] at 5 GHz and 8 GHz. To calibrate EVPA at 15 GHz, we used the 14.5 GHz measurements of the University of Michigan Radio Astronomy Observatory (UMRAO, e.g., Aller et al. 2003). The UMRAO observations are performed at three frequencies, 5 GHz, 8 GHz, and 14.5 GHz. The VLA and UMRAO results are all consistent, apart from one corresponding to the first epoch, for which a difference of $\sim$$100^\circ$ between the 8 GHz EVPA of 4C39.25 was measured. The observations at the different sites were performed within two days. The measured polarized flux density differed significantly, the VLA flux density being twice as high as the UMRAO one. Since the amount of polarized flux density measured in our VLBA maps agreed with that measured for the UMRAO data, we decided to use the EVPA reported by the UMRAO.

4 Results of the VLBA observations - total intensity

\begin{figure}
\par\mbox{\includegraphics[width=5.0cm]{12756f4a.eps}\hspace*{1cm...
...e.eps}\hspace*{1cm}
\includegraphics[width=5.0cm]{12756f4f.eps} }\end{figure} Figure 4:

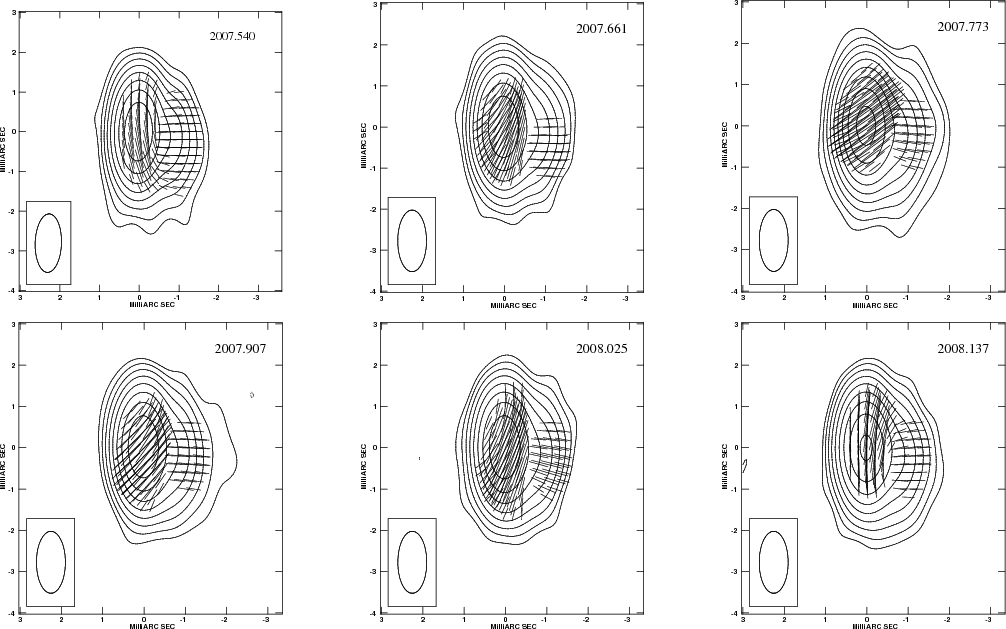

5 GHz VLBA maps of J1128+592 from the six observing epochs. Contours show total intensity, lines show the strength and direction of the polarized intensity. Contours are in percent of the peak flux and increase by factors of two. The peak flux intensities are 312, 299, 295, 292, 277, and 300 mJy/beam. The beam-size is $2~{\rm mas} \times 1~{\rm mas}$ and is shown at the bottom left corner of each image. The 1 mas length of the superimposed polarization vectors corresponds to 1 mJy/beam.

Open with DEXTER

\begin{figure}
\par\mbox{\includegraphics[width=5.0cm]{12756f5a.eps}\hspace*{1cm...
....eps}\hspace*{1cm}
\includegraphics[width=5.0cm]{12756f5f.eps} }
\end{figure} Figure 5:

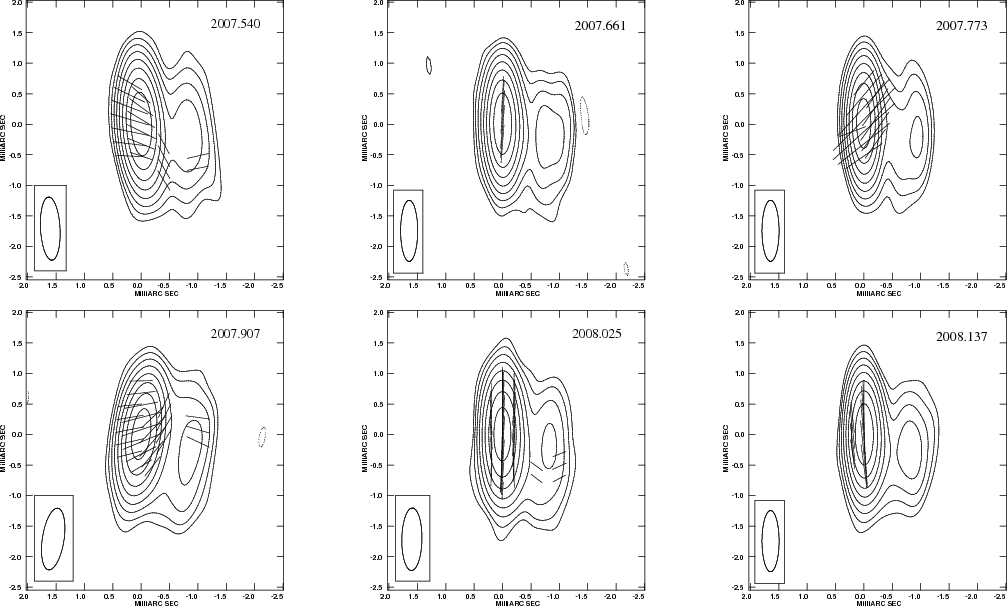

8 GHz VLBA maps of J1128+592 from the six observing epochs. Contours show total intensity, and lines indicate the strength and direction of the polarized intensity. Contours are in percent of the peak flux and increase by factors of two. The peak flux intensities are 300, 289, 284, 294, 284, and 283 mJy/beam. The beam-size is $1.5~{\rm mas} \times 0.7~{\rm mas}$ and is shown in the bottom left-hand corner of each image. The 1 mas length of the superimposed polarization vectors corresponds to 2.5 mJy/beam.

Open with DEXTER

\begin{figure}
\par\mbox{\includegraphics[width=5.0cm]{12756f6a.eps} \includegra...
...5.0cm]{12756f6e.eps} \includegraphics[width=5.0cm]{12756f6f.eps} }\end{figure} Figure 6:

15 GHz VLBA maps of J1128+592 from the six observing epochs. Contours show total intensity, lines show the strength, and direction of the polarized intensity. Contours are in percent of the peak flux and increase by factors of two. The peak flux intensities are 232, 229, 220, 236, 232, and 233 mJy/beam. The beam-size is 1 mas $\times $ 0.3 mas and is shown in the bottom left corner of each image. The 1 mas length of the superimposed polarization vectors corresponds to 2.5 mJy/beam.

Open with DEXTER

The aperture synthesis imaging of a non-stationary source, which varies during the time of the observation, leads to a degradation in the reconstructed image. This amount of degradation depends on the variability amplitude and the timescale of the variability with respect to the total observing time. Simulations showed that a smooth change in 80% in the source flux density over an observing time of 12 h leads to residual side-lobes and a limitation of the dynamic range in the VLBI map of the order of a few hundred (Hummel 1987). In the case of J1128+592, the maximum peak-to-trough variability amplitude during our 6 VLBA experiments was $\sim$16% (Dec. 2007), but is typically lower and of the order of $\sim$10%. The variability timescales were in the range 0.3-1.3 days, which is extremely long compared to the 6 h duration of our VLBA experiments. We examined our VLBI images and we found no strong signs of image degradation (excessive rms, side-lobes, or symmetric structures indicative of calibration errors). At 5 GHz, where the IDV is strongest, we subdivided a VLBA observation into two 3 h segments and imaged them separately (IDV decreases towards higher frequencies, resulting in much lower image degradation at 15 GHz). The resulting small differences in the flux densities of the VLBI components ($\lesssim$10 mJy) are within the errors introduced by the a priori flux density calibration, which is accurate at the 5-10% level, and the accuracy achieved by Gaussian model fitting, which is mainly limited by the uv-coverage. We therefore conclude that the IDV, which was present during our VLBI observations, did not affect the resultant images significantly, nor could it cause largely wrong estimates of the VLBI component flux densities derived from Gaussian model fits.

The VLBA maps (Figs. 4-6) show the east-west oriented two-component structure of J1128+592, which is clearly resolved at 8 GHz and 15 GHz. At 5 GHz, the total intensity maps show a point-like source at first glance, but after model-fitting with circular Gaussian components, a two-component model is found to provide a significantly better fit to the data in every epoch.

The brighter and more compact component has a flat spectral index between the 5 GHz and 15 GHz[*]. Its average spectral index during the six epochs is $-0.06 \pm 0.04$. The western component has a steep spectrum with an average spectral index of $-1.0 \pm 0.1$. Thus, we can conclude that the brighter component is most probably the compact core, while the westward feature is an optically thin jet component.

The flux densities of the jet and core components at 5 GHz, 8 GHz, and 15 GHz are listed in Tables 3-5, respectively. The summed flux density of the two fitted components at 5 GHz agrees with the mean flux densities measured by the Urumqi telescope during that period (Figs. 3 and 7). More than 90% of the flux density measured by a single dish is recovered by our VLBA observations at 5 GHz.

The archival 5 GHz VLBA data also shows an east-west oriented core-jet structure. However, the summed flux density of the model components are larger in every epoch than in our VLBA observations. This is in agreement with the long-term flux density changes revealed by the single-dish observations (Fig. 3). According to the archival VLBA data (Table 2), the flux density of the jet feature is very similar to the results of our VLBA observations. But the core component is brighter than in our observations in 2007 and 2008, which suggests that the core was responsible for the brightening observed in the single dish monitoring.

According to our VLBA observations, the size of the fitted circular core component is $\theta_{5~{\rm GHz}}=0.2 \pm 0.05$ mas at 5 GHz, $\theta_{8~{\rm GHz}} = (0.08 \pm 0.02)$ mas at 8 GHz, and $\theta_{15~{\rm GHz}} \sim 0.15$ mas at 15 GHz. In the standard jet model (e.g. Blandford & Königl 1979), the base of the jet is assumed to have a constant brightness temperature of $T_{\rm B} \sim S/(\nu^2 \theta^2) \sim \textrm{constant}$ (where S is the flux density, $\nu$ the frequency, and $\theta$ is the FWHM source size). Thus, the size of a flat spectrum source can be expected to be inversely proportional to the frequency. However, the size of the flat spectrum core of J1128+592 does not follow this relation. The 15 GHz size appears excessively large. This might indicate that the core component is a blend of the core and a new feature that is not (yet) resolved at 15 GHz at the time of our observations.

From the six reanalyzed archival epochs, we obtain an average core size of $\sim$ $(0.07 \pm 0.02)$ mas. This is less than half of the value that we measured in our VLBA observations. Unfortunately, we do not have VLBI data acquired simultaneously to the time when the source was in its most variable IDV state. The available data, however, indicate that the core might have been more compact at that time. Since a larger size of the scintillating component(s) quenches the variations more (e.g., Rickett et al. 1995, and references therein), this increase may naturally explain the observed decrease in the variability amplitudes. The comparison with a standard scintillation model (Beckert et al. 2002) indeed suggests good agreement between a change of scintillating source size (from 0.07 mas to 0.2 mas) and the observed change in variability amplitude (Fig. 3).

From the model fits of the VLBA data, one can obtain an upper limit to the size of the VLBI core and its flux density. Thus, one can calculate a lower limit to the brightness temperature of that feature. The redshift-corrected lower limit brightness temperature ( $T_{\rm B} \sim (1+z)S/(\nu^2\theta^2)$) of the core in our observations at 5 GHz is $\geq$ $8.8 \times 10^{11}$ K. If the brightness temperature of the core is equal to this lower limit, assuming 1012 K for the inverse-Compton limit of the brightness temperature (Kellermann & Pauliny-Toth 1969), we find no need for relativistic beaming. However, according to earlier VLBA data from the archive (year 2004), the redshift-corrected brightness temperature of the core at 5 GHz was $\ge$ $11 \times 10^{12}$ K at that time. Here, at least a Doppler factor of $\sim$11 is required to reduce the brightness temperature to the 1012 K inverse-Compton limit. This means that the minimum Lorentz-factor of the jet is $\gamma_{\rm min} =\delta_{\rm min}/2 \geq 5.5$.

To search for possible jet motion on mas-scales, we checked for systematic changes in the relative separation of the two VLBI components of J1128+592. At the highest available resolution, at 15 GHz, we did not find any evidence of motion. A linear fit to the 15 GHz data formally yields an angular separation rate of $0.03 \pm 0.08$ mas/year. This translates into an upper limit to the apparent speed of $(2\pm 6)~c$. At 15 GHz, we observed a slight change in the position angle of the jet feature relative to the core, which was assumed to be stationary: in the first three epochs, the position angle is $\sim$ $-111^\circ $, while in the last three it is $\sim$ $ -107^\circ$. Compared to the average measurement error in the position angle of $\sim$$ 3^\circ$, we regard this change as insignificant.

We also checked whether any significant motion can be detected between the 5 GHz archival data from 2004 and our observations (2007/2008). Resolving the VLBI structure of the two components in the archival data was more difficult because of the poorer uv-coverage (J1128+592 was a calibrator, usually observed in only a few scans). Therefore, the derived distances (and position angles) between the components exhibited a larger scatter. A linear regression to the 5 GHz data (weighting of the data by the inverse square of the errors) infers a formal speed of $(-0.02 \pm 0.02)$ mas/year, which is consistent with either stationarity or marginal inward motion (Fig. 8).

Although no significant motion is seen in the jet, we can estimate the expansion velocity from the observed change of the core size, and thus estimate the viewing angle of the unresolved part of the jet relative to the observer. The core's FWHM changed by $0.13 \pm 0.07$ mas during four years, that is at a rate of $0.03 \pm 0.02$ mas/year. This translates into an apparent velocity of $(2.5 \pm 1.4)c$. The viewing angle is obtained from $\psi = \arctan{\frac{2 \beta_{\rm app}}{\beta_{\rm app}^2+\delta^2-1}}\cdot$Using the Doppler factor calculated from the brightness temperature of the core component (11), we obtain for the viewing angle $\psi = 2.3^\circ \pm 1^\circ$.

In summary, we note that J1128+592 is at least a mildly ( $\gamma \geq 5.5$) relativistic source, which is oriented almost along the line of sight. It therefore shows a relatively short jet (seen in projection) and a relatively large Doppler-factor of $\delta \geq 11$.

4.1 Annual modulation model and VLBA source structure

The orientation of the VLBI structure of J1128+592 is very similar to the orientation of the scattering ellipse deduced from the anisotropic annual modulation model. The average position angle of the jet feature is $\sim$ $-116^\circ$ at 5 GHz and $-108^\circ \pm 2^\circ$ at 15 GHz (note, at 15 GHz, that the position of the jet component is located more accurately owing to a smaller beam size). While the position angle of the scattering ellipse is $-98^\circ \pm 5^\circ$, according to the annual modulation model.

Using the results of our VLBA observations, we fitted the variability timescales again, this time keeping the position angle of the anisotropy fixed at the position angle of the jet feature ( $-116^\circ$). The model parameters obtained agree well within the errors with the original unconstrained fit (see Sect. 2). This may indicate that the anisotropy seen in the scintillation pattern originates mostly in the source structure rather than the scattering medium. However, additional observations are required to clarify unambiguously the roles of the scattering plasma and source structure in the anisotropic scattering. According to Rickett et al. (2002), a negative ``overshoot'' in the light-curve autocorrelations is indicative of anisotropy caused by the scattering medium. The study of the scintillation in all Stokes parameters ( I, U, Q, V) can also shed light on the origin of the anisotropy. This analysis however must await future single-dish observations of the polarized intensity of J1128+592, since the Urumqi telescope can only perform total intensity observations.

As mentioned in Sect. 2, annual modulation models of different IDV sources always invoke anisotropic scattering. The ratio of anisotropy is usually above 4 (e.g., Bignall et al. 2006, report an axial ratio for PKS1257-326 $\sim$12). Walker et al. (2009) studied whether an even higher degree of anisotropy can be used to describe the observations in the case of J1819+3845 and PKS1257-326. The authors found that the anisotropy can be so large in these two sources that the scintillation pattern can be more effectively described one dimensional. Therefore, they concluded it would be more likely that the anisotropy is caused by the scattering material rather than the source intrinsic structure.

We used the source model from the VLBI data (created by DIFMAP) to investigate how the velocity vector cuts through the source structure at the different observing epochs. We used an ``average'' source structure with a core-component flux density of 0.26 Jy, a core-component size of 0.2 mas, a jet-component flux density of 0.12 Jy, and a jet-component size of 1.1 mas. The position angle of the jet component was $-116^\circ$ and its distance from the core was 0.5 mas. In 2007.774 (VLBA epoch C), the source structure was aligned almost parallel to the velocity vector. The direction of the velocity vector at that time of the year is $-126^\circ$ (see the ellipse in Fig. 11). We cut through the source structure in this direction and fitted the resulting curves with a Gaussian. The resulting FWHM was 0.17 mas.

Assuming this to be the value for the major axis of the scintillating source $\theta_{\rm maj}$ and using a scintillation length-scale s and axial ratio r from the annual modulation model, we can calculate the screen distance D by adopting the equation $a_{\rm maj}=s \cdot (2.54)^{-1} \cdot \sqrt{r} = \theta_{\rm maj} \cdot D$. The constant factor of 1/2.54 is caused by a different definitions of the variability timescale used by Bignall et al. (2006) and ourselves. More precisely, since the VLBA model fits provide only an upper limit to the source size, the derived screen distance represents a lower limit. As a lower limit to the distance of the scattering screen, we obtain $\sim$37 pc.

Table 2:   Flux densities of the fitted Gaussian model components in the six archival VLBA epochs.

\begin{figure}
\par\resizebox{9cm}{!}{\includegraphics{12756f7.eps}}
\end{figure} Figure 7:

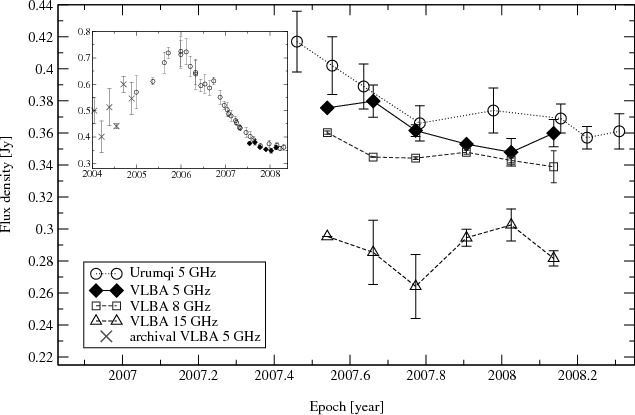

Flux density measurements of J1128+592 by single dish and VLBA. Circles represent the single dish flux density measurements. Diamonds, squares, and triangles show the summed model components of VLBA observations at 5 GHz, 8 GHz, and 15 GHz respectively. In the insert, all of our 5 GHz single dish observations (circles) are displayed together with our 5 GHz VLBA data (diamonds), and archival 5 GHz VLBA data (crosses).

Open with DEXTER

\begin{figure}
\par\includegraphics[width=8cm,clip]{12756f8.eps}
\end{figure} Figure 8:

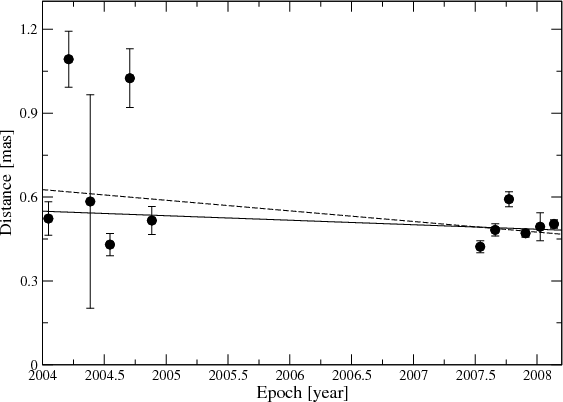

Relative separation of core and jet component of J1128+592 as measured with VLBI at 5 GHz. The lines are fits from a linear regression analysis. The solid line represents a fit with linear weighting of the errors, the dashed line shows a fit with quadratic weighting.

Open with DEXTER
This value is comparable to those derived for fast scintillators ($\le$10 pc), (Dennett-Thorpe & de Bruyn 2003; Bignall et al. 2006), is 3-4 times lower than the lower limits obtained previously for J1128+592 in Gabányi et al. (2007b). In Gabányi et al. (2007b), we used a similar anisotropic annual modulation model, but we estimated the source size from the frequency dependence of the variability strength at that time. This discrepancy can be explained by a not-so-precise estimate because of the limited number of simultaneously measured multi-frequency light-curves and possible opacity effects.

5 Results of the VLBA observations - polarized intensity

\begin{figure}
\par\includegraphics[width=8cm,clip]{12756f9.eps}
\end{figure} Figure 9:

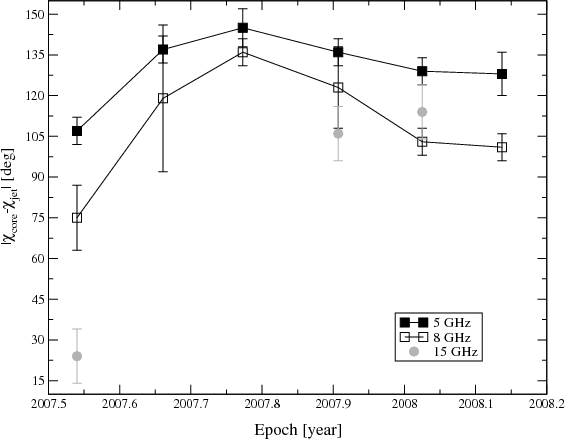

The difference between the core and jet EVPA at all three observing frequencies measured for the six VLBA epochs. Filled black squares represent 5 GHz data, open black squares represent 8 GHz data, and gray dots represent 15 GHz data.

Open with DEXTER

Both the core and the jet component are polarized at 5 GHz and 8 GHz. The polarization of the jet component at 15 GHz can be detected above the noise level in only three epochs (in 2007.54, 2007.907, and 2008.025).

The peak of the total intensity and the polarized feature in the core coincides in every epoch and frequency, except in 2007.54 at 15 GHz. In this data set, the polarized intensity feature is displaced by $\sim$0.15 mas to the east from the total intensity peak.

The polarized flux densities and the EVPAs of the core and the jet are summarized in Tables 3-5. At 15 GHz, we show values corresponding to the polarized patches at the largest core separation.

Table 3:   The results of the 5 GHz VLBA observations.

Table 4:   The results of the 8 GHz VLBA observations.

Table 5:   The results of the 15 GHz VLBA observations.

In Fig. 9, we show the difference between the core and jet EVPA. Note that this quantity is not affected by a possible calibration error of the EVPA absolute orientation. (EVPA miscalibration might occur in at least one epoch at 8 GHz, see Sect. 3). It is clear from Fig. 9, that the relative position-angle difference between the electric vectors of the two components varies significantly from epoch to epoch (and thus on timescales of $\sim$6 weeks) at all three frequencies. At 5 GHz, the relative EVPA of the two features changes by $\sim$$ 50^\circ$, then it rotates back by $20^\circ$. At 8 GHz, the trend is similar $\sim$$60^\circ$ rotation during the first three epochs, then the EVPA difference decreases by more than $30^\circ$ to around $100^\circ$ in the last epoch. In the following, we discuss these simultaneous change in the EVPA of two physically distinct VLBI components.

Table 6:   RM of the core (Col. 3) and jet component (Col. 4).

5.1 Discussion of the EVPA changes

\begin{figure}
\par\includegraphics[width=8cm,clip]{12756f10.eps}
\end{figure} Figure 10:

The rotation measure of the core (filled circles) and the jet (open circles) of J1128+592 during the VLBA observations. The VLBA epochs are denoted by letters (see Table 1).

Open with DEXTER

In general, changes in the EVPA with frequency are explained by the rotation measure of an ionized plasma. When polarized light passes through a magnetized plasma, it is subject to Faraday rotation: the intrinsic polarization angle $\chi_{0}$ rotates by an amount proportional to the square of the observed wavelength (Burn 1966). Thus, the observed polarization angle is $\chi=\chi_0+{\rm RM} \lambda^2$. The RM depends on both the free electron density $n_{\rm e}$ of the plasma along the line of sight and the line-of-sight component of the magnetic field $B_\parallel$: ${\rm RM} \sim\int n_{\rm e} B_\parallel {\rm d}s$.

For the jet component, we detected polarization at 15 GHz in only three epochs, and we can therefore only obtain a reliable RM value for these epochs. We note that plotting the EVPA versus lambda2, all data points lie along a straight line with relative little scatter and are therefore aligned without requiring 180 degree ambiguity corrections. We also estimated the RM for the other epochs with polarization detections at only two frequencies. Naturally, these values are only approximate estimates of the RM (shown in parenthesis in Table 6). However, it can be seen from Fig. 10 that the RM changes smoothly from epoch to epoch.

The RM values obtained are displayed in Fig. 10. The RM of the core varied from $\sim$ $-500~{\rm rad/m}^2$ to $\sim$ $+30~{\rm rad/m}^2$, then gradually changed back to a negative value of $\sim$ $-141~{\rm rad/m}^2$. The RM of the jet also exhibited variations, although less pronounced. Despite the relatively large measurement errors, it appears as if the RM of the core and the jet vary in unison.

Temporal variability of the RM has been reported for only a few AGNs and on timescales of typically 1-3 years: 3C273 (Zavala & Taylor 2001; Asada et al. 2008), 3C279 (Zavala & Taylor 2001, and references therein) and 3C120 (Gómez et al. 2008). The Faraday screen responsible for the rotation of the EVPA in these sources is understood to be source intrinsic, i.e., either circumnuclear (related to the narrow line region or the torus surrounding the AGN), or internal, meaning that it is physically associated with the jet (e.g., related to a sheath around the jet, Inoue et al. 2003). According to (Gómez et al. 2008, and references therein), the internal Faraday rotation causes depolarization in the source. Thus, when the rotation reaches an angle of $\sim$$45^\circ$, the fractional polarization decreases by a factor of two. This effect is not seen for J1128+592 in our data, therefore an external Faraday screen is more plausible.

From Fig. 10, it is obvious that the apparent variation in the RM of core and jet exhibit similar trends, despite their projected linear distance of $\geq$5 pc. This suggests that the core and jet are both covered by the same Faraday screen. The relative offsets between the RM of the jet and core, and the slightly more pronounced variability in the RM of the core component is indicative of a second Faraday screen, which covers only the core region but not the jet. We tried to decompose the RM into two Faraday screens, one that is common to both core and jet, and causes a similar variability trend throughout our six VLBA epochs ( $\Delta \textrm{RM} \sim 150 \textrm{~rad/m}^2$on a timescale of 5 to 6 months), and a second component, which only affects the core-region of the VLBI structure. This latter Faraday screen causes an RM variation in the core-region of $\Delta \textrm{RM} \leq 300~\textrm{~rad/m}^2$ on shorter timescales of 1.5 months. At this point, it is obvious that this decomposition is affected by the relatively large measurement uncertainties and should be confirmed by future more finely (in time and frequency) sampled measurements.

We may hypothesize that the screen affecting both components identically could be the same local screen that is responsible for the IDV and the annual modulation. In this case, the observed systematic variation in the RM could be caused by: (i) variations in the parallel component of the interstellar magnetic field $B_\parallel$; (ii) variation in the electron density $n_{\rm e}$in the local screen, or (iii) a variation in the path length, i.e., the thickness of the screen with respect to its projection on the ecliptic (orbital plane), or of course, a combination of these three effects. If we attribute most of the observed systematic RM variability to a screen in the nearby galactic ISM, changes in the magnetic field and/or the electron density over spatial scales of shorter than 2 AU (or timescales of a few weeks) would indicate the presence of MHD-turbulence in the ISM. On the other hand, if the magnetic field is homogeneous on AU-scales and frozen in, it will not vary strongly (with neither time nor on AU-size scales). The projection angle of the magnetic field ( $B_\parallel \sim B_0 \sin(\phi)$), could however in principle vary if the screen is very close, because the Earth orbits the Sun. For a presumed screen distance of $\sim$37 pc, one expects variations in the projection angle of no more than $\sim$ $\arcsin (2~\textrm{AU} / 37~\textrm{pc}) \sim 10^{-5}{^\circ}$, which is far too small to cause any significant variation in the RM. It is also difficult to explain a fractional RM variation of $\Delta$ RM $\sim$ 150 rad/m2solely by changes in the path length. This points towards a combination of time-variable path length, electron density, and perhaps even magnetic field, in such a way that it would explain the observed systematic RM changes, as illustrated by the 3D-diagram in Fig. 11. We note that this time dependence would be the natural consequence of a refractive lens moving through the line of sight. These lenses are used to explain the so-called ``extreme scattering events'' in some IDV sources (Clegg et al. 1998; Lazio et al. 2000; Senkbeil et al. 2008) and cause systematic intensity variations on timescales of months. Clegg et al. (1998) discuss the geometrical effects of such a lens and mention the possibility of RM variations, which, in their case, were not however detected. Since the frequency-dependent ``bending'' of the rays by the plasma lens leads to caustics and differential amplification of the (polarized) substructure of the source, it is possible that such a lens also introduces apparent RM variations. The discussion of this possibility, however, is beyond the scope of this paper and deserves a future, more thorough elaboration. The variation in the line-of-sight ``thickness'' of the screen (or the related emission measure, which is $\sim$ $ \int n_{\rm e} {\rm d}s$) should also produce variation in the scattering measure (the line-of-sight integrated rms electron density) and the related variability index. However, the limited accuracy of the variability-index measurements illustrates these variations only very marginally (see solid circles in Fig. 3). According to Spangler (2009), the RM of ISM clouds located inside the Local Bubble is typically of the order of 1-10 rad/m2. This is much lower than the observed RM variations towards J1128+592, or even the part of RM variations, which is the same in both jet and core according to the decomposition analysis.

\begin{figure}
\par\includegraphics[width=8.8cm,clip]{12756f11.eps} %\vspace*{4mm}
\end{figure} Figure 11:

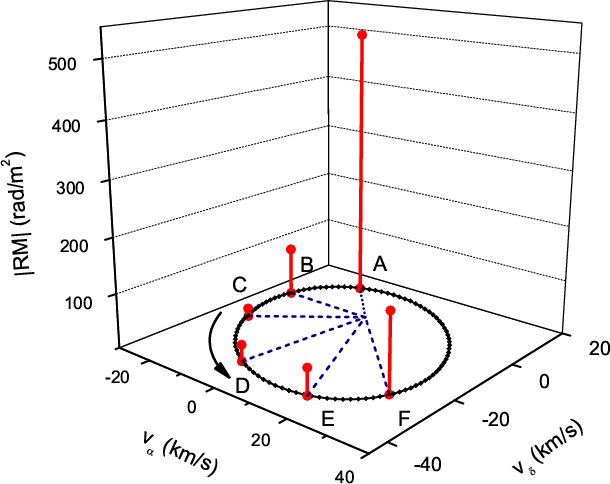

The variation in the rotation measure. The ellipse (solid black line) shows the apparent velocity of the screen relative to the Earth in the two orthogonal coordinates of right ascension and declination according to the fitted anisotropic annual modulation model. The dashed lines (blue) represent the velocity vectors at the times of the 6 VLBA observations (labeled A to F, see Table1). The vertical lines in the plane orthogonal to the orbital motion indicate the absolute value of the RM at the times of the VLBA observations.

Open with DEXTER

At this point, the signal-to-noise ratio of our data (i.e., RM, IDV timescale, and IDV amplitude) is clearly insufficient to disentangle the RM variations caused locally (interstellar weather, line-of-sight effects) and in the source itself. Higher polarization sensitivity, a more accurate determination of the RM of VLBI core and jet, and a longer time coverage (several orbital periods) will be necessary to study this effect further.

In an alternative and perhaps more conservative approach, one can argue that we do not see an intrinsically variable RM, nor does the intrinsic EVPA of the VLBI components change with time: we are observing instead at different times blends of different subcomponents, which cannot be resolved in our VLBI observations, even at 15 GHz. This blending of polarized components were reported in the case of other IDV sources, e.g., PKS0405-385 (Rickett et al. 2002). Thus, the EVPA changes in J1128+592 might also be explained by the emergence of a new polarized feature. As the new polarized subcomponent gradually separates from the core, the core EVPA changes, since it is dominated more and more by the new, strongly polarized feature. As this feature expands and thus fades, the measured EVPA becomes dominated again by the original core polarization, and thus it rotates back towards its original value. This scenario would naturally explain the observed shift between the total intensity and polarized intensity features in the first epoch at 15 GHz. (Similar offsets are often reported in quasars and blazars, and explained as polarized subcomponents e.g. Bach et al. 2006; Gabuzda & Gómez 2001). However, this scenario would not explain the EVPA variations (and the similar trend in the core and jet RM variations) of the jet component. Moreover, we also observed a variation in the RM of the core and jet without significant time shift. This would be difficult to understand, if the RM of the core were affected by blending effects, e.g., because of a newly emerging polarized jet component.

A solution to this problem and a viable interpretation of the correlated variability in the EVPAs and the RM in core and jet, must most likely include two effects: (i) a Faraday screen, which covers the entire VLBI structure and leads to the observed similar variability trend in the RM of jet and core; and (ii) another process, which only affects the frequency alignment of the EVPAs in the VLBI core region, and for which only marginal evidence is seen in our data. At present, it is unclear whether this second process is related to blending effects in a time-variable polarized substructure of the core or to another Faraday screen (in the quasar), which affects only the core but not the jet (circumnuclear screen, e.g., a torus). Future polarization sensitive VLBI monitoring of higher sensitivity, denser frequency coverage, and higher angular resolution - i.e., as provided by the future space VLBI (VSOP2, e.g. Tsuboi 2008) - should help us to distinguish between source-extrinsic and source-intrinsic depolarization effects.

6 Summary

We have presented new results derived from our 3 frequency (5/8/15 GHz) polarization-sensitive VLBA observations of the IDV source J1128+592. An aim of these observations was to discover whether source structural changes are responsible for the decrease in the strength of IDV observed in this source during 2007-2008.

Our data uncovered an east-west oriented jet-core structure of the source. For the entire six epochs of VLBA data (spanning 0.6 yrs), we were unable to detect any significant change in the total intensity VLBI structure of the source. Compared with archival VLBA data, we found that the total flux density of the core changed significantly. This agrees with our single-dish monitoring result, which included a flare-like brightening in J1128+592 during early 2006. Compared to archival data, the size of the core at 5 GHz also increased significantly, which may explain the quenching of the intraday variability. Although we did not detect any structural changes in the source during our observations, the core size was found to be excessively large at 15 GHz. This may be indicative of the emergence of a new jet component that is still blended with the core at the time of our observation.

We fitted an annual modulation model to the IDV timescales derived from our densely time-sampled IDV flux-density monitoring data. One important parameter of the annual modulation model is the scattering lengthscale, which is determined by the scintillating source size and distance to scattering screen. From the IDV monitoring and the size limits of the VLBI core, we obtained a lower limit to the distance of the scattering screen of $\sim$37 pc.

The source structure detected by our VLBA observations has an orientation that roughly agrees with the orientation of the anisotropic scattering obtained from the fit of annual modulation model. This might indicate that the source-intrinsic structure is responsible for the anisotropic scattering (unlike in other well-known IDV sources, e.g., Walker et al. 2009, and references therein).

We found significant variations in the orientation of the polarization vector in the source (core and jet) with time. At all three observing frequencies, the EVPA and the deduced RM of the core varied in unison on timescales as short as 6 weeks. The variation in the RM of the jet is less pronounced than in the core and affected by larger measurement errors, but seems to follow the same systematic trend as the RM variability of the core. The relatively fast variation of the RM and the similar trend in RM variations of the core and jet might indicate that at least a certain fraction of the RM variability is caused by a nearby ISM screen, which can also be responsible for the IDV and the annual modulation of the variability timescales. At this point, other source-intrinsic interpretations of the RM variability (e.g., internal Faraday rotation, different RM in different regions of the source) cannot be excluded. More data with superior time and frequency coverage will be necessary to distinguish between these possibilities.

Acknowledgements
The National Radio Astronomy Observatory is a facility of the National Science Foundation operated under cooperative agreement by Associated Universities Inc. This paper made use of data obtained with the 100 m Effelsberg radio telescope of the Max-Planck-Institut für Radioastronomie (Bonn, Germany) and the 25 m Urumqi Observatory (UO) of the National Astronomical Observatories (NAOC) of the Chinese Academy of Sciences (CAS). This research is made using data of the University of Michigan Radio Astronomy Observatory which is supported by funds of the University of Michigan. This work has benefited from research funding from the Hungarian Scientific Research Fund (OTKA, grant No. K72515). K.É.G. acknowledges fellowship received from the Japan Society for the Promotion of Science. N.M. has been supported for this research through a stipend from the International Max-Planck Research School (IMPRS) for Radio and Infrared Astronomy at the Universities of Bonn and Cologne.
