All Figures

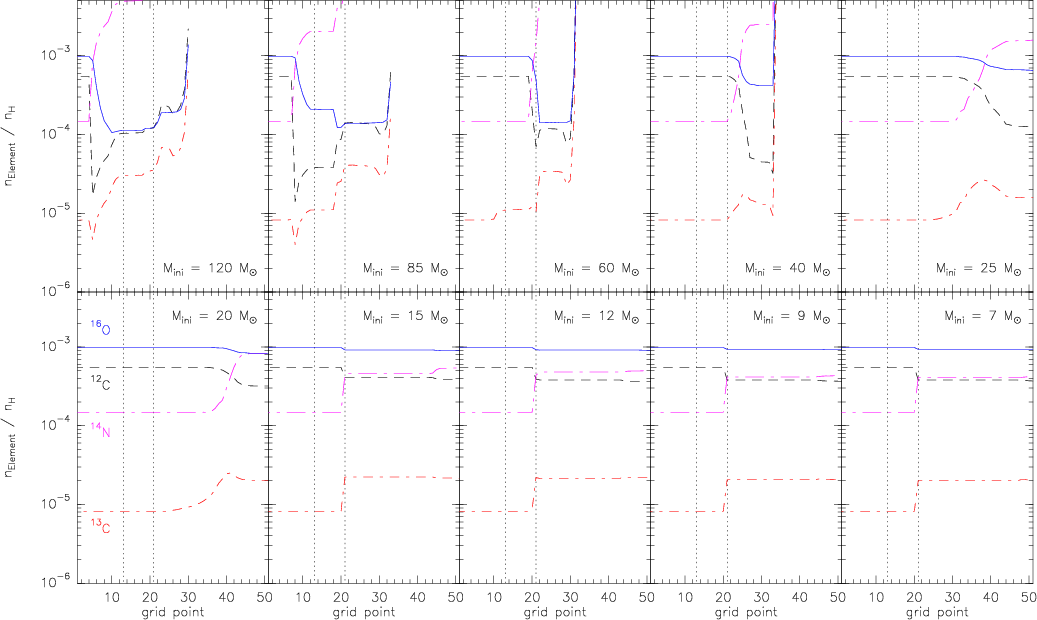

$\begin{figure} \par\includegraphics[width=18.4cm,clip]{1020fig1.eps} \end{figure}$ Figure 1: Changes in ¹²C, ¹³C, ¹⁴N, and ¹⁶O surface abundances with respect to the hydrogen surface abundance along the evolutionary tracks of non-rotating stars, as indicated by the grid points. The ratios were calculated from the data of Schaller et al. (1992) for solar metallicity. The approximate end of the core H burning and the onset of the core He burning phases are indicated by the two vertical dotted lines in each panel.
Open with DEXTER

In the text

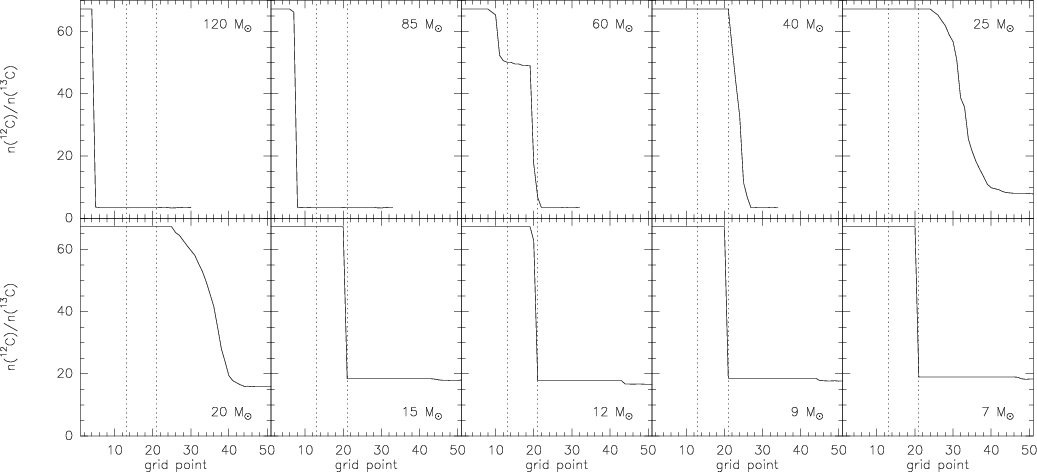

$\begin{figure} \par\includegraphics[width=18.4cm,clip]{1020fig2.eps} \end{figure}$ Figure 2: Change of the ¹²C/¹³C surface abundance ratio during stellar evolution of non-rotating massive stars at solar metallicity. The ratios are calculated from the tables of Schaller et al. (1992). The dotted lines have the same meaning as in Fig. 1.
Open with DEXTER

In the text

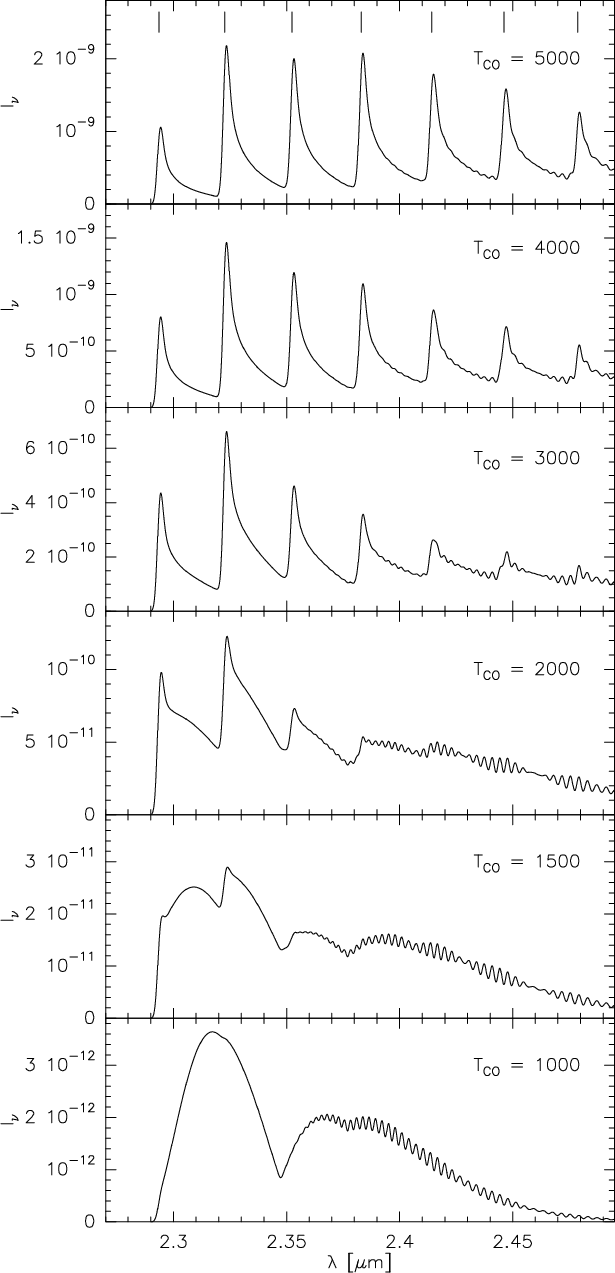

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1020fig3.eps} \end{figure}$ Figure 3: Influence of the temperature on the synthetic ¹²CO band emission spectra. Clear band head structures form for $T_{\rm CO} \ge 2000$ K.
Open with DEXTER

In the text

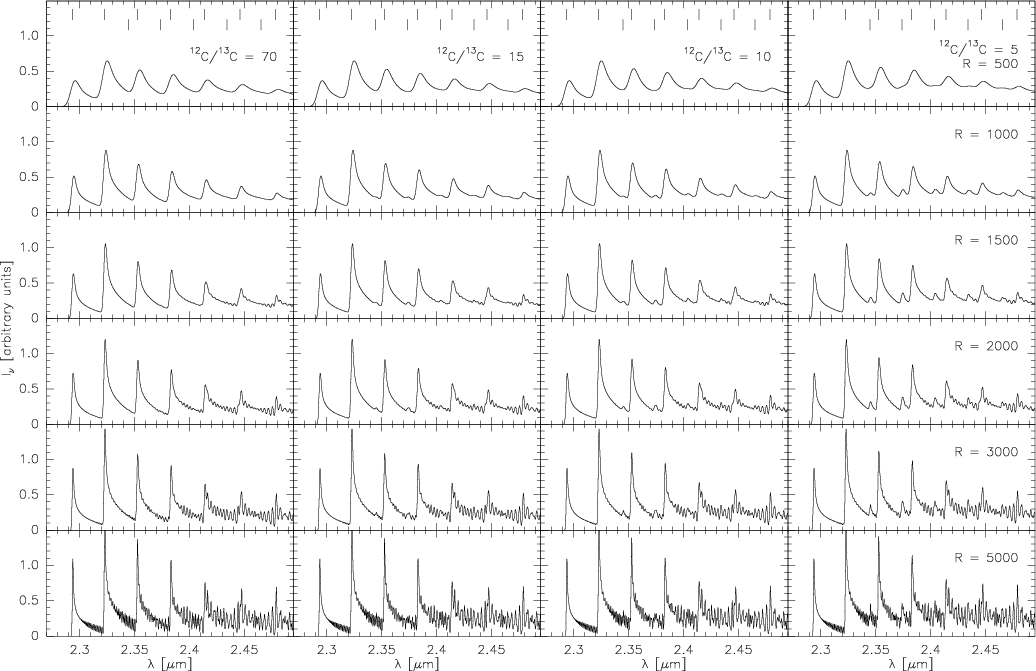

$\begin{figure} \par\includegraphics[width=18.4cm,clip]{1020fig4.eps} \end{figure}$ Figure 4: Synthetic, optically thin ¹²CO plus ¹³CO first-overtone band spectra computed for $T_{\rm CO} = 3500$ K. The individual panels are for increasing spectral resolutions ( from top to bottom) and for decreasing ¹²C/¹³C ratios ( from left to right).
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1020fig5.eps} \end{figure}$ Figure 5: CO Band structure for increasing CO column density ( from bottom to top), i.e., increasing optical thickness.
Open with DEXTER

In the text

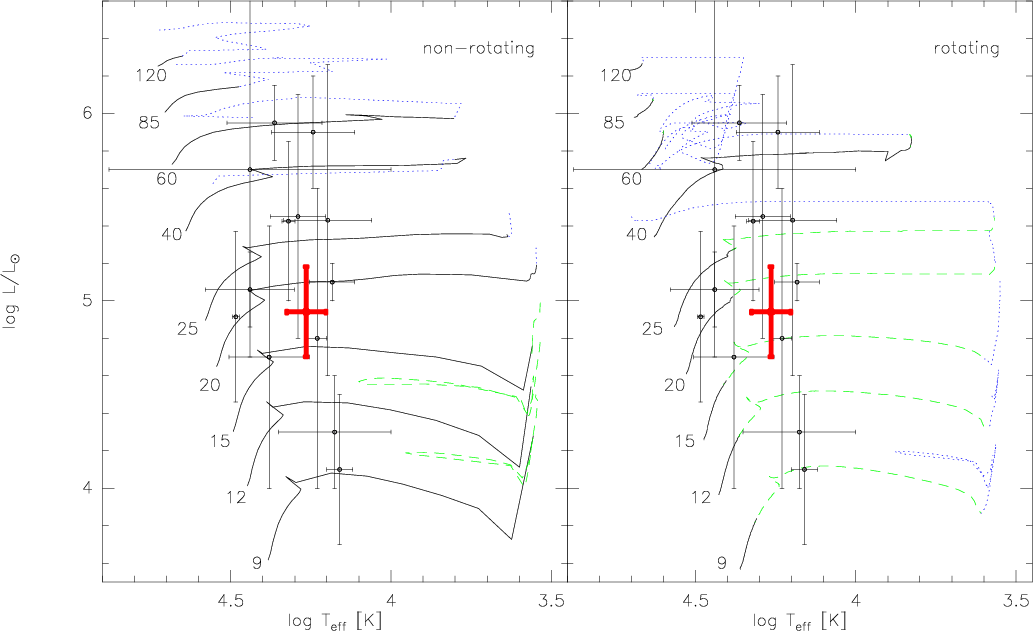

$\begin{figure} \par\includegraphics[width=18.3cm,clip]{1020fig6.eps} \end{figure}$ Figure 6: Comparison of the positions of the galactic B[e] supergiant candidates from Table A.1 with evolutionary tracks of non-rotating ( left panel, from Schaller et al. 1992) and rotating ( right panel, from Meynet & Maeder 2003) stellar evolutionary models at solar metallicity. The dashed and dotted parts of the tracks indicate those evolutionary phases with $20 \ge ^{12}$ C/ $^{13}{\rm C} \ge 15$ and ¹²C/ $^{13}{\rm C} \le 15$ , respectively. The position of GG Car is emphasized.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=18.4cm,clip]{1020fig2.eps} \end{figure}$	Figure 2: Change of the ¹²C/¹³C surface abundance ratio during stellar evolution of non-rotating massive stars at solar metallicity. The ratios are calculated from the tables of Schaller et al. (1992). The dotted lines have the same meaning as in Fig. 1.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1020fig3.eps} \end{figure}$	Figure 3: Influence of the temperature on the synthetic ¹²CO band emission spectra. Clear band head structures form for $T_{\rm CO} \ge 2000$ K.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=18.4cm,clip]{1020fig4.eps} \end{figure}$	Figure 4: Synthetic, optically thin ¹²CO plus ¹³CO first-overtone band spectra computed for $T_{\rm CO} = 3500$ K. The individual panels are for increasing spectral resolutions ( from top to bottom) and for decreasing ¹²C/¹³C ratios ( from left to right).
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{1020fig5.eps} \end{figure}$	Figure 5: CO Band structure for increasing CO column density ( from bottom to top), i.e., increasing optical thickness.
Open with DEXTER
