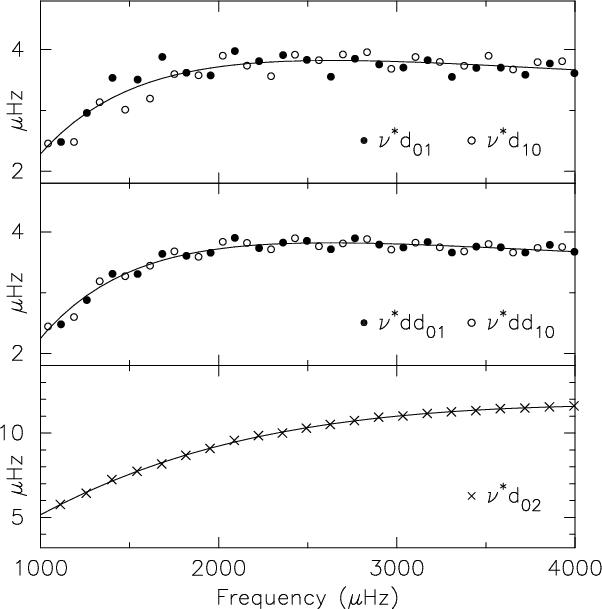

$\begin{figure} \par\includegraphics[width=8.5cm,clip]{fig1.ps} \end{figure}$ Figure 1: Top panel: $\nu ^* d_{01}, \nu ^* d_{10}$ ; middle panel: $\nu ^* dd_{01}, \nu ^* dd_{10}$ , bottom panel: $\nu ^* d_{02}$ , for solar model A. $\nu ^*=\nu$ in units of 2500 $\mu$ Hz.
Open with DEXTER

In the text

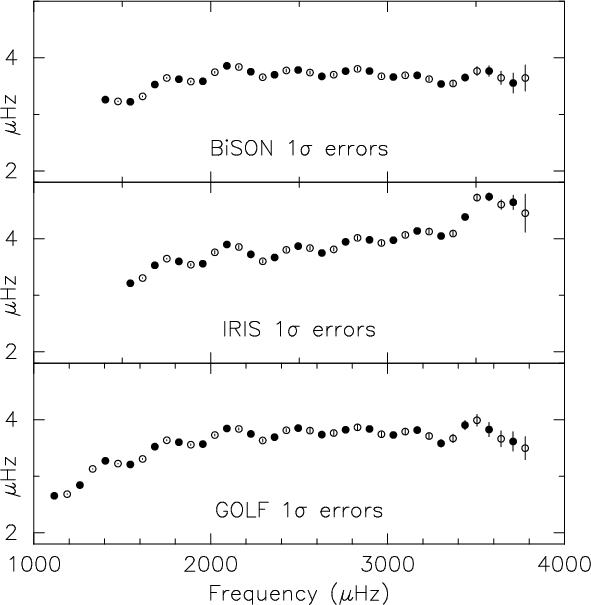

$\begin{figure} \par\includegraphics[width=8.35cm,clip]{fig2.ps} \end{figure}$ Figure 2: Variation of small separations $\nu ^* dd_{01}, \nu ^* dd_{10}$ with $\nu$ for frequencies obtained by the BiSON, IRIS and GOLF experiments. All data sets show the same periodicity and the same phase.
Open with DEXTER

In the text

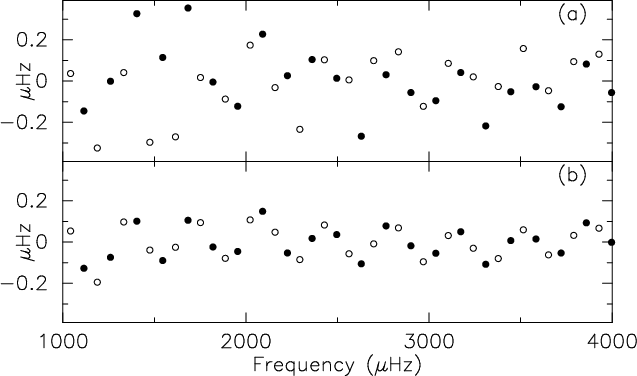

$\begin{figure} \par\includegraphics[width=9cm,clip]{fig3.ps} \end{figure}$ Figure 3: Residuals to a low order fit; a) $\nu ^* d_{01}, \nu ^* d_{10}$ , b) $\nu ^* dd_{01}, \nu ^* dd_{10}$ .
Open with DEXTER

In the text

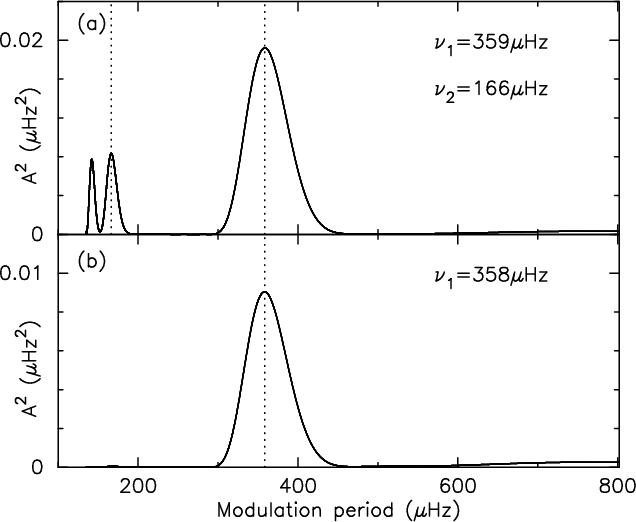

$\begin{figure} \par\includegraphics[width=9cm,clip]{fig4.ps} \end{figure}$ Figure 4: Power spectra of the residuals: a) $\nu ^* d_{01}, \nu ^* d_{10}$ , b) $\nu ^* dd_{01}, \nu ^* dd_{10}$ .
Open with DEXTER

In the text

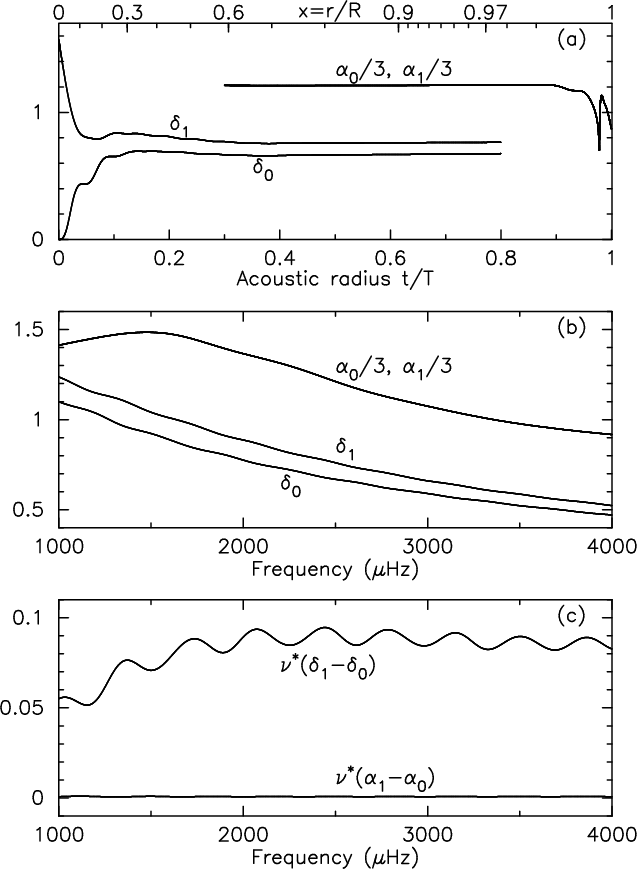

$\begin{figure} \par\includegraphics[width=9cm,clip]{fig5.ps} \end{figure}$ Figure 5: Phase shifts $\delta _0, \delta _1$ and $\alpha _0,\alpha _1$ for model A: a) variation with acoustic radius for $\nu=2500~\mu$ Hz. $\alpha _0,\alpha _1$ cannot be separated in these figures; b) variation with frequency for x_f= 0.9, t_f/T=0.615; c) variation of $\nu ^*(\delta _1-\delta _0)$ and $\alpha _1-\alpha _0$ with frequency.
Open with DEXTER

In the text

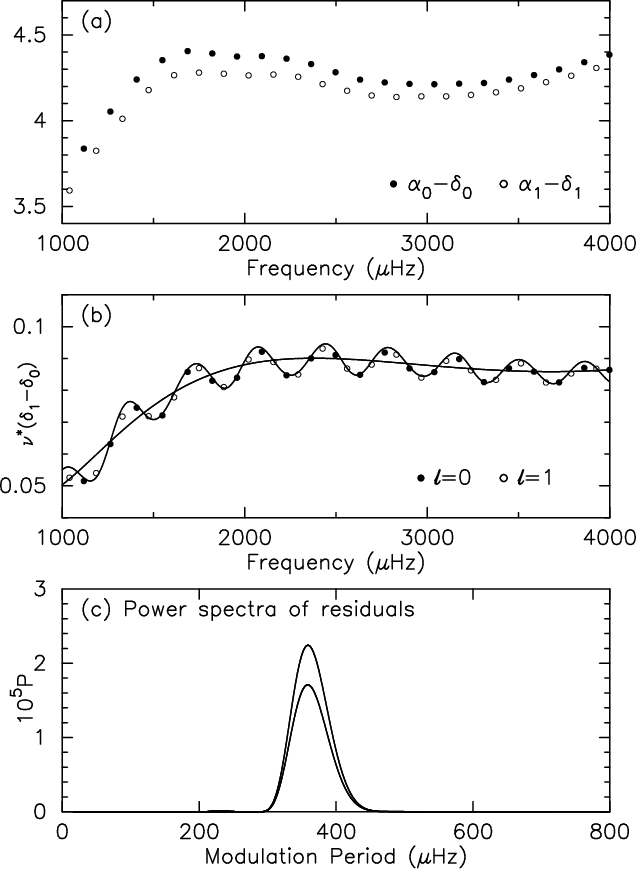

$\begin{figure} \par\includegraphics[width=9cm,clip]{fig6.ps} \end{figure}$ Figure 6: a) $\alpha -\delta$ as determined from the frequencies and Eigen-frequency Eq. (14) with $\Delta_0=136~\mu$ Hz. b) Phase shift difference $\nu ^*(\delta _1-\delta _0)$ determined from the eigenfrequencies by interpolation (points), the model values (continuous periodic line), the mean variation (smooth line). c) Power spectra of residuals to mean variation - the smaller maximum is that obtained using the points determined from the frequencies.
Open with DEXTER

In the text

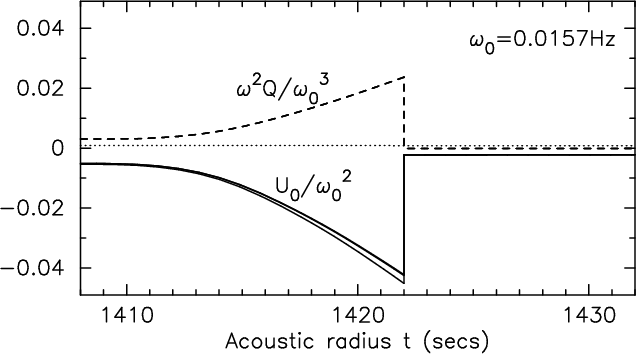

$\begin{figure} \par\includegraphics[width=9cm,clip]{fig7.ps} \end{figure}$ Figure 7: Acoustic potentials at base of the convective zone: $U_0/\omega _0^2$ (solid lines), $\omega ^2Q/\omega _0^3$ (dashed lines), and $U_2/\omega _0^2$ (fine dotted lines), at a frequencies $\nu=1000, 2500, 4000~\mu$ Hz.
Open with DEXTER

In the text

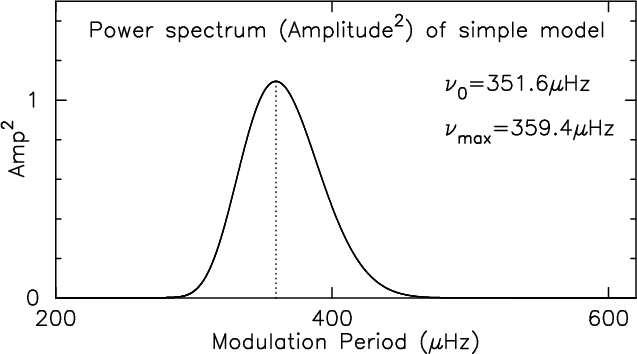

$\begin{figure} \par\includegraphics[width=9cm,clip]{fig8.ps} \end{figure}$ Figure 8: Power spectrum (Ampliude²) of simple model Eq. (28). The modulation period corresponding to the base of the convective zone is $\nu_0=352~\mu$ Hz but the maximum power is shifted to $359~\mu$ Hz due to the frequency dependency of the phase shifts $\delta _0, \delta _1$ and of the amplitudes of the two components.
Open with DEXTER

In the text

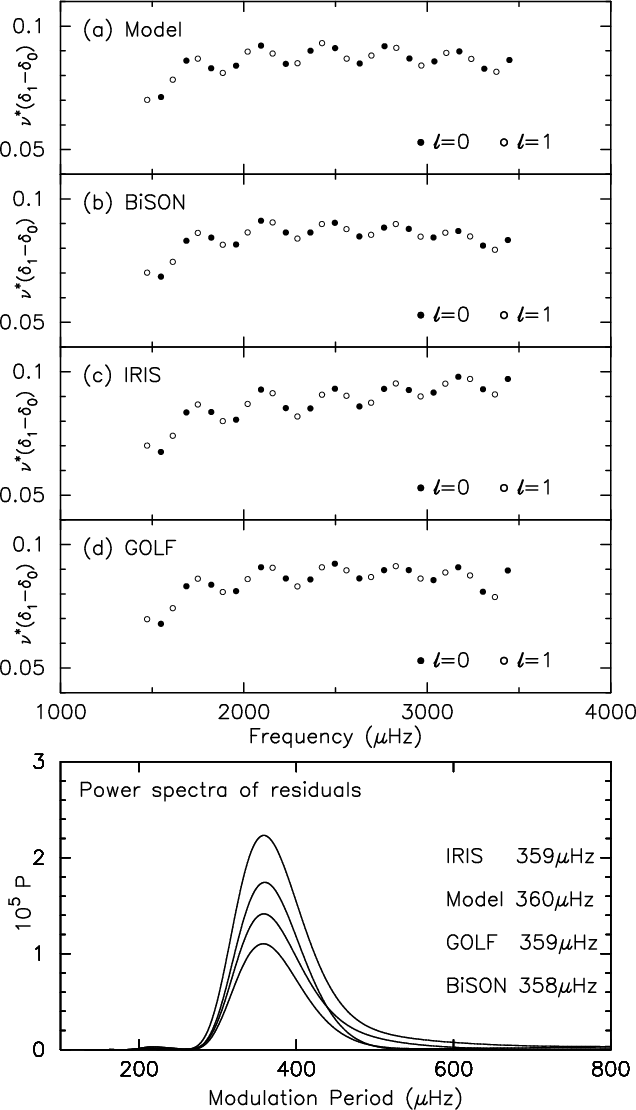

$\begin{figure} \par\includegraphics[width=9cm,clip]{fig9.ps} \end{figure}$ Figure 9: $\nu ^*(\delta _1-\delta _0)$ derived from the frequencies as described in Sect. 6 for a) model A, b) a BiSON data set, c) IRIS data set, d) GOLF data set. All data sets were analysed using frequencies in the range 1400-3500 $\mu$ Hz. Bottom panel: power spectra of residuals to a low order fit as in Eq. (4). The modulation period at the peak of the power spectra are as listed. There is good agreement between the values derived from solar data and that of the model.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.5cm,clip]{fig1.ps} \end{figure}$	Figure 1: Top panel: $\nu ^* d_{01}, \nu ^* d_{10}$ ; middle panel: $\nu ^* dd_{01}, \nu ^* dd_{10}$ , bottom panel: $\nu ^* d_{02}$ , for solar model A. $\nu ^*=\nu$ in units of 2500 $\mu$ Hz.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.35cm,clip]{fig2.ps} \end{figure}$	Figure 2: Variation of small separations $\nu ^* dd_{01}, \nu ^* dd_{10}$ with $\nu$ for frequencies obtained by the BiSON, IRIS and GOLF experiments. All data sets show the same periodicity and the same phase.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=9cm,clip]{fig3.ps} \end{figure}$	Figure 3: Residuals to a low order fit; a) $\nu ^* d_{01}, \nu ^* d_{10}$ , b) $\nu ^* dd_{01}, \nu ^* dd_{10}$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=9cm,clip]{fig4.ps} \end{figure}$	Figure 4: Power spectra of the residuals: a) $\nu ^* d_{01}, \nu ^* d_{10}$ , b) $\nu ^* dd_{01}, \nu ^* dd_{10}$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=9cm,clip]{fig5.ps} \end{figure}$	Figure 5: Phase shifts $\delta _0, \delta _1$ and $\alpha _0,\alpha _1$ for model A: a) variation with acoustic radius for $\nu=2500~\mu$ Hz. $\alpha _0,\alpha _1$ cannot be separated in these figures; b) variation with frequency for x_f= 0.9, t_f/T=0.615; c) variation of $\nu ^*(\delta _1-\delta _0)$ and $\alpha _1-\alpha _0$ with frequency.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=9cm,clip]{fig7.ps} \end{figure}$	Figure 7: Acoustic potentials at base of the convective zone: $U_0/\omega _0^2$ (solid lines), $\omega ^2Q/\omega _0^3$ (dashed lines), and $U_2/\omega _0^2$ (fine dotted lines), at a frequencies $\nu=1000, 2500, 4000~\mu$ Hz.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=9cm,clip]{fig8.ps} \end{figure}$	Figure 8: Power spectrum (Ampliude²) of simple model Eq. (28). The modulation period corresponding to the base of the convective zone is $\nu_0=352~\mu$ Hz but the maximum power is shifted to $359~\mu$ Hz due to the frequency dependency of the phase shifts $\delta _0, \delta _1$ and of the amplitudes of the two components.
Open with DEXTER
