All Figures

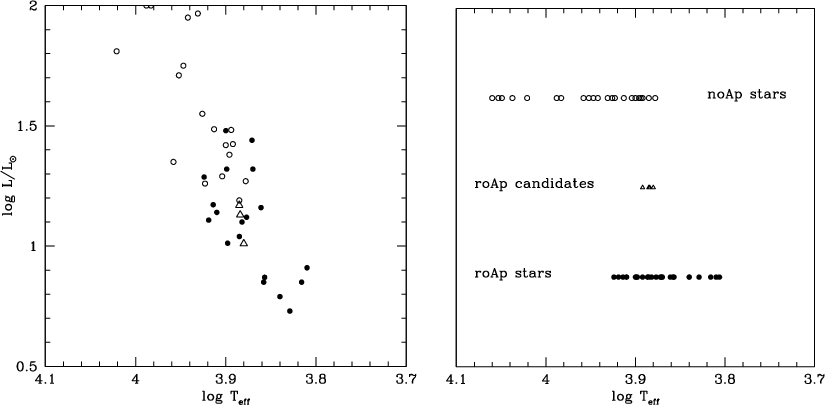

$\begin{figure} \par\includegraphics[width=6.7cm,clip]{0494f1a.eps}\hspace*{4mm} \includegraphics[width=6.1cm,clip]{0494f1b.eps} \end{figure}$ Figure 1: Observations of magnetic Ap stars. Left panel: Hertzsprung-Russell diagram. Solid circles represent 19 roAp stars, open circles, 18 noAp stars, and open triangles are 3 roAp star candidates. Right panel: effective temperatures of roAp and noAp stars and roAp stars candidates. Observations are taken from Kochukhov & Bagnulo (2006) (15 roAp stars + 3 candidates) and North et al. (1997).
Open with DEXTER

In the text

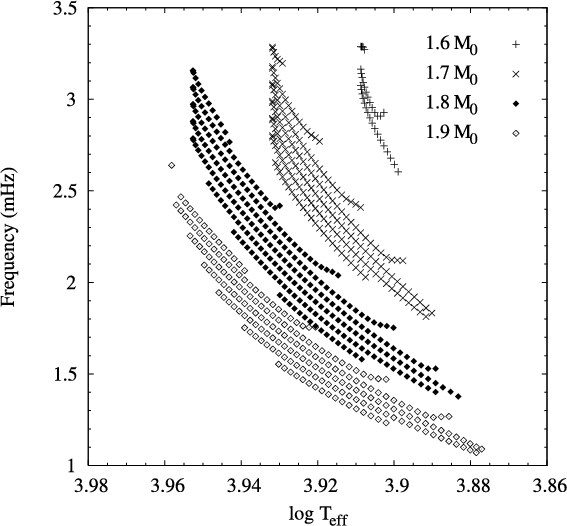

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f2.eps} \end{figure}$ Figure 2: Frequencies of the unstable modes predicted by our models as a function of $\log T_{\rm eff}$ . The different symbols correspond to different masses from 1.6 $M_\odot$ (cross) to 1.9 $M_\odot$ (diamond). The differences observed in the excited frequency ranges are mainly due to the different dynamical times: $\tau _{\rm dyn} = (R^3/GM)^{1/2}$ of the models.
Open with DEXTER

In the text

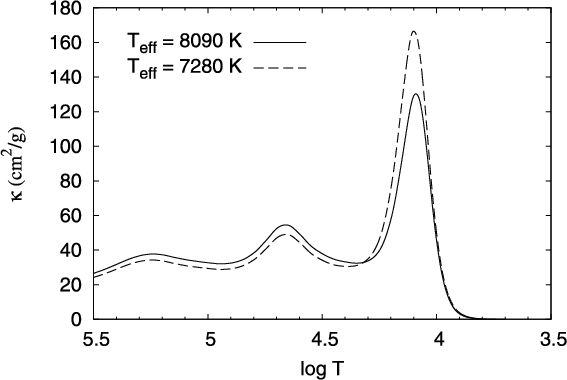

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f3.eps} \end{figure}$ Figure 3: Opacities (cm²/g) in two 1.6 $M_\odot$ models with different $T_{\rm eff}$ .
Open with DEXTER

In the text

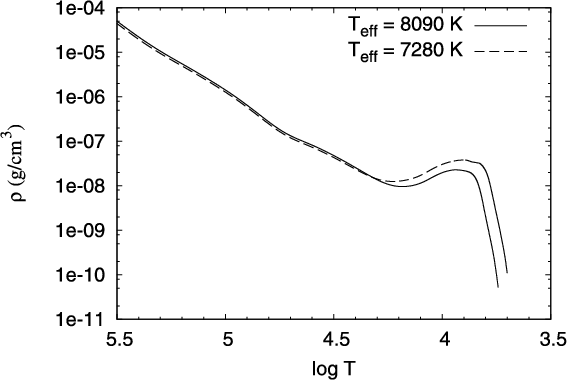

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f4.eps} \end{figure}$ Figure 4: Densities of two 1.6 $M_\odot$ models with different $T_{\rm eff}$ .
Open with DEXTER

In the text

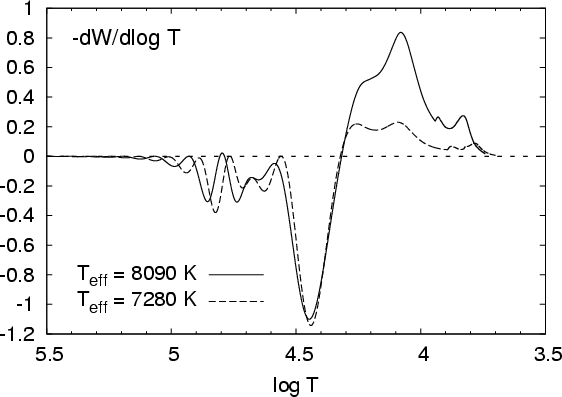

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f5.eps} \end{figure}$ Figure 5: Differential work $-{\rm d}W/{\rm d}\log T$ for the radial mode p₃₂ in two 1.6 $M_\odot$ models with different $T_{\rm eff}$ .
Open with DEXTER

In the text

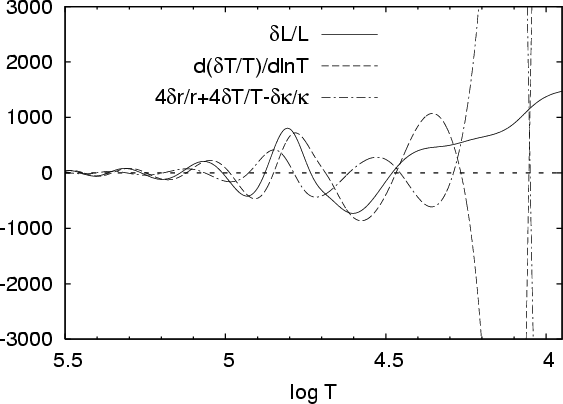

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f6.eps} \end{figure}$ Figure 6: Contributions to $\Re \{\delta L/L\}$ for the radial mode p₃₂ (see details in the text), model with $T_{\rm eff}=8090$ K.
Open with DEXTER

In the text

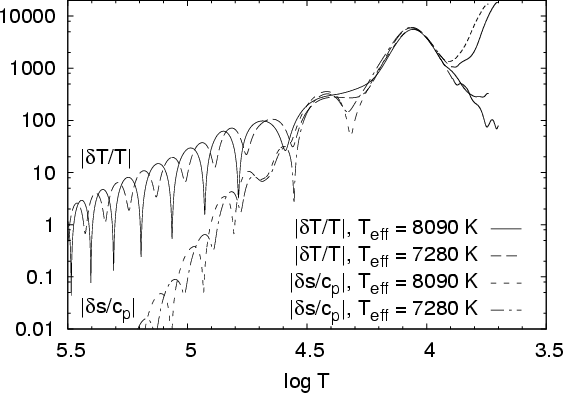

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f7.eps} \end{figure}$ Figure 7: $\vert\delta T/T\vert$ and $\vert\delta s/c_{\rm p}\vert$ for the radial mode p₃₂ in two 1.6 $M_\odot$ models with different $T_{\rm eff}$ .
Open with DEXTER

In the text

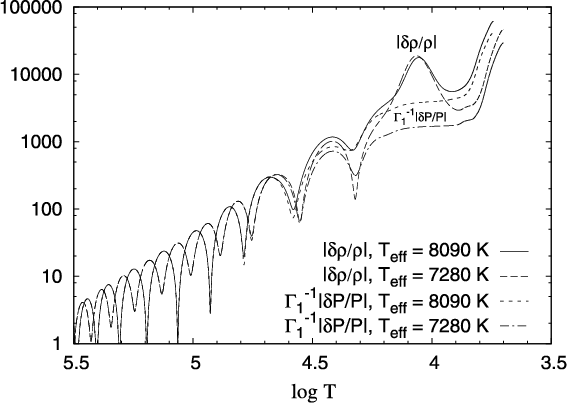

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f8.eps} \end{figure}$ Figure 8: $\vert\delta \rho /\rho \vert$ and $\Gamma _1^{-1}\vert\delta P/P\vert$ for the radial mode p₃₂ in two 1.6 $M_\odot$ models with different $T_{\rm eff}$ .
Open with DEXTER

In the text

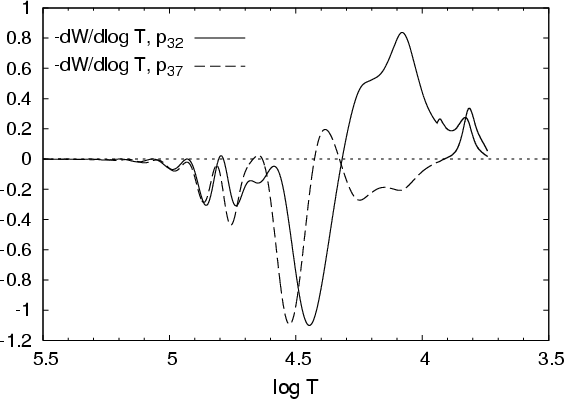

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f9.eps} \end{figure}$ Figure 9: Comparison of the differential work $-{\rm d}W/{\rm d}\log T$ for the radial modes p₃₂and p₃₇, 1.6 $M_\odot$ model with $T_{\rm eff}=8090$ K.
Open with DEXTER

In the text

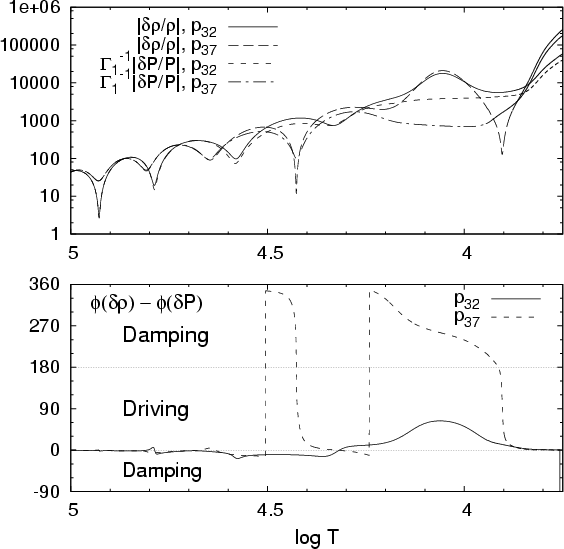

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f10.eps} \end{figure}$ Figure 10: $\vert\delta \rho /\rho \vert$ and $\Gamma _1^{-1}\vert\delta P/P\vert$ ( top panel) and $\phi (\delta \rho )-\phi (\delta P)$ ( bottom panel) for the modes p₃₂ and p₃₇, 1.6 $M_\odot$ model with $T_{\rm eff}=8090$ K.
Open with DEXTER

In the text

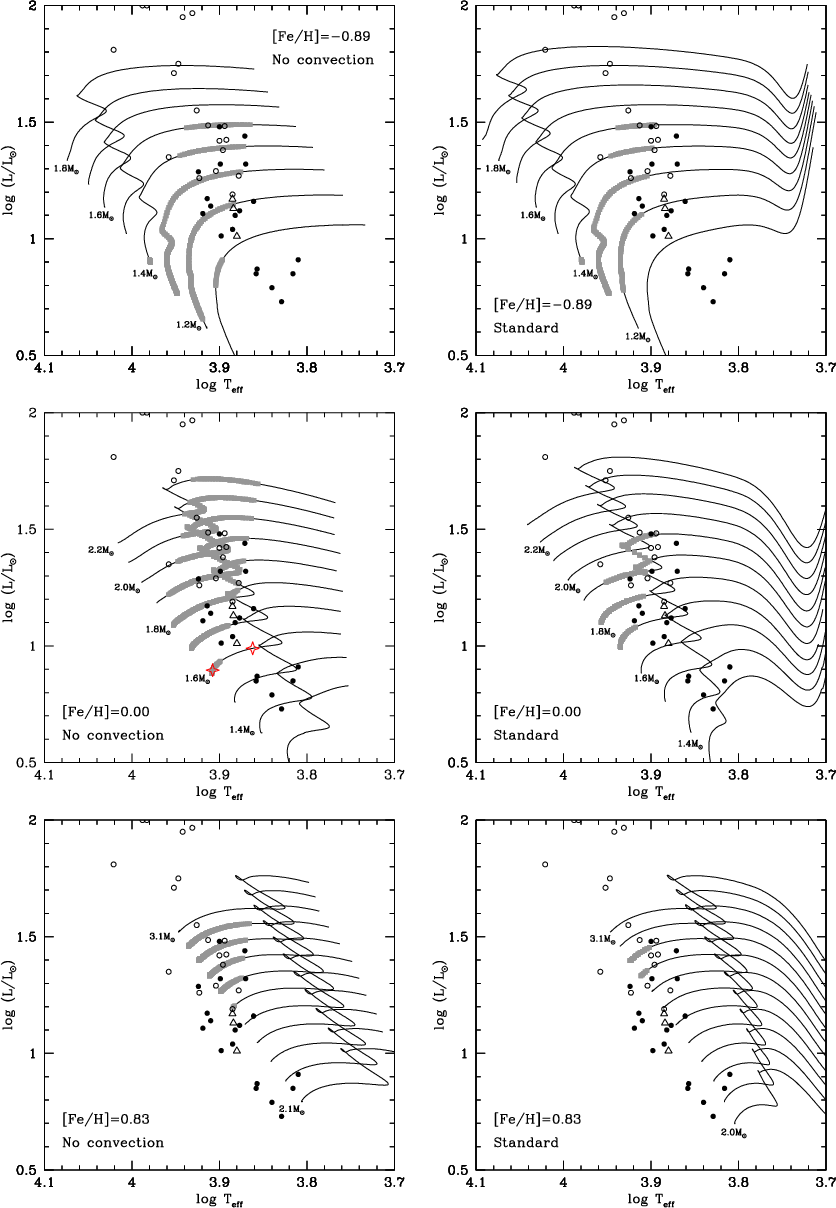

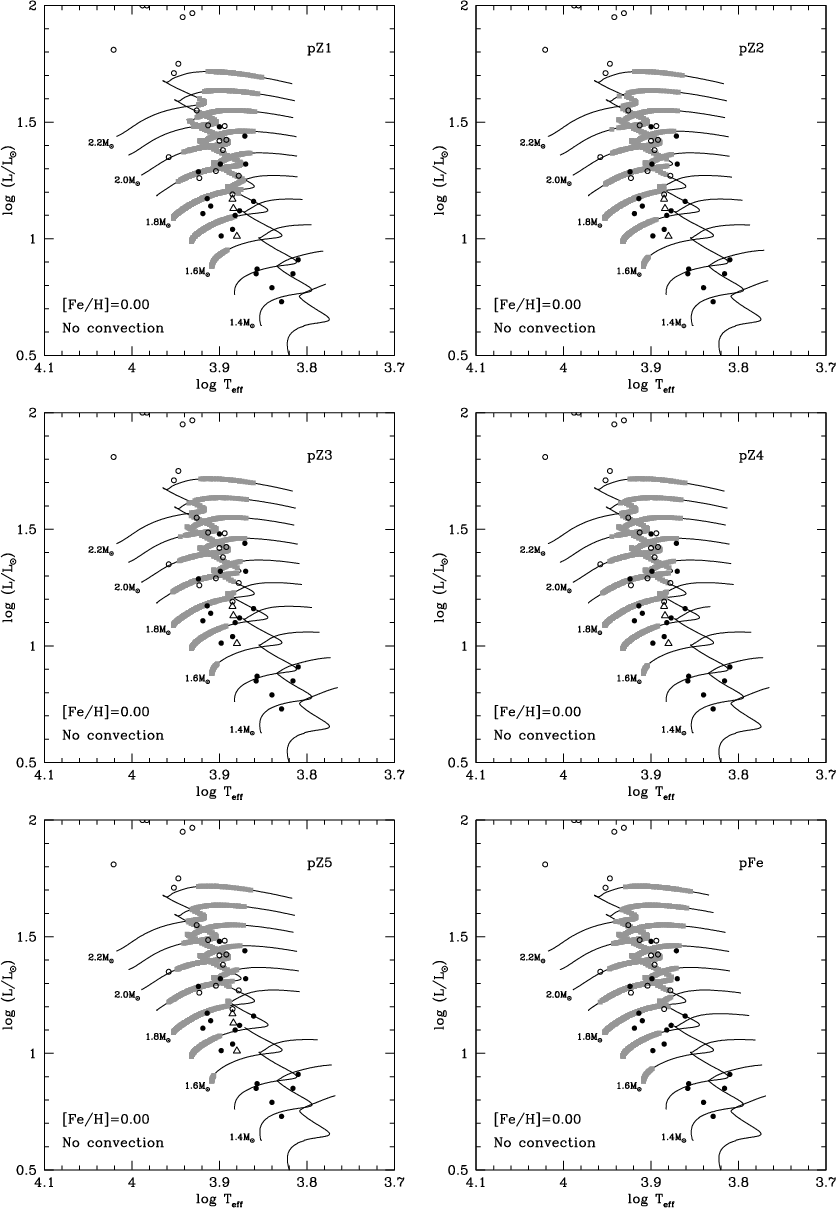

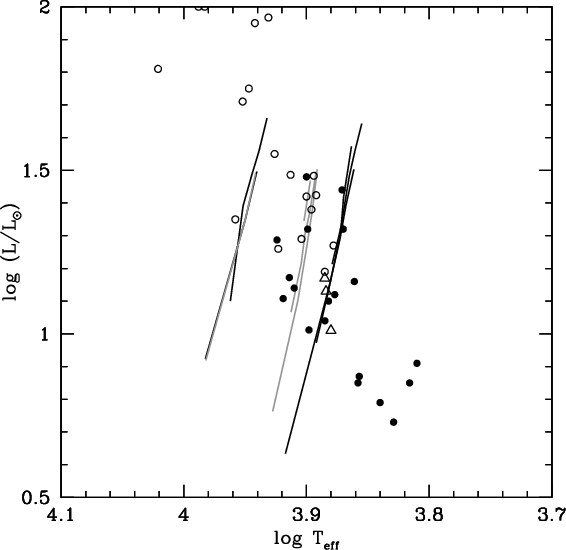

$\begin{figure} \par\includegraphics[width=6.8cm,clip]{0494f11a.eps}\hspace*{4mm}... ...s}\hspace*{4mm} \includegraphics[width=6.8cm,clip]{0494f11f.eps} \end{figure}$ Figure 11: Evolutionary tracks and theoretical instability strips of model grids with different metallicities. Left column: models with convection suppressed in the envelope; right column: standard models (with convection). Upper panel: low metallicity models, middle panel: solar metallicity models, lower panel: metal-rich models. The full gray squares represent the models for which roAp-type modes are found to be excited. The circles and triangles represent the observations in Fig. 1. For clarity, masses corresponding to the evolutionary tracks are given only for a few models. Each model grid is computed with a 0.1 $M_\odot$ step in mass. The two stars on the left middle figure correspond to the 1.6 $M_\odot$ models compared in Figs. 3 to 10.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f12.eps} \end{figure}$ Figure 12: Superposition of the instability strips deduced from models of Fig. 11. Black lines are the instability strips derived from models grids with convection suppressed, gray lines the instability strips derived from standard models.
Open with DEXTER

In the text

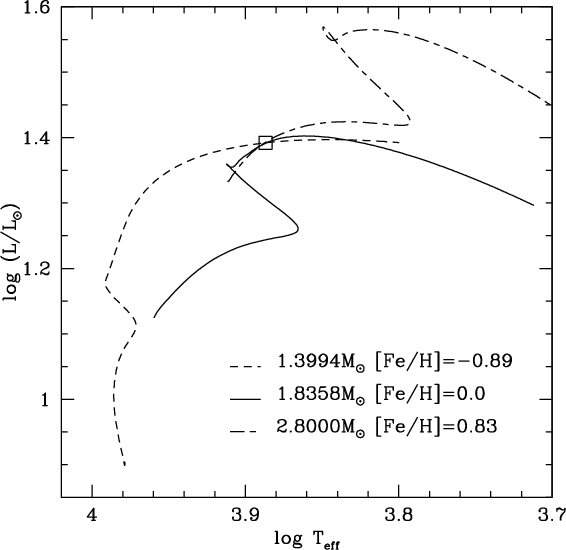

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f13.eps} \end{figure}$ Figure 13: Evolutionary tracks for three models with different masses and metallicities showing a common intersection (located by the open black square) in the HR diagram.
Open with DEXTER

In the text

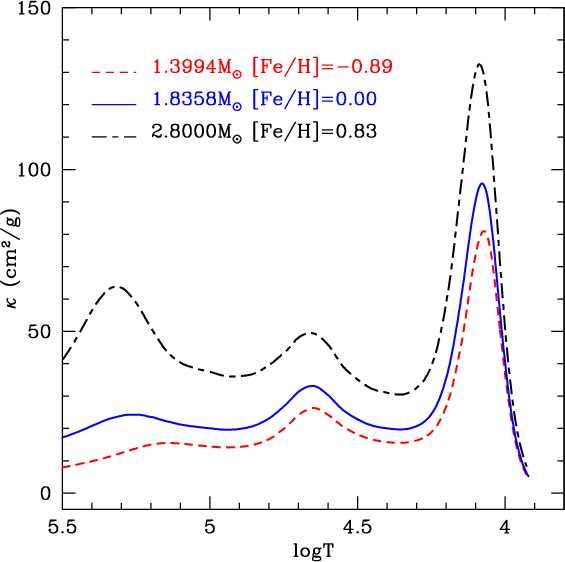

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f14.eps} \end{figure}$ Figure 14: Opacity profiles in models with different masses and metallicities but located at the same point in the HR diagram.
Open with DEXTER

In the text

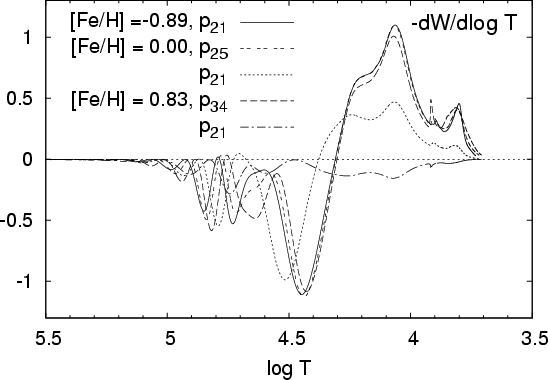

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{0494f15.eps} \end{figure}$ Figure 15: Comparison of the differential work $-{\rm d}W/{\rm d}\log T$ for three models with different global metallicities ([Fe/H]=-0.89, [Fe/H]=0.00 and [Fe/H]=0.83) at the same location in the HR diagram.
Open with DEXTER

In the text

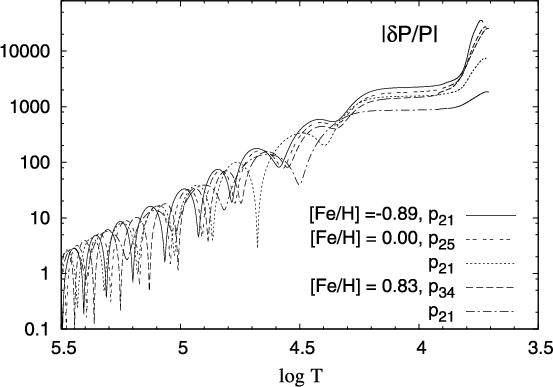

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{0494f16.eps} \end{figure}$ Figure 16: Comparison of $\vert\delta P/P\vert$ for three models with different global metallicities ([Fe/H]=-0.89, [Fe/H]=0.00 and [Fe/H]=0.83) at the same location in the HR diagram.
Open with DEXTER

In the text

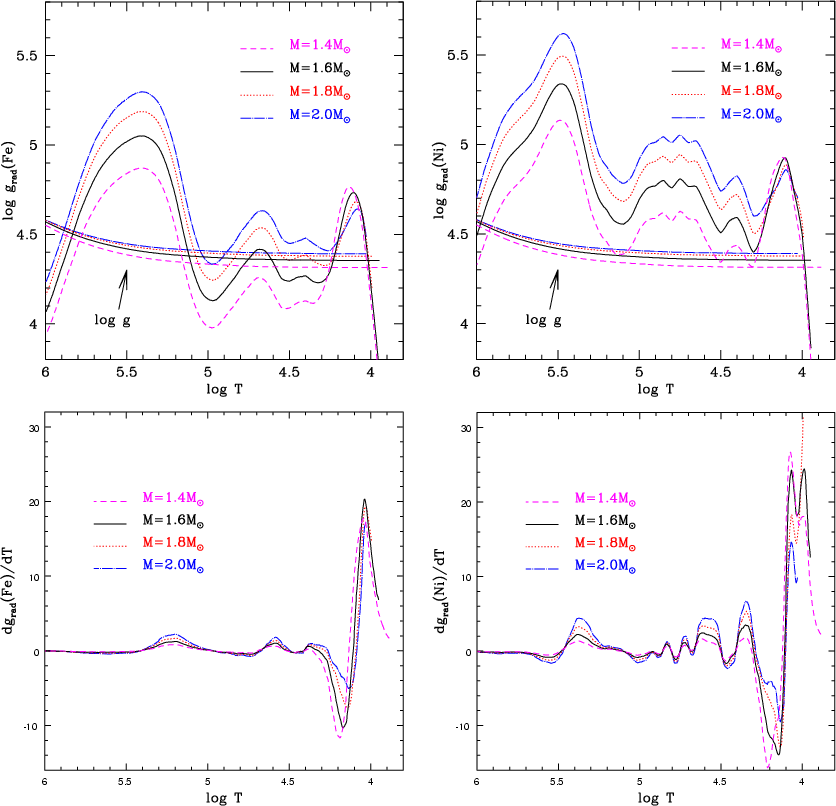

$\begin{figure} \par\includegraphics[width=6.8cm,clip]{0494fa1a.eps}\hspace*{4mm}... ...s}\hspace*{4mm} \includegraphics[width=6.8cm,clip]{0494fa1d.eps} \end{figure}$ Figure A.1: Upper panels: radiative accelerations on iron and nickel versus temperature inside four ZAMS models with different masses. The nearly horizontal curves represents the local gravity. Lower panels: derivatives of the radiative accelerations on iron and nickel. These models are computed with X=0.71 and [Fe/H]=0.00.
Open with DEXTER

In the text

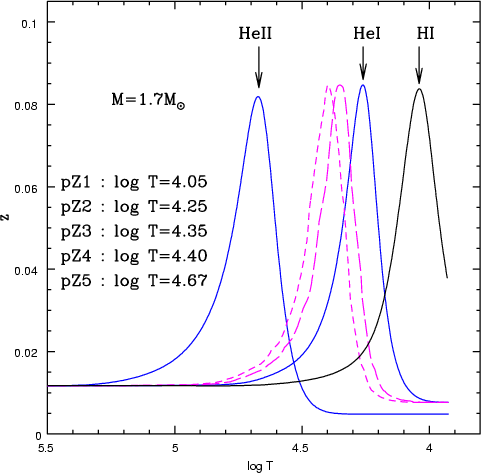

$\begin{figure} \par\includegraphics[width=6.8cm,clip]{0494fa2.eps} \end{figure}$ Figure A.2: Metal accumulation profiles (mass fraction) introduced in 1.7 $M_\odot$ models. The model labelled pZ1 present a metal accumulation centered on the HI ionization region. In the pZ2 and pZ5 models the accumulation is centered respectively on the HeI and HeII accumulation region. The pZ3 and pZ4 models present an accumulation centered respectively on $\log T=4.35$ and $\log T=4.40$ .
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=6.8cm,clip]{0494fa3a.eps}\hspace*{4mm}... ...s}\hspace*{4mm} \includegraphics[width=6.8cm,clip]{0494fa3f.eps} \end{figure}$ Figure A.3: Figures pZ1 to pZ5: theoretical instability strips deduced from grids of models including the metal accumulation profiles shown in Fig. A.2. Figure pFe: theoretical instability strip deduced from models including the iron accumulation profile presented in Fig. B.1. The theoretical instability strips and the observations are represented following the same conventions as in Fig. 11.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=7.5cm,clip]{0494fa4.eps} \end{figure}$ Figure A.4: Opacity in models with different profiles of Z (constant, pZ1, pZ2 and pZ5 according to Fig. A.2) but located at the same point in the HR diagram.
Open with DEXTER

In the text

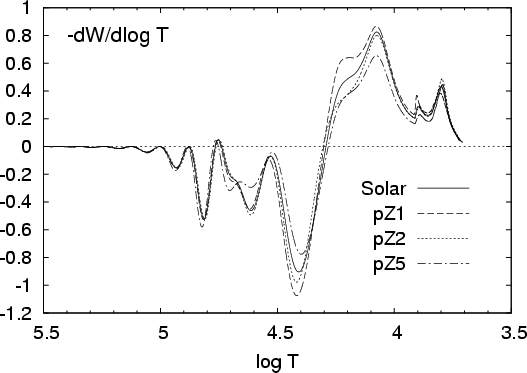

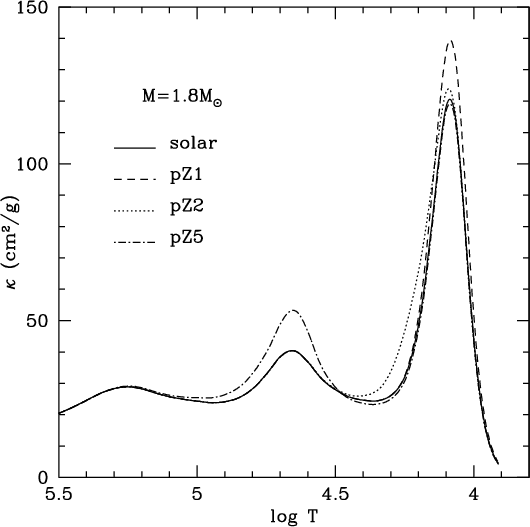

$\begin{figure} \par\includegraphics[width=7.5cm,clip]{0494fa5.eps} \end{figure}$ Figure A.5: Comparison of the differential work $-{\rm d}W/{\rm d}\log T$ in models with different profiles of Z (constant, pZ1, pZ2 and pZ5 according to Fig. A.2) but located at the same point in the HR diagram.
Open with DEXTER

In the text

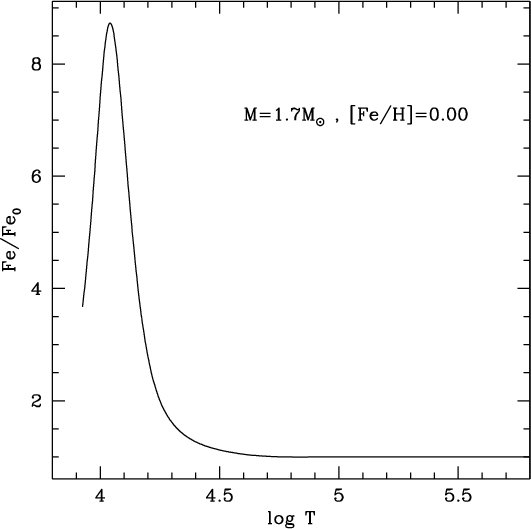

$\begin{figure} \par\includegraphics[width=7.5cm,clip]{0494fb1.eps} \end{figure}$ Figure B.1: Iron accumulation profiles introduced in a 1.7 $M_\odot$ model.
Open with DEXTER

In the text

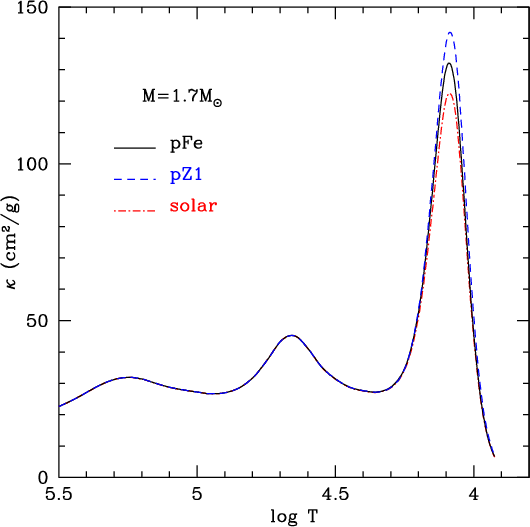

$\begin{figure} \par\includegraphics[width=7.5cm,clip]{0494fb2.eps} \end{figure}$ Figure B.2: Opacity in a main sequence 1.7 $M_\odot$ model (labelled ``pFe'') including the iron accumulation profile displayed in Fig. B.1. For comparison the opacity of two others 1.7 $M_\odot$ models located at the same point in the HR diagram are also shown: the model labelled ``solar'' includes the AGS05 solar metal mixture, the pZ1 model is the one displayed in Fig. A.2.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f2.eps} \end{figure}$	Figure 2: Frequencies of the unstable modes predicted by our models as a function of $\log T_{\rm eff}$ . The different symbols correspond to different masses from 1.6 $M_\odot$ (cross) to 1.9 $M_\odot$ (diamond). The differences observed in the excited frequency ranges are mainly due to the different dynamical times: $\tau _{\rm dyn} = (R^3/GM)^{1/2}$ of the models.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f3.eps} \end{figure}$	Figure 3: Opacities (cm²/g) in two 1.6 $M_\odot$ models with different $T_{\rm eff}$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f4.eps} \end{figure}$	Figure 4: Densities of two 1.6 $M_\odot$ models with different $T_{\rm eff}$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f5.eps} \end{figure}$	Figure 5: Differential work $-{\rm d}W/{\rm d}\log T$ for the radial mode p₃₂ in two 1.6 $M_\odot$ models with different $T_{\rm eff}$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f6.eps} \end{figure}$	Figure 6: Contributions to $\Re \{\delta L/L\}$ for the radial mode p₃₂ (see details in the text), model with $T_{\rm eff}=8090$ K.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f7.eps} \end{figure}$	Figure 7: $\vert\delta T/T\vert$ and $\vert\delta s/c_{\rm p}\vert$ for the radial mode p₃₂ in two 1.6 $M_\odot$ models with different $T_{\rm eff}$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f8.eps} \end{figure}$	Figure 8: $\vert\delta \rho /\rho \vert$ and $\Gamma _1^{-1}\vert\delta P/P\vert$ for the radial mode p₃₂ in two 1.6 $M_\odot$ models with different $T_{\rm eff}$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f9.eps} \end{figure}$	Figure 9: Comparison of the differential work $-{\rm d}W/{\rm d}\log T$ for the radial modes p₃₂and p₃₇, 1.6 $M_\odot$ model with $T_{\rm eff}=8090$ K.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f10.eps} \end{figure}$	Figure 10: $\vert\delta \rho /\rho \vert$ and $\Gamma _1^{-1}\vert\delta P/P\vert$ ( top panel) and $\phi (\delta \rho )-\phi (\delta P)$ ( bottom panel) for the modes p₃₂ and p₃₇, 1.6 $M_\odot$ model with $T_{\rm eff}=8090$ K.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f12.eps} \end{figure}$	Figure 12: Superposition of the instability strips deduced from models of Fig. 11. Black lines are the instability strips derived from models grids with convection suppressed, gray lines the instability strips derived from standard models.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f13.eps} \end{figure}$	Figure 13: Evolutionary tracks for three models with different masses and metallicities showing a common intersection (located by the open black square) in the HR diagram.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{0494f14.eps} \end{figure}$	Figure 14: Opacity profiles in models with different masses and metallicities but located at the same point in the HR diagram.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{0494f15.eps} \end{figure}$	Figure 15: Comparison of the differential work $-{\rm d}W/{\rm d}\log T$ for three models with different global metallicities ([Fe/H]=-0.89, [Fe/H]=0.00 and [Fe/H]=0.83) at the same location in the HR diagram.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{0494f16.eps} \end{figure}$	Figure 16: Comparison of $\vert\delta P/P\vert$ for three models with different global metallicities ([Fe/H]=-0.89, [Fe/H]=0.00 and [Fe/H]=0.83) at the same location in the HR diagram.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=6.8cm,clip]{0494fa1a.eps}\hspace{4mm}... ...s}\hspace{4mm} \includegraphics[width=6.8cm,clip]{0494fa1d.eps} \end{figure}$	Figure A.1: Upper panels: radiative accelerations on iron and nickel versus temperature inside four ZAMS models with different masses. The nearly horizontal curves represents the local gravity. Lower panels: derivatives of the radiative accelerations on iron and nickel. These models are computed with X=0.71 and [Fe/H]=0.00.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.5cm,clip]{0494fa4.eps} \end{figure}$	Figure A.4: Opacity in models with different profiles of Z (constant, pZ1, pZ2 and pZ5 according to Fig. A.2) but located at the same point in the HR diagram.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.5cm,clip]{0494fa5.eps} \end{figure}$	Figure A.5: Comparison of the differential work $-{\rm d}W/{\rm d}\log T$ in models with different profiles of Z (constant, pZ1, pZ2 and pZ5 according to Fig. A.2) but located at the same point in the HR diagram.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.5cm,clip]{0494fb1.eps} \end{figure}$	Figure B.1: Iron accumulation profiles introduced in a 1.7 $M_\odot$ model.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.5cm,clip]{0494fb2.eps} \end{figure}$	Figure B.2: Opacity in a main sequence 1.7 $M_\odot$ model (labelled ``pFe'') including the iron accumulation profile displayed in Fig. B.1. For comparison the opacity of two others 1.7 $M_\odot$ models located at the same point in the HR diagram are also shown: the model labelled ``solar'' includes the AGS05 solar metal mixture, the pZ1 model is the one displayed in Fig. A.2.
Open with DEXTER
