All Figures

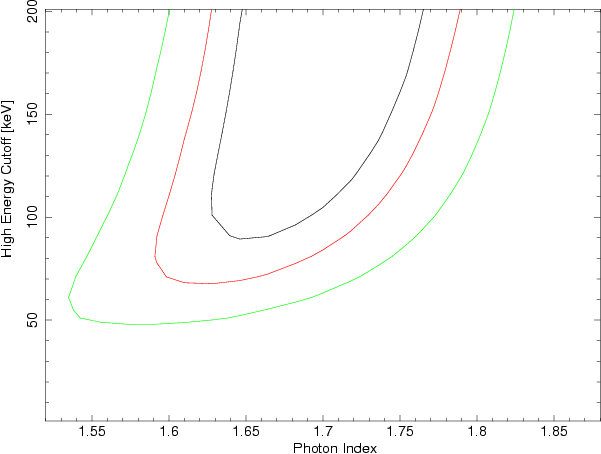

$\begin{figure} \par\includegraphics[height=8.5cm,angle=-90]{0674fig1.ps} \end{figure}$ Figure 1: Contour plot for an absorbed cut-off power law applied to the combined Swift/XRT, INTEGRAL JEM-X1, and IBIS/ISGRI data obtained in December 2006. The contours show the allowed range for the photon index and the cut-off energy at the 1, 2 and 3 sigma level. No cut-off is required by the data.
Open with DEXTER

In the text

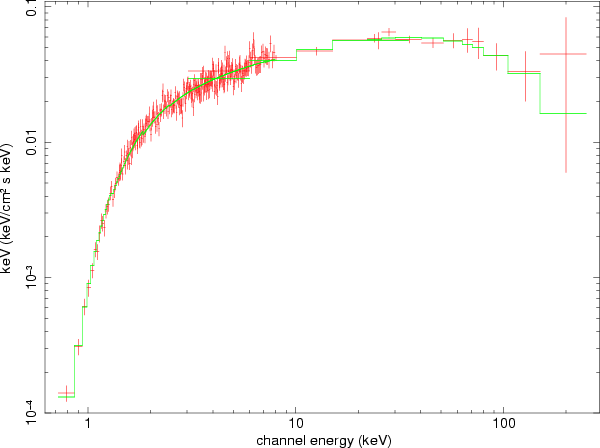

$\begin{figure} \par\includegraphics[height=8.5cm,angle=-90]{0674fig2.ps} \end{figure}$ Figure 2: Combined spectrum of all Swift/XRT, INTEGRAL JEM-X1, and IBIS/ISGRI data obtained between November 2004 and June 2007. The absorbed cut-off power law fit results in $N_{\rm H} = (1.24 \pm 0.05)~\times~~10^{22}~\rm cm^{-2}$ , photon index $\Gamma = 1.52 \pm 0.05$ , and cut-off energy $E_{\rm c} = 72 {+21 \atop -14}~\rm keV$ for a $\chi ^2_{268} = 0.99$ .
Open with DEXTER

In the text

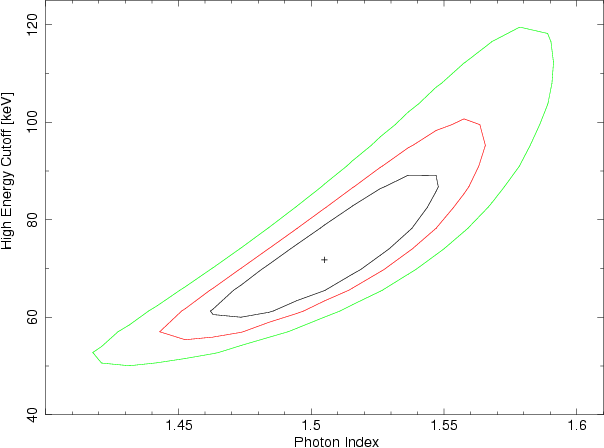

$\begin{figure} \par\includegraphics[height=8.5cm,angle=-90]{0674fig3.ps} \end{figure}$ Figure 3: Contour plot for an absorbed cut-off power law applied to all the combined Swift/XRT, INTEGRAL JEM-X1, and IBIS/ISGRI data listed in Table 1. The contours show the allowed range for the photon index and the cut-off energy at the 1, 2 and 3 sigma level.
Open with DEXTER

In the text

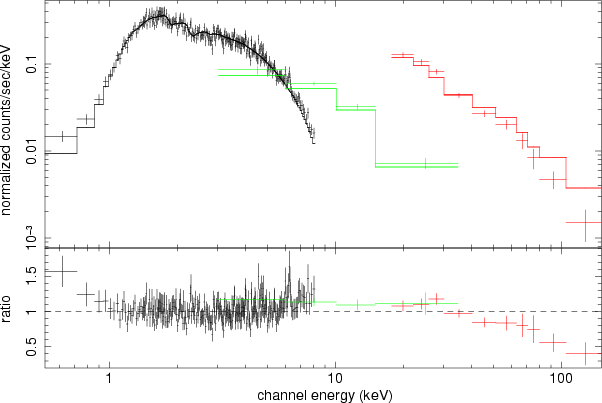

$\begin{figure} \par\includegraphics[height=8.5cm,angle=-90]{0674fig4.ps} \end{figure}$ Figure 4: Absorbed single power law model fit applied to the 2-5 keV range of the combined data set. The ratio between the data and the model shows the soft excess at energies below 1 keV, the iron K $\alpha$ line, the significant cut-off at high energies, but no trace of a reflection component.
Open with DEXTER

In the text

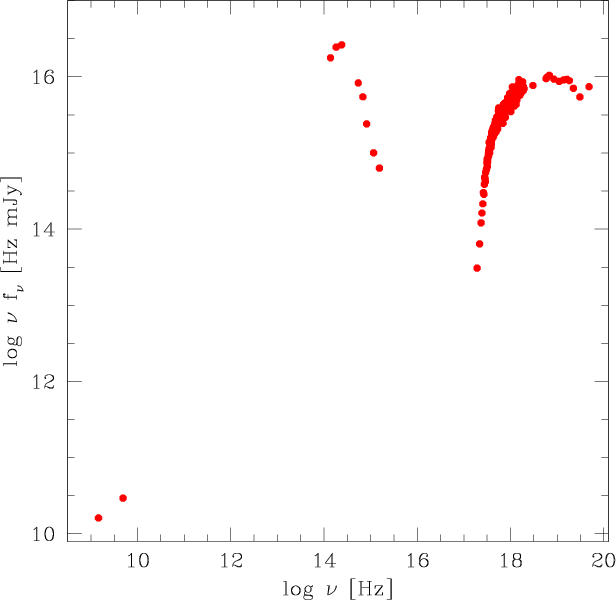

$\begin{figure} \par\includegraphics[height=8.5cm,angle=0]{0674fig5.ps} \end{figure}$ Figure 5: Spectral energy distribution of the combined data set, including Swift/UVOT optical and UV data as well as Swift/XRT soft X-ray, and INTEGRAL JEM-X and IBIS/ISGRI hard X-ray data. In addition, 2MASS measurements (J, H, and Ks) and radio data (6 cm and 20 cm) have been added. Data have been corrected for Galactic hydrogen column density, but not for intrinsic absorption.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[height=8.5cm,angle=-90]{0674fig1.ps} \end{figure}$	Figure 1: Contour plot for an absorbed cut-off power law applied to the combined Swift/XRT, INTEGRAL JEM-X1, and IBIS/ISGRI data obtained in December 2006. The contours show the allowed range for the photon index and the cut-off energy at the 1, 2 and 3 sigma level. No cut-off is required by the data.
Open with DEXTER

$\begin{figure} \par\includegraphics[height=8.5cm,angle=-90]{0674fig2.ps} \end{figure}$	Figure 2: Combined spectrum of all Swift/XRT, INTEGRAL JEM-X1, and IBIS/ISGRI data obtained between November 2004 and June 2007. The absorbed cut-off power law fit results in $N_{\rm H} = (1.24 \pm 0.05)~\times~~10^{22}~\rm cm^{-2}$ , photon index $\Gamma = 1.52 \pm 0.05$ , and cut-off energy $E_{\rm c} = 72 {+21 \atop -14}~\rm keV$ for a $\chi ^2_{268} = 0.99$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[height=8.5cm,angle=-90]{0674fig3.ps} \end{figure}$	Figure 3: Contour plot for an absorbed cut-off power law applied to all the combined Swift/XRT, INTEGRAL JEM-X1, and IBIS/ISGRI data listed in Table 1. The contours show the allowed range for the photon index and the cut-off energy at the 1, 2 and 3 sigma level.
Open with DEXTER

$\begin{figure} \par\includegraphics[height=8.5cm,angle=-90]{0674fig4.ps} \end{figure}$	Figure 4: Absorbed single power law model fit applied to the 2-5 keV range of the combined data set. The ratio between the data and the model shows the soft excess at energies below 1 keV, the iron K $\alpha$ line, the significant cut-off at high energies, but no trace of a reflection component.
Open with DEXTER

$\begin{figure} \par\includegraphics[height=8.5cm,angle=0]{0674fig5.ps} \end{figure}$	Figure 5: Spectral energy distribution of the combined data set, including Swift/UVOT optical and UV data as well as Swift/XRT soft X-ray, and INTEGRAL JEM-X and IBIS/ISGRI hard X-ray data. In addition, 2MASS measurements (J, H, and Ks) and radio data (6 cm and 20 cm) have been added. Data have been corrected for Galactic hydrogen column density, but not for intrinsic absorption.
Open with DEXTER
