Figure 1:
Structure of the flow (logarithmic density plots) for model CD1 at
timesteps
t = 0, 2, 3, 6 t0, respectively. This is an example of the
collapse occurring in all test runs except for model ER2. The truncation
field line (the magnetic field line with
![]() |
Open with DEXTER |
![]() |

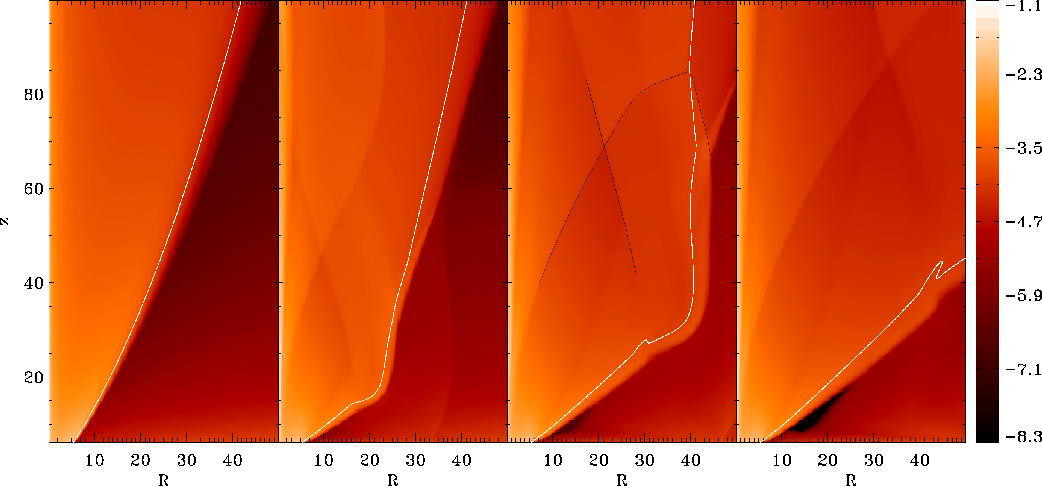

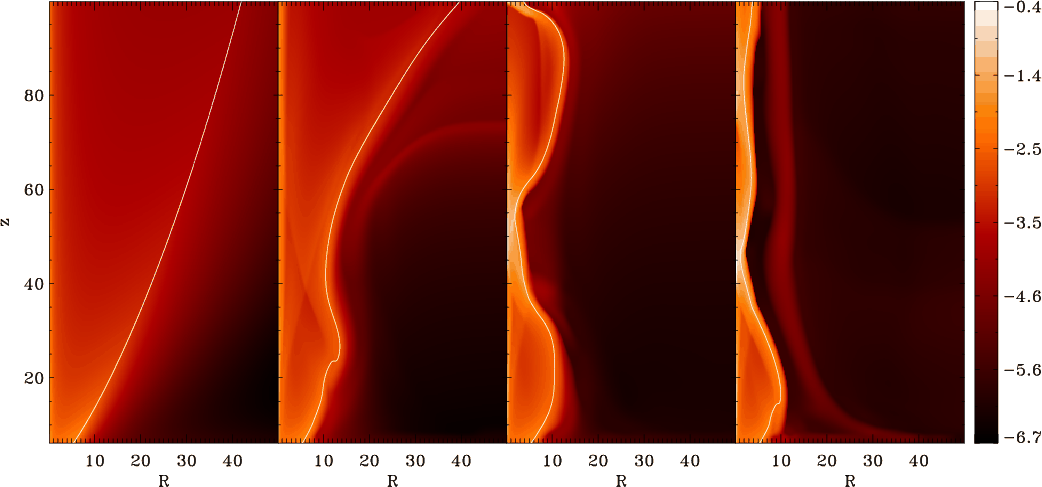

Figure 2:
Structure of the flow (logarithmic density plots) for model ER2 at
timesteps
t = 0, 1, 2, 3 t0, respectively. This is the only model
without a collapse. The white line is the truncation field line
(the magnetic field line with
![]() |
Open with DEXTER |
![]() |

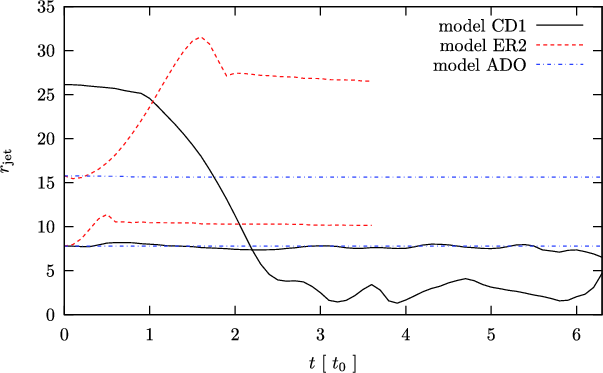

Figure 3: Evolution of the jet radius (radius of the truncation field line) for models CD1, ER2 and also the unchanged analytical solution ADO, at two representative z values above the equatorial plane (z = 10 and z = 25 in the models ER2 and ADO; z = 10 and z = 50 in the model CD1). The models ADO and ER2 are stationary while the model CD1 collapses. |
Open with DEXTER |
![]() |

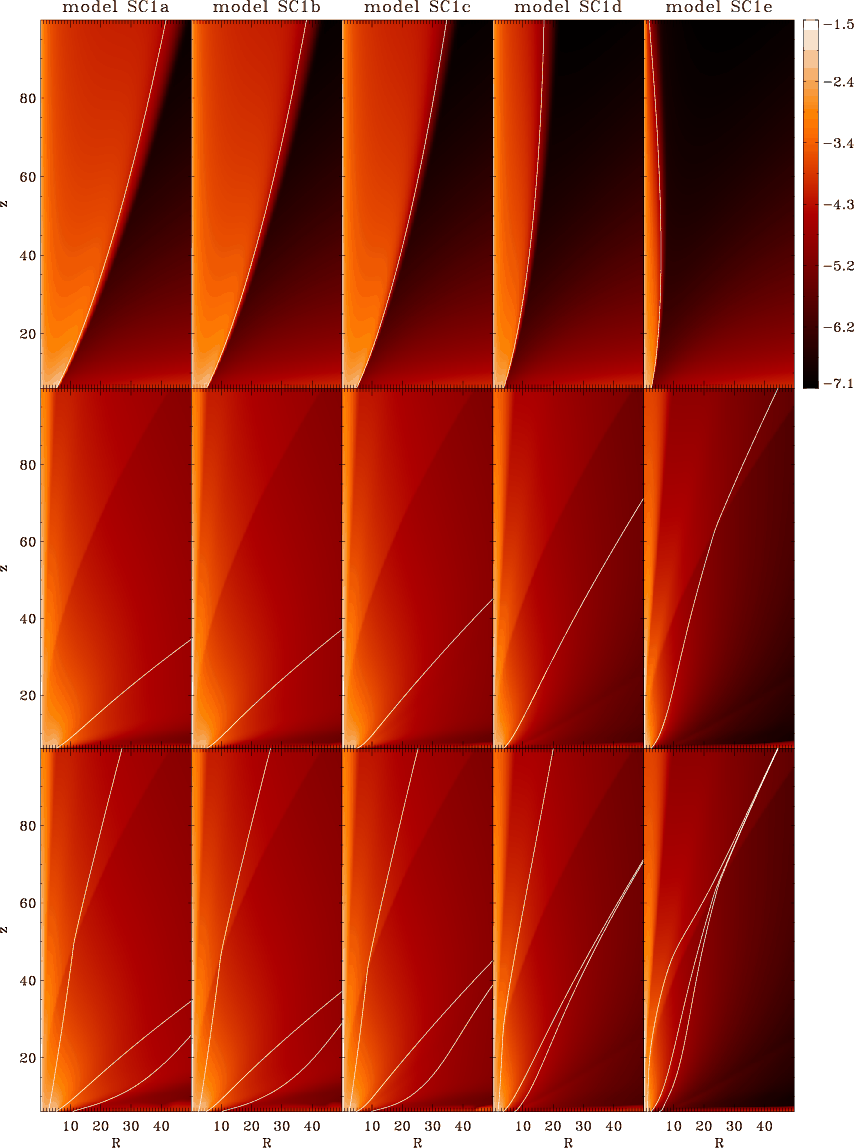

Figure 4:
Structure of the flow (logarithmic density plots) for models
SC1a-SC1e ( from left to right) at timesteps t = 0 ( top), t = 25
( middle) and
t = 50 t0 ( bottom). Also plotted is the
magnetic field line anchored in the lower boundary where
![]() |
Open with DEXTER |
![]() |

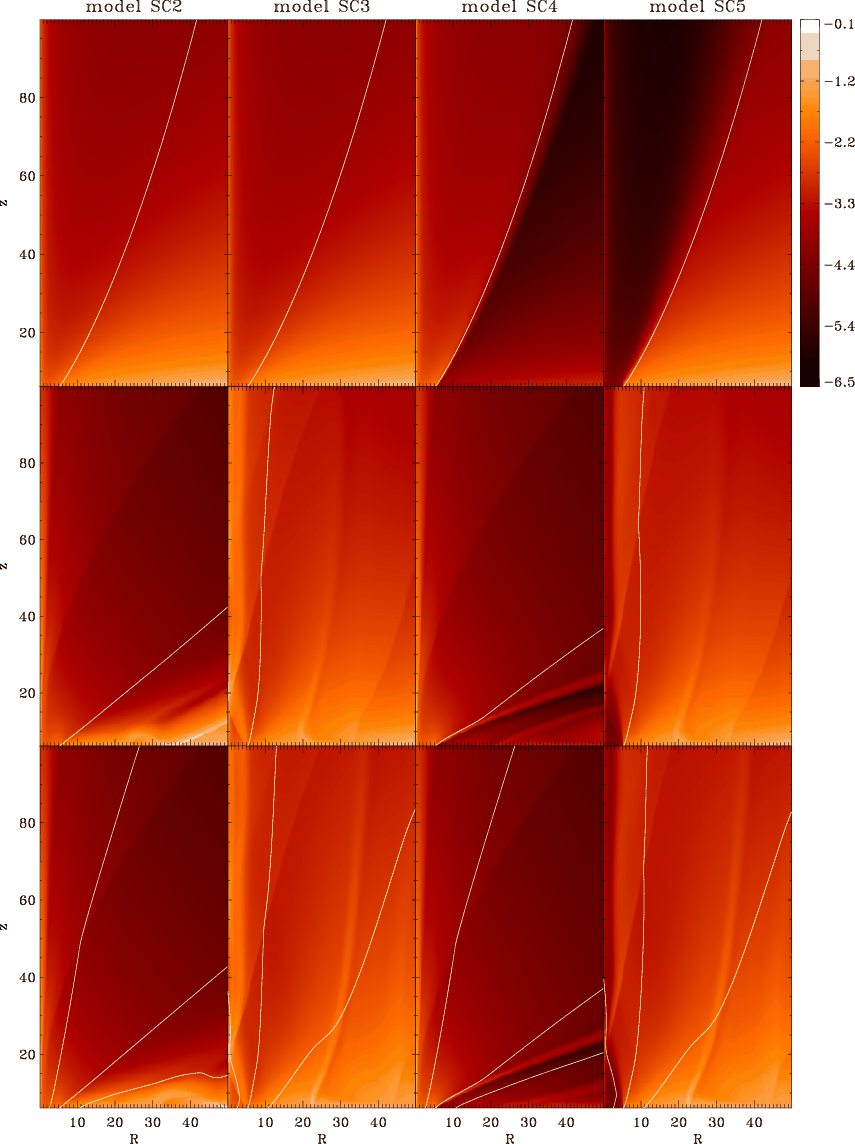

Figure 5:
Structure of the flow (logarithmic density plots) for models
SC2-SC5 ( from left to right) at timesteps t = 0 ( top), t = 25
( middle) and
t = 50 t0 ( bottom). Also plotted is the
magnetic field line anchored in the lower boundary where
![]() |
Open with DEXTER |
![]() |

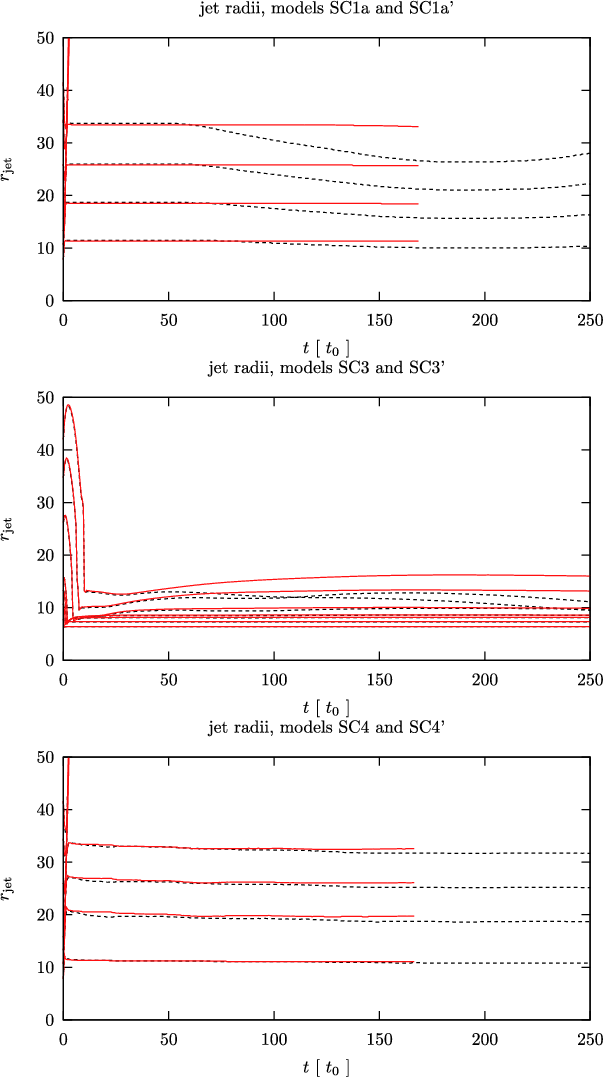

Figure 6: Comparison of the jet radius evolution in models SC1a and SC1a', models SC3 and SC3' and models SC4 and SC4' (black dashed: unprimed models, red solid: primed models). |
Open with DEXTER |
![]() |

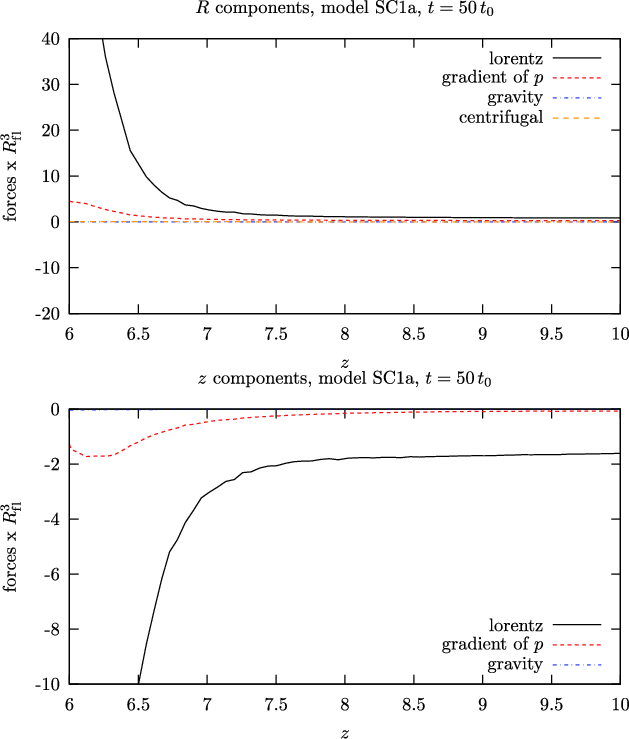

Figure 7:
R ( top) and z ( bottom) components of forces along the jet
boundary at the final simulated timestep (at 50 t0) in models SC1a.
The components are measured at the truncation field line plotted in
previous figures and multiplied by
![]() ![]() |
Open with DEXTER |
![]() |

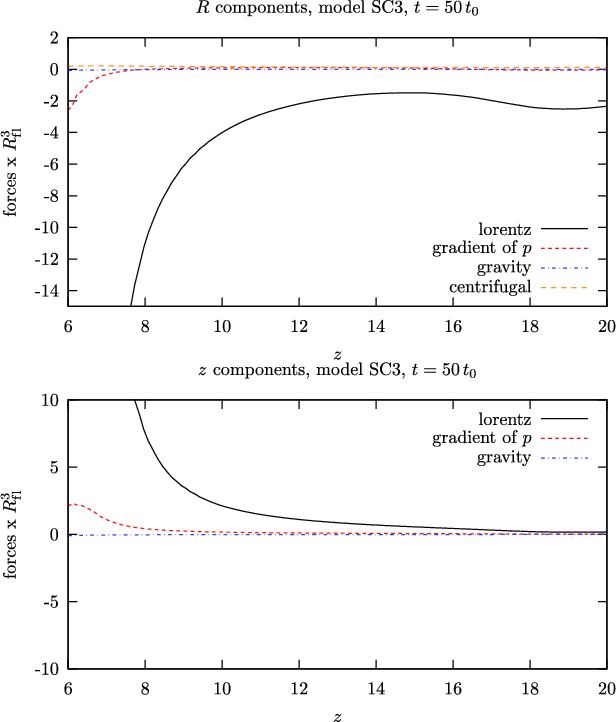

Figure 8: Same as in Fig. 7, but for model SC3. |
Open with DEXTER |
![]() |

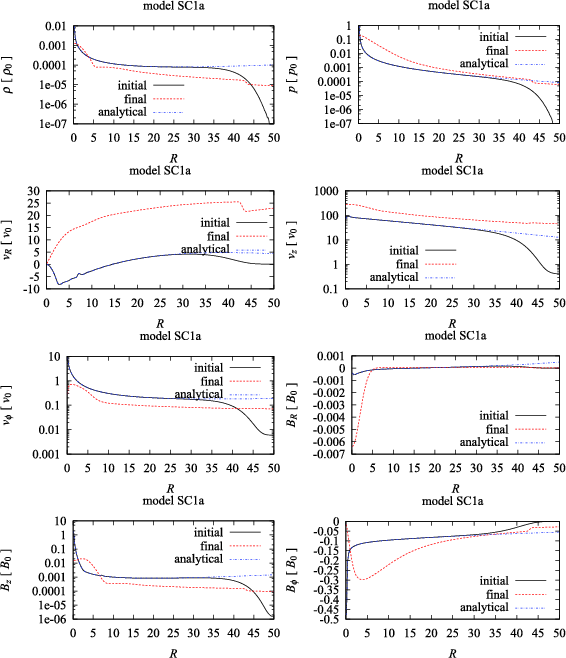

Figure 9:
Quantities at the outer axial boundary in model SC1a: density ( top
left), pressure ( top right), velocity components in R ( second row, left),
z ( second row, right) and ![]() ![]() |
Open with DEXTER |
![]() |

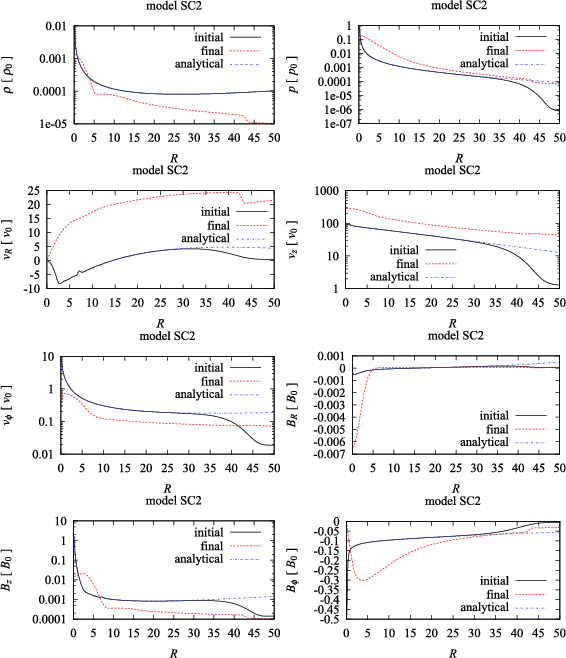

Figure 10: Same as in Fig. 9, but for the model SC2. |
Open with DEXTER |
![]() |

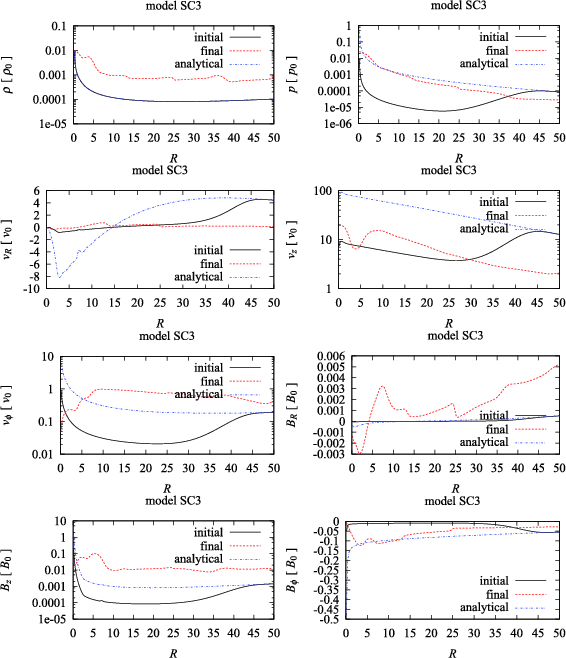

Figure 11: Same as in Fig. 9, but for the model SC3. |
Open with DEXTER |
![]() |

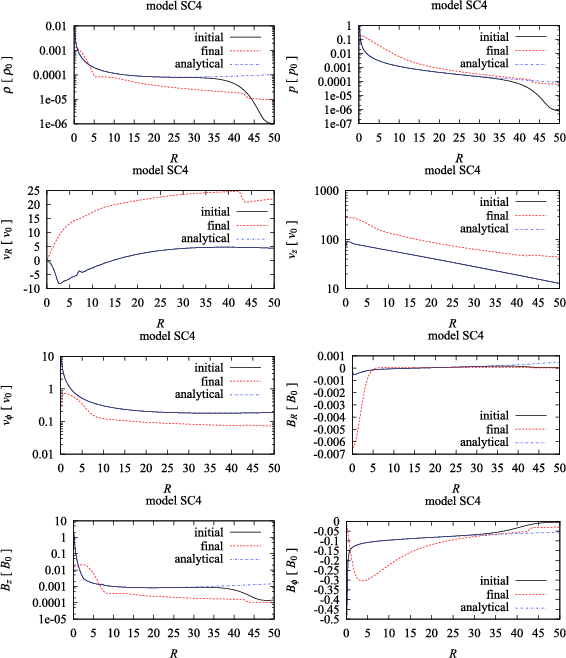

Figure 12: Same as in Fig. 9, but for the model SC4. |
Open with DEXTER |
![]() |

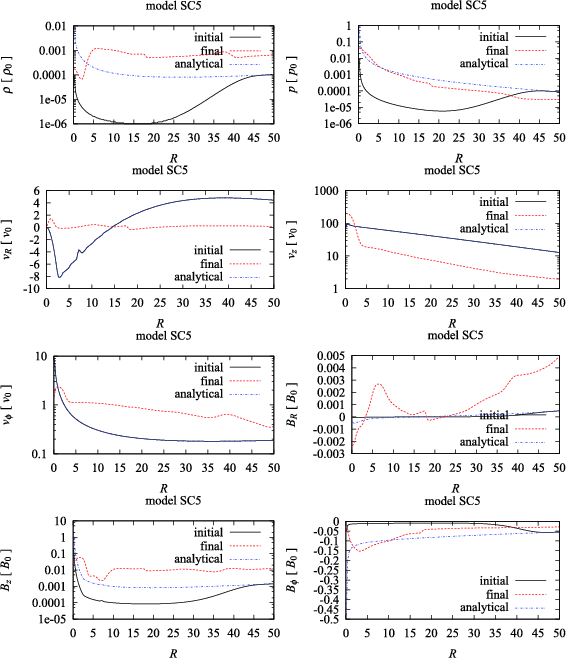

Figure 13: Same as in Fig. 9, but for the model SC5. |
Open with DEXTER |
![]() |

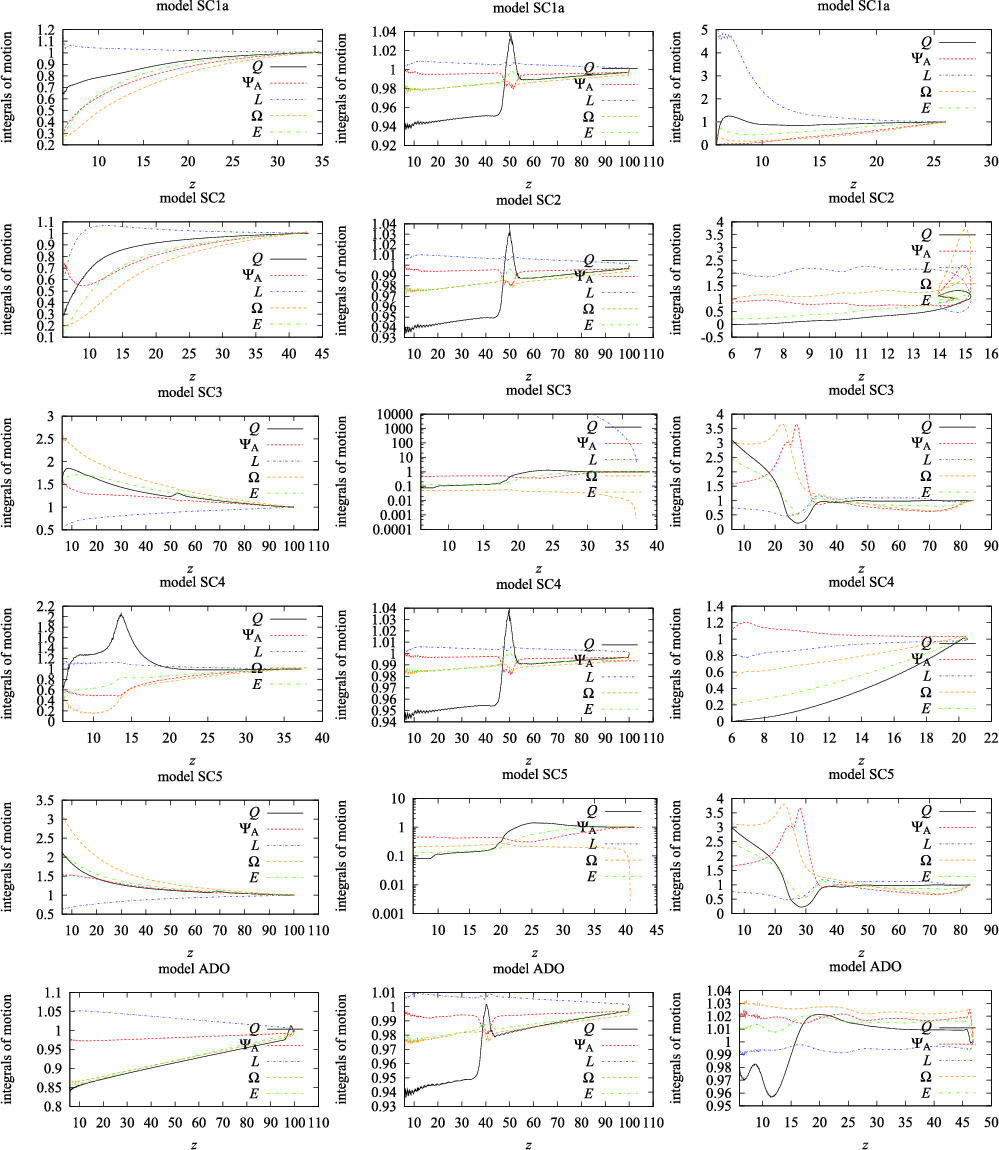

Figure 14:
Integrals of motion
![]() ![]() |
Open with DEXTER |
![]() |

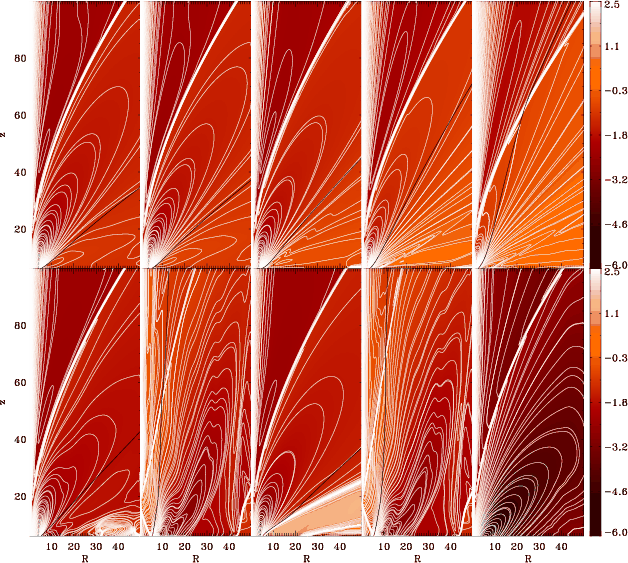

Figure 15:
Poloidal currents
![]() |
Open with DEXTER |
