A&A 489, 1047-1054 (2008)
DOI: 10.1051/0004-6361:200809824

Swift observations of IBL and LBL objects

F. Massaro1,2 - P. Giommi3 - G. Tosti4 - A. Cassetti5 - R. Nesci5 - M. Perri3 - D. Burrows6 - N. Gerehls7


1 - Dipartimento di Fisica, Università di Roma Tor Vergata, Via della Ricerca scientifica 1, 00133 Roma, Italy
2 - Harvard, Smithsonian Astrophysical Observatory, 60 Garden Street, Cambridge, MA 92138, UK
3 - ASI Science Data Center, ESRIN, 00044 Frascati, Italy
4 - Dipartimento di Fisica, Universitá di Perugia, Viale A. Pascoli 1, 06123 Perugia, Italy
5 - Dipartimento di Fisica, Università di Roma La Sapienza, Piazzale A. Moro 2, 00185 Roma, Italy
6 - Department of Astronomy and Astrophysics, Pennsylvania State University, 525 Davey Lab, University Park, PA 16802, USA
7 - NASA NASA Goddard Space Flight Center, Greenbelt, MD 20771, USA

Received 20 March 2008 / Accepted 16 July 2008

Abstract
Context. BL Lacs are an enigmatic class of active galactic nuclei (AGNs), characterized by the non-thermal continuum typically attributed to synchrotron and inverse Compton emission. Depending on the frequency location of the maxima of these components, they are subdivided into three subclasses LBLs, IBLs, and HBLs. We present the results of a set of observations of eight BL Lac objects of LBL and IBL type performed by the XRT and UVOT detectors onboard the Swift satellite between January 2005 and November 2006.
Aims. We are mainly interested in measuring the spectral parameters, and particularly the steepness between the UV and the X-ray band, useful for determining the classification of these sources. We compare the behavior of these sources with previous XMM-Newton, BeppoSAX observations and with historical data in the X-ray and in the optical band. We are also interested in classifying the sources in our sample on the basis of the Swift observations and comparing them with their classification presented in literature.
Methods. We performed X-ray spectral analysis of observed BL Lac objects using a simple powerlaw and in a few cases the log-parabolic model. We also combined the UV emission with the low energy X-ray data to describe their spectral energy distribution.
Results. We used Swift observational data to classify sources in our sample and derived parameters of their spectral energy distribution.
Conclusions. We found that for the IBLs X-rays low states show features of the high energy component, usually interpreted as due to inverse Compton emission. Sources in our sample exhibit a range of temporal UV and X-ray behaviors, some objects having clear and neat correlated UV and X-ray variations (e.g. ON231) and other objects showing no clear (e.g. AO 0235+164) UV and X-ray correlation. Finally, we also note that our estimates of spectral curvature are in the range of that measured for the High frequency peaked BL Lac objects (HBLs).

Key words: galaxies: active - galaxies: BL Lacertae objects: general - X-rays: galaxies - radiation mechanisms: non-thermal

1 Introduction

In the unification scenario of active galactic nuclei (AGNs), BL Lac objects are interpreted as radio-loud sources with a relativistic jet that points toward us (Blandford & Rees 1978; Urry & Padovani 1995). The BL Lac emission extends from radio to TeV energies and their spectral energy distribution (SED) is double-bumped: the first component typically peaks from the IR to X-ray band and the second one in the gamma-rays up to TeV energies. Usually their SEDs are described in terms of synchrotron self-Compton (SSC) models in which synchrotron photons, emitted by a population of electrons accelerated in their relativistic jets, produce the second component via inverse Compton (IC) scattering with the same electrons. Padovani & Giommi (1995) suggested the SED peak energy position of the first component as a possible classification criterium for BL Lacs, indicating sources in which the synchrotron peak is between the UV band and X-rays as high-frequency peaked BL Lacs (HBLs) and low-frequency peaked BL Lacs (LBLs) when the first bump appears in the IR-optical range.

Usually, X-ray observations of HBLs, up to $\sim$10 keV, sample the maximum of the synchrotron component, while they only cover the spectral rise to maximum of inverse Compton component in LBLs. In particular, there are some BL Lacs, named intermediate BL Lacs (IBLs) (see also Bondi et al. 2001), that present features of the two components in the 0.5-10 keV range. The BeppoSAX observations of ON 231 had shown for the first time that this source could be considered a BL Lac object intermediate between the HBL and LBL classes, and this strengthened the relevance of the 0.1-10 keV energy range classifying the IBL sources.

It is well known that the optical spectrum of LBL and IBL objects generally becomes bluer when the source brightens this implies that the tail of the Synchrotron component moves to higher energies and may overcome the IC radiation. The classification of a given source as LBL or IBL may therefore depend on the luminosity state of the source at the epoch of observation. Actually the classification criteria are rather fuzzy. An attempt to determine the peak position of the SED for a large sample of sources in the northern hemisphere has been made by Nieppola et al. (2006) on the basis of non-simultaneus radio, optical, X-ray fluxes. To further explore this topic, we selected a number of BL Lac objects from the Swift archive, classified in the literature as LBL or IBL, observed between January 2005 and November 2006 and not yet published, to search for signatures of the synchrotron tail and of the inverse Compton rise in the UV to the X-ray part of their spectrum.

In this paper, we present the Swift data and we compare them with previous XMM-Newton and BeppoSAX observations. The list of the sources in our sample is shown in Table 1, their classification is based on the data available in the Blazar catalog (http://www.asdc.asi.it/bzcat) (Massaro et al. 2007).

2 Observations and data reduction

During our observations of IBLs and LBLs, the Swift satellite was operated with all the instruments in data taking mode. We consider only ${\it XRT}$ (Burrows et al. 2005) and ${\it UVOT}$ (Roming et al. 2005) data, since our sources were not bright enough to be detected by the ${\it BAT}$ high energy experiment (Barthelmy et al. 2005). In particular, Swift-XRT observations have been performed in photon-counting mode (PC) with only two exceptions: two pointings of S5 0716+714 and one of PKS 0521-365, which were observed in the windowed-timing mode (WT) (see Sect. 2.1) discussed in the following. Finally, we do not consider Swift-XRT observations with exposures shorter than 1000 s. The log of Swift-XRT  and Swift-UVOT  observations is reported in Table 2.

XMM-Newton observations have been analyzed and discussed by several authors (see Foschini et al. 2006, and references therein). Our analysis is in agreement with previous results. BeppoSAX and other historical data reported in this work are taken from the the ASI Science Data Center (ASDC) archive.

The reduction procedure used to our investigations are described below.

Table 1: Swift BL Lacs list.

Table 2: Swift blazars Log observations.

2.1 Swift-XRT

The XRT data analysis has been performed with the XRTDAS software (v. 2.1), developed at the ASI Science Data Center (ASDC) and distributed within the HEAsoft package (v. 6.0.5). Event files were calibrated and cleaned with standard filtering criteria using the XRTPIPELINE task, combined with the latest calibration files available in the Swift CALDB distributed by HEASARC. Events in the energy range 0.3-10 keV with grades 0-12 (PC mode) and 0-2 (WT mode) were used in the analyses (see Hill et al. 2005, for a description of readout modes).

For the WT mode data, events for temporal and spectral analysis are selected using a 40 pixel wide (1 pixel corresponds to 2.36 arcs) rectangular region centered on the source and aligned along the WT one dimensional stream in sky coordinates. Background events are extracted from a nearby source-free rectangular region of 40 pixel width.

No signatures of pile-up were found in our Swift-XRT  observations. Events are extracted using a 20 pixel radius circle. The background for PC mode is estimated from a nearby source-free circular region of 20 pixel radius.

Ancillary response files are generated with the XRTMKARF task applying corrections for the PSF losses and CCD defects. The latest response matrices (v. 009) available in the Swift CALDB are used, and source spectra are binned to ensure a minimum of 30 counts per bin in order to utilize the $\chi^{2}$ minimization fitting technique and ensure the validity of Gaussian statistics.

More details about the reduction procedure followed in this analysis is discussed in Massaro et al. (2008).

2.2 Swift-UVOT

The reduction procedure used to perform our Swift-UVOT  analysis is described in more detail in Tramacere et al. (2007a), we give only a brief description here.

A variety of filter combinations and data modes are available for ${\it UVOT}$ observations. For fields without bright stars, i.e. stars bright enough to degrade the detector, the most commonly-used mode observes in six photometric bands: U, B, V, and three ultraviolet. In some cases our target was quite bright and saturated the image in all the photometric bands. For this reason not all the optical and UV data could be used for our analysis. The list of all available ${\it UVOT}$ observations is given in Table 2.

We performed the photometric analysis using a standard tool ${\it UVOTSOURCE}$ in HEAsoft package 6.0.5. Counts were extracted from a 6 $\hbox{$^{\prime\prime}$ }$ radius aperture in the V, B, and U filters and from a 12 $\hbox{$^{\prime\prime}$ }$ radius aperture for the other UV filters (UVW1, UVM2, and UVW2), to properly take into account the wider PSF in these bandpasses. The count rate was corrected for coincidence loss, and the background subtraction was performed by estimating its level in an offset region at 20 $\hbox{$^{\prime\prime}$ }$ from the source. The estimate of flux uncertainties is complex due to possible instrumental systematics (e.g. residual pile-up in the central region of the PSF) and calibration, in particular, the lack of reference stars in the UV bandpasses. In this paper we adopt the conservative approach to consider a typical uncertainty of 8% for the V, B, U filters and of 15% in the UV band.

The correction for the interstellar reddening was obtained assuming the E(B-V) values at the source direction taken from NED and the fluxes were derived with the same conversion factors given by Giommi et al. (2006).

2.3 XMM-Newton

The reduction procedure for XMM-Newton data is described completely in Tramacere et al. (2007b) and in Massaro et al. (2008). Our sources were observed with XMM-Newton by means of all EPIC CCD cameras: the EPIC-PN (Struder et al. 2001), and EPIC-MOS (Turner et al. 2001). We consider only EPIC-MOS data for our analyses.

Extractions of all light curves, source and background spectra were done with the XMM-Newton Science Analysis System (SAS) v6.5.0. The Calibration Index File (CIF) and the summary file of the Observation Data File (ODF) were generated using Updated Calibration Files (CCF) following the ``User's Guide to the XMM-Newton  Science Analysis System'' (issue 3.1, Loiseau et al. 2004) and ``The XMM-Newton  ABC Guide'' (vers. 2.01, Snowden et al. 2004). Event files were produced by the XMM-Newton EMCHAIN pipeline.

Light curves for each dataset are extracted, and all high-background intervals filtered out to exclude time intervals contaminated by solar flare signals. Then by direct inspection we select good time intervals far from solar flare peaks and with no count rate variations on time scales shorter than 500 s. Photons are extracted from an annular region using different apertures to minimize pile-up, which affects MOS data. The mean value of the external radius for the annular region is 40 $^{\prime\prime}$.

A more restricted energy range (0.5-10 keV) is used to account for possible residual calibration uncertainties. To ensure the validity of Gaussian statistics, data are grouped by combining instrumental channels so that each new bin comprises 40 counts or more.

3 Spectral analysis

For all sources the X-rays spectral fitting analysis was performed with the XSPEC software package, version 11.3 (Arnaud 1996), with the galactic column densities fixed to the Galactic values (Dickey & Lockman 1990) and a single power-law model,

\begin{displaymath}N(E) = N_0 ~ \left( \frac{E}{1~ \rm keV} \right)^{-\Gamma} , \end{displaymath} (1)

where $\Gamma$ is the photon index. We report in Table 2 the best fit values of $\Gamma$ and N0, and the $\chi^{2}$ value of the fit. the fit is good in a fair number of cases and its physical significance is discussed below for each source separately.

In IBLs, we search for possible signatures of both synchrotron and inverse Compton components by a direct inspection of residuals at the edges of the considered energy range. We also try to describe their spectra with two more models: i) a broken power law; and ii) a sum of two power laws, always with the absorption fixed to the Galactic value, to take into account of the possible presence of two spectral components. No improvement in $\chi^{2}$ was found using these extra two models for IBL sources.

More recently Tanihata et al. (2004), Massaro et al. (2004), and Tramacere et al. (2007b) have confirmed that a log-parabolic distribution gives very good fits for the synchrotron component of BL Lac sources,

\begin{displaymath}N(E) = N_0 ~ \left( \frac{E}{1~\rm keV} \right)^{-a-b\log \left(\frac{E}{1~\rm keV}\right)} \end{displaymath} (2)

or in the equivalent form and in terms of frequency:

\begin{displaymath}\nu F_{\nu} = S_{\nu} = S_{\rm p} ~ \left( \frac{\nu}{\nu_{\rm p}} \right)^{-b\log \left( \frac{\nu}{\nu_{\rm p}} \right)} \end{displaymath} (3)

where $E=h\nu$. This model provides the spectral description in terms of three parameters: the curvature, b; the SED peak frequency, $\nu_{\rm p}$; and the height of the spectral energy distribution evaluated at $\nu_{\rm p}$, $S_{\rm p}=\nu F_{\nu}(\nu_{\rm p})$. In the X-ray spectra of S5 0716+714 and ON 231, we tried to evaluate the presence of a high energy tail due to the Compton rise in the X-ray spectra using a log-parabolic spectral description of the optical-to-soft-X-ray spectrum (Landau et al. 1986; Massaro et al. 2004; Tramacere et al. 2007b).

Furthermore, in analogy with S5 0716+714 and ON 231, we tried to describe the SED of 0109+224 and 3C 66A in terms of a log-parabolic model joining the UV data and the low-energy (less than 2 keV) X-rays data, deriving an estimate of the spectral parameters, even if the derived parameters have limited physical meaning due to the small amount of available data. We did not attempt to apply this description to PKS 0823-223 and AO 0235+164 because the first source has no UV data available, while in the second one the UV emission seems to belong to the tail of the synchrotron emission rather than being close to the peak of its SED (see Fig. 3 and Sect. 3.3 for details).

Details of single sources are discussed below.

3.1 0109+224

The first X-ray detection of this source was performed by the IPC onboard Einstein between April 1979 and June 1980 (Owen et al. 1981). XMM-Newton and BeppoSAX  did not observe of this source.

Swift performed three observations of this IBL, but only on two occasions (2006 May 31 and 2006 June 1) and the Swift-XRT  exposure was larger than 5 ks, which is necessary to have a good statistics for a detailed spectral analysis. The X-ray flux doesn't show significant variations during these observation. On the 2006 June 1 pointing it is about 20% lower than the 2006 May 31 one. The spectral shape is described well by a simple absorbed power law, with column density fixed to the Galactic value as reported in Table 2, and the X-ray photon index is close to 2, indicating that the SED is very flat. Following the SSC scenario, this fact led us to conclude that X-ray data trace the IC component.

During the 2006 January 27 observation, Swift detected a low state of the source in the UV band (5 times lower than the other two observations), it is worth noting that this low state in UV corresponds to a not much lower state in the X-ray.

We evaluated the curvature, the peak frequency, and the height at the peak energy of the SED, as reported in Fig. 1, attributing the low energy X-ray emission to the tail of the synchrotron component. We found a curvature b=0.19, a peak frequency $\nu_{\rm p}=3.17\times 10^{14}$ Hz, and the SED peak height $S_{\rm p}=2.43\times 10^{-11}$ $~\rm erg~cm^{-2}~s^{-1}$ for the observation performed on 2006 May 31, and very similar values in the pointing of 2006 June 1: b=0.20, $\nu_{\rm p}=3.43\times 10^{14}$ Hz, and $S_{\rm p}=2.41\times 10^{-11}$ $~\rm erg~cm^{-2}~s^{-1}$, while on 27 January 2006 the spectral parameters are: b=0.04, $\nu_{\rm p}=1.55\times 10^{11}$ Hz, and $S_{\rm p}=2.94\times 10^{-11}$ $~\rm erg~cm^{-2}~s^{-1}$. Such a low value of the peak frequency is physically unlikely: the 2006 January 27 observation can be better explained if we assume that the X-ray flux is due to the sum of an IC emission, which remained nearly steady, and form the synchrotron emission that decreased significantly, as indicated by the UV flux. A similar variability episode, with a steady IC and a large change in the synchrotron tail, was shown e.g. by BL Lacertae (Ravasio et al. 2002). Considering the spectral shape, this source appears to be an IBL.

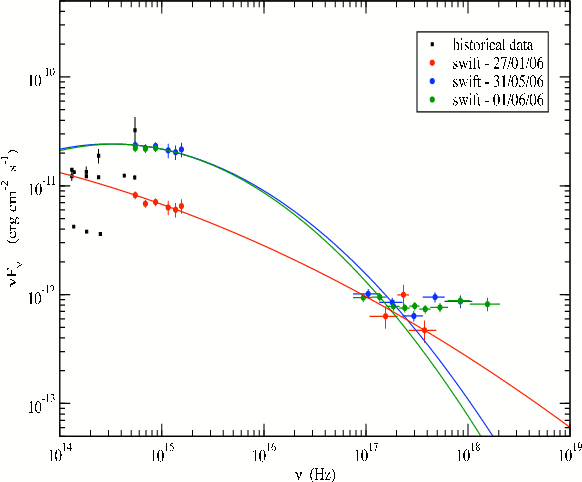

  \begin{figure} \par\includegraphics[height=6.8cm,width=8.2cm,clip]{09824fig1.ps} \end{figure} Figure 1: The spectral energy distribution for the three observations of 0109+224 performed by Swift compared to the historical data. The continuous curves reported in the plot refer to a log-parabolic model (see Sect. 3.1 for details).
Open with DEXTER

3.2 3C 66A

The source 3C 66A was extensively monitored from radio to very high energy $\gamma$-rays during 2003-2004 (Böttcher et al. 2005), and no significant X-ray variability was detected. Our analysis of the Swift-XRT   and the XMM-Newton  data sets was performed with a simple, absorbed power law model with the column density fixed at the Galactic value, as reported in Table 1. Our results agree with those reported by Croston et al. (2003).

In detail, Swift-XRT performed two observations of 3C 66A during 2005. The photon index in the X-ray band is higher than 2 in each observation, indicating that X-ray emission is probably associated with the first bump in the SED, corresponding to the synchrotron radiation in an SSC scenario.

In particular, this BL Lac was found in two differents X-ray states. In the low state (2005 June 29), the source seemed to show an excess, in the residuals at the edge of the X-ray band, when fitted with a simple power law model. It is probably due to the start of the Compton rise of the second bump, although the X-ray fit alone cannot distinguish bewteen a simple absorbed power-law or a multi-component model because the statistics in the range 5-10 KeV is very narrow. The high state observation (2005 November 27) is described well by a power law with a flat spectral index in the SED. Its spectral energy distribution is shown in Fig. 2.

The ratio between the X-ray flux of the two Swift-XRT observations is about 1.57. It is worth noting that the high UV state of the source corresponds to a low state in X-rays, in agreement with the possibility that the low energy X-ray emission corresponds to the synchrotron tail. Spectral parameters evaluated for the observation performed on 2005 June 29 are: b=0.15, $\nu_{\rm p}=3.41\times 10^{14}$ Hz, and $S_{\rm p}=2.78\times 10^{-11}$ $~\rm erg~cm^{-2}~s^{-1}$, while in the observation performed on 2005 November 27: b=0.16, $\nu_{\rm p}=4.78\times 10^{14}~\rm Hz$, and $S_{\rm p}=2.20\times 10^{-11}$ $~\rm erg~cm^{-2}~s^{-1}$, showing a large spectral change in the SED peak frequency. XMM-Newton data, reported in Fig. 2, agree with the first Swift-XRT  observation showing the same feature. Comparing the Swift-XRT  data with the historical ones (Einstein, ROSAT, BeppoSAX), we see that the Compton rise seem to always appear in low states, as just discussed by Perri et al. (2003).

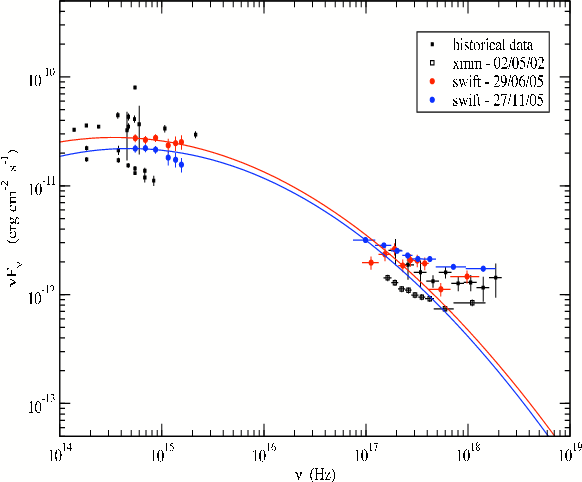

  \begin{figure} \par\includegraphics[height=6.8cm,width=8.2cm,clip]{09824fig2.ps} \end{figure} Figure 2: The spectral energy distribution for the two observations of 3C 66A performed by Swift, in comparison with one XMM-Newton pointing and with historical data. The continuous curves reported in the plot refer to a log-parabolic model (see Sect. 3.2 for details).
Open with DEXTER

3.3 AO 0235+164

AO 0235+164 is one of most variable sources in the sky, it usually displays strong variability from radio to optical wavelengths. It has a very compact nucleus, and sometimes jet features with high superluminal motion can be observed (Jorstad et al. 2001). We found that XMM-Newton observations are strongly affected by pile-up that can affect the estimate of the spectral index, even if the source is in a very low energy state, as reported in Fig. 3. Finally, as shown in the historical SED plotted in Fig. 3, this source is also extremely variable in the X-ray band.

Swift-XRT observed AO 0235+164 on two occasions, on 2005 June 28 and on 2005 July 7, finding the source in a very similar state. The X-ray ratio between the 0.2-10 keV fluxes of the two observations is 1.36. The photon index estimated by the X-ray band best fit is lower than 2 indicating, that these emission could be due to the inverse Compton component. Compared to XMM-Newton, Swift-XRT found the source in an intermediate state consistent with other spectra observed by BeppoSAX (Perri et al. 2003). In particular, Swift-UVOT and Swift-XRT seems to belong to different components, the first to the tail of the synchrotron emission and the second to the rise of the inverse Compton bump.

From our analysis we argue that AO 0235+164 appears to be a LBL object.

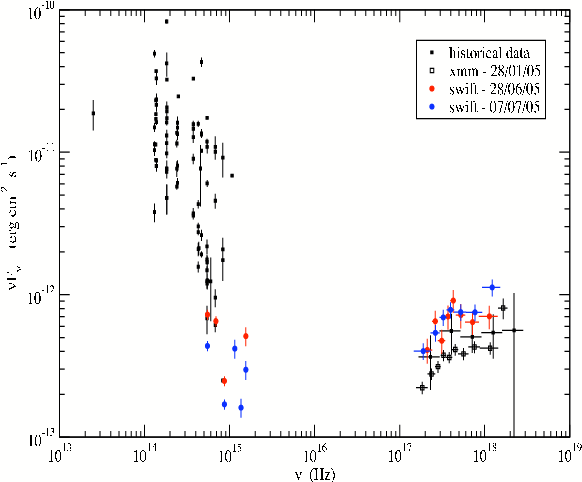

  \begin{figure} \par\includegraphics[height=6.8cm,width=8.2cm,clip]{09824fig3.ps} \end{figure} Figure 3: The spectral energy distribution for the two observations of AO 0235+164 performed by Swift, compared with one XMM-Newton pointing and with historical data.
Open with DEXTER

3.4 PKS 0521-365

PKS 0521-365 is a well-studied BL Lac with a redshift of 0.055, comparable to the redshifts of the radio galaxies studied by Worrall & Birkinshaw (1994). It is variously described in the literature as a blazar, a BL Lac object, or an N-galaxy; and on multifrequency spectral index plots like those of Sambruna et al. (1996), it is placed among radio-selected BL Lacs. It has already been extensively observed at X-ray wavebands, with Einstein (Worrall & Wilkes 1990), ${\it EXOSAT}$ (Sambruna et al. 1994), and the ROSAT PSPC (Pian et al. 1996), with an X-ray flux at 1 keV of about 1.2 $\mu$Jy, 1.7 $\mu$Jy, and 2.1 $\mu$Jy, respectively. It was also detected in $\gamma$-rays by ${\it EGRET}$ (Lin et al. 1996). The XMM-Newton observation, performed on the 2002 October 9, showed that the source appears to have a concave spectrum in the X-ray waveband with the photon index of about 2.0 in the soft band, flattening to about 1.74 at higher energies (Foschini et al. 2006).

The Swift-XRT observation found this source in a higher state compared to archival data. We analyzed the combined PC and WT observation to have enough useful counts estimating the photon index of the 2005 May 26 pointing. This was found about 1.86, thus confirming the LBL classification of PKS 0521-365  indicating that the X-ray data belongs to the IC component. The spectral energy distribution of PKS 0521-365  is reported in Fig. 4.


  \begin{figure} \par\includegraphics[height=6.8cm,width=8.2cm,clip]{09824fig4.ps} \end{figure} Figure 4: The spectral energy distribution for the observation of PKS 0521-365 performed by Swift, compared with historical data and with the XMM-Newton observation.
Open with DEXTER

3.5 S5 0716+714

This is the most famous IBL source. The past X-ray observations, performed with ROSAT (Cappi et al. 1994), have shown strong variations with short flares. Broad-band observations with BeppoSAX were performed in 1996 and 1998 during low optical activity (Giommi et al. 1999) and in 2000 (Tagliaferri et al. 2003), following a strong optical outburst, when the blazar displayed an increase of 2.3 mag in 9 days (Raiteri et al. 2003). In the first two observations, S5 0716+714 was at a low flux level in the 0.1-10 keV energy band ( $3.4\times 10^{-12} $ $~\rm erg~cm^{-2}~s^{-1}$ in 1996 and $4.4\times 10^{-12} $ $~\rm erg~cm^{-2}~s^{-1}$ in 1998) and was not detected at energies above 10 keV.

The soft X-rays displayed significant variability, in agreement with the optical light curves, with the possibility that the optical and X-ray variations were correlated, but the poor statistics prevented the authors from making firm conclusions (Giommi et al. 1999). The BeppoSAX observation of 2000 confirmed the findings by Giommi et al. (1999), according to which the soft X-ray spectrum becomes steeper when the source flux increases. In particular, the BeppoSAX spectral energy distribution showed the presence of a steep power-law component below $\sim$2.5 keV with a photon index $\sim$1.5, becoming harder towards higher frequencies, with a new spectral index $\sim$0.85 (Giommi et al. 1999). The source was also detected in hard X-rays up to 60 keV. Again, variability appears to be present only in the soft X-rays (Tagliaferri et al. 2003).

In April 2004, XMM-Newton (Foschini et al. 2006) and INTEGRAL (Pian et al. 2005) observed S5 0716+714 nearly simultaneously, triggered by an optical outburst that occurred at the end of March. The X-ray spectrum is well-represented by a concave broken power-law model, with the break at about 2 keV. In the framework of the synchrotron self-Compton model, the softer part of the spectrum, which is described by a power law of index $\Gamma \simeq 1.8$, is probably due to synchrotron emission, while the harder part of the spectrum, which has $\Gamma \simeq 1$, is due to inverse Compton emission.

Compared to the XMM-Newton observation the Swift-XRT  pointings are in lower states, which may help detecting features of the rise in the Compton emission as shown in the BeppoSAX observation reported in Fig. 6. In fact, in the Swift-XRT observation on 2005 April 4 with a log-parabolic model, we found a positive value of the curvature parameter, (Table 3) only for the X-ray band, consistent with the presence of a flattening of the spectrum toward high energies. Spectral parameters of the 2005 April 4 and 2005 August 18 observations, evaluated linking the UV data with the low energy X-ray emission, are b=0.22, $\nu_{\rm p}=6.36\times 10^{14}$, $S_{\rm p}=4.74\times 10^{-11}$, and b=0.20, $\nu_{\rm p}=4.11\times 10^{14}$ and $S_{\rm p}=9.87\times 10^{-11}$.

The spectral energy distribution is reported in Fig. 6, where it is possible to see the deviations in the tail of X-ray emission with respect to the log-parabolic model, within all observations.


  \begin{figure} \par\includegraphics[height=6.8cm,width=8.2cm,clip]{09824fig5.ps} \end{figure} Figure 5: The spectral energy distribution for the three observations of S5 0716+714 performed by Swift, in comparison with one XMM-Newton pointing and with historical data. The continuous curves reported in the plot refer to a log-parabolic model (see Sect. 3.5 for details).
Open with DEXTER

3.6 PKS 0823-223

This BL Lac object (z=0.91) was never detected in X-rays prior to Swift-XRT. The X-ray flux measured in the XMM-Newton Slew Survey is consistent with zero within 3 sigma range. The X-ray photon index in the long exposure observation is very close to 2, indicating a flat spectral energy distribution. The 0.2-10 keV flux increases by a factor of 1.16 between the pointing performed on 2005 July 1 and the 2005 July 3 observation, and it decreases by a factor of 0.73 from July to September 2005. We report in Table 2 the sum of all observations performed in September 2005 in order to increase statistics since during these observations there are no large flux variations. The previous classification of this source was based on the flat SED in the optical band (JHK), similar to 3C 66A . Our new Swift-XRT  observations confirm that this source belongs to the IBL class.

Table 3: Swift-XRT analysis with the log-parabolic model perfomed on S5 0716+714 and ON 231.

3.7 OJ 287

The BL Lac object OJ 287 (z = 0.306; Stickel et al. 1989) is one of the well observed LBL sources. In particular, it was the main target of an intensive optical (Pursimo et al. 2000) and radio (Valtaoja et al. 2000) monitoring. One of its most relevant characteristics is the periodicity of 11.95 years, derived from a historical optical light curve (Sillanpää et al. 1988). BeppoSAX observations (Massaro et al. 2003) report that the simple power law extrapolations of the optical data into the X-ray range are higher than the measured fluxes. This implies that the spectral index must steepen significantly toward the UV X range, unless the emission originates in different components.

We argue that the optical points belong to the synchrotron component, whereas the measured fluxes in the X-ray range are on the Compton branch and represent only upper limits for the high frequency synchrotron tail. In the case of this source, the synchrotron component is not detected in the X-ray range and the source can be classifed as LBL; the estimated position of the peak frequency is at about $2.2 \times 10^{13}$ Hz (Massaro et al. 2003).

Swift observed OJ 287 three times during 2005 and on other three occasions in 2006. During 2005, the X-ray flux is similar in each pointing, while in 2006 the ratio between the two observations performed on 2006 November 17 and 2006 November 16 is about 1.88. Short exposures in Swift-XRT pointings did not permit us to evaluate spectral parameters. The average flux in the range $2{-}10~\rm keV$ among 2005 Swift pointings is $2.45\times 10^{-12}$ $~\rm erg~cm^{-2}~s^{-1}$ and $2.06\times 10^{-12}$ $~\rm erg~cm^{-2}~s^{-1}$.

The comparison with XMM-Newton  observation performed on April 2005 is reported in Fig. 7, and other XMM-Newton data available are consistent with them. The flux estimated with Swift-XRT  is consistent with that of XMM-Newton  (Ciprini et al. 2007a), but the low statistics due to the short exposure observations Swift does not allow us to look for a possible energy break in the Swift-XRT  spectra of OJ 287 (Ciprini et al. 2007b; Ciprini et al. 2008, in prep.). As shown in Fig. 6, comparing Swift-XRT  observatons with historical data no significant changes in the SED are evident.

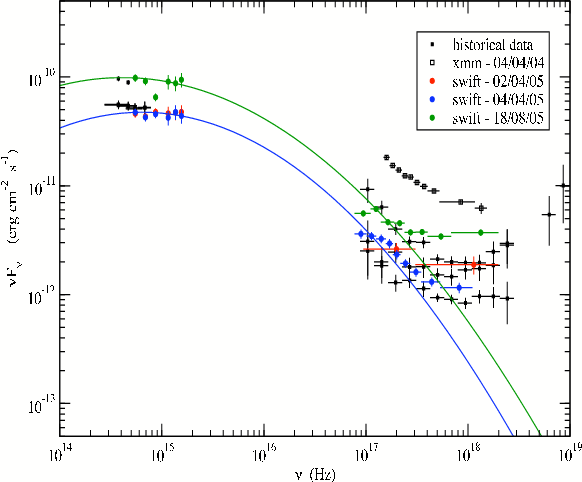

  \begin{figure} \par\includegraphics[height=6.8cm,width=8.2cm,clip]{09824fig6.ps} \end{figure} Figure 6: The spectral energy distribution for the 2005 observations of OJ 287 performed by Swift, compared with one XMM-Newton pointing and with historical data.
Open with DEXTER

3.8 ON 231

The BL lac object ON 231 (1219+285, W Comae, B2 1219+28, z=0.102) was observed in the X-ray, for the first time by Einstein IPC (Giacconi et al. 1979) in June 1980. The BeppoSAX observations (Tagliaferri et al. 2000) measured the hard X-ray spectrum above 3 keV and in different brightness states for the first time. The BeppoSAX spectral analysis, performed with a broken-powerlaw and a sum of two power law models, had shown a concave shape for the spectrum in X-ray band, indicating a first photon index that was very similar to the previous X-rays Einstein observations, with an energy break at lower energies (4.00 keV and 2.60 keV for the two different BeppoSAX observations), and a second photon index steeper than the previous one. The shape of the spectrum determined by BeppoSAX was found to be different from ROSAT, described as a single power law with a photon index 1.19 (Comastri et al. 1997), and this was interpreted as due to the narrower energy range of the different instruments and a weaker state of ON 231 itself (Tagliaferri et al. 2000). Finally, the concave shape of the spectrum was interpreted in terms of presence of the steep tail of synchrotron radiation (first power law) and the hard emerging of the inverse Compton emission (second power law).


  \begin{figure} \par\includegraphics[height=6.8cm,width=8.2cm,clip]{09824fig7.ps} \end{figure} Figure 7: The spectral energy distribution for the 2005 observations of ON 231 performed by Swift, in comparison with one XMM-Newton pointing and with historical data. The continuous curves reported in the plot refer to a log-parabolic model (see Sect. 3.8 for details).
Open with DEXTER

The photon index of Swift-XRT observation is larger than 2, indicating that X-ray spectra belong to the tail of the synchrotron emission. The first Swift-XRT observation (2005 October 29) confirms the previous results showing both components in the low state, a similar feature to other IBL objects. The lower statistics in the high energy tail does not permit evaluating of any spectral index in the Compton rise. The second Swift-XRT observation (2005 December 16) showed the source in a state a bit fainter than the XMM-Newton one: the spectral slope is very similar and no clear evidence of upturn of the SED at high energies is detectable. This effect is due to the narrow energy range of XMM-Newton  and Swift; in fact, in the historical data (BeppoSAX  observation), representing a high state of this source, the inverse Compton rise can be seen, due to the wider energy range PDS instrument. While considering only the low energy camera below 10 keV, this spectrum is described well in terms of a single power law.

The 0.2-10 keV flux increases 80% between the two states observed by Swift. Spectral parameters evaluated connecting UV data with low energy X-ray emission are: b=0.17, $\nu_{\rm p}=2.45\times 10^{14}$ Hz, $S_{\rm p}=1.52\times 10^{-11}$ $~\rm erg~cm^{-2}~s^{-1}$, b=0.25, $\nu_{\rm p}=6.23\times 10^{14}$ Hz, $S_{\rm p}=2.69\times 10^{-11}$ $~\rm erg~cm^{-2}~s^{-1}$ and b=0.19, $\nu_{\rm p}=4.10\times 10^{14}$ Hz and $S_{\rm p}=3.30\times 10^{-11}$ $~\rm erg~cm^{-2}~s^{-1}$ for the three Swift-XRT pointings performed on 2005 July 14, 2005 October 29, and 2005 December 16. The spectral energy distribution of ON 231 is shown in Fig. 7.

4 Discussion

In the present paper we have described the results of the observations of eight BL Lac objects performed with the ${\it XRT}$ and ${\it UVOT}$ detectors onboard the Swift satellite between January 2005 and November 2006. Among these sources, the first X-ray detection of PKS 0823-223 is reported. The X-ray observations combined with UV data are crucial classifying BL Lacs and understanding the physical processes affecting both synchrotron and inverse Compton components.

Our data show that the SEDs of IBL objects in low brightness states are characterized by a very apparent inverse Compton rising component in the high energy tail, while the UV emission, combined with the soft X-ray emission belongs to the synchrotron component. In some cases we were able to estimate the SED peak frequencies and the spectral curvatures. We stress that these values agree closely with those that can be derived from the best fit parameters of the LBL and IBL sample considered by Landau et al. (1986), for which curvatures were in the range from 0.09 to 0.22 with a mean value of 0.14.

This finding suggests that the SEDs of the synchrotron component have remarkably similar shapes, most likely because the physical conditions and acceleration mechanism are basically the same. Similar values of the curvature parameter b are also found in the HBL sources observed in bright states with BeppoSAX (Giommi et al. 2005), or with XMM-Newton and Swift as reported in Tramacere et al. (2007a) and Massaro et al. (2008). For the few LBLs of our sample, the single power law model provides a good description of the X-ray spectra, supporting the idea that they are basically produced by an Inverse Compton process.

The reason for the subdivision of BL Lac objects into the two main types of LBL and HBL is not yet fully understood, and therefore the study of transitions objects, like IBL sources, is important to study the differences between them. These differences can be due to either the relativistic beaming or to other physical parameters as the acceleration efficiency.

For the well known source S5 0716+714, for instance, Nesci et al. (2005) on the basis of the historic light curve and VLBI data on the evolution of superluminal motion (Bach et al. 2005), proposing that the observed changes are due to a slow increase in the beaming factor, likely caused by the jet direction approaching the line of sight.

To verify this hypothesis, and to gain more confidence on a substantial similarity of LBL and IBL sources, an independent estimate of the physical parameters will be very useful. Under this respect simultaneous observations of both synchrotron and inverse Compton components are very useful, in particular when associated with variability studies. This possibility will soon be offered by the upcoming space missions GLAST in the $\gamma$-ray band, and Planck in the microwave-IR range, together with ground-based and X-ray observation, that will contribute to much denser coverage of the SEDs, and will particularly give the possibility of investigating how the ratio between the synchrotron and inverse Compton peak frequencies changes when the source luminosity brightens or dims.

Acknowledgements
We thank our referee E. Pian for helpful comments improving our presentation. F. Massaro thanks G. Cusumano for his help in the use of the Swift-XRT  data reduction procedure, and A. Tramacere for his suggestions and discussions on the use of XMM-Newton SAS software. We thank S. Ciprini for helpful discussion of OJ 287 XMM-Newton observations. This research has made use of the NASA/IPAC Extragalactic Database (NED), which is operated by the Jet Propulsion Laboratory, California Institute of Technology, under contract with the National Aeronautics and Space Administration.
