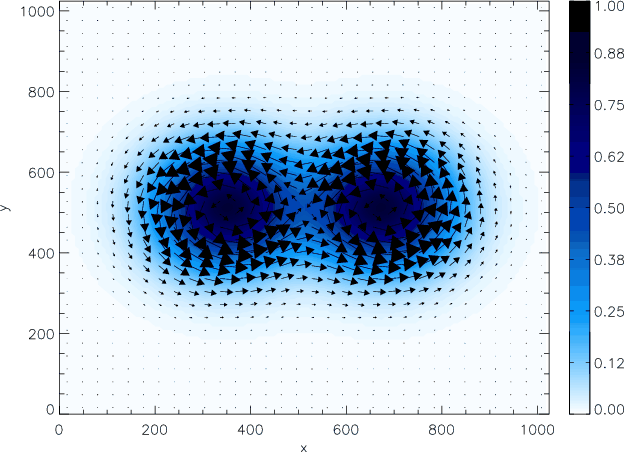

Figure 1: The initial magnetic field: a contour plot of Bz overlayed by a vector (Bx-By) plot. |
Open with DEXTER |
![]() |

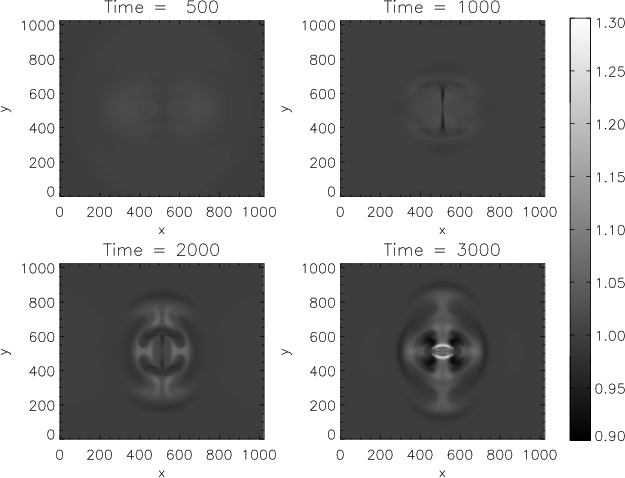

Figure 2:
Time development of the ion pressure for two co-helical current loops, where
![]() |
Open with DEXTER |
![]() |

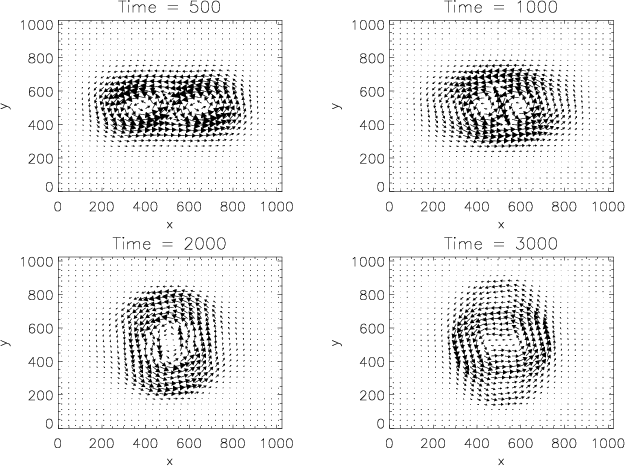

Figure 3:
Time development of the ion velocity (Vx-Vy) for two co-helical current loops, where
![]() |
Open with DEXTER |
![]() |

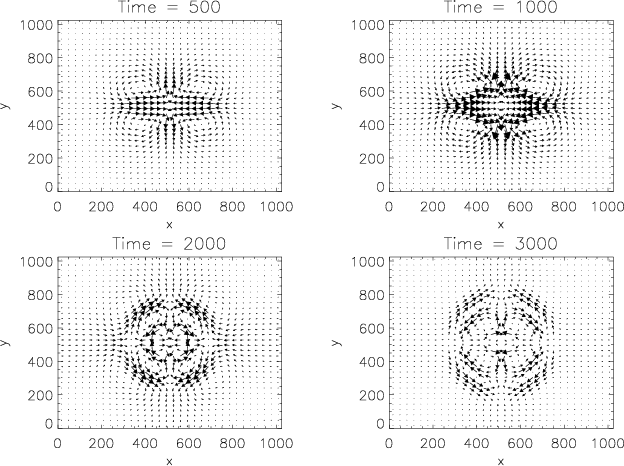

Figure 4:
Time development of the magnetic field (Bx-By) for two co-helical current loops, where
![]() |
Open with DEXTER |
![]() |

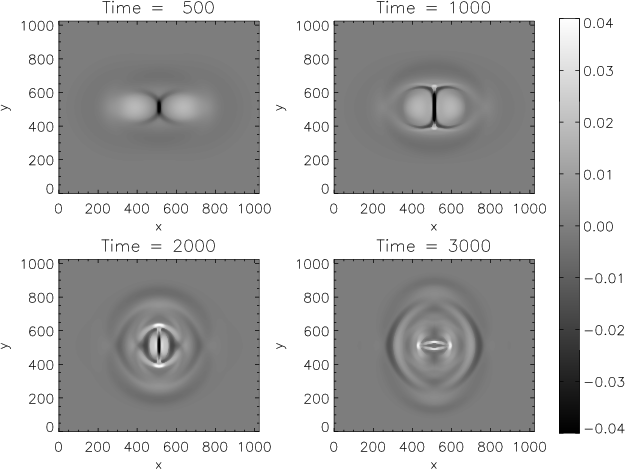

Figure 5:
Time development of the current density, Jz, for two co-helical current loops, where
![]() |
Open with DEXTER |
![]() |

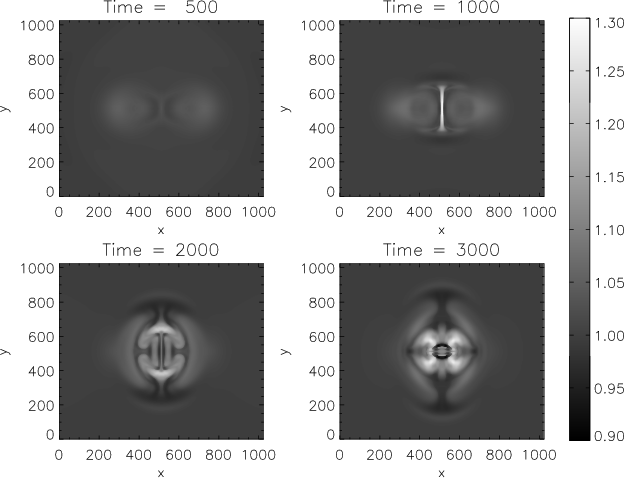

Figure 6:
Time development of the ion temperature for two co-helical current loops, where
![]() |
Open with DEXTER |
![]() |
Figure 7:
Time development of the neutral temperature for two co-helical current loops, where
![]() |
Open with DEXTER |
![]() |

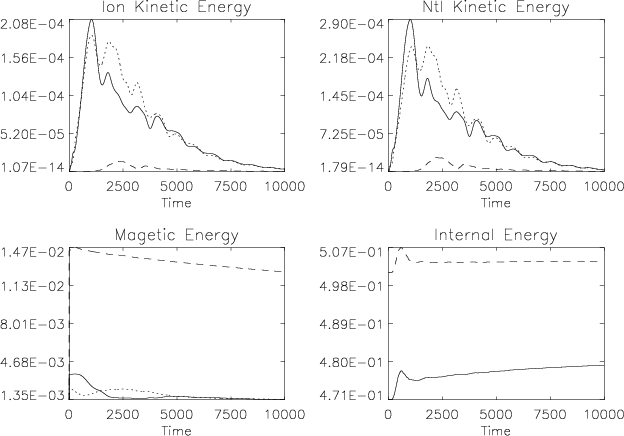

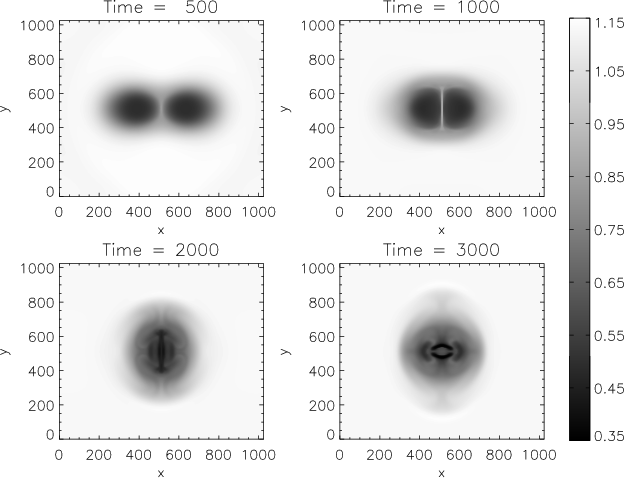

Figure 8:
Time development of plasma energy for two co-helical current loops (
![]() |
Open with DEXTER |
![]() |

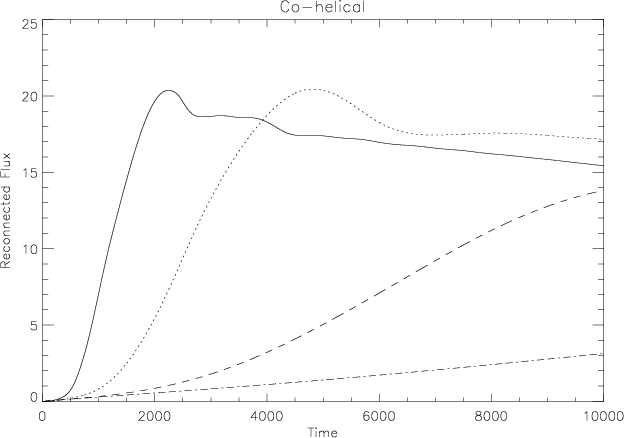

Figure 9:
Effect of neutral-hydrogen to proton density ratio on the reconnected magnetic flux for two co-helical current loops. (solid)
![]() ![]() ![]() ![]() |
Open with DEXTER |
![]() |

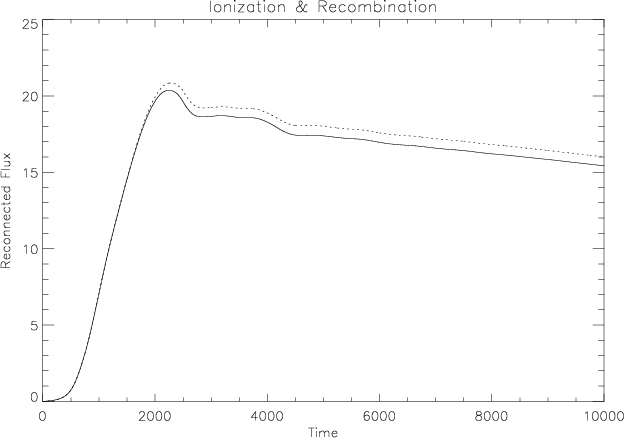

Figure 10:
Effect of ionisation/recombination on the reconnected magnetic flux for two co-helical current loops (
![]() ![]() ![]() |
Open with DEXTER |
![]() |

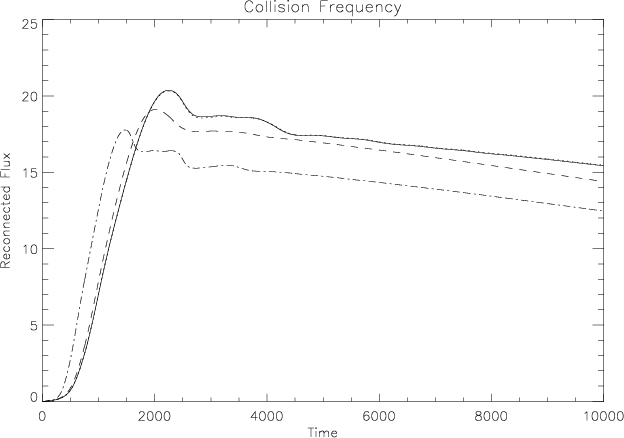

Figure 11:
Effect of ion-neutral collision frequency on the reconnected magnetic flux for two co-helical current loops (
![]() ![]() ![]() ![]() ![]() |
Open with DEXTER |
![]() |

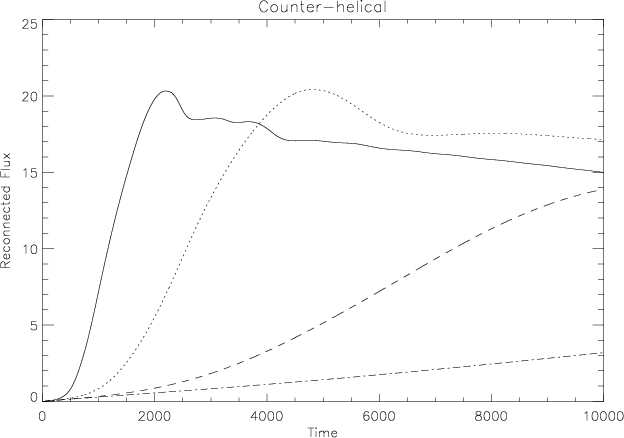

Figure 12:
Effect of neutral-hydrogen to proton density ratio on the reconnected magnetic flux for two counter-helical current loops. (solid)
![]() ![]() ![]() ![]() |
Open with DEXTER |
