All Figures

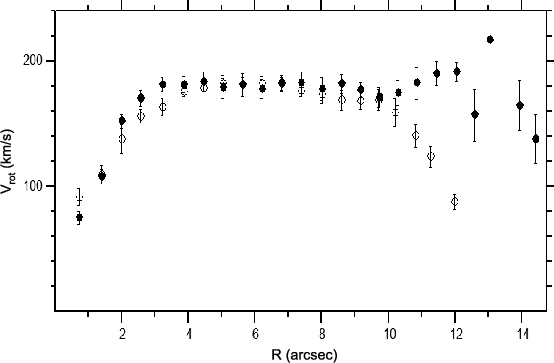

	Figure 1: Rotation curve of the spiral galaxy NGC 5953 in the interacting galaxy pair KPG 468 (Hernandez Toledo et al. 2003) within the inner 15'', derived from a full 2D velocity map. A velocity bifurcation between the approaching side (full circles) and receding one (empty circles) can be seen at 9''. The companion NGC 5954 is a galaxy of similar size and morphological type.
Open with DEXTER


In the text

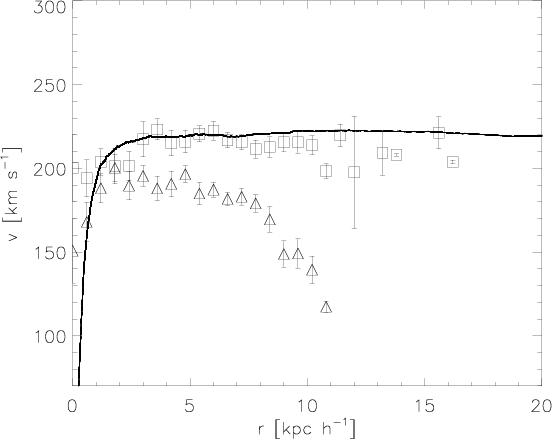

Figure 2: Circular (continuous line) and tangential velocities (triangles and squares) in experiment A show clear bifurcation. Triangles and squares denote opposite orientations along a given direction used to measure the curves. The side that shows a declining tangential velocity is the one closest to the companion galaxy. Error bars correspond to the standard deviations of the mean values computed within each bin.

Open with DEXTER


In the text

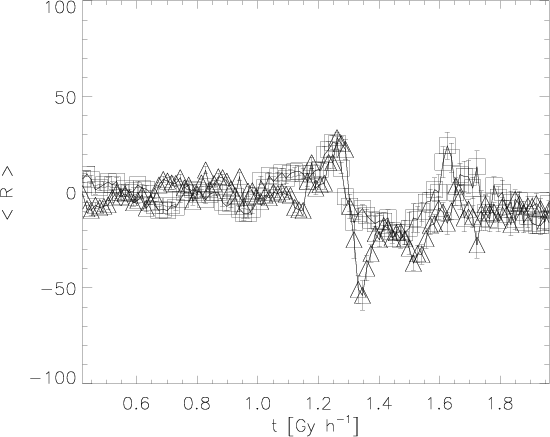

	Figure 3: Velocity residuals as a function of time estimated for baryons within (squares) and  (triangles) angles for experiment A.
Open with DEXTER


In the text

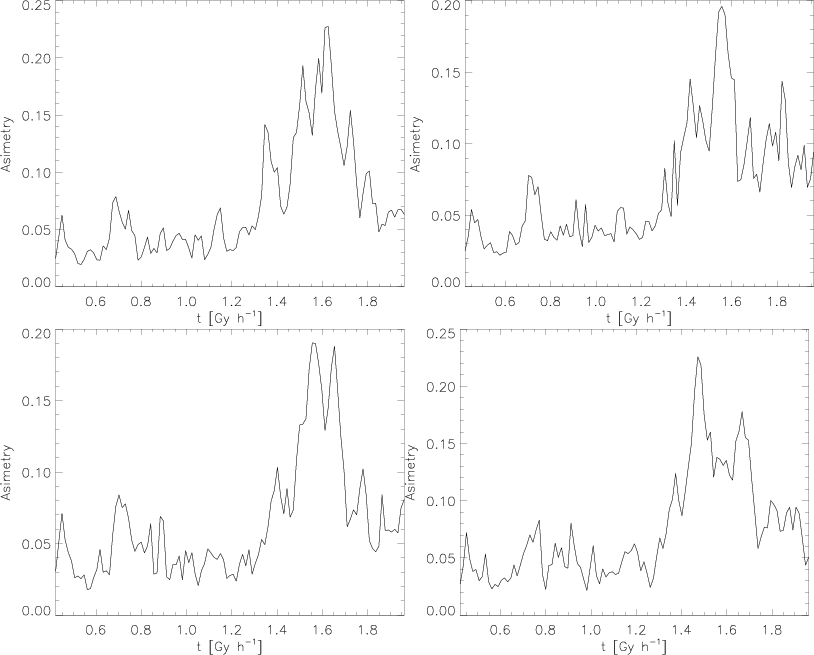

	Figure 4: Asymmetry parameter as a function of time for our four experiments (A, B, C, D) along the - directions (see Sect. 2 for experiment description).
Open with DEXTER


In the text
