Figure 1: Photoelectron spectrum of the San Carlos olivine before irradiation over a wide energy range. The peaks corresponding to C 1s, O 1s, Si 2p, Mg 1s, Mg 2p and Fe 2p3/2 core levels and the Auger structure (O KLL, Mg KLL) are indicated. |
Open with DEXTER |
![]() |

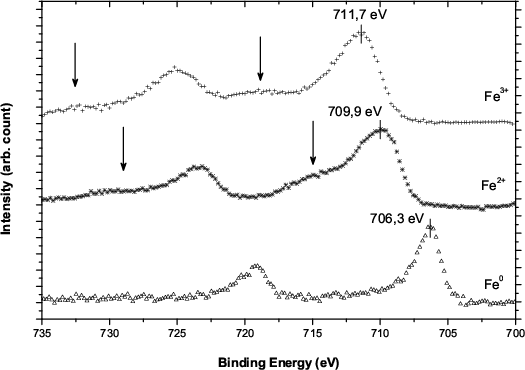

Figure 2: Characteristic Fe 2p spectra of the three iron oxidation states. The peaks between 706 and 712 eV are due to Fe 2p3/2 and those between 717 and 725 eV correspond to Fe 2p1/2. The satellite peaks, which are characteristic of Fe2+ (small shoulder on the left of the main peak) and Fe3+ (bump in the middle of the two main peaks), are indicated by arrows. These features are used in the Non Linear Least Square Fit method to extract the relative proportion of each valence species of olivine. |
Open with DEXTER |
![]() |
Figure 3:

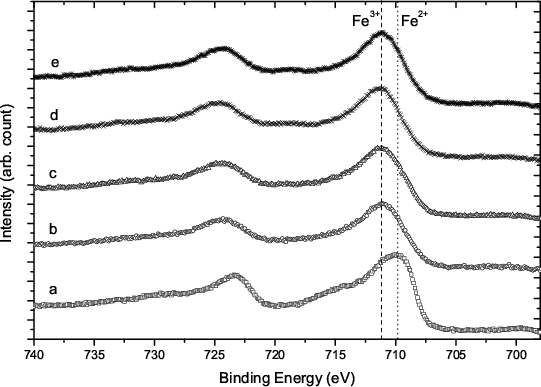

XPS spectra of the Fe 2p region showing the progressive transformation of Fe2+ to Fe3+ during irradiation with He+ at 4 keV and a flux of 4 ![]() ![]() ![]() ![]() ![]() ![]() |
Open with DEXTER |
![]() |
Figure 4:

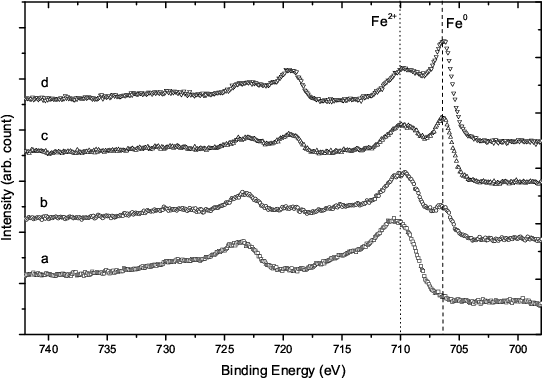

Detail XPS spectra of the Fe 2p region showing a reduction of the iron species. The sample was irradiated with He+ at 4 keV and 1.1 ![]() ![]() ![]() ![]() |
Open with DEXTER |
![]() |
Figure 5:

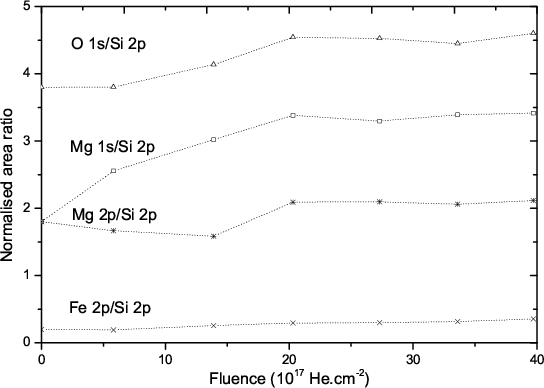

Evolution of the normalised area ratio, relative to Si 2p, as a function of the fluence. The olivine sample was irradiated by He+ at 4 keV (normal incidence) and with a flux of 4 ![]() |
Open with DEXTER |
![]() |
Figure 6:

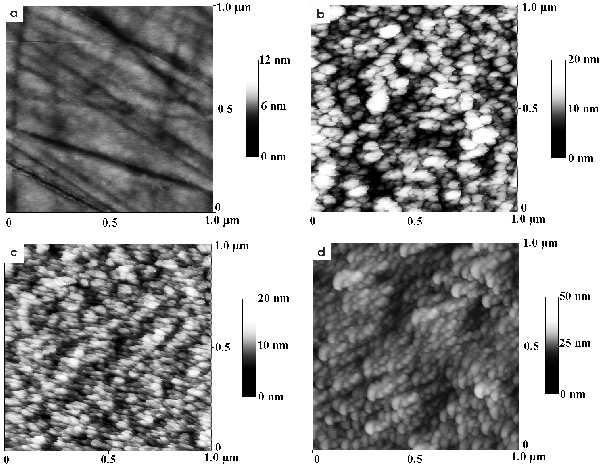

AFM images: a) before irradiation, b) in the center of the irradiated area after He+ irradiation (4 keV, fluence 1.1 ![]() ![]() ![]() |
Open with DEXTER |
![]() |

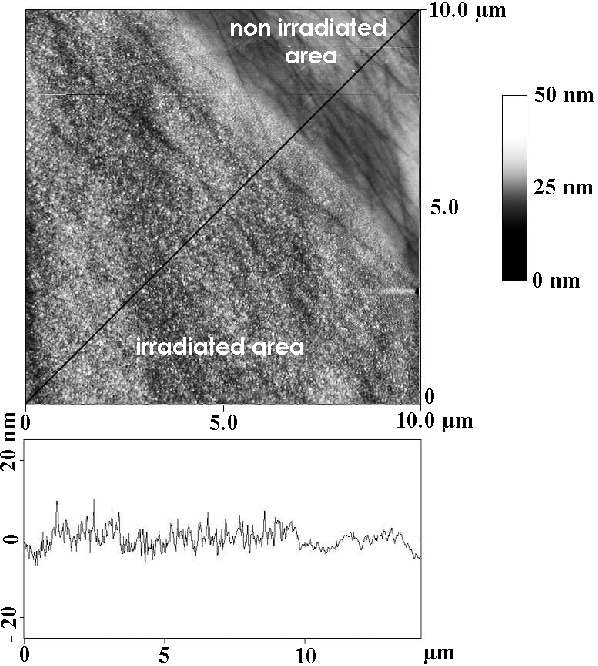

Figure 7: AFM image ( top) and roughness profile across the interface along the black line ( bottom). The roughness of the irradiated area has increased by a factor of two. |
Open with DEXTER |
![]() |
Figure 8:

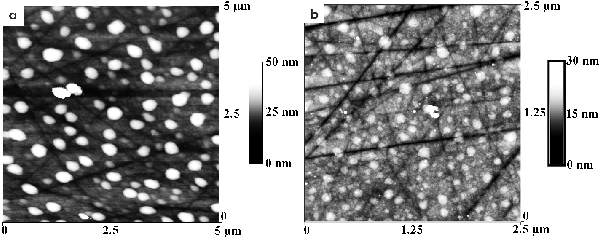

AFM image of the olivine surface irradiated with Ar+, at 1 keV and a fluence of 3.6 ![]() |
Open with DEXTER |
![]() |

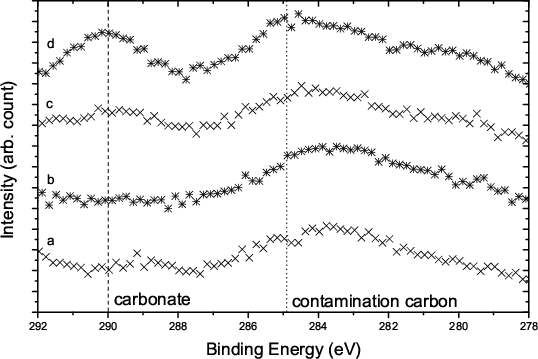

Figure 9: XPS spectra of the C 1s region: a) after thermal annealing under an O2 atmosphere, a weak carbon contamination band at a binding energy of. 285 eV is still present (dotted line), b) after thermal annealing under O2 atmosphere and Ar+ irradiation, c) non-irradiated sample after exposure to a CO2 atmosphere and d) irradiated sample after CO2 atmosphere exposure, a peak at the binding energy 290 eV is formed (dashed line). |
