$\begin{figure} \resizebox{8.8cm}{!}{\includegraphics{9035fig1.eps}} \end{figure}$ Figure 1: Separatrix surfaces associated with bifurcated bald patches resemble the letter ``J'' in projection (reproduced from Titov & Demoulin 1999).
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.5cm,clip]{9035fig2.eps} %\end{figure}$ Figure 2: XRT image of the coronal sigmoid at 07:59 UT on 11 Feb. 2007. The sigmoid comprises many individual loops, in two J-shaped collectives.
Open with DEXTER

In the text

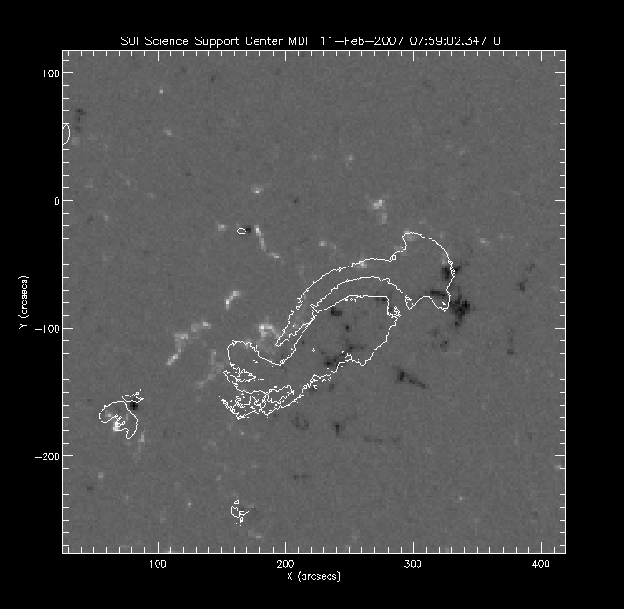

$\begin{figure} \resizebox{8.8cm}{!}{\includegraphics{9035fig3.eps}} \end{figure}$ Figure 3: Comparison of the XRT sigmoid image (contours) with the line-of-sight magnetogram from SOHO/MDI.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=13cm]{9035fig4.eps} \end{figure}$ Figure 4: XRT images of the bar-shaped feature rising above the erupting sigmoid. The lower three panels represent the same times as the top three, and include a tracer line as an aid to locating the bar-shaped feature. The arrow at 07:21 UT indicates the first appearance of the post-eruption arcade.
Open with DEXTER

In the text

$\begin{figure} \resizebox{8.8cm}{!}{\includegraphics{9035fig1.eps}} \end{figure}$	Figure 1: Separatrix surfaces associated with bifurcated bald patches resemble the letter ``J'' in projection (reproduced from Titov & Demoulin 1999).
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.5cm,clip]{9035fig2.eps} %\end{figure}$	Figure 2: XRT image of the coronal sigmoid at 07:59 UT on 11 Feb. 2007. The sigmoid comprises many individual loops, in two J-shaped collectives.
Open with DEXTER

$\begin{figure} \resizebox{8.8cm}{!}{\includegraphics{9035fig3.eps}} \end{figure}$	Figure 3: Comparison of the XRT sigmoid image (contours) with the line-of-sight magnetogram from SOHO/MDI.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=13cm]{9035fig4.eps} \end{figure}$	Figure 4: XRT images of the bar-shaped feature rising above the erupting sigmoid. The lower three panels represent the same times as the top three, and include a tracer line as an aid to locating the bar-shaped feature. The arrow at 07:21 UT indicates the first appearance of the post-eruption arcade.
Open with DEXTER
