A&A 479, 189-206 (2008)
DOI: 10.1051/0004-6361:20078807

Chemical composition of A and F dwarf members of the Coma Berenices open cluster^,

M. Gebran - R. Monier - O. Richard

Groupe de Recherche en Astronomie et Astrophysique du Languedoc, UMR 5024, Université Montpellier II, Place Eugène Bataillon, 34095 Montpellier, France

Received 7 October 2007 / Accepted 25 October 2007

Abstract
Aims. Abundances of 18 chemical elements have been derived for 11 A (normal and Am) and 11 F dwarfs members of the Coma Berenices open cluster in order to set constraints on evolutionary models including transport processes (radiative and turbulent diffusion) calculated with the Montréal code.
Methods. A spectral synthesis iterative procedure has been applied to derive the abundances from selected high quality lines in high resolution high signal-to-noise échelle spectra obtained with ELODIE at the Observatoire de Haute Provence.
Results. The chemical pattern found for the A and F dwarfs in Coma Berenices is reminiscent of that found in the Hyades and the UMa moving group. In graphs representing the abundances [X/H] versus the effective temperature, the A stars often display abundances much more scattered around their mean values than the F stars do. Large star-to-star variations are detected for A stars in their abundances of C, O, Na, Sc, Ti, Mn, Fe, Ni, Sr, Y, Zr and Ba which we interpret as evidence of transport processes competing with radiative diffusion.
The abundances of Mn, Ni, Sr and Ba are strongly correlated with that of iron for A and Am stars. In contrast the ratios [C/Fe] and [O/Fe] appear to be anticorrelated with [Fe/H] as found earlier for field A dwarfs. All Am stars in Coma Berenices are deficient in C and O and overabundant in elements heavier than Fe but not all are deficient in calcium and/or scandium. The F stars have solar abundances for almost all elements except for Mg, Si, V and Ba.
The derived abundances patterns, [X/H] versus atomic number, for the slow rotator HD 108642 (A2m) and the moderately fast rotator HD 106887 (A4m) were compared to the predictions of self consistent evolutionary model codes including radiative and different amounts of turbulent diffusion. None of the models reproduces entirely the overall shape of the abundance pattern.
Conclusions. While part of the discrepancies between derived and predicted abundances may be accounted for by non-LTE effects, the inclusion of competing processes such as rotational mixing in the radiative zones of these stars seems necessary to improve the agreement between observed and predicted abundance patterns.

Key words: stars: abundances - stars: rotation - diffusion - Galaxy: open clusters and associations: individual: Coma Berenices - stars: early-type

1 Introduction

Abundance determinations of A and F dwarfs in open clusters and moving groups of known properties aim at elucidating the mecanisms of mixing at play in the interiors of these main-sequence stars. In two previous papers, abundance determinations were presented for 11 chemical elements in the Hyades (age about 787 Myr, Varenne & Monier 1999) and in the Ursa Major moving group (age about 500 Myr, Monier 2005). Specifically, 19 A and 29 F dwarfs members of the Hyades and 12 A and 10 F dwarf bona-fide and probable members of the Ursa Major moving group were analysed. The motivation of this study is to report on new abundance determinations of 18 chemical elements in 11 A and 11 F dwarfs in the Coma Berenices open cluster (age about 447 Myr). The spectroscopy presented here is part of an ongoing observational program of A and F dwarfs in galactic open clusters of various ages whose aims are twofold. First, we wish to improve our knowledge of the chemical composition of A dwarfs (normal A stars and Am stars) which is still poor in particular for normal A stars. Second, we intend to use the derived abundances to set constraints on self-consistent evolutionary models of these objects including various particle transport processes. Indeed stars in open clusters originate from the same interstellar material (i.e. they have the same age and the same initial chemical composition) and as such are very useful to test the predictions of evolutionary models.



Table 1: Previous abundance determinations for the Coma Ber A, F and G dwarfs.

Reference	Stars studied	Chemical Elements
Savanov (1996)	13 A-Am and F-Fm	C, O, Si, Ca, Fe, Ba
Hui-Bon-Hoa et al. (1997)	2 A-Am	Mg, Ca, Sc, Cr, Fe, Ni
Hui-Bon-Hoa & Alecian (1998)	4 A-Am	Mg, Ca, Sc, Cr, Fe, Ni
Burkhart & Coupry (2000)	7 A-Am	Li, Al, Si, S, Fe, Ni, Eu
Boesgaard (1987)	22 A and F	Li
Friel & Boesgaard (1992)	14 F	Fe, C
Jeffries (1999)	15 F, G, K	Li
Cayrel et al. (1988)	4 G	Fe
Soderblom et al. (1990)	28 G	Li

Few studies have addressed the chemical composition of the A and F dwarfs in the Coma Berenices open cluster. High quality high resolution spectroscopy is feasible for the brightest members because of the proximity (d $\simeq$ 80-90 pc) of the cluster. Abundance analyses of the Coma Berenices dwarfs have mostly focused on F and G dwarfs whose low apparent rotational velocities facilitate the abundance determination. For concision, we have collected previous abundance determinations of the A, F and G dwarfs in Coma Berenices in Table 1 where the bibliographical references, the number of stars analysed, their spectral types and the investigated chemical elements are collected. Lithium abundances have been determined for several F (and G) dwarfs in Coma Berenices by Boesgaard (1987), Jeffries (1999) and Soderblom et al. (1990). Carbon and iron abundances were derived for 14 F dwarfs by Friel & Boesgaard (1992). Carbon, oxygen, silicon, calcium, iron, barium, magnesium, scandium, chromium, nickel, lithium, aluminium, sulfur and europium abundances have been determined for only a few normal A and Am stars (fewer than 7 stars) by Savanov (1996), Hui-Bon-Hoa et al. (1997), Hui-Bon-Hoa & Alecian (1998) and Burkhart & Coupry (2000). The abundance determinations for A stars focuse mainly on the chemically peculiar Am stars. Savanov (1996) found significant star-to-star differences in abundances among the Am stars of Coma Ber for a given chemical element. In contrast, little attention has been paid to the ``normal'' A stars of the cluster. The chemical composition of normal A dwarfs (field and cluster stars) remains generally poorly known as too few objects have been analysed so far, mainly because of their high rotational velocities. Significant abundance differences have been found among the few field ``normal'' A stars analysed so far (Holweger et al. 1986; Lambert et al. 1986; Lemke 1998, 1990; Hill & Landstreet 1993; Hill 1995; Rentzsch-Holm 1997; Varenne 1999). Varenne & Monier (1999) also found significant star-to-star variations of the abundances of O, Na, Ni, Y and Ba for the normal A and the Am stars in the Hyades whereas the F dwarfs display much less scatter. Similarly, Monier (2005) found star-to-star variations in [Fe/H], [Ni/H] and [Si/H] much larger for the A dwarfs than for the F dwarfs in the Ursa Major group.

The main thrust of this paper is to report on the abundances of 18 chemical elements (C, O, Na, Mg, Si, Ca, Sc, Ti, V, Cr, Mn, Fe, Co, Ni, Sr, Y, Zr and Ba) for F and A dwarfs in Coma Berenices. These abundances have been compared to published predictions of recent self consistent models including transport processes at ages close to that of Coma Berenices (Turcotte et al. 1998a; Richer et al. 2000; Richard et al. 2002) or to new models calculated with the Montréal code (Richard et al. 2002). The abundances were derived by synthesizing carefully selected lines in high quality high resolution spectra of 11 A and Am stars and 11 F stars of the cluster. The selection of the sample of stars observed, the observations and the data reduction are described in Sect. 2. The determination of the fundamental parameters, the construction of the linelist and the spectrum synthesis are discussed in Sect. 3. The behaviour of the abundances of individual chemical elements in the A and F dwarfs of Coma Berenices versus effective temperature and the abundance of iron are described in Sect. 4. The astrophysical implications of our findings and the detailed comparison of the found abundance patterns for 2 Am stars with recent self-consistent evolutionary models including transport processes are presented in Sect. 5. Conclusions are given in Sect. 6.



Table 2: Data on the programme stars. Spectral type are taken from SIMBAD and WEBDA online database. $T_{\rm {eff}}$ and $\log g$ are those determined by UVBYBETA code. $v_{\rm e}\sin i$ and $\xi _{t}$ are determined as explained in Sect. 3.2.1. References (a) and (b) are Bounatiro (1993) and Rodriguez et al. (1994) respectively.

TR	HD	Type	mv	$T_{\rm {eff}}$	$\log g$	$v_{\rm e}\sin i$	$\xi _{t}$	Remarques
				(K)		km s-1	km s-1
19	HD 106103	F5V	8.09	6707	4.45	19.7	1.4
	HD 106293	F5V	8.09	6545	4.34	47	1.4
36	HD 106691	F5IV	8.08	6713	4.43	37	1.6
49	HD 106946	F2V	7.87	6892	4.30	62	1.9
86	HD 107611	F6V	8.50	6491	4.57	22	1.4
	HD 109530	F2V	7.30	6497	3.85	67	2.1
101	HD 107877	F6	8.35	6598	4.54	29.5	1.25
114	HD 108154	F5	8.56	6497	4.54	19	1.15
118	HD 108226	F5	8.34	6530	4.45	19	1.05
162	HD 108976	F6 V	8.54	6413	4.49	20	1.1
	HD 109069	F0 V	7.55	6864	4.06	89	2.2
107	HD 107966	A3V/A3IV	5.18	8541	3.82	51	2.9
130	HD 108382	A4V/A3IV	4.96	8317	3.92	75.5	3.2
47	HD 106887	A4m	5.71	8291	4.20	82	3.8
86	HD 107655	A0V	6.18	9675	4.10	45	2.0	$\notin$ Coma (a)
62	HD 107168	A8m/kA5hA5mF0	6.24	8283	4.20	14.3	4.0
183	HD 109307	A4Vm/A3IV-V	6.26	8396	4.10	14.5	3.3
144	HD 108642	A2m/kA2hA7mA7	6.54	8079	4.06	9.2	3.7
68	HD 107276	Am/Ka5mA7	6.63	8000	4.00	102	2.8
139	HD 108486	AmkA3hA5mA7	6.67	8148	4.11	37	3.0
52	HD 106999	Am	7.46	8148	4.09	44	3.0	$\notin$ Coma (a)
82	HD 107513	Am/kA7hF0mF0	7.38	7279	4.02	62	3.0	$\delta$ Scuti (b)


2 Program stars, observations and data reduction

Our observing sample consists of all A and F stars members of the Coma Berenices cluster brighter than V = 8.6 mag retrieved from Trumpler's (1938) list. This magnitude corresponds to the latest F dwarfs (F8V) which required the longest achievable exposure times (about 1 h 15 min). Eleven A (``normal'' and Am stars) stars and 11 F stars members of the Coma Berenices cluster were observed using two spectrographs at Observatoire de Haute Provence (OHP): the ELODIE échelle spectrograph and the monoorder AURELIE spectrograph. AURELIE is a monoorder spectrograph (Gillet et al. 1994) placed at the coudé focus of the 152 cm telescope. AURELIE is free of scattered light and has been used to calibrate putative effects of scattered light on the line profiles in the blue region obtained with ELODIE. ELODIE is a fiber-fed cross-dispersed échelle spectrograph attached to 193 cm at OHP (Baranne et al. 1996). It records in a single exposure a spectrum extending from 3850 Å to 6811 Å at a resolving power of about 42 000 on a relatively small CCD (1024 $\times$ 1024). The observing dates, exposure times and Signal to Noise ratios achieved for each star are collected in Table 3, the first part being dedicated to ELODIE spectra while the second describes the AURELIE spectra obtained in three 70 Å wide regions centered around 4505 Å, 5080 Å, 5530 Å and 6160 Å.

The fundamental data of these stars are collected in Table 2. The Trumpler and Henry Draper identifications appear in Cols. 1 and 2, the spectral types retrieved from SIMBAD in Col. 3, the apparent magnitudes in Col. 4. Columns 5 to 8 display the effective temperatures and surface gravities adopted for the analysis and the rotational velocities and microturbulent velocities derived in our analysis (see Sect. 3.2.1). Comments about binarity and pulsation appear in the last column. Note that 2 stars, HD 107655 and HD 106999, may not be members of the cluster (Bounatiro 1993). Although we derived abundances for these stars too, their data do not appear in the figures. There are no very rapid rotators in this cluster, the apparent rotational velocities range from 9 km s^-1 to 102 km s^-1.

Inspection of the Catalogue of Double and Multiple stars (CCDM, Dommanget & Nys 1995) reveals that only one star is a binary system. HD 106887 is the primary star in a double system and has a much fainter companion (V = 9.8) located nearby at about 8.6 arcsec, whose spectral type is unknown. It is unlikely that the light of the companion may have contributed significantly to the observed spectra of HD 106887.

With AURELIE, four spectral regions centered on $\lambda$4505 Å (region 1); $\lambda$6160 Å (region 2); $\lambda$5080 Å (region 3) and $\lambda$5530 Å (region 4) have been observed as they include several lines having accurate oscillator strengths for the chemical elements we study. Region 1 contains the Mg 2 triplet at $\lambda$4481 Å and several clean unblended and well separated Fe 2 lines. Regions 2 to 4 are those observed by Edvardsson et al. (1993) in their spectroscopic survey of F dwarfs in the galactic disk. For the brightest stars (V $\leq$ 6), grating 5 working at its second order (for region 1) and grating 1 (for region 2) yielded resolving powers equal to 60 000 and 65 000 respectively. For the fainter stars (V > 6), grating 7 was used, resulting in resolving powers of 36 000 and 28 000 (for regions 1 and 2 respectively). In region 3, all stars have been observed with grating 7 (R = 31 000) except for Procyon. According to the V magnitude of the stars and weather conditions, exposure times between 1h30 and 3 h were necessary to secure signal to noise ratios around 200. The IRAF software was used to reduce all spectra following the standard procedure (mean offset removal, division by the mean flat field, wavelength calibration and continuum normalization).

At the end of an observing night, the ELODIE spectra are provided to the observer fully reduced by the INTER-TACOS (INTERpreter for the Treatment, the Analysis and the COrrelation of Spectra) pipeline developed by D. Queloz and L. Weber (Baranne et al. 1996). The reduction is actually included in the spectrograph data flow and provides fully flat-fielded and wavelength calibrated spectra directly at the end of each exposure. However, we have chosen to perform our own reduction of the ELODIE spectra. Indeed, ELODIE was primarily designed to provide accurate radial velocity measurements. One source of concern when deriving abundances is to properly correct the spectrum for scattered light, especially in the blue region. The background in a stellar ELODIE exposure can be estimated by measuring the flux in the inter-orders. In INTER-TACOS, this background is removed using a two dimensional polynomial fit with a typical 5% error which peaks in the middle of the orders (see Fig. 11 in Baranne et al. 1996). Erspamer & North (2002) have devised a reduction procedure using a set of IRAF functions which they apply to the raw image in order to provide an improved correction for scattered light compared to INTER-TACOS. We have also chosen to perform our own reduction of the ELODIE spectra using IRAF (Image Reduction and Analysis Facility, Tody 1993) routines. Although it follows Erspamer & North's (2002) procedure, our reduction slightly differs from their method. The steps are as follows:

1-

Averaging the several offsets and flat-fields taken throughout the night, using zerocombine and flatcombine.

2-

Removal of the mean offset from all images and bad pixels correction using ccdproc.

3-

Finding and centering the orders using the flat-field image using apfind and apcenter.

4-

Removal of the scattered light (apscatter). Scattered light fills in the line profiles, making the lines shallower and thus leading to underabundances if not taken into account. The scattered light is estimated (as explained in Sect. 3.2 of Erspamer & North 2002) and substracted from the original image. An example of the effect of this improved removal of the scattered light is shown in Fig. 2, where the corrected profiles of the FeII lines at 4520.224 Å and 4522.634 Å are compared to the INTER-TACOS profiles. In this case, ignoring the scattered light would lead to underestimation of the iron abundance deduced from these 2 lines by 0.07 and 0.08 dex respectively. The effect is more pronounced, about 0.14 dex, for the MgII triplet at 4481 Å.

5-

Extraction of the images using apsum. The averaged flat-field is used to determine the shape of the orders which is used later as a reference for the extraction of the images. The extraction method uses Horne's (1986) algorithm.

6-

Calibration of the thorium image using apsum, ecidentify and ecreidentify.

7-

Division by the extracted flat-field using sarith.

8-

Wavelength calibration of the spectra using the thorium spectra using dispcor.

9-

Normalization to the continuum using continuum. To ensure we correctly located regions free of lines (when available) in each order, we have computed synthetic spectra using the code SYNSPEC48 (Hubeny & Lanz 1992) assuming a solar metallicity for the various temperatures and surface gravities of our stars. The spectrum was then rectified to this local continuum.

10-

Merging the 67 normalized orders using scombine. The last three orders do not overlap and thus could not be merged. For the abundance analysis, we have discarded lines located in the overlapping region of two successive orders.

11-

Radial velocity determination using fxcor: the final merged spectrum is cross-correlated with differents masks of spectral types A0V, A5V, A9V and F5V to derive the radial velocity. The merged spectrum is then corrected for the radial velocity found.

Figure 3 compares the spectral order 21, centered around $\lambda 4500$ Å, for 4 A and 4 F stars reduced in this manner. The effect of increasing stellar rotation on line profiles is conspicuous. The last plot of Fig. 3 displays a typical agreement between the observed spectrum of HD 107655 (A0V) and the synthetic spectrum (computed as explained in Sect. 3) that provides the best fit.

Figure 1: Hertzsprung-Russel diagram of the observed stars in Coma Berenices (visual magnitude versus  $T_{\rm {eff}}$). The two stars flagged with question marks are probably not members of the cluster.

Figure 2: Effect of a proper removal of scattered light. The corrected profiles (IRAF reduction, thick lines) are deeper than the INTER-TACOS ones (dashed lines). The abundances deduced from the corrected profiles are about 0.08 dex larger.

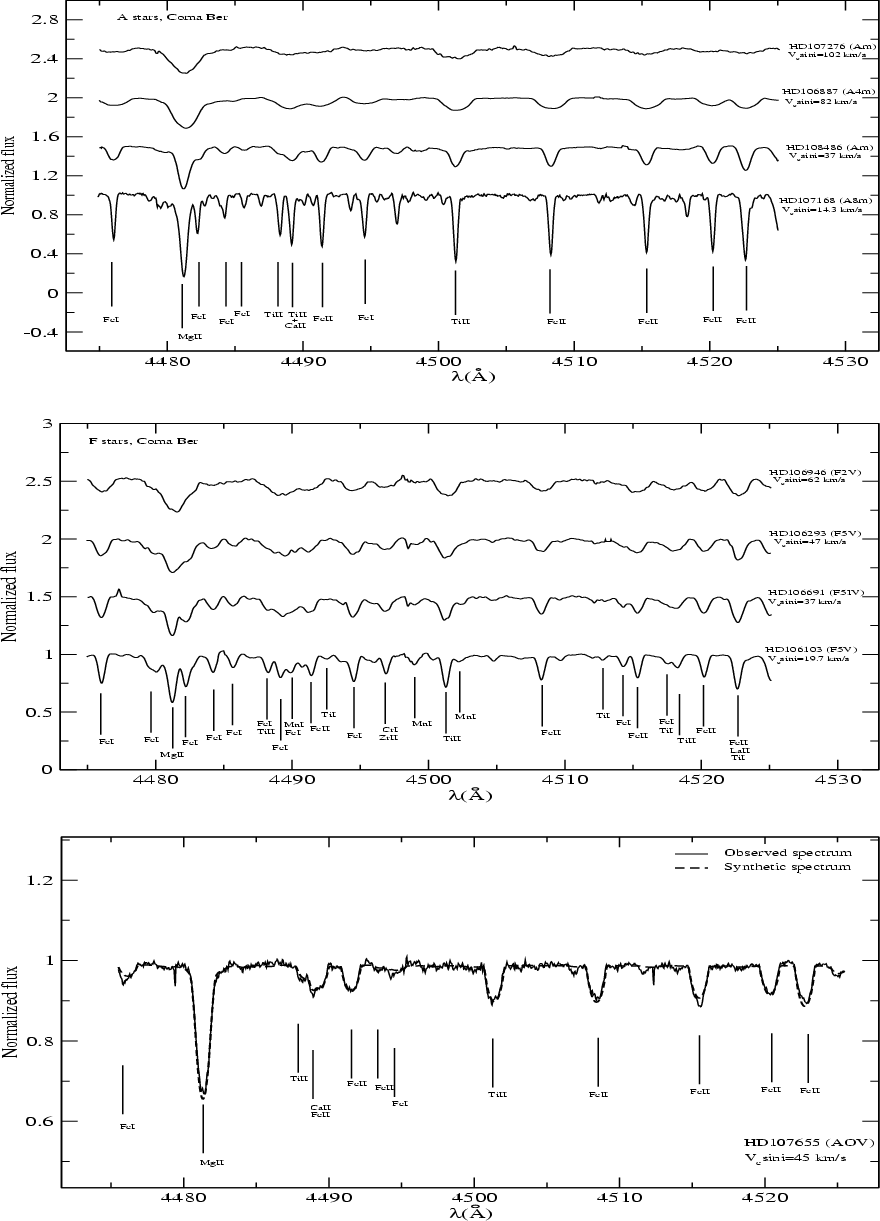

Figure 3: Selected observed spectra of A ( top) and F ( middle) dwarf stars members of Coma Berenices open cluster. Spectra are arbitrarily shifted vertically by 0.5, 1 and 1.5 unit of normalized flux. The smearing out of the spectra by rotation is noticeable. The bottom figure displays the final synthetic spectrum (dashed thick line) superimposed on the observed one (thin line) for the star HD 107655 (A0V). Identifications for the most intense lines in each region are provided.


3 Abundance analysis

The abundances of 18 chemical elements have been derived by iteratively adjusting synthetic spectra to the observed normalized spectra and minimizing the chisquare of the models to the observations. Spectrum synthesis is the most appropriate method as our stars have apparent rotational velocities ranging from a 9 to 102 km s^-1. Specifically, synthetic spectra were computed assuming LTE using Takeda's (1995) iterative procedure and double-checked using Hubeny & Lanz's (1992) SYNSPEC48 code. This version of SYNSPEC calculates lines for elements heavier than Zn up to Z=99.

3.1 Atmospheric parameters and model atmospheres

The effective temperatures ( $T_{\rm {eff}}$) and surface gravities (log g) of the stars have been determined using the Napiwotzki et al. (1993) UVBYBETA calibration of the Strömgren photomery indices uvby in terms of $T_{\rm {eff}}$ and log g. The found effective temperatures and surface gravities are collected in Table 2. The errors on $T_{\rm {eff}}$ and log g are estimated to be $\pm$125 K and $\pm$0.2 dex respectively. Model atmospheres were then calculated using Kurucz's ATLAS9 code (Kurucz 1979), assuming a plane parallel geometry, a gas in hydrostatic and radiative equilibrium and LTE. The ATLAS9 model atmospheres contain 64 layers with a regular increase in $\log \tau_{\rm Ross}$ = 0.125 and they have been calculated assuming Grevesse & Sauval (1998) solar chemical composition. This ATLAS9 version uses the new opacity distribution function (ODFs) (Castelli & Kurucz 2003) calculated for this solar chemical composition. The line opacity calculation uses the 58 million linelist compiled by Kurucz (Kurucz 1992a,b). Convection in ATLAS9 relies on the mixing length theory (MLT). Specifically, we have adopted Smalley's prescriptions (Smalley 2004) for the values of the ratio of the mixing length to the pressure scale height ( $\alpha=\frac{L}{H_{\rm P}}$) and also for the microturbulent velocity (constant with depth).

3.1.1 The linelist

The linelist was constructed from Kurucz's gfall.dat list, from which we selected lines between 3000 and 7000 Å. However the data in this list have been modified and complemented in different manners. For the lines which we expected to contribute significantly to the absorption, we have carefully checked the wavelengths, lower excitation potential, oscillator strength and damping constants (radiative, Stark and Van der Waals) in gfall.dat against more accurate and/or more recent critically evaluated laboratory determinations when available. Specifically, two atomic databases were searched for improved values of these parameters and their uncertainties: the VALD database and the NIST database. We then modified their values in the original linelist accordingly. Damping constants not available in linelists are calculated in SYNSPEC48 using approximations. We have also excluded lines in the overlaping regions of two successive orders, as we felt that the observed line profiles may not be reliable there. The final linelist contains 270 transitions for 18 elements which we believe are reliable enough to derive the abundances. Most of the lines studied here are weak lines which are formed deep in the atmosphere where LTE should prevail. They are well suited for abundance determinations. The final linelist appears in Table 8 where, for each element, the wavelength, adopted oscillator strength, its accuracy (when available) and original bibliographical reference are given. We have also included data for hyperfine splitting for the selected transitions when relevant, in particular for Mn II (these were retrieved from the linelist gfhyperall.dat). However the moderate spectral resolution of the spectra and smearing out of spectra by stellar rotation clearly prevent us from detecting signatures of hyperfine splitting and isotopic shifts in our spectra.

3.2 Synthetic spectra

Two codes have been used to derive abundances: Takeda's code (Takeda 1995) and SYNSPEC (Hubeny & Lanz 1992) to check the abundances produced by Takeda's iterative procedure. We briefly review the assumptions of these codes in Sects. 3.2.1 and 3.2.2.


3.2.1 Takeda's procedure

Takeda's procedure iteratively minimizes the dispersion $\sigma$ between the normalized synthetic spectrum and the observed one defined as:

$$\begin{eqnarray*}\sigma^{2}=\sum_{i=1}^{N}\frac{(y_{i}-\eta_{i}-C)^{2}}{N} \end{eqnarray*}$$

where N is the number of wavelength points, y_i the logarithmic of the observed spectra ( $f_{\lambda_{i}}$) and $\eta_{i}$ the logarithmic of the synthetic spectra ( $F_{\lambda_{i}}$). C is an offset constant reflecting a possible difference of units between $F_{\lambda}$ and $f_{\lambda}$ (it should be very close to zero when working with normalized fluxes). The synthetic flux $\eta_{i}$ in a line is a priori a function of several physical variables  (x₁,..., x_K) which represent the unknowns one might be looking for: abundances of individual elements, projected rotational velocity and microturbulent velocity, oscillator strengths, damping constants. The dispersion  $\sigma^{2}$ is thus a function of K+1 variables (including C). Minimizing $\sigma^{2}$ thus requires that its partial derivatives with respect to these K+1 variables be zero, which leads to a set of K+1 non-linear equations with K+1 unknowns. Takeda (1995) solves this problem numerically using a Newton-Raphson iterative technique (linearization method). Iterations are repeated until convergence i.e. when variations in the x_ks become sufficiently small, typically less than 10^-3.

Takeda's code consists of two routines: the first is a modified version of Kurucz's Width9 code (Kurucz 1992a) for computing the opacity data which needs a Kurucz's model atmosphere as input. Once the opacities are computed, the second routine computes the emergent flux and minimizes the dispersion between the synthetic and the observed spectra.

In this study, we kept the number of free variables at 3. At each iteration, the code outputs 3 parameters: the abundance(s) of the studied element(s) ( $\log \epsilon$), the microturbulent velocity ($\xi _{t}$) constant whith depth and the projected rotational velocity ( $v_{\rm e}\sin i$), the oscillator strengths and damping constants being kept fixed. We usually synthesized unblended lines of one chemical element only, although the procedure allows us to simultaneously synthesize lines of different elements.

Before tackling the abundance of each individual chemical element, we derived the rotational and microturbulent velocities for each star as follows. Allowing small variations around solar abundances of Mg and Fe, we iteratively fitted the unblended line profile of the MgII triplet at 4480 Å and a set of neighboring unblended weak and moderately strong FeII lines such as 4491.405 Å and 4508.288 Å leaving $\xi _{t}$ and $v_{\rm e}\sin i$ as free parameters. Even in the fastest rotators, the continuum is well seen in this spectral region where there are only a few regularly spaced lines. The weakest FeII lines are sensitive to rotational velocity and not to microturbulent velocity, the moderately strong FeII lines respond to microturbulent velocity changes. The MgII triplet, commonly used to derive stellar rotational velocities, appears to be sensitive to both $\xi _{t}$ and $v_{\rm e}\sin i$. Each line of Fe and Mg yielded a set of values for $\log \epsilon$, $\xi _{t}$ and $v_{\rm e}\sin i$, which were in good agreement. For the F stars, the found $\xi _{t}$ were checked against Nissen's (1981) prediction which invoked a polynomial fit for $\xi _{t}$ as a function of $T_{\rm {eff}}$ and $\log g$ for the F stars. The agreement is generally good, the maximum difference we found being $\Delta\xi_{t}=0.32$ km s^-1. Morever, the derived  $v_{\rm e}\sin i$ in this analysis correlate well with those derived from AURELIE spectra of the region around 4500 Å published in Monier & Richard (2004).

For the slowest rotating Am stars, curves of growths of the Fe II lines were also performed. They led to values of $\xi _{t}$ consistent with those derived from the fit of the Mg II triplet and Fe II lines around 4500 Å. Once $\xi _{t}$ and $v_{\rm e}\sin i$ were fixed, we then proceeded to determine the abundance for each selected unblended line of each chemical element. In practice, complete convergence was reached for each star after up to 10 iterations (five in the most favorable cases).

A final test on Procyon was also performed, assuming a solar composition (Steffen 1985). The iterative fitting of the Mg II and Fe II lines around 4500 Å yielded an apparent rotational velocity of 6 km s^-1 and a microturbulent velocity of 2.2 km s^-1 in good agreement with Steffen's (Steffen 1985) values ( $v_{\rm e}\sin i$ = 4.5 km s^-1 and $\xi _{t}$ = 2.1 km s^-1 respectively).

Figure 4 shows an example of the iterative fitting of the FeII line at 4 508 288 Å for the A3V star HD 107966 (6 iterations). For this star, the convergence was already achieved at the fifth iteration.

Figure 4: Iterative adjustment of synthetic profiles of the FeII line at 4508.288 Å for the A3V star HD 107966 with Takeda's program. Convergence was achieved properly at the fifth iteration.


3.2.2 Validation of the abundances by SYNSPEC

We have also used Version 48 of SYNSPEC (Hubeny & Lanz 1992) to check the abundances produced by Takeda's iterative procedure. SYNSPEC48 allows us to calculate line profiles of elements up to Z=99. In its LTE mode, SYNSPEC needs a model atmosphere and a linelist plus an auxiliary file containing non standard flags. For a given star, the same ATLAS9 models, the same linelist and the $v_{\rm e}\sin i$ and $\xi _{t}$ derived using Takeda's (1995) procedure were used to calculate synthetic spectra. Only the abundance of the studied unblended line were left as free parameters. The derived abundances with SYNSPEC were found to always agree with those derived from Takeda's procedure within the error bars. The abundances listed in Tables 4 and 5 are those derived from Takeda's procedure.

We also checked the influence of the underlying atmospheric structure on the derived abundances using ATLAS12 (Kurucz 2005). Abundances can be adjusted individually in ATLAS12 which employs the Opacity Sampling technique for line opacity. The effect should be noticeable for the Am stars whose abundances depart most from the solar values. For Am stars we found that the inclusion of an ALTAS12 model calculated for the specific chemical composition found with ATLAS9 and Takeda's procedure yields new mean abundances which differ by up to 0.08 dex from those derived with ATLAS9. This is less than the error bar on mean abundances. Figure 5 compares the abundances of several elements for the A8m star HD 107168 derived using ATLAS9 and ATLAS12 model atmospheres. For the other stars, whose chemical compositions depart less from solar, the effect will be even smaller. Since we intend to model all stars in a uniform manner and because of the much larger computing time needed to run an ATLAS12 model atmosphere, we decided to use only ATLAS9 model atmospheres.

Figure 5: Influence of the underlying model atmosphere on the derived abundances for HD 107168 (A8m): black dots are abundances derived using a solar ATLAS9 model, hatched black squares using a solar ATLAS12 model and black triangles are abundances derived with a ATLAS12 model computed for the specific chemical composition of this star.


4 Results and uncertainties

Abundances for the 22 stars are collected in Table 4 for A stars and in Table 5 for F stars. These abundances are relative to the sun ( $[\frac{\rm X}{\rm H}]=\log(\frac{\rm X}{\rm H})_{\star}-\log(\frac{\rm X}{\rm H})_{\odot}$). They are weighted means of the abundances derived from each transition. The calculation of their uncertainties and the weighted mean abundances is explained in Appendix A.

4.1 The general abundance pattern of A, Am and F stars in Coma Ber

Graphs where abundances are displayed against atomic number (abundance pattern plots) are particularly appropriate to compare the behaviour of the A, Am and F stars for different chemical elements. The abundance patterns for the A stars, Am stars and F stars are displayed respectively in Figs. 6a-c.

The seven Am stars of the clusters display a characteristic jig-saw pattern with much larger excursions from the solar compositions than the normal A stars do. This trend had already been found by Hui-Bon-Hoa & Alecian (1998) who derived the abundances of Mg, Ca, Sc, Cr, Fe and Ni in four Am stars of our sample (HD 107168, HD 107966, HD 108486 and HD 109307). Our abundances for these elements agree well with theirs for HD 107168, for which all fundamental parameters are similar in both studies. However, slight to moderately large differences occur for HD 108486, HD 109307 and HD 107966, for which we adopted larger microturbulent velocities (in particular for HD 107966), all other parameters being consistent in both studies. The 2 normal A stars of our sample, HD 107966 and HD 108382, have very similar abundances, nearly solar, in almost all elements and thus exhibit almost the same abundance pattern (Fig. 6a). Inspection of Fig. 6b reveals that generally, for almost all chemical elements, Am stars display star-to-star variations that can be larger than the typical uncertainty. All Am stars are deficient in C and O, but not all are deficient in Ca and/or Sc and most have pronounced overabundances of iron-peak and heavy elements. The two normal A stars have almost solar abundances in most elements. The F stars definitely exhibit less scatter than the Am stars. They tend to be mildly overabundant, in particular in Mg, Si, V and Ba. They have nearly solar abundances for C, O, Na, Ti, Fe, Ni, Sr and Y.

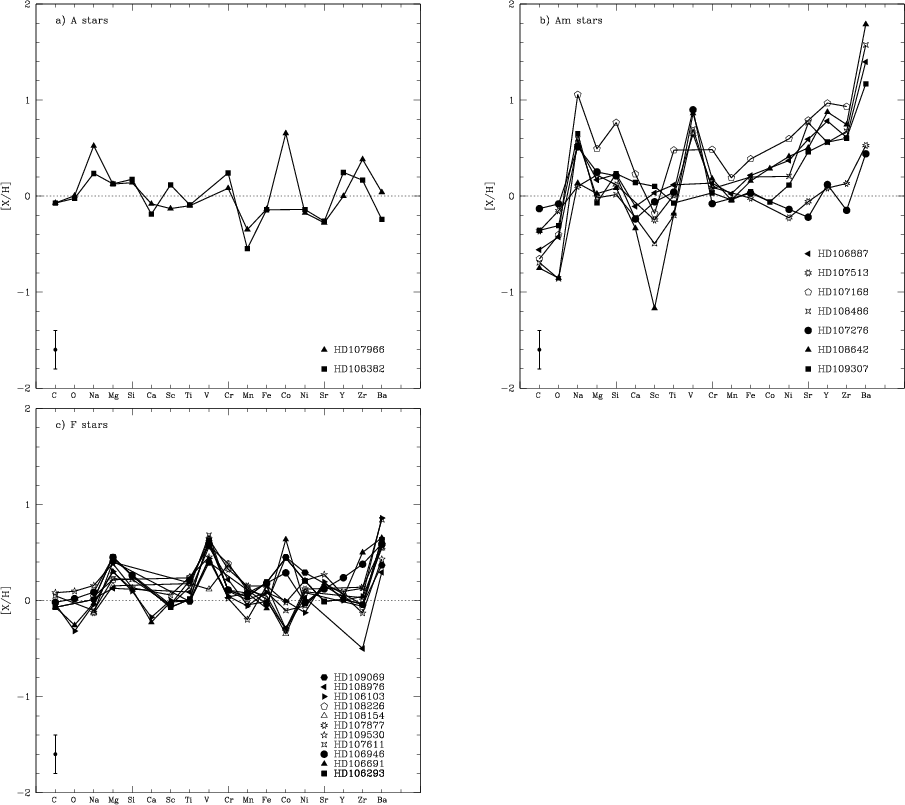

Figure 6: Abundance patterns for the ``normal'' A (a), Am (b) and F stars of Coma Berenices cluster. A maximum $\pm$0.30 dex error bar is displayed. The horizontal dashed line represent the solar composition.


4.2 Behaviour of individual elements

In this section, we use the found abundances for each element to address two issues. First, do the abundances depend on stellar parameters such as the effective temperature and $v_{\rm e}\sin i$? Any such correlation could be very valuable for theorists investigating the various hydrodynamical mechanisms affecting photospheric abundances. Second, how do the abundances of each element vary with respect to each other? Given that iron is astrophysically one of the most important elements (since it provides a rough estimate of the ``metallicity'') and given that the abundances derived for this element are probably the most reliable, we have examined whether the abundances of individual elements correlate with those of iron. Hill (1995) and Lemke (1989, 1990) also looked for similar correlations and we will refer to their findings later.

We can roughly separate the elements we studied into two groups. For most elements (Fe II, Ti II, OI, Cr II, Mg II, Mn I, C I, Si II, Ca II and Ni I), we synthesized several lines of quality A to D and we can be confident in the abundances we derived, in particular for iron, titanium and chromium. For elements with many lines, errors in individual oscillator strengths should tend to cancel out. For other elements, we have very few lines (Sr II), so that errors on oscillator strengths may induce scatter in the abundances. For V II, Co I, Y II and Zr II, several lines are available but their accuracy is not necessarily well known. The abundances of these elements should be viewed with more caution However, our main goal here is to investigate how the abundances of individual elements vary with that of iron and also to study star-to-star variations of fundamental parameters. This can be established independently of errors in the absolute values of the oscillator strengths, since all stars will be affected in the same manner.

4.2.1 The light elements

Behaviour of carbon

Seven lines of quality B of C I have been synthesized. In a graph of $[\frac{\rm C}{\rm Fe}]$ versus $T_{\rm {eff}}$, this element displays a different behaviour in F stars and A stars. The F stars show very little scatter around their mean iron abundance (about -0.01 dex) whereas the A and Am stars exhibit a pronounced spread in abundances of about 0.75 dex which is much larger than the estimated typical uncertainty of about 0.15 dex on $[\frac{\rm C}{\rm H}]$. Also all A stars display deficiencies in carbon. There seems thus to be real star-to-star variation in $[\frac{\rm C}{\rm Fe}]$. Another way to quantify the relative dispersion of A and Am stars with respect to the F stars is to compute the mean abundance for carbon and the associated dispersion for each group of stars, $\sigma_{\rm A}$ and $\sigma_{\rm F}$. For A and F stars, these mean abundances and dispersions for carbon and all other chemical elements are collected in Table 6. For carbon, the dispersion  $\sigma_{\rm A}$ for the A stars is about 4 times higher than for F stars.

The behaviour of carbon with respect to iron is not clear when $[\frac{\rm C}{\rm H}]$ is displayed versus $[\frac{\rm Fe}{\rm H}]$. As previously found by Hill (1995), an anticorrelation appears more clearly when $[\frac{\rm C}{\rm Fe}]$ is displayed against $[\frac{\rm Fe}{\rm H}]$ for Am and normal A stars (Fig. 7). We find a slope of -1.74 $\pm$ 0.48, not very different from the value obtained by Hill (1995) (-1.24 $\pm$ 0.31 for 15 A stars).



Table 6: Mean abundances and their respective dispersion for Fe, C, O, Ni, Sc, Si, Ba, Y, Zr and Sr for the F, normal A and Am stars.

Elements	F stars	$\sigma_{F}$	A stars	$\sigma_{A}$
$[\frac{\rm C}{\rm H}]$	-0.01	0.06	-0.48	0.24
$[\frac{\rm O}{\rm H}]$	-0.11	0.18	-0.34	0.31
$[\frac{\rm Si}{\rm H}]$	0.18	0.07	0.22	0.20
$[\frac{\rm Sc}{\rm H}]$	-0.02	0.04	-0.23	0.38
$[\frac{\rm Fe}{\rm H}]$	0.07	0.09	-0.14	0.16
$[\frac{\rm Ni}{\rm H}]$	0.09	0.11	0.11	0.28
$[\frac{\rm Sr}{\rm H}]$	0.15	0.08	0.25	0.43
$[\frac{\rm Y}{\rm H}]$	0.07	0.08	0.47	0.34
$[\frac{\rm Zr}{\rm H}]$	0.04	0.34	0.46	0.33
$[\frac{\rm Ba}{\rm H}]$	0.58	0.17	0.84	0.70

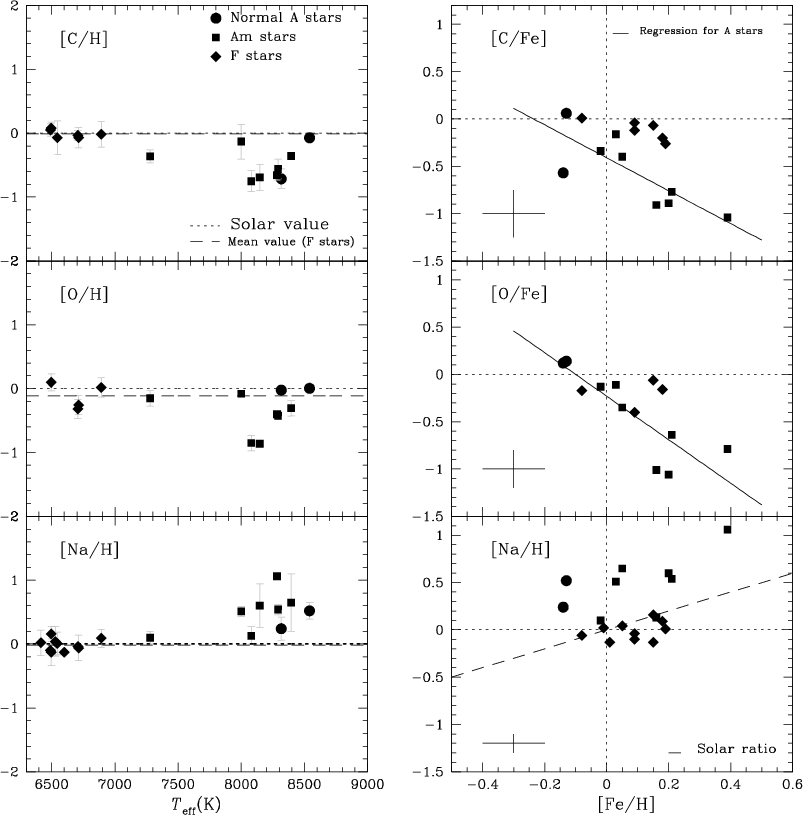

Figure 7: Left panel: abundance of carbon, oxygen and sodium versus effective temperature. The dotted line corresponds to the solar value and the dashed one to the mean value determined for the F stars of the cluster. Right panel: [C/Fe], [O/Fe] and [Na/H] versus [Fe/H]. The filled dots correspond to normal A stars, the filled squares correspond to Am stars and the filled diamonds correspond to F stars. In the plot representing [Na/H] versus [Fe/H], the dashed line corresponds to the solar [Na/Fe] ratio. The error bars in the right panel represent the mean uncertainties for the displayed abundances.

We have checked whether the C lines studied here might be affected by non-LTE effects especially for A stars. Non-LTE abundance corrections of carbon have been calculated by Rentzsch-Holm (1996) for a set of main sequence stars ranging in effective temperatures from 7000 K to 12 000 K, surface gravities from $\log g=3.5$ to 4.5 dex and metallicities from $[\frac{\rm M}{\rm H}]=-0.5$ to 1 dex. For effective temperatures below 10 000 K, the non-LTE abundance corrections were found to be always negative. Only three lines of our list were studied by Rentzsch-Holm (1996): $\lambda$5052.17, $\lambda$5380.34 and $\lambda$6587.61 Å. According to her Figs. 7 and 8, the corrections for these lines, whose equivalent width are always less than 100 mÅ, should be in the range -0.10 to -0.25 dex for the temperatures and metallicities of the stars in our sample, making these stars even more deficient in carbon. These corrections do not appear to diminish the star-to-star scatter in [C/H].

Oxygen

The derived oxygen abundances are the weighted means of 16 quality B and 6 quality C+ lines. In a graph of $[\frac{\rm O}{\rm H}]$ versus $T_{\rm {eff}}$ (Fig. 7), the F stars abundances are slightly scattered around their mean value. All A and Am stars exhibit underabundances of oxygen and their scatter is again larger than that of the F stars. The total spread in oxygen abundance for the A and Am stars is about 0.8 dex, significantly larger than the maximum uncertainty of 0.12 dex for A stars. This again suggests real star-to-star variations in [O/H].

In a graph of $[\frac{\rm O}{\rm H}]$ versus $[\frac{\rm Fe}{\rm H}]$, oxygen seems to be only very loosely anticorrelated with iron. The anticorrelation appears more clearly in $[\frac{\rm O}{\rm Fe}]$ versus $[\frac{\rm Fe}{\rm H}]$ with a slope of -2.30 $\pm$ 0.53. Przybilla et al. (2000) calculated the line formation of most of the O I lines analysed here in A star atmospheres using the codes DETAIL and SURFACE (Giddings 1981). For stars with effective temperatures less than 10 000 K and $\log g$ around 4.0, these corrections always remain less than -0.03 dex, well below the estimated uncertainty. The observed anticorrelation of [O/Fe] versus [Fe/H] should therefore remain after non-LTE corrections have been made. The large star-to-star variations in [O/H] would not be affected by these corrections either.

Figure 8: Left panel: abundance of magnesium, silicon and calcium versus effective temperature. The dotted line represents the solar value and the dashed one represents the mean abundance of F stars. Right panel: [Mg/H], [Si/Fe] and [Ca/H] versus [Fe/H]. The symbols are the same as in Fig. 7. The dashed lines represent the solar ratios.


Sodium

Sodium abundances were derived from 9 lines of quality A to C. The sodium abundances for the F stars display very little scatter around their mean value (-0.01 dex), very close to solar. All A and Am stars display overabundances of Na. For these stars, the spread in $[\frac{\rm Na}{\rm H}]$ is about 0.9 dex, much larger than the typical uncertainty (0.10 dex). This suggests there are real star-to-star variations in $[\frac{\rm Na}{\rm H}]$. The sodium abundance does not appear to be correlated to the iron abundance: in Fig. 7, about half of the data lie above the line of solar ratio while the other half are scattered around it.

Quantitative information on non-LTE corrections for Na abundances in A stars is scarce. Non-LTE corrections have been calculated by Bikmaev et al. (2002) for two cool A8IV-V stars whose fundamental parameters are close to the coolest A star of our sample. The largest corrections amount to -0.35 dex and occur for the two lines $\lambda$5889.95 Å and 5895.92 Å. In the absence of calculations for hotter stars with various $[\frac{\rm Fe}{\rm H}]$, it is difficult to predict what the non-LTE corrections would be for the A and Am stars studied here. Provided the corrections would be small for F stars, lowering the A and Am star abundances by about 0.35 dex would certainly improve the correlation of $[\frac{\rm Na}{\rm H}]$ with  $[\frac{\rm Fe}{\rm H}]$.

Magnesium

Seven lines of Mg II of quality B to D were used for the A stars and 5 lines of Mg I of qualities B to C for the F stars. In graphs of $[\frac{\rm Mg}{\rm H}]$ versus $T_{\rm {eff}}$ (Fig. 8), the F stars and the A and Am stars display fairly large and comparable scatter. The maximum spread in $[\frac{\rm Mg}{\rm H}]$ is about 0.30 dex and 0.55 dex for the F and the A and Am stars respectively. The maximum uncertainty in $[\frac{\rm Mg}{\rm H}]$ being about 0.18 dex, there does not appear to be significant star-to-star variations. Almost all stars exhibit LTE overabundances. We noticed that the Mg II $\lambda$ 4481 Å triplet systematicaly yields higher abundances than other Mg II lines. Excluding this triplet reduces the abundances by about -0.30 dex for the A and F stars.

The $[\frac{\rm Mg}{\rm H}]$ abundances (derived from all lines excluding the Mg II triplet) do not appear to be correlated to $[\frac{\rm Fe}{\rm H}]$. Most data lie above the line of the solar ratio  $[\frac{\rm Mg}{\rm Fe}]$. In their analysis, Hill & Landstreet (1993) found that the ratio  $[\frac{\rm Mg}{\rm Fe}]$ runs parallel to and above the line of solar $[\frac{\rm Mg}{\rm Fe}]$. They attribute this to the use of the very strong Mg II $\lambda$ 4481 Å triplet (the only line they analysed).

Przybilla et al. (2001) computed a model atom for non-LTE line formation for neutral and singly-ionized magnesium to evaluate non-LTE corrections. These corrections turn out to be small for MgII except for the features at $\lambda\lambda$ 4481 and 7877-96 Å. For Vega (A0V), they found a correction of -0.21 dex for the 4481 Å triplet which confirms our finding that this line systematically yields higher abundances.

Silicon

Nineteen lines of Si II of quality C to E have been synthesized. For the F stars, the silicon abundances hardly show any scatter around their mean value, +0.18 dex, slightly above solar. Almost all A stars are also overabundant in silicon and deviate very little from this mean value except for the Am star HD 107168 (Fig. 8). Thus there does not seem to be significant star-to-star variation in $[\frac{\rm Si}{\rm H}]$.

The silicon abundance does not show any convincing correlation with the iron abundance. Most of our data fall slightly above the line representing a solar silicon to iron ratio. Note that Hill & Landstreet (1993) did find a tight correlation between $[\frac{\rm Si}{\rm H}]$ and $[\frac{\rm Fe}{\rm H}]$. All their data fall close to the line representing a solar silicon to iron ratio. The lines we analysed differ from theirs and lead to overabundances possibly because of incorrect oscillator strengths or non-LTE effects.

Calcium

Twelve lines of Ca II of quality C and D were used to derive the calcium abundance for all A and Am stars and for only two F stars. The abundance of the F stars is subsolar ( $\langle[\frac{\rm Ca}{\rm H}]\rangle$ $\sim$ -0.2 dex). The two normal A stars are slightly deficient in calcium and the Am stars show modest deviations (both over and underabundances) around the solar abundance. Their maximum spread in [Ca/H] is 0.50 dex which is only marginally significant compared to the maximum estimated uncertainty (about 0.20 dex).

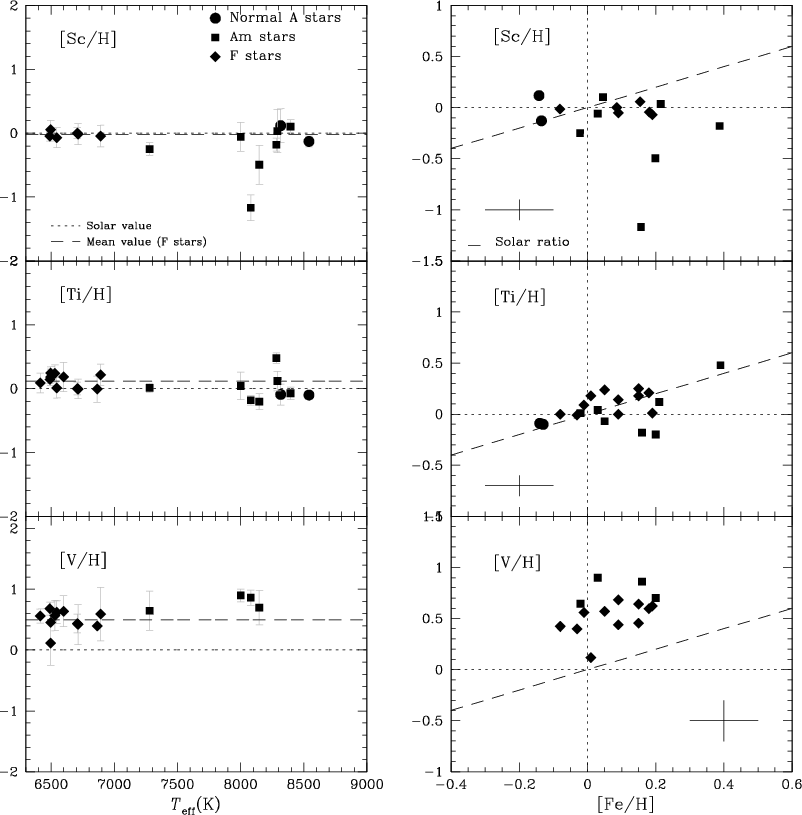

Figure 9: Left panel: abundance of scandium, titanium and vanadium versus effective temperature. The dotted line represents the solar value and the dashed one represents the mean abundance of F stars. Right panel: [Sc/H], [Ti/Fe] and [V/H] versus [Fe/H]. The symbols are the same as in Fig. 7. The dashed lines represent the solar ratios.

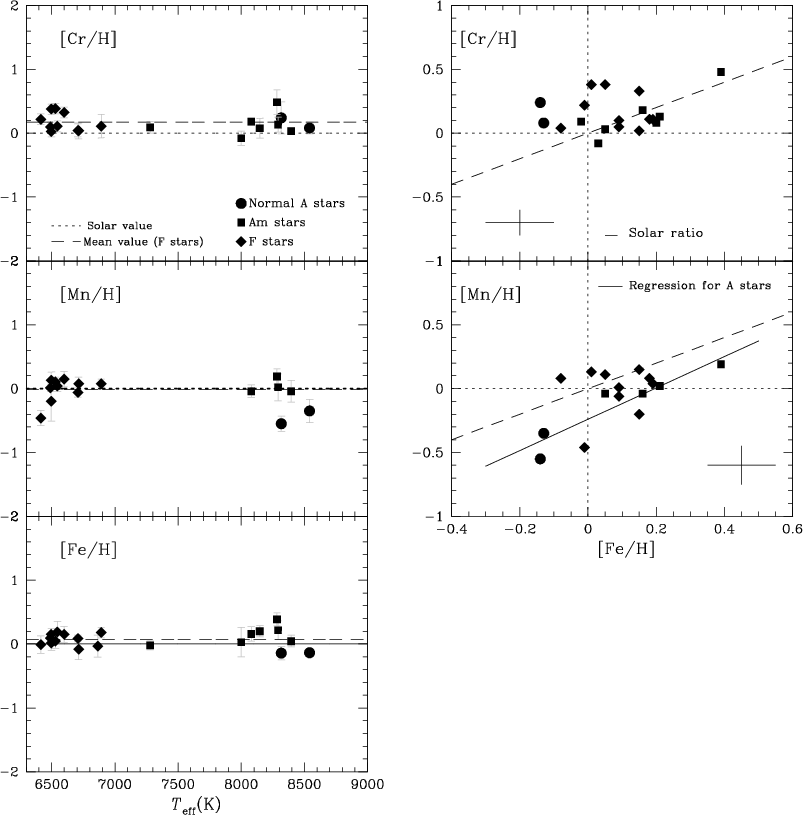

Figure 10: Left panel: abundance of chromium, manganese and iron versus effective temperature. The dotted line represents the solar value and the dashed one represents the mean abundance of F stars. Right panel: [Cr/H] and [Mn/H] versus [Fe/H]. The symbols are the same as in Fig. 7. The dashed lines represent the solar ratios.

In a graph displaying the calcium abundance versus that of iron (Fig. 8), the Am stars, as expected, can easily be discriminated from the normal A and F stars. They all fall to the right in a region characterized by overabundances of iron and they are either Ca-deficient or Ca-rich. For the normal A and F stars, $[\frac{\rm Ca}{\rm H}]$ has a fairly uniform value (-0.20) dex and does not appear to vary with $[\frac{\rm Fe}{\rm H}]$.

Figure 11: Left panel: abundance of cobalt, nickel and strontium versus effective temperature. The dotted line represents the solar value and the dashed one represents the mean abundance of F stars. Right panel: [Co/H], [Ni/Fe] and [Sr/H] versus [Fe/H]. The symbols are the same as in Fig. 7. The dashed lines represent the solar ratios.

Scandium

Eleven lines of quality D of Sc II were used to derive the scandium abundance. The scandium abundances of F stars are scattered very little around the solar value. About half of the A and Am stars are deficient in scandium (3 Am stars are close to solar while 4 exhibit deficiencies ranging from -0.2 dex to -1.2 dex). The total spread in $[\frac{\rm Sc}{\rm H}]$ for these stars is about 1.20 dex, significantly larger than the typical uncertainty of 0.10 dex. There thus seems to be real star-to-star variation in  $[\frac{\rm Sc}{\rm H}]$.

As for calcium, scandium does not exhibit any clear correlation or anticorrelation with respect to iron in the diagram of $[\frac{\rm Sc}{\rm H}]$ versus $[\frac{\rm Fe}{\rm H}]$ (Fig. 9). The scandium abundances of the F and normal A stars, which are all very close to solar, do not depend on $[\frac{\rm Fe}{\rm H}]$. Most Am stars lie in the lower right part of the diagram: they are all iron-rich and 4 out of 7 are deficient in scandium.

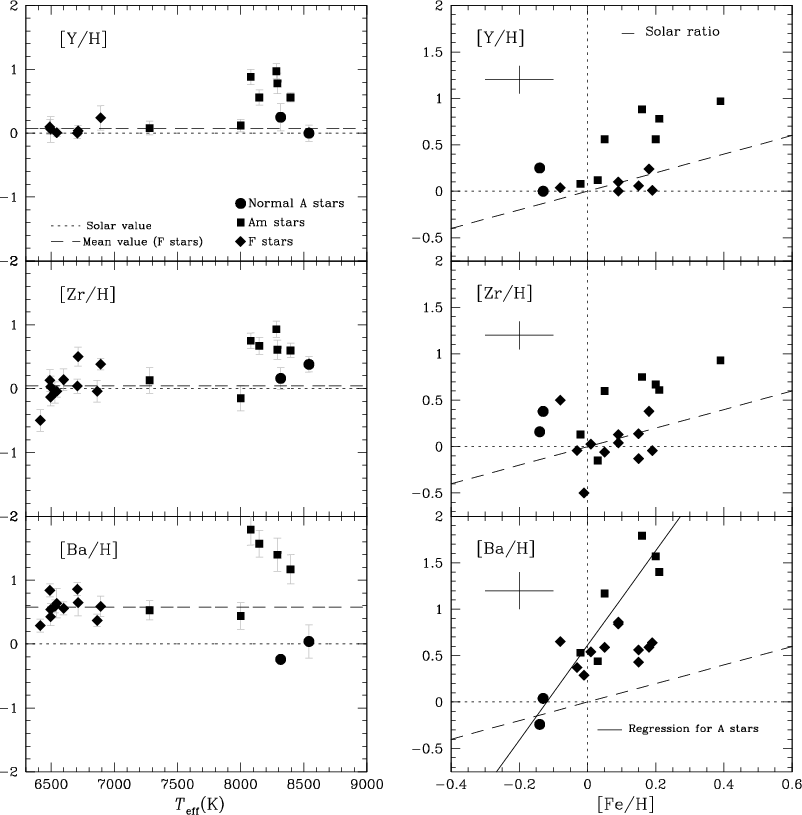

Figure 12: Left panel: abundance of yttrium, zirconium and barium versus effective temperature. The dotted line represents the solar value and the dashed one represents the mean abundance of F stars. Right panel: [Y/H], [Zr/Fe] and [Ba/H] versus [Fe/H]. The symbols are the same as in Fig. 7. The dashed lines represent the solar ratios.

4.2.2 The iron peak elements

Titanium, vanadium, chromium and manganese

Twenty six lines of Ti II, most of them of quality D, have been synthesized. The oscillator strengths for this element are not as secure as for iron and chromium. One should not expect these abundances to be too reliable on an absolute scale. The F stars show little scatter around their mean $[\frac{\rm Ti}{\rm H}]$ value, about +0.12 dex, slightly above solar. The A and Am stars are more scattered around this mean value. The spread in $[\frac{\rm Ti}{\rm H}]$ is about 0.68 dex which is larger than the typical uncertainty of about 0.08 dex. There seems to be real star-to-star variation for this element (Fig. 9). The titanium abundance appears to be loosely correlated to that of iron (correlation coefficient 0.66) for normal F and A stars. The $[\frac{\rm Ti}{\rm Fe}]$ ratios of these normal stars appear to be close to or slightly higher than solar as found by Lemke (1989) for a sample of 16 normal A stars. Hill & Landstreet (1993) found a strong correlation of [Ti/H] with [Fe/H] (correlation coefficient 0.95), their $[\frac{\rm Ti}{\rm Fe}]$ ratios being slightly above the solar value.

Nine lines of V II were synthesized whose uncertainties are not specified. These lines are intrinsically weak in all spectra. The abundances derived for this element must be taken with caution. The vanadium abundances for the F stars are fairly scattered around their mean value, +0.50 dex. Vanadium was not detected in the two normal A stars and is found to have large overabundances for 4 Am stars. There is no convincing correlation between $[\frac{\rm V}{\rm H}]$ and $[\frac{\rm Fe}{\rm H}]$ (Fig. 9). Most of the data fot the normal A stars and the F stars fall above the line representing the solar $[\frac{\rm V}{\rm Fe}]$ ratio which may be due to poorly determined oscillator strengths. Hill & Landstreet (1993) found a correlation of $[\frac{\rm V}{\rm H}]$ with $[\frac{\rm Fe}{\rm H}]$ using lines other than ours; their ratios  $[\frac{\rm V}{\rm Fe}]$ are also significantly above solar.

Eleven lines of Cr II of quality D have been synthesized. As for titanium, the A stars are only a little more scattered than the F stars. The total spread in $[\frac{\rm Cr}{\rm H}]$ for the A and Am stars is about 0.56 dex (0.36 dex for the F stars) while the maximum uncertainty on $[\frac{\rm Cr}{\rm H}]$ is about 0.20. Should the data for HD 107168 be removed, the spread in $[\frac{\rm Cr}{\rm H}]$ drops to 0.30 dex and is not significant. The evidence for star-to-star variations in $[\frac{\rm Cr}{\rm H}]$ is therefore rather weak. The chromium abundance appears to be loosely correlated with that of iron (correlation factor = 0.85). Most of the data fot the normal A stars and the F stars fall above the line representing the solar $[\frac{\rm Cr}{\rm Fe}]$ ratio (Fig. 10). Hill & Landstreet (1993) also found a correlation of $[\frac{\rm Cr}{\rm H}]$ with $[\frac{\rm Fe}{\rm H}]$, their ratios $[\frac{\rm Cr}{\rm Fe}]$ being only marginally above solar.

Twenty lines of Mn I of quality B to C+ were synthesized. The F stars show little scatter around the solar value. The total spread for the A and Am stars is about 0.6 dex which is larger than the maximum uncertainty of 0.2 dex, suggesting real star-to-star variation. The two normal A stars are deficient in manganese. The manganese abundance appears to be well correlated with that of iron (correlation factor = 0.94). Most of the ratios  $[\frac{\rm Mn}{\rm Fe}]$ run parallel to and below the line representing the solar ratio (Fig. 10). Hill & Landstreet (1993) found a correlation of $[\frac{\rm Mn}{\rm H}]$ with $[\frac{\rm Fe}{\rm H}]$ using lines other than ours; their ratios  $[\frac{\rm Mn}{\rm Fe}]$ are only marginally above solar.

Iron, cobalt and nickel

Twenty seven lines of Fe II of quality C to E were synthesized. In a graph  $[\frac{\rm Fe}{\rm H}]$ versus $T_{\rm {eff}}$ (Fig. 10), the F stars are only slightly scattered around their mean value, +0.07 dex, which is slightly higher than Friel & Boesgaard (1992). These authors found $\langle[\frac{\rm Fe}{\rm H}]\rangle$ = -0.05 $\pm$ 0.03 dex, based on the analysis of the equivalent widths of a few Fe I lines for 14 F stars of the cluster. Our usage of different techniques (model atmospheres and line synthesis) and different lines (Fe II) probably accounts for the difference in iron abundance. The total spread in $[\frac{\rm Fe}{\rm H}]$ for the A and Am stars is about 0.53 dex which is larger than the maximum estimated uncertainty (0.10 dex). There are thus real star-to-star variations in  $[\frac{\rm Fe}{\rm H}]$.

For cobalt, our analysis is based on 12 lines of Co I, whose errors in the oscillator strengths are unknown. Most of these lines are weak and often are blended with lines whose atomic parameters are not necessarily accurately known. We therefore do not expect these abundances to be reliable. In a graph of $[\frac{\rm Co}{\rm H}]$ versus $T_{\rm {eff}}$ (Fig. 11), the cobalt abundances are much more scattered for the F stars than for any other chemical element; this scatter is probably largely due to blending species. There is only one data point for the normal A stars. We feel that the abundances are not reliable enough to claim to find real star-to-star variations in $[\frac{\rm Co}{\rm H}]$ and not to find a correlation with $[\frac{\rm Fe}{\rm H}]$.

Fifty six lines of Ni I of quality C+ to D have been synthesized. In the graph  $[\frac{\rm Ni}{\rm H}]$ versus $T_{\rm {eff}}$, nickel behaves in a similar manner as iron (Fig. 11). The F stars are fairly well grouped around their mean abundance (+0.09 dex), their maximum spread being 0.25 dex. The A and Am stars scatter over 0.83 dex whereas their maximum uncertainty is about 0.20 dex. There seems to be real star-to-star variations for $[\frac{\rm Ni}{\rm H}]$. The nickel abundance is tightly correlated with that of iron (correlation coefficient 0.92). Most of the ratios  $[\frac{\rm Ni}{\rm Fe}]$ are close to solar.

4.2.3 The heavy elements

Strontium, yttrium, zirconium and barium

Our study of strontium is based on only two lines at 4077.71 Å and 4215.52 Å whose accuracies are not specified in NIST. Errors in gf values may result in a considerable zero point shift with respect to the Sun. We therefore do not attach too much significance to apparently large absolute over-or underabundances. The F star strontium abundances show little scatter around their mean value, +0.15 dex. The A and Am stars display a much larger spread in abundances, about 1.07 dex, significantly larger than the maximum uncertainty (0.30 dex) (Fig. 11). The strontium abundance is correlated quite closely to the iron abundance (correlation coefficient 0.90). Strontium abundances vary more rapidly than those of iron as found by Lemke (1990).

Five lines of yttrium whose accuracies are unknown were synthesized. The same holds for zirconium. Yttrium and zirconium are found to be nearly solar in F stars (Fig. 12). These elements are overabundant by about 0.50 dex for 6 of the Am stars and by about 0.40 dex in the normal A stars. The A and Am stars display fairly large spreads in abundances of Y and Zr, about 1.0 dex, much larger than the associated uncertainties, indicating real star-to-star variations in $[\frac{\rm Y}{\rm H}]$ and $[\frac{\rm Zr}{\rm H}]$.

Five lines of quality B of barium have been synthesized. This element is found to be overabundant in all A, Am and F stars by large amounts (up to 1.10 dex). The spread for $[\frac{\rm Ba}{\rm H}]$ is about 1.8 dex, much larger than the typical uncertainties, indicating real star-to-star variations in $[\frac{\rm Ba}{\rm H}]$ (Fig. 12). However, these overabundances may reflect a non-LTE effect, namely an overionization of barium in A stars. In Vega, the non-LTE Ba II abundances are lower than the LTE abundances by about 0.30 dex as demonstrated by Gigas (1988) and Lemke (1990) using the KIEL code. Non-LTE corrections for Ba should be sensitive to [Fe/H] which can differ much from star to star. Detailed calculations for the respective fundamental parameters and iron abundances of each star should therefore be performed.

4.3 Microturbulent velocities

A byproduct of this analysis has been to determine microturbulent velocities for each star. Figure 13 displays the derived $\xi _{t}$ versus effective temperature. The overall variation agrees well with that found by Coupry & Burkhart (1992) who found that $\xi _{t}$ varies from 0 km s^-1 for late B-type stars, up to about 3 km s^-1 for mid-A type stars down to around 2 km s^-1 for early F-type stars. Gray (2001) also found that $\xi _{t}$ varies diminishes 3 km s^-1 for mid-A type stars to about 1 km s^-1 for solar-type stars.

4.4 Rotational velocities

The inferred rotational velicities $v_{\rm e}\sin i$ are lower than 102 km s^-1. None of the found abundances appears to depend on $v_{\rm e}\sin i$. The profiles of [X/H] versus $v_{\rm e}\sin i$ are flat as shown for instance for iron in Fig. 14. This result is not surprising. Detailed calculations of diffusion in the presence of meridional circulation carried out by Charbonneau & Michaud (1991) revealed that, in stars rotating at less than $v_{\rm e}\sin i$ = 100 km s^-1, meridional circulation has little influence on chemical separation once the helium superficial convective zone has disappeared. Accordingly, the abundances should not present any positive nor negative trend (slope) with $v_{\rm e}\sin i$ in this velocity regime. The absence of fast rotators in Coma Berenices (i.e. $v_{\rm e}\sin i$ > 100 km s^-1) prevents us from investigating the behaviour of the various abundances with rotational velocity above that velocity.

5 Astrophysical implications

The most important result of this study is the evidence of large star-to-star abundance variations for A stars in Coma Berenices. These stars appear to display much larger star-to-star variations in their abundances than the F stars do for the following chemical elements: C, O, Na, Sc, Ti, Mn, Fe, Ni, Sr, Y, Zr and Ba. In contrast, the abundances of Mg, Si, Ca and Cr do not show significant star-to-star variations. For the Hyades, Varenne & Monier (1999) found a similar behaviour for the abundances of C, O, Na, Sc, Fe and Ni. Monier (2005) also found large star-to-star variations in [Fe/H], [Ni/H] and [Si/H] for several A stars of the Uma group.

We theorize that this peculiar behaviour is a signature of the occurence of transport processes competing with radiative diffusion (e.g. rotational mixing in radiative zone, Zahn 2005). Indeed, if radiative diffusion was the only process at work, the microscopic diffusion velocity of a given chemical element should be the same in stars of similar effective temperatures and surface gravities. We would therefore expect similar surface compositions for stars of similar fundamental parameters.

5.1 Self consistent modelling

We have compared the derived abundances to the predictions of recent evolutionary models, calculated with the Montréal code using slightly different assumptions and physics. This code treats radiative diffusion in detail and allows the inclusion of turbulent diffusion. Schatzman (1969) proposed two possible physical origins of turbulent diffusion: loss of angular momentum while the star descends towards the Main Sequence or meridional circulation.

5.1.1 The F-type stars

For the F stars, the found abundances have been compared to the predictions of Turcotte et al.'s (1998a) evolutionary models at the age of Coma Berenices. Their models predict the evolution of the abundances for an F star of a given mass consistently with the internal structure. They include the effects of gravitational sedimentation and of radiative diffusion for 28 chemical elements ($Z \leq 28$) but no macroscopic mixing (wind, accretion, meridional circulation, turbulence). These models are relevant for F stars with masses in the range 1.1 $M_{\odot }$ to 1.5 $M_{\odot }$ from the pre-main sequence state up to hydrogen core exhaustion. The impact of the abundance variations with time on the structure of the star is taken into account. Monochromatic OPAL opacities for each element are used to recalculate the opacity corresponding to the abundances and local conditions during the evolution. Atomic diffusion has an important effect on the opacities for stars more massive than $1.3~M_{\odot}$. In these objects, the abundances of Fe and other iron-peak elements were found to substantially vary with time.

Figure 13: Variation of the derived microturbulence velocities with effective temperature.

Figure 14: Abundance of iron versus $v_{\rm e}\sin i$ for A, Am and F stars.

For the light elements C and O, the predicted large underabundances by Turcotte et al. (1998a) for stars with $T_{\rm {eff}}$ > 6500 K are not observed in our data. For these elements we find that the observed abundances in F stars are rather constant with a solar value for C ( $\langle[\frac{\rm C}{\rm H}]\rangle$ = -0.01 $\pm$ 0.06 dex) and marginally underabundant for O ( $\langle[\frac{\rm O}{\rm H}]\rangle$ = -0.11 $\pm$ 0.18 dex). In contrast, the predicted solar Na abundances for stars with $5950 \leq T_{\rm eff}$ $\leq$ 6700 K match well the observed solar abundances of F stars. For the F stars of 1.4 $M_{\odot }$, the predicted Mg and Si underabundances are not seen either in our data. For the iron peak elements Fe and Ni, the predicted overabundances due to microscopic diffusion are not observed either.

5.1.2 The A stars

For A stars, we have compared the found abundances with the predictions of the recent models of Richer et al. (2000). In these new models, the effect of atomic and turbulent diffusion were calculated for stars of 1.45-3 $M_{\odot }$. They showed that the superficial abundances of the 28 species calculated in their models depend, in a star of a given mass, on essentially the initial metallicity and the deph of the zone mixed by turbulence. Figures 10 and 11 from Richer et al. (2000) represent the variations of surface abundances with time of the 28 elements for stars of 2-2.5-3 $M_{\odot }$. For the 2 $M_{\odot }$ model, Richer et al. (2000) found that the ratio of the abundances of carbon and oxygen at 450 Myr to their initial values decrease with time. We observed the same trend for C and O in Am stars using the mean abundances of C and O in the F stars as initial abundances of these elements in the cluster.





Table 7: Initial chemical composition.

Element	Mass fraction
H ......	$7.03\times 10^{-1}$
$^{4}\rm {He}$a ......	$2.7995\times 10^{-1}$
12Cb ......	$2.935\times 10^{-3}$
N ......	$9.000\times 10^{-4}$
O ......	$8.189\times 10^{-3}$
Ne ......	$1.675\times 10^{-3}$
Na ......	$3.396\times 10^{-5}$
Mg ......	$6.377\times 10^{-4}$
Al ......	$5.519\times 10^{-5}$
Si ......	$6.878\times 10^{-4}$
P ......	$5.944\times 10^{-6}$
S ......	$3.592\times 10^{-4}$
Cl ......	$7.642\times 10^{-6}$
Ar ......	$9.170\times 10^{-5}$
K ......	$3.396\times 10^{-6}$
Ca ......	$6.368\times 10^{-5}$
Ti ......	$3.396\times 10^{-6}$
Cr ......	$1.698\times 10^{-5}$
Mn ......	$9.340\times 10^{-6}$
Fe ......	$1.219\times 10^{-3}$
Ni ......	$7.557\times 10^{-5}$

^a $^{3}{\rm He}=5.000$ $\times$ 10^-5.
^{b 13}C is 1% of ¹²C.

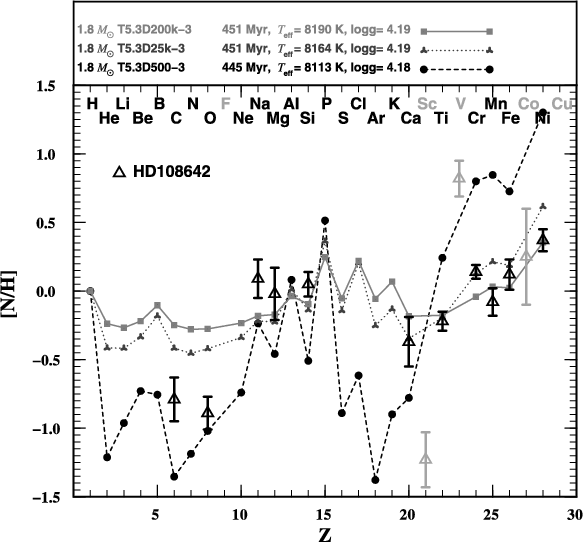

In addition, we have specifically computed a series of models for two Am stars of similar effective temperatures but different rotational velocities: HD 108642, a slow rotator ( $v_{\rm e}\sin i$ = 9 km s^-1) and HD 106887, a faster rotator ( $v_{\rm e}\sin i$ = 82 km s^-1). Masses for these two stars should be in the range 1.8 to 2.0 $M_{\odot }$. Seven models for a 1.8 $M_{\odot }$ mass star having different turbulent coefficients, $D_{\rm T}$ (Eq. (1) in Richer et al. 2000) at the age of the Coma were computed. The adopted initial and homogeneous abundances for these models are collected in Table 7. The models use an Eggleton-Faulkner-Flannery equation of state (Eggleton et al. 1973) including Coulomb correction on the pressure (labeled as CEFF models) (see also Christensen-Dalsgaard & Daeppen 1992). The nuclear energy generation follows the prescriptions of Bahcall & Pinsonneault (1992). These models take into account gravitational settling, thermal diffusion and radiative accelerations. The detailed treatment of atomic diffusion is described in Turcotte et al. (1998b) and the radiative accelerations are from Turcotte et al. (1998b) with correction for redistribution from Gonzalez et al. (1995) and LeBlanc et al. (2000). These models are self consistent as the Rosseland opacity and radiative accelerations are recomputed at each time step in each layer for the exact local chemical composition using OPAL monochromatic opacities for 24 elements. Convection and semi-convection are modeled as diffusion processes as described in Richer et al. (2000) and Richard et al. (2001). The initial metallicity is taken from Friel & Boesgaard (1992).

Figure 15: Comparison of the observed abundance pattern of HD 108642 (A2m) with the predictions of three models calculated for a mass of 1.8 $M_{\odot }$ and different amounts of turbulent diffusion. Observed abundances are represented as triangles with error bars. Note that the models do not predict the surface abundances of Sc, V and Co.

Figure 16: Comparison of the observed abundance pattern of HD 106887 (A4m) with the same models.

The models are compared to the abundance patterns of HD 108642 in Fig. 15 and for HD 106887 in Fig. 16. None of the models reproduces entirely the characteristic abundance pattern, i.e. marked underabundances of light elements and overabundances of iron-peak elements. They basically differ by the amount of turbulent diffusion included. The model that best approaches the abundance patterns for elements with Z>20 for these two stars is the model labeled as 1.8T5.3D200K-3 following the syntax of Table 1 of Richer et al. (2000). In this model, the turbulent diffusion coefficient $D_{\rm T}$ varies with density as:

$$\begin{eqnarray*}D_{{\rm T}}=\omega D(\rm {He})_{0}\left(\frac{\rho_{0}}{\rho}\right)^{\it {n}} \end{eqnarray*}$$

where n=3, $D({\rm He})_{0}$ is the atomic diffusion coefficient of He at the density $\rho_{0}=\rho(T_{0})$ in the iron convection zone (see Eq. (1) of Richer et al. 2000, here $\omega=200$ $\times$ 10³ and $\log T_{0}=5.3$). However this model predicts abundances that are almost 0.8 dex too large for C and O but it comes close to the abundances of Na, Mg and Si and follows the overabundances of iron-peak and heavier elements. Conversely, models with less turbulent diffusion 1.8T5.3D25K-3 and 1.8T5.3D500-3 roughly account for the abundances of elements with Z<15 but predict too large overabundances of iron-peak elements.

Part of the discrepancy between observed and theoretical abundance patterns could be due to non-LTE effects. Correcting the magnesium abundance for the magnesium triplet at $\lambda$4481 Å reduces it by $\sim$0.2 dex and provides a better agreement with the T5.3D200K-3 model for this element. Lowering the sodium abundances, which are likely to be affected by non-LTE effects, will also improve the agreement with this model. However, the inclusion of competing processes in the models such as rotational mixing in the radiative zone for A stars, internal waves for F stars could also help improve the agreement.

6 Conclusion

High and medium resolution spectra of 11 A and 11 F star members of the Coma Berenices open cluster have been synthesized in order to determine the abundances of C, O, Na, Mg, Si, Ca, Sc, Ti, V, Cr, Mn, Fe, Co, Ni, Sr, Y, Zr and Ba. In graphs representing the abundance [X/H] versus effective temperature, the A stars display abundances that are more scattered around the mean value than the F stars. Large star to star variations are detected for A stars for C, O, Na, Sc, Ti, Mn, Fe, Ni, Sr, Y, Zr and Ba which we interpret as evidence of transport processes competing with radiative diffusion.

The chemical pattern found for the A and F dwarfs of Coma resembles that found for the Hyades (Varenne & Monier 1999) and the UMa group (Monier 2005). The mean iron abundance derived for the F stars is found to be $\langle[\frac{\rm Fe}{\rm H}]\rangle$ = 0.07 $\pm$ 0.09 dex, slightly higher than the metallicity derived by Friel & Boesgaard (1992). The abundances of manganese, nickel, strontium and barium are strongly correlated with the iron abundance for A and Am stars. The ratios [C/Fe] and [O/Fe] appear to be anticorrelated with [Fe/H]. The ratio [Ti/Fe] is solar as found by Lemke (1989).

The Am stars in Coma Berenices are found to be deficient in light elements (C and O), they are not all deficient in calcium and scandium but are all overabundant in metallic and heavy elements (Fe, Co, Ni, Sr, Y, Zr and Ba). The two normal A stars have almost solar abundances. The F stars have solar abundances for almost all the elements except for Mg, Si, V and Ba.

The abundance patterns predicted by current state of the art evolutionary models following the prescriptions of Richer et al. (2000) have been compared to the observed abundance patterns of two Am stars of the cluster, one a slow rotator (HD 108642) and one a moderately fast rotator (HD 106887). These models were calculated with different strengths of the turbulent diffusion coefficient. None of the models reproduces entirely the characteristic abundance pattern, i.e. marked underabundances of light elements and overabundances of iron-peak and heavier elements. Part of the discrepancy may arise from non-LTE effects. In this respect, non-LTE abundance determinations for many of the elements analysed here (when feasible, i.e. when atomic data and model atoms are available) are highly desirable. However it is likely that the inclusion of competing processes such as rotational mixing in the radiative zones (which will vary from star to star) should also help reproduce the observed abundance patterns and the large scatter of abundances of several elements in A stars.

Appendix A: Determination of uncertainties

Six major sources are included in the uncertainty determinations: uncertainty on the effective temperature ( $\sigma_{T_{{\rm eff}}}$), on the surface gravity ( $\sigma_{\log g}$), on the microturbulent velocity ( $\sigma_{\xi_{t}}$), on the apparent rotational velocity ( $\sigma_{v_{\rm e}\sin i}$), the oscillator strength ( $\sigma_{\log gf}$) and the continuum placement ( $\sigma_{\rm cont}$). These uncertainties are supposed to be independent, so that the total uncertainty  $\sigma_{{\rm tot}_{i}}$ for a given transition (i) is:

$$% \sigma_{{\rm tot}_{i}}^{2}=\sigma_{T_{{\rm eff}}}^{2}+\sigm... ...{\rm e}\sin i}^{2}+\sigma_{\log gf}^{2}+\sigma_{\rm cont}^{2}.$$ (A.1)

The mean abundance $\langle[\frac{\rm X}{\rm H}]\rangle$ is then computed as a weighted mean of the individual abundances [X/H]_i derived for each transition (i):

$$% \langle[\frac{\rm X}{\rm H}]\rangle =\frac{\sum_{i}([\frac{... ..._{{\rm tot}_{i}}^{2})}{\sum_{i}(1/\sigma^{2}_{{\rm tot}_{i}})}$$ (A.2)

and the standard deviation, $\sigma_{\rm sd}$ is given by:

$$% \frac{1}{\sigma_{\rm sd}^{2}}=\sum_{i=1}^{N}(1/\sigma_{{\rm tot}_{i}}^{2})$$ (A.3)

where N is the number of lines per element. This procedure has been applied to 4 A stars (HD 107966, HD 107655, HD 107168 and HD 107513) and 3 F stars (HD 106103, HD 107611 and HD 109530). In the fastest rotators, the pseudo-continuum, $f_{\rm pseudo}^{\lambda}$, we see that regions free of lines in the observed spectra are actually affected by the rotational broadening of neighbouring lines. The level of the actual continuum, $f_{\rm cont}^{\lambda}$, can be recovered by carefully synthesizing the pseudo-continuum windows, yielding the theoretical flux, $F_{\rm pseudo}^{\lambda}$, and the actual corresponding continuum flux, $F_{\rm cont}^{\lambda}$, at the appropriate velocity $v_{\rm e}\sin i \pm \Delta(v_{\rm e}\sin i)$. The observed intensity level in these pseudo-continuum windows was then multiplied by ( $F_{\rm cont}^{\lambda}$/ $F_{\rm pseudo}^{\lambda}$) to recover the observed continuum level:

$$% f_{\rm cont}^{\lambda}=\frac{F_{\rm cont}^{\lambda}}{F_{\rm pseudo}^{\lambda}} f_{\rm pseudo}^{\lambda}.$$ (A.4)

The maximum and minimum allowed rotational velocity $v_{\rm e}\sin i \pm \Delta(v_{\rm e}\sin i)$ yields 2 ratios $\frac{F_{\rm cont}^{\lambda}}{F_{\rm pseudo}^{\lambda}}$( $v_{\rm e}\sin i_{\rm max}$) and $\frac{F_{\rm cont}^{\lambda}}{F_{\rm pseudo}^{\lambda}}$ ( $v_{\rm e}\sin i_{\rm min}$). The corresponding observed normalized line profiles were then used to derive the corresponding changes in abundances due to the different locations of the continuum. This test was performed in several spectral regions (excluding overlaping regions of 2 orders) and yields a maximum uncertainty of about 0.07 dex on the abundances.

For the other stars, the final abundances are averages. The errors on the elemental abundances are standard deviation assuming a Gaussian distribution of the abundances derived from each line

$$% \bar{x}=\frac{\sum_{i}^{}x_{i}}{N}$$ (A.5)

$$% \sigma^{2}=\frac{\sum_{i}^{}(x_{i}-\bar{x})^{2}}{N}$$ (A.6)

where $\bar{x}$ is the mean value of the abundance, N the number of lines of the element and $\sigma$ the standard deviation.

Acknowledgements

We warmly thank the OHP night staff for the support during the observing runs. This research has used the SIMBAD, WEBDA, VALD, NIST and Kurucz databases.

References


• Bahcall, J. N., & Pinsonneault, M. H. 1992, Rev. Mod. Phys., 64, 885
• Baranne, A., Queloz, D., Mayor, M., et al. 1996, A&AS, 119, 373
• Biermann, L., & Lübeck, K. 1948, Z. Astrophys., 25, 325
• Biemont, E., Grevesse, N., Hannaford, P., & Lowe, R. M. 1981, ApJ, 248, 867
• Bikmaev, I. F., Ryabchikova, T. A., Bruntt, H., et al. 2002, A&A, 389, 537
• Burkhart, C., & Coupry, M. F. 2000, A&A, 354, 216
• Boesgaard, A. M. 1987, ApJ, 321, 967
• Bounatiro, L. 1993, A&AS, 100, 531
• Castelli, F., & Kurucz, R. L. 2003, IAU Symp., 210, 20P
• Cayrel, R., Cayrel de Strobel, G., & Campbell, B. 1988, The Impact of Very High S/N Spectroscopy on Stellar Physics, 132, 449
• Charbonneau, P., & Michaud, G. 1991, ApJ, 370, 693
• Coupry, M. F., & Burkhart, C. 1992, A&AS, 95, 41
• Christensen-Dalsgaard, J., & Daeppen, W. 1992, A&AR, 4, 267
• Dommanget, J., & Nys, O. 1995, Bulletin d'Information du Centre de Données Stellaires, 46, 3
• Edvardsson, B., Andersen, J., Gustafsson, B., et al. 1993, A&A, 275, 101
• Eggleton, P. P., Faulkner, J., & Flannery, B. P. 1973, A&A, 23, 325
• Erspamer, D., & North, P. 2002, A&A, 383, 227
• Friel, E. D., & Boesgaard, A. M. 1992, ApJ, 387, 170
• Fuhr, J. R., Martin, G. A., & Wiese, W. L. 1988 (New York: American Institute of Physics (AIP) and American Chemical Society)
• Giddings, J. R. 1981, Ph.D. Thesis
• Gigas, D. 1988, A&A, 192, 264
• Gillet, D., Burnage, R., Kohler, D., et al. 1994, A&AS, 108, 181
• Gonzalez, J.-F., LeBlanc, F., Artru, M.-C., & Michaud, G. 1995, A&A, 297, 223
• Grevesse, N., & Sauval, A. J. 1998, Space Sci. Rev., 85, 161
• Hill, G. M. 1995, A&A, 294, 536
• Hill, G. M., & Landstreet, J. D. 1993, A&A, 276, 142
• Holweger, H., Steffen, M., & Gigas, D. 1986, A&A, 163, 333
• Horne, K. 1986, PASP, 98, 609
• Hubeny, I., & Lanz, T. 1992, A&A, 262, 501
• Hui-Bon-Hoa, A., & Alecian, G. 1998, A&A, 332, 224
• Hui-Bon-Hoa, A., Burkhart, C., & Alecian, G. 1997, A&A, 323, 901
• Jeffries, R. D. 1999, MNRAS, 304, 821
• Kostyk, R. I., & Orlova, T. V. 1983, Astrometriia i Astrofizika, 49, 39
• Kupka, F., Piskunov, N., Ryabchikova, T. A., Stempels, H. C., & Weiss, W. W. 1999, A&AS, 138, 119
• Kurucz, R. L. 1979, ApJS, 40, 1
• Kurucz, R. L. 1992a, Rev. Mex. Astron. Astrofis., 23, 45
• Kurucz, R. L. 1992b, Rev. Mex. Astron. Astrofis., 23, 181
• Kurucz, R. L. 2005, Mem. Soc. Astron. Ital. Supp., 8, 14
• Lambert, D. L., McKinley, L. K., & Roby, S. W. 1986, PASP, 98, 927
• LeBlanc, F., Michaud, G., & Richer, J. 2000, ApJ, 538, 876
• Lemke, M. 1989, A&A, 225, 125
• Lemke, M. 1990, A&A, 240, 331
• Magazzu, A., & Cowley, C. R. 1986, ApJ, 308, 254
• Miles, B. M., & Wiese, W. L. 1969, Atomic Data, 1, 1
• Monier, R. 2005, A&A, 442, 563
• Monier, R., & Richard, O. 2004, IAU Symp., 224, 209
• Napiwotzki, R., Schoenberner, D., & Wenske, V. 1993, A&A, 268, 653
• Nissen, P. E. 1981, A&A, 97, 145
• Pickering, J. C., Thorne, A. P., & Perez, R. 2002, ApJS, 138, 247
• Przybilla, N., Butler, K., Becker, S. R., Kudritzki, R. P., & Venn, K. A. 2000, A&A, 359, 1085
• Przybilla, N., Butler, K., Becker, S. R., & Kudritzki, R. P. 2001, A&A, 369, 1009
• Rentzsch-Holm, I. 1996, A&A, 312, 966
• Rentzsch-Holm, I. 1997, A&A, 317, 178
• Richard, O., Michaud, G., & Richer, J. 2001, ApJ, 558, 377
• Richard, O., Michaud, G., & Richer, J. 2002, IAU Colloq. 185, Radial and Nonradial Pulsations as Probes of Stellar Physics, 259, 270
• Richer, J., Michaud, G., & Turcotte, S. 2000, ApJ, 529, 338
• Savanov, I. S. 1996, Astronomy Reports, 40, 196
• Rodriguez, E., Lopez de Coca, P., Rolland, A., Garrido, R., & Costa, V. 1994, A&AS, 106, 21
• Schatzman, E. 1969, A&A, 3, 331
• Sigut, T. A. A., & Landstreet, J. D. 1990, MNRAS, 247, 611
• Smalley, B. 2004, IAU Symp., 224, 131
• Soderblom, D. R., Oey, M. S., Johnson, D. R. H., & Stone, R. P. S. 1990, AJ, 99, 595
• Steffen, M. 1985, A&AS, 59, 403
• Takeda, Y. 1995, PASJ, 47, 287
• Tody, D. 1993, Astronomical Data Analysis Software and Systems II, ASP Conf. Ser., 52, 173
• Trumpler, R. J. 1938, Lick Observatory Bulletin, 18, 167
• Turcotte, S., Richer, J., & Michaud, G. 1998a, ApJ, 504, 559
• Turcotte, S., Richer, J., Michaud, G., Iglesias, C. A., & Rogers, F. J. 1998b, ApJ, 504, 539
• Varenne, O. 1999, A&A, 341, 233
• Varenne, O., & Monier, R. 1999, A&A, 351, 247
• Ward, L. 1985, MNRAS, 213, 71
• Zahn, J.-P. 2005, EAS Publ. Ser., 17, 157




2 Online Material



Table 3: Observing log of the programme stars of Coma Berenices. The first table describes the ELODIE observations and the second one the AURELIE observations.

HD	spectral	MV	exposure	S/N	Date
	type	mag	time (s)
106103	F5V	8.09	4500	144	04/10/04
106293	F5V	8.09	4500	132	04/10/04
106691	F5IV	8.08	4500	147	04/10/04
106946	F2V	7.87	4500	180	04/11/04
107611	F6V	8.50	4500	129	04/11/04
109530	F2V	7.30	4500	185	04/12/04
106887	A4m	5.71	3600	283	04/07/04
106999	Am	7.46	4500	177	04/10/04
107131	A6IV-V	6.44	4500	213	04/09/04
107168	A8m	6.24	4500	215	04/07/04
107276	Am	6.63	4500	152	04/09/04
107513	Am	7.38	4500	184	04/10/04
107655	A0V	6.18	4500	254	04/07/04
107966	A3V	5.18	3600	336	04/07/04
108382	A4V	4.96	3600	337	04/07/04
108486	Am	6.67	4500	121	04/09/04
108642	A2m	6.54	4500	170	04/09/04
108651	A0p	6.65	4500	450	04/11/04
109307	A4Vm	6.26	3600	114	04/08/04

HD	spectral	MV	grating 5: $\lambda_{\rm c}$ = 4505 Å	Date	grating 7: $\lambda_{\rm c}$ = 6160 Å	$\lambda_{\rm c}$ = 5080 Å	$\lambda_{\rm c}$ = 5530 Å
	type	mag	exp. time (s)		exp. time (mn)	exp. time (mn)	exp. time (mn)
107168	A8m	6.24	800	03/14/04	75	104	120 (grating 1)
107513	Am	7.38	2000	03/15/04	120	120	120
106103	F5V	8.09	4500	03/15/04	60
107655	A0V	6.18	800	03/15/04	135	85	90
106887	A4m	5.71	600	03/15/04			60
107131	A6IV-V	6.44	800	03/15/04	110
107276	Am	6.63	1000	03/15/04	90	120	75
107966	A3V	5.18	500	03/15/04	45	105	40
108382	A4V	4.96	500	03/15/04	60	74
108486	Am	6.67	1000	03/15/04		180	90
108642	A2m	6.54	1000	03/15/04	90	120
108651	A0p	6.65	1000	03/15/04	105	150
109307	A4Vm	6.26	800	03/15/04	120	120 (grating 1)	80
106293	F5V	8.09	4500	03/16/04	130
106691	F5IV	8.08	4500	03/16/04	120	150	120
109069	F0V	7.55	3000	03/16/04	100	150	110
107877	F6	8.35	4500	03/16/04	180	165
107611	F6V	8.50	4500	03/16/04	90
108154	F5	8.56	4500	03/17/04	180		165
108226	F5	8.34	4500	03/17/04	90	180
108976	F6V	8.54	4500	03/17/04	150		140
109530	F2V	7.30	3000	03/17/04	100	120	110



Table 4: Abundances relative to hydrogen and to the solar value, $[\frac{\rm X}{\rm H}]=\log(\frac{\rm X}{\rm H})_{\star}-\log(\frac{\rm X}{\rm H})_{\odot}$ for the A stars. The solar values are those of Grevesse & Sauval (1998). The HD numbers in italics are those for which the uncertainties have been calculated as explained in Appendix A. For the others, the quantities labeled as $\sigma$ are standard deviations.

HD	SpT	CI	$\sigma_{\rm C}$	OI	$\sigma_{\rm O}$	NaI	$\sigma_{\rm Na}$	MgII	$\sigma_{\rm Mg}$	SiII	$\sigma_{\rm Si}$
HD 107966	A3V/A3IV	-0.07	0.04	0.00	0.05	0.52	0.13	0.13	0.09	0.14	0.09
HD 108382	A4V/A3IV	-0.71	0.15	-0.02	0.06	0.24	0.18	0.13	0.12	0.18	0.19
HD 106887	A4m	-0.56	0.15	-0.43	0.06	0.54	0.08	0.17	0.13	0.23	0.20
HD 107655	A0V	-0.75	0.19	-0.58	0.06	0.55	0.21	-0.12	0.18	0.06	0.07
HD 107168	A8m/kA5hA5mF0	-0.65	0.08	-0.40	0.04	1.06	0.03	0.49	0.18	0.77	0.12
HD 109307	A4Vm/A3IV-V	-0.36	0.01	-0.31	0.12	0.65	0.45	-0.07	0.29	0.23	0.18
HD 108642	A2m/kA2hA7mA7	-0.75	0.16	-0.85	0.12	0.13	0.14	0.25	0.19	0.09	0.09
HD 107276	Am/Ka5mA7	-0.13	0.27	-0.08	0.04	0.51	0.08	0.25	0.18	0.21	0.18
HD 108486	AmkA3hA5mA7	-0.69	0.20	-0.86	0.04	0.60	0.34	-0.02	0.18	0.02	0.21
HD 106999	Am	-0.15	0.10	-0.02	0.04	1.04	0.11	0.40	0.18	0.26	0.09
HD 107513	Am/kA7hF0mF0	-0.36	0.10	-0.15	0.12	0.10	0.10	0.22	0.16	0.12	0.12
HD	SpT	CaII	$\sigma_{\rm Ca}$	ScII	$\sigma_{\rm Sc}$	TiII	$\sigma_{\rm Ti}$	VII	$\sigma_{\rm V}$	CrII	$\sigma_{\rm Cr}$
HD 107966	A3V/A3IV	-0.08	0.08	-0.13	0.08	-0.10	0.05	-	-	0.08	0.09
HD 108382	A4V/A3IV	-0.19	0.04	0.12	0.26	-0.09	0.17	-	-	0.24	0.25
HD 106887	A4m	-0.11	0.21	0.03	0.34	0.12	0.15	-	-	0.13	0.12
HD 107655	A0V	-	-	-0.20	0.11	0.02	0.08	-	-	0.56	0.09
HD 107168	A8m/kA5hA5mF0	0.23	0.16	-0.18	0.10	0.48	0.08	-	-	0.48	0.20
HD 109307	A4Vm/A3IV-V	0.14	0.06	0.10	0.11	-0.07	0.10	-	-	0.03	0.05
HD 108642	A2m/kA2hA7mA7	-0.33	0.18	-1.17	0.20	-0.18	0.07	0.86	0.13	0.18	0.05
HD 107276	Am/Ka5mA7	-0.24	0.16	-0.06	0.23	0.04	0.22	0.90	0.10	-0.08	0.11
HD 108486	AmkA3hA5mA7	-0.22	0.15	-0.50	0.31	-0.20	0.13	0.70	0.29	0.08	0.15
HD 106999	Am	0.10	0.16	0.41	0.27	0.14	0.21	0.69	0.29	0.03	0.20
HD 107513	Am/kA7hF0mF0	-	-	-0.25	0.10	0.01	0.07	0.65	0.32	0.09	0.09
HD	SpT	MnI	$\sigma_{\rm Mn}$	FeII	$\sigma_{\rm Fe}$	Co	$\sigma_{\rm Co}$	NiI	$\sigma_{\rm Ni}$	SrII	$\sigma_{\rm Sr}$
HD 107966	A3V/A3IV	-0.35	0.18	-0.13	0.05	0.65	0.38	-0.18	0.07	-0.28	0.33
HD 108382	A4V/A3IV	-0.55	0.12	-0.14	0.10	-	-	-0.14	0.16	-0.26	0.02
HD 106887	A4m	0.02	0.21	0.21	0.15	-	-	0.37	0.11	0.59	0.08
HD 107655	A0V	-	-	0.08	0.05	-	-	0.77	0.23	-0.23	0.20
HD 107168	A8m/kA5hA5mF0	0.19	0.12	0.39	0.10	-	-	0.60	0.10	0.79	0.31
HD 109307	A4Vm/A3IV-V	-0.04	0.17	0.05	0.09	-0.06	0.35	0.12	0.08	0.46	0.10
HD 108642	A2m/kA2hA7mA7	-0.04	0.10	0.16	0.11	0.29	0.35	0.41	0.08	0.50	0.13
HD 107276	Am/Ka5mA7	-	-	0.03	0.23	-	-	-0.14	0.10	-0.22	0.19
HD 108486	AmkA3hA5mA7	-	-	0.20	0.09	-	-	0.21	0.21	0.76	0.02
HD 106999	Am	-	-	0.08	0.13	-	-	0.23	0.20	0.47	0.07
HD 107513	Am/kA7hF0mF0	-	-	-0.02	0.07	-	-	-0.23	0.10	-0.06	0.19
HD	SpT	YII	$\sigma_{\rm Y}$	ZrII	$\sigma_{\rm Zr}$	BaII	$\sigma_{\rm Ba}$
HD 107966	A3V/A3IV	0.00	0.13	0.38	0.12	0.04	0.26
HD 108382	A4V/A3IV	0.25	0.21	0.16	0.17	-0.24	0.03
HD 106887	A4m	0.78	0.16	0.61	0.15	1.40	0.26
HD 107655	A0V	0.80	0.15	0.78	0.12	0.72	0.32
HD 107168	A8m/kA5hA5mF0	0.97	0.12	0.93	0.13
HD 109307	A4Vm/A3IV-V	0.56	0.07	0.60	0.11	1.17	0.23
HD 108642	A2m/kA2hA7mA7	0.88	0.12	0.75	0.12	1.79	0.24
HD 107276	Am/Ka5mA7	0.12	0.10	-0.15	0.20	0.44	0.21
HD 108486	AmkA3hA5mA7	0.56	0.12	0.67	0.13	1.57	0.21
HD 106999	Am	0.27	0.11	0.49	0.08	0.78	0.07
HD 107513	Am/kA7hF0mF0	0.08	0.11	0.13	0.20	0.53	0.15



Table 5: Abundances relative to hydrogen and to the solar value, $[\frac{\rm X}{\rm H}]=\log(\frac{\rm X}{\rm H})_{\star}-\log(\frac{\rm X}{\rm H})_{\odot}$ for the F stars. The HD numbers in italics are those for which the uncertainties have been calculated as explained in Appendix A. For the others, the quantities labeled as $\sigma$ are standard deviations.

HD	SpT	CI	$\sigma_{\rm C}$	OI	$\sigma_{\rm O}$	NaI	$\sigma_{\rm Na}$	MgII(MgI)	$\sigma_{\rm Mg}$	SiII	$\sigma_{\rm Si}$
HD 106103	F5V	-0.04	0.08	-0.32	0.15	-0.04	0.04	0.30(0.02)	0.21(0.09)	0.10	0.10
HD 106293	F5V	-0.07	0.27	-	-	0.01	0.18	0.45(0.10)	0.18(0.06)	0.26	0.11
HD 106691	F5IV	-0.07	0.16	-0.26	0.15	-0.06	0.20	0.30(0.10)	0.18(0.07)	0.12	0.08
HD 106946	F2V	-0.02	0.20	0.02	0.15	0.09	0.14	0.45(0.13)	0.18(0.04)	0.26	0.07
HD 107611	F6V	0.05	0.10	-	-	-0.10	0.04	0.23(0.10)	0.18(0.15)	0.22	0.12
HD 109530	F2V	0.08	0.09	0.10	0.14	0.16	0.12	0.39(-0.01)	0.11(0.13)	0.13	0.28
HD 107877	F6	-	-	-	-	-0.13	0.03	0.40	0.18	-	-
HD 108154	F5	-	-	-	-	-0.13	0.21	0.15	0.18	-	-
HD 108226	F5	-	-	-	-	0.04	0.23	0.22	0.18	-	-
HD 108976	F6 V	-	-	-	-	0.02	0.20	0.13	0.18	-	-
HD 109069	F0 V	-	-	-	-	-	-	0.41	0.18	-	-
HD	SpT	CaII	$\sigma_{\rm Ca}$	ScII	$\sigma_{\rm Sc}$	TiII	$\sigma_{\rm Ti}$	VII	$\sigma_{\rm V}$	CrII	$\sigma_{\rm Cr}$
HD 106103	F5V	-0.17	0.21	0.00	0.08	0.00	0.10	0.44	0.15	0.05	0.10
HD 106293	F5V	-	-	-0.07	0.15	0.01	0.16	0.62	0.19	0.11	0.09
HD 106691	F5IV	-0.23	0.19	-0.01	0.16	0.00	0.15	0.42	0.33	0.04	0.12
HD 106946	F2V	-	-	-0.04	0.17	0.21	0.17	0.60	0.44	0.11	0.18
HD 107611	F6V	-	-	-0.05	0.08	0.14	0.06	0.68	0.10	0.10	0.08
HD 109530	F2V	-	-	0.06	0.14	0.25	0.10	0.45	0.33	0.02	0.08
HD 107877	F6	-	-	-	-	0.18	0.23	0.64	0.26	0.33	0.08
HD 108154	F5	-	-	-	-	0.18	0.13	0.12	0.36	0.38	0.08
HD 108226	F5	-	-	-	-	0.24	0.14	0.57	0.25	0.38	0.08
HD 108976	F6 V	-	-	-	-	0.09	0.15	0.56	0.12	0.22	0.08
HD 109069	F0 V	-	-	-	-	-0.01	0.21	0.40	0.02	-	-
HD	SpT	MnI	$\sigma_{\rm Mn}$	FeII	$\sigma_{\rm Fe}$	Co	$\sigma_{\rm Co}$	NiI	$\sigma_{\rm Ni}$	SrII	$\sigma_{\rm Sr}$
HD 106103	F5V	-0.06	0.07	0.09	0.05	-0.01	0.26	0.13	0.07	0.20	0.15
HD 106293	F5V	0.04	0.09	0.19	0.17	0.44	0.26	0.21	0.22	-0.01	0.00
HD 106691	F5IV	0.08	0.10	-0.08	0.16	0.64	0.14	-0.04	0.08	0.15	0.02
HD 106946	F2V	0.08	0.07	0.18	0.08	0.29	0.25	-0.02	0.18	0.12	0.10
HD 107611	F6V	0.01	0.06	0.09	0.05	-0.10	0.33	-0.06	0.05	0.14	0.17
HD 109530	F2V	-0.20	0.31	0.15	0.09	-0.02	0.24	0.21	0.11	0.27	0.20
HD 107877	F6	0.15	0.12	0.15	0.13	-0.30	0.28	0.12	0.08	-	-
HD 108154	F5	0.13	0.13	0.01	0.11	-0.35	0.30	0.09	0.08	-	-
HD 108226	F5	0.11	0.07	0.05	0.11	-0.30	0.34	0.08	0.08	-	-
HD 108976	F6 V	-0.46	0.12	-0.01	0.14	-0.29	0.16	0.03	0.13	-	-
HD 109069	F0 V	-	-	-0.03	0.17	0.45	0.37	0.29	0.14	-	-
HD	SpT	YII	$\sigma_{\rm Y}$	ZrII	$\sigma_{\rm ZrII}$	BaII	$\sigma_{\rm Ba}$
HD 106103	F5V	0.00	0.08	0.04	0.11	0.86	0.10
HD 106293	F5V	0.01	0.06	-0.04	0.09	0.64	0.23
HD 106691	F5IV	0.04	0.08	0.50	0.15	0.65	0.21
HD 106946	F2V	0.24	0.19	0.38	0.09	0.59	0.16
HD 107611	F6V	0.10	0.12	0.13	0.17	0.84	0.10
HD 109530	F2V	0.06	0.20	-0.13	0.14	0.43	0.14
HD 107877	F6	-	-	0.14	0.17	0.56	0.10
HD 108154	F5	-	-	0.03	0.17	0.54	0.10
HD 108226	F5	-	-	-0.06	0.17	0.59	0.10
HD 108976	F6 V	-	-	-0.50	0.17	0.29	0.10
HD 109069	F0 V	-	-	-0.04	0.17	0.37	0.10



Table 8: Linelist used for abundance determination. The ``A'' term is used for a gf accurancy lower than 3%, ``B'' lower than 10%, ``C+'' lower than 18%, ``C'' lower than 25%, ``D+'' lower than 40%, ``D'' lower than 50% and ``E'' higher than 50%. If no accurancy is available, we used the E (i.e. 50%) value in the uncertainties calculations. References are FMW for Fuhr et al. (1988); PTP for Pickering et al. (2002); NBS for Miles & Wiese (1969); KO83 for Kostyk & Orlova (1983); SL90 for Sigut & Landstreet (1990); BL48 for Biermann & Lübeck (1948); Bal81 for Biemont et al. (1981); MC86 for Magazzu & Cowley (1986); W85 for Ward (1985) and Kurucz ( http://kurucz.harvard.edu/LINELISTS/GFALL/) for the gfall.dat linelist.

Element	$\lambda$(Å)	$\log gf$	Accuracy	References	Element	$\lambda$(Å)	$\log gf$	Accuracy	References
(Ionization)					(Ionization)
CI	4371, 3670	-1.962	B	NIST	SiII	4072, 7090	-2.367		SL90
CI	4932, 0490	-1.658	B	NIST	SiII	4075, 4520	-1.403		SL90
CI	5052, 1670	-1.303	B	NIST	SiII	4128, 0540	0.306	C	NIST
CI	5380, 3370	-1.616	B	NIST	SiII	4130, 8940	0.464	C	NIST
CI	5793, 1200	-2.063	B	NIST	SiII	4190, 7240	-0.351		NIST
CI	5800, 6020	-2.337	B	NIST	SiII	4198, 1330	-0.611		NIST
CI	6587, 6100	-1.003	B	NIST	SiII	4621, 4180	-0.540	D	Kurucz
					SiII	4621, 6960	-1.675	D	Kurucz
OI	3947, 2950	-2.095	B	NIST	SiII	4621, 7220	-0.387	D	Kurucz
OI	3947, 4810	-2.244	B	NIST	SiII	5041, 0240	0.174	D+	NIST
OI	3947, 5860	-2.467	B	NIST	SiII	5055, 9840	0.441	D+	NIST
OI	3947, 9530	-1.761	B	FMW	SiII	5056, 3170	-0.535	E	NIST
OI	4368, 1930	-2.665	B	NIST	SiII	5466, 4320	-0.190	D	Kurucz
OI	4368, 2420	-1.964	B	NIST	SiII	5669, 5630	0.266		NIST
OI	4368, 2580	-2.818	B	NIST	SiII	5688, 8170	0.106		NIST
OI	5329, 6730	-2.063	C+	NIST	SiII	5957, 5590	-0.349	D	NIST
OI	5329, 6810	-1.473	C+	NIST	SiII	5978, 9300	-0.061	D	NIST
OI	5329, 6900	-1.268	C+	NIST	SiII	6347, 1100	0.230	C	NIST
OI	5330, 7260	-2.416	C+	NIST	SiII	6371, 3710	-0.080	C	NIST
OI	5330, 7350	-1.570	C+	NIST
OI	5330, 7410	-0.983	C+	NIST	CaII	3933, 6630	-0.135	C	NIST
OI	6155, 9610	-1.363	B	NIST	CaII	3968, 4690	-0.180	C	NIST
OI	6155, 9710	-1.011	B	NIST	CaII	4472, 0500	-2.694		Kurucz
OI	6155, 9890	-1.120	B	NIST	CaII	4479, 4330	-2.994		Kurucz
OI	6156, 7370	-1.487	B	NIST	CaII	4489, 1790	-0.726		Kurucz
OI	6156, 7550	-0.898	B	NIST	CaII	4489, 1790	-2.157		Kurucz
OI	6156, 7780	-0.694	B	NIST	CaII	4489, 1790	-0.613		Kurucz
OI	6158, 1490	-1.841	B	NIST	CaII	5001, 4790	-0.517	D	NIST
OI	6158, 1720	-0.995	B	NIST	CaII	5019, 9710	-0.257	D	NIST
OI	6158, 1870	-0.409	B	NIST	CaII	5021, 1380	-1.217	D	NIST
					CaII	5285, 2660	-1.153	D	NIST
NaI	4494.1800	-1.840	C	NIST	CaII	5307, 2240	-0.853	D	NIST
NaI	4497.6570	-1.574	B	NIST
NaI	4668.5590	-1.310	C	NIST	ScII	4246, 8220	0.242	D	NIST
NaI	4978.5410	-1.210	C	NIST	ScII	4314, 0830	-0.100	D	NIST
NaI	4982.8130	-0.961	C	NIST	ScII	4320, 7320	-0.250	D	NIST
NaI	5889.9500	0.112	A	NIST	ScII	4324, 9960	-0.440	D	NIST
NaI	5895.9240	-0.191	A	NIST	ScII	4374, 4570	-0.418	D	NIST
NaI	6154.2260	-1.547	A	NIST	ScII	4670, 4070	-0.576	D	NIST
NaI	6160.7470	-1.230	C	NIST	ScII	5031, 0210	-0.400	D	NIST
					ScII	5239, 8130	-0.765	D	NIST
MgII	4384, 6370	-0.792	D	NIST	ScII	5526, 7900	0.020	D	NIST
MgII	4390, 5140	-1.706	D	NIST	ScII	5657, 8960	-0.603	D	NIST
MgII	4390, 5720	-0.530	D	NIST	ScII	6604, 6010	-1.310	D	NIST
MgII	4427, 9940	-1.201	C+	NIST
MgII	4481, 1260	0.730	B	BL48	TiII	4163, 6440	-0.130	D	PTP
MgII	4481, 1500	-0.570	B	BL48	TiII	4287, 8730	-1.790		PTP
MgII	4481, 3250	0.575	B	BL48	TiII	4290, 2190	-0.850		PTP
MgI	4702, 9910	-0.374	C	NIST	TiII	4294, 0990	-0.930		PTP
MgI	5167, 3213	-0.856	B	NIST	TiII	4300, 0420	-0.440	D	PTP
MgI	5172, 6844	-0.380	B	NIST	TiII	4316, 7940	-1.420	D	KO83
MgI	5183, 6034	-0.158	B	NIST	TiII	4386, 8440	-0.960		PTP
MgI	5528, 4050	-0.498	B+		TiII	4394, 0590	-1.780		PTP
					TiII	4395, 0310	-0.540	A	PTP
					TiII	4399, 7720	-1.190		PTP
TiII	4411, 0720	-0.670	D	PTP	FeII	4233, 1720	-2.000	C	FMW
TiII	4417, 7140	-1.190		PTP	FeII	4258, 1540	-3.400	D	FMW
TiII	4443, 8010	-0.720	D	PTP	FeII	4273, 3260	-3.258	D	FMW
TiII	4468, 4920	-0.600	D	FMW	FeII	4296, 5720	-3.010	D	FMW
TiII	4488, 3250	-0.510	D	PTP	FeII	4385, 3870	-2.570	D	FMW
TiII	4501, 2700	-0.770	D	PTP	FeII	4416, 8300	-2.600	D	FMW
TiII	4549, 6210	-0.470	D	PTP	FeII	4472, 0900	-1.791		Kurucz
TiII	4571, 9710	-0.320	D	PTP	FeII	4472, 6200	-2.340		Kurucz
TiII	4589, 9580	-1.780	D	PTP	FeII	4472, 9290	-3.430		Kurucz
TiII	4629, 2740	-2.240		Kurucz	FeII	4491, 4050	-2.690	C	FMW
TiII	4657, 2000	-2.240		Kurucz	FeII	4508, 2880	-2.210	C	FMW
TiII	4805, 0850	-1.100	D	PTP	FeII	4515, 3390	-2.490	C	FMW
TiII	5129, 1560	-1.400	D	KO83	FeII	4520, 2240	-2.600	C	FMW
TiII	5188, 6870	-1.050	D	PTP	FeII	4522, 6340	-2.030	C	FMW
TiII	5336, 7860	-1.590	A	PTP	FeII	4541, 5240	-3.050	C	FMW
					FeII	4555, 8900	-2.290		FMW
VII	4475.6700	-1.440		Kurucz	FeII	4576, 3400	-3.040		FMW
VII	4528.5000	-0.960		Kurucz	FeII	4582, 8350	-3.100	C	FMW
VII	4532.1700	-0.760		Kurucz	FeII	4620, 5210	-3.280	D	FMW
VII	4538.6200	-1.800		Kurucz	FeII	4635, 3160	-1.650	D	FMW
VII	4558.4500	-0.930		Kurucz	FeII	4656, 9810	-3.630	E	FMW
VII	4564.5900	-1.450		Kurucz	FeII	4666, 7580	-3.330	D	FMW
VII	4577.1300	-2.140		Kurucz	FeII	4923, 9270	-1.320	C	FMW
VII	4590.5000	-0.780		Kurucz	FeII	5197, 5770	-2.100	C	FMW
VII	4600.1800	-1.360		Kurucz	FeII	5276, 0020	-1.940	C	FMW
					FeII	5316, 6150	-1.850	C	FMW
CrII	4558, 6500	-0.660	D	Kurucz	FeII	5506, 1950	0.950	D	FMW
CrII	4588, 1990	-0.643		Kurucz
CrII	4592, 0490	-1.217	D	FMW	CoI	4466.8800	-0.540		Kurucz
CrII	4616, 6290	-1.291		SL90	CoI	4469.5400	-0.330		Kurucz
CrII	4618, 8030	-1.110	D	Kurucz	CoI	4471.5400	-0.770		Kurucz
CrII	4634, 0700	-0.990		Kurucz	CoI	4530.9500	0.150		Kurucz
CrII	4812, 3370	-1.995	D	Kurucz	CoI	4533.9800	-0.500		Kurucz
CrII	5237, 3290	-1.160	D	FMW	CoI	4549.6500	-0.330		Kurucz
CrII	5308, 4400	-1.810	D	FMW	CoI	4565.5800	-0.220		Kurucz
CrII	5313, 5900	-1.650	D	FMW	CoI	4581.5900	-0.150		Kurucz
CrII	5502, 0670	-1.990	D	FMW	CoI	4594.6300	-0.080		Kurucz
					CoI	4596.8900	-0.010		Kurucz
MnI	4451, 5860	0,278	B	FMW	CoI	4625.7600	-0.370		Kurucz
MnI	4453, 0120	-0.490	C+	FMW	CoI	4629.3600	-0.190		Kurucz
MnI	4457, 0440	-0.555	C+	FMW
MnI	4458, 2540	0.042	C+	FMW	NiI	4468.4340	-1.642		Kurucz
MnI	4461, 0790	-0.380	C+	FMW	NiI	4470.4720	-0.310	D	Kurucz
MnI	4462, 0310	0.320	C+	FMW	NiI	4480.5610	-1.491		Kurucz
MnI	4464, 6820	-0.104	B	FMW	NiI	4490.0490	-2.108		Kurucz
MnI	4470, 1440	-0.444	B	FMW	NiI	4490.5250	-2.324		Kurucz
MnI	4472, 8060	-0.583	B	FMW	NiI	4512.9860	-1.470	D	Kurucz
MnI	4490, 0900	-0.521	B	FMW	NiI	4519.9790	-2.880	D+	FMW
MnI	4498, 9020	-0.343	B	FMW	NiI	4521.3220	-0.949		Kurucz
MnI	4502, 2130	-0.344	B	FMW	NiI	4523.6940	-1.305		Kurucz
MnI	4709, 7120	-0.339	B	FMW	NiI	4528.5260	-1.127		Kurucz
MnI	4739, 0870	-0.490	B	FMW	NiI	4542.2370	-1.308		Kurucz
MnI	4754, 0420	-0.085	B	FMW	NiI	4546.9200	-0.271		Kurucz
MnI	4761, 5120	-0.138	B	FMW	NiI	4551.2170	-0.880	D	FMW
MnI	4762, 3670	0.426	B	FMW	NiI	4559.9210	-1.737		Kurucz
MnI	4783, 4270	0,042	B	FMW	NiI	4572.0410	-0.536		Kurucz
MnI	4823, 5240	0.144	B	FMW	NiI	4588.4110	-0.745		Kurucz
MnI	5255, 3260	-0,763	B	FMW	NiI	4592.5220	-0.370		Kurucz
					NiI	4596.3830	-0.704		Kurucz
					NiI	4600.3550	-0.610		FMW
NiI	4604.9820	-0.250	D	Kurucz	SrII	4077.7090	0.151		NIST
NiI	4606.2190	-1.000	D	FMW	SrII	4215.5200	-0.169		NIST
NiI	4609.9050	-0.580		Kurucz
NiI	4617.8620	-0.525		Kurucz	YII	4883.6840	0.070		kurucz
NiI	4631.0170	-0.957		Kurucz	YII	4900.1200	-0.09		kurucz
NiI	4648.6460	-0.100	D	Kurucz	YII	4982.1290	-1.290		kurucz
NiI	4886.7050	-1.780		Kurucz	YII	5087.4160	-0.170		kurucz
NiI	4886.9760	-1.120		Kurucz	YII	5200.4060	-0.570		kurucz
NiI	4900.9670	-1.670	E	FMW
NiI	4904.4070	-0.170	D	FMW	ZrII	4149.2170	-0.030		kurucz
NiI	4912.0200	-0.800	D	FMW	ZrII	4156.2400	-0.776		kurucz
NiI	4913.9680	-0.630	D	FMW	ZrII	4161.2100	-0.720		kurucz
NiI	4918.3620	-0.240	D	FMW	ZrII	4208.9800	-0.460		kurucz
NiI	4918.7060	-0.780		Kurucz	ZrII	4496.9600	-0.810		Bal81
NiI	4925.5590	-0.770	D	Kurucz
NiI	4935.8310	-0.350	D	FMW	BaII	4554, 0290	0.163	B	Kurucz
NiI	4937.3410	-0.390	D	FMW	BaII	4934, 0760	-0.156	B	NBS
NiI	4976.3260	-3.100	C+	NIST	BaII	5853, 6680	-1.510	B	NIST
NiI	5003.7410	-2.800	C+	NIST	BaII	6141, 7130	-0.810	B	NIST
NiI	5080.5280	0.330		kurucz	BaII	6496, 8970	-1.010	B	NIST
NiI	5081.1070	0.300		kurucz
NiI	5084.0890	0.090		kurucz
NiI	5096.8540	-0.900		kurucz
NiI	5099.9270	-0.100		kurucz
NiI	5102.9660	-2.620	C+	NIST
NiI	5137.0740	-1.990	C+	NIST
NiI	5476.9040	-0.890	C+	NIST
NiI	5553.6900	-3.240	C+	NIST
NiI	5587.8580	-2.140	C+	NIST
NiI	5592.2620	-2.590	C+	NIST
NiI	5711.8880	-2.260	C+	NIST
NiI	5754.6560	-2.340	C+	NIST
NiI	5892.8720	-2.340	C+	NIST
NiI	6163.4180	-0.682		kurucz
NiI	6170.5670	-1.808		kurucz
NiI	6175.3600	-0.530		kurucz
NiI	6176.8070	-0.260		kurucz
