All Figures

$\begin{figure} \par\includegraphics[width=16.5cm,clip]{7210fig01.eps} \end{figure}$ Figure 1: Colour composite of the long-exposure observed field of view in J (blue), H (green) and $K_{\rm s}$ (red). North is up and east is to the left.
Open with DEXTER

In the text

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics{7210fig02.eps}} \end{figure}$ Figure 2: NACO H band image of the central area of Tr14. The intensity scale is logarithmic. North is up and east is to the left.
Open with DEXTER

In the text

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics{7210fig03.eps}} \end{figure}$ Figure 3: $K_{\rm s}$ -band contour plot of the stellar density distribution from the SOFI and NACO data. The highest and lowest density contours correspond to 2330 and 330 sources/arcmin², respectively.
Open with DEXTER

In the text

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics{7210fig04.eps}} \end{figure}$ Figure 4: $K_{\rm s}$ -band radial stellar density distribution from the SOFI and NACO data. The solid line is our best fit to a King (1962) profile.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=17cm]{7210fig05.eps} \end{figure}$ Figure 5: Left panel: (J-H) vs. $(H-K_{\rm s})$ colour-colour diagram for the SOFI data. The brightest objects have larger symbols and the dashed lines define the reddening band of Rieke & Lebofsky (1985). Middle panel: $K_{\rm s}$ vs. $(H-K_{\rm s})$ colour-magnitude diagram for the SOFI data. Right panel: $K_{\rm s}$ vs. $(J-K_{\rm s})$ colour-magnitude diagram for the SOFI data.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=17cm]{7210fig06.eps} \end{figure}$ Figure 6: Same as Fig. 5 but with the main sequence of Bessell & Brett (1988) ( left panel) and of Lejeune & Schaerer (2001) ( middle and right panels) reddened by $A_{\rm v}=0.5$ , 1.4, and 2.6 mag.
Open with DEXTER

In the text

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics{7210fig07.eps}} \end{figure}$ Figure 7: Spatial distribution of the sources in the blue and red sequences ( blue circles and red circles, see text). The light contours are the same as in Fig. 3 (surface density contour distribution).
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=17cm]{7210fig08.eps} \end{figure}$ Figure 8: Left panel: 2MASS stellar density map in the area containing and surrounding Tr14. The darkest areas correspond to the highest densities. The locations of Tr14 and Tr16 (namely $\eta$ Car) are indicated with a star and the appropriate indication. Right panel: radial density profile for the same 2MASS data. The bins are $12\hbox {$^{\prime \prime }$ }$ wide.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=15cm,clip]{7210fig09.eps} \end{figure}$ Figure 9: Left panel: (J-H) vs. $(H-K_{\rm s})$ colour-colour diagram for the cluster, highlighting the sources used to build the extinction map as black filled circles. Right panel: background extinction map for the central area of our field. The darker contours are for higher extinctions, and the star symbol represents the position of the O2.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=17cm]{7210fig10.eps} \end{figure}$ Figure 10: Left panel: (J-H) - ( $H-K_{\rm s}$ ) colour-colour diagram for the SOFI data. The solid line on the data represents the main-sequence of Bessell & Brett (1988) reddened by $A_{\rm v}=2.6$ mag. Right panel: (J-H) - ( $K_{\rm s}-L'$ ) colour-colour diagram for the NACO data.
Open with DEXTER

In the text

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics{7210fig11.eps}} \end{figure}$ Figure 11: Left panel: $K_{\rm s}$ vs. $(J-K_{\rm s})$ colour-magnitude diagram for the NACO data ( black stars) superposed on the SOFI data ( gray plus signs). Right panel: location of the sources from ANCHORS detected in X-rays ( black stars) superposed on the SOFI data ( gray plus signs) on the $K_{\rm s}$ vs. $(J-K_{\rm s})$ colour-magnitude diagram.
Open with DEXTER

In the text

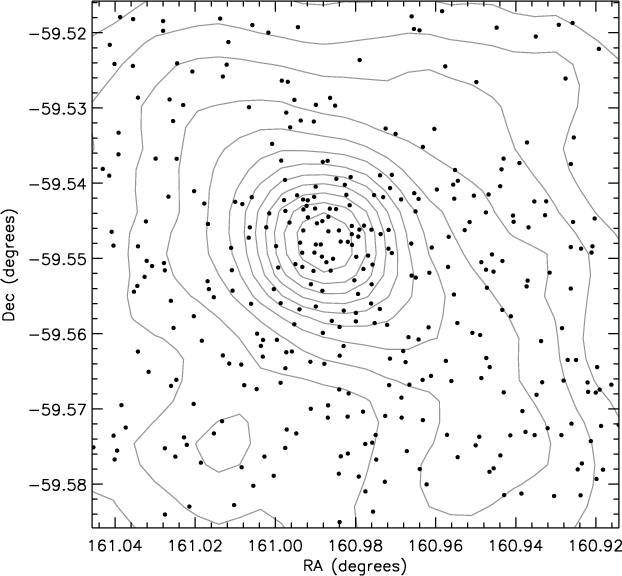

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics{7210fig12.eps}} \end{figure}$ Figure 12: Spatial distribution of the sources detected with Chandra (ANCHORS database). The light contours are the same as in Fig. 3 (surface density contour distribution).
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=17cm]{7210fig13.eps} \end{figure}$ Figure 13: $K_{\rm s}$ vs. $(J-K_{\rm s})$ colour-magnitude diagram for the SOFI data without( left panel) and with ( right panel) the PMS isochrones of Palla & Stahler (1993): 0.0-0.3 Myr ( blue), 1.4-2.5 Myr ( orange), and 3.2-5.0 Myr ( red).
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=17cm]{7210fig14.eps} \end{figure}$ Figure 14: Left panel: $K_{\rm s}$ -luminosity function for the SOFI data. The light and dark lines represent the function before and after the control field subtraction, respectively. Right panel: $K_{\rm s}$ -luminosity function for the NACO data. No control field subtraction was applied.
Open with DEXTER

In the text

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics{7210fig15.eps}} \end{figure}$ Figure 15: Location of the proplyd candidates identified by Smith et al. (2003) in our SOFI images. From left to right, using their nomenclature: (e) (104339.1-593257 and 104339.8-593247), (f) (104402.8-593209, 104402.3-593214, and 104402.5-593218), (g) (104411.2-593325) and (i) (104359.6-593238). In the colour images blue is J, green is H, and red is $K_{\rm s}$ . The leftmost image is black and white because it is only present in our $K_{\rm s}$ -band image.
Open with DEXTER

In the text

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics{7210fig16.eps}} \end{figure}$ Figure 16: Left: compact nebula around a B star located at $10^{\rm h}44^{\rm m}05\hbox{$.\!\!^{\rm s}$ }1$ , $-59^\circ 33\hbox {$^\prime $ }41\hbox {$^{\prime \prime }$ }$ in the surveyed field. Blue is J, green is H, and red is $K_{\rm s}$ . Right: extended feature ( $10^{\rm h}43^{\rm m}57\hbox{$.\!\!^{\rm s}$ }3$ , $-59^\circ32'57\hbox{$.\!\!^{\prime\prime}$ }59$ ) detected in the $L^{\prime }$ -band. North is up and east is to the left in both images.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=16.5cm,clip]{7210fig01.eps} \end{figure}$	Figure 1: Colour composite of the long-exposure observed field of view in J (blue), H (green) and $K_{\rm s}$ (red). North is up and east is to the left.
Open with DEXTER

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics{7210fig02.eps}} \end{figure}$	Figure 2: NACO H band image of the central area of Tr14. The intensity scale is logarithmic. North is up and east is to the left.
Open with DEXTER

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics{7210fig03.eps}} \end{figure}$	Figure 3: $K_{\rm s}$ -band contour plot of the stellar density distribution from the SOFI and NACO data. The highest and lowest density contours correspond to 2330 and 330 sources/arcmin², respectively.
Open with DEXTER

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics{7210fig04.eps}} \end{figure}$	Figure 4: $K_{\rm s}$ -band radial stellar density distribution from the SOFI and NACO data. The solid line is our best fit to a King (1962) profile.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=17cm]{7210fig05.eps} \end{figure}$	Figure 5: Left panel: (J-H) vs. $(H-K_{\rm s})$ colour-colour diagram for the SOFI data. The brightest objects have larger symbols and the dashed lines define the reddening band of Rieke & Lebofsky (1985). Middle panel: $K_{\rm s}$ vs. $(H-K_{\rm s})$ colour-magnitude diagram for the SOFI data. Right panel: $K_{\rm s}$ vs. $(J-K_{\rm s})$ colour-magnitude diagram for the SOFI data.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=17cm]{7210fig06.eps} \end{figure}$	Figure 6: Same as Fig. 5 but with the main sequence of Bessell & Brett (1988) ( left panel) and of Lejeune & Schaerer (2001) ( middle and right panels) reddened by $A_{\rm v}=0.5$ , 1.4, and 2.6 mag.
Open with DEXTER

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics{7210fig07.eps}} \end{figure}$	Figure 7: Spatial distribution of the sources in the blue and red sequences ( blue circles and red circles, see text). The light contours are the same as in Fig. 3 (surface density contour distribution).
Open with DEXTER

$\begin{figure} \par\includegraphics[width=17cm]{7210fig08.eps} \end{figure}$	Figure 8: Left panel: 2MASS stellar density map in the area containing and surrounding Tr14. The darkest areas correspond to the highest densities. The locations of Tr14 and Tr16 (namely $\eta$ Car) are indicated with a star and the appropriate indication. Right panel: radial density profile for the same 2MASS data. The bins are $12\hbox {$^{\prime \prime }$ }$ wide.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=15cm,clip]{7210fig09.eps} \end{figure}$	Figure 9: Left panel: (J-H) vs. $(H-K_{\rm s})$ colour-colour diagram for the cluster, highlighting the sources used to build the extinction map as black filled circles. Right panel: background extinction map for the central area of our field. The darker contours are for higher extinctions, and the star symbol represents the position of the O2.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=17cm]{7210fig10.eps} \end{figure}$	Figure 10: Left panel: (J-H) - ( $H-K_{\rm s}$ ) colour-colour diagram for the SOFI data. The solid line on the data represents the main-sequence of Bessell & Brett (1988) reddened by $A_{\rm v}=2.6$ mag. Right panel: (J-H) - ( $K_{\rm s}-L'$ ) colour-colour diagram for the NACO data.
Open with DEXTER

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics{7210fig11.eps}} \end{figure}$	Figure 11: Left panel: $K_{\rm s}$ vs. $(J-K_{\rm s})$ colour-magnitude diagram for the NACO data ( black stars) superposed on the SOFI data ( gray plus signs). Right panel: location of the sources from ANCHORS detected in X-rays ( black stars) superposed on the SOFI data ( gray plus signs) on the $K_{\rm s}$ vs. $(J-K_{\rm s})$ colour-magnitude diagram.
Open with DEXTER

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics{7210fig12.eps}} \end{figure}$	Figure 12: Spatial distribution of the sources detected with Chandra (ANCHORS database). The light contours are the same as in Fig. 3 (surface density contour distribution).
Open with DEXTER

$\begin{figure} \par\includegraphics[width=17cm]{7210fig13.eps} \end{figure}$	Figure 13: $K_{\rm s}$ vs. $(J-K_{\rm s})$ colour-magnitude diagram for the SOFI data without( left panel) and with ( right panel) the PMS isochrones of Palla & Stahler (1993): 0.0-0.3 Myr ( blue), 1.4-2.5 Myr ( orange), and 3.2-5.0 Myr ( red).
Open with DEXTER

$\begin{figure} \par\includegraphics[width=17cm]{7210fig14.eps} \end{figure}$	Figure 14: Left panel: $K_{\rm s}$ -luminosity function for the SOFI data. The light and dark lines represent the function before and after the control field subtraction, respectively. Right panel: $K_{\rm s}$ -luminosity function for the NACO data. No control field subtraction was applied.
Open with DEXTER
