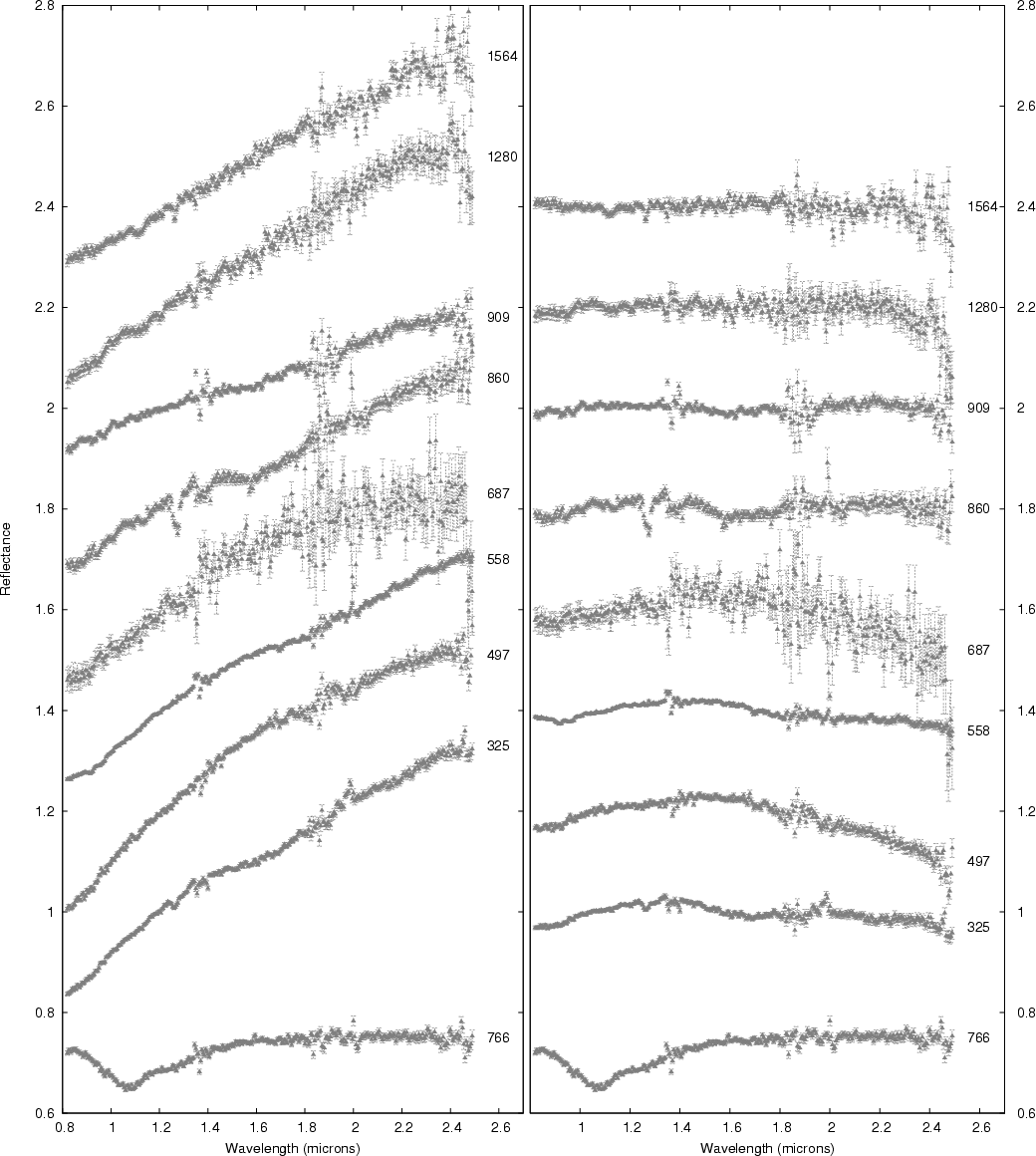

Figure 1:
NIR spectra of the nine observed asteroids, with theirs errorbars. The spectra were normalized
to 1.25 ![]() |
Open with DEXTER |
![]() |

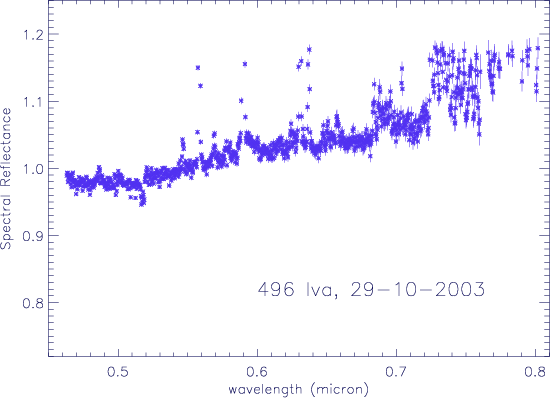

Figure 2: The spectrum of 497 Iva in the visible region, with errorbars. This spectrum exhibits monotonic behavior with a slightly positive slope. The edge of the spectrum is less reliable because of limitations of the instrument and detector (http://www.tng.iac.es/instruments/lrs/). |
Open with DEXTER |
![]() |

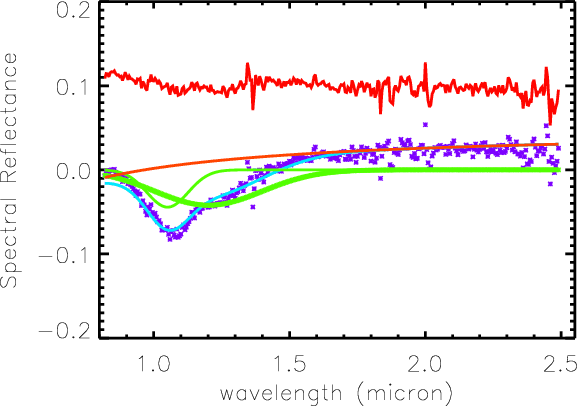

Figure 3: Modified Gaussian Model applied to asteroid 766 Moguntia. Two absorption bands (light green) associated with olivine were used to model the experimental data, by using free parameters option. The error between the real spectrum and the best fit is presented in red. The best fit (turquoise) suggests a surface dominated by olivine minerals. |
Open with DEXTER |
![]() |

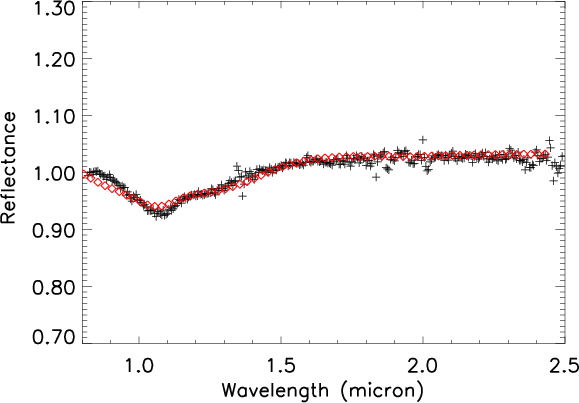

Figure 4:
NIR spectrum of 766 Moguntia (in black) is plotted together with the best fit
(red diamonds) obtained using the Shkuratov model (derived
composition: 100% olivine with Mg number = ![]() |
Open with DEXTER |
![]() |

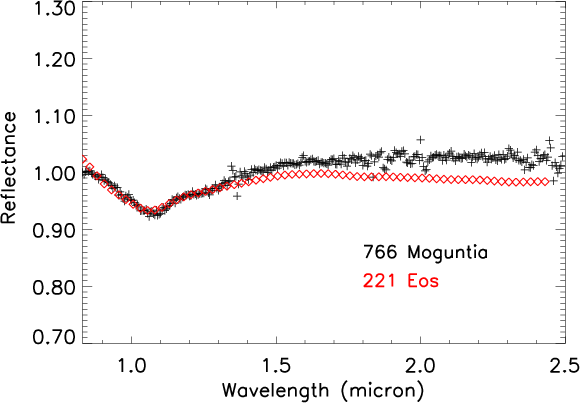

Figure 5: NIR spectrum of 766 Moguntia presents a trend very similar to the asteroid 221 Eos, classified as a K class member. |
Open with DEXTER |
![]() |

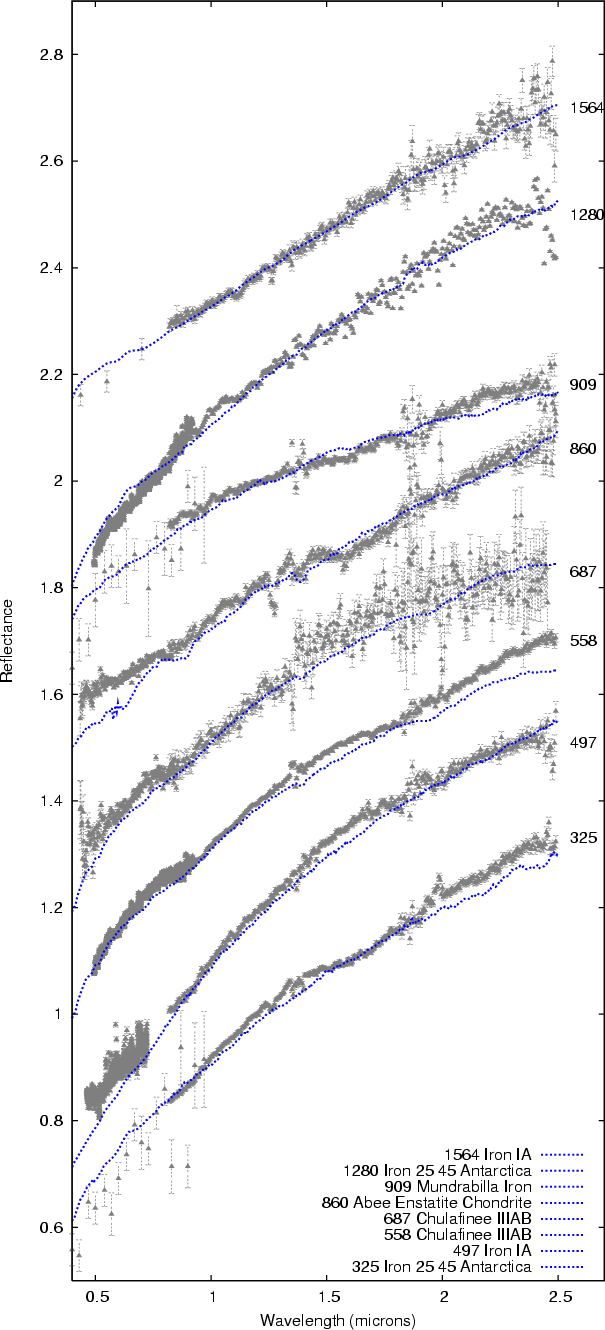

Figure 6: Spectra of the asteroids presented here and the inferred meteorites (in blue). The legend describing the meteorites corresponds to the best fit, in order, from the top to the bottom. The asteroid visible spectra complement our NIR spectra as discussed in the text. |
Open with DEXTER |
